Mazi SICH-2036AUT User manual

Network Zoom Camera
User Manual

User Manual of Network Zoom Camera & Zoom Camera Module
i
User Manual
About this Manual
This Manual is applicable to Network Zoom Camera & Zoom Camera Module.
The Manual includes instructions for using and managing the product. Pictures, charts, images and all
other information hereinafter are for description and explanation only. The information contained in
the Manual is subject to change, without notice, due to firmware updates or other reasons. Please
find the latest version in the company website.
Please use this user manual under the guidance of professionals.
Legal Disclaimer
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED, WITH ITS
HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED "AS IS", WITH ALL FAULTS AND ERRORS, AND
OUR COMPANY MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION,
MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND
NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL OUR COMPANY, ITS DIRECTORS, OFFICERS,
EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR
INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS,
BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE
OF THIS PRODUCT, EVEN IF OUR COMPANY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES.
REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT
YOUR OWN RISKS. OUR COMPANY SHALL NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL
OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER
ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, OUR COMPANY WILL
PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.
SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR
JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS THE
APPLICABLE LAW. OUR COMPANY SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED
WITH ILLEGITIMATE PURPOSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER
PREVAILS.

User Manual of Network Zoom Camera
ii
Regulatory Information
FCC Information
Please take attention that changes or modification not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
FCC compliance: This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential area
is likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause
undesired operation.
EU Conformity Statement
This product and - if applicable - the supplied accessories too are marked with
"CE" and comply therefore with the applicable harmonized European standards
listed under the EMC Directive 2014/30/EU, the LVD Directive 2014/35/EU, the
RoHS Directive 2011/65/EU, the ATEX Directive 2014/34/EU.
2012/19/EU (WEEE directive): Products marked with this symbol cannot be
disposed of as unsorted municipal waste in the European Union. For proper
recycling, return this product to your local supplier upon the purchase of
equivalent new equipment, or dispose of it at designated collection points. For
more information see: www.recyclethis.info.
2006/66/EC (battery directive): This product contains a battery that cannot be
disposed of as unsorted municipal waste in the European Union. See the product
documentation for specific battery information. The battery is marked with this
symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or
mercury (Hg). For proper recycling, return the battery to your supplier or to a designated
collection point. For more information see: www.recyclethis.info.
Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.

User Manual of Network Zoom Camera
iii
Safety Instruction
These instructions are intended to ensure that the user can use the product correctly to avoid
danger or property loss.
The precaution measure is divided into ‘Warnings’ and ‘Cautions’:
Warnings: Serious injury or death may be caused if any of these warnings are neglected.
Cautions: Injury or equipment damage may be caused if any of these cautions are neglected.
Warnings Follow these safeguards to prevent
serious injury or death.
Cautions Follow these precautions to prevent
potential injury or material damage.
Warnings:
Adopt the power adapter which can meet the safety extra low voltage (SELV) standard. The
power consumption cannot be less than the required value.
Do not connect several devices to one power adapter as an adapter overload may cause
over-heating and can be a fire hazard.
When the product is installed on a wall or ceiling, the device should be firmly fixed.
To reduce the risk of fire or electrical shock, do not expose the indoor used product to rain or
moisture.
This installation should be made by a qualified service person and should conform to all the
local codes.
Install blackouts equipment into the power supply circuit for convenient supply interruption.
If the product does not work properly, contact your dealer or the nearest service center.
Never attempt to disassemble the product yourself. (We shall not assume any responsibility
for problems caused by unauthorized repair or maintenance.)
Cautions:
If the camera fails to synchronize local time with that of the network, you need to set up
camera time manually. Visit the camera (via web browser or client software) and enter
system settings interface for time settings.
Make sure the power supply voltage is correct before using the product.
Do not drop the product or subject it to physical shock. Do not install the product on
vibratory surface or places.
Do not expose it to high electromagnetic radiating environment.

User Manual of Network Zoom Camera
iv
Do not aim the lens at the strong light such as sun or incandescent lamp. The strong light can
cause fatal damage to the product.
The sensor may be burned out by a laser beam, so when any laser equipment is being used,
make sure that the surface of the sensor not be exposed to the laser beam.
For working temperature, refer to the specification manual for details.
To avoid heat accumulation, good ventilation is required for a proper operating environment.
While shipping, the product should be packed in its original packing.
Use the provided glove when open up the product cover. Do not touch the product cover
with fingers directly, because the acidic sweat of the fingers may erode the surface coating of
the product cover.
Use a soft and dry cloth when clean inside and outside surfaces of the product cover. Do not
use alkaline detergents.
Improper use or replacement of the battery may result in hazard of explosion. Use the
manufacturer recommended battery type.

User Manual of Network Zoom Camera
v
Table of Contents
CHAPTER 1 OVERVIEW .................................................................................................................1
1.1 SYSTEM REQUIREMENT ..................................................................................................................1
1.2 FUNCTIONS..................................................................................................................................1
CHAPTER 2 NETWORK CONNECTION ............................................................................................3
2.1 SETTING THE NETWORK CAMERA OVER THE LAN................................................................................3
2.1.1 Wiring over the LAN ............................................................................................................3

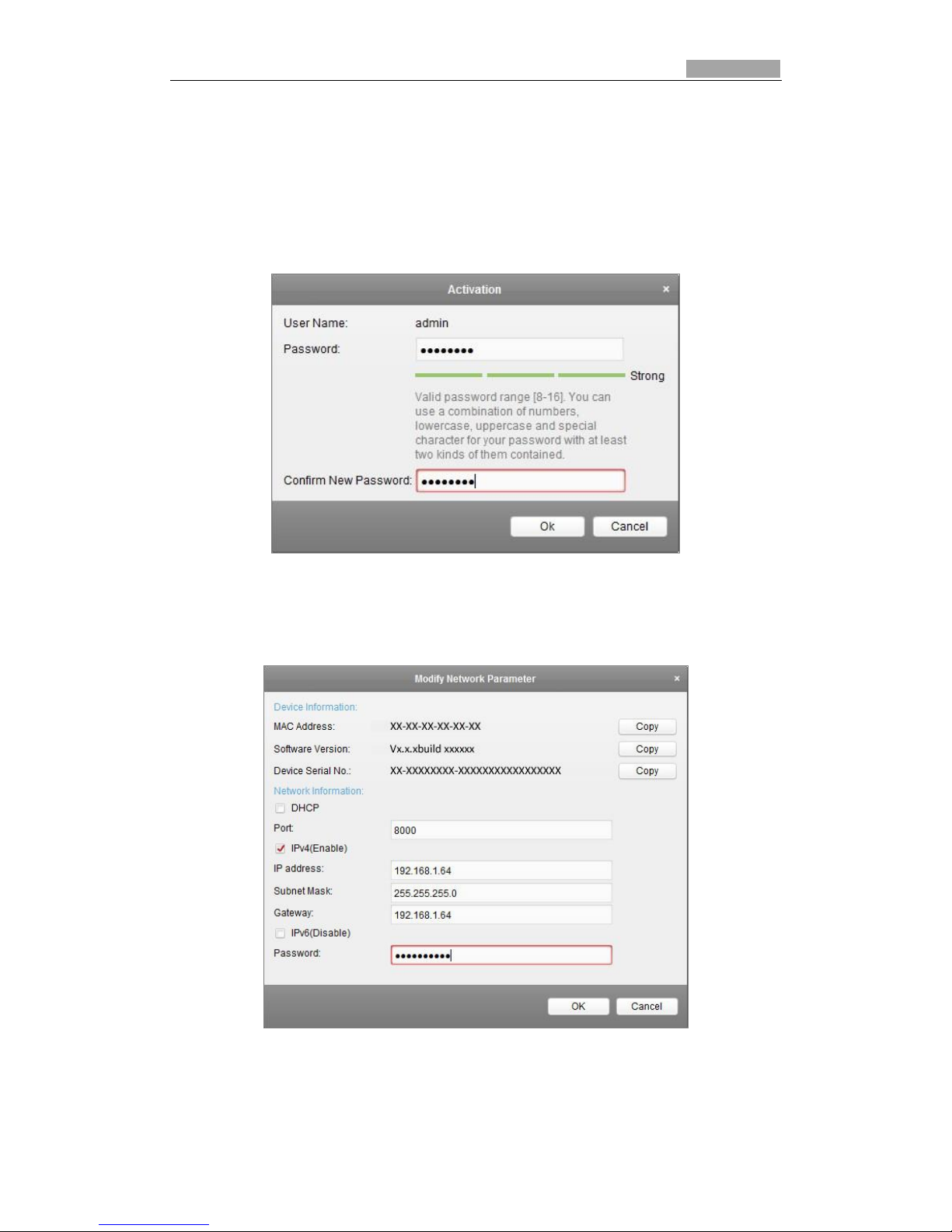

2.1.2 Activating the Camera .........................................................................................................4
2.1.3 (Optional) Setting Security Question....................................................................................9
2.2 SETTING THE NETWORK CAMERA OVER THE WAN ..............................................................................9
2.2.1 Static IP Connection .............................................................................................................9
2.2.2 Dynamic IP Connection ......................................................................................................10
CHAPTER 3 ACCESSING TO THE NETWORK CAMERA...................................................................12

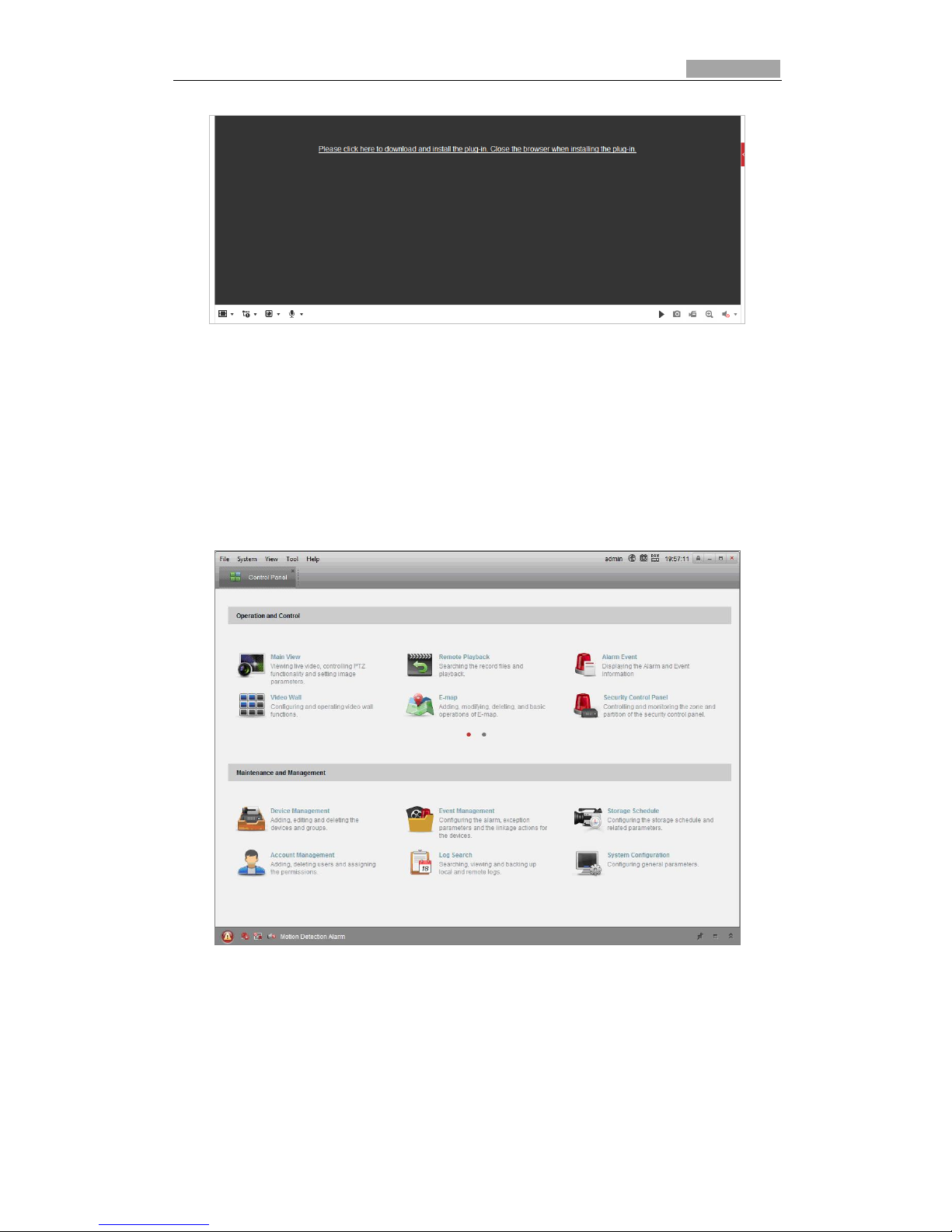

3.1 ACCESSING BY WEB BROWSERS .....................................................................................................12

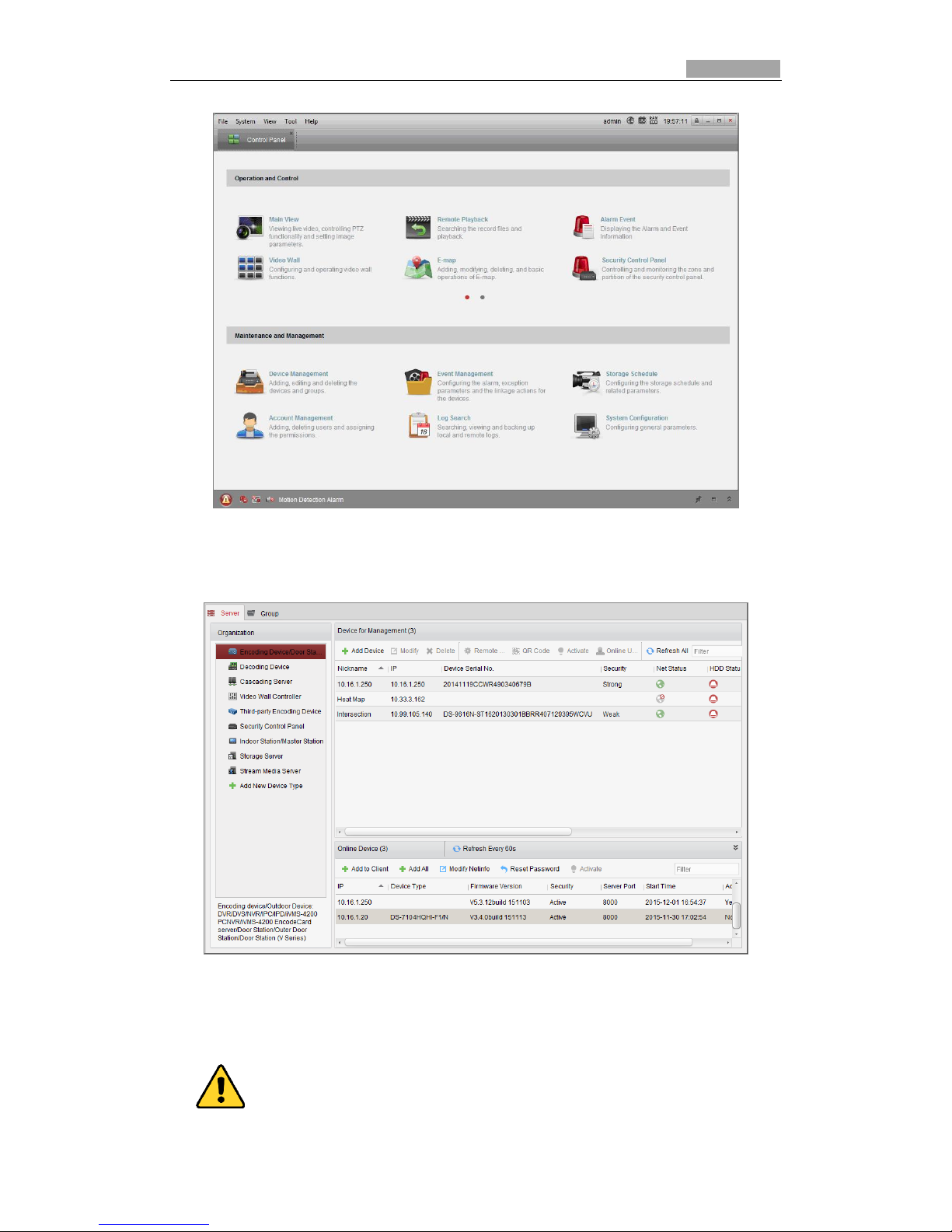

3.2 ACCESSING BY CLIENT SOFTWARE...................................................................................................13
CHAPTER 4 BASIC OPERATIONS ..................................................................................................15
4.1 CONFIGURING LOCAL PARAMETERS ................................................................................................15
4.2 LIVE VIEW PAGE .........................................................................................................................16
4.3 STARTING LIVE VIEW ...................................................................................................................17
4.4 OPERATING PTZ CONTROL ...........................................................................................................19
4.4.1 PTZ Control Panel...............................................................................................................20
4.4.2 Auxiliary Functions.............................................................................................................21
4.4.3 Setting/Calling a Preset .....................................................................................................23
4.4.4 Setting/Calling a Patrol......................................................................................................25
4.4.5 One-touch Patrol................................................................................................................26
4.4.6 Setting/Calling a Pattern ...................................................................................................27
4.5 PLAYBACK..................................................................................................................................28
4.5.1 Play Back Video Files .........................................................................................................28
4.5.2 Downloading Video Files ...................................................................................................30
4.6 PICTURES ..................................................................................................................................30
CHAPTER 5 SYSTEM CONFIGURATION.........................................................................................32
5.1 STORAGE SETTINGS .....................................................................................................................32
5.1.1 Configuring Recording Schedule ........................................................................................32
5.1.2 Configuring Capture Schedule............................................................................................34
5.1.3 Configuring Net HDD .........................................................................................................35
5.2 BASIC EVENT CONFIGURATION.......................................................................................................38
5.2.1 Configuring Motion Detection ...........................................................................................38
5.2.2 Configuring Video Tampering Alarm .................................................................................43
5.2.3 Configuring Alarm Input ....................................................................................................44
5.2.4 Configuring Alarm Output .................................................................................................46

User Manual of Network Zoom Camera
vi
5.2.5 Handling Exception ............................................................................................................47
5.3 SMART EVENT CONFIGURATION.....................................................................................................47
5.3.1 Detecting Audio Exception.................................................................................................48
5.3.2 Configuring Intrusion Detection.........................................................................................49
5.3.3 Configuring Line Crossing Detection ..................................................................................50
5.4 PTZ CONFIGURATION ..................................................................................................................52
5.4.1 Configuring Basic PTZ Parameters .....................................................................................52
5.4.2 Configuring Park Actions....................................................................................................52
CHAPTER 6 CAMERA CONFIGURATION .......................................................................................54
6.1 CONFIGURING NETWORK SETTINGS................................................................................................54
6.1.1 Basic Settings.....................................................................................................................54
6.1.2 Advanced Settings..............................................................................................................59
6.2 CONFIGURING VIDEO AND AUDIO SETTINGS.....................................................................................68
6.2.1 Configuring Video Settings ................................................................................................68
6.2.2 Configuring Audio Settings ................................................................................................69
6.2.3 Configuring ROI Settings....................................................................................................70
6.3 CONFIGURING IMAGE SETTINGS.....................................................................................................72
6.3.1 Configuring Display Settings ..............................................................................................72
6.3.2 Configuring OSD Settings...................................................................................................77
6.3.3 Configuring Text Overlay Settings ......................................................................................79
6.3.4 Configuring Privacy Mask ..................................................................................................79
6.4 CONFIGURING SYSTEM SETTINGS ...................................................................................................80
6.4.1 System Settings..................................................................................................................80
6.4.2 Maintenance......................................................................................................................84
6.4.3 Security ..............................................................................................................................87
6.4.4 User Management .............................................................................................................89
APPENDIX ........................................................................................................................................93
SADP SOFTWARE INTRODUCTION ..............................................................................................................93

User Manual of Network Zoom Camera & Zoom Camera Module
1
Chapter 1 Overview
1.1 System Requirement
System requirement of web browser accessing is as follows:
Operating System: Microsoft Windows XP SP1 and above version/Vista/Win7/Server 2003/Server
2008 32bits
CPU: Intel Pentium IV 3.0 GHz or higher
RAM: 1G or higher
Display: 1024 × 768 resolution or higher
Web Browser: Internet Explorer 8.0 and above version, Apple Safari 5.02 and above version,
Mozilla Firefox 5 and above version and Google Chrome 18 and above versions.
1.2 Functions
The functions vary depending on different camera models.
Privacy Mask
This function allows you to block or mask certain area of a scene, for preventing the personal
privacy from recording or live viewing.
Auto Focus
The auto focus enables the camera to focus automatically to maintain clear video images.
Day/Night Auto Switch
The cameras deliver color images during the day. And as light diminishes at night, the cameras
switch to night mode and deliver black and white images with high quality.
Slow Shutter
In slow shutter mode, the shutter speed will automatically slow down in low illumination
conditions to maintain clear video images by extending the exposure time. The feature can be
enabled or disabled.
Backlight Compensation (BLC)
If you focus on an object against strong backlight, the object will be too dark to be seen clearly.
The BLC (Backlight Compensation) function can compensate light to the object in the front to
make it clear, but this causes the over-exposure of the background where the light is strong.
Wide Dynamic Range (WDR)
The wide dynamic range (WDR) function helps the camera provide clear images even under back
light circumstances. When there are both very bright and very dark areas simultaneously in the
field of view, WDR balances the brightness level of the whole image and provide clear images
with details.
White Balance (WB)
White balance can remove the unrealistic color casts. White balance is the white rendition

User Manual of Network Zoom Camera
2
function of the camera to adjust the color temperature according to the environment
automatically.
User Management
The camera allows you to edit users with different levels of permission, in the admin login status.
Multiple users are allowed to access and control the same camera via network simultaneously.
3D Digital Noise Reduction
Comparing with the general 2D digital noise reduction, the 3D digital noise reduction function
processes the noise between two frames besides processing the noise in one frame. The noise
will be much less and the video will be clearer.

User Manual of Network Zoom Camera & Zoom Camera Module
3
Chapter 2 Network Connection
You shall acknowledge that the use of the product with Internet access might be under
network security risks. For avoidance of any network attacks and information leakage,
strengthen your own protection. If the product does not work properly, contact with your
dealer or the nearest service center.
To ensure the network security of the network camera, we recommend you to have the
network camera assessed and maintained termly. You can contact us if you need such
service.
Before you start:
If you want to set the network camera via a LAN (Local Area Network), refer to Section 2.1
Setting the Network Camera over the LAN.
If you want to set the network camera via a WAN (Wide Area Network), refer to Section 2.2
Setting the Network Camera over the WAN.
2.1 Setting the Network Camera over the LAN
Purpose:
To view and configure the camera via a LAN, you need to connect the camera in the same subnet
with your computer, and install the SADP or client software to search and change the IP of the
network camera.
For the detailed introduction of SADP, refer to Appendix.
2.1.1 Wiring over the LAN
The following figures show the two ways of cable connection of a network camera and a
computer:
Purpose:
To test the network camera, you can directly connect the network camera to the computer
with a network cable as shown in Figure 2-1.
Refer to the Figure 2-2 to set the network camera over the LAN via a switch or a router.
Network Cable
Network Camera
Computer
Figure 2-1 Connecting Directly
