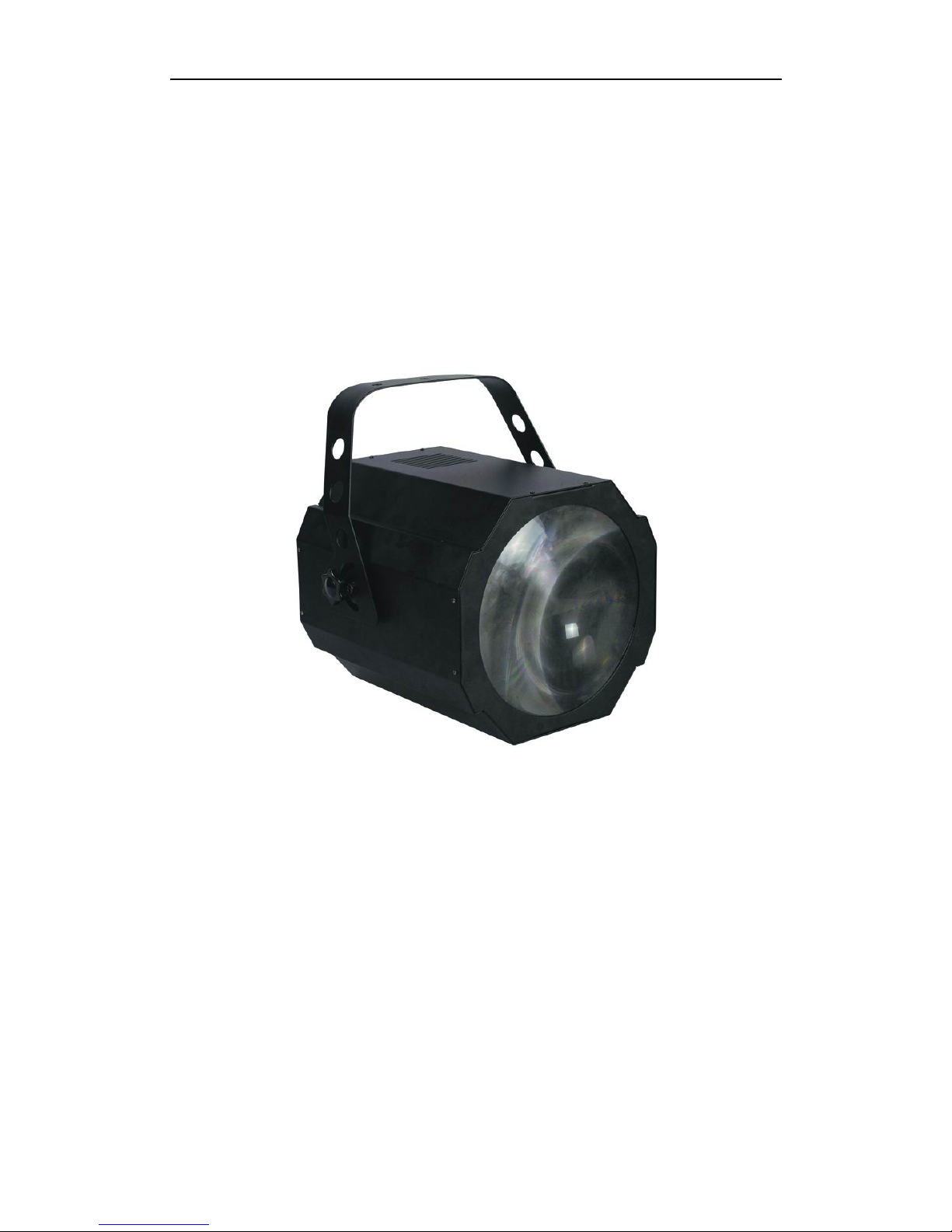

MBT LEDMOONDOG User manual

User manual
LEDMOONDOG

1
Table of contents
Introduction--------------------------------------------------------------------------------------2
Safety information-----------------------------------------------------------------------------2
Panel review------------------------------------------------------------------------------------2
Installation----------------------------------------------------------------------------------------3
Overhead mounting----------------------------------------------------------------------3
Multi-connectors---------------------------------------------------------------------------3
Input/output pin----------------------------------------------------------------------------4
Operation-----------------------------------------------------------------------------------------4
Switch on/off--------------------------------------------------------------------------------4
Brief function chart------------------------------------------------------------------------4
DMX mode-----------------------------------------------------------------------------------5
MASTER mode-----------------------------------------------------------------------------8
SLAVE mode--------------------------------------------------------------------------------9
Maintenance-----------------------------------------------------------------------------------11
Troubleshooting-----------------------------------------------------------------------------11
Cleaning--------------------------------------------------------------------------------------12
Technical specification----------------------------------------------------------------------12
Appendix----------------------------------------------------------------------------------------13

2
INTRODUCTION
Welcome to use LED moon flower light. This unit has DMX mode, Sound active mode
and Master/Slave mode. It adopts dipswitches to choose functions, which makes it easy to
operate. Besides, it is compactable and suitable for all kinds of entertainment places.
Read the instructions carefully and thoroughly before use and follow operations it
referred to you.
Main features:
zDMX –512 protocol, 9 DMX channels
zDMX mode, automatic mode, sound active and Master/Slave mode
zBuilt-in auto programs
zBuilt-in sound active programs
SAFETYINFORMATION
zFor indoor use only.
zPut it in a dry, ventilated place in case of short cut caused by erosion of moisture and
rain.
zDo not install it nearby hot place in case rising temperature of light damage itself.
zDo not barrier vent in order to ventilate well and dissipate in time.
zConnect the light with power source and ground the fixture electrically. Voltage of
power source is in accordance with rating voltage.
zIf fuse was damaged, change it with the same type fuse.
zNo spared accessories is available .If needed, please contact the factory.
zAmbient of the light should not exceed 400
zIf any problem, contact professional technician to solve.
PANELREVIEW

3
INSTALLATION
Overhead mounting
zVerify that the structure can support at least 10 times the weight of all installed
fixtures, clamp, cables, auxiliary equipment, and other items.
zIf hanging the fixture with a rigging clamp, verify that the clamp is undamaged and is
designed for the fixture’s weight. Bolt the clamp securely to the mounting bracket on
the fixture with a grade 8.8 minimum.
zWorking from a stable platform, clamp or fasten the fixture to the structure
zLoose the swivel locks, tilt the fixture to the desired angle, and retighten it.
zVerify the fixture is at least 3.3ft from the surface to be illuminated and at least 1ft from
any combustible materials.

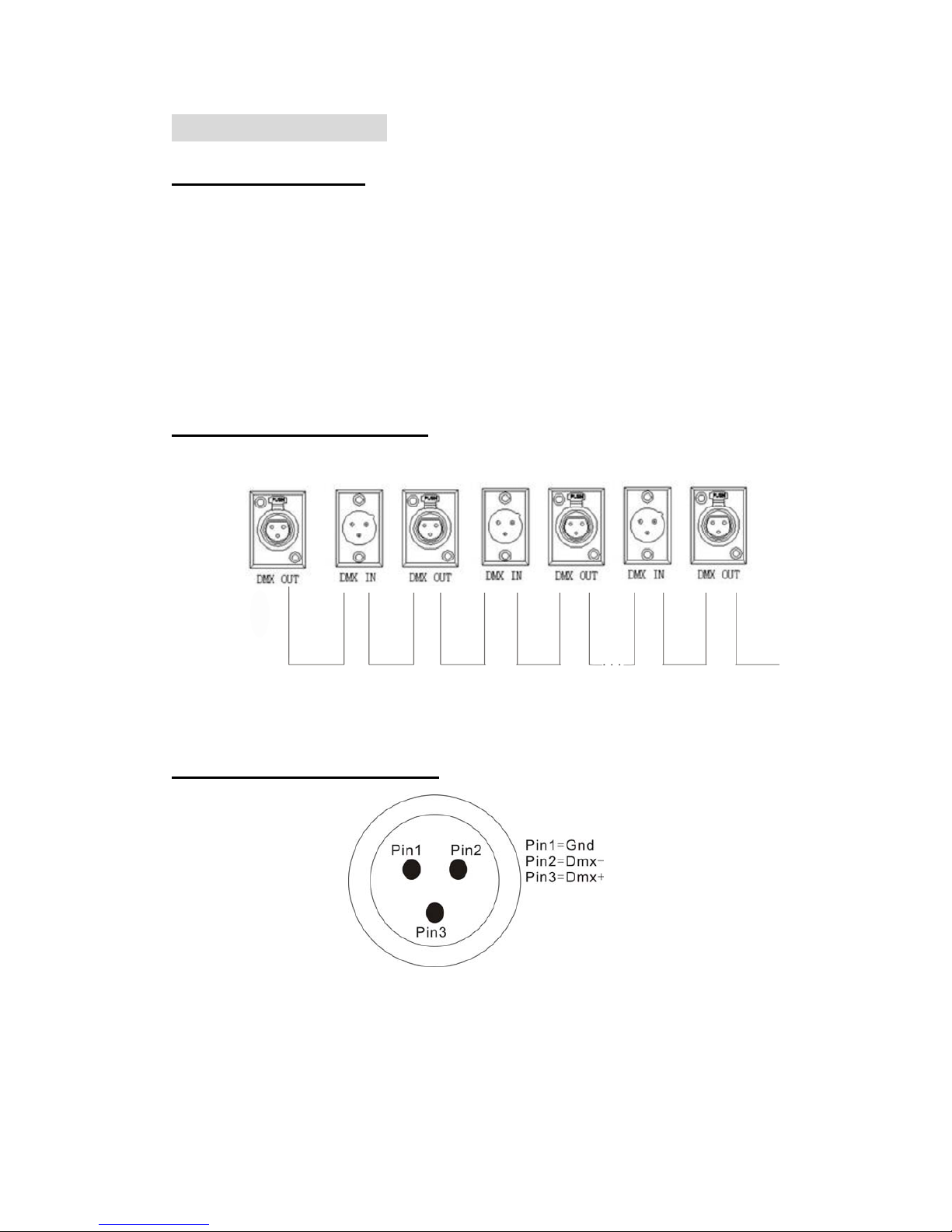

Multi-connectors methods
Controller/Master Light 1 Light2 … Light n
Input/output pin instruction

4
OPERATION
Switch on/off
Switch 2 is on, the left is off .
Brief function chart (X means both On and Off are ok)
Switches
Function #1 #2 #3 #4 #5 #6 #7 #8 #9 #10
D M X Set DMX address ON
S LA V E x x x x x x x x x ON
M
A
S
T
E
R
SOUND AUTO OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF
AUTO Auto speed OFF OFF OFF OFF ON OFF
STROBE x x x x Strobe speed OFF ON OFF
ALL ON x x x x x x x ON ON OFF

5
DMX mode introduction

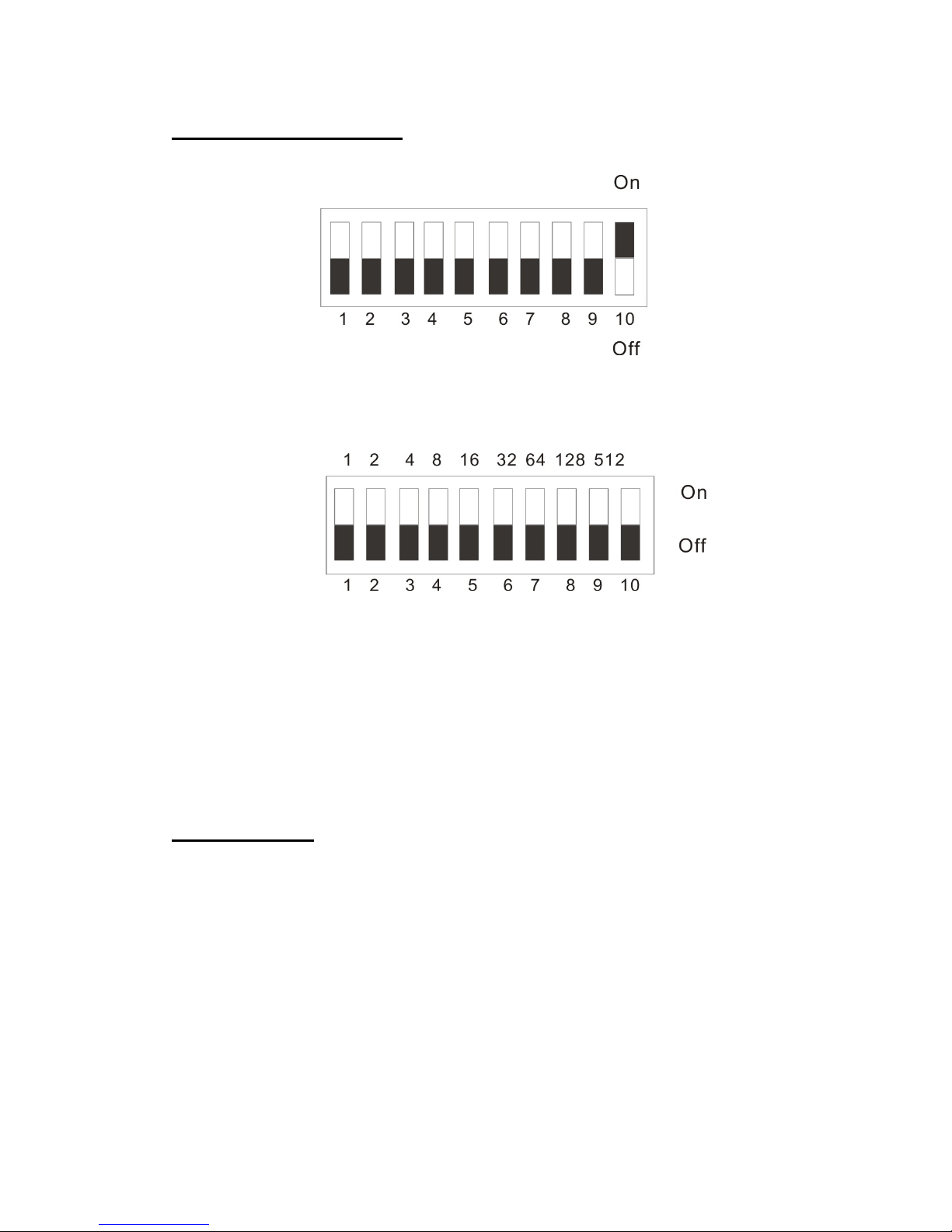

Setting DMX mode
Notes: X means no matter dipswitch1~9 is ON or OFF, dipswitches will not function.
Calculate DMX address
FOR EXAMPLE: if switch #2 and switch#3 is on and the left are off, DMX address is 6.
(0+0+0+0+0+0+4+2+0 = 6)
Switch #9 =0; Switch #8 = 0; Switch #7 = 0; Switch #6 = 0; Switch #5 =0;Switch #4 =
0;Switch #3 = 4;Switch #2 = 2; Switch #1 = 0.
Notes: 1. DMX address can be set by switches1~9.
2. when switch10 is ON, it is DMX mode, otherwise it is MASTER /SLAVE mode.
3. When switch is ON, its value is the correspondent data on the top.
DMX function
zWhen DMX signal exists, blue LED will flash.
zEach fixture occupies 9 DMX channels.
zDMX 512 signal can control multi fixtures ’ different movements at the same time.
zDifferent DMX address of each fixture will lead to different movements.
zHowever, DMX address should be set first.

6

7

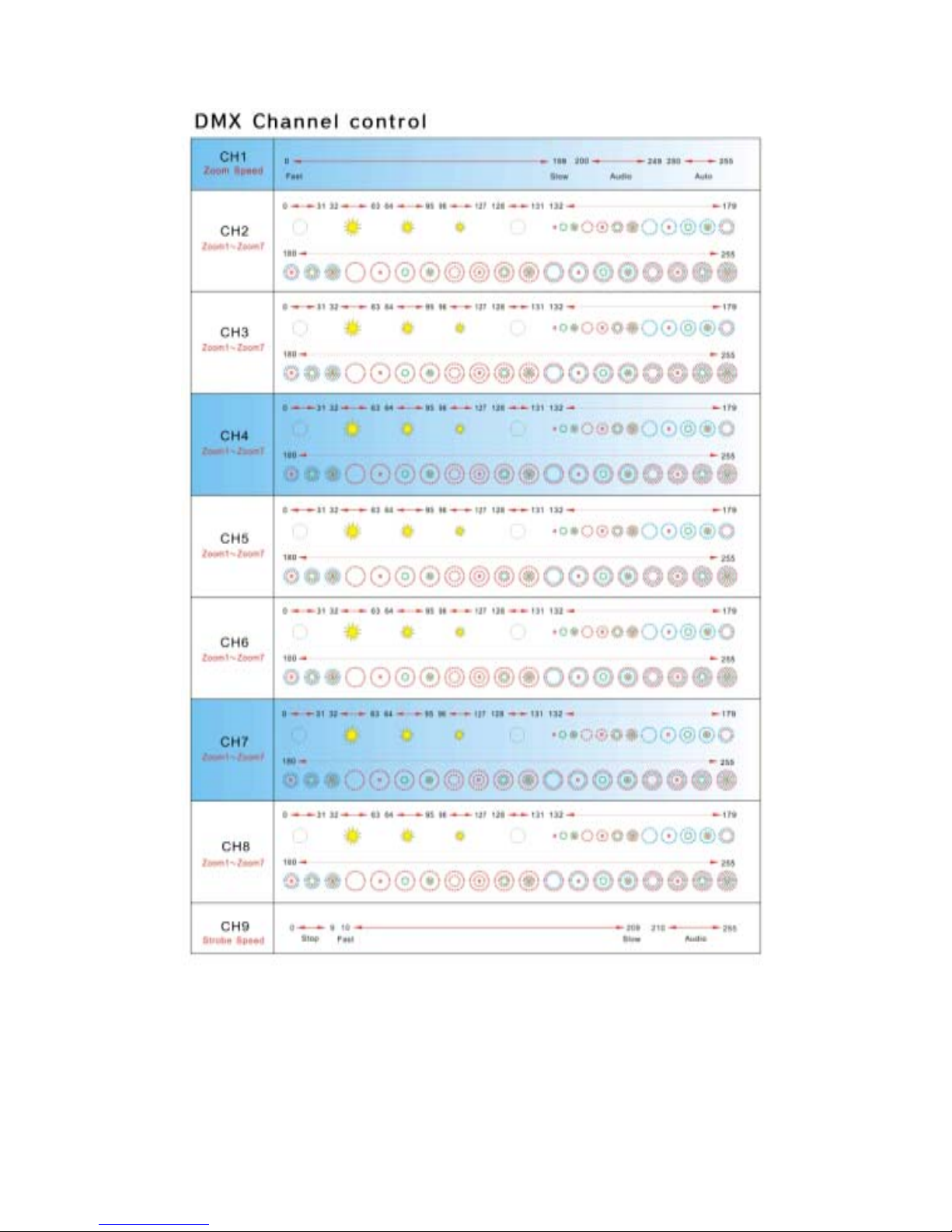

Channel Data Function
1
000 199
Mode
strobe
200 249 Sound active（all clusters in auto mode）
250 255 Auto + sound
2
000 031
LED
Cluster1
No mode
032 063 Auto mode 1
064 095 Auto mode 2
096 127 Auto mode 3
128 131 No mode
132 255 Static color (refer to static color chart)
3
000 031
LED
Cluster2
No mode
032 063 Auto mode 1
064 095 Auto mode 2
096 127 Auto mode 3
128 131 No mode
132 255 Static color (refer to static color chart)
4
000 031
LED
Cluster 3
No mode
032 063 Auto mode 1
064 095 Auto mode 2
096 127 Auto mode 3
128 131 No mode
132 255 Static color (refer to static color chart)
5
000 031
LED
Cluster4
No mode
032 063 Auto mode 1
064 095 Auto mode 2
096 127 Auto mode 3
128 131 No mode
132 255 Static color (refer to static color chart)
6 000 031 LED No mode

8
032 063 Cluster5 Auto mode 1
064 095 Auto mode 2
096 127 Auto mode 3
128 131 No mode
132 255 Static color (refer to static color chart)
7
000 031
LED
Cluster 6
No mode
032 063 Auto mode 1
064 095 Auto mode 2
096 127 Auto mode 3
128 131 No mode
132 255 Static color (refer to static color chart)
8
000 031
LED
Cluster
7
No mode
032 063 Auto mode 1
064 095 Auto mode 2
096 127 Auto mode 3
128 131 No mode
132 255 Static color (refer to static color chart)
9
000 009
Strobe
No
010 209 fast—>slow( in static colors)
210 255 Sound active mode (in static colors)

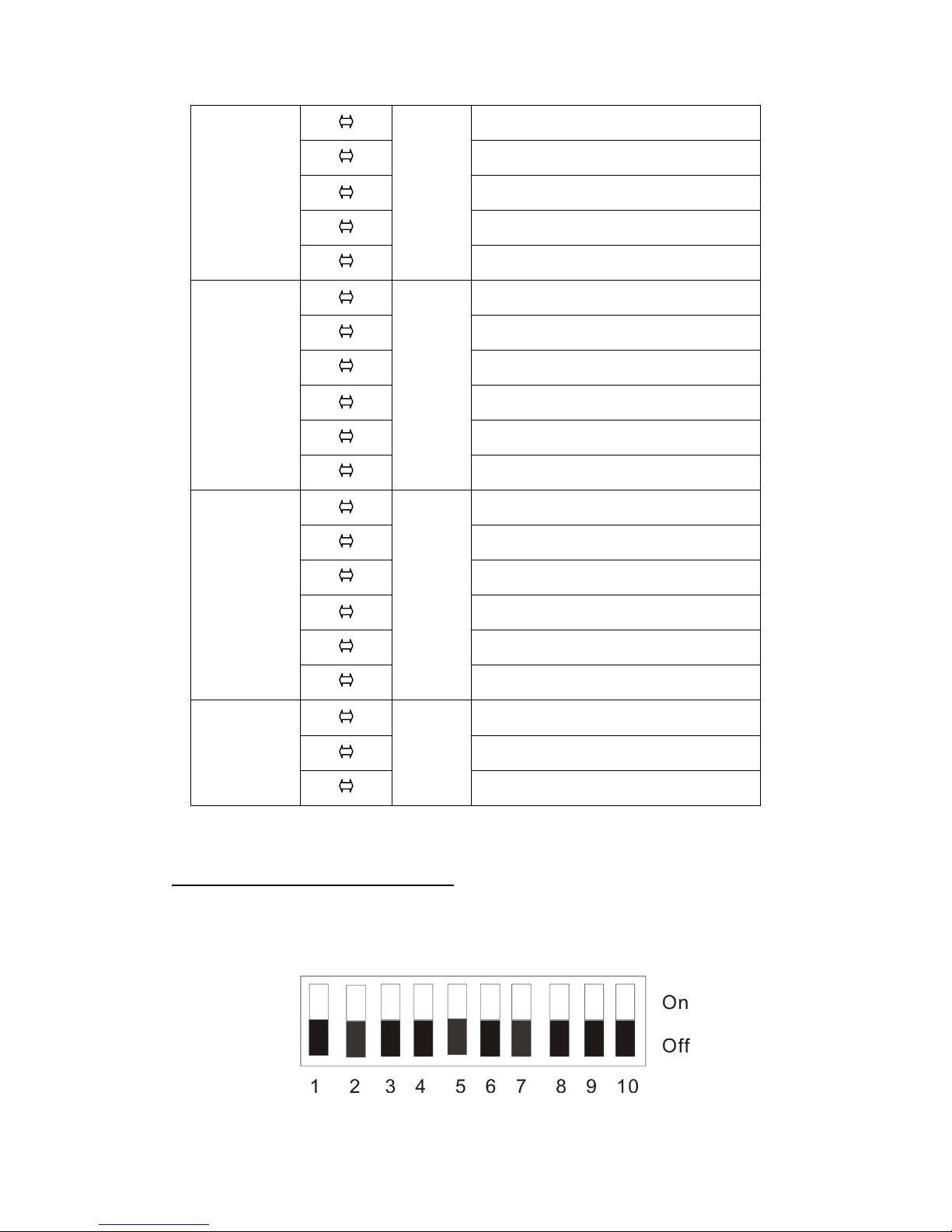

MASTER mode introduction
This light is connected with multi-fixtures and a controller. Set one master connected with
the controller and the left fixtures are slaves.
Auto+Sound active mode

9

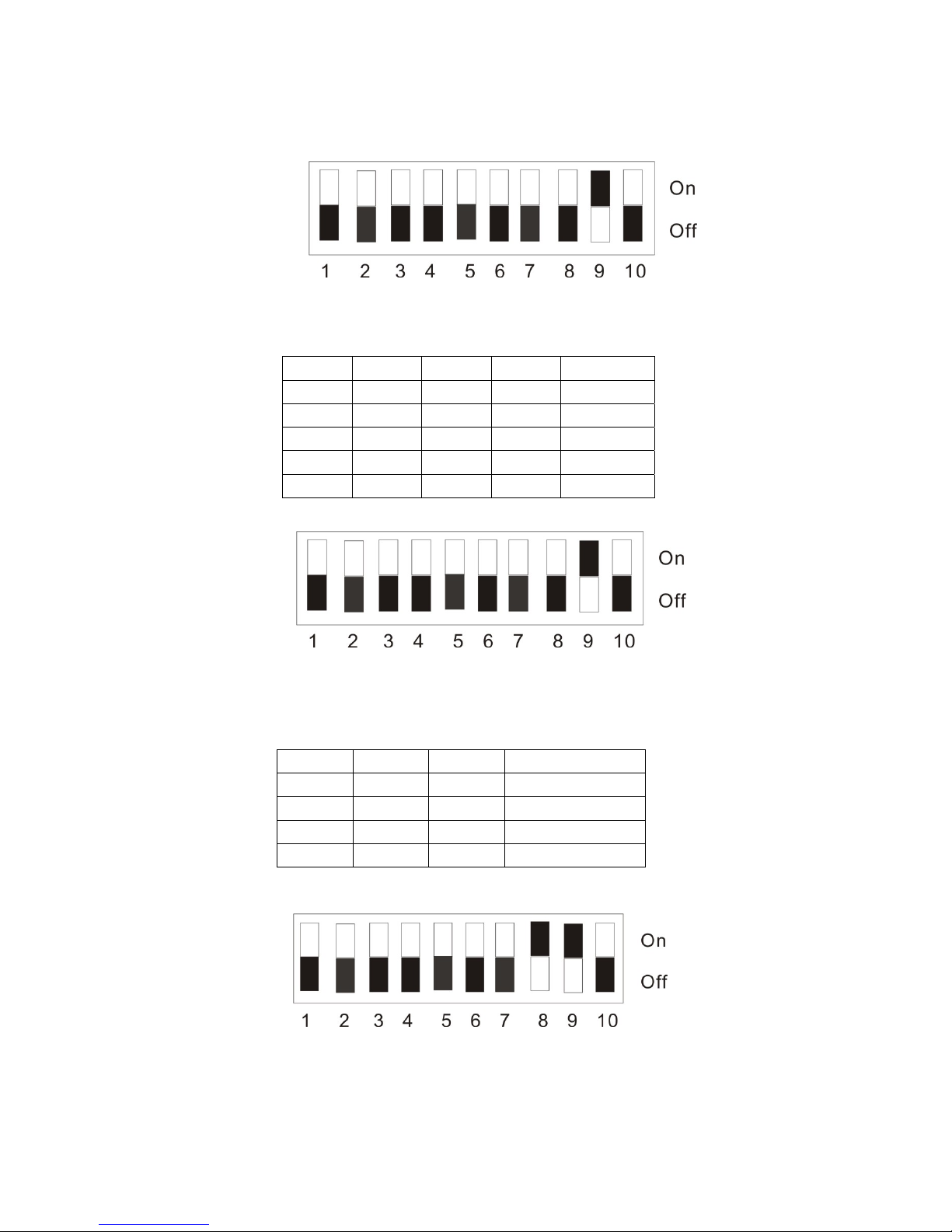

Auto mode
Notes:1.Adjust auto speed by switch#1~4
2. Switch#5,6,7,8,10 is off.
Auto speed adjustment(X means both On and Off are ok)
Switch1 Switch2 Switch3 Switch4 Auto speed
OFF OFF OFF OFF No speed
ON OFF OFF OFF Slow
×ON OFF OFF Middle
××ON OFF Fast
×××ON Very fast
Strobe mode
Notes: 1.No matter switch#1~4 is On or Off, it won’t affect performance.
2.Adjust strobe speed by switch#5~7(see the following chart).
Strobe speed adjustment (X means both On and Off are ok)
Switch5 Switch6 Switch7 Strobe speed
OFF OFF OFF No speed
ON OFF OFF Slow
×ON OFF Middle
××ON Fast
All on (switch#1~7 won’t function no matter On or Off)

10

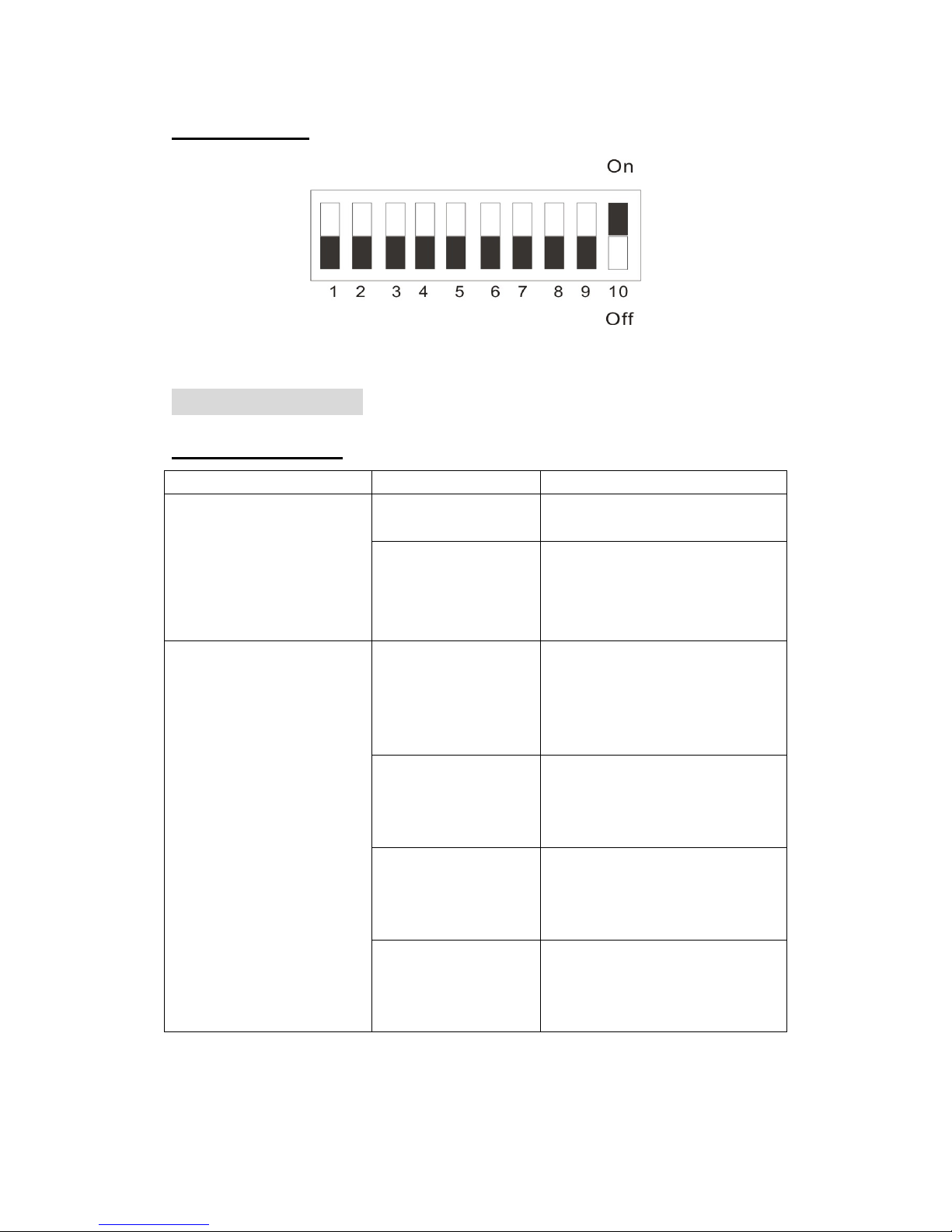

SLAVE mode ( Master and Slaves synchronize)
Notes: 1.Set DMX address by switch1~9 .
2.When switch10 is ON, it is DMX mode. Otherwise it is master mode.
MAINTENANCE
Troubleshooting
Problem Probable cause(s) Suggested remedy
Fixtures does not work
No power source Check if power source is on and
power cord is connected well.
Fuse burnt
Cut off power source and change
the same type fuse. If fuse was
burnt on end, it may be the
problem of line connection
Reset normally, but
controller abnormally or no
response
False or incomplete
data connection
Check the data line.
Ensure connection of data line is
right and the first lamp’s single
input is connected with the
controller output.
False address setting Check DMX address.
Problem of signal cord
of some fixtures Pull out signal line and butt joint, trying to find malfunctioned lamp
one by one. Or contact with
professional technicians.
Signal output does
not match with the pin
(pins2 and pins3 has a
wrong sequence)
Toggle the PHASE button on the
controller to reverse the polarity.

11
Cleaning
Quality of the product is our top priority. However it is indispensable to maintain it
periodically to ensure best performance. Following advices are for you reference.
First, clean fan and vent.
Clean fan and vent periodically to dissipate heat and ventilate well. Otherwise dust maybe
barrier vent and affect performance.
Second, check line periodically.
Check connecting line, wiring and ground line to ensure safety of light.
TECHNICALSPECIFICATION
Dimension----------------------------------------------------------------------L12.6 x W14 x 13.8H inch
LED color & number---------------------------------------------------------red 280/green63/blue 126
Beam angle--------------------------------------------------------------------------------------------------45°
Control& programming
Data input---------------------------------------------------------------------------3 pin XLR male socket
Data output-----------------------------------------------------------------------3 pin XLR female socket
Data pin configuration------------------------------------------------------pin 1 shield, pin 2(-),pin (+)
Protocols------------------------------------------------------------------------------------DMX-512 USITT
DMX channels-------------------------------------------------------------------------------------------------9
Surrounding temperature-------------------------------------------------------------------------------35℃
Surrounding voltage----------------------------------------------------------------------------120V 60HZ
Fuse---------------------------------------------------------------------------------------------------T2A 125V
Power--------------------------------------------------------------------------------------------------------25W
Weight-----------------------------------------------------------------------------------------------------16.5lb

12
Appendix
Static color chart
Value Static color Value Static color
132 135 Red3 196 199 Red3, Red1
136 139 Green1 200 203 Green1, Red1
140 143 Red3, Green1 204 207 Red3, Green1, Red1
144 147 Red2 208 211 Red2, Red1
148 151 Red3, Red2 212 215 Red3, Red2, Red1
152 155 Red2, Green1 216 219 Red2, Green1, Red1
156 159 Red3, Green1, Red2 220 223 Red3, Green1, Red2, Red1
160 163 Blue1 224 227 Blue1, Red1
164 167 Red3, Blue1 228 231 Red3, Blue1, Red1
168 171 Green1, Blue1 232 235 Green1, Blue1, Red1
172 175 Red3, Green1,Blue1 236 239 Red3, Green1, Blue1, Red1
176 179 Red2, Blue1 240 243 Red2, Blue1, Red1
180 183 Red3, Red2, Blue1 244 247 Red3, Red2, Blue1, Red1
184 187 Green1, Red2, Blue1 248 251 Green1, Red2, Blue1, Red1
188 191 Red3, Green1, Red2, Blue1 252 255 Red3,Green1, Red2, Blue1,Red1
192 195 Red1 No No
LED Cluster
Gree
Red2
Blu
Red1
Red3

13
DMX address reference chart
SWITHC SET
0 = OFF
1 = ON
#9 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1
#8 0 0 0 0 1 1 1 1 0 0 0 0 1 1 1 1
#7 0 0 1 1 0 0 1 1 0 0 1 1 0 0 1 1
#6 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1
#1 #2 #3 #4 #5
0 0 0 0 0 32 64 96 128 160 192 224 256 288 320 352 384 416 448 480
1 0 0 0 0 1 33 65 97 129 161 193 225 257 289 321 353 385 417 449 481
0 1 0 0 0 2 34 66 98 130 162 194 226 258 290 322 354 386 418 450 482
1 1 0 0 0 3 35 67 99 131 163 195 227 259 291 323 355 387 419 451 483
0 0 1 0 0 4 36 68 100 132 164 196 228 260 292 324 356 388 420 452 484
1 0 1 0 0 5 37 69 101 133 165 197 229 261 293 325 357 389 421 453 485
0 1 1 0 0 6 38 70 102 134 166 198 230 262 294 326 358 390 422 454 486
1 1 1 0 0 7 39 71 103 135 167 199 231 263 295 327 359 391 423 455 487
0 0 0 1 0 8 40 72 104 136 168 200 232 264 296 328 360 392 424 456 488
1 0 0 1 0 9 41 73 105 137 169 201 233 265 297 329 361 393 425 457 489
0 1 0 1 0 10 42 74 106 138 170 202 234 266 298 330 362 394 426 458 490
1 1 0 1 0 11 43 75 107 139 171 203 235 267 299 331 363 395 427 459 491
0 0 1 1 0 12 44 76 108 140 172 204 236 268 300 332 364 396 428 460 492
1 0 1 1 0 13 45 77 109 141 173 205 237 269 301 333 365 397 429 461 493
0 1 1 1 0 14 46 78 110 142 174 206 238 270 302 334 366 398 430 462 494
1 1 1 1 0 15 47 79 111 143 175 207 239 271 303 335 367 399 431 463 495
0 0 0 0 1 16 48 80 112 144 176 208 240 272 304 336 368 400 432 464 496
1 0 0 0 1 17 49 81 113 145 177 209 241 273 305 337 369 401 433 465 497
0 1 0 0 1 18 50 82 114 146 178 210 242 274 306 338 370 402 434 466 498
1 1 0 0 1 19 51 83 115 147 179 211 243 275 307 339 371 403 435 467 499
0 0 1 0 1 20 52 84 116 148 180 212 244 276 308 340 372 404 436 468 500
1 0 1 0 1 21 53 85 117 149 181 213 245 277 309 341 373 405 437 469 501
0 1 1 0 1 22 54 86 118 150 182 214 246 278 310 342 374 406 438 470 502
1 1 1 0 1 23 55 87 119 151 183 215 247 279 311 343 375 407 439 471 503
0 0 0 1 1 24 56 88 120 152 184 216 248 280 312 344 376 408 440 472 504
1 0 0 1 1 25 57 89 121 153 185 217 249 281 313 345 377 409 441 473 505
0 1 0 1 1 26 58 90 122 154 186 218 250 282 314 346 378 410 442 474 506
1 1 0 1 1 27 59 91 123 155 187 219 251 283 315 347 379 411 443 475 507
0 0 1 1 1 28 60 92 124 156 188 220 252 284 316 348 380 412 444 476 508
1 0 1 1 1 29 61 93 125 157 189 221 253 285 317 349 381 413 445 477 509
0 1 1 1 1 30 62 94 126 158 190 222 254 286 318 350 382 414 446 478 510
1 1 1 1 1 31 63 95 127 159 191 223 255 287 319 351 383 415 447 479 511
