McConnel 1.5M User manual

Publication 939
May 2019
Part No. 24214.39

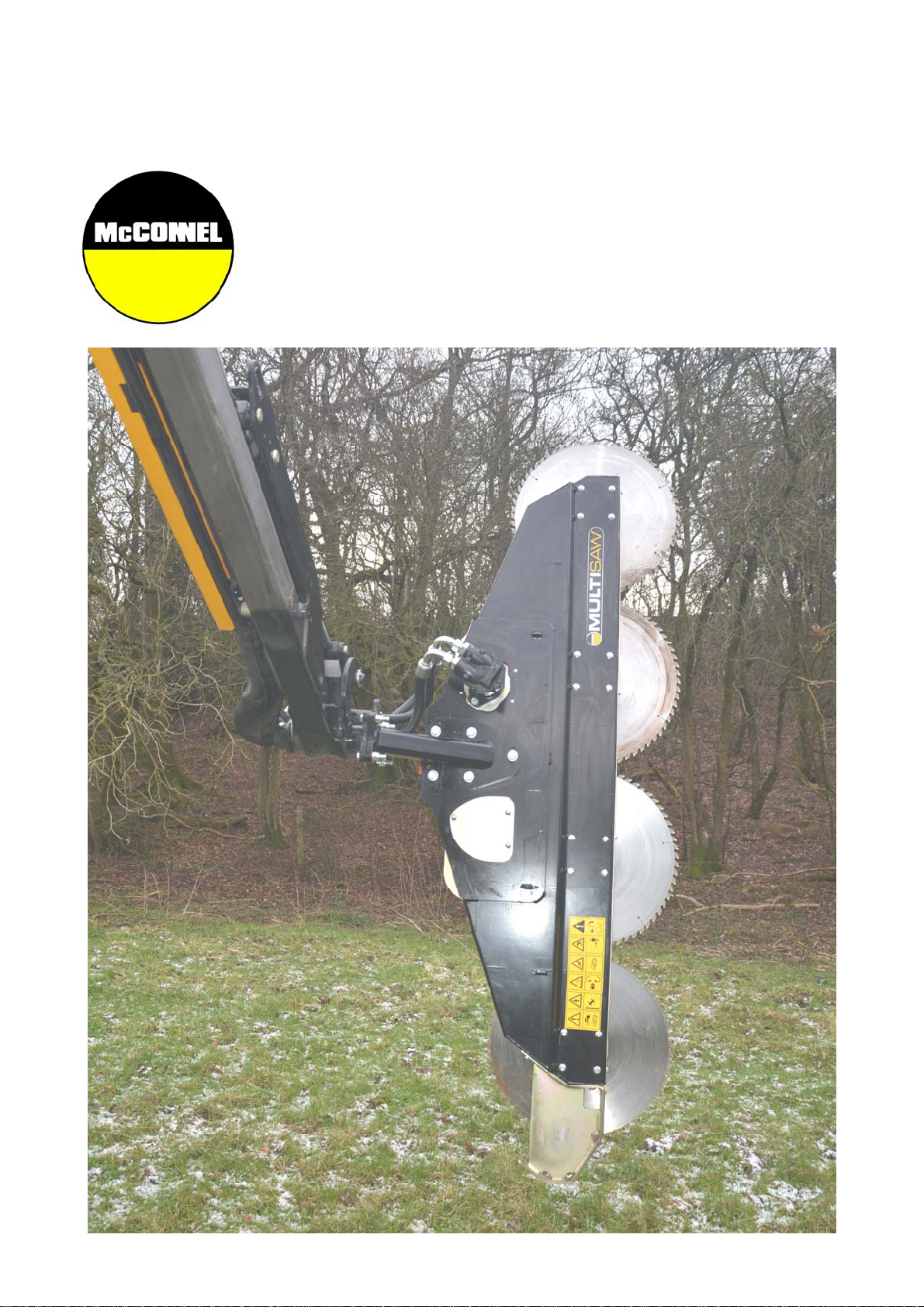

McCONNEL
MULTISAW
1.5M, 2.0M & 2.5M Models
Operator Manual

IMPORTANT
VERIFICATION OF WARRANTY REGISTRATION
Dealer Warranty Information & Registration Verification
It is imperative that the selling dealer registers this machine with McConnel Limited before
delivery to the end user –failure to do so may affect the validity of the machine warranty.
To register machines; log onto https://my.mcconnel.com and select ‘Machine Registration’
which can be found in the ‘Warranty’section of the site. Confirm to the customer that
the machine has been registered by completing the verification form below.
Registration Verification
Dealer Name:
……………………..……………………………………………………………..
Dealer Address:
…….…………………………………………………………………………..
Customer Name:
……………………..…………………………………………………………
Date of Warranty Registration:
……/……/...… Dealer Signature: ………………..………
Note to Customer / Owner
Please ensure the section above has been completed and signed by the dealer to verify
your machine has been registered with McConnel Limited.
IMPORTANT: During the initial ‘bedding in’ period of a new machine it is the customer’s responsibility
to regularly inspect all nuts, bolts and hose connections for tightness and re-tighten if required. New
hydraulic connections occasionally weep small amounts of oil as the seals and joints settle in –where
this occurs it can be cured by re-tightening the connection –refer to torque settings chart below. The
tasks stated above should be performed on an hourly basis during the first day of work and at least
daily thereafter as part of the machine’s general maintenance procedure.
CAUTION: DO NOT OVER TORQUE HYDRAULIC FITTINGS AND HOSES
Torque Settings for Hydraulic Fittings
Hydraulic Hose Ends
Port Adaptors with Bonded Seals
BSP
Setting
Metric
BSP
Setting
Metric
1/4”
18 Nm
19 mm
1/4”
34 Nm
19 mm
3/8”
31 Nm
22 mm
3/8”
47 Nm
22 mm
1/2”
49 Nm
27 mm
1/2”
102 Nm
27 mm
5/8”
60 Nm
30 mm
5/8”
122 Nm
30 mm
3/4”
80 Nm
32 mm
3/4”
149 Nm
32 mm
1”
125 Nm
41 mm
1”
203 Nm
41 mm
1.1/4”
190 Nm
50 mm
1.1/4”
305 Nm
50 mm
1.1/2”
250 Nm
55 mm
1.1/2”
305 Nm
55 mm
2”
420 Nm
70 mm
2”
400 Nm
70 mm
Serial No.

Warranty Policy (page 1 of 3)
WARRANTY POLICY
WARRANTY REGISTRATION
All machines must be registered, by the selling dealer with McConnel Ltd, before delivery to the end user.
On receipt of the goods it is the buyer’s responsibility to check that the Verification of Warranty
Registration in the Operator’s Manual has been completed by the selling dealer.
1. LIMITED WARRANTIES
1.01. All mounted machines supplied by McConnel Ltd are warranted to be free from defects in material
and workmanship from the date of sale to the original purchaser for a period of 12 months, unless a
different period is specified.
All Self Propelled Machines supplied by McConnel Ltd are warranted to be free from defects in
material and workmanship from the date of sale to the original purchaser for a period of 12 months
or 1500 hours. Engine warranty will be specific to the Manufacturer of that unit.
1.02. All spare parts supplied by McConnel Ltd and purchased by the end user are warranted to be free from
defects in material and workmanship from the date of sale to the original purchaser for a period of 6
months. All parts warranty claims must be supported by a copy of the failed part invoice to the end
user. We cannot consider claims for which sales invoices are not available.
1.03. The warranty offered by McConnel Ltd is limited to the making good by repair or replacement for the
purchaser any part or parts found, upon examination at its factory, to be defective under normal use
and service due to defects in material or workmanship. Returned parts must be complete and
unexamined. Pack the component(s) carefully so that any transit damage is avoided. All ports on
hydraulic items should be drained of oil and securely plugged to prevent seepage and foreign body
ingress. Certain other components, electrical items for example, may require particular care when
packing to avoid damage in transit.
1.04. This warranty does not extend to any product from which McConnel Ltd’s serial number plate has
been removed or altered.
1.05. The warranty policy is valid for machines registered in line with the terms and conditions detailed and
on the basis that the machines do not extend a period of 24 months or greater since their original
purchase date, that is the original invoice date from McConnel Limited.
Machines that are held in stock for more than 24 months cannot be registered for warranty.
1.06. This warranty does not apply to any part of the goods, which has been subjected to improper or
abnormal use, negligence, alteration, modification, fitment of non-genuine parts, accident damage,
or damage resulting from contact with overhead power lines, damage caused by foreign objects (e.g.
stones, iron, material other than vegetation), failure due to lack of maintenance, use of incorrect oil or
lubricants, contamination of the oil, or which has served its normal life. This warranty does not apply
to any expendable items such as blades, belts, clutch linings, filter elements, flails, flap kits, skids, soil
engaging parts, shields, guards, wear pads, pneumatic tyres or tracks.
1.07. Temporary repairs and consequential loss - i.e. oil, downtime and associated parts are specifically
excluded from the warranty.
1.08. Warranty on hoses is limited to 12 months and does not include hoses which have suffered external
damage. Only complete hoses may be returned under warranty, any which have been cut or repaired
will be rejected.
1.09. Machines must be repaired immediately a problem arises. Continued use of the machine after a
problem has occurred can result in further component failures, for which McConnel Ltd cannot be held
liable, and may have safety implications.
1.10. If in exceptional circumstances a non McConnel Ltd part is used to effect a repair, warranty
reimbursement will be at no more than McConnel Ltd’s standard dealer cost for the genuine part.

Warranty Policy (page 2 of 3)
1.11. Except as provided herein, no employee, agent, dealer or other person is authorised to give any
warranties of any nature on behalf of McConnel Ltd.
1.12. For machine warranty periods in excess of 12 months the following additional exclusions shall apply:
1.12.1. Hoses, exposed pipes and hydraulic tank breathers.
1.12.2. Filters.
1.12.3. Rubber mountings.
1.12.4. External electric wiring.
1.12.5. Bearings and seals
1.12.6. External Cables, Linkages
1.12.7. Loose/Corroded Connections, Light Units, LED’s
1.12.8. Comfort items such as Operator Seat, Ventilation, Audio Equipment
1.13. All service work, particularly filter changes, must be carried out in accordance with the manufacturer’s
service schedule. Failure to comply will invalidate the warranty. In the event of a claim, proof of the
service work being carried out may be required.
1.14. Repeat or additional repairs resulting from incorrect diagnosis or poor quality previous repair work
are excluded from warranty.
NB Warranty cover will be invalid if any non-genuine parts have been fitted or used. Use of non-genuine
parts may seriously affect the machine’s performance and safety. McConnel Ltd cannot be held
responsible for any failures or safety implications that arise due to the use of non-genuine parts.
2. REMEDIES AND PROCEDURES
2.01. The warranty is not effective unless the Selling Dealer registers the machine, via the McConnel web
site and confirms the registration to the purchaser by completing the confirmation form in the
operator’s manual.
2.02. Any fault must be reported to an authorised McConnel Ltd dealer as soon as it occurs. Continued use
of a machine, after a fault has occurred, can result in further component failure for which McConnel
Ltd cannot be held liable.
2.03. Repairs should be undertaken within two days of the failure. Claims submitted for repairs undertaken
more than 2 weeks after a failure has occurred, or 2 days after the parts were supplied will be
rejected, unless the delay has been authorised by McConnel Ltd. Please note that failure by the
customer to release the machine for repair will not be accepted as a reason for delay in repair or
submitting warranty claims.
2.04. All claims must be submitted, by an authorised McConnel Ltd Service Dealer, within 30 days of the
date of repair.
2.05. Following examination of the claim and parts, McConnel Ltd will pay, at their discretion, for any valid
claim the invoiced cost of any parts supplied by McConnel Ltd and appropriate labour and mileage
allowances if applicable.
2.06. The submission of a claim is not a guarantee of payment.
2.07. Any decision reached by McConnel Ltd. is final.
3. LIMITATION OF LIABILITY
3.01. McConnel Ltd disclaims any express (except as set forth herein) and implied warranties with respect to
the goods including, but not limited to, merchantability and fitness for a particular purpose.
3.02. McConnel Ltd makes no warranty as to the design, capability, capacity or suitability for use of the
goods.
3.03. Except as provided herein, McConnel Ltd shall have no liability or responsibility to the purchaser or
any other person or entity with respect to any liability, loss, or damage caused or alleged to be caused
directly or indirectly by the goods including, but not limited to, any indirect, special, consequential, or
incidental damages resulting from the use or operation of the goods or any breach of this warranty.
Notwithstanding the above limitations and warranties, the manufacturer’s liability hereunder for
damages incurred by the purchaser or others shall not exceed the price of the goods.
3.04. No action arising out of any claimed breach of this warranty or transactions under this warranty may
be brought more than one (1) year after the cause of the action has occurred.

Warranty Policy (page 3 of 3)
4. MISCELLANEOUS
4.01. McConnel Ltd may waive compliance with any of the terms of this limited warranty, but no waiver of
any terms shall be deemed to be a waiver of any other term.
4.02. If any provision of this limited warranty shall violate any applicable law and is held to be
unenforceable, then the invalidity of such provision shall not invalidate any other provisions herein.
4.03. Applicable law may provide rights and benefits to the purchaser in addition to those provided herein.
McConnel Limited

For Safety and Performance…
ALWAYS READ THE BOOK FIRST
In line with our policy of constant improvement, this publication will be periodically
updated; to ensure you have access to the latest version of this manual please visit
the manuals library on our website where an ‘up-to-date’ version can be referenced
online, or downloaded.
https://www.mcconnel.com/support/parts-and-operators-manual/
Temeside Works
Ludlow
Shropshire
England
Telephone: [phone]
www.mcconnel.com

CONTENTS
General Information................................................................................................................ 1
Overview ................................................................................................................................ 2
Safety Information .................................................................................................................. 3
Safety Decals ......................................................................................................................... 7
Vehicle / Tractor Preparation.................................................................................................. 8
Handling the Machine............................................................................................................. 9
Machine Attachment............................................................................................................. 10
Hydraulic Installation ............................................................................................................ 12
Belts Access......................................................................................................................... 12
Operation.............................................................................................................................. 13
Maintenance......................................................................................................................... 14
Initial Maintenance............................................................................................................ 14
Routine Maintenance........................................................................................................ 14
Checking Belt Tension...................................................................................................... 14
Tensioning Belts ............................................................................................................... 15
Belt Tension Settings – 1.5m Multisaws ........................................................................... 16
Belt Tension Settings – 2.0m Multisaws ........................................................................... 17
Belt Tension Settings – 2.5m Multisaws ........................................................................... 18
Replacing Blades.............................................................................................................. 19

1
GENERAL INFORMATION
Read this manual before fitting or operating the machine or accessory. Whenever any doubt
exists contact your local dealer or the McConnel Service Department for assistance.
Only use ‘Genuine McConnel Parts’ on McConnel machinery and equipment.
DEFINITIONS: The following definitions apply throughout this manual;
DANGER: Alerts to a hazardous situation which will result in death or serious injury if not
observed carefully.
WARNING: Alerts to a hazardous situation which could result in death or serious injury if not
observed carefully.
CAUTION: Alerts to a hazardous situation which could result in damage to the machine
and/or equipment if not observed carefully.
NOTICE: Specific or general information considered important or useful to emphasise.
LEFT HAND (LH) & RIGHT HAND (RH): These terms are applicable to the machine when
fitted to the tractor and viewed from the rear; these terms also apply to tractor references.
SERIAL PLATE
All machines are equipped with a serial number plate containing important information
relating to the machine including a unique serial number used for identification purposes.
Note: Images in this manual are provided for instruction and informational purposes only and may not
show components in their entirety. In certain instances images may appear different to the actual
machine; where this occurs the general procedure will be basically the same. E&OE.
MACHINE & DEALER INFORMATION
Record the serial number of your machine on this page and always quote it when ordering parts.
Whenever information concerning the machine is requested remember to also state the make and
model of tractor to which the machine is fitted.
Machine Serial Number: Installation Date:
Machine Model Details:
Dealer Name & Branch:
Dealer Address:
Dealer Telephone No:
Dealer Email Address:

2
OVERVIEW
McConnel Heavy-duty Multisaws are hydraulic boom mounted saw-blade attachments for
the cutting of trees and branches. Available in working widths of 1.5m, 2.0m & 2.5m, the
machines are equipped with belt-driven tungsten carbide tipped saw-blades capable of
cutting materials up to 150mm diameter.
Designed for use on larger model Power Arms, the Multisaw is the ideal machine for
farmers, forestry teams and contractors alike.
This machine must only be used to perform the tasks for which it was designed, use for any
other purpose may be dangerous to persons and damaging to the machine.
SPECIFICATIONS
Specification / Model Multisaw 1500 HD Multisaw 2000 HD Multisaw 2500 HD
Working Width 1.5m 2.0m 2.5m
Number Blades 3 4 4
Blade Diameter 490mm (19¼”) 490mm (19¼”) 620mm (24½”)
Blade Material Tungsten Carbide Tipped Tungsten Carbide Tipped Tungsten Carbide Tipped
Blade Speed 3000 RPM 3000 RPM 3000 RPM
Blade Tip Speed 76.9 m/s 76.9 m/s 97.3 m/s
Motor Hydraulic 40.6cc Hydraulic 40.6cc Hydraulic 40.6cc
Flow Rate 124 l/min @ 210 bar 124 l/min @ 210 bar 124 l/min @ 210 bar
Drive V-belt V-belt V-belt
Cutting Capacity 150mm (6”) 150mm (6”) 150mm (6”)
Main Application Vertical Cutting Vertical Cutting Vertical Cutting
Forward Operating Speed 5km/h (3mph) 5km/h (3mph) 5km/h (3mph)
Weight 180kg (397lbs) 220kg (485lbs) 255kg (562lbs)
Noise Level
The energy A-weighted sound pressure is below 90 dB (A).

3
SAFETY INFORMATION
This machine has the potential to be extremely dangerous - in the wrong hands it can kill or
maim; it is therefore imperative that both owner and operator of the machine reads and
understands the following section to ensure they are fully aware of the dangers that do, or
may exist, and their responsibilities surrounding the use and operation of the machine. The
operator of this machine is responsible not only for their own safety but equally for the safety
of others who may come into the close proximity of the machine, as the owner you are
responsible for both.
All operators must be fully competent in the use of this machine and also the machine to
which it is attached and must read and understand the operation manuals for both machines
before attempting to attach or operate this equipment.
When the machine is not in use it should be lowered to rest on the ground. In the event of
any fault being detected with the machine’s operation it must be stopped immediately and
not used again until the fault has been corrected by a qualified technician.
POTENTIAL DANGERS ASSOCIATED WITH THE USE OF THIS MACHINE:
Being hit by debris thrown by rotating components.
Being hit by machine parts ejected through damage during use.
Being caught on a rotating power take-off (PTO) shaft.
Being caught in other moving parts i.e.: belts, pulleys and cutting heads.
Electrocution from Overhead Power Lines (by contact with or ‘flashover’ from).
Being hit by cutting heads or machine arms as they move.
Becoming trapped between tractor and machine when hitching or unhitching.
Tractor overbalancing when machine arm is extended.
Injection of high-pressure oil from hydraulic hoses or couplings.
Machine overbalancing when freestanding (out of use).
Road traffic accidents due to collision or debris on the road.

4
BEFORE USING THIS MACHINE YOU MUST:
Ensure you read all sections of the operator handbook.
Ensure the operator is, or has been, properly trained to use the machine.
Ensure the operator has been issued with and reads the operator handbook.
Ensure the operator understands and follows the instructions in operator handbook.
Ensure the tractor front, rear and sides are fitted with metal mesh or polycarbonate
guards of suitable size and strength to protect the operator against thrown debris or
parts.
Ensure tractor guards are fitted correctly, are undamaged and kept properly maintained.
Ensure that all machine guards are in position, are undamaged, and are kept maintained
in accordance with the manufacturer’s recommendations.
Ensure blades and their fixings are of a type recommended by the manufacturer, are
securely attached and that none are missing or damaged.
Ensure hydraulic pipes are carefully and correctly routed to avoid damage by chaffing,
stretching or pinching and that they are held in place with the correct fittings.
Always follow the manufacturer’s instructions for attachment and removal of the machine
from the tractor.
Check that the machine fittings and couplings are in good condition.
Ensure the tractor meets the minimum weight recommendations of the machine’s
manufacturer and that ballast is used as necessary.
Always inspect the work area thoroughly before starting to note obstacles and remove
wire, bottles, cans and other debris.
Use clear suitably sized warning signs to alert others to the nature of the machine
working within that area. Signs should be placed at both ends of the work site. (It is
recommended that signs used are of a size and type specified by the Department of
Transport and positioned in accordance with their, and the Local Highways Authority,
guidelines).
Ensure the operator is protected from noise. Ear defenders should be worn and tractor
cab doors and windows must be kept closed. Machine controls should be routed through
proprietary openings in the cab to enable all windows to be shut fully.
Always work at a safe speed taking account of the conditions i.e.: terrain, highway
proximity and obstacles around and above the machine. Extra special attention should be
applied to Overhead Power Lines. Some of our machines are capable of reach in excess
of 8 metres (26 feet) this means they have the potential to well exceed, by possibly 3
metres (9’ 9”), the lowest legal minimum height of 5.2 metres from the ground for 11,000
and 33,000 volt power lines. It cannot be stressed enough the dangers that surround this
capability, it is therefore vital that the operator is fully aware of the maximum height and
reach of the machine, and that they are fully conversant with all aspects regarding the
safe minimum distances that apply when working with machines in close proximity to
Power Lines. (Further information on this subject can be obtained from the Health &
Safety Executive or your Local Power Company).

5
Always disengage the machine, kill the tractor engine, remove and pocket the key before
dismounting for any reason.
Always clear up all debris left at the work area, it may cause hazard to others.
Always ensure when you remove your machine from the tractor that it is left in a safe and
stable position using the stands and props provided and secured if necessary.
WHEN NOT TO USE THIS MACHINE:
Never attempt to use this machine if you have not been trained to do so.
Never use a machine until you have read and understood the operator handbook, are
familiar with it, and practiced the controls.
Never use a machine that is poorly maintained.
Never use a machine if guards are missing or damaged.
Never use a machine on which the hydraulic system shows signs of wear or damage.
Never fit, or use, a machine on a tractor that does not meet the manufacturer’s minimum
specification level.
Never use a machine fitted to a tractor that does not have suitable front, rear and side(s)
cab guarding made of metal mesh or polycarbonate.
Never use the machine if the tractor cab guarding is damaged, deteriorating or badly
fitted.
Never turn a machine cutting head to an angle that causes debris to be ejected towards
the cab.
Never start or continue to work a machine if people are nearby or approaching - Stop and
wait until they are at a safe distance before continuing. WARNING: Some cutting heads
may continue to ‘freewheel’ for up to 40 seconds or more after being stopped.
Never attempt to use a machine on materials in excess of its capability.
Never use a machine to perform a task it has not been designed to do.
Never operate the tractor or machine controls from any position other than from the
driving seat, especially whilst hitching or unhitching the machine.
Never carry out maintenance of a machine or a tractor whilst the engine is running – the
engine should be switched off, the key removed and pocketed.
Never leave a machine unattended in a raised position – it should be lowered to the
ground in a safe position on a level firm site.
Never leave a tractor with the key in or the engine running.
Never carry out maintenance on any part or component of a machine that is raised
unless that part or component has been properly substantially braced or supported.
Never attempt to detect a hydraulic leak with your hand – use a piece of cardboard.
Never allow children near to, or play on, a tractor or machine under any circumstances.

6
ADDITIONAL SAFETY ADVICE
Training
Operators need to be competent and fully capable of operating this machine in a safe and
efficient way prior to attempting to use it in any public place. We advise therefore that the
prospective operator make use of relevant training courses available such as those run by
the Agricultural Training Board, Agricultural Colleges, Dealers and McConnel.
Working in Public Places
When working in public places such as roadsides, consideration should be paid to others in
the vicinity. Stop the machine immediately when pedestrians, cyclists and horse riders etc.
pass. Restart only when they are at a distance that causes no risk to their safety.
Warning Signs
It is advisable that any working area be covered by suitable warning signs and statutory in
public places. Signs should be highly visible and well placed in order to give clear advanced
warning of the hazard. Contact the Department of Transport or your Local Highways
Authority to obtain detailed information on this subject. The latter should be contacted prior
to working on the public highway advising them of the time and location of the intended work
asking what is required by way of signs and procedure. – ‘Non-authorised placement of road
signs may create offences under the Highways Act’.
Suggested Warning Signs Required
‘Road works ahead’ warning sign with a supplementary ‘Hedge cutting’ plate. ‘For 1 mile’
or appropriate shorter distance may be added to the plate.
‘Road narrows’ warning signs with supplementary ‘Single file traffic’ plate.
White on blue ‘Keep right’ (*) arrow sign on rear of machine.
* Note – this applies to UK Market machines where traffic passes to the right of a machine working in
the same direction as the traffic flow. The direction, use and colour of the arrow sign will depend on the
country of use and the Local Highway Authorities regulations in the locality.
Use of Warning Signs
On two-way roads one set of signs is needed facing traffic in each direction.
Work should be within 1 mile of the signs.
Work only when visibility is good and at times of low risk e.g.: NOT during ‘rush-hour’.
Vehicles should have an amber-flashing beacon.
Ideally, vehicles should be conspicuously coloured.
Debris should be removed from the road and path as soon as practicable, and at regular
intervals, wearing high visibility clothing and before removing the hazard warning signs.
Collect all road signs promptly when the job is completed.

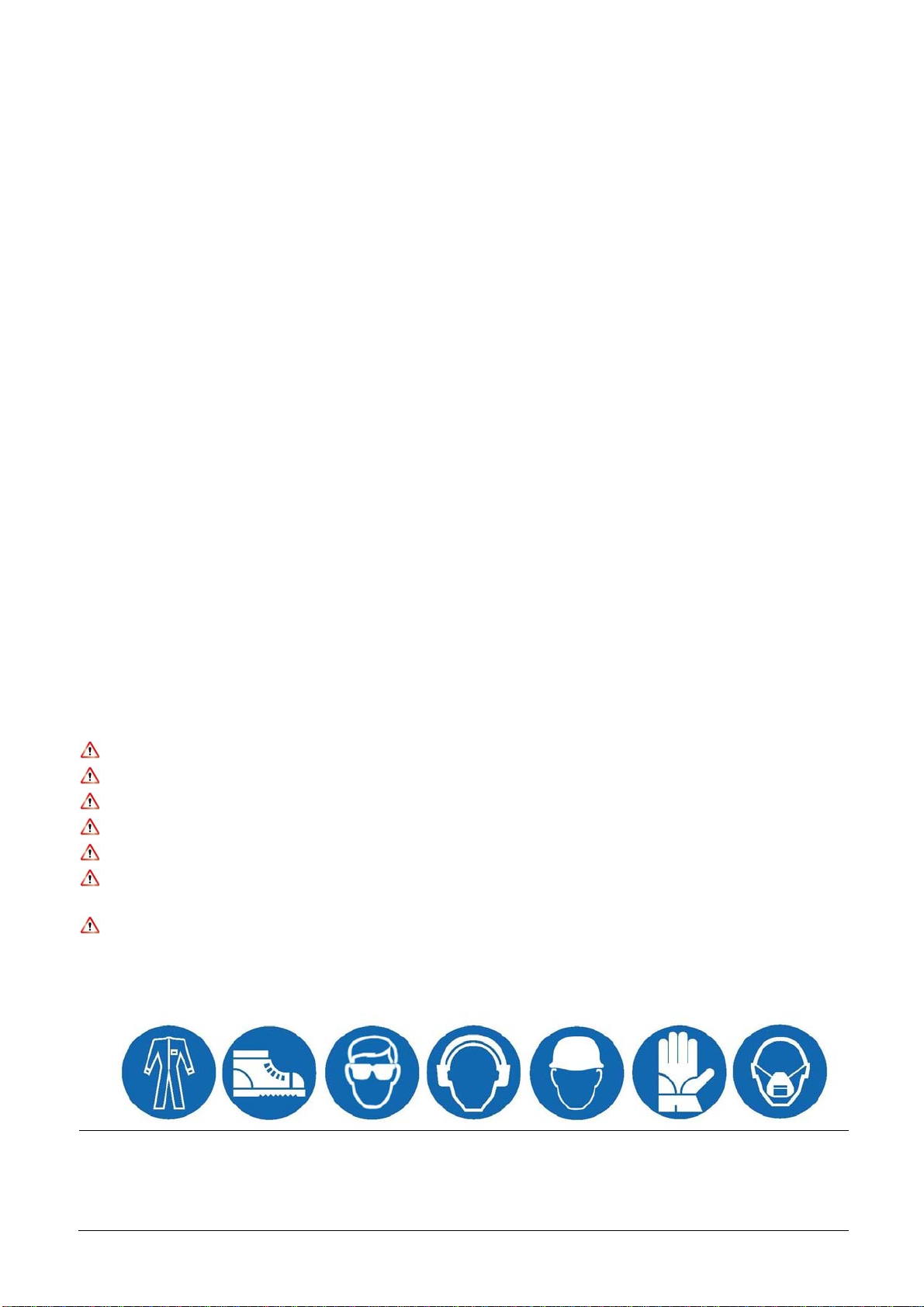

Safety Gear: It is recommended that the following personal protective equipment is worn
when operating and/or maintaining this machine; Coveralls, safety boots, safety glasses,
hearing protection, safety helmet, protective gloves, and protective dust mask.
Although the information stated here covers a wide range of safety subjects it is impossible to predict
every eventuality that can occur under differing circumstances whilst operating this machine. No
advice given here can replace ‘good common sense’ and ‘total awareness’ at all times, but will go a
long way towards the safe use of your McConnel machine.

7

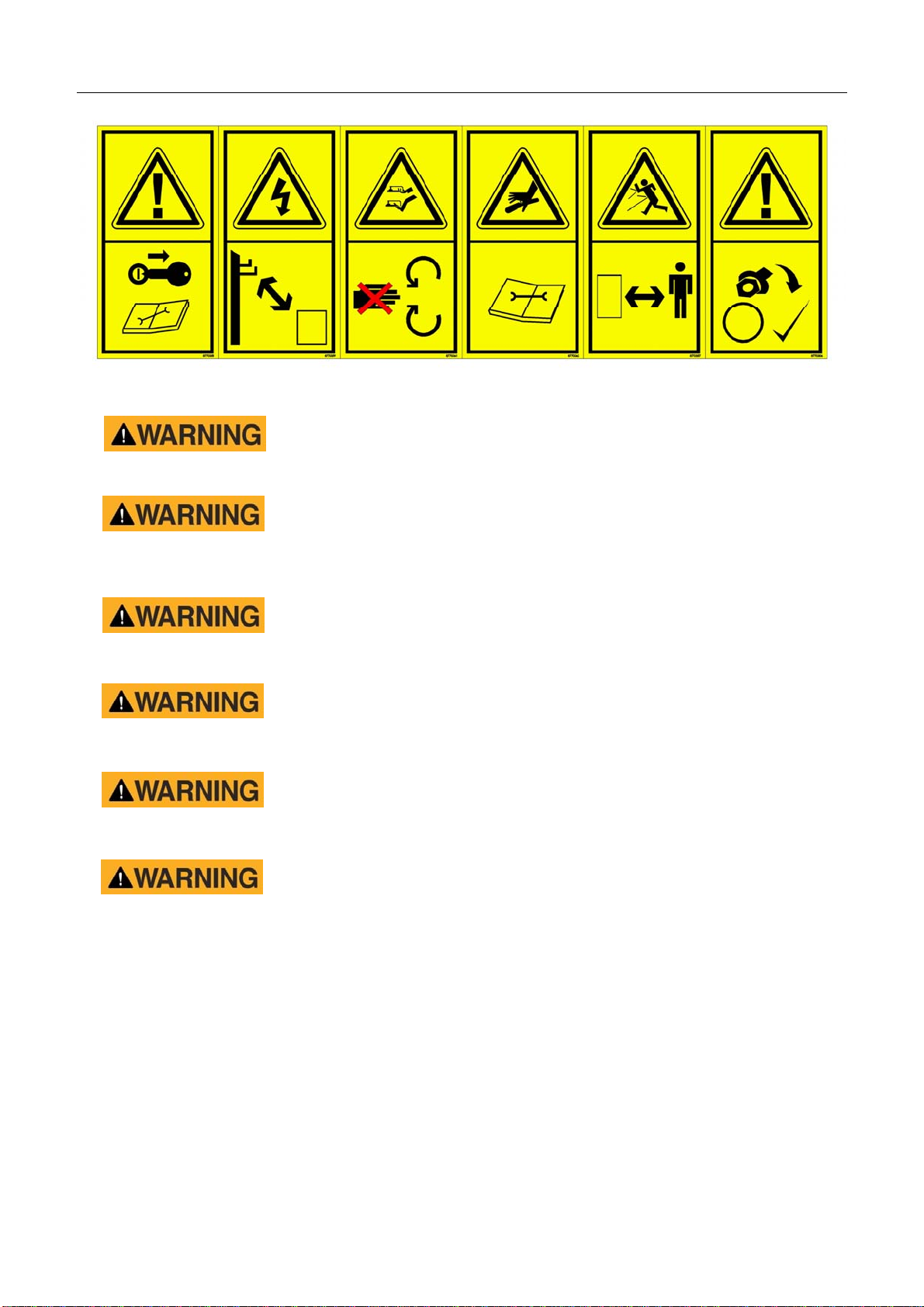

SAFETY DECALS
1. 2. 3. 4. 5. 6.
1. Stop engine and remove key before performing maintenance or repair work.
2. Danger: keep clear of overhead power lines. Where doubt exists contact your local power
company for advice.
3. Danger: keep clear of rotating blades.
4. Pressurised oil, beware of leaks. Consult technical manual for service procedures.
5. Danger: flying objects. Keep a safe distance from the machine when the engine is running.
6. Check tightness of bolts every 8 hours – retighten if required.

8
VEHICLE / TRACTOR PREPARATION
We recommend vehicles are fitted with cabs
using ‘safety glass’ windows and protective
guarding when used with our machines.

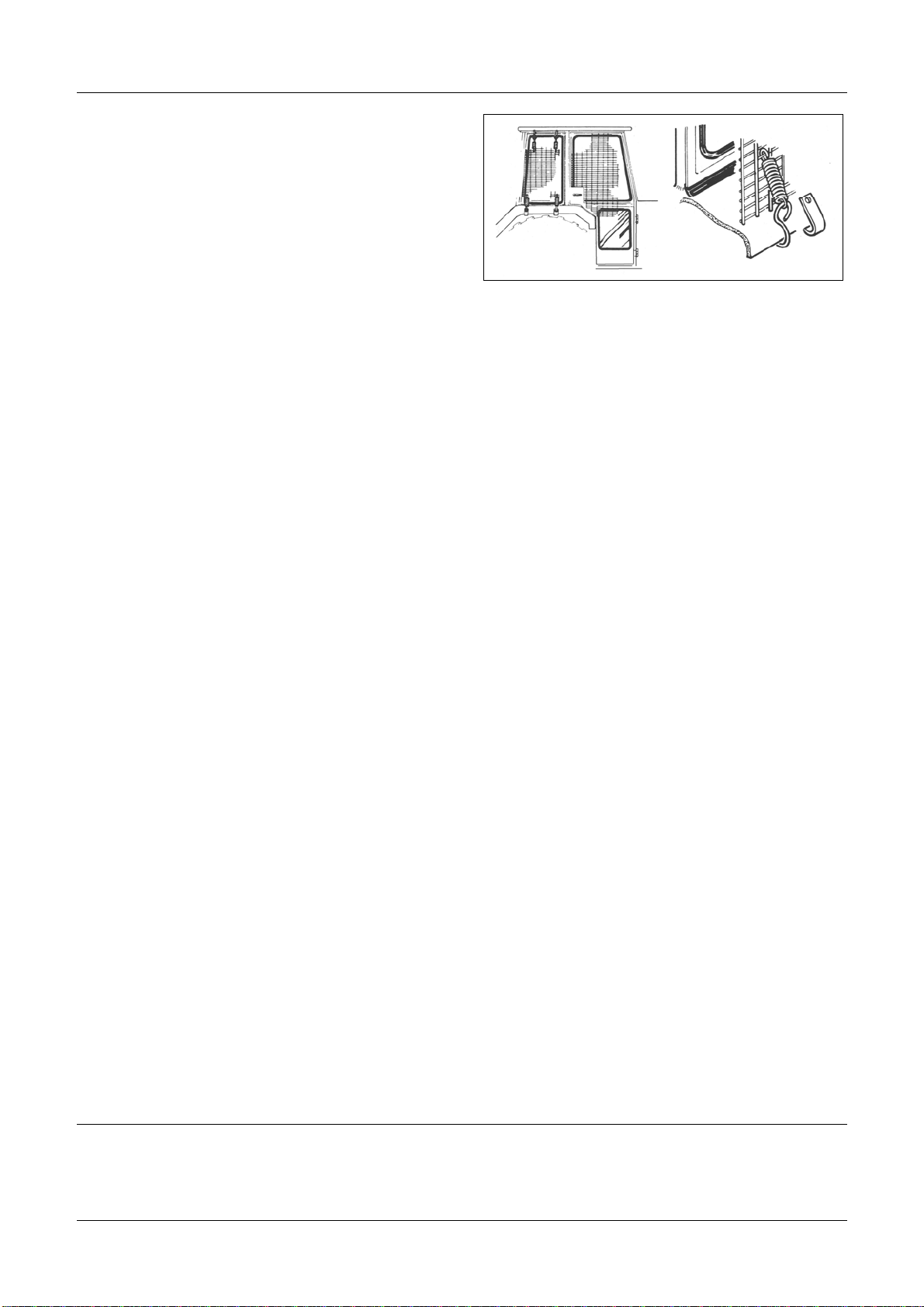

Fit Operator Guard (Part No. 7313324) using
the hooks provided. Shape the mesh to cover
all vulnerable areas. The driver must be
looking through mesh and/or polycarbonate
glazing when viewing the flail head in any
working position - unless the vehicle/ cab
manufacturer can demonstrate that the penetration resistance is equivalent to, or higher
than, that provided by mesh/polycarbonate glazing. If the tractor has a roll bar only, a frame
must be made to carry both mesh and polycarbonate glazing. The operator should also use
personal protective equipment to reduce the risk of serious injury such as; eye protection
(mesh visor to EN1731 or safety glasses to EN166), hearing protection to EN352, safety
helmet to EN297, gloves, filter mask and high visibility clothing.
Vehicle Ballast: It is imperative when attaching ‘third-party’ equipment to a vehicle that the
maximum possible stability of the machine and vehicle combination is achieved – this can be
accomplished by the utilisation of ‘ballast’ in order to counter-balance the additional
equipment added.
Front weights may be required for rear mounted machines to place 15% of total outfit
weight on the front axle for stable transport on the road and to reduce ‘crabbing’ due to the
drag of the cutting unit when working on the ground.
Rear weights may be required to maintain a reasonable amount of rear axle load on the
opposite wheel from the arms when in work; for normal off-ground work i.e. hedge cutting
this should be 20% of rear axle weight or more for adequate control, and for ground work i.e.
verge mowing with experienced operators, this can be reduced to 10%.
All factors must be addressed in order to match the type and nature of the equipment added
to the circumstances under which it will be used – in the instance of Power Arm hedgecutters
it must be remembered that the machines centre of gravity during work will be constantly
moving and will differ from that during transport mode, therefore balance becomes critical.
Factors that affect stability:
Centre of gravity of the tractor/machine combination.
Geometric conditions, e.g. position of the cutting head and ballast.
Weight, track width and wheelbase of the tractor.
Acceleration, braking, turning and the relative position of the cutting head during these operations.
Ground conditions, e.g. slope, grip, load capability of the soil/surface.
Rigidity of implement mounting.
Suggestions to increase stability:
Increasing rear wheel track; a vehicle with a wider wheel track is more stable.
Ballasting the wheel; it is preferable to use external weights but liquid can be added to around 75%
of the tyre volume – water with anti-freeze or the heavier Calcium Chloride alternative can be used.
Addition of weights – care should be taken in selecting the location of the weights to ensure they are
added to a position that offers the greatest advantage.
Front axle locking (check with tractor manufacturer).
NOTE: The advice above is offered as a guide for stability only and is not a guide to vehicle strength. It is
recommended that you consult your vehicle manufacturer or local dealer to obtain specific advice on
this subject, additionally advice should be sought from a tyre specialist with regard to tyre pressures and
ratings suitable for the type and nature of the machine you intend to fit.

9
HANDLING THE MACHINE
Lifting Equipment
Suitable overhead lifting equipment with a minimum Safe Working Load (SWL) in excess of
the machine’s overall weight should be used for handling the machine.
Ensure the machine is kept balanced and level at all times during the lifting procedure. All
operatives and bystanders must remain at a safe distance from the raised machine.
Lifting Points
Machines are equipped with 2 lifting points fitted with shackles.
Lifting gear must be evenly attached to both lifting points to ensure machine is balanced and
stable during lifting. Keep clear of the raised machine at all times.
Multisaw model weights
Multisaw 1500 = 180kg
Multisaw 2000 = 220kg
Multisaw 2500 = 255kg
Lifting of the machine should only be performed on a firm level site.
Keep all persons at a safe distance from the raised machine.
