MCi 771AS User manual

771AS
USER'S MANUAL
4X AGP Slot / AC 97 Audio M/B
FOR AMD K7 Athlo Processor
The author assumes no responsibility for any errors or omissions which
may appear in this document nor does it make a commitment to update the information
contained herein.
NO. G03-771 SR1
Release date: FEB 2000
** Year 2000 compliant **
Trademark:
* MD is registered trademark and K7 is a trademark of MD corporation, the other names and brands
are the property of their respective owners.

* Specifications and Information contained in this documentation are furnished for information use only, and are
subject to change at any time without notice, and should not be construed as a commitment by manufacturer.
Chapter 1
1-1 Preface.....................................................................................................1
1-2 Key Feature..............................................................................................1
Chapter 2
Hardware Installation....................................................................................3
2-1 Unpacking.................................................................................................3
2-2 The Diagram of Motherboard...................................................................
2-3 Quick Reference for Jumpers, Connectors & Expansion Socket.............5
2- Installation Steps......................................................................................6
2-5 Jumper Settings........................................................................................6
2-6 System Memory (DRAM)..........................................................................8
2-7 Central Processing Unit (CPU).................................................................8
2-8 Expansion Cards......................................................................................9
2-9 External Connectors.................................................................................10
Chapter 3
AWARD BIOS SETUP...................................................................................1
3-1 Standard CMOS Features........................................................................15
3-2 Advanced BIOS Features.........................................................................16
3-3 Advanced Chipset Features ....................................................................18
3- Integrated Peripherals..............................................................................19
3-5 Power Mangement Setup .........................................................................20
3-6 PnP/PCI Configurations.............................................................................22
3-7 PC Health Status.......................................................................................23
3-8 Frequency/Voltage Control........................................................................23
3-9 Defaults Menu............................................................................................2
3-10 Supervisor/User Password Setting...........................................................2
3-11 EXIT Selecting.........................................................................................25
3-12 POST Messages.....................................................................................25
3-13 POST Codes............................................................................................29
Chapter
Driver Installation..........................................................................................35
-1 Software Installation ....................................................................................35
-2 QUICK GUIDE..............................................................................................36
APPENDIX-A Magic Install
i
TABLE OF CONTENT

Chapter 1
1-1 Preface
Thank you for purchasing this multifunction motherboard. It has the most flexibility you can find
in today’s computer motherboard based on the AMD® newest microprocessor - AMD®
Athlon™ processor with 3DNOW™. Moreover, this motherboard using next generation of X
AGP specification, Ultra DMA 66, PCI 3D Audio, and many other new feature that meets
future specification.
1-2 Key Feature
The motherboard is design for the PC user who wants highest possible quality and value in a
small package. It includes following main features:
Support Jumperless solution for setting of Front Side Bus Frequency (CPU Host
Clock), and CPU ratio in BIOS SETUP “Frequency / Voltage Control“.
Support 100MHz Clock and Double-Date rate (DDR) transfers.
Built-In High performance 3D Audio:
Fully Compliant AC97 Analog I/O Component.
8-Terminal TQFP package.
Multibit  Converter Architecture for improved S/N ratio greater than 90dB.
16-Bit Stereo Full-Duplex Codec.
 Analog Line-Level Stereo Input.
High Quality CD Input with Ground Sense.
Stereo Line Level Output.
Multi-Speed Support : Provide 100MHz Clock and Double Date Rate (200MHz) to support
Slot A for AMD ® Athlon™ processor.
Chipset: VIA Apollo KX133(VT8371) system controller and VT82C686A PCI to ISA bridge.
DRAM Memory Support: support three 168-pin DIMMS(3.3V) for a maximum memory of
1.5GB of SDRAM.
AGP, AMR, PCI and ISA expansion Slots: Provide a X AGP slot, one AMR slot, five PCI
slots, and one ISA slot.
Super Multi-I/O: Provides two high-Speed UART compatible serial ports and one parallel
port with EPP and ECP capabilities. Two floppy drives of either 5.25” or 3.5” (1. MB or
2.88MB) are also supported without an external card.
PCI Bus Master IDE Controller and ULTRA DMA 66 : On-board PCI Bus Master IDE
controller with two connectors that supports four IDE devices in two channels, provides faster
data transfer rates, and supports Enhanced IDE devices such as Tape Backup, CD-ROM,
ZIP, LS-120 Drives. This controller also supports PIO Modes and Bus Master IDE DMA
33/66 MB/S.
1

ACPI supporting for OS Directed Power Management
Ring-in Wake up: When Ring-In the system can wake up from SMI Mode.
Ring-in Power On: When Ring-In the system can power on automatic by this function.
Wake on LAN: When Wake on LAN the system can power on automatic by this function.
RTC Power On: Enabled RTC Power On function, you can setting RTC alarm to power on
the system at the time length you setting .
Power Button: Press the button will place the system power on/off.
Support Software Power OFF Function.
Power Support: Efficient PWM switching power instead of traditional Linear Voltage
Regulator to prevent power component from being burned-out.
Meets PC99 Requirements.
Optional IRDA and PS/2: This motherboard supports an dedicated 16C550 standard UART,
supporting infrared communication module for wireless interface and PS/2 mouse cable set.
USB Port Connector: This motherboard supports two USB port connectors and extra two USB
interface for total of four USB devices.
PC Health Monitoring : To track PC CPU temperature, system voltage and fan speed.
When current temperature over warning temperature system will have alarm to warning.
ATX Form Factor: Dimensions 30.5cm x 19.0cm.
2

Chapter 2
Hardware Installation
2-1 Unpacking
This mainboard package should contain the following:
The mainboard
USER’S MANUAL for mainboard
Cable set for Ultra DMA 66 IDE x1, Floppy x1
CD for Drivers PACK
The mainboard contains sensitive electronic components which can be easily damaged by
electron-static, so the mainboard should be left in its original packing until it is installed.
Unpacking and installation should be done on a grounded anti-static mat.
The operator should be wearing an anti static wristband, grounded at the same point as the
anti-static mat.
Inspect the mainboard carton for obvious damage. Shipping and handling may cause damage
to your board. Be sure there are no shipping and handling damages on the board before
proceeding.
After opening the mainboard carton, extract the system board and place it only on a grounded
anti-static surface component side up. Again inspect the board for damage.
Press down on all of the socket IC’s to make sure that they are properly inserted. Do this only
on with the board placed on a firm flat surface.
War i g: Do ot apply power to the board if it has bee damaged.
You are now ready to install your mainboard. The mounting hole pattern on the mainboard
matches the ATX system board.
It is assumed that the chassis is designed for a standard ATX main board mounting. Place
the chassis on the anti-static mat and remove the cover.
Take the plastic clips, Nylon stand-off and screws for mounting the system board, and keep
them separate.
3

2-2 Diagram of Motherboard
Figure 2-1
2.3 Quick Reference for Jumpers, Connectors &
4

Expansion Socket
Jumpers
Jumper Name Description Page
JBAT CMOS RAM Clear 1-2 Normal ,2-3 Clear CMOS p. 6
Connectors
Connector Name Description Page

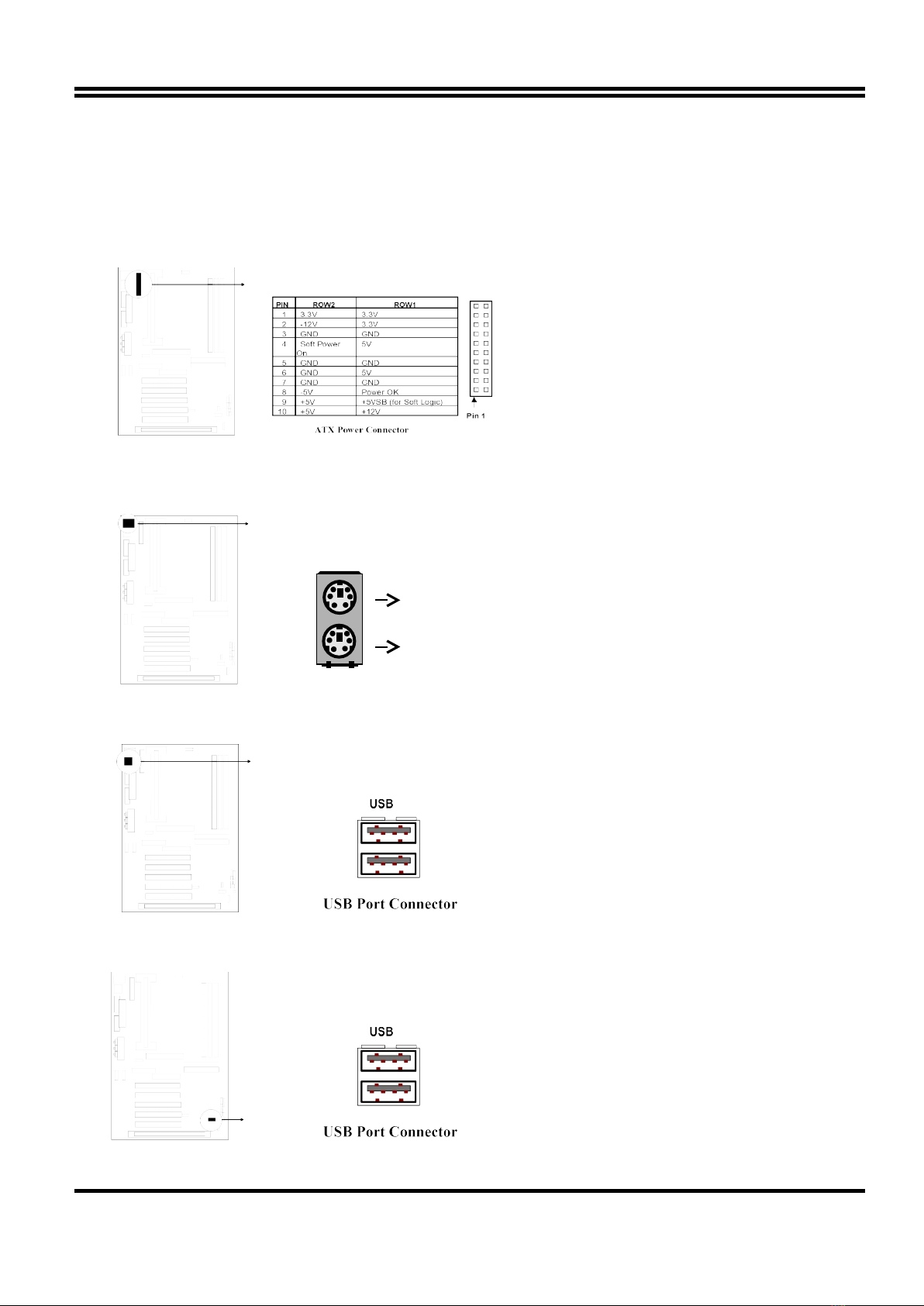

CN1 ATX Power Connector 20-Pin Block p.10
K/B CONN PS/2 Keyboard/PS/2 Mouse 6-Pin Female p.10
USB USB Port Connector 5-Pin Connector p.10
USB_B1 Extra USB Connector 10-Pin Block p.10

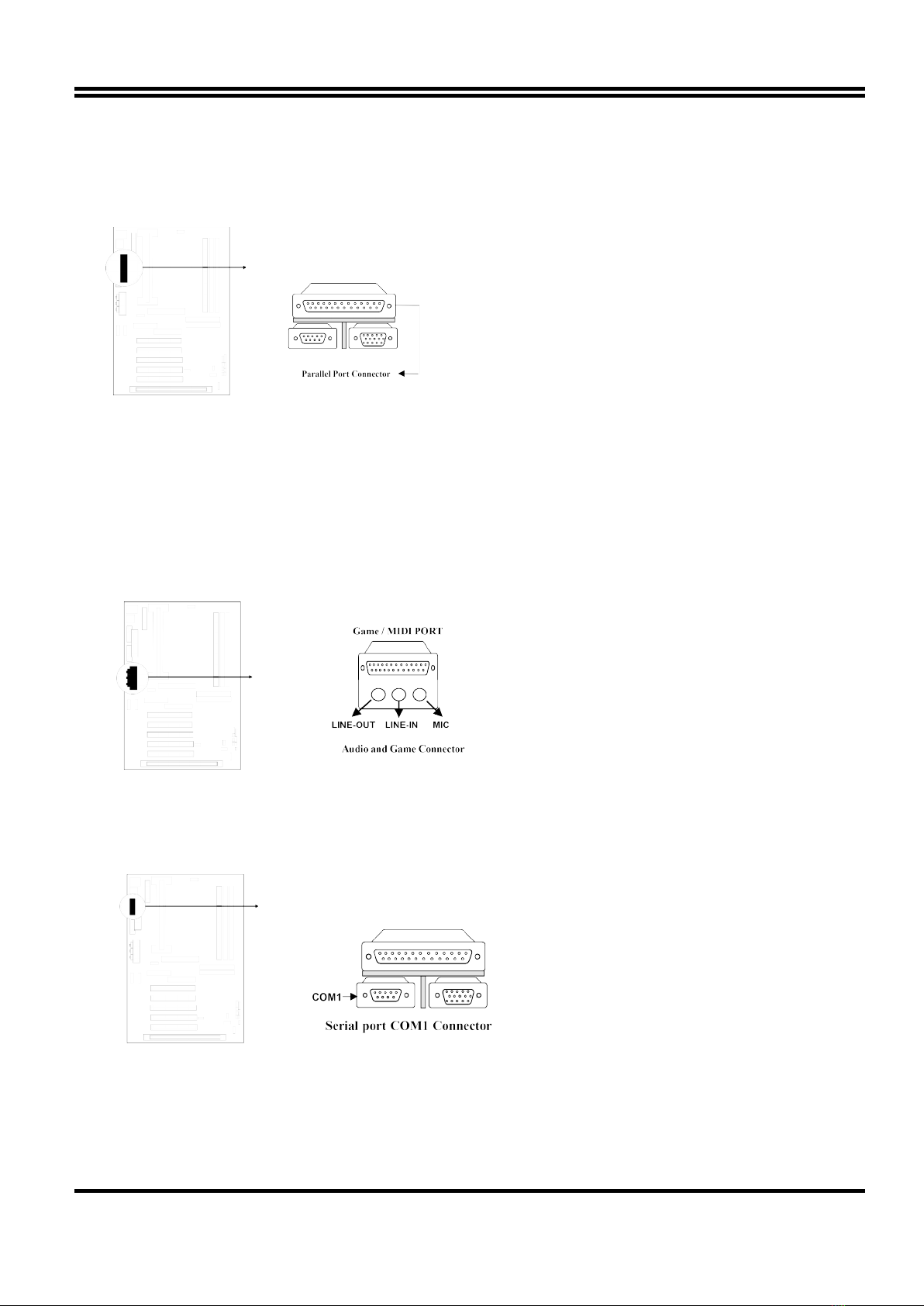

PRINT Parallel Port Connector 26-Pin Female p.10
AGC Audio/Game Connector 15-pin Connector + 3phone jack p.11
COM1 Serial Port COMA 9-Pin Connector p.11
COM2 Serial Port COMB 9-Pin Connector p.12
FDD Floppy Driver Connector 3 -Pin Block p.12
IDE1 Primary IDE Connector 0-Pin Block p.12

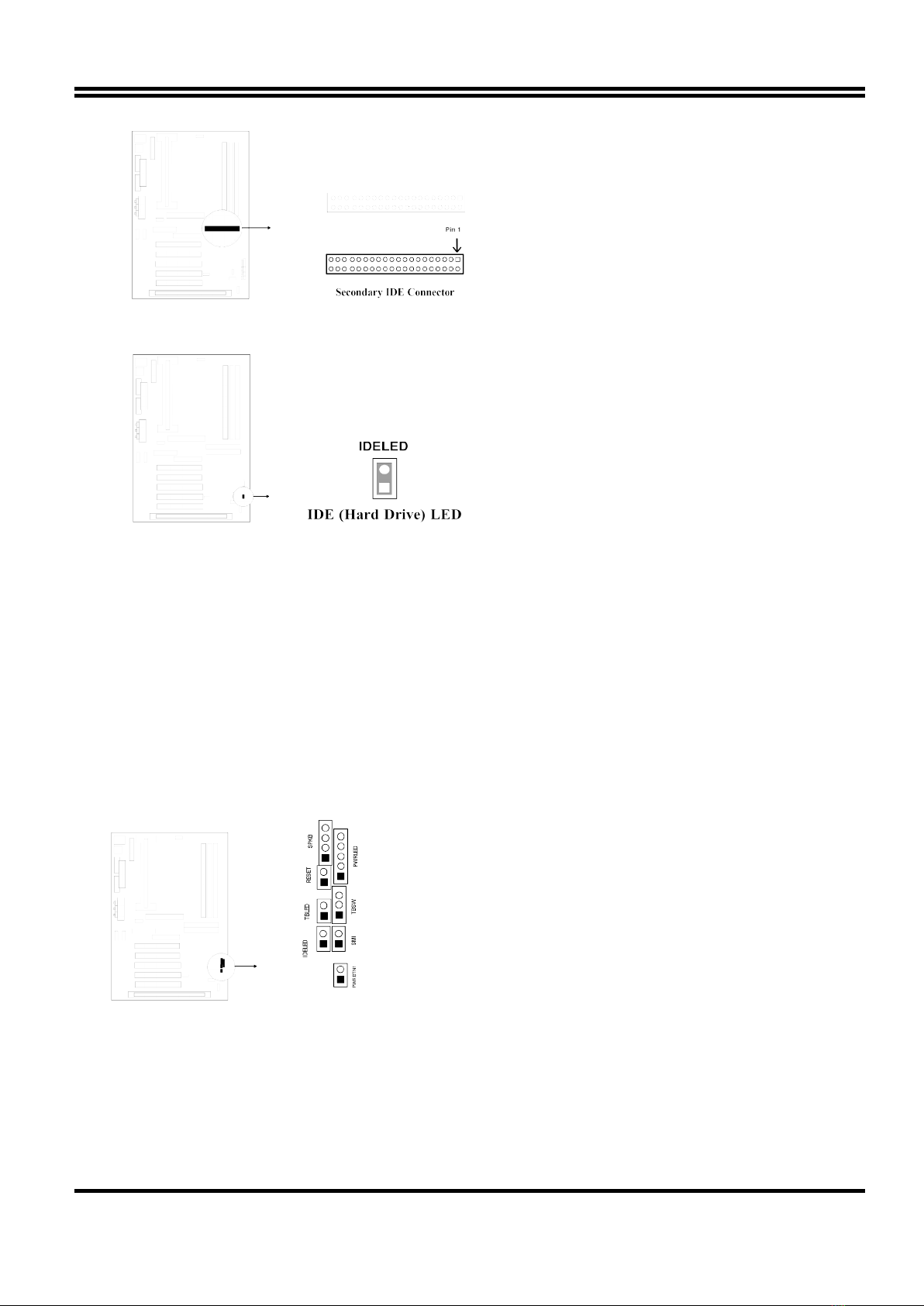

IDE2 Secondary IDE Connector 0-Pin Block p.12
IDELED IDE activity LED 2-Pin Connector p.13
JP15 Front Panel Connector 16-Pin Block p.13
IR1 Infrared Module Connector 10-Pin Block p.13
FAN1,FAN2 FAN Connector Extra fanning system connectors p.1
PWRBTN1 ATX power button/soft power button 2-Pin Connector p.1
CD_IN1 CD-Audio -pin Block p.1
CD_IN2 CD-Audio -pin Block p.1

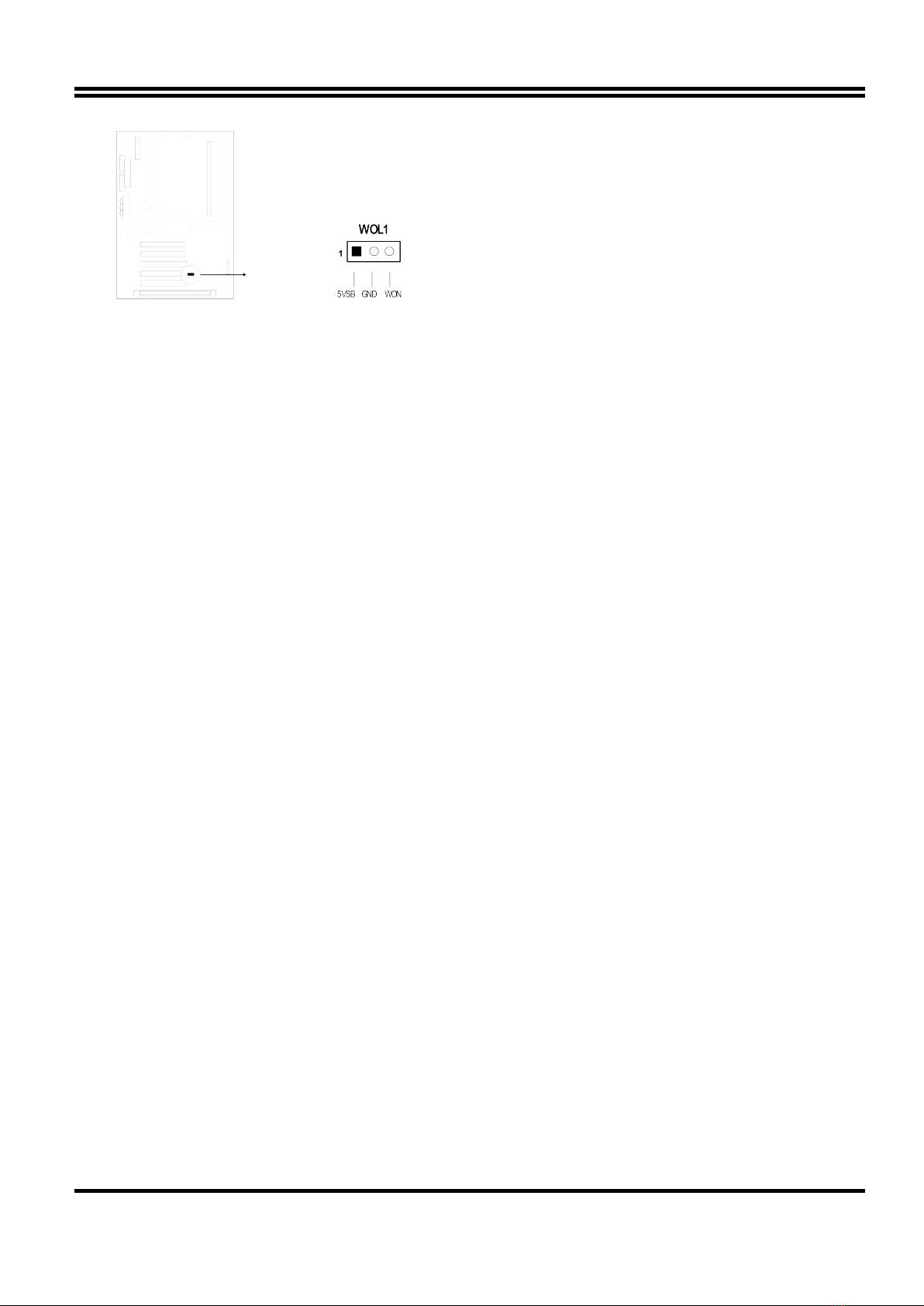

WOL1 Wake On LAN 3-pin Block P.1
Expa sio Sockets
Socket/Slot Name Description
DIMM1,DIMM2,DIMM3 DIMM Module Socket 168-Pins DIMM SDRAM Module Expansion Socket
Slot1 CPU Slot Slot A for AMD® Athlon™ Processor
AGP1 X AGP Slot AGP Expansion Slot
AMR1 AMR SLOT Modem Riser Card Slot
PCI1, PCI2,PCI3,
PCI ,PCI5 PCI Slots 32-bits PCI Local Bus Expansion slots
ISA ISA Slot 16-bits ISA Bus Expansion slot
5

2- Installation Steps
Before using your computer, you must follow the steps as follows:
1. Set Jumpers on the Motherboard
2. Install the CPU
3. Install DRAM Modules
. Install Expansion card
5. Connect Cables, Wires, and Power Supply
2-5 Jumper Settings
1. CPU Bus Frequency : This motherboard auto-detected the processor speed. You only
need insert the MD thlon processor into Slot.
2. CMOS RAM Clear: JBAT (Yellow color selector)
WARNING: Make sure your computer is POWER OFF whe you CLEAR CMOS.
Connect a jumper Cap over this jumper for a few seconds, will clears information stored in
the CMOS RAM Chip that input by user, such as hard disk information and passwords.
After CLEAR CMOS, you must enter the BIOS setup (by holding down <DEL> during
power-up) to re-enter BIOS information (see BIOS SETUP).
Selections JBAT
Normal 1-2 (Default)
Clear CMOS 2-3 (momentarily)
2-6 System Memory (DRAM)
This main board supports three 168-pins DIMM modules to the Max Memory Size of 1.5 B.
DIMM 1 DIMM 2 DIMM 3 System can be
ccept or Not
168-pin DIMM X Accept
168-pin DIMM 168-pin DIMM X Accept
168-pin DIMM 168-pin DIMM 168-pin DIMM Accept
2-7 Central Processing Unit (CPU)
6

2-7-1 The motherboard provides a Slot A for AMD® Athlon™ processor. The CPU on board
must have a fan or heat sink attached to prevent overheating.
WARNING: Without a fa or heat si k, the CPU will overheat a d cause damage to both the CPU
a d the motherboard.
To install a CPU, first turn off your system and remove its cover. Locate the Slot1 and place
RETENTION MODULE as following:
1. Attach heat sink to the CPU.
2. Place Part A on slot-1 and gently screw four corners on top of the mother- board.
2-8 Expansion Cards
You must read the documentation come with expansion card for any hardware or software
settings that may be required to setup your specific card.
Installation Procedure:
1. Read the documentation from your expansion card.
2. Set any necessary jumpers on your expansion card.
3. Remove your computer’s cover.
. Remove the bracket on the slot you intend to use.
5. Carefully align the card’s connectors and press firmly.
6. Secure the card on the slot with the screw you remove in step .
7. Replace the computer’s cover.
8. Setup the BIOS if necessary.
9. Install the necessary software drivers for your expansion card.
Assigning IRQs for Expansion Cards
Some expansion cards may require an IRQ to operate. Generally an IRQ must be exclusively
assigned to only one device. In an standard design there are 16 IRQs available but most of
them are occupied by the system and leaves 6 free for expansion cards.
With most recent device, the BIOS automatically assign an IRQ number to PCI expansion
cards. Please make sure there are no any of two devices use same IRQs, otherwise your
computer may experience some problems when those two devices are in use at the same time.
Assigning DMA Channels for Expansion Cards
Some devices may also need to use a DMA (Direct Memory Access) channel. DMA
assignments for this motherboard are handled the same way as the IRQ assignment process
described above. You can select a DMA channel in the PCI and PnP configuration section of
the BIOS Setup utility.
2-9 External Connectors
1. Power Connector: ATX Power Connector (20-pin block): CN1
7

ATX Power Supply connector. This is a new defined 20-pins connector that usually comes
with ATX case. The ATX Power Supply allows to use soft power on momentary switch that
connect from the front panel switch to 2-pins Power On jumper pole on the motherboard.
When the power switch on the back of the ATX power supply turned on, the full power will
not come into the system board until the front panel switch is momentarily pressed. Press
this switch again will turn off the power to the system board.
2. PS/2 Mouse & PS/2 Keyboard Connector: K/B CONN
If you are using a PS/2 mouse, you must purchase an optional PS/2 mouse set which
connects to the 5-pins block and mounts to an open slot on your computer‘s case.
3. USB Port connector: USB
The connectors are -pins connector that connect USB devices to the system board.
. USB Port connector: USB_B1
The 10-Pin block for extra two USB interface (Connector not include).
8
PS/2 Keyboard
PS/2 Mouse

5. Parallel Port Connector (25-pin female): PRINT
Parallel Port connector is a 25-pin D-Subminiature Receptacle connector. The On-board
Parallel Port can be disabled through the BIOS SETUP. Please refer to Chapter 3
“INTEGRATED PERIPHERALS SETUP” section for more detail information.
6. Audio and Game Connector : AGC
This Connector are 3 phone Jack for LINE-OUT,LINE-IN,MIC and a 15-pin
D-Subminiature Receptacle Connector for joystick/MIDI Device.
Line-out : audio output to speaker
Line-in : audio input to sound chip
MIC : Microphone Connector
Game/MIDI : for joystick or MIDI Device
7. Serial Port COMA: COM1
COMA is the 9-pin D-Subminiature mail connector. The On-board serial port can be
disabled through BIOS SETUP. Please refer to Chapter 3 “INTEGRATED PERIPHERALS
SETUP“ section for more detail information.
8. Serial Port COMB:COM2
9

This connector support the provided serial port ribbon cable with mounting bracket. Connect
the ribbon cable to this connector and mount the bracket to the case on an open slot.
9. Floppy drive Connector (3 -pin block): FDD
This connector supports the provided floppy drive ribbon cable. After connecting the single
plug end to motherboard, connect the two plugs at other end to the floppy drives.
10. Primary IDE Connector ( 0-pin block): IDE1
This connector supports the provided IDE hard disk ribbon cable. After connecting the single
plug end to motherboard, connect the two plugs at other end to your hard disk(s). If you
install two hard disks, you must configure the second drive to Slave mode by setting its
jumpers accordingly. Please refer to the documentation of your hard disk for the jumper
settings.
11. Secondary IDE Connector ( 0-pin block): IDE2
This connector connects to the next set of Master and Slave hard disks. Follow the same
procedure described for the primary IDE connector. You may also configure two hard disks
to be both Masters using one ribbon cable on the primary IDE connector and another ribbon
cable on the secondary IDE connector.
10

12. IDE activity LED: IDELED
This connector connects to the hard disk activity indicator light on the case.
13. Turbo LED switch: TBLED
The motherboard‘s turbo function is always on. The turbo LED will remain constantly lit
while the system power is on. You may wish to connect the Power LED from the system
case to this lead. See the figure below.
1 . Reset switch lead: RST
This 2-pin connector connects to the case-mounted reset switch for rebooting your
computer without having to turn off your power switch. This is a preferred method of
rebooting in order to prolong the life of the system‘s power supply. See the figure below.
15. Keyboard lock switch lead: PWRLED
This 5-pin connector connects to the case-mounted key switch for locking the keyboard for
security purposes. See the figure below.
16. Speaker connector: SPEAKB
This -pins connector connects to the case-mounted speaker. See the figure below.
17. IR infrared module connector: IR1
This connector supports the optional wireless transmitting and receiving infrared module.
This module mounts to small opening on system cases that support this feature you must
also configure the setting through BIOS setup. Use the four pins as shown on the Back
View and connect a ribbon cable from the module to the motherboard according to the pin
definitions.
11

18. FAN connector: FAN1 and FAN2
19. Power-On button connector: PWRBTN1
20. CD Audio in connector : CD_IN1, CD_IN2
These are the connectors for CD-Audio Input signal, please connect it to CD-ROM CD-
Audio output connector
21. Wake On LAN connector: WOL1
12
CD_IN1 :CD- udio
CD-IN1
CD_IN2 :CD- udio
CD-IN2

※Wake On LAN Function worked only when power supply support 5VSB more than
750mA current.
Chapter 3
13

AWARD BIOS SETUP
This mainboard has previously set to its best stable status. If you are not an experienced user,
please do not change the default setting. When you are encounter any problem, please choice
“LOAD STANDARD DEFAULTS” to restore best setting.
Award’s ROM BIOS provides a built-in Setup program which allows user modify the basic
system configuration and hardware parameters. The modified data will be stored in a battery-
backed CMOS RAM so data will be retained even when the power is turned off. In general, the
information saved in the CMOS RAM stay unchanged unless here is configuration change in
the system, such as hard drive replacement or new equipment is installed.
It is possible that CMOS had a battery failure which cause data lose in CMOS_RAM. If so, re-
enter system configuration parameters become necessary.
To enter Setup Program
Power on the computer and press <Del> key immediately will bring you into BIOS CMOS
SETUP UTILITY.
CMOS Setup Utility – Copyright ( C ) 198 -1999 Award Software
Standard CMOS Features
Advanced BIOS Features
Advanced Chipset Features
Integrated Peripherals
Power Management Setup
PnP/PCI Configurations
PC Health Status
Fre uency/Voltage Control
Load Optimal Defaults
Load Standard Defaults
Set Supervisor Password
Set User Password
Save & Exit Setup
Exit Without Saving
Esc : QUIT F 9: Menu in BIOS  : Select Item
F10 : Save & Exit Setup
Time, Date, Hard Disk Type….
Figure 3
Note that a brief description of each highlighted selection is listed below. The main menu includes the
following setup categories. Please recall that some systems may not include all entries.
Standard CMOS Features: Use this menu for basic system configuration. See Section 3-
1 for the details.
Advanced BIOS Features: Use this menu to set the Advanced Features available on your
system. See Section 3-2 for the details.
Advanced Chipset Features: Use this menu to change the values in the chipset registers
and optimize your system's performance. See section 3-3 for the details.
Integrated Peripherals: Use this menu to specify your settings for integrated peripherals.
See section 3- for the details.
Power Management Setup: Use this menu to specify your settings for power
management. See section 3-5 for the details.
PnP / PCI Configuration: This entry appears if your system supports PnP / PCI. See
section 3-6 for the details.
14

PC Health Status: Use this menu to show the temperature, FAN Speed, Voltage of the PC
Health. 3-7 for the details.
Frequency/Voltage Control: Use this menu to specify your settings for frequency/voltage
control. See section 3-8 for the details.
Load Optimal Defaults: Use this menu to load the Optimal default values for the higher
performance for your system to operate. See section 3-9 for the details.
Load Standard Defaults: Use this menu to load the BIOS default values that are factory
settings for normal/stable performance system operations. While Award has designed the
custom BIOS to normal/stable performance, the factory has the right to change these
defaults to meet their needs. See section 3-10 for the details.
Supervisor / User Password: Use this menu to set User and/or Supervisor Passwords.
See section 3-11 for the details.
Save & Exit Setup: Save CMOS value changes to CMOS and exit setup. See section 3-
12 for the details.
Exit Without Save: Abandon all CMOS value changes and exit setup. See section 3-12
for the details.
3-1 STANDARD CMOS FEATURES
The items in Standard CMOS Features Menu are divided into many categories, and each category may
includes more than one setup items. Please use the arrow keys to highlight the item and then use the
<PgUp> or <PgDn> keys to select the value you want in each item.
CMOS Setup Utility-Copyright © 1984-1999 Award Software
Standard CMOS Features
Date: (mm:dd:yy) Fri, DEC 10 1999
Time: (hh:mm:ss) 10:52:22
 IDE Primary Master Press Enter None
 IDE Primary Slave Press Enter None
 IDE Secondary Master Press Enter None
 IDE Secondary Slave Press Enter None
Drive A 1.44M, 3.5 in.
Drive B None
Video EGA/VGA
Halt On All Errors
Based Memory 640K
Extended Memory 60416K
Total Memory 61440K
Item Help
Menu Level 
Change the day, month,
year and century
Move Enter: Select +/-/PU/PD: Value F10:Save ESC: Exit F1:General Help
F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults
Figure 3-1
IDE Adapters: The IDE adapters control the hard disk drive. Use a separate sub menu to
configure each hard disk drive. Diagram below shows the IDE primary master sub menu.
CMOS Setup Utility – Copyright © 1984-1999 Award Software
IDE Primary Master
15

IDE HDD Auto-Detection Press Enter
IDE Primary Master Auto
Access Mode Auto
Capacity 0 MB
Cylinder 0
Head 0
Precomp 0
Landing Zone 0
Sector 0
Item Help
Menu Level 
To auto-detect the HDD’s size, head...
on this channel
Move Enter: Select +/-/PU/PD: Value F10:Save ESC: Exit F1:General Help
F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults
Figure3-1-1 IDE Primary Master sub menu
Use the legend keys to navigate through this menu and exit to the main menu. Use Figure3-1-
1 to configure the hard disk.
3-2 ADVANCED BIOS FEATURES
This section allows you to configure your system for basic operation. You have the opportunity
to select the system’s default speed, boot-up sequence, keyboard operation, shadowing and
security.
CMOS Setup Utility – Copyright © 1984 – 1999 Award Software
Advanced BIOS Features
Virus Warning Disabled
CPU Internal Cache Enabled
External Cache Enabled
CPU L2 Cache ECC Checking Enabled
Quick Power On Self Test Enabled
First Boot Device Floppy
Second Boot Device HDD-0
Third Boot Device LS/ZIP
Boot other Device Enabled
Swap Floppy Drive Disabled
Boot Up Floppy Seek Enabled
Boot Up NumLock Status Off
Gate A20 Option Fast
Typematic Rate Setting Disabled
X Typematic Rate (Chars/Sec) 6
X Typematic Delay (Msec) 250
Security Option Setup
OS Select For DRAM > 6 MB Non-OS2
Item Help
Menu Level 
Allows you to choose the VIRUS
warning feature for IDE Hard Disk boot
sector protection. If this function is
enabled and someone attempt to write
data into this area, BIOS will show a
warning message on screen and alarm
beep
Move Enter: Select +/-/PU/PD: Value F10:Save ESC: Exit F1:General Help
F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults
Figure3-2
Virus Warning: llow you choose the VIRUS Warning feature for the IDE Hard
Disk boot sector protection. If this function is enabled and someone attempts to
write data into this area, BIOS will show a warning message on screen and
alarm beep.
16

Enabled Activates automatically when the system boots up causing a
warning message to appear when anything attempts to access the
boot sector or hard disk partition table.
Disabled No warning message will appear when anything attempts to
access the boot sector or hard disk partition table.
CPU Internal Cache/External Cache: These two categories speed up memory access.
However, it depends on CPU/chipset design.
CPU L2 Cache ECC Checking: This item allows you enable/disable CPU L2 Cache ECC
checking.
The choice: Enabled, Disabled.
Quick Power On Self Test: This category speeds up Power On Self Test (POST)
after you power up the computer. If it is set to Enable, BIOS will shorten or skip
some check items during POST.
Enabled Enable quick POST
Disabled Normal POST
First/Second/Third/Other Boot Device: The BIOS attempts to load the operating system
from the devices in the sequence selected in these items.
The Choice: Floppy, LS/ZIP, HDD, SCSI, and CDROM.
Other Boot Device: If this option is enable the Bios will attempt to load operating system from other
boot device that is available if the other fails.
Swap Floppy Drive: If the system has two floppy drives, you can swap the logical drive
name assignments.
The choice: Enabled/Disabled.
Boot Up Floppy Seek: Seeks disk drives during boot up. Disabling speeds boot up.
The choice: Enabled/Disabled.
Boot Up NumLock Status: Select power on state for NumLock.
The choice: Enabled/Disabled.
Gate A20 Option: Select if chipset or keyboard controller should control Gate 20.
Normal A pin in the keyboard controller controls GateA20
Fast Lets chipset control GateA20
Typematic Rate Setting: Key strokes repeat at a rate determined by the keyboard
controller. When enabled, the typematic rate and typematic delay can be selected.
The choice: Enabled/Disabled.
Typematic Rate (Chars/Sec): Sets the number of times a second to repeat a keystroke
when you hold the key down.
The choice: 6, 8, 10, 12, 15, 20, 24, 30.
Typematic Delay (Msec): Sets the delay time after the key is held down before it begins to
repeat the keystroke.
The choice: 250, 500, 750, 1000.
Security Option: Select whether the password is required every time the system
boots or only when you enter setup.
System The system will not boot and access to Setup will be denied if the
correct password is not entered at the prompt.
17

Setup The system will boot, but access to Setup will be denied if the
correct password is not entered at the prompt.
Note: To disable security, select PASSWORD SETTING at Main Menu and then you will be asked
to enter password. Do not type anything and just press <Enter>, it will disable security. Once the
security is disabled, the system will boot and you can enter Setup freely.
OS Select For DRAM > 6 MB: Select the operating system that is running with greater
than 6 MB of RAM on the system.
The choice: Non-OS2, OS2.
3-3 ADVANCED CHIPSET FEATURES
This section allows you to configure the system based on the specific features of the installed chipset.
This chipset manages bus speeds and access to system memory resources, such as DRAM and the
external cache. It also coordinates communications between the conventional ISA bus and the PCI bus.
It must be stated that these items should never need to be altered. The default settings have been chosen
because they provide the best operating conditions for your system. The only time you might consider
making any changes would be if you discovered that data was being lost while using your system.
CMOS Setup Utility – Copyright © 1984 – 1999 Award Software
Advanced Chipset Features
Bank 0/1 DRAM Timing SDRAM 10ns
Bank 2/3 DRAM Timing SDRAM 10ns
Bank /5 DRAM Timing SDRAM 10ns
SDRAM Cycle Length 3
DRAM Clock Host CLK
Memory Hole Disabled
P2C/C2P Concurrency Enabled
Fast R-W Turn Around Disabled
System BIOS Cacheable Enabled
Video RAM Cacheable Enabled
AGP Aperture Size 6 MB
AGP- X Mode X
AGP Driving Control Auto
X AGP Driving Value DA
K7 CLK_CTL Select Optimal
CPU to PCI Write Buffer Disabled
PCI Dynamic Bursting Enabled
PCI Master 0 WS Write Enabled
PCI Delay Transaction Disabled
Item Help
Menu Level 
Move Enter: Select +/-/PU/PD: Value F10:Save ESC: Exit F1:General Help
F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults
Figure 3-5
DRAM Timings: These settings deal with CPU access to dynamic random access memory
(DRAM). The default timings have been carefully chosen and should only be altered if data is being
lost. Such a scenario might occurs if your system had mixed speed DRAM chips installed so that
greater delays may be required to preserve the integrity of the data held in the slower memory
chips.
AGP Mode Select: This function allows you choose suitable AGP mode.
18
