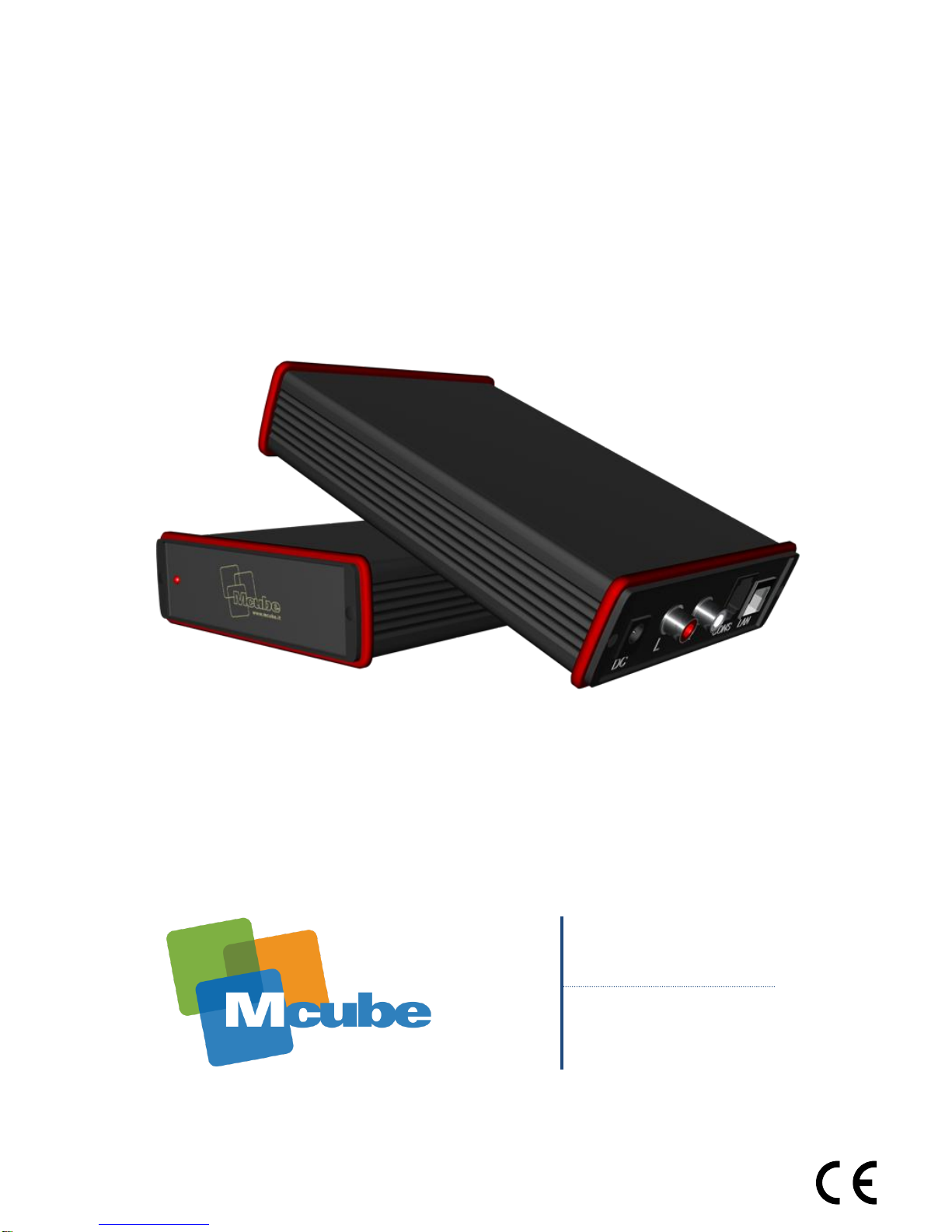

Mcube 7V2261-0 User manual

M-CUBE Player - INSTALLATION MANUAL
M-CUBE S.p.A.
Corso Cavour,2/2d
34132 Trieste
Tel.[phone]
Fax.:[phone]
E-mail: [e-mail]

2
M-Cube Player –Installation instructions

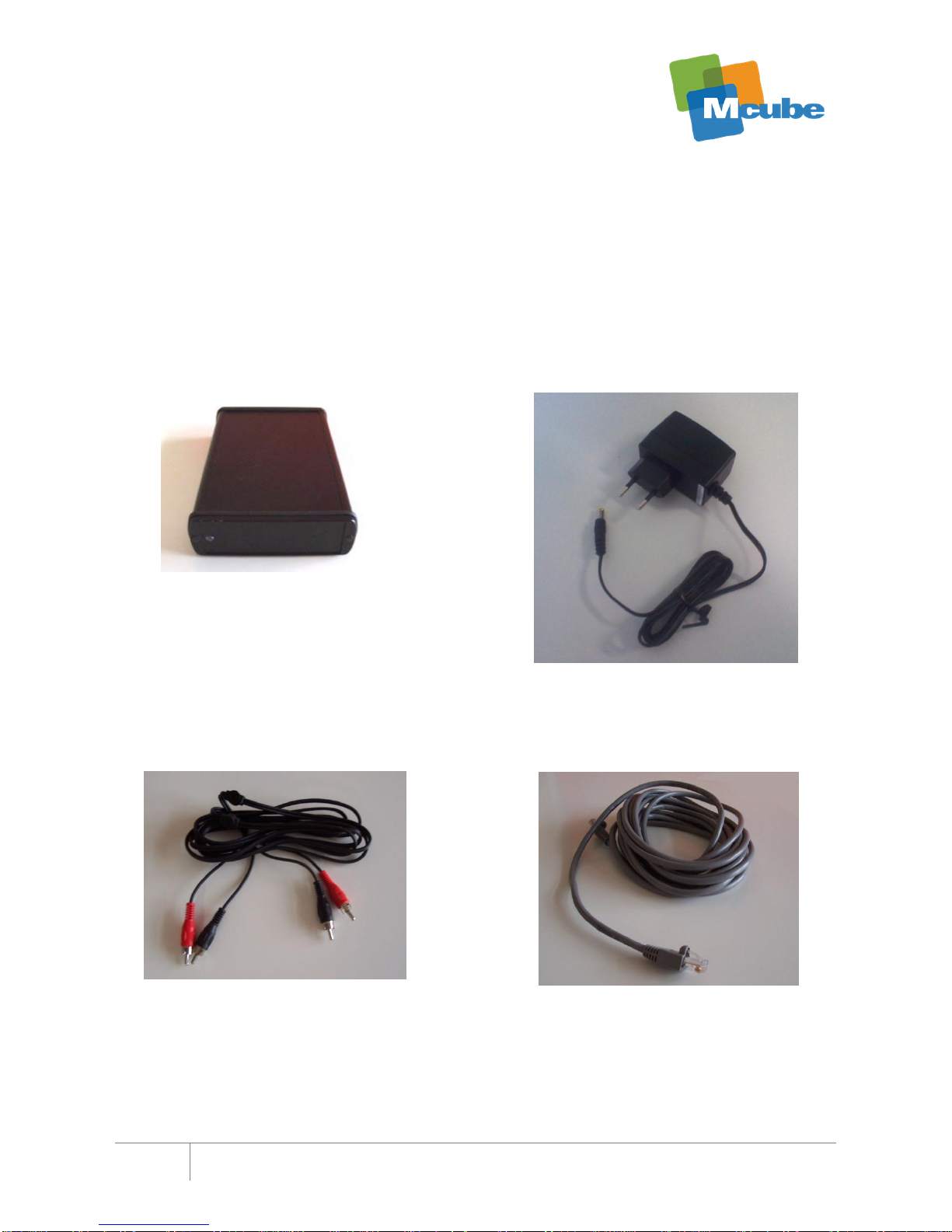

Equipment and components included in the package
1) M-Cube Player (Fig. 1)
2) AC/DC power supply cable ( Fig. 2)
3) Audio cable (Fig. 3)
4) RJ45 twisted pair Internet cable (Fig. 4)
Fig. 1: M-Cube Player
Fig. 2:Power Supply cable
Fig. 3: Audio cable
Fig. 4: RJ45 Internet cable

3
Equipment not provided by M-Cube that should be present in the store for the correct functioning of the
system:
-An amplifier and the speakers to be connected to the M-Cube player
-An internet router and DSL connection to download the playlists’updates from the M-Cube server
M-Cube Player hardware description
On the front panel of the M-Cube Player (fig. 5) is the Led status light. The light status can be:
on, intermitting or off and it can be either green, red or blue. For details on the LED light status see the
section “M-Cube player system operation”
Fig. 5: Front panel M-Cube Player
On the rear panel (Fig. 6) are:
-The power supply socket
-Two RCA outputs
-RJ45 Internet port
Fig. 6: Rear panel M-Cube Player
RJ45 Internet port
Power supply
socket
RCA output

4
M-Cube player Installation
Unpack the player and the accessories taking care to keep the original box in good conditions (returns are to
be made in original box).
Connecting your M-Cube player
Position the player near the amplifier and/or router:

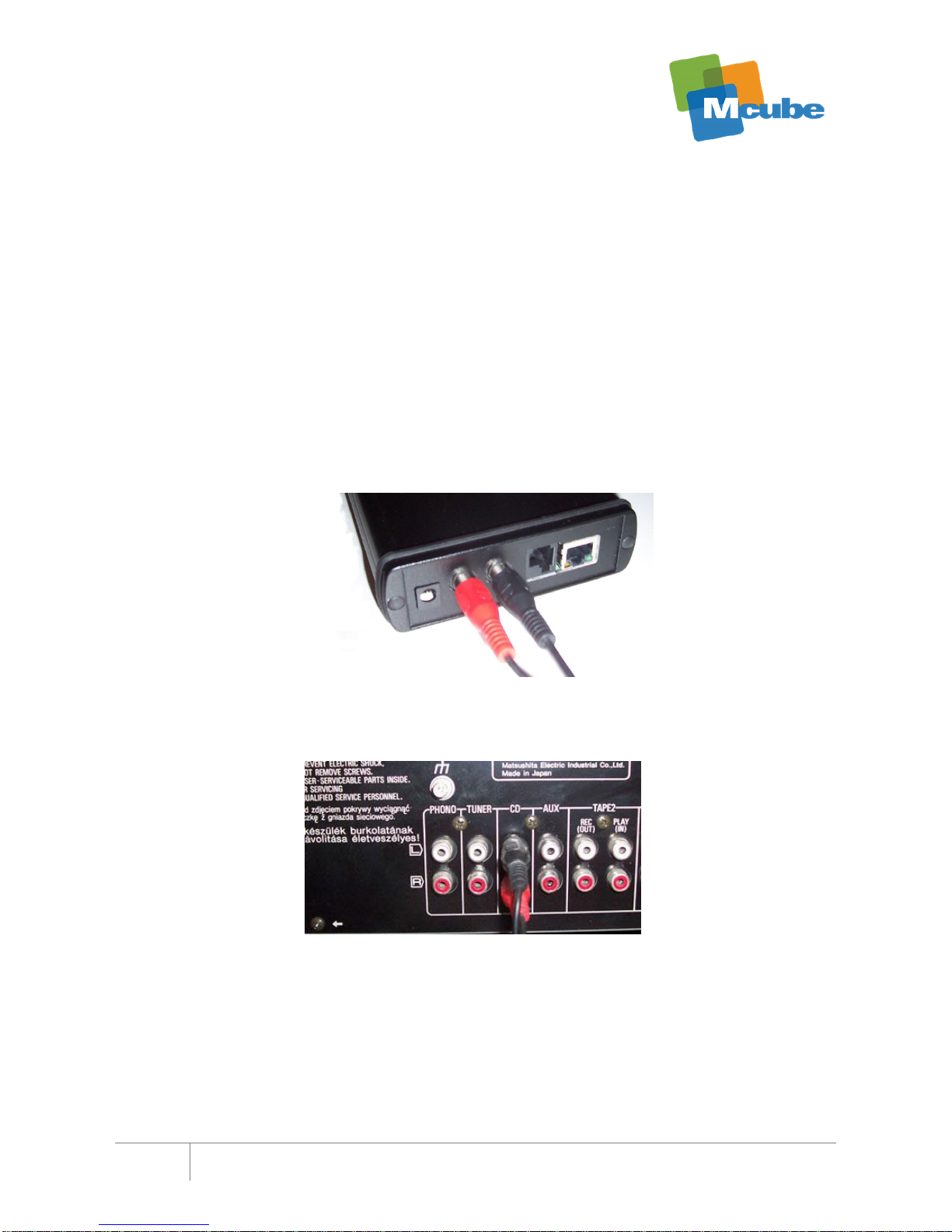

1. Audio cable (Fig. 7): plug one end of the audio jack pins in the RCA output in the rear panel of the M-
Cube player (red audio jack pin to red RCA output / white audio jack pin to white RCA output) and
the other end of the audio jack pins to the amplifier audio input. (Fig. 8)
Fig. 7: Audio jack pin in RCA output
Fig. 8: Jack pins in Amplifier audio input

5
2. Connect the RJ45 cable to the player internet port (Fig. 9) and to the router (1, Fig.10)
Fig. 9: RJ45 internet cable (grey cable) connected to internet port
Fig. 10: Internet cable connected to switch / router

6

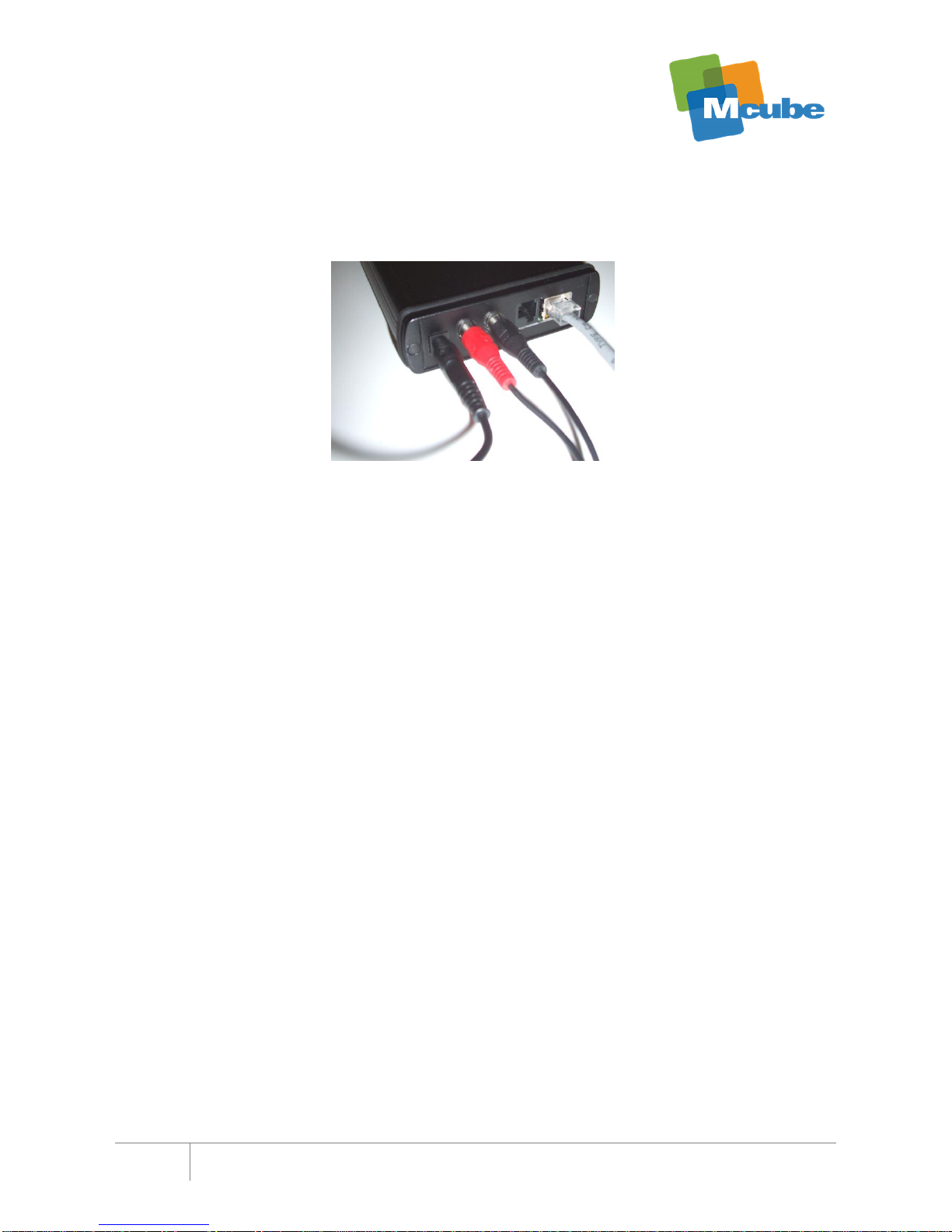

3. Plug in the AC/DC power supply cable to the M-Cube player’s power socket (Fig.11) and the other
end in a 220V electrical socket
Fig. 11:M-Cube Player power supply cable (left hand-side black cable)
At the end of the installation call M-Cube Help desk on [phone] between 09.00 and 17.00 (Monday
to Friday) to finalize the installation procedure.
IMPORTANT: please safe keep the original M-Cube player box as this is to be used to return faulty items to
be replaced at no delivery charge.

7
SYSTEM OPERATION
Once the installation procedure is complete the M-Cube player is ready to play.
For a correct operation check the led status light:
- Green light ON: the player is playing and is correctly connected to the M-Cube server to download
the updates
- Red Light flashing: the player is switching on
- Blue light flashing: server connection attempt
- Blue light ON: the player is connected to the server and is downloading the updates
- Green light ON intermitted by Blue light flashing: the player is not connecting to the server.
Please check that the player is correctly connected to the router. If the problem is not resolved
please call M-Cube Help desk on [phone] between 09.00 and 17.00 (Monday to Friday).
TROUBLE SHOOTING
-The player does not switch on and the LED light is off
Check that the power supply cable is correctly connected to the player and to the electric socket
-The player is switched on but the music is not playing
Check that the audio cable is connected to the M-Cube player and to the amplifier. The audio cable
can be plugged in the AUX, CD-IN, LINE-IN amplifier input. Check that the amplifier channel
selected is the one to which the M-Cube player is connected
-Volume is low
Check the amplifier volume. The M-Cube player volume output is amplified by default

8
PLAYLIST UPDATES
The M-Cube player comes with a set of music playlists chosen in cooperation with international DJs, divided
by genre and organized into custom playlists.
The marketing department will continuously update the playlists adding new tracks while deleting the old
songs
M-Cube is not responsible for changes made to the playlists by unauthorized Client’s personnel.
The players’music content is the sole responsibility of M-Cube S.p.A., holder of an international
SIAE/SCF license:
M-Cube S.P.A.
Corso Cavour, 2/2d
34132 Trieste
Tel.:[phone]
Fax.:[phone]
e-mail: [e-mail]
VAT/Co. Reg. 01022540320
In case of an inspection by the Copywrite Collecting Agency please contact M-Cube S.p.A:
Mr Michele Sponza, Tel.:[phone], email: [e-mail]
[email protected]

DECLARATION OF CONFORMITY
We,
M-Cube S.p.A
C.so Cavour 2/2d
Trieste
34132
Italy
declare under our sole responsibility that the product:
M-Cube - PLAYER MCUBE
is in conformity with all the requirements of the European Directive 2014/30/EU – EMC
is in conformity with all the requirements of the European Directive 2014/35/EU – LVD
The conformity with the requirements of the European Directives 2014/30/EU – EMC and
2014/35/EU – LVD has been verified against the following harmonised standards:
EN 55022:2010 + AC:2011 Information technology equipment - Radio disturbance
characteristics - Limits and methods of measurement;
EN 55024:2010 Information technology equipment - Immunity characteristics - Limits and
methods of measurement;
CENELEC EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 Information
technology equipment - Safety - Part 1: General requirements.
All the technical documentation relevant to the product will be held at:
M-Cube S.p.A
C.so Cavour 2/2d
Trieste
34132
Italy
________________________
MANLIO ROMANELLI
CE marking year: 15 PRESIDENT M-CUBE SPA
Trieste, 21 maggio 2015

IT
Direttiva 2002/96/CE (Rifiuti di Apparecchia-
ture Elettriche ed Elettroniche - RAEE):
informazioni agli utenti: ai sensi dell’art. 13
del Decreto Legislativo 25 luglio 2005, n.
151”Attuazione delle Direttive 2002/95/CE,
2002/96/CE e 2003/108/CE, relative alla ri-
duzione dell’uso di sostanze pericolose nelle
apparecchiature elettriche ed elettroniche,
nonché allo smaltimento dei rifiuti” questo
prodotto è conforme.
Il simbolo del cassonetto barrato riportato
sull’apparecchiatura o sulla sua confezione indica
che il prodotto alla fine della propria vita utile deve
essere raccolto separatamente dagli altri rifiuti.
L’utente dovrà, pertanto, conferire l’Apparecchia-
tura giunta a fine vita agli idonei centri di raccolta
differenziata dei Rifiuti Elettronici ed Elettrotecnici,
oppure riconsegnarla al rivenditore al momento
dell’acquisto di una nuova apparecchiatura di
tipo equivalente, in ragione di uno a uno. L’ade-
guata raccolta differenziata per l’avvio successivo
dell’apparecchiatura dismessa al riciclaggio, al
trattamento ed allo smaltimento ambientalmente
compatibile contribuisce ad evitare possibili effetti
negativi sull’ambiente e sulla salute e favorisce il
reimpiego e/o riciclo dei materiali di cui è com-
posta l’apparecchiatura. Lo smaltimento abusivo
del prodotto da parte dell’utente comporta l’ap-
plicazione delle sanzioni amministrative previste
dalla normativa vigente.
ES
Directiva 2002/96/EC (Residuos de aparatos
eléctricos y electrónicos - RAEE):
Información para el usuario.
Este producto es conforme con la Directiva EU
2002/96/CE. El simbolo de la papelera barrada
situado sobre el aparato indica que este pro-
ducto, al final de su vida útil, debe ser tratado
separadamente de los residuos domésticos. El
usuario es responsable de la entrega del aparato
al final de su vida útil a los centros de recogida
autorizados. El adecuado proceso de recogida
diferenciada permite dirigir el aparato desechado
al reciclaje, a su tratamiento y a su desmante-
lamiento de una forma compatible con el medio
ambiente, contribuyendo a evitar los posibles
efectos negativos sobre el ambiente y la salud,
favoreciendo el reciclaje de los materiales de los
que está compuesto el producto. Para informa-
ción más detallada inherente a los sistemas de
recogida disponibles, dirigirse al servicio local de
recogida o al establecimiento donde se adquirió
el producto.
FR
Directive 2002/96/CE (Déchets d’équipe-
ments électriques et électroniques - DEEE):
informations aux utilisateurs.
Ce produit est conforme à la Directive ED
2002/96/CE. Le symbole de la corbeille barrée
reporté sur l’appareil indique que ce dernier doit
être éliminé à part lorsqu’il n’est plus utilisable et
non pas avec les ordures ménagéres. L’utilisa-
teur a la responsabilité de porter l’appareil hors
d’usage à un centre de ramassage spécialisé. Le
tri approprié des déchets permet d’acheminer
l’appareil vers le recyclage, le traitement et l’éli-
mination de façon écologiquement compatible. Il
contribute à éviter les effets négatifs possibles sur
l’environnement et sur la santé, tout en favorisant
le recyclage des matériaux dont est constitué le
produit. Pour avoir des informations plus détail-
lées sur les systèmes de ramassage disponibles,
s’adresser au service local d’élimination des dé-
chets ou au revendeur.
DE
Richtlinie 2002/96/EU (Elektro- und Elektro-
nik- Altgeräte - WEEE):
Benutzerinformationen.
Dieses Produkt entspricht der EURichtlinie
2002/96/EU. Das Symbol des auf dem Gerät
dargestellten, durchgestrichenen Korbesgibt an,
dass das Produkt am Endeseiner Nutzungsdau-
er gesondert vomHausmüll zu behandeln ist.Am
Ende der Nutzungsdauer ist der Benutzer für
die Überantwortung des Geräts an geeignete
Sammelstellen verantwortlich. Die angemesse-
ne, getrennte Müllsammlung zwecks umwel-
tkompatibler Behandlung und Entsorgung für
den anschließenden Recyclingbeginn des nicht
mehr verwendeten. Geräts trägt zur Vermeidung
möglicher schädlicher Wirkungen auf Umwelt
und Gesundheit bei und begunstigt das Re-
cycling der Materialien, aus denen das Produkt
zusammengesetzt ist. Für nähere informationen
bezüglich der zur Verfügung stehenden Sammel-
systeme, wenden Sie sich bitte an den örtlichen
Müllentsorgungsdienst oder an das Geschäft, in
dem der Kauf getäligt worden ist.
UK
Directive 2002/96/EC (Waste Electrical and
Electronic Equipment - WEEE):
information for users.
This product complies with EU Directive 2002/96/
EC. The crossed-out wastebasket symbol on the
appliance means that at the end of its useful li-
fespan, the product must be disposed of sepa-
rately from ordinary household wastes. The user
is responsible for delivering the appliance to an
appropriate collection facility at the end of its
useful lifespan. Appropriate separate collection
to permit recycling, treatment and environmen-
tally compatible disposal helps prevent negative
impact on the environment and human health
and promotes recycling of the materials making
up the product. For more information on availa-
ble collection facilities, contact your local waste
collection service or the shop where you boughl
this appliance.
NL
Richtlijn 2002/96/EG (Afgedankte Elektri-
sche en Elektronische Apparaten - AEEA):
informatie voor de gebruikers.
Dit product voldoet aan de richtlijn EU 2002/96/
EG. Het symbool van de vuilnisbak met een stre-
ep erdoor, dat op het apparaat staat, geeft aan
dat het product, wanneer het wordt afgedankt,
niet met het huisvuil kan worden meegegeven.
Het is de verantwoordelijkheid van de gebruiker
het product, op het moment dat dit wordt afge-
dankt, in te leveren bij een centrum voor geschei-
den afvalverwerking. Een correcte gescheiden
afvalverwerking, die gericht is op de recycling van
het afgedankte product en die een milieuvriendei-
ijke behandeling en vernietiging mogelijk maakt,
draagt ertoe bij mogelijk negatieve effecten op
het milieu en op de gezondheid te voorkomen en
bevordert het hergebruik van de materialen waa-
ruit het product bestaat. Voor meer gedetailleer-
de informatie met betrekking tot de voorhanden
zijnde afvalverwerkingsystemen dient u zich te
wenden tot de plaatselijke vuilnisdienst of tot de
winkelier waar u het product heeft gekocht.
PT
Directiva 2002/96/CE (Residuos de equipa-
mentos eléctricos e electrónicos REEE):
informações para os utilizadores.
Este produto é conforme á Directiva EU 2002/96/
CE. O simbolo do cesto barrado marcado no
aparelho indica que o produto, no fim da própria
vida útil, deve ser tratado separadamente do lixo
doméstico. O utilizador é responsável pela entre-
ga do aparelho. no fim da vida do mesmo, às
apropriadas estruturas de recolha. A adequada
recolha diferenciada para o encaminhamento su-
cessivo do aparelho à reciclagem, ao tratamento
e ao escoamento ambientalmente compativel,
contribui para evitar possiveis efeitos negativos
sobre o ambiente e a saúde e favorece a reci-
clagem dos materiais que compõem o produto.
Para informações mais detalhadas inerentes aos
sistemas de recolha disponiveis, dirija-se ao ser-
viço local de escoamento de residuos, ou a loja
na qual efectuou a compra.
NO
WEEE-symbolet (Waste Electrical and Elec-
tronic Equipment).
Bruken av WEEE-symbolet indikerer at dette
produktet ikke kan behandles som hushold-
ningsavfall. Du vil bidra til å beskytte miljøet ved
å sørge for at dette produktet blir avhendet på
en forsvarlig måte. Ta kontakt med kommunale
myndigheter, renovasjonsselskapet der du bor
eller forretningen hvor du kjøpte produktet for
å få mer informasjon om resirkulering av dette
produktet.
SV
Symbol för avfall från elektrisk och elektro-
nisk utrustning (WEEE).
Märkning med WEEE-symbolen visar att pro-
dukten inte får behandlas som hushållsavfall.
Genom att slänga den här produkten på rätt sätt
bidrar du till att skydda miljön. Mer information
om återvinning av produkten kan du få av de lo-
kala myndigheterna, din renhållningsservice eller i
affären där du köpte produkten.
FI
WEEE-merkintä (sähkö- ja elektroniikkalai-
teromu).
WEEE-merkintä osoittaa, että tätä tuotetta ei voi
käsitellä kotitalousjätteen tavoin. Kun huolehdit
tämän tuotteen asianmukaisesta hävittämisestä,
autat suojelemaan ympäristöä. Lisätietoa tämän
tuotteen kierrättämisestä saat paikallisviranomai-
silta, jätehuoltoyhtiöltäsi tai myymälästä josta ostit
tämän tuotteen.
DA
Symbol for affald af elektrisk og elektronisk
udstyr (WEEE).
Brugen af WEEE-symbolet betyder, at dette pro-
dukt ikke må behandles som husholdningsaffald.
Ved at sørge for korrekt bortskaffelse af produktet
medvirker du til at beskytte miljøet. Du kan få flere
oplysninger om genbrug af dette produkt hos de
lokale myndigheder, dit renovationsselskab eller i
forretningen, hvor du har købt produktet.
HU
Hulladék elektromos vagy elektronikus ké-
szüléket jelölö szimbòlum.
Ez a szimbólum azt jelöli, hogy a terméket nem
szabad háztartási hulladékként kezelni. A hulla-
dékká valt termék megfeleló elhelyezésével hoz-
zájárul a környezet védelméhez. A termék újra-
felhasználásával kapcsolatban a helyi szerveknél
háztartási hulladékokat elszállító vállalatnál vagy a
terméket értékesítö üzletben tájékozódhat.
CZ
Symbol pro odpadní elektrický a elektro-
nický materiál (WEEE).
Použití symbolu WEEE oznauje, že tento produ-
kt nelze likvidovat jako domovní odpad.Správnou
likvidaci tohoto produktu pispjete k ochran
životního prostedí. Podrobnjší informace o li-
kvidaci tohoto produktu vám podaji místní úady,
spolenost pro likvidaci komunálního odpadu
nebo obchod, kde jste zboži zakoupili.

Information to user (notice per 47CFR15.21):Changes or modifications not
expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
Information to user (FCC Statement):
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to
radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
*Reorient or relocate the receiving antenna.
*Increase the separation between the equipment and receiver.
*Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
*Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
Canada:
CAN ICES-3(B)/NMB-3(B)
This Class B digital apparatus meets all requirements of the Canadian Interference
Causing Equipment Regulations ICES-003 Issue 5. Cet appareil numérique de la classe B
respecte toutes les exigencies du Réglement sur le matériel brouilleur du Canada ICES-
003 Issue 5.
