Mealink HDMX0009M1 User manual

Operating Instructions
Thanks for purchasing our product.
Please be sure to read this instruction manual
carefully before using our product.

Introduction
HDMX0009M1 is an 16-by-16 HDMI matrix. It allows any of the Sixteen Input
Channels (HDMI) to be routed to any of the Sixteen Output Channels (HDMI), no
matter the source is HDCP or not. Users can choose several different ways to
control the matrix: by Push button , RS232, and Ethernet control.
HDMX0009M1 internal EDID library features default EDID configurations, in
addition to native EDID data for any output/display.
HDMX0009M1 offers solutions for digital entertainment center, HDTV retail and
show site, HDTV, STB, DVD and projector factory, noise, space and security
concerns, data center control, information distribution, conference room
presentation, school and corporate training environments.

HDMI Matrix (Routing Type)
Product Overview
Dear customer
Thank you for purchasing this product. For optimum performance and safety,
please read these instructions carefully before connecting, operating or adjusting
this product. Please keep this manual for future reference.
■Features
Allows up to eight HDMI audio/video devices to be independently switched to
eight HDMI monitors, HDTV’s, or projectors.
The Sixteen output channels could show the same or different source
simultaneously no matter the source is HDCPor not.
Reading and saving EDID function from displays.
Support high definition resolutions, including:
4Kx2K,1080p, 3D, 1080i, 720p and other standard video formats.
Each port support both HDMI and DVI inputs.
Four switching modes: panel buttons, RS232 and Ethernet.
HDMI 1.4 supported.

Notice
We. reserves the right to make changes in the hardware, packaging and any
accompanying documentation without prior written notice.
Warning
To reduce the risk of fire, electric shock or product damage:
1. Do not expose this apparatus
to rain, moisture, dripping or
splashing and that no objects
filled with liquids, such as vases,
shall be placed on the apparatus.
6. Clean this apparatus
only with dry cloth.
2. Do not install or place this unit
in a bookcase, built-in cabinet or
in another confined space.
Ensure the unit is well ventilated.
3. To prevent risk of electric
shock or fire hazard due to
overheating, do not obstruct
the unit’s ventilation openings
with newspapers, tablecloths,
curtains, and similar items.
4. Do not install near any heat
sources such as radiators, heat
registers, stoves, or other
apparatus (including amplifiers)
that produce heat.
5. Do not place sources of naked
flames, such as lighted candles,
on the unit.
7. Unplug this apparatus
during lightning storms or
when unused for long
periods of time.
8. Protect the power cord
from being walked on or
pinched particularly at
plugs.
9. Only use attachments /
accessories specified by
the manufacturer.
10. Refer all servicing to
qualified service
personnel.

■Package Contents
①1x Main unit. P/N_ HDMX0009M1.
②1x Power line
③1x CD-ROM(Control software operating instructions).
④Mounting ears.
NOTE: PART NUMBER (Abbreviation as P/N).
■Panel Descriptions
①LCD indicator, displays the status of each output port.
②1~0: Press the intput source selection button in order to choose
③1-SWITCH-2-END-ENTER : output 2 chooseinput 1
④1-SWITCH-2-AND-3-AND-4-END-ENTER: output 2,3,4 choose input 1
⑤ALL: Press this button to set all the outputs to display with the same input.
X-ALL-ENTER : all output choose input X .
⑥LOCK: Press this button to lock all the control from button.
⑦SAVE: Savethecurrent channel status .SAVE-1-ENTER: Savethe first default
state.
⑧LOAD: Recall default state. LOAD-1-ENTER: Recall thefirst default state.
⑨STATUS: Current status for input and output.
⑩CANCEL: Current key input errors, return to the input state on a button.
⑪POWER: Matrix power lights
⑫STATUS: Matrix status lights
⑬RXD: Valid serial command input indicator

①RS232 port.
②LAN port.
③HDMI output port.
④HDMI input port (HDMI or DVI or VGAor AV).
⑤Power: Press this button to turn the system on.
⑥Power input: 110V or 220V input
■Connections and Operations
1) Connect the HDMI input source ( such as HD-DVD/ PS3/STB etc.)Into
HDMX0009M1.
2) Connect HDMI OUT of HDMX0009M1 to display equipment.
3) Power on theinput source you want to show. ( Keep theunusedinput power
off, otherwiseit may interferethe normal display).

4) Plug the power cable into HDMX0009M1.
5) Turn on the displays you want to watch.
6) Use the Front Panel, RS232 and Ethernet port to control.
3. Control via RS232 and Ethernet.
1) The Interface of HDMX0009M1 control

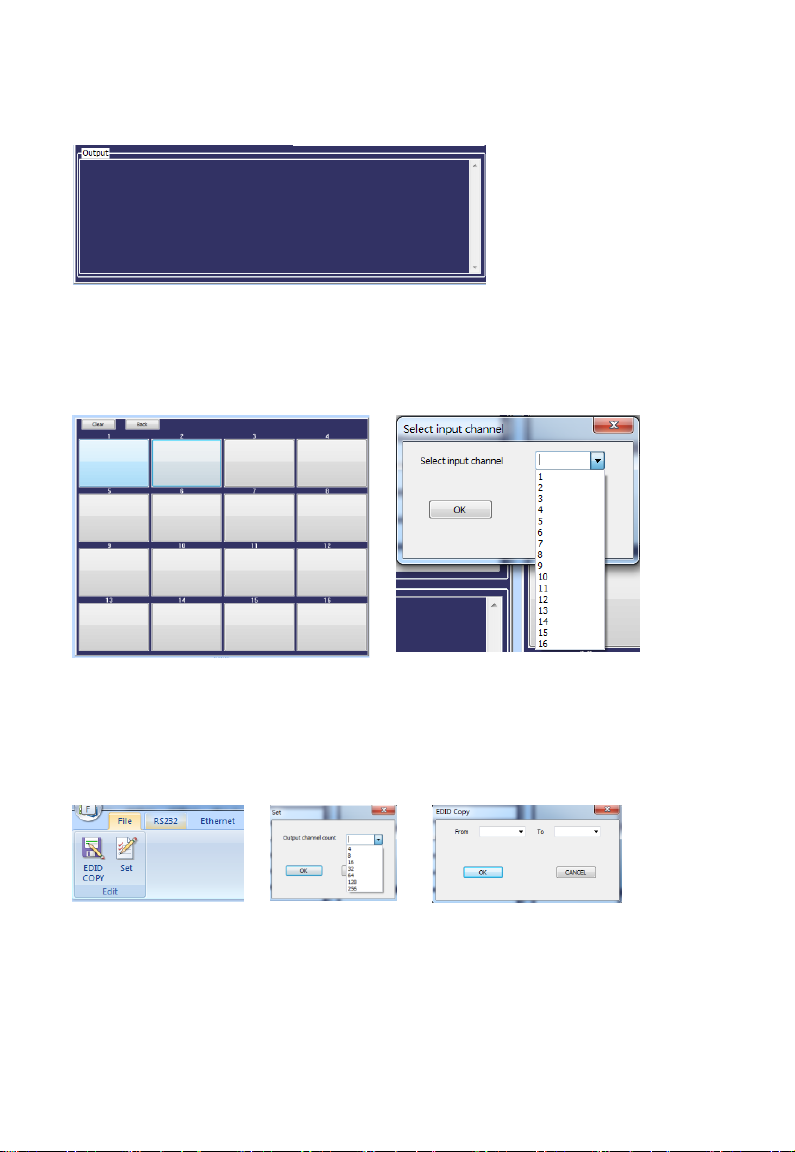

2) The Message Window
2.1) Receive Window
The “output window” will show the message received from MX1616.It will send out
the message about “operation results” as below.
2.2) Status Button
Click the Output window x, will pop up on the right window, click the drop-down
menu, select the input source
2.3) Setting Button
Matrix running configuration, For example 16x16 matrix selection 16.
EDID COPY, For example form output 1 to input 2.

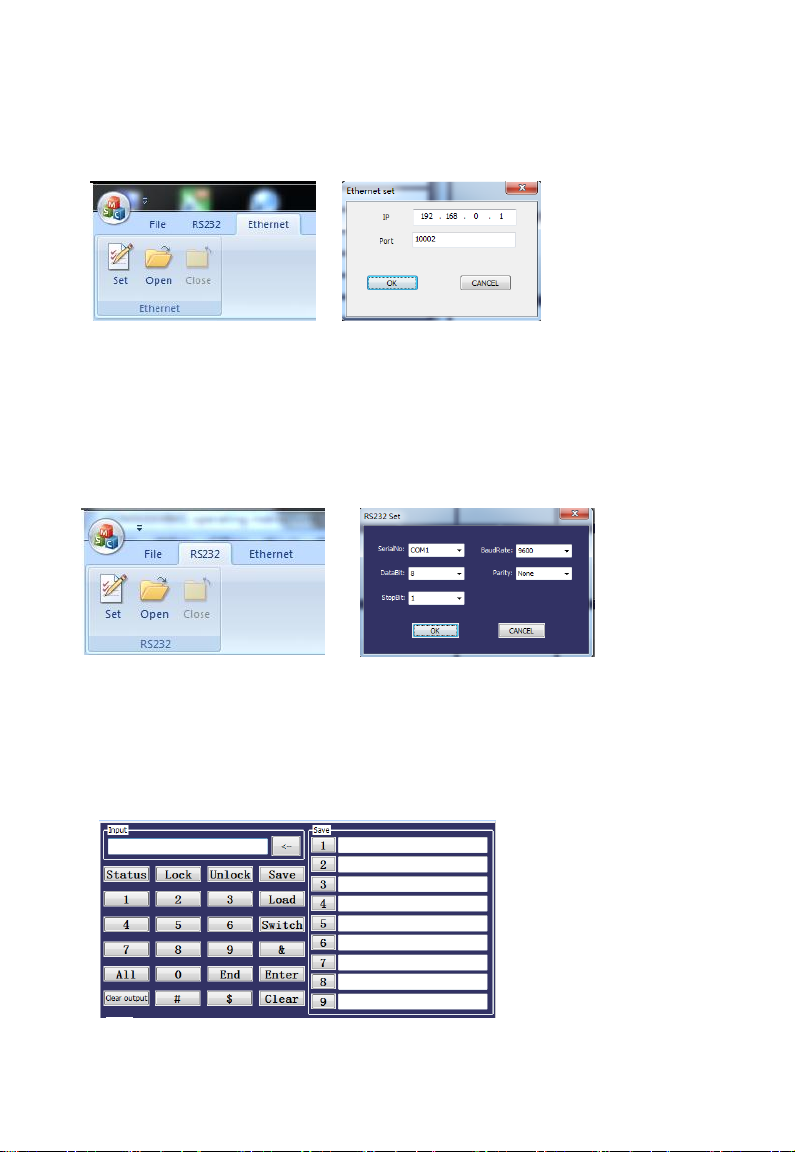

2.4) IP SET Button
Click this button to set IP address for LAN control (for example: 192.168.0.3).
Set: Matrix ip address
Port: 10002
Open: open Ethernet
Close: close Ethernet
2.5) RS232 Set button
Set: set serial,baudrate.
Open: open RS232
Close: close RS232
2.6) Keyboard control
Mode of operation is similar to the front panel buttons control

■Specifications
Operating Temperature Range
0 to +35°C (32 to +95°F)
Operating Humidity Range
5 to 90 % RH (no condensation)
Input Video Signal
0.5-1.0 volts p-p
Input DDC Signal
5 volts p-p (TTL)
Video Format Supported
DTV/HDTV:4Kx2K/3D/ 1080P/1080i/720P/
576P/480P/576i/480i
Audio Format Supported
DTS-HD、Dolby HD
Output Video
HDMI 1.4
Maximum Transmission Distance
15m over HDMI cable
Power Consumption
60 Watts (Max.)
Dimensions
W436.9XH3211XT177.8mm
Mass (Main unit)
4300g
NOTE: Specifications are subject to change without notice. Mass and dimensions are
approximate.

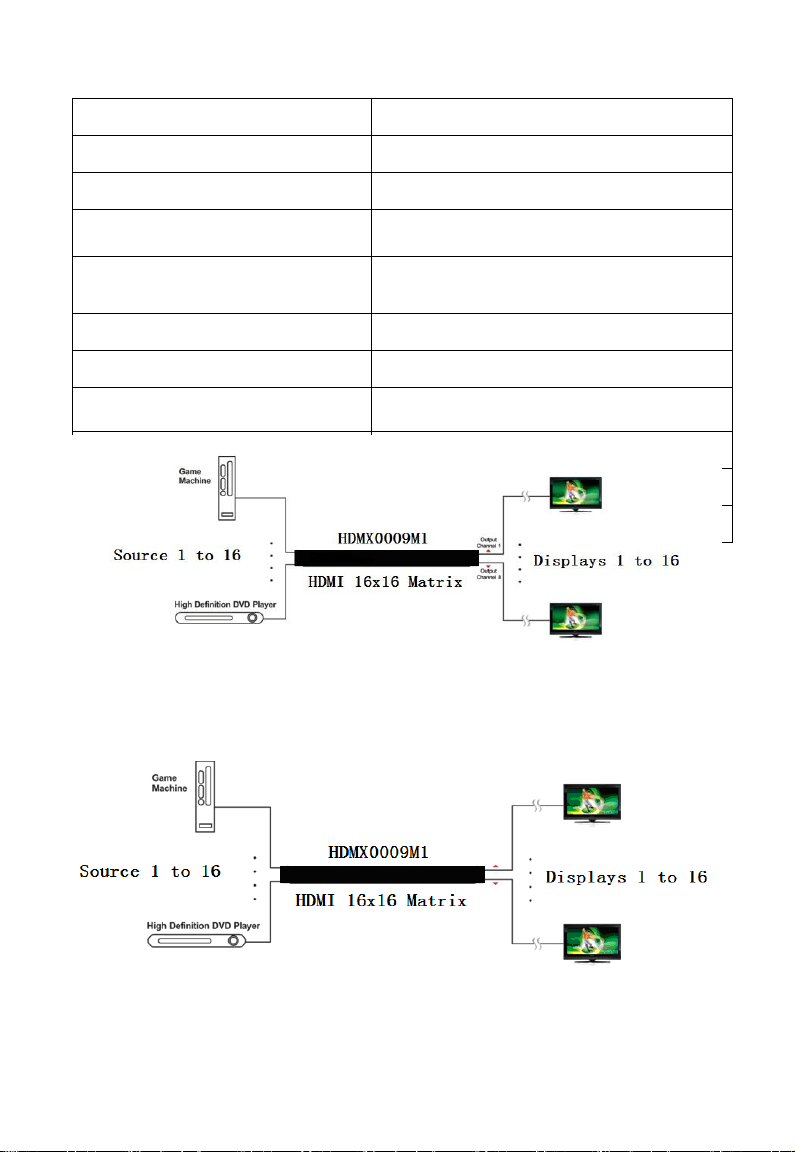

■Typical
Application

■Maintenance
Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or benzine to
clean this unit.
■Product Service
●Provided Service
1) Damage Requiring service: The unit should be serviced by qualified
service personnel if:
The DC power supply cord or AC adaptor has been damaged;
Objects or liquids have gotten into the unit;
The unit has been exposed to rain;
The unit does not operate normally or exhibits a marked change in performance;
The unit has been dropped or the cabinet damaged.
2) Servicing Personnel: Donot attempt to service the unit beyond that described in these
operating instructions. Refer all other servicing to authorized servicing personnel.
3) Replacement parts: When parts need replacing ensure the service uses parts
specified by the manufacturer or parts that have the same characteristics as the original
parts. Unauthorized substitutes may result in fire, electric shock, or other hazards.
4) Safety check: After repairs or service, ask the service to perform safety checks to
confirm that the unit is in proper working condition.
●Mail-In Service
When shipping the unit, carefully pack and send it prepaid, adequately insured and preferably in
the original carton. Include a letter detailing the complaint and provide a daytime phone and/or
email address where you can be reached.
If repair is needed during the limited warranty period the purchaser will be required to furnish a
sales receipt/proof of purchase indicating date of purchase, amount paid and place of purchase.
Customer will be charged for the repair of any unit received without such proof of purchase.
●Warranty
If your product does not work properly because of a defect in materials or workmanship, We
(referred to as “the warrantor”) will, for the length of the period indicated as below, (Parts (1) Year,

Labor(90) Days)which starts with the date of original purchase (“Limited Warranty period”), at its
option either (a) repair your product with new or refurbished parts, or (b) replace it with a new or a
refurbished product. The decision to repair or replace will be made by the warrantor.
During the “Labor” Limited W arranty period there will be no charge for labor. During the “Parts”
warranty period, there will be no charge for parts. You must mail-in your product during the
warranty period. This Limited Warranty is extended only to the original purchaser and only covers
product purchased as new. A purchase receipt or other proof of original purchase date is required
for Limited Warranty service.
●Warranty Limits And Exclusions
1) This Limited Warranty ONLY COVERSfailures due to defects in materials or
workmanship, and DOES NOT COVER normal wear and tear or cosmetic
damage. The Limited Warranty ALSO DOES NOT COVER damages which occurred in
shipment, or failures which are caused by products not supplied by the warrantor, or failures
which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration,
faulty installation, set-up adjustments, maladjustment of consumer controls, improper
maintenance, power line surge, lightning damage, modification, or service by anyone other
than a Factory Service Center or other Authorized Service, or damage that is attributable to
acts of God.
2) There are no express warranties except as listed under “limited warranty
coverage”. The warrantor is not liable for incidental or consequential
damages resulting from the use of this product, or arising out of any breach
of this warranty. (As examples, this excludes damages for lost time, cost of having
someone remove or re-install an installed unit if applicable, travel to and from the service
location, loss of or damage to media or images, data or other recorded content. The items
listed are not exclusive, but are for illustration only.)
3) Parts and service, which are not covered by this limited warranty, are your
responsibility.
