PTN MHD88 User manual

HDMI Matrix Switcher 8x8
PTN Electronics Limited www.PTN-electronics.com
MHD88
PTN HDMI Matrix Switchers 8x8
USER MANUAL
Version: MHD882013V1.3

HDMI Matrix Switcher 8x8
PTN Electronics Limited www.PTN-electronics.com
NOTICE: Please read this user manual carefully before using this product.
Update History
Version
Date
Update Content
1.0
2012.12.20
First Version.
1.1
2012.12.26
Update the pictures of MHD88 and the
introductions of the product.
1.2
2013.03.28
Update the operation order of the buttons.
1.3
2013.05.24
Modified the system diagram and the logo.
This manual is for operation instruction only, not for any maintenance usage. The
functions described in this version are updated till May 2013. Any changes of
functions and parameters since then will be informed separately. Please refer to
the dealers for the latest details.
This manual is copyright PTN Electronics Limited. All rights reserved. No part of
this publication may be copied or reproduced without the prior written consent of
PTN Electronics Limited.
All product function is valid till 2013-05-24.

HDMI Matrix Switcher 8x8
PTN Electronics Limited www.PTN-electronics.com
Table of Contents
1. Introduction ...............................................................................................................1
1.1. About HDMI Matrix Switcher System.............................................................1
1.2. Package Contents..........................................................................................1
2. Features....................................................................................................................1
3. Specification..............................................................................................................2
4. Operations of the Control panel and the IR Remote .................................................3
4.1. Operation of the Control Panel ......................................................................3
4.2. Usage of the IR Remote ................................................................................4
5. External Connection..................................................................................................5
5.1. Introduction of the Input and Output Connectors ...........................................5
5.2. How to Connect with the Input and Output Terminals....................................5
5.1. Connection of RS232 Communication Port ...................................................6
5.3. Connection with Control System....................................................................6
5.4. Connection with Computer.............................................................................6
6. System Diagram........................................................................................................7
7. Operation of the EDID management.........................................................................7
7.1. EDID automatically shake hand.....................................................................7
7.2. EDID management of MHD matrix.................................................................8
7.2.1. EDID restore to factory default ..............................................................8
7.2.2. Manually EDID switching.......................................................................9
8. Communication Protocol and Command Codes .......................................................9
9. Safety Operation Guide...........................................................................................11
10.Troubleshooting & Maintenance..............................................................................12
11. After-sales Service..................................................................................................13

HDMI Matrix Switcher 8x8
PTN Electronics Limited www.PTN-electronics.com
1
1. Introduction
1.1. About HDMI Matrix Switcher System
MHD series Matrix switcher is a high-performance digital signal switcher that can be
used for cross switching of multi computer and audio signal. Independent HDMI
component and I/O terminals make each component signal transmit and switch
separately; this design can reduce attenuation of signal transmission to minimum and
output the image and audio signal in high-fidelity quality.
MHD series switcher mostly apply in broadcasting TV engineering, multi-media meeting
room, big screen display engineering, television education, command control center and
other fields. With RS232 interface, it can be worked with PC, remote control system and
any other far-end control system devices.
1.2. Package Contents
1 x MHD88
1 x Power cord
1 x IR remote
4 x Plastic cushions
1 x RS232 cable
1 x User manual
2. Features
HDMI 1.4a, support 3D.
HDTV compatible with High Definition Transmission resolution up to
1920*1200@60Hz.
HDCP Compliant and DVI compatible, supporting DVI1.0.
Powerful EDID management.
Three ways for system controlling: RS232, IR remote and the front panel.
RS232 serial control port, easy for serial commands and third-part control.
Optional TCP/IP control (works with PTNET).
Front panel security lock to avoid unauthorized use when the matrix is installed in an
unsecured environment.
With the gain compensation technique and the synchronous signal correction
technology, switching speed is less than 200ns (Max).
With LEDs indicate the real-time running state.
Internal international power supply (100Volt~240Volt AC, 50/60Hz) for worldwide
compatibility.

HDMI Matrix Switcher 8x8
PTN Electronics Limited www.PTN-electronics.com
2
3. Specification
Video Input
Video Output
Input
8 HDMI
Output
8 HDMI
Input Connector
Female HDMI
Output Connector
Female HDMI
Input Level
T.M.D.S.
2.9V/3.3V
Output Level
T.M.D.S. 2.9V/3.3V
Input Impedance
75Ω
Output Impedance
75Ω
Video General
Gain
0 dB
Bandwidth
6.75 Gbit/s
Video Signal
HDMI (or T.M.D.S)
Maximum Pixel
Clock
165MHz
Resolution
Range
Up to 1920 x 1200
or 1080P@60Hz
Switching Speed
200ns (Max.)
CEC
Supports CEC wired infrared data pass-through using the
HDMI 1.4a standard
EDID and DDC
Management
Supports Extended Display Identification Data (EDID) and
Display Data Channel (DDC) data using HDMI/DVI
standards, EDID and DDC signals are actively buffered.
HDCP
Management
Compliant with HDCP using DVI and HDMI 1.4a standards.
The built-in HDCP management technology can analyze
HDCP key, and realize the handshake internally.
Audio General
Digital Audio
Supports HDMI audio transmitted through the RGB and Y, Cr,
Cb lines, actively buffered
Control Parts
Serial Control
Port
RS232, 9-pin
female D
connector
Pin
Configurations
2 = TX, 3 = RX, 5 =
GND
IR Remote
Default IR remote
Front Panel
Control
Buttons
Options
TCP/IP control by PTNET(PTN's programmable interface)
General
Power Supply
100VAC ~
240VAC, 50/60Hz
Power
Consumption
40W
Temperature
-20 ~ +70℃
Humidity
10% ~ 90%
Case Dimension
W483 x H87 x
D320mm (2U
high, full rack
wide)
Product Weight
4.3Kg

HDMI Matrix Switcher 8x8
PTN Electronics Limited www.PTN-electronics.com
3
4. Operations of the Control panel and the IR Remote
4.1. Operation of the Control Panel
①Power indicator ②Input Channel ③Output Channel ④Function Buttons
F4-1 Front panel
Description of the Buttons:
Buttons
Function Description
INPUTS
Input buttons. It is the number of every input channel, ranging
from "1" to "8".
OUTPUTS
Output buttons. It is the number of every output channel, ranging
from "1" to "8".
AV
AV synchronal button: To transfer video and audio signal
synchronously by the switcher.
Example: To transfer both the video and the audio signals from
input channel No.3 to output channel No.4.
Operation: Press buttons in this order “3”, “AV”, “4””.
INITIAL
INITIAL button: To take the restore factory EDID management.
EXTERNAL
EXTERNAL button: To take the manually EDID switching.
Example: To copy the EDID data of the display on output
channel No.2 to the input channel No.3.
Operation: Press buttons in this order: “2” in INPUT area,
“EXTERNAL”, and then “3” in OUTPUT area.
ALL
All button: To transfer an input channel to all output channels.
Example1: To transfer video and audio signals from input
channel No.7 to all output channels.
Operation: Press buttons in this order “7”, “ALL”.
Example2: To transfer all input signals to the corresponding
output channels respectively. In another word, to switch to this
status: 1->1, 2->2, 3->3, 4->4……8->8.
Operation: Press buttons in this order “ALL”, “THROUGH”.
UNDO
Undo button: To resume to the status before the command just
performed.

HDMI Matrix Switcher 8x8
PTN Electronics Limited www.PTN-electronics.com
4
Backspace button: To backspace the latest input button.
THROUGH
Through button: To transfer the signals directly to the
corresponding output channels.
Example: To transfer the signals from input channel No. 3 to their
corresponding output channels.
Operation: Press buttons in this order “3”, “THROUGH”.
Switching Operation:
With the front control panel, the switcher could be control directly and rapidly by
pressing the buttons under below format.
“Input Channel” + “Menu” +“Output Channel ”
1) “Menu”: “AV”, “INITIAL”, “EXTERNAL”
2) “Input Channel”: Fill with the number of input channel to be controlled.
3) “Output Channel”: Fill with the number of output channels to be controlled.
4.2. Usage of the IR Remote
With the infrared IR remote, the matrix switcher could be control remotely. As the
function buttons on the IR remote are the same with the ones on the front panel, the IR
remote shares the same operations and commands with the control panel.
The operation order of the IR remote is showed as follows.
F4-2 Panel of the IR Remote
The outputs
channels, from
0~9, and plusing
“10+” for more.
The inputs
channels, from
0~9, and plusing
“10+” for more.
Menu, for
switching source
and function

HDMI Matrix Switcher 8x8
PTN Electronics Limited www.PTN-electronics.com
5
5. External Connection
5.1. Introduction of the Input and Output Connectors
①②③④
F5-1 Rear panel
Detailed description:
No.
Name
Description
①
HDMI INPUTS
HDMI-I connector.
②
HDMI OUTPUTS
HDMI-I connector.
③
RS232
The serial port, 9-pin female connector.
④
AC100V~240V
Alternating current for power supply.
5.2. How to Connect with the Input and Output Terminals
The HDMI matrix switchers may take DVD players, computers, graphic workstations
and digital showing platform as their input signal source, and projectors, video recorders,
displayers and amplifiers as their output signal destinations according to different
situation.
F5-2 HDMI connector
Table 5-1 HDMI pin function
Number
Signal Name
Number
Signal Name
1
TMDS Data 2+
20
SHELL
2
TMDS Data 2 Shield
19
Hot Plug Detect
3
TMDS Data 2-
18
+5V Power
4
TMDS Data 1+
17
Ground
5
TMDS Data 1 Shield
16
DDC Data
6
TMDS Data 1-
15
DDC Clock

HDMI Matrix Switcher 8x8
PTN Electronics Limited www.PTN-electronics.com
6
7
TMDS Data 0+
14
No Connect
8
TMDS Data 0 Shield
13
CEC
9
TMDS Data 0-
12
TMDS Clock-
10
TMDS Clock+
11
TMDS Clock Shield
5.1. Connection of RS232 Communication Port
Except the front control panel, the HDMI matrix switcher can be control by far-end
control system through the Ethernet control via the RS232 communication port.
5.3. Connection with Control System
With the RS232 port, the HDMI matrix switchers can be control by several kinds of
control systems. This RS232 communication port is a female 9-pin D connector. The
definition of its pins is as the table below.
No. Pin Function
1 N/u Unused
2 Tx Transmit
3 Rx Receive
4 N/u Unused
5 Gnd Ground
6 N/u Unused
7 N/u Unused
8 N/u Unused
9 N/u Unused
F5-3 9HDF
5.4. Connection with Computer
When the switcher connects to the COM port of the computer with control software,
users can control it by that computer.
To control the switcher, users may use the public COM software.
Please refer the details in Communication Protocol and Command Codes.
F5-4 MHD connecting to computer

HDMI Matrix Switcher 8x8
PTN Electronics Limited www.PTN-electronics.com
7
6. System Diagram
In MHD switcher series, the numbers of the input/output ports are based on the product
bought by the users. For example, MHD88 has eight input ports and eight output ports,
numbered from one to eight. According to different occasions, users can connect it to
different source signal (computer signal, AV signal etc.) devices, such as DVD player,
desktop computer, graphic workstation, digital stage etc. And connect the output ports to
a projector, a video recorder, a displayer or an amplifier. The system diagram of MHD88
is showed as below.
F6-1 MHD88 system connection
7. Operation of the EDID management
MHD matrix switcher is built in the EDID management database. The EDID
management can be automatically shake hand, manual exchanged, or factory restore.
7.1. EDID automatically shake hand
The MHD matrix switcher is built in the EDID data, which can communicate with the
displayers and video source automatically. When the displayers or video sources are
connected to the MHD matrix switcher, they will share the EDID/DDC information with
the matrix switcher.

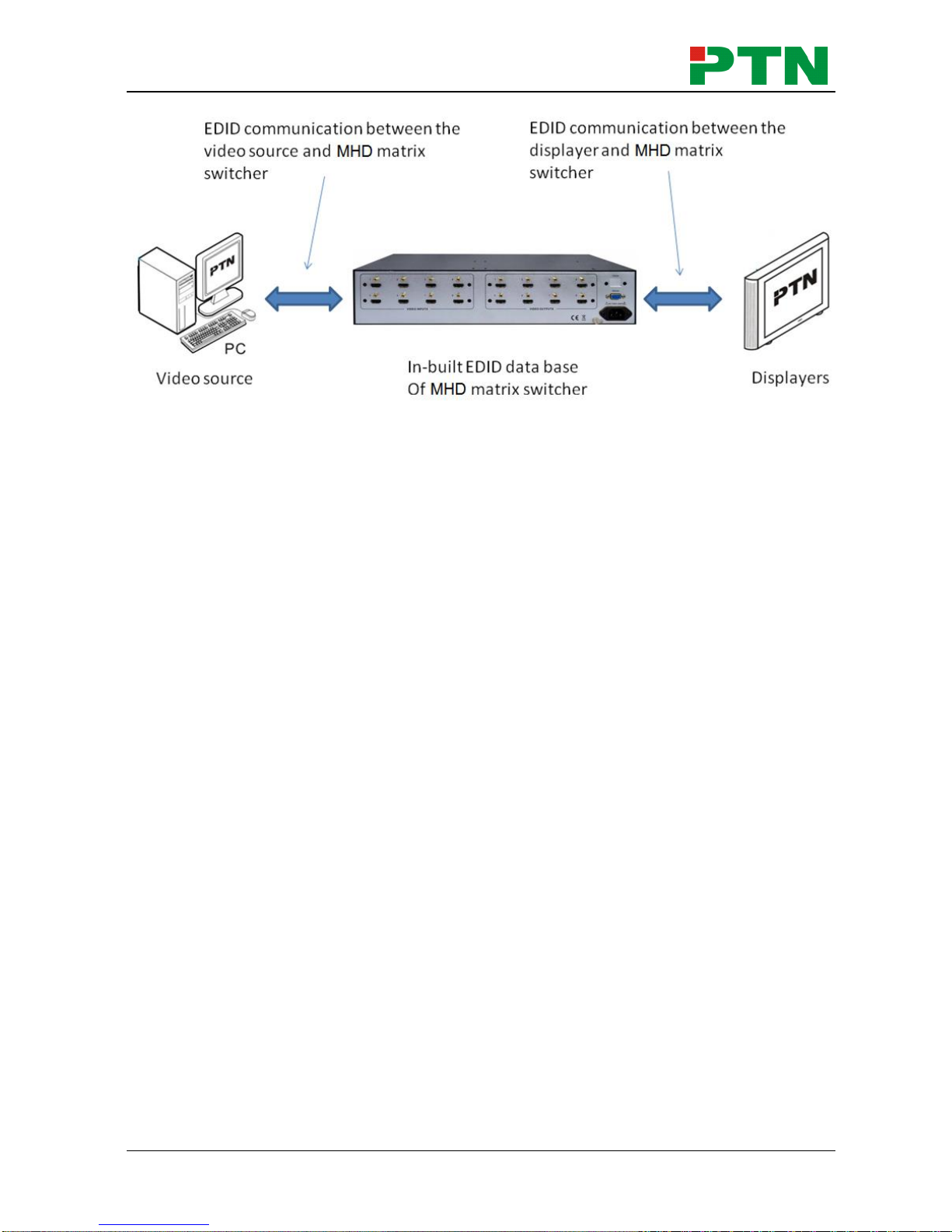

The communication solution is like this:
