mecanair Thermo Sphere PH-960XN User manual

1
7500W Ceiling/Wall Mounted Garage Heater
OWNER’S MANUAL
Model: PH-960XN
IMPORTANT INSTRUCTIONS
READ & SAVE
PET OWNERS WARNING:
The health of some small pets including birds are extremely sensitive to the fumes
produced during the first-time use of many appliances. These fumes are not harmful to
humans but we recommended that you do not use your heater around birds and small
pets during its initial use until the manufacturing corrosion coatings burn off.
Technical support: 1-866-206-0888
Service email: [e-mail]

2
Important Instructions…………………………………………………..…………. 3
Installing Instructions………………………. ………………………….………… 4-5
Specifications and Wiring Diagram …………………………………….………. 6
Parts of the heater……………………….…………..……………………………. 7
Operating Instructions……………………….…………………………….....…… 8
Maintenance and Cleaning………………………………………………………. 9
Troubleshooting………………………………………………………………..…. 9
TABLE OF CONTENTS

3
IMPORTANT INSTRUCTIONS
PLEASE READ ALL INSTRUCTIONS BEFORE USING THIS HEATER
NOTE: There may be a trace of smoke or odor when unit is first operated. Don’t be alarmed.
This indicates that a drop of oil fell on the heating coil during the manufacturing process. It
will quickly evaporate and should not re-occur.
Make sure that the room in which the appliance is located is well ventilated during this
operation. It is normal for the appliance to emit small cracking sounds when you turn it on for
the first time. Do not be alarmed.
WHEN USING ELECTRICAL APPLIANCES, BASIC PRECAUTIONS SHOULD ALWAYS BE
FOLLOWED TO REDUCE RISK OF FIRE, ELECTRICAL SHOCK AND INJURY TO PERSONS OR
PROPERTY, INCLUDING THE FOLLOWING:
1) Read all instructions before using this heater.
2) This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Keep
combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3’
(0.9 m) from the front of the heater and keep them away from the sides and rear.
3) Extreme caution is necessary when any heater is used by or near children or invalids and
whenever the heater is left operating and unattended.
4) Always switch off the heater when not in use.
5) Do not operate any heater after the heater malfunctions, has been dropped or damaged in any
manner. Disconnect power at service panel and have heater inspected by a reputable electrician
before reusing.
6) Do not use outdoors.
7) To disconnect heater, turn off power to heater circuit at main disconnect panel.
8) Do not install less than 6 feet (1.8 m) high from the floor and closer than 1 foot (0.3 m) to any
adjacent vertical surfaces or walls. Keep at least 4.5 inches (11.5 cm) from the back wall (with or
without using the wall hanging mounting bracket).
9) Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause
an electric shock or fire, or damage the heater.
10) To prevent a possible fire, do not block air intakes or exhaust in any manner.
11) A heater has hot and arcing or sparking parts inside. To reduce the risk of fire, do not use it in
areas where gasoline, paint, or flammable vapors and liquids are used or stored.
12) Use this heater only as described in this manual. Any other use not recommended by the
manufacturer may cause fire, electric shock, or injury to persons.
13) This product must be installed by a certified electrician, in accordance with local codes.
14) For supply cables, use 8 AWG (8.3 mm²) copper wires .
15) This heater includes a visual alarm to warn that parts of the heater are getting excessively hot. If
the alarm flashes, immediately turn the heater OFF and inspect for any objects, on or adjacent to the
heater that may have blocked the airflow or otherwise cause high temperatures to have occurred.
DO NOT OPERATE THE HEATER WITH THE ALARM FLASHING. To reset the heater, switch the
CIRCUIT BREAKER OFF, and wait five to ten minutes for the unit to cool down before turning the
heater on.
16）This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction regarding use of the appliance by a person responsible for their
safety. Children should be supervised to ensure that they do not play with the appliance.
CAUTION – High temperature, risk of fire, keep electrical cords, drapery, furnishings, and
other combustibles at least 3 feet (0.9 m) from the front of the heater and away from the side
and rear.
SAVE THESE INSTRUCTIONS

4
WARNING: All wiring must be installed by a certified electrician according to the electrical safety.
The ceiling heater must be grounded in accordance with all national and local building codes.
WARNING : To reduce the risk of fire, do not store or use gasoline or other flammable vapors and
liquids in the vicinity of the heater.
All Wiring procedures and connections shall be in accordance with the national and local
codes having jurisdiction.
NOTE: Compatible with a 240V Line Voltage Double Pole Wall Thermostat. Must be installed
by a Certified Electrician.
Before installation:
Disconnect the main supply connection.
Supply cables shall be 8 AWG (8.3 mm²) copper wires
The heater must be connected to individual branch circuit protected by 40 Amp circuit breaker only.
Supply cables must be equipped with a dual pole circuit breaker rating at least 240V 40A/pole as
main cutoff switch of power connection to the heater.
CAUTION : High temperature, risk of fire, keep electrical cords, drapery, furnishings, and other
combustibles at least 3 feet (0.9 m) from the front of the heater and away from the side and rear.
WARNING: To reduce the risk of fire, do not store or use gasoline or other flammable vapors and
liquids in the vicinity of the heater.
INSTALLATION INSTRUCTION:
1. Keep the unit at least 6 feet (1.8 m) away from the floor. This minimum distance must be
maintained.
2. Do not install closer than1 foot (or 0.3 m) to any adjacent vertical surfaces or walls.
3. Keep at least 4.5 inches (11.5 cm) from the back wall (with or without using the wall hanging
mounting bracket).
4. Mark the drill-hole positions in the wall or ceiling for the mounting bracket.
5. Drill the required holes with diameter fit for the anchor provided for positioning the mounting
bracket.
6. Insert the anchors.
7. Attach the mounting bracket to the wall or ceiling and secure with mounting screws.
8. Hook the unit to the mounting bracket and let the unit hang from the mounting bracket.

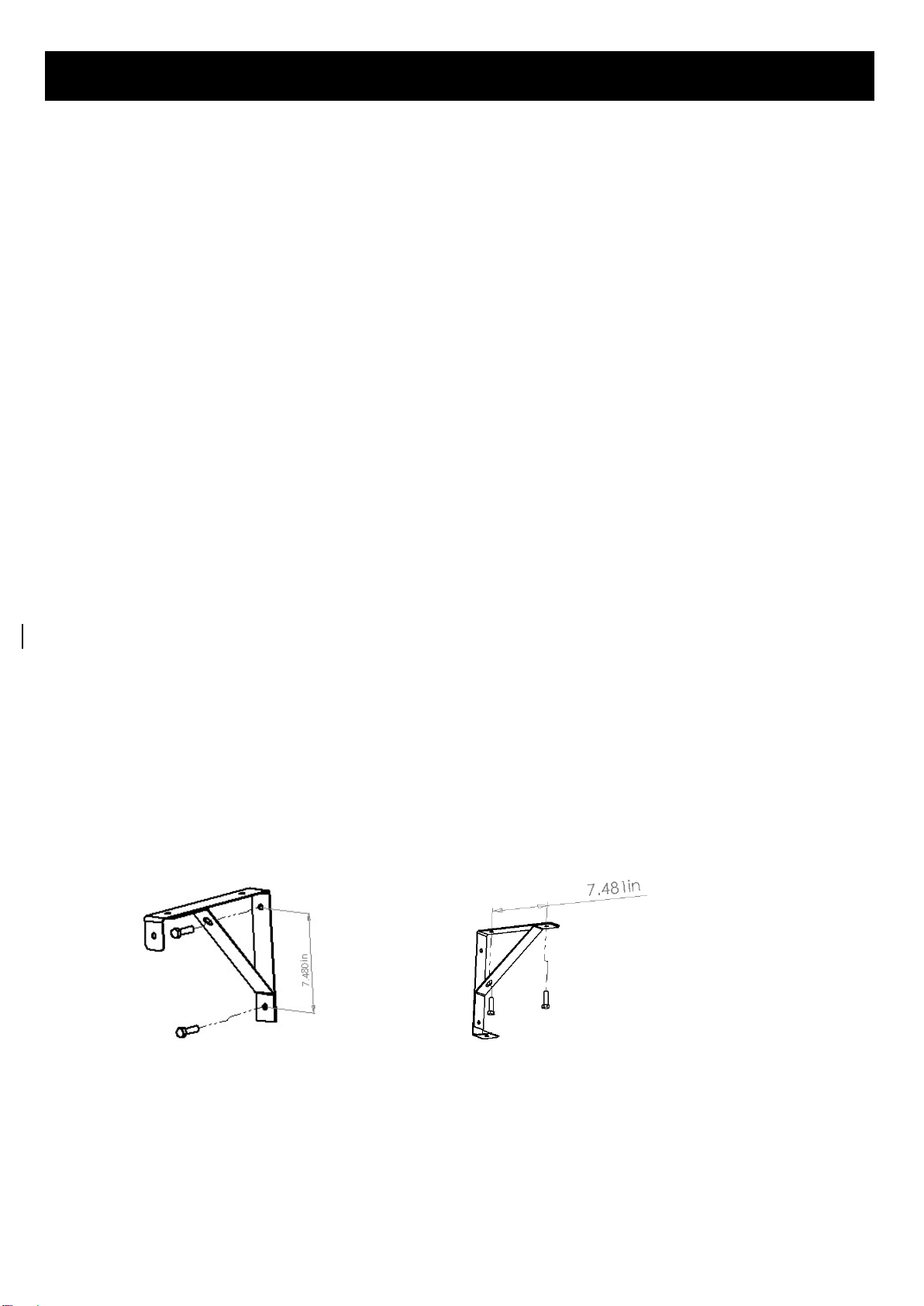

INSTALLATION INSTRUCTIONS
WALL MOUNT
CEILING MOUNT

5

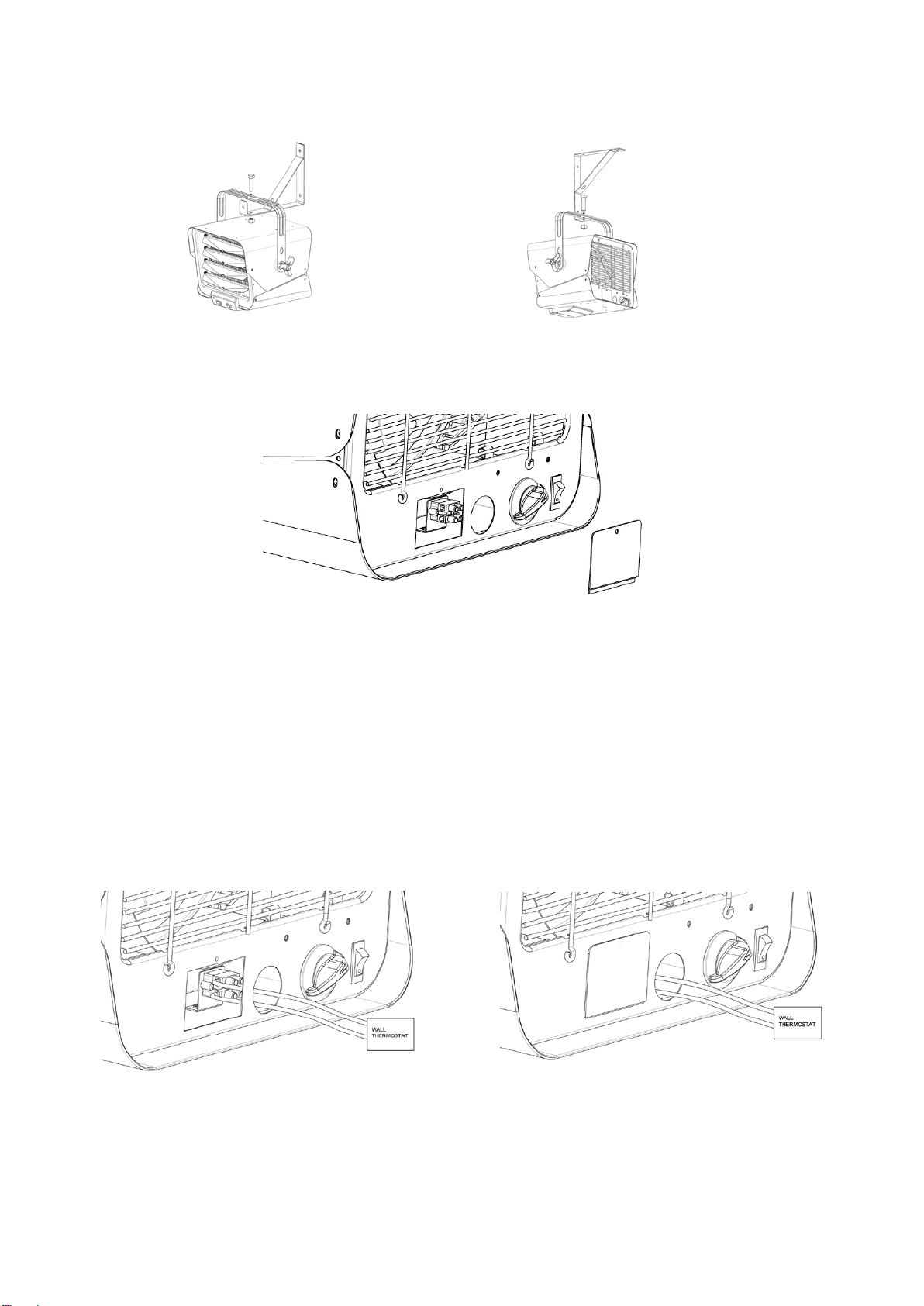

9. Insert the screw through the mounting bracket and the heater handle, tighten the nut.
10. Loosen the screw to remove the wiring compartment/connection cover in the rear of the heater.
11. Run the electrical power supply cable in flexible conduit and connect to the wiring compartment
via the knock-out at back side of the unit.
12. Make the connections properly with connectors which are suitable for the conductor size,
including grounding wiring. And after making the connections, arrange the pigtail leads of unit
and power supply wires in the wiring compartment.
13. You can use the inside or wall thermostat. If you use the inside thermostat, press the rock switch
to INSIDE THERMOSTAT.
14. If you want to use the wall thermostat (Not included) , press the rock switch to WALL
THERMOSTAT, and insert the two wall thermostat wire to the Terminal A inside the heater,
make sure to tighten the screws in the Terminal A.
15. Replace the wiring compartment/connection cover and lock in place with the screw.

6
7500W Ceiling/Wall Mounted Garage Heater
Model : PH-960XN
Volt: 240 V
Watts: 7500 W
Frequency: 60 Hz
BTU/h:25597
Recommended Heating Capacity: 1.25 watts / ft³ (0.03m³)
Wiring diagram:
SPECIFICATIONS

7
A. Upper Enclosure
B. Tilt adjustable knob
C. Front Exhaust Grill
D. Louver for air direction
E. Control panel
F. Alarm LED
G. On/Off Switch
H. High/Low Switch
I. Temperature Setting knob
J. Inside/Wall Thermostat
PARTS OF THE HEATER
A
B
C
D
F
E
H
G
I
J

8
WARNING -The heater must be properly installed before it is used.
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH :
Apply appropriate personal protective equipment (PPE) and follow safe electrical work
practices. See NFPA 70.
A circuit breaker must be installed and serviced only by qualified electrical personnel.
Always use a properly rated voltage sensing device to confirm power is off.
The Select switch on the heater is only for function selection. Use circuit
breaker as power ON/OFF device. The circuit breaker is to be installed by
certified electrican and shall be located in line of sight from the heater location
or shall be capable of being locked in open position. Follow the operating
instruction to reduce the risk of fire, electric shock, injury or death to persons.
Switch on the circuit breaker to turn on the heater.
Then turn the thermostat to the farthest clockwise position. The fan should start and the unit
begins heating the room, and lamp is light. After the room reaches comfort level, turn the
thermostat counterclockwise until the heater shuts off. The heater will automatically cycle around
this preset temperature. To increase the temperature, turn the thermostat knob clockwise. To
lower the temperature, turn the thermostat counterclockwise.
Press the switch to High or Low position for heat selection.
HIGH : 7500W
LOW : 4700W
Select a thermostat setting.
Ambient temperature is regulated by adjusting the thermostat to a desired position. Allow the unit to
operate and warm up the room. When the desired temperature is reached, turn the control knob
counterclockwise until the heater turns off. This is your ideal setting. The heater will start automatically
when the room temperature drops below this set point, and will turn off when the set point is reached.
To turn off the heater, switch off the circuit breaker. The circuit breaker serves as
the power disconnection means.
This heater includes a visual alarm to warn that parts of the heater are getting excessively hot. If
the alarm flashes, immediately turn the heater OFF and inspect for any objects, on or adjacent to
the heater that may cause high temperatures. DO NOT OPERATE THE HEATER WITH THE
ALARM FLASHING. To reset the heater, switch the circuit breaker OFF, and wait five to ten
minutes for the unit to cool down before turning the heater on.
OPERATING INSTRUCTIONS

9
There is no user maintenance part except regular cleaning as following description. All other
servicing or maintenance should be performed by qualified service personnel.
Before any cleaning, make sure that:
1. Disconnect power supply at source. Switch off the circuit breaker.
2. Wait for 60 minutes to ensure the heating element has cool down, and your heater is now ready
for cleaning.
Regular Cleaning:
1. Do not use cleaning liquid or other chemicals to spray on the unit.
2. Interior dust can often be removed by using a vacuum cleaner with a crevice tool attachment.
3. To clean enclosure, use a clean, soft and lightly damp cloth to gently wipe off the dirt from the
surface of the unit. Be sure not to wet the heating element and the switches. Allow the unit to dry
completely before using it.
CAUTION: DO NOT ALLOW WATER TO RUN INTO THE INTERIOR OF THE HEATER AS THIS
COULD CREATE A FIRE OR ELECTRIC SHOCK HAZARD, DAMAGING THE UNIT.
If your heater fails to operate, please follow these procedures:
This heater is intended to be a ceiling-mounted heater. It has a thermal cut-off protection. If the
thermal cut-off protection trips, then, switch off the power. Switch off the circuit breaker.The unit
should reset automatically after 10 minutes. If the thermal cut-off protection trips again, consult a
certified electrician to determine the reason for overheating.
Problem
Probable Cause
Solution
Unit is not
heating.
Overheat protection has temporarily
deactivated the heater.
Turn the heater OFF; Switch off the circuit
breaker.. Wait 10 minutes before turning on
the heater
Room temperature has been warmed
up to thermostat setting.
To increase the room temperature, adjust
thermostat control knob to a higher setting
Breaker/Fuse has been tripped.
Check your electrical box to confirm the
breaker has not been blown. This may occur
if the receptacle is shared between other
high consumption appliances.
The heater is
producing a
burning
smell.
Check & ensure there are no
combustible materials within 0.9
meters (3 feet) surrounding the heater. Remove any combustible items from the
heater.
A drop of oil fell on the heating coil
during the manufacturing process. It
will quickly evaporate and should not
occur again.
Ensure room in which heater is situated is
well ventilated.
Ensure a minimum clearance of
36 inches (90 cm) from both sides and
rear of heater to adjacent walls.
Reposition the heater so there is enough
space around the heater to the adjacent
walls.
PLEASE DO NOT ATTEMPT TO OPEN OR REPAIR THE HEATER YOURSELF. DOING
SO COULD CAUSE DAMAGE OR PERSONAL INJURY.
MAINTENANCE AND CLEANING
TROUBLESHOOTING

10
