HD DECODER CARD INSTALLATION GUIDE
June 30th, 2002
Copyright © 2001 Mediasonic
All rights reserved
No part of this documentation may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and
recording, without the prior written permission of Mediasonic.
The information in this documentation is supplied without warranty of any kind, either directly or indirectly, and is subject to change without prior
written notice. Mediasonic, its employees or appointed representatives will not be held responsible for any damages to software, hardware, or data,
howsoever arising as a direct or indirect result of the product(s) mentioned herein.
Issued by:
Mediasonic, A Division of Electrosonic
3420 North San Fernando Blvd
Burbank, CA 91504
Tel: + 1.818.566.3054 Fax: + 1.818.566.3053
This documentation was written in the United States.
Printed in the United States.
Great user manuals database on UserManuals.info
HD Decoder Card Installation Guide
1Rev. 0.0
Preface
About This User Guide
The manual is comprised of the following chapters:
Chapter 1: Introduction
Chapter 2: Installation Overview
Chapter 4: Installing the HD Decoder Card
Chapter 5: Installing Drivers
Chapter 6: Installing MGI SoftDVD MAX
Chapter 7: Installing the HD Server Application
Chapter 8: “Regedit”
A full contents list appears after this preface.
Software Versions
This manual applies to the MS9100 and 9200 HD decoder cards.
MANUAL VERSION DATE BY COMMENTS
1.0 06.30.02 SS Initial Release
1.1 11.06.03 SS Add 9200 version D extender card
1.3 08.18.04 SS General Updates
Trademarks
MEDIASONIC ® ,MS ® and the MEDIASONIC ® logo are registered trademarks of ELECTROSONIC LTD.
ELECTROSONIC ® ,ES ® and the ELECTROSONIC ® logo are registered trademarks of ELECTROSONIC
LTD.
WINDOWS ® is a registered trademark of MICROSOFT CORPORATION.
All other brand and product names are trademarks or registered trademarks of their respective holders.
Great user manuals database on UserManuals.info
HD Decoder Card Installation Guide
2Rev. 0.0
Table of Contents
Preface..................................................................................................... 1
About This User Guide.................................................................................................................................... 1
Software Versions ........................................................................................................................................... 1
Trademarks ...................................................................................................................................................... 1
Table of Contents .................................................................................... 2
Chapter 1: Introduction...................................................................... 3
Chapter 2: Installation Overview ...................................................... 4
MS9100 HD Decoder Card............................................................................................................................ 4
MS9100 Package contents:...................................................................................................................... 4
MS9200 HD Decoder Card............................................................................................................................ 4
MS9200 Rev.D Package contents: .......................................................................................................... 4
MS9200 Rev.C Package contents:.......................................................................................................... 4
HD Decoder Card and Software:................................................................................................................ 5
Chapter 3: Installing the HD Decoder Card ..................................... 6
To install the MS9100 HD Decoder Card:.................................................................................................... 6
To install the MS9200 HD Decoder Card (Rev. C) ..................................................................................... 7
To install the MS9200 HD Decoder Card (Rev. D)...................................................................................... 8
MS9100 Interface.......................................................................................................................................... 10
MS9200 Interface.......................................................................................................................................... 10
Chapter 4: Installing Drivers............................................................. 12
The Found New Hardware Wizard ............................................................................................................. 12
The Locate Driver Files dialog box ............................................................................................................. 13
Chapter 5: Installing MGI SoftDVD MAX ......................................... 17
CD-ROM contents folder............................................................................................................................. 17
The MGI SoftDVD MAX dialog box ............................................................................................................ 18
Chapter 6: Install HD Server Application........................................ 21
Application folder on the CD-ROM........................................................................................................... 21
Chapter 7: “REGEDIT” ....................................................................... 25
“REGEDIT” (MS 9200 only)............................................................................................................................ 25
The Edit DWORD Value dialog box ........................................................................................................... 26
Registry refresh .............................................................................................................................................. 27
Great user manuals database on UserManuals.info
HD Decoder Card Installation Guide
3Rev. 0.0
Chapter 1: Introduction
The MediaSonic MS9100 and MS9200 HD Decoder cards are PCI devices that when installed in a standard
desktop Personal Computer will allow the user to display single channel analog (MS9100) or digital (MS9200)
High Definition encoded program material.
The cards decode MPEG MP@HL transport streams and output either SMPTE 296 or SMPTE 274 formats as
defined by the ATSC (Advanced Television Standards Committee).
A video preview display is provided, allowing the operator to view a copy of the Analog video output within the
graphical user interface.
Note: Video preview function is only available on a graphics card that utilizes a VIP 2.0 connector.
Digital video ensures that image quality is maintained irrespective of the number of times a file is displayed or
copied. Using the computer/network topology, video files may be transferred and displayed on remote Players.
Great user manuals database on UserManuals.info
HD Decoder Card Installation Guide
4Rev. 0.0
Chapter 2: Installation Overview
MS9100 HD Decoder Card
MS9100 Package contents:
1. MS9100 HD Decoder Card with: Analog HD Video output/Black-burst/SPDIF/Timecode connectors
2. 26 pin ribbon cable
3. “Y” adaptor cable (2x RCA male to 1x 4 pin mini DIN)
4. Two female/female RCA adaptor connectors
5. CD-ROM (includes all software necessary for installation and operation of the HD Decoder Card, as well
as a Video Test File)
6. HD Server Application User Manual
MS9200 HD Decoder Card
The MS9200 series decoder card is available as versions Rev.C and Rev.D
MS9200 Rev.D Package contents:
1. MS9200 Rev.D, HD Decoder Card with: Digital HD Video/Two Analog HD Video output connectors
2. Daughter Card A with: Genlock/Black-burst/SPDIF/Timecode output connectors
3. Qty. 1, 26 pin ribbon cable
4. Qty. 2, 10 pin ribbon cables – required for item 2
5. Daughter Card B with: Analog Audio/S-Video/Composite Video output connectors
6. A 3 conductor ribbon cable – required for item 5
7. A 5 conductor ribbon cable – required for item 5
8. CD-ROM (includes all software necessary for installation and operation of the HD Decoder Card, as well
as a Video Test File)
9. HD Server Application User Manual
MS9200 Rev.C Package contents:
1. MS9200 Rev. C HD Decoder Card – same outputs as MS9200 Rev.D
2. All of the above except for items 1,5,6,7
Great user manuals database on UserManuals.info
HD Decoder Card Installation Guide
5Rev. 0.0
NOTE: These applications must be installed on computers running the Windows 2000
operating system.
HD Decoder Card and Software:
1. SHUT DOWN the computer
2. Install the HD Decoder Card(s)
3. Install Software:
• Drivers (Win2000 folder)
• MGI Soft DVD MAX (MGI Folder)
• HD Server Application
Great user manuals database on UserManuals.info
HD Decoder Card Installation Guide
6Rev. 0.0
Chapter 3: Installing the HD Decoder Card
Note 1: Observe precautions for handling static sensitive electronic components during
installation of the HD Decoder Card.
Note 2: Dedicate three adjacent PCI slots to the installation of the Decoder Card(s). This
will ensure proper ventilation, and accommodate the required daughter cards (when
using the MS9200).
To install the MS9100 HD Decoder Card:
1. Remove the computer cover to gain access to the PCI card slots
2. Remove the PCI slot cover in the card position. Put aside the screw for future use
3. Carefully install the HD Card in the chosen PCI slot.
4. Connect the 26-pin ribbon cable to CN6 on the MS9100 and the PC video card. Make sure that pin 1 is
oriented correctly.
5. Secure the card with the screw removed from the PCI slot
6. Replace the computer cover
7. Replace the AC power cable and turn on the computer

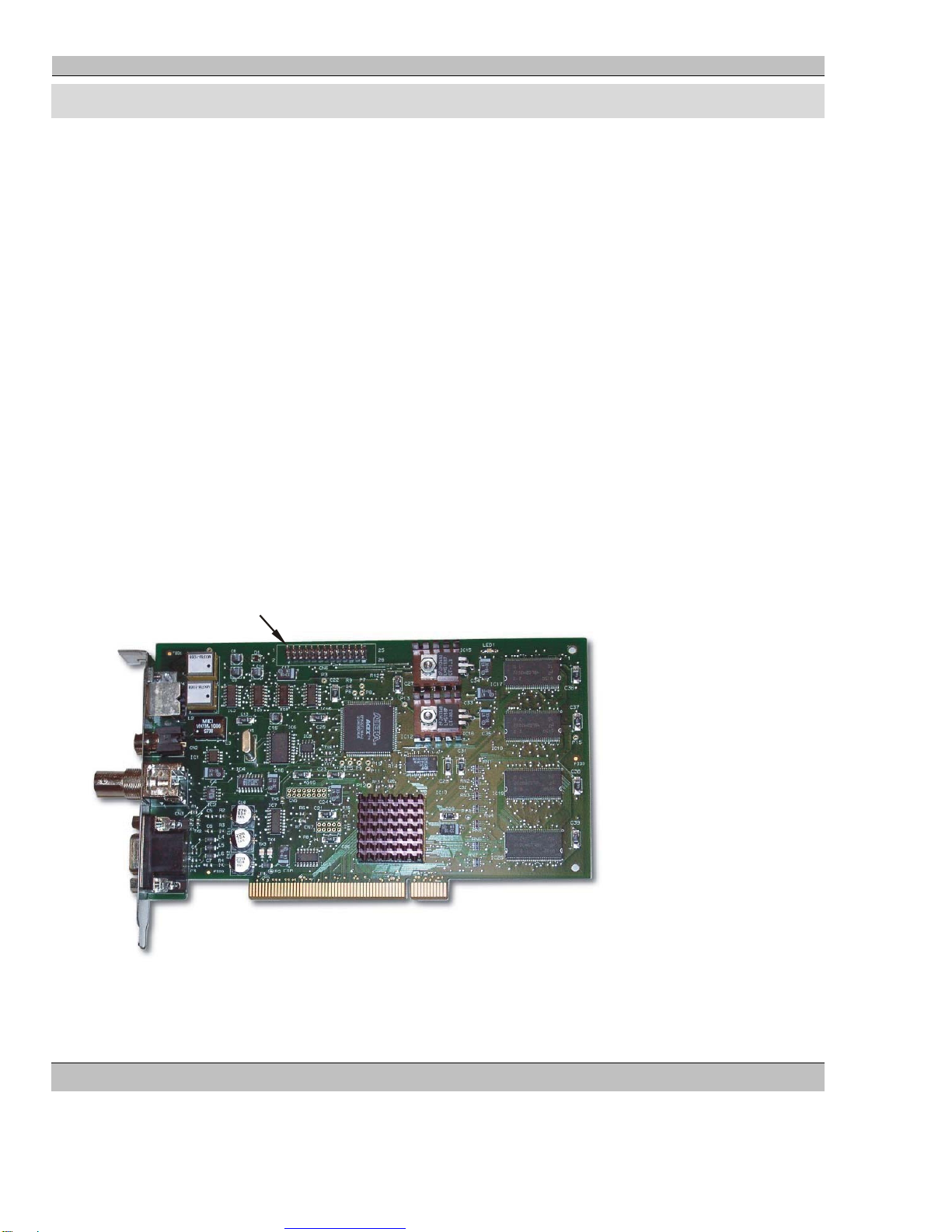

TO HD CARD, CN10
CN6, PIN 1
Figure 1. MS9100 Decoder Card (Analog)
Great user manuals database on UserManuals.info
HD Decoder Card Installation Guide
7Rev. 0.0
To install the MS9200 HD Decoder Card (Rev. C)
1. Remove the computer cover to gain access to the PCI card slots
2. Remove the PCI slot covers in the card position(s). Put aside the screws for future use
3. Connect the Digital Card daughter card A to the main HD Card with the two (2) ribbon cables provided
4. Orient connectors CN6 and CN7 as shown in Figure 2, (red stripe marks pin 1)
5. Carefully install the HD Card, (and Daughter Card if needed) in the chosen PCI slots
6. Connect the 26-pin ribbon cable to CN22 on the MS9200 and the PC video card. Make sure that pin 1 is
oriented correctly
7. Secure the card(s) with the screws removed from the PCI slots
8. Replace the computer cover
9. Replace the AC power cable and turn on the computer

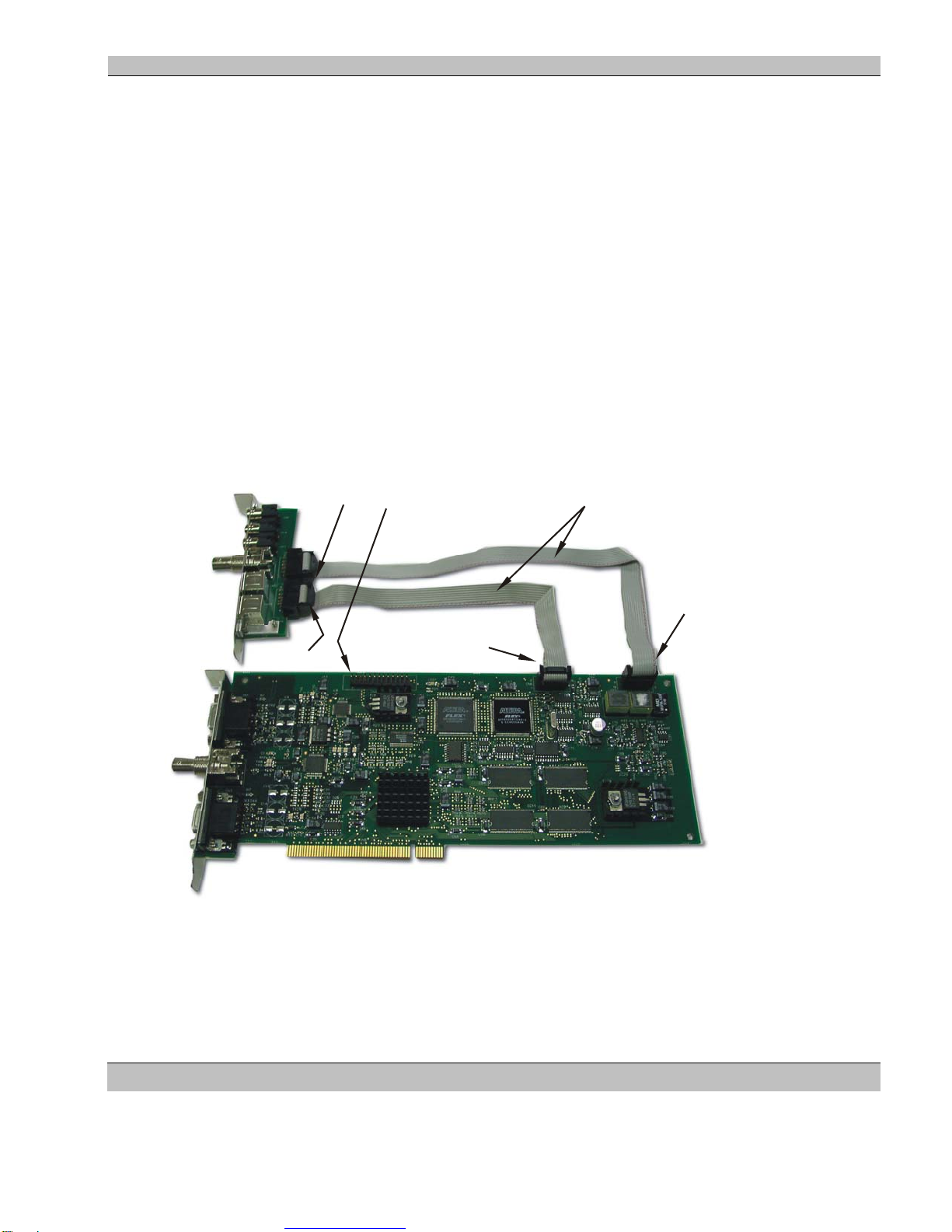

CN6, PIN 1
(RED STRIPE )
*
CN16,
PIN 1
MS9200 Rev.C
HD CARD
MS9200
DAUGHTER CARD - A CN15,
PIN 1
CN22,
PIN 1
CN7, PIN 1
(RED STRIPE )
*
*
RED STRIPE ON EACH RIBBON CABLE WILL BE OPPOSITE THE OTHER
RIBBON CABLES
Figure 2. MS9200 Rev.C Digital Decoder Card and Daughter Card A connections
Great user manuals database on UserManuals.info
HD Decoder Card Installation Guide
8Rev. 0.0

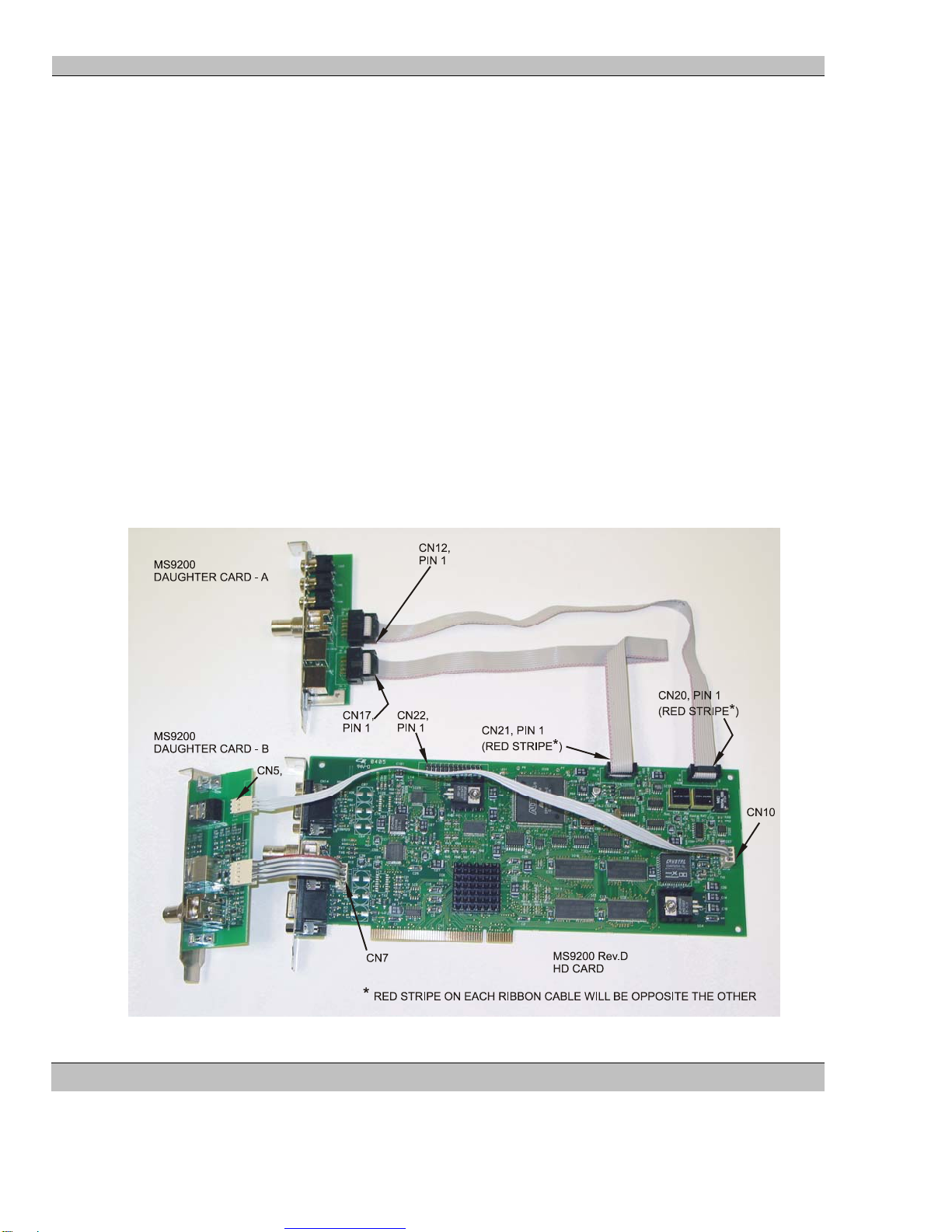

To install the MS9200 HD Decoder Card (Rev. D)
The Rev. D HD Card utilizes an additional daughter card (Daughter Card – B) as well as offering all of the
features of the Rev. C card described above.
1. Remove the computer cover to gain access to the PCI card slots
2. Remove the PCI slot covers in the card position(s). Put aside the screws for future use
3. Connect the Daughter Card - A (see previous description, Figure 2), connector labels are different, but
orientation is the same.
4. Connect Daughter Card - B to the main HD Card with the four (4) ribbon cables provided (see Figure 3)
5. Carefully install the HD Card, (and Daughter Cards) in the chosen PCI slots
6. Connect the 26-pin ribbon cable to CN22 on the MS9200 and the PC video card. Make sure that pin 1 is
oriented correctly.
7. Secure the card(s) with the screws removed from the PCI slots
8. Replace the computer cover
9. Replace the AC power cable and turn on the computer
Great user manuals database on UserManuals.info
HD Decoder Card Installation Guide
10 Rev. 0.0
MS9100 Interface
Figure 4 show the interface connectors available for wiring the MS9100 Analog Decoder Card into your display
system:
IN/OUT
TIMECOD
E
HD CVBS SPDIF
Figure 4. MS9100 Analog Decoder Card interface plan
MS9200 Interface
Figures 5-7 show the interface connectors available for wiring the MS9200 Digital Decoder Card/Daughter
Card(s) into your display system:
Figure 5. MS9200 Digital Decoder Card - Rev. C or Rev .D
Great user manuals database on UserManuals.info
HD Decoder Card Installation Guide
12 Rev. 0.0
Chapter 4: Installing Drivers
The Found New Hardware Wizard

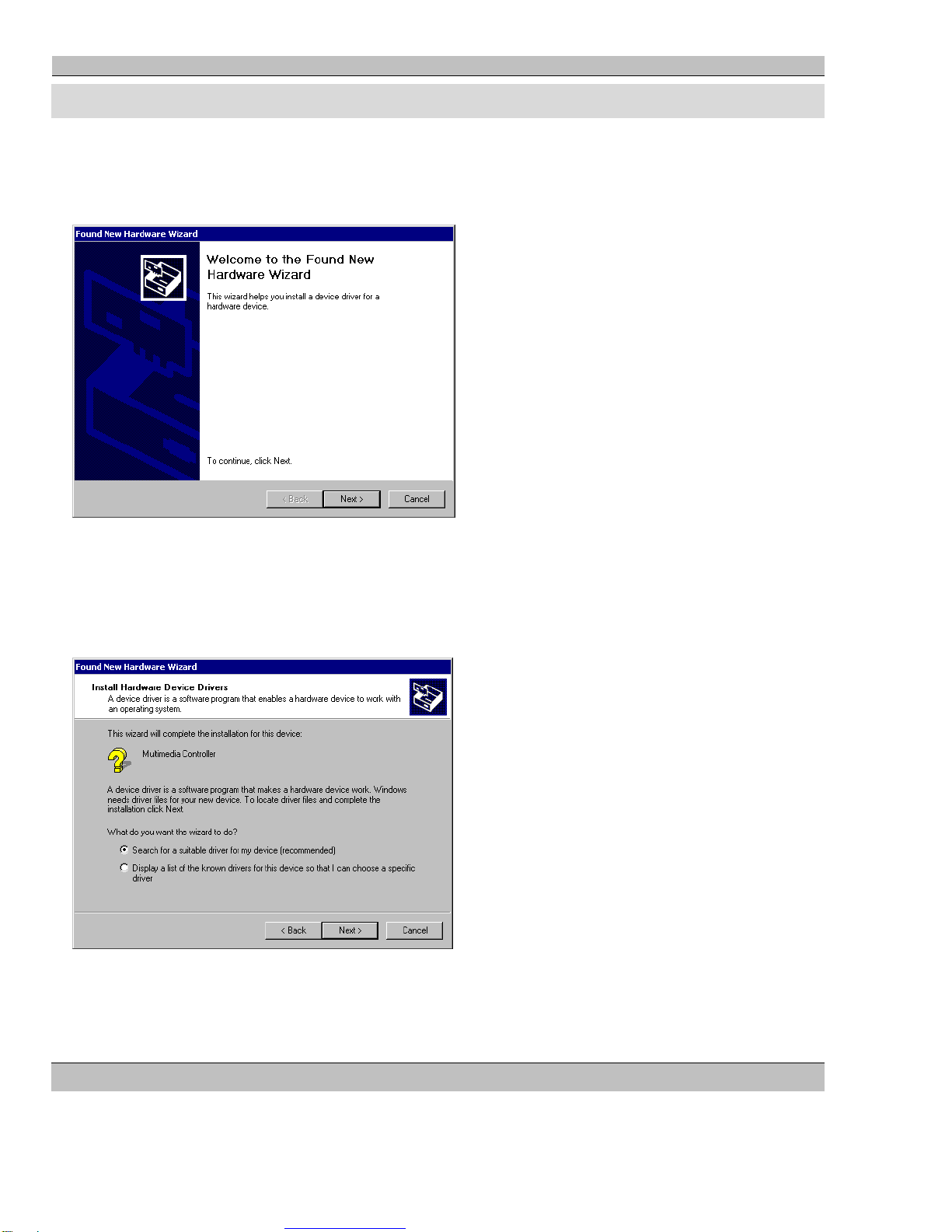

Upon booting-up the computer will display the Found New Hardware Wizard dialog box:
This dialog box provides the opportunity to install the drivers necessary for the correct functioning of the newly
installed HD Decoder card.
Click “Next” to get started.
The Install Hardware Device Drivers dialog box appears:
(Note: The actual contents of this display may vary depending upon the configuration of your computer)
Click “Next” to proceed. This will allow the computer to locate the required drivers.
Great user manuals database on UserManuals.info
HD Decoder Card Installation Guide
13 Rev. 0.0

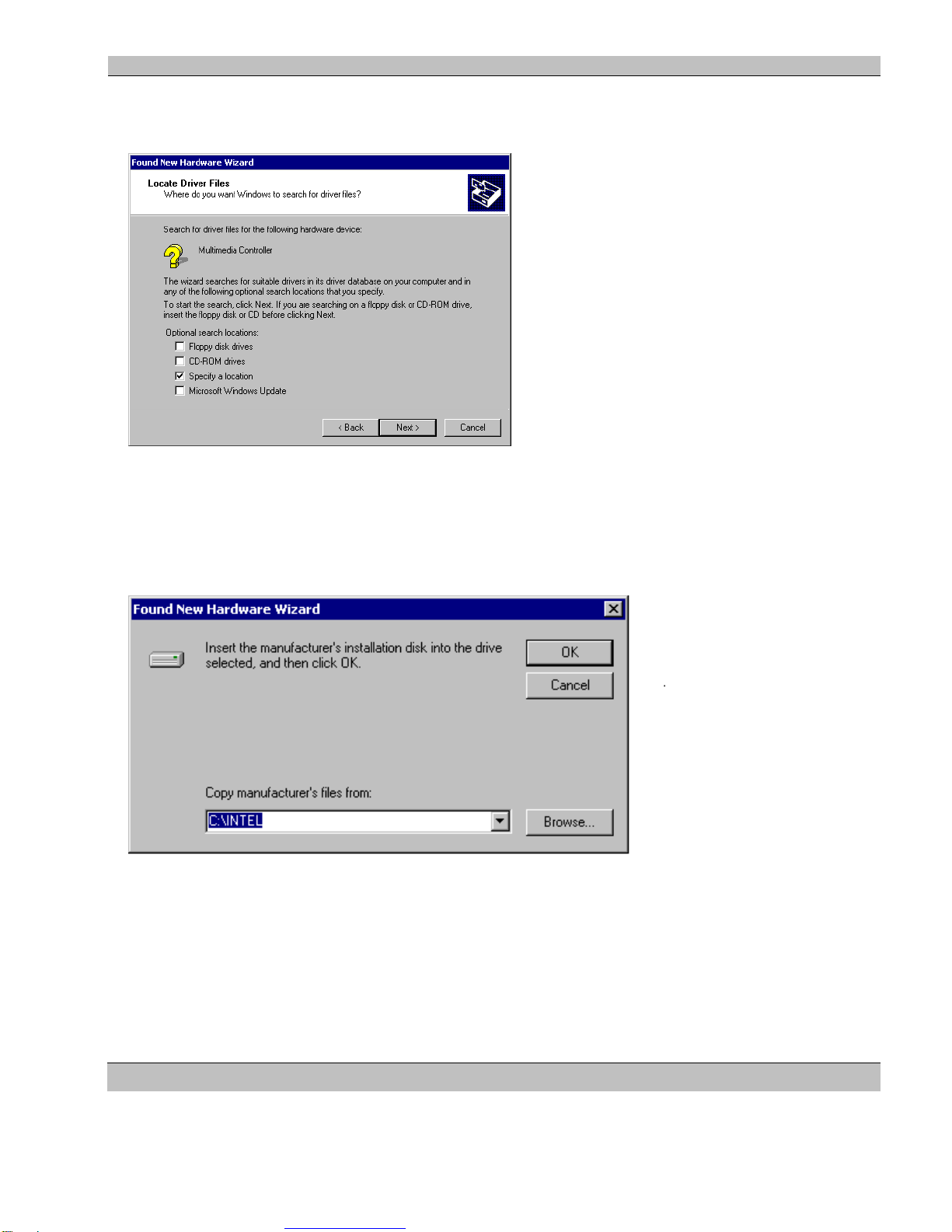

The Locate Driver Files dialog box
The following picture shows the next dialog box:
Make sure that the “Specify a location” box is checked.
Click “Next”
The following dialog box will appear:
You are required to perform a search for the required data.
Insert the CD provided with the HD Card and click “Browse” to navigate the CD..
Search CD ROM for: …/WIN2000/Janus2000
Great user manuals database on UserManuals.info
HD Decoder Card Installation Guide
17 Rev. 0.0
Chapter 5: Installing MGI SoftDVD MAX
This software enables the audio features of the HD Decoder card.
CD-ROM contents folder
Locate the file “Setup.exe” in the MGI folder of the the CD-ROM:
Double click “Setup.exe” then accept the license agreement terms by clicking “Yes” in the following dialog:
This manual suits for next models
1
Table of contents
