The level converter WTV531-GA5060 is an interface between M-bus meters and
reader systems. PC software ACT531 reads the data locally or via the Int
ernet
using an optional web server.
●
Connect up to 60 M-bus devices (max. 60 simply M-bus loads)
●
Use up to six level converters on one M-bus network with a max. of 360 simple
M-bus loads
●
Local data read out with the ACT531 PC software via USB or the
RS-232 interface
●
Remote read out via M-bus web server
●
Local data read out via a PXC device via the RS-232 interface
●
Reads a max. 1,000 logical devices on a level converter network
●
Supply voltage AC/DC 24 V

2
Smart Infrastructure
A6V10844290_en--_b
2019-10-21
Use
The level converter is the communications interface to read up to
60 M-bus devices (simple M-bus loads).
The data is read out:
●Locally with the ACT531 PC software via USB
●Locally with the ACT531 PC software via the RS-232 interface
●Via the M-bus web server WTV534.., WTV676..
●Via Desigo CC
Up to six level converters can be connected in parallel to a M-bus web server WTV676..
(Master) on a M-bus network.
Up to 60 M-bus devices can be connected to each level converter WTV531... The level
converter can be used:
●As individual components on a M-bus network.
●To extend a M-bus network by up to six level converters connected in parallel.
You can also use the level converter at your own risk as an interface to suitable software and
devices by third-party manufacturers.
The level converter is protected against short circuits.
NOTICE
We recommend using a DC 24 V power supply to ensure a stable signal.

3
Smart Infrastructure
A6V10844290_en--_b
2019-10-21
Functions
Operating modes
The data can be read in different ways.
Local data read out with the ACT531 software via the USB connection
The level converter is used as the communication interface between M-bus devices and a
laptop using the ACT531 software. The ACT531 software can read a max. of 1,000 logical
devices.
The level converter is operated as the master. The data is read locally via the USB
connection.
A Level converter as master
B Laptop with ACT531 software
Local data read out using the ACT531 PC software via the RS-232 interface
The level converter can also be connected to a laptop via a RS-232 interface.
(6) (6) (6) (6) (7) (7) (7) (7) (8) (9)
M-Bus MASTER Vin
LC
(3) (4)
A B C
V A V B
(5)(1) (2)
USBActivity
TXD
RXD
M-Bus Error
M-Bus Ready
Power
M-Bus
SLAVE
WEV531-GA5060
A
B
A Level converter as master
B Laptop with ACT531 software

4
Smart Infrastructure
A6V10844290_en--_b
2019-10-21
Remote read out via M-bus web server
The level converter is used as the communication interface between M-bus devices and a
M-bus web server.
The master level converter WTV531(A) is connected to a M-bus web server WTV676.. via
the RS-232 interface (terminals A, B, C).
The following slave level converters (B) can be connected via the M-bus slave connection.
The data can be read via the web server from anywhere on the Internet.
A maximum of 250 devices can be read via M-bus web server WTV676...
A
Level converter as master
B
Level converter as slave
NOTICE
The level converter is connected as a slave (B) to the web server (A) (terminals M1M2 of
the web server) if the firmware version of the web server WTV676.. is less than
SIE.WTV676_WI-2.29_FW-3.0-17-2.6.

5
Smart Infrastructure
A6V10844290_en--_b
2019-10-21

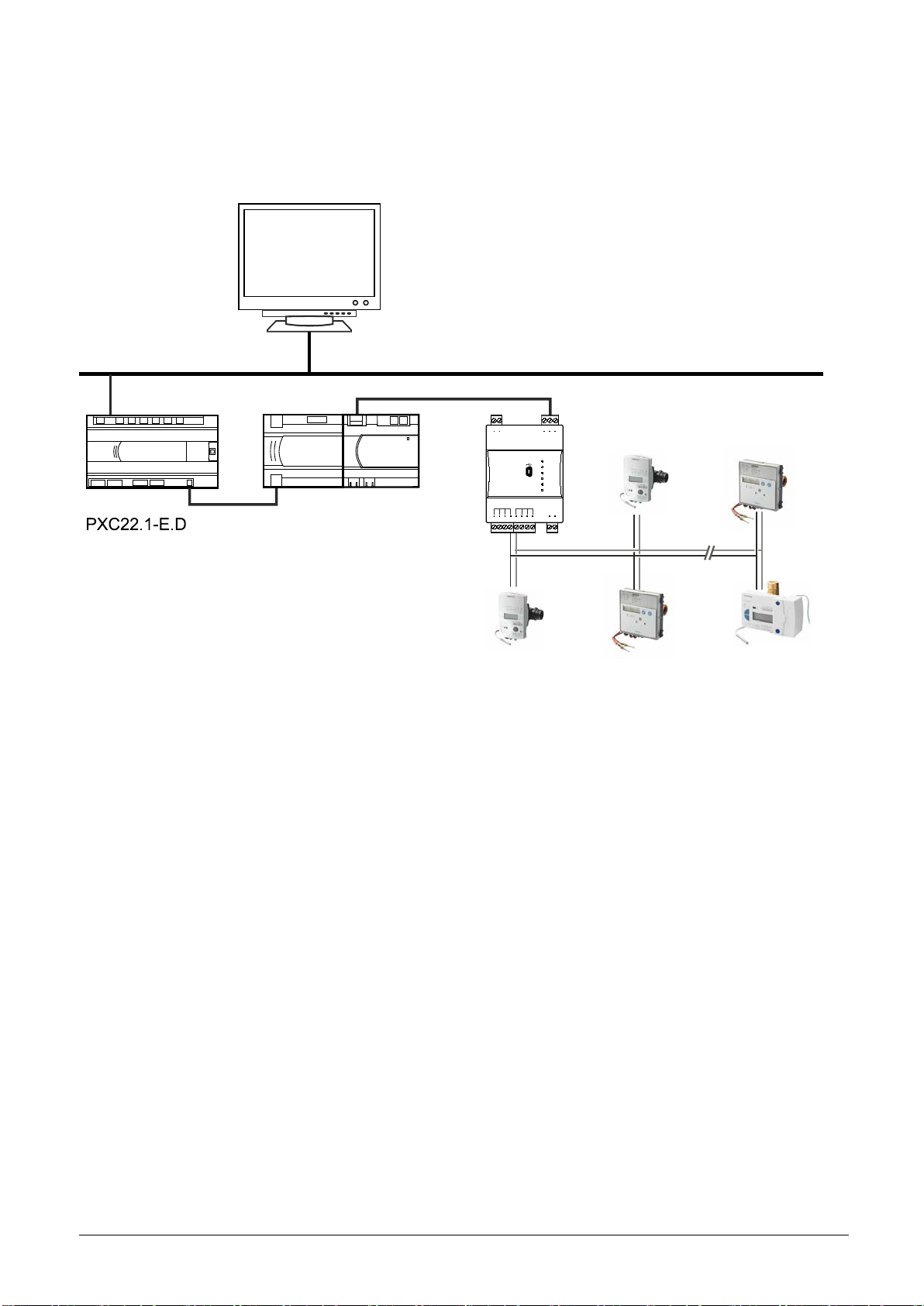

Local data read out with Desigo CC via the RS-232 interface
The TX Open module integrates M-bus devices via a RS-232 interface to the Desigo CC
building management platform.
Additional information on the Desigo CC management platform is available in the
engineering guide 'Desigo TM TX Open, TX M-bus', document CM110572. See Section
"Product documentation [➙12]".
TXI2.OPEN
Desigo CC
(6) (6) (6) (6) (7) (7) (7) (7) (8) (9)
M-Bus MASTER Vin
LC
(3) (4)
ABC
V A V B
(5)
(1) (2)
USBActivity
TXD
RXD
M-Bus Error
M-Bus Ready
Power
M-Bus
SLAVE
WEV531-GA5060
The level converter can be used in various ways.
Up to 60 M-bus devices can be connected to each level converter WTV531...

6
Smart Infrastructure
A6V10844290_en--_b
2019-10-21
Level converter as individual component
The level converter can be used as an individual component on one M-bus network with up
to 60 devices.
Level converter to extend a M-bus network
The level converter extends a M-bus network with up to six level converters connected in
parallel.
It is connected with a serial connection to the master level converter and in parallel to other
level converters.
A maximum of six level converters can be integrated in parallel and connected to a M-bus
web server WTV676... A maximum of five level converters can be connected in parallel to a
master level converter WTV531.
A maximum of 360 M-bus loads or 1,000 logical devices can be read via the master level
converter.
A Level converter as master
B Level converter as slave

7
Smart Infrastructure
A6V10844290_en--_b
2019-10-21
Indicators
The level converter has six LEDs on the front side for indicating the
operating state.
USB activity
The LED indicates the USB interface connection state.
●Flashes 2 x -> The device is ready to connect to a PC using a mini USB-B cable.
●Flashes 5 x -> The device is connected to a PC and correctly recognized by it.
TXD
The LED indicates the transmission state on the M-bus master (terminals 6 and 7).
●On -> Data transmitting.
●Off -> No data transmission.
RXD
The LED indicates the receive state on the M-bus master (terminals 6 and 7).
●On -> Data is being received.
●Off -> No data is being received.
M-bus error
The LED indicates the state of the M-bus power supply.
●On -> Bus overload. (short circuit or too many devices on the bus).
●Off -> No faults recognized.
M-bus ready
The LED indicates that bus power is correct and there are no anomalies.
●On -> Bus power is properly polled and sufficient for trouble-free operation.
●Off -> Bus power is insufficient for trouble-free operation.
Power
The LED indicates the state of the level converter power supply.
●On -> The device power supply is correct.
●Off -> Device power is not correct or unavailable.

8
Smart Infrastructure
A6V10844290_en--_b
2019-10-21
Technical design
Topology

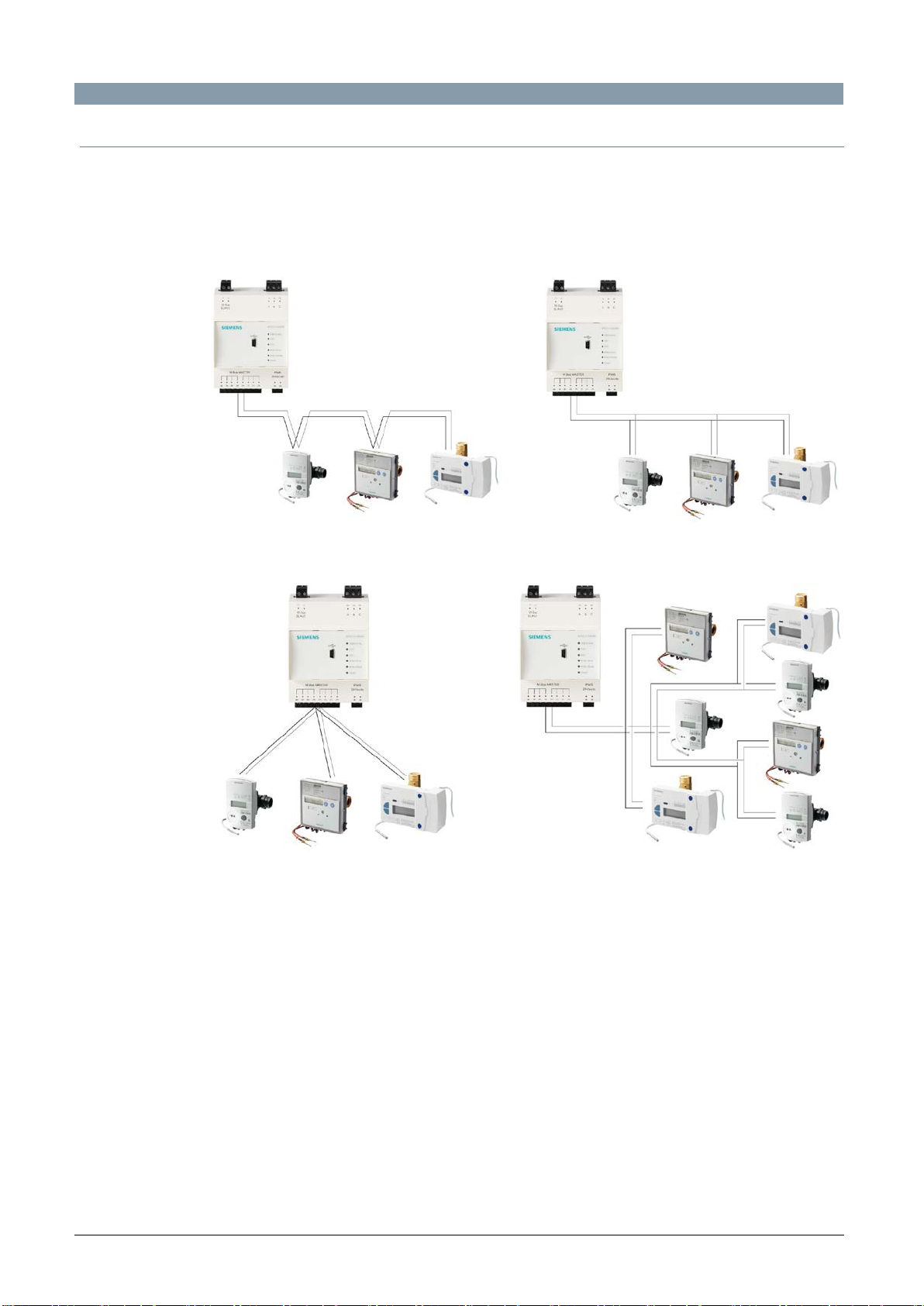

The M-bus permits various network topologies. The devices can be connected to the level
converter in a line, bus, star, or tree topology, or a combination thereof.
Ring topology is not permitted.
Bus cable polarity is not relevant, simplifying installation.
Line topology Bus topology
Star topology Tree topology

9
Smart Infrastructure
A6V10844290_en--_b
2019-10-21
Combination of topologies
Ring topology

10
Smart Infrastructure
A6V10844290_en--_b
2019-10-21
M-bus
Address
M-bus uses two types of addresses to recognize devices:
●Primary addressing: Up to 250 primary addresses can be assigned to a M-bus system.
The primary address is normally assigned during device commissioning. Pure primary
addressing is not possible if more than 250 devices are read.
●Secondary addressing: Secondary addressing consists of 8 bytes and permits the
assignment of any number. In the default setting, the secondary address for a device
normally matches the serial number issued by the device manufacturer. The assignment
prevents address conflicts on the bus.
Bus expansion
Plant type Maximum
distance Total cable length Cable cross section Number of devices
(slaves)
Max. transmission
rate
Small residential
buildings 350 m 1000 m 0.8 mm2250 9600 baud
Large residential
buildings 350 m 4000 m 0.8 mm2250 2400 baud
64 9600 baud
Small developments 1000 m 4000 m 0.8 mm264 2400 baud
Large developments 3000 m* 5000 m 1.5 mm264 2400 baud
Direct vicinity 5000 m* 7000 m 1.5 mm216 300 baud
Point-to-point
connection 10000 m* 10000 m 1.5 mm21 300 baud
*Shielded cabling required at a distance in excess of 1,000 m (see EN13757-2 appendix E).
Signal specification
M-bus Condition Minimum Typical Maximum Measuring unit
Number simple
M-bus loads per
segment
WTV531-GA5060 0 60
Transfer rate CSegment ≤ 382 nF 300 2400 9600 baud
Bus power (Master) WTV531-GA5060 30 39 40 R
Bus current (master) WTV531-GA5060 0 90 mA

11
Smart Infrastructure
A6V10844290_en--_b
2019-10-21
Connection terminals

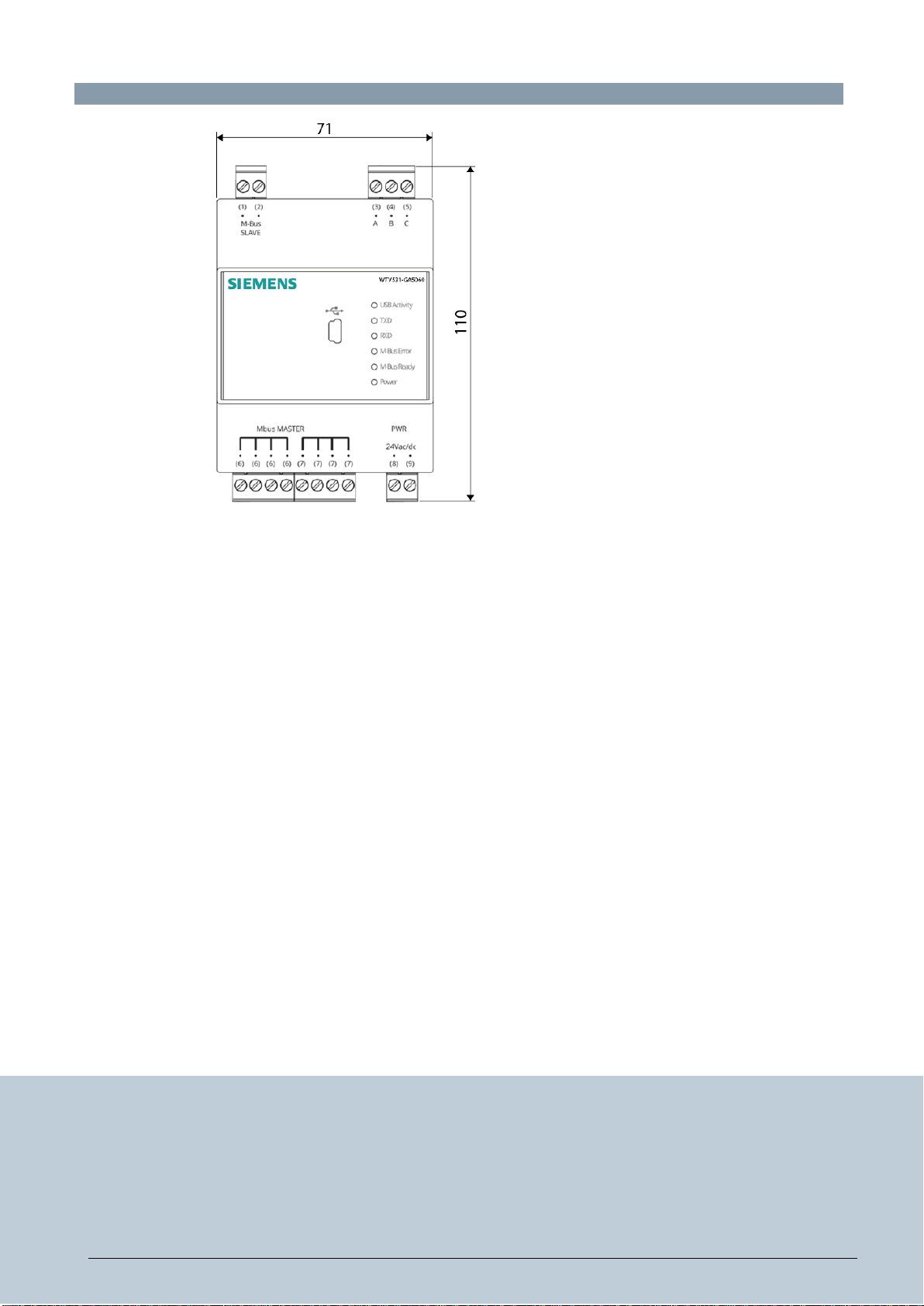

The device as the following connection terminals / LEDs.
A Power supply AC/DC 24 V
Terminals (8) and (9)
B Connections for M-bus meters
and
Connections for following level converters, if
this one is used as the master.
Terminals (6) and (7)
C Non-isolated connections to connect to a M-
bus web server
and / or
Connections to connect the prior level
converter, if this level converter is used as a
slave.
Terminals (1) and (2)
D Non-isolated serial interface RS232 to
connect to a laptop or M-bus master
A = TX
B = RX
C = GND
Terminals (3), (4) and (5)
E Laptop connection
Mini-USB-B
F LEDs

12
Smart Infrastructure
A6V10844290_en--_b
2019-10-21
Type summary
Order information
Description Order number Type
Level converter to power a
max. 60 simple M-bus loads S55563-F145 WTV531-GA5060
Product inserts
Mounting instructions for the level converter are included in the following languages:
Bulgarian, German, English, Finnish, French, Greek, Italian, Croatian, Lithuanian, Dutch,
Norwegian, Polish, Slovakian, Slovenian, Spanish, Czech, Turkish, and Hungarian.
Equipment combinations
The following products are available for reading data:
Description Order number Type
M-bus web server for remote meter data reading S55563-F144 WTV534-0B4022
M-bus web server for remote meter data reading S55563-F150 WTV676-HB6035
Read software for local data reading at the level converter --- ACT531
Product documentation
Topic Title Document ID
Device mounting, wiring,
connecting peripheral devices. Mounting instructions, level converter WTV531.. A6V10844308
Engineering, commissioning,
operation, and troubleshooting. User manual level converter WTV531.. and Web Server WTV534.. A6V10844341
Engineering, commissioning,
operation, and troubleshooting User's guide M-bus web server WTV676-HB6035, M-bus level converter WTX631-GA0090
M-bus level converter WTV531-GA5060
RF converter WTX660-E05060
A6V11157985
Engineering instructions Desigo TM TX Open, TX M-bus CM110572
Related documents such as environmental declarations, CE declarations, etc., can be
downloaded at the following Internet address:
http://siemens.com/bt/download

13
Smart Infrastructure
A6V10844290_en--_b
2019-10-21
Notes
Safety

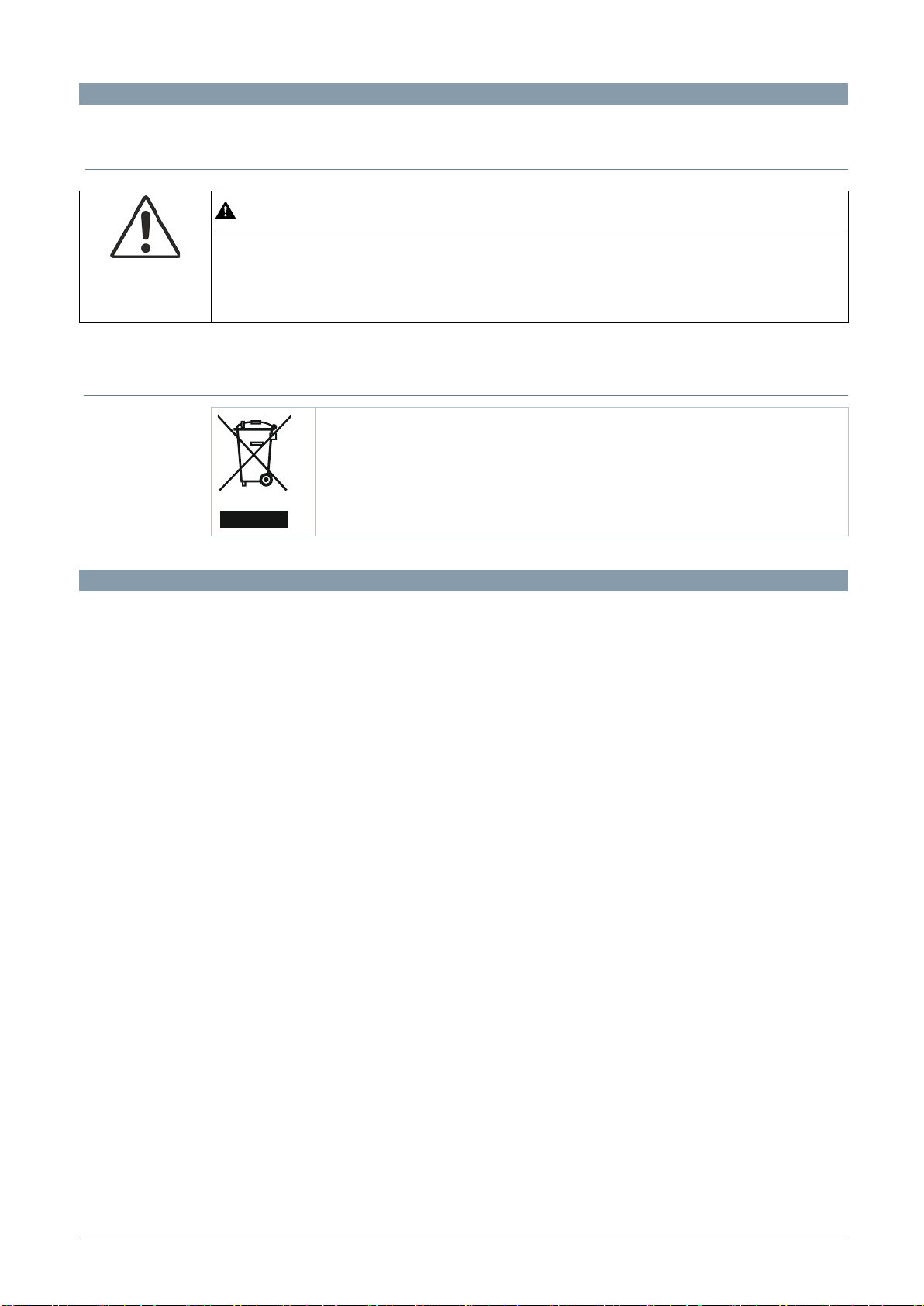

CAUTION
National safety regulations
Failure to comply with national safety regulations may result in personal injury and property
damage.
●Observe national provisions and comply with the appropriate safety regulations.
Disposal
The device is considered an electronic device for disposal in accordance
with the European Guidelines and may not be disposed of as domestic
garbage.
●Dispose of the device through channels provided for this purpose.
●Comply with all local and currently applicable laws and regulations.
Warranty service
Technical data on specific applications are valid only together with Siemens products listed
under "Equipment combinations". Siemens rejects any and all warranties in the event that
third-party products are used.

14
Smart Infrastructure
A6V10844290_en--_b
2019-10-21
Technical data
Power supply
Operating voltage AC/DC 24 V +/- 10 %
AC frequency 50/60 Hz
Power consumption 3 W + 0.07 W for each connected M-bus device
Maximum power consumption 12 W, 12 VA
Internal fuse PTC resistance and varistor
Fusing of supply lines Fusible links Max. 10 A, slow
Circuit breaker max. 13 A, type B, C, D per EN
60898
or
Power supply with current limitation at 10 A
Pins
M-bus master
(terminals 6 and 7) Connections for M-bus meters
and
Connections for following level converters, if this one is used as the
master.
M-bus slave
(terminals 1 and 2) Non-isolated connections to connect to a M-bus web server
and / or
Connections to connect the prior level converter, if this level converter is
used as a slave.
Mini-USB-B To connect to a laptop with installed ACT531 software
Interface
USB (2.0) Non-isolated plug: Mini-USB-B
Data rate: 1.5 Mbps and 12 Mbps.
Max. cable length: 3 m
RS-232 Galvanically isolated connection with a laptop/data logger
Max. cable length: 3 m
●Terminal 3 [A]: TX laptop/data logger receiving line
●Terminal 4 [B]: RX laptop/data logger transmission line
●Terminal 5 [C]: GND interface reference voltage
M-bus
Reference standard EN13757-2 (physical layer)
Baud rate 300 bps…9600 bps
M-bus USB insulation 1kV AC
Max. number of M-bus devices per
level converter 60 (simple M-bus loads)
Max. number of M-bus devices per
level converter network 360 simple M-bus loads or 1,000 logical M-bus meters
Max. number of level converters per
network 1 master level converter and 5 slave level converters connected in parallel or 6 level converters connected in parallel to a M-bus web server
WTV676..
Bus power Minimum 30 V
Maximum 40 V
Bus current Maximum 90 mA
Protection against short circuits Yes

15
Smart Infrastructure
A6V10844290_en--_b
2019-10-21
Directives and standards
Product standards EN 62368-1
Information Technology Equipment Safety
Electromagnetic compatibility For residential and industrial environments
EU conformity (CE) A5W00022156 *)
Environmental compatibility
The product environmental declaration A6V10922887 *) contains data on environmentally compatible product
design and assessments (RoHS compliance, materials composition, packaging, environmental benefit, disposal).
*) Documents can be downloaded at http://siemens.com/bt/download.
Degree of protection
IP class IP20 per EN60529
Protection class III as per EN 62368-1
Ambient conditions
Operation as per EN 60721-3-3
Climatic conditions Class 3K5
Temperature -10…+55° C
Air humidity 5...95 % r.h.
Mechanical conditions Class 3M2
Transportation as per EN 60721-3-2
Climatic conditions Class 2K3
Temperature -25..+65 °C
Air humidity 5...95 %
Mechanical conditions Class 2M2
Storage as per EN 60721-3-1
Climatic conditions Class 1K3
Temperature -25..+65 °C
Air humidity 5...95 %
Mechanical conditions Class 1M2
Materials and colors
Housing PC + ASA, RAL 9010 (white)
Dimensions
Length x Width x Height 110x71x62 mm (including terminals)
Weight
Level converter with mounting
instructions 0.166 kg
Packaging 0.055 kg
Mounting
Mounting type On 35mm DIN rails (EN60715)

16
Smart Infrastructure
A6V10844290_en--_b
2019-10-21
Issued by
Siemens Switzerland Ltd
Smart Infrastructure
Global Headquarters
Theilerstrasse 1a
CH-6300 Zug
Tel. [phone]
www.siemens.com/buildingtechnologies
© Siemens Switzerland Ltd, 2016
Technical specifications and availability subject to change without notice.
Document ID A6V10844290_en--_b
Edition 2019-10-21
Dimensions
H = 62 mm
All dimensions in mm
