Mefu MF1700-M1+ User manual

Laminate Your Value
Full-auto Heat-assist Cold laminator
1

Laminate Your Value
Contents
General Information
Summary
Warning Symbols
Safety
Installation and Notice
Operation
Maintenance
Troubleshooting
Repairs
Accessories
Technical Specification
General Information
2
3 Single-side Full-auto Heat-assist Cold laminator MF1700-M1+ represent the highest industrial product
3
by Mefu for high end market. It has been the most human and efficiency laminating machine ever.
4
With a laminating and mounting width up to 1620mm(64''), ensures most application possibilities.
5
6 The basic pneumatic Heat-assist Cold laminator MF1700-M1+, can fulfill your most of your
10 applications with competitive price. Capable of heavy-duty Roll-to-Roll and Piece-to piece operation,
10
with a max speed up to 6m/min. Fully adjustable nip-gap and pressure for precise application, adjust
11
pressure and height by pneumatic, ensures all process easy and simple. This 1620mm(64’’) laminator
11 is a good helper for starter. Let get your businessnow!
11
Before first use of the MEFU laminator, you should carefully
read this manual, which contains important instructions,
indications and safety information. Failure to read the
manual may result in serious injury to operators and
damage to machine.
Machine is heavy! Please be careful, when moving.
2

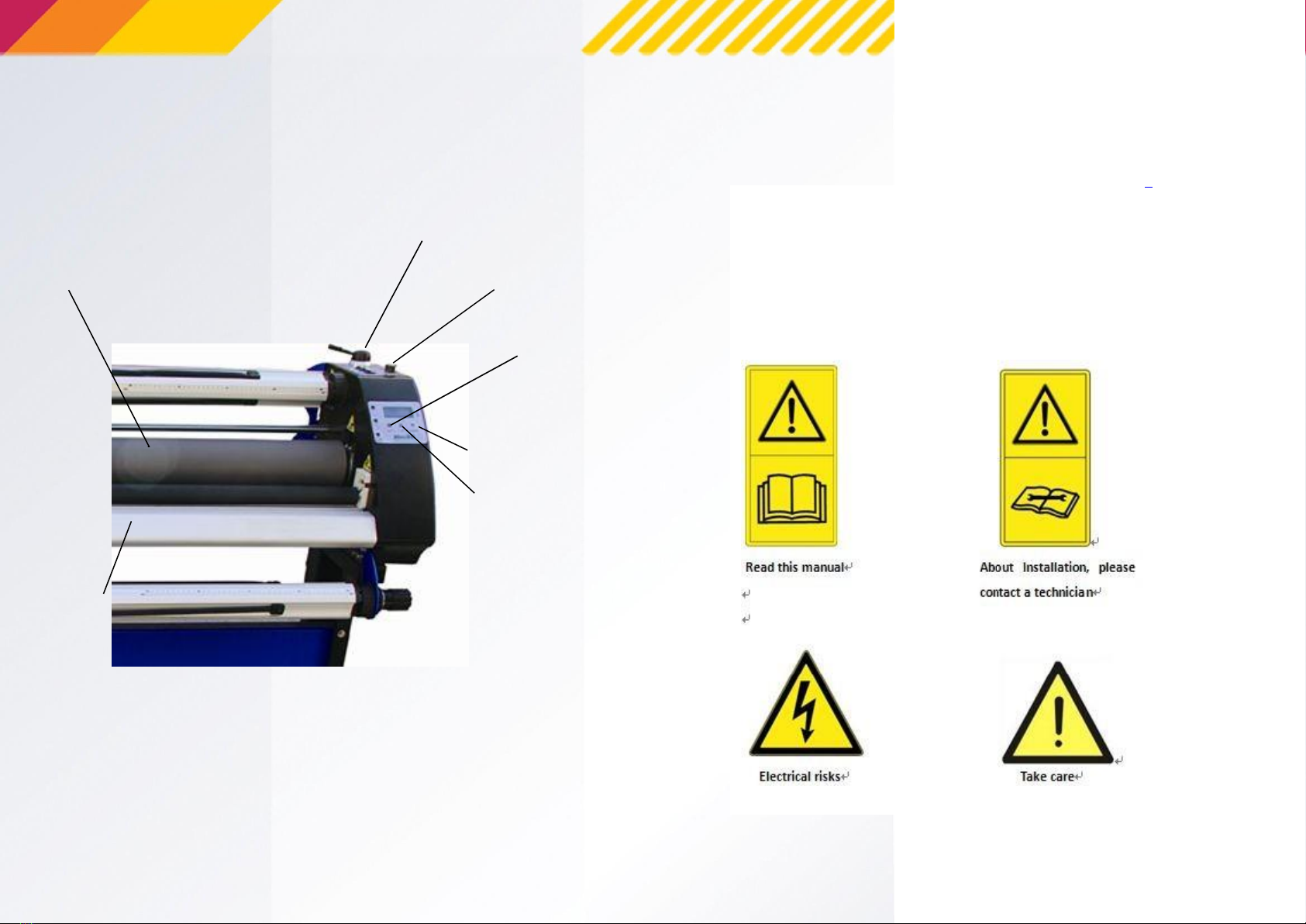

Controller for lifting up
Laminate Your Value
Summary Warning Symbols
and down the roller
Roller
Speed controller
To know clearly about this manual for using safely with
flatbed, you need to be familiar with the warning symbols
in this manual.
SET button
Temp/Set up
Temp/Set down
Working table
3

Safety
Laminate Your Value
In order to make a full understanding of the machine, please read this
manual carefully before operation. Take care when operating the
machine, especially if more than one operator is using it.
Power supply
The power supply should meet the requirement of the machine.
Function
The emergency stop function and the mechanical stop function for the
machine should be test in connection with installation, servicing,
maintenance etc.
Operation
In order to make a full understanding of the machine, please read this
manual carefully before operation.
Maintenance
Do not use water to clean the machine in case of short circuit, electric
shock or rust. In order not to hurt the rollers, please do not put any hard
stuff on the machine. Check the chains and gears at a regular time, clean
and lubricate.
Emergency situations
In the event of an emergency, Press the emergency stop button to stop the
laminator in an emergency. Then the machine will run again and the button will
bounce up, when you clockwise rotate to the neutral position.
The rollers are mine parts of the machine, damage
of the rollers will affect the yields. Please rise the
upper roller up after lamination, in case of the
deformation of the lower roller under long time
weight.
4
Red emergency stop buttons are located at the two sides of the machine.

Installation and Notice
Laminate Your Value
The MEFU Laminator should be assembled and used in a clean
room with a normal room temperature and normal humidity
levels. The work place should be dry and ventilated. Do not use
this machine near water source or wet ground. This minimizes the
occurrence of static electricity. In the meanwhile, do not close to
combustible and explosive goods.
Delivery inspection
When the machine is delivered, the following units are included:
·MEFU laminator
·Manual
·Accessories
Connections
Voltage: AC220/240V 50-60HZ
Electrical connectors may only be
connected to socked to sockets with the
correct voltage. All other operations may
only be performed by authorized staff.
Positioning
The MEFU Laminator should be placed in a dry and ventilated
situation.
Before use
Check the chains and gears (at a regular time), clean and lubricate.
Using
The roller is hot during working, please do not touch it,in case of scalded or
bruised.
After use
Place the roller in the idle position, raised 5 mm above the working table.
Clean the roller at a regular time, do not use water to clean the machine in
case of short circuit, electric shock or rust.
Use 80% alcohol, detergent or eraser to clean the rollers after lamination,
which can lengthen the rollers' life.
1. The temperature of the roller should under 40℃and stop heating.
2. Do not focus on one point.
3. Clean the residuum in time, otherwise it will affect the yields.
Assembly with the steps performed by
technician authorized.
5

Operation
Laminate Your Value
1. Turn over the working table for laminating. 2. Install the oil-water separator 3. Connect this tube (from this machine) tothe
air outlet of oil-water separator.
4. Connect the tube (from air compressor)
to the air inlet of oil-waterseparator.
5. Install the pedal switch. 6. Switch on the laminator
6

Laminate Your Value

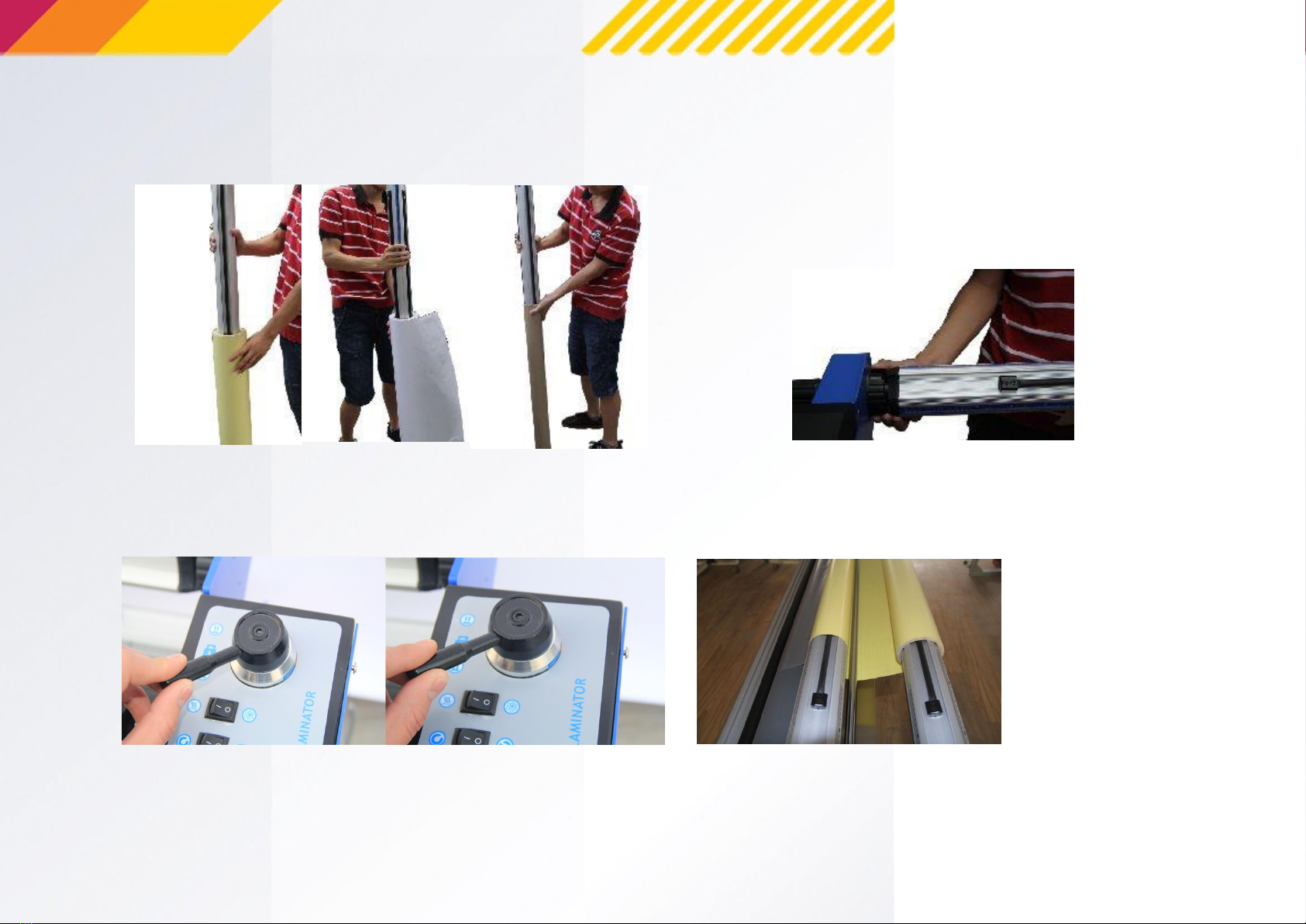

7. Place the roll of cold film and paper tube to the upper rolls (film roll and release
liner roll), place the roll of graphic and paper tube to the the lower rolls (feeding roll
and finish product roll), and measure them straightly with scale on the rolls.
8. Fix the mandrel
9. Using Air knob, lift up the roller. 10. Peel off the liner and stick to the paper tube.
7

Laminate Your Value

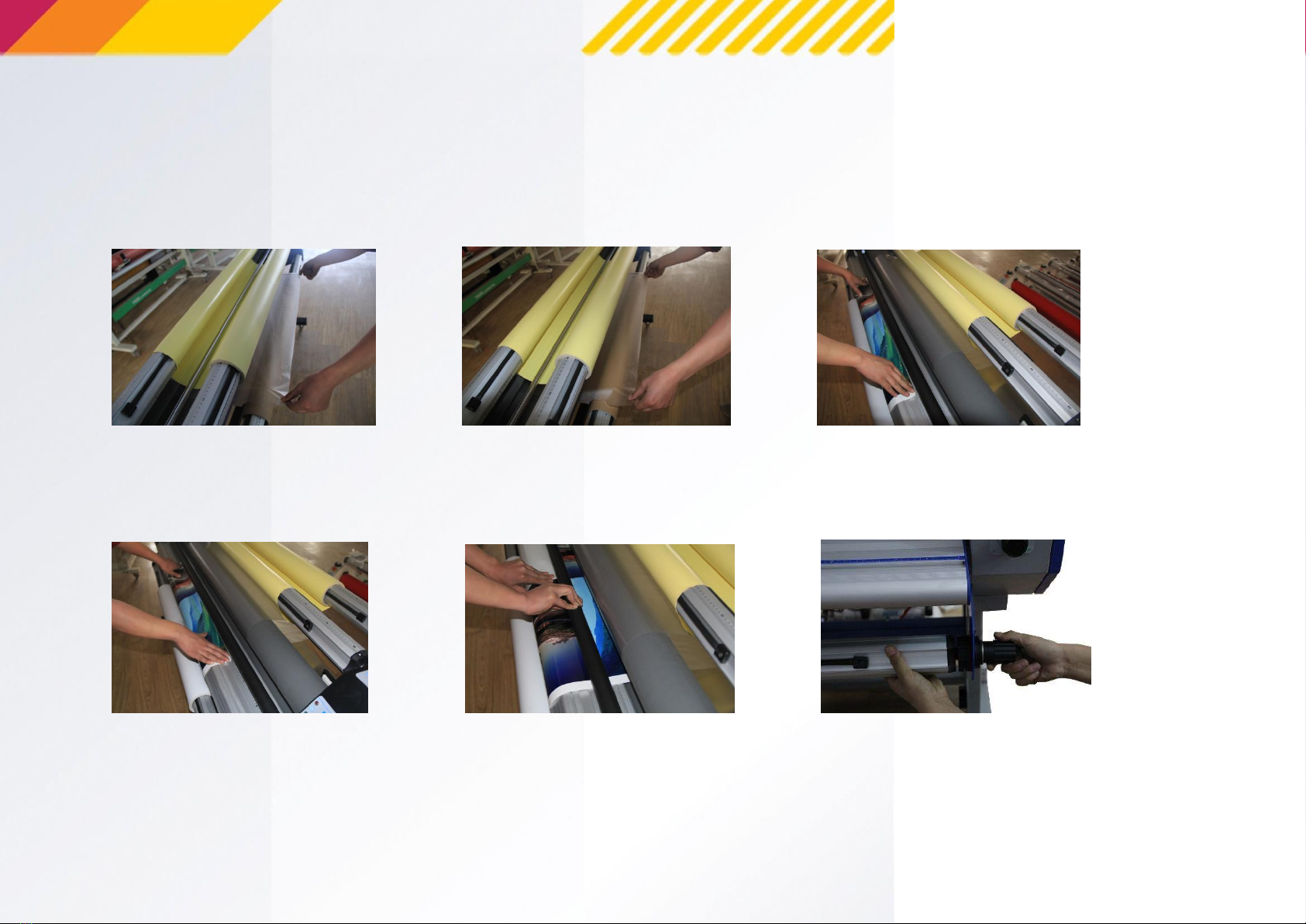

11. Pass the film through the laminator. 12. Pull out the film and stick to the paper tube. 13. Feed into the graphic.
14. Put down the roll to keep the feeding graphic steady.
15. Using graphic beam, keep graphic
straight, for accurate application.
8
16. Adjust the tension depending
on your material.

Laminate Your Value
8

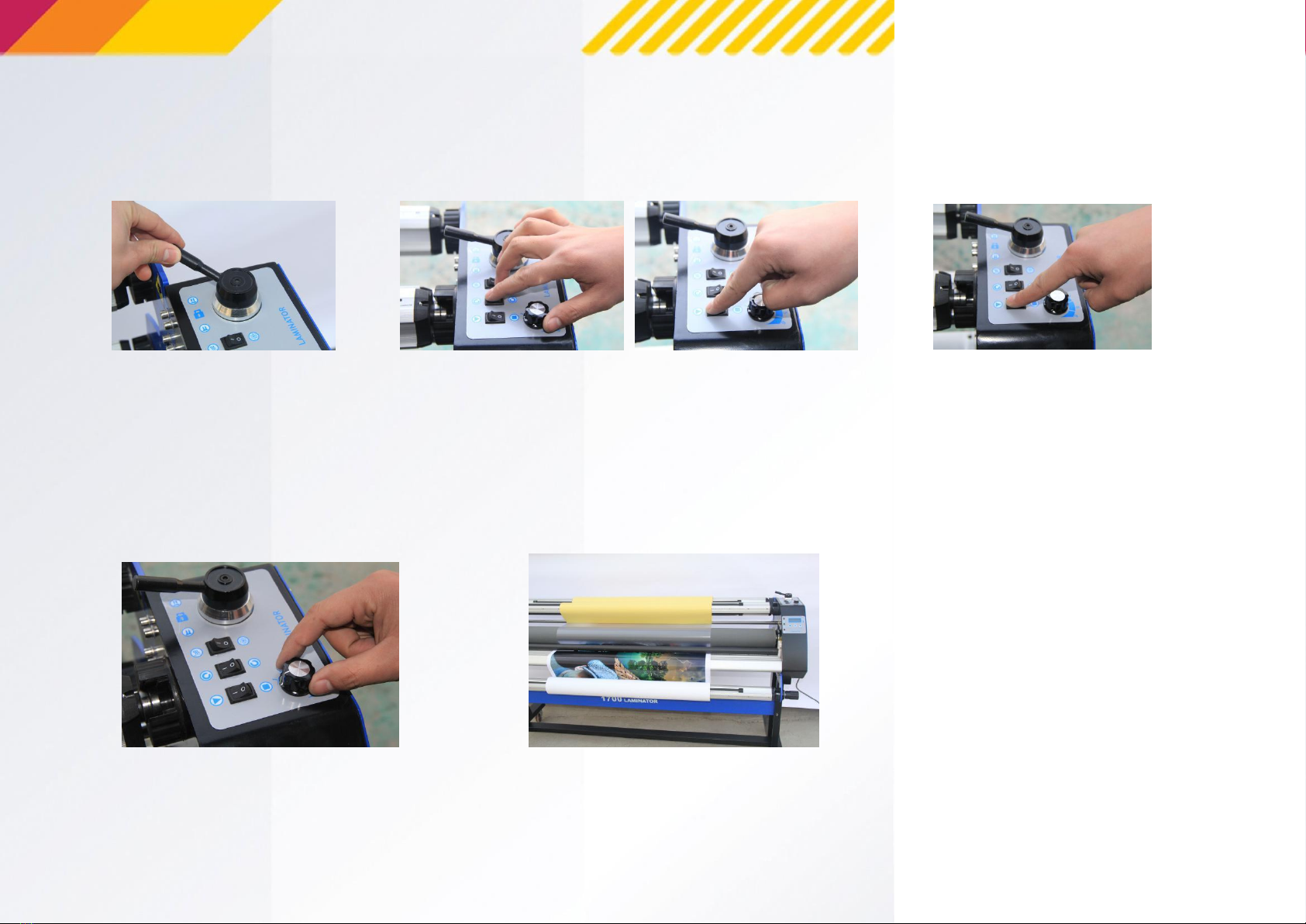

17. Lift down the roller.
18. Using Hot/Cold lamination switch, pre-heating for the upper
roller. Press SET button, heat the upper roller (with recommended
temperature of 40-50 ℃ for heat-assist cold lamination or 90-100 ℃
for hot lamination.
19. Press the “Continue” switchto
laminate.
20. Adjust the speed. 21. The finish.
9

Maintenance
Every day
· Make sure that the machine is not held any hard stuff and the roller is not
damaged.
·check the buttons on the machine
Once a week
·clean the machine
Once a month
·Clean and lubricate the chains and gears.
·Check the power supply and the foot switch to prevent leakage.
· If you have an air compressor with laminator, check and clean with its
manual.
As necessary
·Check the power supply and clean the roller.
10
Troubleshooting
Laminate Your Value
The roller won’t move
up and down
1.Reset the emergency stop button.
2.Reset the controls
(If none of this helps, please contact a
technician)
Control panel dead fault
1. Check power supply or emergencybutton.
2. If the fuse is burn down, justreplace.
The roller can not run
1. Regulate the fraction of therollers
2. Fix or regulate the chain wheel key on the
motor shaft
3. If Motor or speed controller breakdown,
Just replace the motor or the speedcontroller.
Snow points
1. Rises up thetemperature
2. Clean the surface of graphic
3. If there is some problems with the film,
change the film.
Air bubbles or folds
1. Adjust the pressure of therollers.
2. Make the printings flat
3. Improve speed or lower temperature.
4. Put the beam weight onprintings
Printings go tilt
Regulate the pressure of the rollers.
Folds of films
1. Regulate the film roll'sfraction
2. Lower thetemperature
Finished products are too
curled
Regulate the
reception roll
tension
of
the
film
or
the

The equipment may only be used for its intended
purposed as specified in this manual. For any other
use may result in damage or injury, and is at the
user’s own risk.
Accessories
For any necessary accessories you need, you can
try to contact the dealer where you bought your
Laminator.
11
Model
FMJ-1700-M1+
Max width
1630mm
Speed
Up to 6m/min
Laminating type
Heat-assist Cold
Heating method
Heated Infrared
Diameter of upper roller
110mm
Max thickness
23mm
Warm up time
5-10min
Recommended temp range
60°C
Max temp
100°C
Fixed Volt
AC110V-220V
Fixed power
1400W
Fixed current
16A
Reverse function
Yes
Laser safety
Yes
Foot pedal switch
Yes
Dimensions
2160×710×720mm
N.W.
150kG
