Mefu MF1600-M1 User manual

Laminate Your Value
www.mefuchina.com
Heat Assist cold laminator MF1600-M1
1

Laminate Your Value
www.mefuchina.com
Contents
General Information
Summary
Warning Symbols
Safety
Installation and Notice
Operation
Maintenance
Repairs
Accessories
Troubleshooting
Technical Specification
General Information
MF1600-M1 is the newest upgrade model of Heat-assist Cold Laminator,which
advanced ISO quality rubber roller and anti-tilt system to make it more accurate
and faster during lamination.
MF1600-M1 is a 1.52m/60in full auto heat-assist cold laminator designed as an
inexpensive option for post printers.Heat-assist can absolutely avoid air bubbles
and snow points for cold weather. Its simple design makes it extremely easy to
use and provides quality laminating results.
The numerous features included with the 60in wide format MF1600M1
heat-assist cold laminator make it so easy to use finishing becomes one person.
Before first use of the MEFU laminator, you
should carefully read this manual, which
contains important instructions, indications
and safety information. Failure to read the
manual may result in serious injury to
operators and damage to machine.
Machine is heavy! Please be careful, when
moving.
3
4
5
6
8
10
13
14
14
15
16
2
3

Laminate Your Value
www.mefuchina.com
Summary
Warning Symbols
To know clearly about this manual for using safely with flatbed, you
need to be familiar with the warning symbols in this manual.
roller
Hot lamination indicator
for top roller
Cold lamination indicator
for top roller
Prepare lamination
indicator for top roller
SET button
Temp/Set up
Temp/Set down
Forward/Reverse
switch
Continuous/Inching
Hot/cold lamination
switch for top roller
Lift up roller
Speed controller
Hand-wheel
Roll
Working table
Lift down roller
4
5

Laminate Your Value
www.mefuchina.com
Safety
In order to make a full understanding of the machine, please read this manual
carefully before operation. Take care when operating the machine, especially if more
than one operator is using it.
Power supply
The power supply should meet the requirement of the machine.
Function
The emergency stop function and the mechanical stop function for the machine
should be test in connection with installation, servicing, maintenance etc.
Operation
In order to make a full understanding of the machine, please read this manual
carefully before operation.
Maintenance
Do not use water to clean the machine in case of short circuit,electric shock or rust.
In order not to hurt the rollers, please do not put any hard stuff on the machine.
Check the chains and gears at a regular time, clean and lubricate.
The rollers are main parts of the machine, damage of the
rollers will affect the yields. Please rise the upper roller up
after lamination, in case of the deformation of the lower
roller under long time weight.
Emergency situations
In the event of an emergency, Press the emergency stop button to stop the laminator in an
emergency. Then the machine will run again and the button will bounce up, when you
clockwise rotate to the neutral position.
Red emergency stop button is located at the left side of the machine.
6 7

Laminate Your Value
www.mefuchina.com
Installation and Notice
The MEFU Laminator should be assembled and used in a clean room with a
normal room temperature and normal humidity levels. The work place
should be dry and ventilated. Do not use this machine near water source or
wet ground. This minimize the occurrence of static electricity. In the
meanwhile, do not close to combustible and explosive goods.
Delivery inspection
When the machine is delivered, the following units are included:
·MEFU laminator
·Manual
·Accessories
Connections
Voltage: AC220/240V 50-60HZ
Positioning
The MEFU Laminator should be placed in a dry and ventilated situation.
Electrical connectors may only be connected to
socked to sockets with the correct voltage. All
other operations may only be performed by
authorized staff.
Before use
Check the chains and gears (at a regular time), clean and lubricate.
Using
The roller is hot during working, please do not touch it,in case of scalded or bruised.
After use
Place the roller in the idle position, raised 5 mm above the working table.
Clean the roller at a regular time, do not use water to clean the machine in case of short
circuit, electric shock or rust.
Use 80% alcohol, detergent or eraser to clean the rollers after lamination, which can
lengthen the rollers' life.
1.The temperature of the roller should under 40℃and stop heating.
2.Do not focus on one point.
3.Clean the residuum in time, otherwise it will affect the yields.
Assembly with the steps performed by technician
authorized
8 9

Laminate Your Value
www.mefuchina.com
Operation

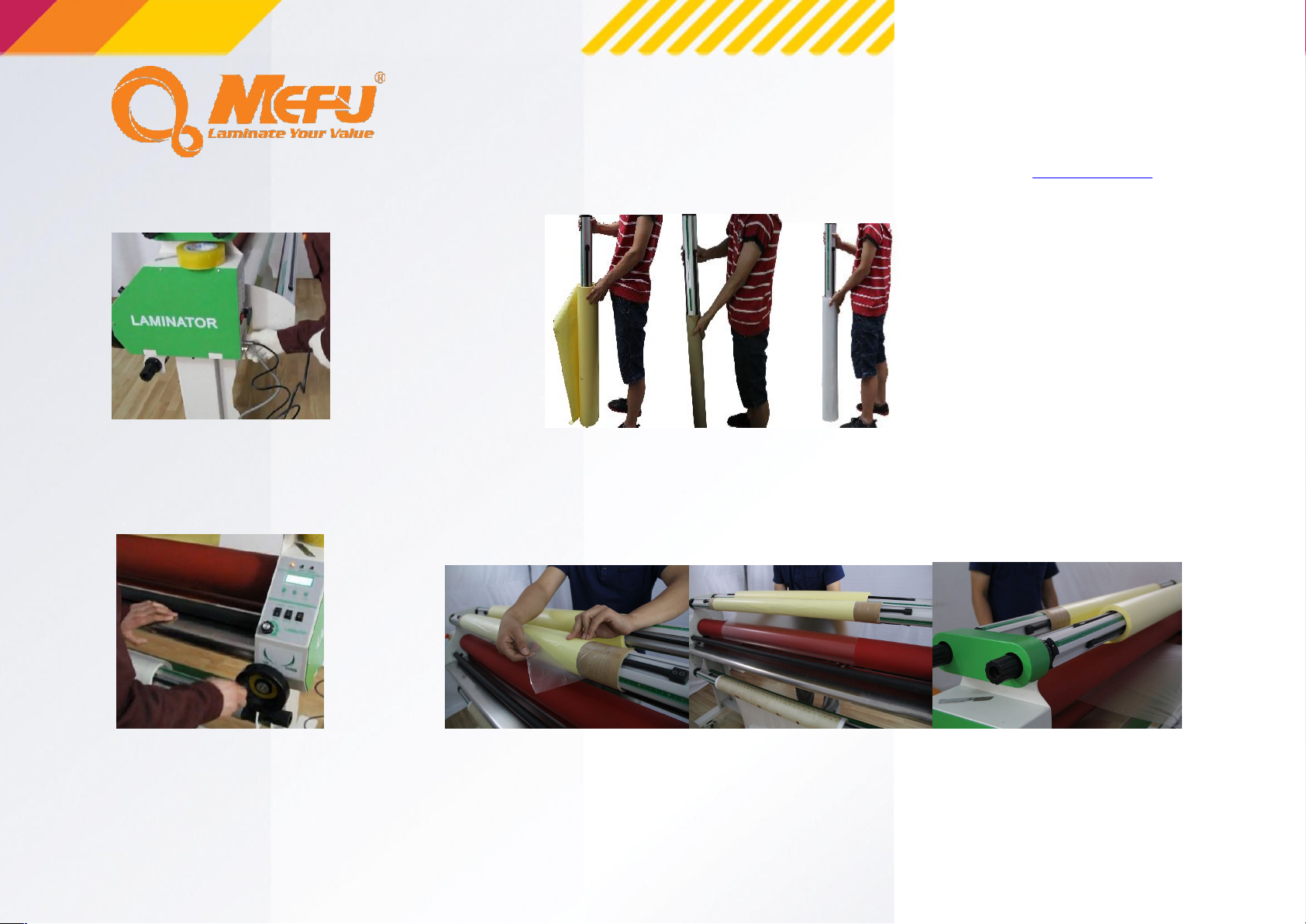

2. Place the roll of cold film and paper tube to the upper rolls (film roll and release liner roll),
place the roll of graphic and paper tube to the the lower rolls (feeding roll and finish product roll), and
measure them straightly with scale on the rolls.
1. Install the foot switch and
plug in the power.
4. Peel off the liner from the film that is above the roll, stick
the edge of liner to the backing sheet roll with paper tube.
3. Using hand-wheel, Clockwise
rotate to lift up the roller.
10

Laminate Your Value
www.mefuchina.com

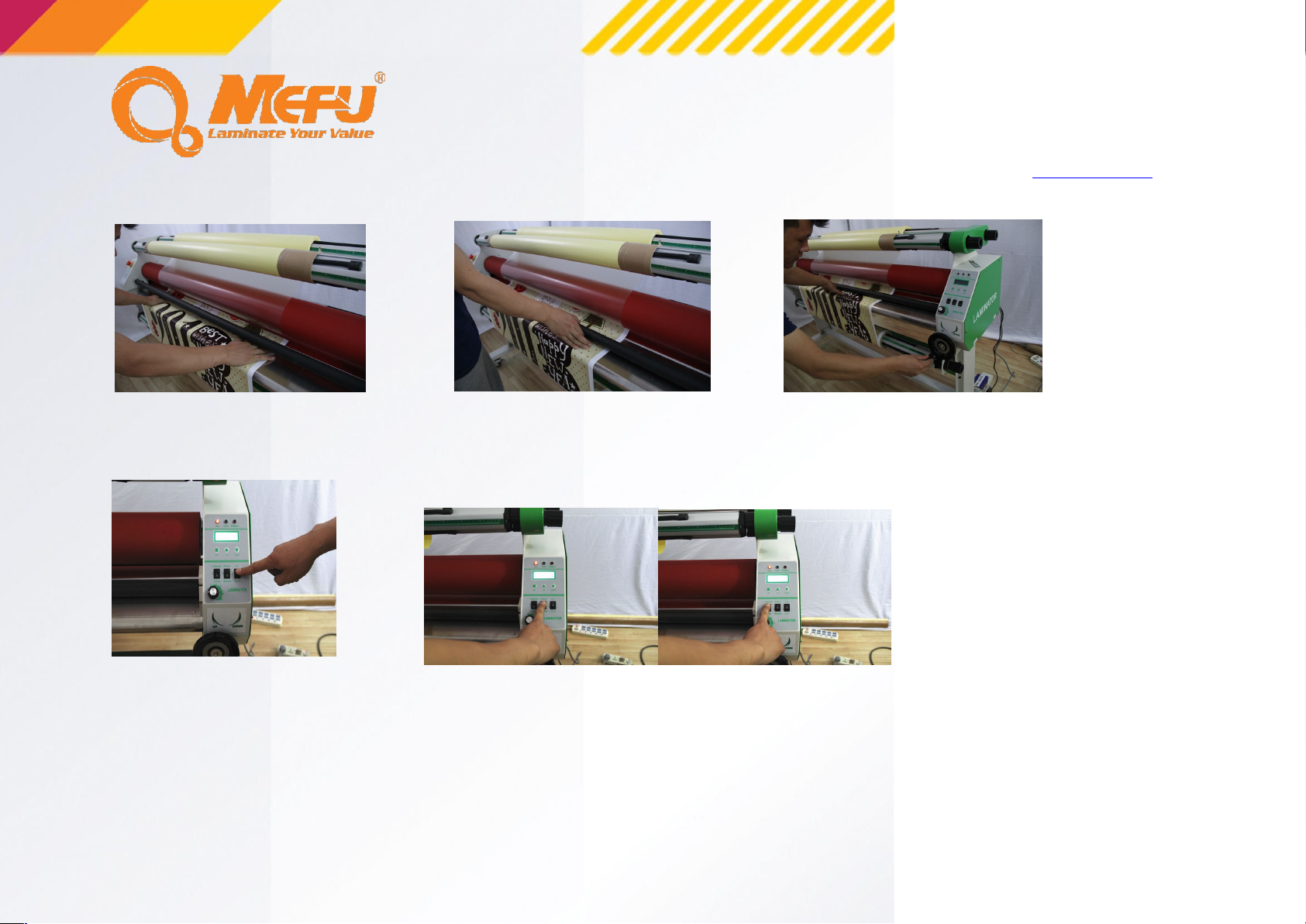

8. Pre-heating for the upper roller. Press
SET button, heat the upper roller (with
recommended temperature of 40-50℃)
9. Press the “Continue” switch to
laminate.
5. Feed the graphic slightly into
the rollers.
6. Put down the roll to keep
the feeding graphic steady.
7. Lift down the roller again the
graphic, make sure that the graphic
is pressed against the roller before
starting application.
11

Laminate Your Value
www.mefuchina.com
11. The finish
10. Adjust the tension depending on your material.
12. After laminating, cut the used
backing paper off the film.
Maintenance
Every day
·Make sure that the machine is not held any hard stuff and the roller is not
damaged.
·check the buttons on the machine
Once a week
·clean the machine
Once a month
·clean and lubricate the chains and gears.
·Check the power supply and the foot switch to prevent leakage.
As necessary
·Check the power supply and clean the roller.
12 13

Laminate Your Value
www.mefuchina.com
Repairs
Contact a technician
You should first try contacting a technician through the dealer where you bought
your MEFU Laminator.
If this is not possible, contact MEFU Technical Service
Phone: [phone]
Accessories
For any necessary accessories you need, you can try to contact the dealer where you
bought your MFEU Laminator.
The equipment may only be used for its intended
purposed as specified in this manual. For any
other use may result in damage or injury, and is at
the user’s own risk.
14 15
Troubleshooting
The roller won’t move up and down
1.Reset the emergency stop button.
2.Reset the controls
(If none of this helps, please contact a
technician)
Control panel dead fault
1. Check power supply or emergency button.
2. If the fuse is burn down, just replace.
The roller can not run
1. Regulate the fraction of the rollers
2. Fix or regulate the chain wheel key on the
motor shaft
3. If Motor or speed controller breakdown, Just
replace the motor or the speed controller.
Snow points
1. Rises up the temperature
2. Clean the surface of graphic
3. If there is some problems with the film,
change the film.
Air bubbles or folds
1. Adjust the pressure of the rollers.
2. Make the printings flat
3. Improve speed or lower temperature.
4. Put the beam weight on printings
Printings go tilt
Regulate the pressure of the rollers.
Folds of films
1. Regulate the film roll's fraction
2. Lower the temperature
Finished products are too curled
Regulate the tension of the film or the reception
roll

Laminate Your Value
www.mefuchina.com
Technical Specification
Model
MF1600-M1
MF1700-M1
Max width
1520mm
1630mm
Speed
Up to 6m/min
Up to 6m/min
Laminating type
Cold ( heat-assist)
Cold ( heat-assist)
Heating method
Heated top roller
Heated top roller
Diameter of upper roller
130mm
130mm
Max thickness
23mm
23mm
Warm up time
5-10 min
5-10 min
Recommended temp range
40°C-50°C
40°C-50°C
Max temp
60°C
60°C
Fixed Volt
AC220V-240V 50HZ-60HZ
AC220V-240V 50HZ-60HZ
Fixed power
1400W
1400W
Fixed current
9A
9A
Motor power
60W
60W
Reverse function
Yes
Yes
Laser safety
Yes
Yes
Foot pedal switch
Yes
Yes
Packing size
2060×710×720mm
2160×710×720mm
N.W.
140KG
150KG
