MELAG MELAtherm 10 Evolution User manual

User Manual
MELAtherm® 10 Evolution
Washer-Disinfector
from software version 3.0.19
EN
Dear doctor,
We thank you for your confidence demonstrated by the purchase of this MELAG product. As an owner-run and operated
family concern founded in 1951, we have a long history of successful specialization in hygiene products for practice-
based use. Our focus on innovation, quality and the highest standards of operational reliability has established MELAG
as the world’s leading manufacturer in the instrument treatment and hygiene field.
You, our customer are justified in your demand for the best products, quality and reliability. Providing "competence in
hygiene" and "Quality – made in Germany", we guarantee that these demands will be met. Our certified quality man-
agement system is subject to close monitoring: one instrument to this end is our annual multi-day audit conducted in ac-
cordance with ISO13485. This guarantees that all MELAG products are manufactured and tested in accordance with
strict quality criteria.
The MELAG management and team.

Contents
Contents
1 General guidelines ...............................................................................................................................................................5
Symbols used.......................................................................................................................................................................5
Formatting rules ...................................................................................................................................................................5
Disposal ...............................................................................................................................................................................5
2 Safety.....................................................................................................................................................................................6
3 Performance specifications ................................................................................................................................................8
Intended use ........................................................................................................................................................................8
User benefits ........................................................................................................................................................................8
Program sequence...............................................................................................................................................................9
Process agents ..................................................................................................................................................................10
4 Description of the device...................................................................................................................................................11
Scope of delivery................................................................................................................................................................11
Views of the device ............................................................................................................................................................12

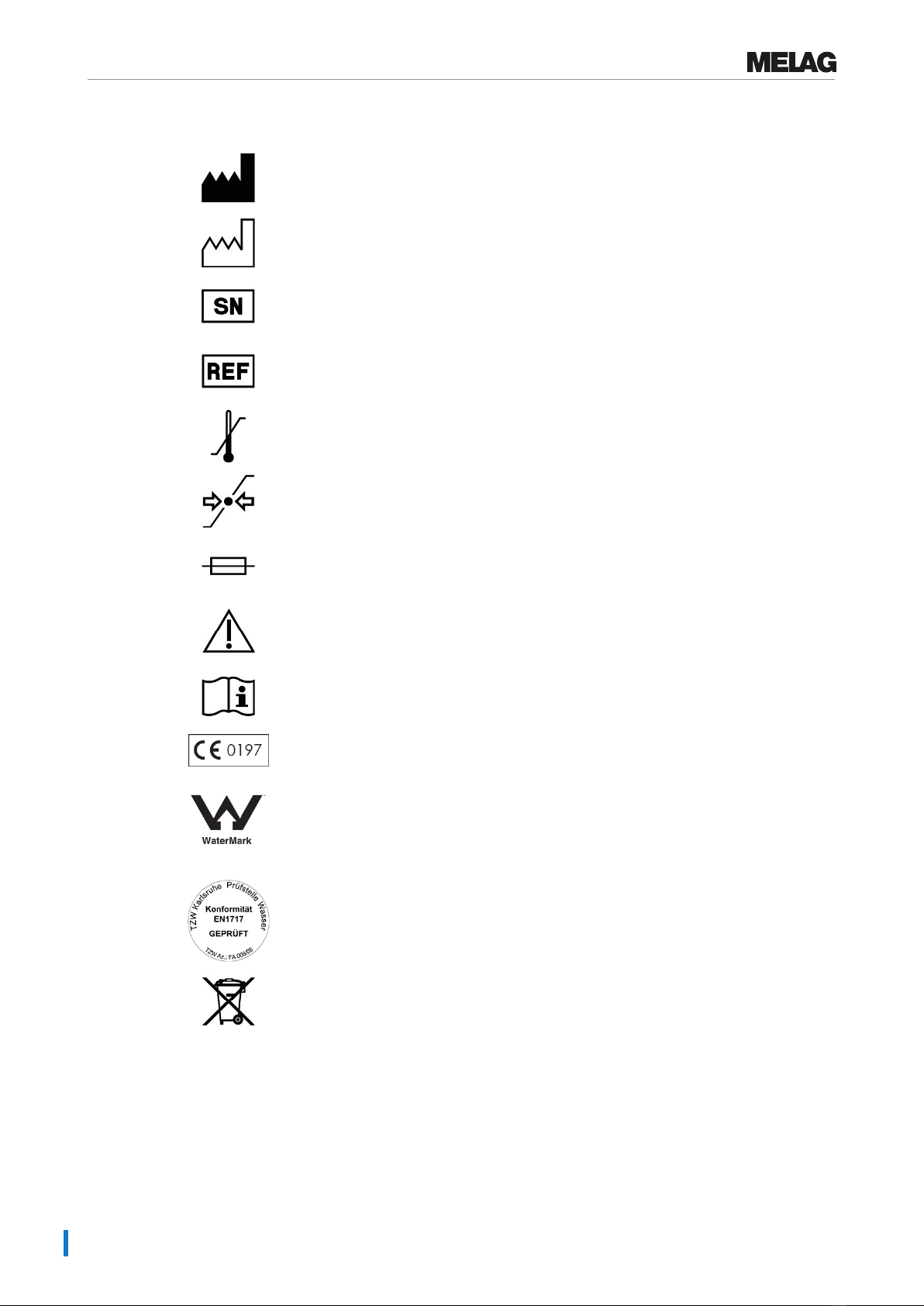

Symbols on the device .......................................................................................................................................................14
Operating panel and acoustic signal ..................................................................................................................................15
Menu structure ...................................................................................................................................................................18
Water softening unit ...........................................................................................................................................................19
5 First steps ...........................................................................................................................................................................20
Setup and installation.........................................................................................................................................................20
Supply with cold water .......................................................................................................................................................20
Switching the device on and off .........................................................................................................................................20
Video tutorials ....................................................................................................................................................................21
MELAconnect App .............................................................................................................................................................22
Opening and closing the door ............................................................................................................................................22
Manual door emergency-opening ......................................................................................................................................22
Inserting the basis basket ..................................................................................................................................................23
Filling the regenerating salt ................................................................................................................................................24
Regenerating the water softening unit ...............................................................................................................................25
Metering process agents....................................................................................................................................................25
Holding process agents ready............................................................................................................................................26
Removing air from the metering system ............................................................................................................................28
6 Cleaning and disinfection..................................................................................................................................................29
Type of load .......................................................................................................................................................................29
Arranging the load..............................................................................................................................................................29
Reprocessing hollow-body instruments .............................................................................................................................30
Reprocessing dental transmission instruments..................................................................................................................31
Reprocessing ophthalmological instruments......................................................................................................................31
Overview of programs ........................................................................................................................................................33
Selecting, starting and following the program ....................................................................................................................34
Manual program abort........................................................................................................................................................35
Authentication and batch approval.....................................................................................................................................36
Removing the load after program end................................................................................................................................40

Contents
7 Logging ...............................................................................................................................................................................41
Batch documentation .........................................................................................................................................................41
Output media......................................................................................................................................................................41
Outputting logs immediately and automatically..................................................................................................................42
Subsequent log output .......................................................................................................................................................43
Deleting the saved logs......................................................................................................................................................44
Determining the format for the program logs .....................................................................................................................45
Finding the logs..................................................................................................................................................................47
8 Settings ...............................................................................................................................................................................48
Menu settings.....................................................................................................................................................................48
Log settings........................................................................................................................................................................49
Setting the date and time ...................................................................................................................................................54
Setting the display brightness ............................................................................................................................................56
Setting the idle mode .........................................................................................................................................................56
Setting the volume of the signal tone .................................................................................................................................57
Setting the volume of the key tone.....................................................................................................................................57
Connectivity........................................................................................................................................................................58
Setting the language ..........................................................................................................................................................59
Setting the water supply.....................................................................................................................................................59
Setting the water hardness ................................................................................................................................................60
Administrative settings .......................................................................................................................................................61
9 Function tests.....................................................................................................................................................................67
Automatic and manual functional check.............................................................................................................................67
Measuring conductivity.......................................................................................................................................................67
10 Maintenance......................................................................................................................................................................68
Regular checks and cleaning .............................................................................................................................................68
Cleaning on demand ..........................................................................................................................................................70
Avoiding staining ................................................................................................................................................................70
Changing the filter in the drying fan ...................................................................................................................................71
Maintenance.......................................................................................................................................................................72
(Process) Validation ...........................................................................................................................................................72
11 Pause times ......................................................................................................................................................................73
Decommissioning...............................................................................................................................................................73
Transport within the practice ..............................................................................................................................................74
12 Malfunctions .....................................................................................................................................................................75
Displaying events in MELAconnect....................................................................................................................................76
General events...................................................................................................................................................................76
Warnings ............................................................................................................................................................................78
Malfunction messages .......................................................................................................................................................82
13 Technical data ..................................................................................................................................................................91
14 Accessories and spare parts ..........................................................................................................................................93
15 Documentation and approval..........................................................................................................................................94
Glossary .................................................................................................................................................................................95

1 General guidelines
5
1 General guidelines
Please read this user manual carefully before commissioning the device. The user manual includes impor-
tant safety information. The functionality and value-retention of this device depends on the care accorded
to it. Please store these user manual carefully and in close proximity to your device. It represents a compo-
nent of the product.
Should the user manual no longer be legible, damaged or lost, please obtain a new copy from MELAG.
State the device type and your address in an e-mail.
The device type is specified on the type plate on the rear of the device.
Symbols used
Symbol Explanation
Indicates a dangerous situation, which if not avoided, could entail slight to life-
threatening injuries.
Draws your attention to a situation, which if not avoided, could result in damage to the
instruments, the practice fittings or the device.
Draws your attention to important information.
Formatting rules
Example Explanation
see Chapter 2 Reference to another text section within this document.
Universal-
Program
Words or phrases appearing on the display of the device are marked as display text.
Disposal
MELAG devices are synonymous with high quality and a long life-span. When you eventually need to
decommission your MELAG device, we offer a special disposal service. Simply contact your stockist.
Dispose of accessories and consumption media which you no longer require in the appropriate manner.
Comply with all relevant disposal specification in terms of possibly contaminated waste.
The packaging protects the device against transport damage. The packaging materials have been selec-
ted for their environmentally-friendly disposability and can be recycled. Returning the packaging to the ma-
terial flow reduces the amount of waste and saves raw materials. Dispose of all non-required packaging
materials at the collection points of the dual system.
Dispose of waste from process agents in accordance with the specifications from the manufacturer of the
process agents. Information regarding this topic is provided in the safety data sheets or can be obtained
directly from the manufacturer of the process agents.

2 Safety
6
2 Safety
When operating the device, comply with the following safety instructions as well as those
contained in subsequent chapters. Use the device only for the purpose specified in these
instructions. Failure to comply with the safety instructions can result in injury and/or damage to
the device.
Qualified personnel
nThe instrument reprocessing using this washer-disinfector may only be carried out by competent per-
sonnel.
Set-up, installation and commissioning
nCheck the device for any damage suffered during transport after unpacking.
nThe device should only be set-up, installed and commissioned by MELAG authorized technicians.
nThe connections for electrical provision and water supply and discharge must be set-up by trained per-
sonnel.
nUsing the optional electronic leak detector (water stop) minimizes the risk of water damage.
nThe device is not suitable for operation in explosive atmospheres.
nInstall and operate the device in a frost-free environment.
nThe device is conceived for use outside the patient area. The device should be located a minimum of
1.5m radius away from the treatment area.
nThe documentation media (computer, CF card reader etc.) must be placed in such a way that they
cannot come into contact with liquids.
nObserve all the information contained in the technical manual during commissioning.
Power cable and power plug
nComply with all legal requirements and locally-specified connection conditions.
nNever operate the device if the plug or power cable are damaged.
nThe power cable or plug should only be replaced by authorized technicians.
nNever damage or alter the power plug or cable.
nNever unplug by pulling on the power cable. Always take a grip on the plug.
nEnsure that the power cable does not become jammed in.
nNever lead the cable along a source of heat.
nNever fix the power cable with sharp objects.
nMELAtherm10Evolution DTA is disconnected from the mains via the on-site main switch.
MELAtherm10Evolution DTB disconnects from the mains by removing the mains plug from the
socket.
Daily operation
nOnly reprocess instruments designed by their manufacturer for automatic reprocessing in a washer-
disinfector. Comply with the instructions issued by the instrument manufacturer in accordance with
DINENISO17664. It is especially important to comply with the information from the instrument manu-
facturer regarding cleaning instruments for the first time after purchasing new instruments and clean-
ing them.
nUse only original MELAG accessories or those from other suppliers authorized for use by MELAG.
nWhen using non-MELAG accessories for the mounting of instruments (especially hollow-body instru-
ments) comply with the manufacturer’s information.
nComply with the specifications of the national standards and directives pertaining to the reprocessing
of instruments, the manufacturer’s reprocessing instructions and those from the AKI.
nThe fore ventilation slits may not be covered.

2 Safety
7
nOnly ever operate the device with the basis basket provided for this purpose.
nNever operate the device unattended. Unsupervised operation of the device can result in damage to
the device or your facility and is performed at your own risk. In such a case, MELAG does not accept
any liability.
Process agents
nHandle all process agents with care. The cleaning, neutralization and rinsing aids contain irritants and
even caustic substances.
nUse process agents suitable for this device. Observe the operating and safety information from the
process agent manufacturer. If the process agents have a negative effect on the material of the instru-
ments or the device, the manufacturer of the process agents carries liability.
nThe use of process agents not approved by MELAG absolves MELAG of all liability whatsoever for
any damage to the device or the instruments.
nShould you have any questions concerning the compatibility of the process agents with the instru-
ments, please consult the manufacturer. MELAG provides information for the application of the pro-
cess agents in this device, but does not hold any responsibility for their effects on the instruments.
nAny fluids in the drawer and the floor tank underneath can also contain process agents in case of
damage. Ensure that you observe the information of the respective process agent manufacturer.
Transport and storage
nDuring transport and storage, unusual temperatures such as deep frost or extreme heat should be
avoided. If this is not guaranteed, the unit must be unpacked and stored at room temperature for at
least two hours before installation and commissioning.
nAvoid strong shocks / vibrations.
Maintenance
nMaintenance should only be performed by authorized technicians.
nMaintain the specified servicing intervals.
Malfunctions
nShould the device issue the same malfunction message repeatedly, turn off the device and if neces-
sary, inform your stockist.
nThe device may only be serviced by authorized technicians.

3 Performance specifications
8
3 Performance specifications
Intended use
The MELAtherm10 Evolution DTA/DTB is intended for use in a medical context such as a clinic or medical
and dental practices. ENISO15883-1 and 2 defines it as a washer-disinfector intended for reprocessing
medical instruments prior to their re-use or a further reprocessing step such as sterilization in a steam
sterilizer. You can subject thermostable medical instruments (i.e. instruments which are heat resistant to a
temperature of 95°C) and invasive thermostable instruments to automatic reprocessing as long as they
are suitable for this purpose and have been approved for such treatment by their manufacturer. The clean-
ing is performed using water in combination with a process agent (e.g. MEtherm). Subsequent disinfection
is thermal disinfection. This device is not intended to be used in a patient environment.
This device is NOT suitable for the reprocessing of:
uThermo-unstable instruments e.g. flexible endoscopes
uLaboratory waste requiring disposal
uCrockery
uBedpans
User benefits
Universal use
The device both cleans and disinfects. The disinfection phase is conceived so as to reach an A0 value of
at least 3000. This kills vegetative bacteria, fungi and their spores and viruses (inc. HBV, HCV) so that the
effective range AB is reached in accordance with the specifications of the Robert Koch Institute.
Active drying
The device is equipped with active drying. An integrated drying fan dries the instruments from inside and
out after cleaning and disinfection. The additionally fitted HEPA filter guarantees drying with contamina-
tion-free air. The automatic reprocessing of hollow-body instruments is also possible. This protects the
instruments from stain accretion and rusting. The geometry of some hollow-body instruments mean that
they require additional drying.
Automatic filter recognition
The device recognizes before a program start whether the fine sieve has been inserted in the base of the
washing chamber. The fine sieve avoids a situation in which instrument components enter the opening of
the drain pump or the circulation pump during cleaning, thereby compromising the function of the pumps,
rinse arms and the injector rail.
Internal water softening
The device is equipped with an internal water softening unit. The water hardness of the local drinking wa-
ter is set on the device. The internal water softening unit then automatically adjusts itself to the most suit-
able performance. This ensures best reprocessing results.
Monitoring the speed of the rinse arms
The rotation speed of the rinse arms is subject to permanent monitoring during a program run. This en-
sures that the cleaning process proceeds without hindrance and the rinse arms do not become blocked
e.g. by protruding instruments in the washing chamber.
Monitoring the rinsing pressure
The rinse pressure is monitored by a pressure sensor during the program run. This ensures an effective
cleaning performance. The device aborts a current program if too much foam is generated.

3 Performance specifications
9
Metering monitoring
The required amounts of cleaning agent and neutralizer are measured out using a hose metering pump. A
measurement turbine performs flow monitoring. The rinse aid is metered using a hose pump subject to
monitoring for rotation speed.
Drawer for process agents
The drawer for the process agents is located in the lower area of the device in which the cleaning agent,
neutralizer and rinse aid containers are stored.
Automatic conductivity measurement
If the device is supplied with DI water in the final rinse, the DI water is subject to automatic internal con-
ductivity measurement.
Manual door emergency-opening
The door can be opened manually in an emergency via the emergency opening following a power outage
or malfunction.
Program sequence
The following program steps are indicated on the display during the program run.
Pre-cleaning
Pre-cleaning is performed with cold (min. 22 °C), softened or de-ionized water without process agents.
Instrument soiling and contamination (proteins and/or coarse organic deposits) are subject to mechanical
cleaning to avoid denaturation from excessively-high water temperatures.
Cleaning
The pre-cleaning is followed by the actual cleaning phase with warm process water and the addition of a
mildly-alkaline cleaning agent. As part of the cleaning process, a defined volume of process water is let
into the washing chamber and heated to 40 °C. The mildly-alkaline cleaning agent is automatically
metered to the process water as soon as the set temperature has been reached.
The process water is heated to 55°C for the actual cleaning process. This temperature is maintained and
any remaining organic deposits will be removed from the instruments.
Neutralization
Main cleaning is followed immediately by neutralization. Neutralization reduces the alkalinity introduced
during cleaning and removes acid-soluble deposits such as limescale and extraneous rust etc.
A metered amount of neutralizer is added during this phase. The neutralized process water is subject to
continual circulation for a defined period. Finally, the process water is pumped out of the washing chamber
completely.
Intermediate rinsing
Intermediate rinsing is the preparatory step for thermal disinfection in which the instruments are rinsed
without process agents. The rinsing serves to reduce the residual process agents to a defensible level. In
this phase, a metered amount of cold process water is let into the washing chamber and subject to contin-
ual circulation for a defined period. Finally, the process water is pumped out of the washing chamber.
Disinfection
The disinfection is performed after intermediate rinsing. The disinfectant effect of MELAtherm is achieved
using thermal disinfection and subsequent drying.
A rinse aid is added to the process water at a temperature of 70°C. The thermal disinfection is performed
via continual circulation and heating of the process water to 90 °C and a holding time at this temperature of
minimum 5min. Following the disinfection, the process water is pumped out of the washing chamber com-
pletely.

3 Performance specifications
10
Drying
Drying is effected by drawing ambient air through a class H13 HEPA filter. The instruments are dried
inside and out with hot, filtered air. This prevents the development of rust on the instruments.
Displaying the batch counter
The display shows the batch number of the last program run and the total batch counter after every pro-
gram end or the end of a program abort.
Process agents
NOTICE
Only use process agents of the same manufacturer. Process agents from different
manufacturers may not be mixed. Any change to another combination may only be
performed by trained service technicians. The metering concentration must be adapted
to local conditions. This is to be performed by the service technician during set-up in
accordance with the manufacturer's information.
NOTICE
Observe the operating and safety information from the process agent manufacturer. If,
despite observation of the manufacturer's information, the process agents have a
negative effect on the material of the instruments or the device, liability lies with the
manufacturer of the process agents. The use of process agents not suitable for this
device absolves MELAG of all liability whatsoever for any damage to the device or the
instruments.
MELAG recommends the usage of MEtherm process agents. These are adapted for the process in
MELAtherm and achieve excellent cleaning results with optimal instrument protection. Contact the process
agent manufacturer when using other process agents. MELAG does not accept liability for the cleaning
effectiveness of other process agents in MELAtherm.
Preset metering concentrations
Program Cleaning agent Neutralizer Rinse aid
Universal-Program 6 ml/l 1.5 ml/l 0.3 ml/l
Quick-Program 6 ml/l 1.5 ml/l 0.3 ml/l
Intensive-Program 10 ml/l 1.5 ml/l 0.3 ml/l
Ophthalmo-Program 6 ml/l 1.5 ml/l --------
When using drinking water (hardness range medium - hard) we recommend the metering concentrations
as specified. The metering concentration must be adapted individually depending on the local conditions.
The pre-set metering quantities can be used for various combinations of process agents. Observe the
metering specifications of the process agent manufacturer. This information can be read-off from the
canister in the units "ml/l" or on separate data sheets provided by the manufacturer. The process-relevant
parameters must be adapted depending on the nature of the soiling, the quality of the tap water and other
framework conditions.

4 Description of the device
11
4 Description of the device
Scope of delivery
Please check the scope of delivery before setting up and connecting the device.
Standard scope of delivery
▪ MELAtherm 10 Evolution Washer-Disinfector
▪ User manual
▪ Technical manual
▪ Record of installation and setting up
▪ Manufacturer's inspection report and declaration of conformity
▪ Warranty certificate
▪ Instructions for the use and care of the accessories
▪ MELAflash CF card for documentation purposes
▪ 1 litre storage container for rinse aid
▪ Filling funnel for the regeneration salt
▪ Starter package of regeneration salt
▪ Open-end wrench for the injector rail
▪ Container tap for 5 litre and 10 litre container
▪ Wastewater hose with hose clamp Ø 16-25/9
Optionally
▪ Accessories in accordance with the delivery slip

4 Description of the device
12
Views of the device
10
12
3
4
5
6
7
8
9
Fig.1: View from front
1 Operating and display panel
2 Cover plate (optional)
3 Power switch
4 Cover cap for CF card slot and
Ethernet data connection (for
service technician)
5 Door handle
6 Hinged door, opens forwards
7 Ventilation slots for air egress
8 Grip for the drawer
9 Drawer for process agents
10 Device foot
11
12
13
14
Fig.2: Cover cap slot open
11 Slot
12 LED
13 Ejection button
14 Ethernet data connection

4 Description of the device
13
20
19
18
17
16
15
Fig.3: View from rear
15 Demineralized water (DI water)
connection
16 Cold water connection
17 Wastewater connection
18 Transport rollers
19 Ethernet data connection for
permanent network connection
20 Mains cable
25 24
23
22
21
Fig.4: View inside
21 Injector rail connection fitting
22 Cold water (CW) inflow and
demineralized (DI) water
23 Salt container
24 Lower rinse arm
25 Coarse and fine sieve
31 30 29 28 27 26
Fig.5: Process agent drawer open
26 Drying fan pre-filter
27 Assignment of the process agents
28 Container for rinse aid with
suction lance
29 Suction lance bracket
30 Container for neutralizer with
suction lance
31 Container for cleaning agent with
suction lance

4 Description of the device
14
Symbols on the device
Manufacturer of the medical device
Date of manufacture of the medical device
Medical device serial number from the manufacturer
Article number of the medical device
Indicates the permitted temperature range (min./max.) of the water supply.
Flow pressure on the water inflow connected from min. to max.
Internal device fuse, rated in amperes [A]
The user manual includes important safety information. Failure to comply with these
instructions can result in injury and material damage.
Please read this user manual carefully before commissioning the device.
In affixing this CE mark, the manufacturer declares that this medical product fulfils the
basic requirements of the Medical products directive. The four-digit number confirms that
this is monitored by an approved certification agency.
The WaterMark certificate is a seal of quality for plumbing and drainage products in
Australia and New Zealand.
It confirms that a product meets the requirements of the ABCB (Australian Building
Codes Board) and is approved for application.
With the adjacent label, the device manufacturer declares that the medical product
corresponds to the basic requirements of the European standard EN1717 - Protecting
Drinking Water from Contamination.
The device may not be disposed as domestic waste. The vendor is responsible for
appropriate disposal of the device - it must be delivered to the vendor to be disposed of.
MELAG devices are synonymous for long-term quality. When you eventually need to
decommission your MELAG device, we offer a special disposal service. Simply contact
your stockist.

4 Description of the device
15
Operating panel and acoustic signal
Colour touch-display
The operating panel consists of a 7.8 inch touch display.
Context menu
Main area
Action bar
LED display
Status bar
Status bar
The status bar is located on the upper edge of the display.
The date and time are displayed permanently.
The navigation path is displayed on the right-hand side of the time. If the menu has more than one page,
the page numbers (e.g. 1/13 = page 1 of 13) will also be displayed here.
The serial number of the device and the number (ID) of the event will be displayed following warning and
malfunction messages. This is the information that can be transferred to MELAconnect via QR code or
which can be transferred manually in the troubleshooting area of the MELAG website, in order to access
context-dependent troubleshooting assistance.
Context menu
The context menu displays the submenus, modes and function keys temporarily and in a context-
dependent fashion.
Key Designation Meaning
VALIDATION MODE This key is displayed if the respective program can be run in
validation mode.
Press this key to change into validation mode. Validation mode can
only be run by a service technician with a corresponding PIN.
MAINTENANCE
MODE
This key is displayed if the respective program can be run in
maintenance mode.
Press this key to navigate to maintenance mode. Maintenance mode
can only be run by a service technician with a corresponding PIN.
SETTINGS Press this key to navigate to the Settings menu.
STATUS Press this key to navigate to the Status menu. Device information
and device status information is displayed pertaining to the switching
and sensor states.
LICENCE This key is displayed in the Status 1 / 14 menu screen.
Press this key to access the device licence information.
DELETE The key is displayed in the Log output > All logs menu.
Press this key to delete all logs in the internal log memory.
QR CODE This key is displayed following a malfunction.
Press this key to open the auxiliary menu pertaining to the warning
and malfunction messages.

4 Description of the device
16
LED display and acoustic signals
The LED display to the left and right of the the main area issues a colour to indicate the operating state.
An acoustic signal is associated with the colour of the LED display and indicates an expected event.
Colour of the LED Meaning
Blue ▪ Standby
▪ Readiness after device activation
▪ User action
▪ Program active / video tutorial is running
Green ▪ Program completed successfully
▪ Active drying can be ended early
▪ Measurement successful
Yellow ▪ Instruction (e.g. fill salt or start regeneration)
▪ Warning
▪ Software update active
Red ▪ Malfunction
▪ Program / measurement not successful upon abnormal end
▪ Program / measurement not successful upon user abort
Main area
The left-hand side of the main area displays a symbol with designations for programs, additional programs,
logs, program results, messages, menus or PIN-protected areas.
A caption on the right-hand side displays the menu items, values, states of settings or headings of
dialogues. The text field is below the caption.
Text field
Title
Symbol
Symbol Designation Meaning
Busy indicator Independent activities such as a program run, log output or software
updates are visualized via animated busy indicator in a clockwise
fashion.
Successful Symbols designating the program result currently displayed.
Unsuccessful
Notice Symbols designating the messages currently displayed pertaining to
an event or the device status.
Warning
Malfunction

4 Description of the device
17
Symbol Designation Meaning
Documentation Additional markings that indicate the availability of assistance (e.g. in
the user manual, in MELAconnect or on the troubleshooting area in
the MELAG website) regarding the issue with which the current
message is concerned.
QR code
Action bar
Key Designation Meaning
BACK Press this key to display the previous window or to select a lower
parameter.
FORWARD Press this key to display the next window or to select a higher
parameter.
LEAVE Press this key to navigate to the higher-order menu.
CONFIRM Press the key to confirm the selection or entry.
EDIT Press this key to change the displayed parameter.
RELEASE Press this key to unlock the door.
DETAILS Press this key to obtain further information.
SKIP Press this key to skip steps.
CANCEL
CANCEL Press this key to abort a running program or process.
OUTPUT
OUTPUT Press this key to output one or more logs to a selected output
medium.
YES
YES Press this key to accept a query.
NO
NO Press this key to reject a query.
OK
OK Press this key to accept information.
START
START Press this key to start a program, program step, process or a video
tutorial.
CONTINUE
CONTINUE Press this key to start the next process step.

4 Description of the device
18
Menu structure
Universal-Program
Quick-Program
Intensive-Program
Ophthalmo-Program
Rinsing
Emptying
Conductivity measurement DI
Air removal
Regeneration
Time metering 60 s
Log output
Main menu
All logs
Last log
All malfunction logs
Last malfunction log
Log selection
Legend log
Status log
System log
CF card formatting
Output internal log memory
Select output medium: automatic / CF card / MELAprint /Computer
Settings
Log settings
Date
Time
Display brightness
Idle mode in min
Signal tone volume
Key tone volume
Language
DI water
Water hardness in °dH
Diagnosis and service
CF card
Network
Graphic logs
Computer
MELAprint
Immediate output
Log format
Connectivity
Multimedia
Administration
Log-in Admin PIN
User
Authentification
Batch approval
Video tutorials
>
Admin PIN

4 Description of the device
19
Water softening unit
The tap water is processed in the internal water softening unit to produce an optimal cleaning outcome.
}Use coarse-grain regeneration salt (NaCl) to regenerate the water softening unit.
Water hardness conversion table
°dH mmol/l °f °e °dH mmol/l °f °e °dH mmol/l °f °e
1 0.2 2 2 15 2.7 27 19 28 5.0 50 36
2 0.4 4 3 16 2.9 29 20 29 5.2 52 37
3 0.5 5 4 17 3.1 31 22 30 5.4 54 38
4 0.7 7 5 18 3.2 32 23 31 5.6 56 39
5 0.9 9 7 19 3.4 34 24 32 5.8 58 41
6 1.1 11 8 20 3.6 36 25 33 5.9 59 42
7 1.3 13 9 21 3.8 38 27 34 6.1 61 43
8 1.4 14 10 22 4.0 40 28 35 6.3 63 44
9 1.6 16 12 23 4.1 41 29 36 6.5 65 46
10 1.8 18 13 24 4.3 43 31 37 6.7 67 47
11 2.0 20 14 25 4.5 45 32 38 6.8 68 48
12 2.2 22 15 26 4.7 47 33 39 7.0 70 49
13 2.3 23 17 27 4.9 49 34 40 7.2 72 51
14 2.5 25 18

5 First steps
20
5 First steps
Setup and installation
PLEASE NOTE
Comply with the specifications of the technical manual during set-up and installation.
This contains all building-side requirements.
Record of installation and setting up
The record of installation and setting up is to be completed by the responsible stockist and a copy sent to
MELAG as proof of the correct set-up, installation and initial commissioning. This is a constituent part of
any guarantee claim.
Supply with cold water
The reprocessing of medical devices requires the use of drinking water in accordance with the Drinking
Water Ordinance or demineralized water (DI water).
The cold water supply is effected either via the in-house connection of the practice or a water treatment
unit (e.g. MELAdem 53/53 C).
Increased requirements can be placed on the quality of the DI water (e.g. a low endotoxin content) for the
reprocessing of certain medical devices such as ophthalmic instruments. Comply with the following:
uIn such cases, an additional filter system is required for the reprocessing of DI water. Comply with the
specifications of the user documentation of your water treatment unit.
uIt is possible that the drinking water has been contaminated by the water installation (domestic
installation and pre-device periphery).
uArrange for a check of the drinking water quality at the removal point or request a report (e.g. from the
building management) before setting up and installing the device.
uFurther information is available from the corresponding trade associations and their publications. In
case of uncertainty, contact your stockist or the pertinent professional association.
Switching the device on and off
}Switch the device on or off at the power switch.
