Assembly Instructions & User’s Manual
for
Livingston Console
Model Number: SM70TVC-WH / SM70TVC-WH-E / SM70TVC-BL-E
Customer Assistance
(spare/replacement parts)
: 1-866-942-5362
or Email: [e-mail]
THIS ASSEMBLY MANUAL CONTAINS INPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
O
R

Need Assistance? Visit us at: samsclub.com/membersmarkhelp 2 | P a g e
Table of Contents
Quality Statement ..................................................................................................................................... 3
Important Safety Information ................................................................................................................ 3
Before Assembly ...................................................................................................................................... 3
Care & Use ................................................................................................................................................. 3
Package Contents .................................................................................................................................... 4
Product Information ................................................................................................................................ 4
Components .............................................................................................................................................. 5
Hardware .................................................................................................................................................... 5
Tools (Not Included) ................................................................................................................................ 5
Step 1 .......................................................................................................................................................... 6
Step 2 .......................................................................................................................................................... 7
Step 3 .......................................................................................................................................................... 8
Step 4 .......................................................................................................................................................... 9
Step 5-hinge adjustment ...................................................................................................................... 10
Step 6 ........................................................................................................................................................ 11
Step 7 ........................................................................................................................................................ 12
Warning ....................................................................................................................................... 13
Troubleshooting ..................................................................................................................................... 14
Care & Use Instructions ....................................................................................................................... 14
Warranty Information ............................................................................................................................ 14

Need Assistance? Visit us at: samsclub.com/membersmarkhelp 3 | P a g e
Quality Statement
Important Safety Information
 Please read all instructions carefully before assembling this product.
 Where applicable, and for your safety, assembly by an adult is strongly recommended.
 Use only vendor-supplied hardware to assemble this item. Using unauthorized
hardware could jeopardize the structural integrity of the item.
 Hardware may loosen overtime. Periodically check that all connections are tight.
 NOTICE: To prevent injury and property damage from unexpected tipping of
furniture, we highly recommend installation of the anti-tip kit included with this
product.
Before Assembly
 Remove all parts and hardware from the box. Place all items on a carpeted or
scratch-free work surface, as this will avoid damaging parts during assembly.
 The shipping box can provide an ideal work surface if none is available.
 Use the components and hardware lists below to identify, inventory and separate
each of the hardware and components included.
 To avoid accidentally discarding small components or hardware, do not dispose of
any packaging or contents of the shipping carton until assembly is complete.
 DO NOT USE power tools unless it is explicitly identified in this manual as required
for use during assembly. Power tools can damage the fasteners, hardware and/or
components.
 Do not fully tighten all fasteners / screws until all parts are in place. Failure to follow
these instructions may cause the fasteners / screws to misalign during assembly.
Care & Use
 Use a soft, clean cloth that will not scratch the surface when dusting.
 Use of furniture polish is not necessary. Should you choose to use polish, test first in
an inconspicuous area.
 Using solvents of any kind on your furniture may damage the finish.
 Never use water to clean your furniture as it may cause damage to the finish.
 Liquid spills should be removed immediately. Using a soft clean cloth, blot the spill
gently. Avoid rubbing.
 Do not place furniture in direct sunlight.

Need Assistance? Visit us at: samsclub.com/membersmarkhelp 4 | P a g e

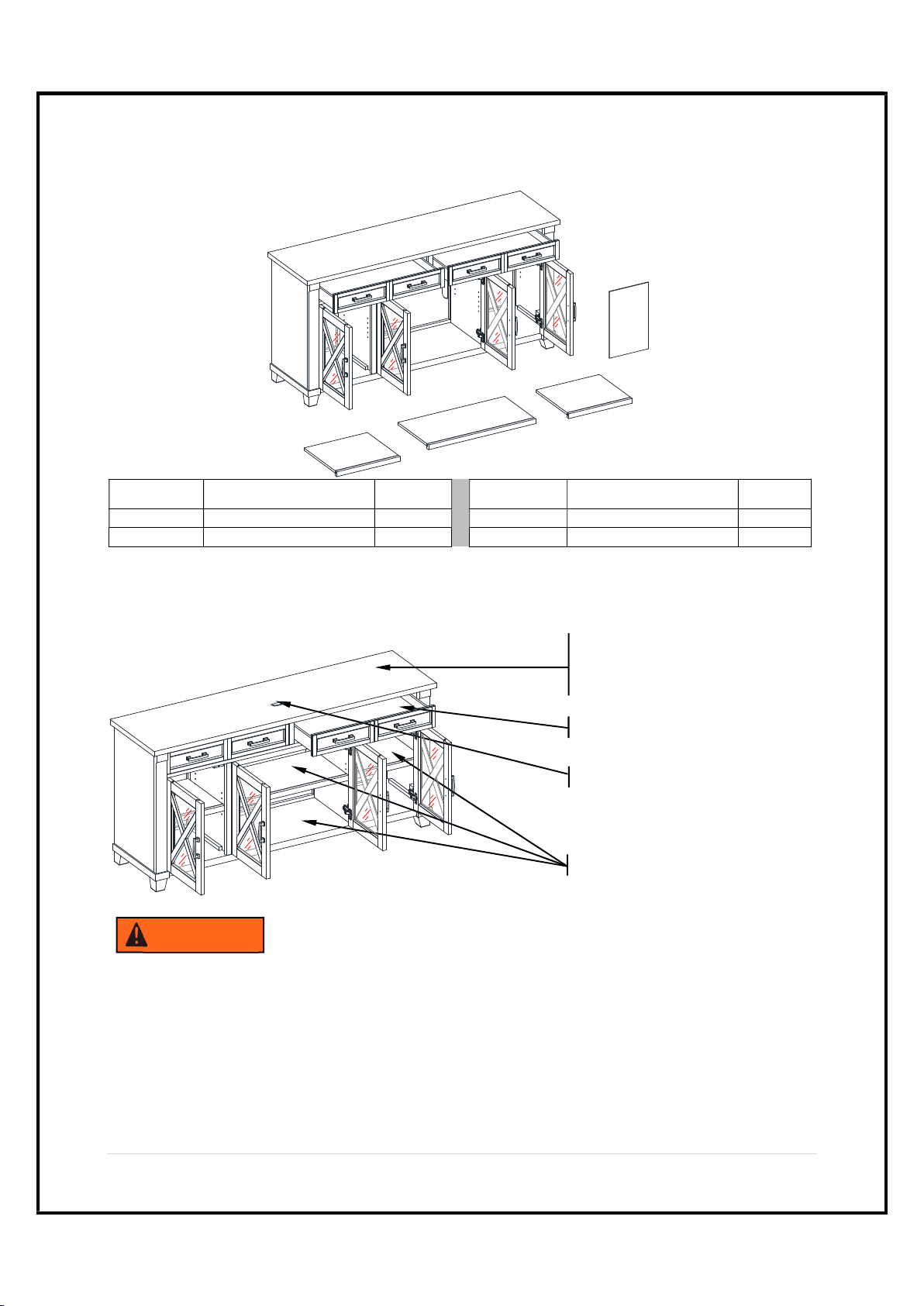

Package Contents
Component Description Quantity Component Description Quantity
A TV Console 1 C Large Adjustable Shelf 1
B Small Adjustable shelf 2 D Wood Door Insert 4
Product Information
Dimensions – 70” x 19” x 34” (177.8cm x 48.3cm x 86.4cm)
Weight Capacity
A
B
B
C
FITS UP TO MOST 208.3 cm / 82”
DIAGONAL FLAT PANEL TVs
MAXIMUM LOAD 61.2 kg / 135 lb
MAXIMUM LOAD 9.1 kg / 20 lb
MAXIMUM LOAD 22.7 kg / 50 lb
Place TV behind the stopper
D
THIS UNIT IS NOT INTENDED FOR USE WITH CRT TVS. USE ONLY WITH FLAT PANEL
TVS AND AUDIO/VIDEO EQUIPMENT MEETING RECOMMENDED SIZE AND WEIGHT LIMITS. NEVER USE
WITH LARGER/HEAVIER THAN RECOMMENDED FLAT PANEL TVS OR EQUIPMENT. TO AVOID INSTABILITY,
PLACE FLAT PANEL TV IN THE CENTER OF THE UNIT; THE BASE OF THE TELEVISION MUST BE ABLE TO REST
ON THE SUPPORTING SURFACE OF THE UNIT WITHOUT OVER-HANGING THE EDGES. IMPROPERLY
POSITIONED FLAT PANEL TVS, OR FLAT PANEL TVS INCLUDING OTHER EQUIPMENT THAT EXCEED
RECOMMENDED SIZE AND WEIGHT LIMITS COULD FALL OFF OR BREAK THE UNIT, CAUSING POSSIBLE
SERIOUS INJURY. FOR USE WITH TELEVISIONS WEIGHING 135 LBS (61.2 KG) OR LESS. USE WITH HEAVIER
TELEVISIONS MAY RESULT IN INSTABILITY CAUSING TIP OVER RESULTING IN DEATH OR SERIOUS INJURY.
WARNING

Need Assistance? Visit us at: samsclub.com/membersmarkhelp 5 | P a g e

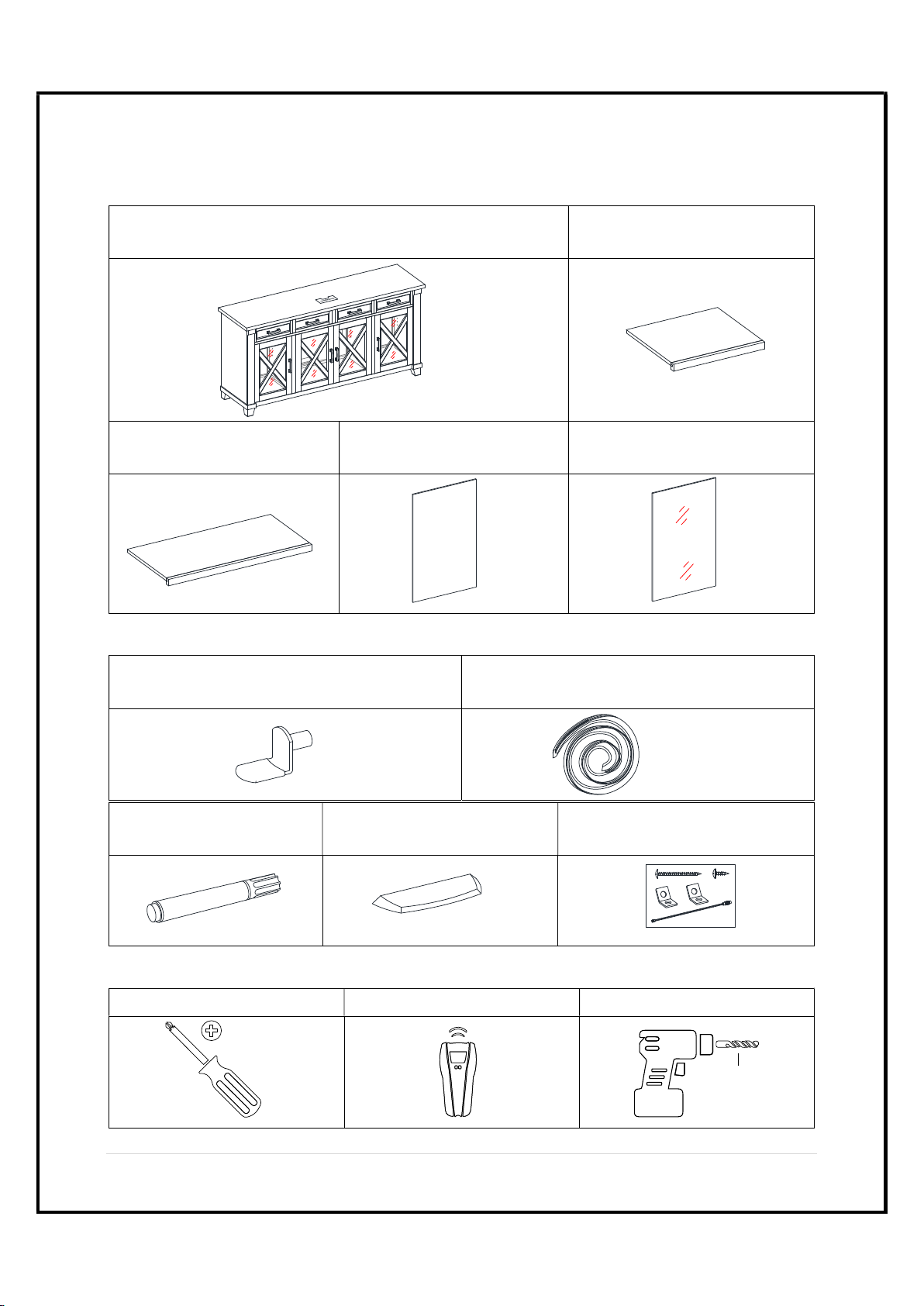

Components
Component A
Part No. not available
Qty 1
Component B
Part No. 00SM70TVC-WH/BL-E-B
Qty 2
Component C
Part No. 00SM70TVC-WH/BL-E-C
Qty 1
Component D
Part No. 00SM70TVC-WH/BL-E-D
Qty 4
Component E (Pre-attached)
Part No. 00SM70TVC-E
Qty 4
Hardware
Shelf Support (H1)
Part No. 00SM70TVC-WH/BL-E-O
Qty: 12+1 extra
Rubber Liner (H2)
Part No. 00SM70TVC-WH/BL-E-P
Qty: 1.5m
Touch-up Pen (H3)
Part No. 00SM70TVC-BL-E-Q
Qty:
1
Acrylic Stopper (H4)
Part No. 00SM70TVC-WH/BL-E-R
Qty: 1
Tipping Restraint Hardware Kit (H5)
Part No. 00SM70TVC-WH/BL-E-S
Qty:
2
Tools (Not Included)
Phillips Screwdriver Stud Finder Power Drill
3 mm

(0.1 in)

Need Assistance? Visit us at: samsclub.com/membersmarkhelp 6 | P a g e

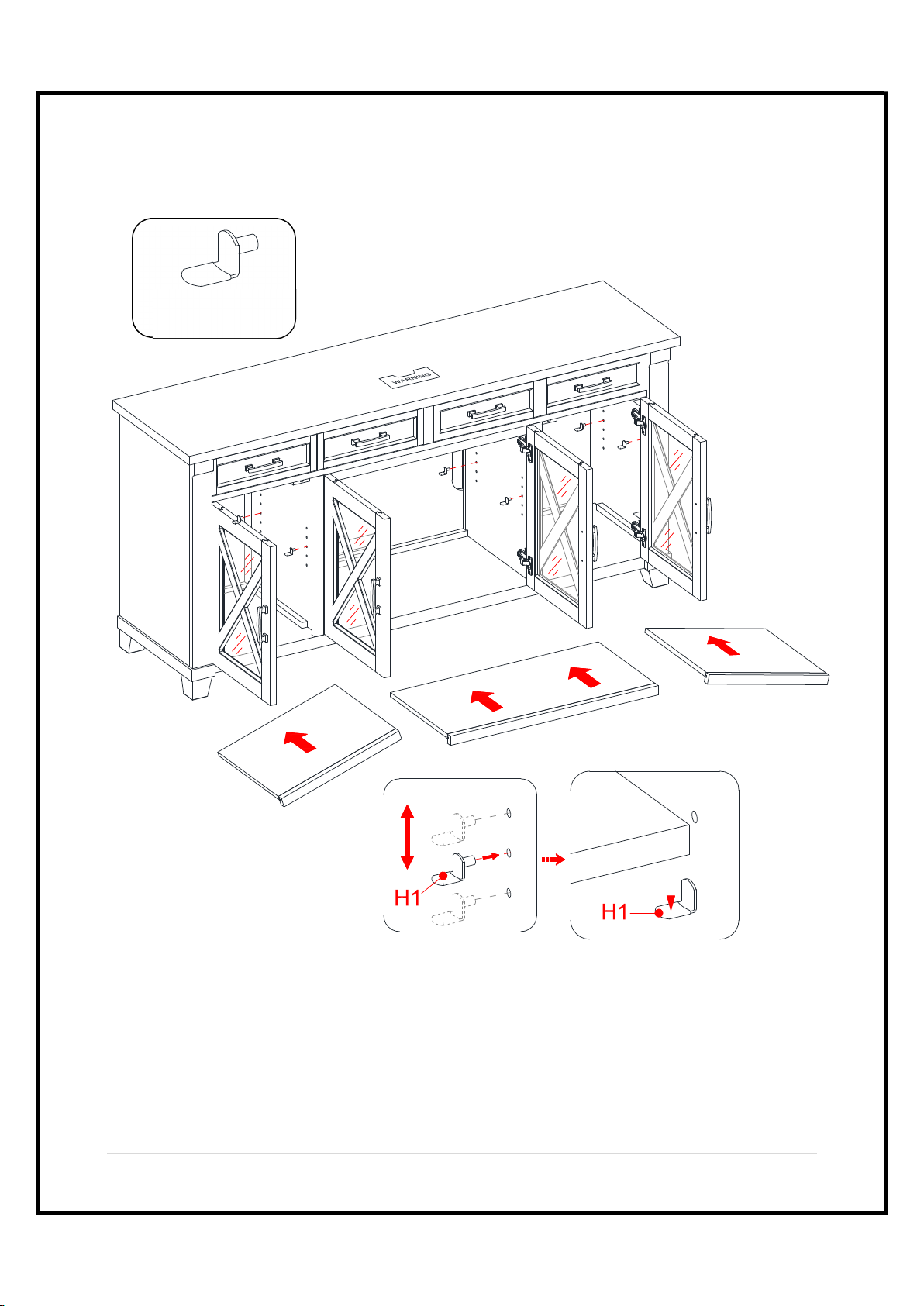

Step 1
a) Unpack the units and confirm that you have all hardware and required parts.
b) Open the doors and insert four Shelf Supports (H1) in the holes at the desired height inside
each compartment. Make sure you place the four Shelf Supports in the same level so the shelf
is not tilted.
c) Tilt and rest the Adjustable Shelves (B and C) onto the Shelf Supports (H1).
H1
x
12
A
B
B
C
B/C

Need Assistance? Visit us at: samsclub.com/membersmarkhelp 7 | P a g e

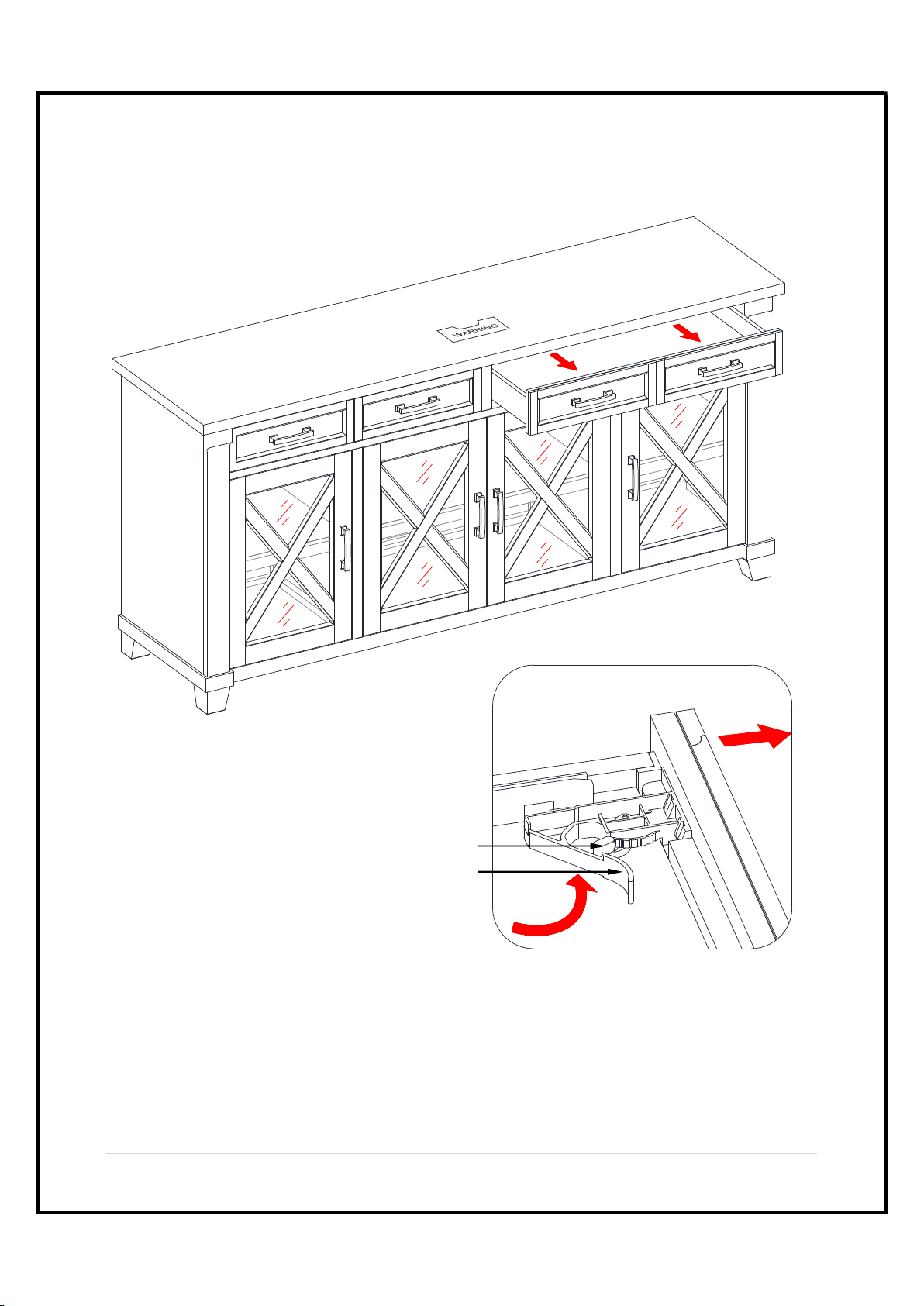

Step 2
a) If you need to remove the drawer, please press the Release Levers on the mechanisms pre-
attached underneath the drawer kit at both ends.
b) If necessary, you can push the Adjustment Clips on the bottom mechanisms to adjust the top
and bottom gaps of the drawer.
A
Adjustment Clip
Release Lever

Need Assistance? Visit us at: samsclub.com/membersmarkhelp 8 | P a g e

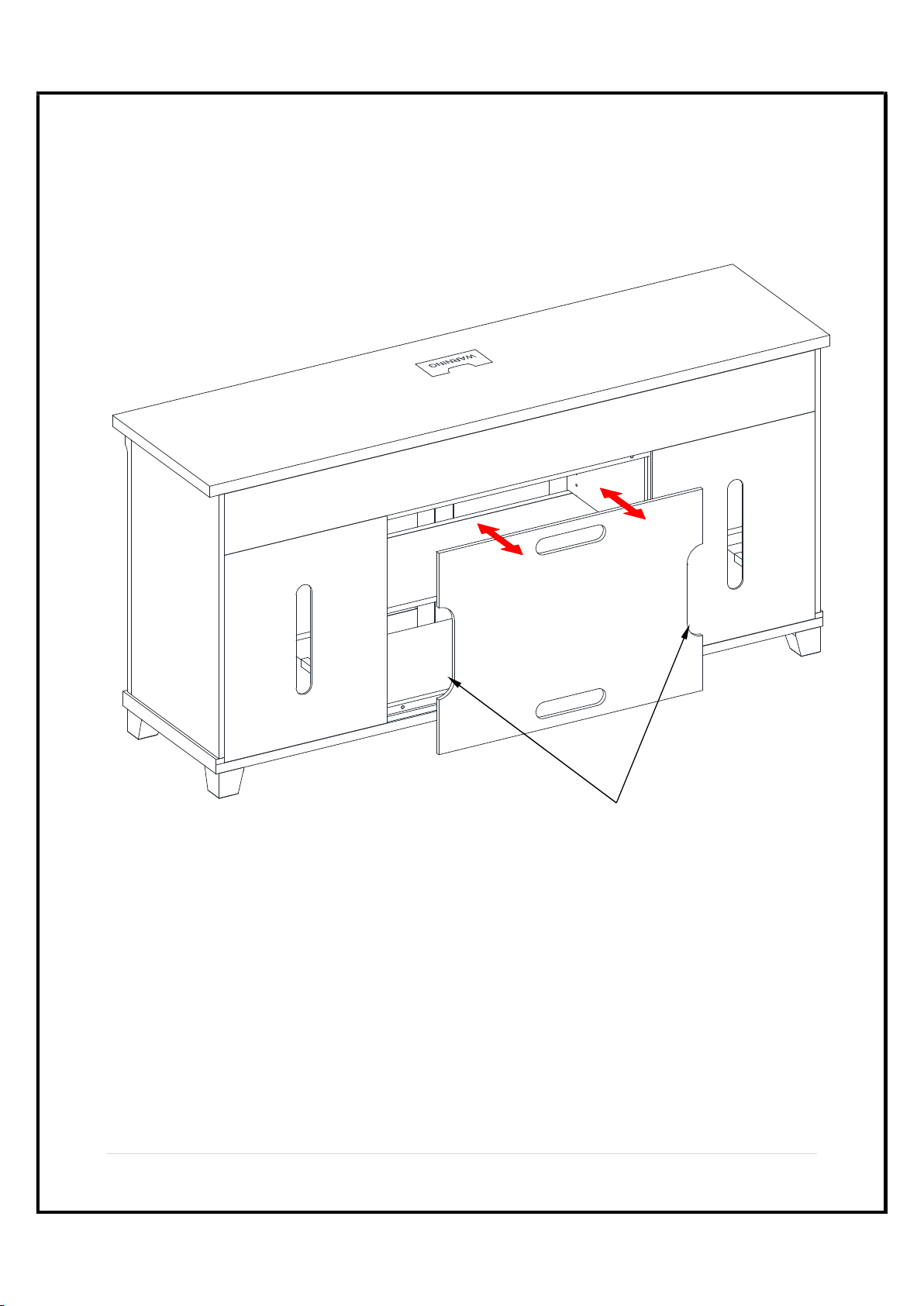

Step 3
a) The vented rear panel is removable. Be sure to route the cables through the side cutout
instead of the ventilation holes.
A
Cable channel

Need Assistance? Visit us at: samsclub.com/membersmarkhelp 9 | P a g e
Step 4
a) The Glass Door Panels (E) are pre-attached when shipping. You can keep as they are or
interchange with Wood Door Panels (D).
Rubber liner
A
A

Need Assistance? Visit us at: samsclub.com/membersmarkhelp 10 | P a g e
Step 5-hinge adjustment
a) Loosen or tighten the indicated screw to adjust the gaps forward and backward between
doors and console.
b) Rotate the screw clockwise or counterclockwise to adjust the door horizontally as shown.
c) Loosen or tighten the indicated screw to adjust the door vertically to the desired position.
2
A
2-3
2
A
1
A
2
2
3
L
at
eral
adjustment
Height
adjustment
Depth
adjustment

Need Assistance? Visit us at: samsclub.com/membersmarkhelp 11 | P a g e
Step 6
NOTE: To prevent your TV from tipping, you must follow these instructions if you place a flat
panel television on top of your console. Otherwise, remove the acrylic stopper template
directly.
a) Remove the paper backing from the Acrylic Stopper (H4) and place it in the cut-out of the
acrylic stopper template on the front of the top panel. Make sure it is properly aligned before
applying pressure.
b) Now, remove the acrylic stopper template carefully.
H4 x 1
A
A

Need Assistance? Visit us at: samsclub.com/membersmarkhelp 12 | P a g e
Step 7
a) Ask for assistance to position the assembled unit at the desired location against a wall.
b) Now, follow the instructions printed on the plastic bag containing the Tipping Restraint
Hardware (H5) to attach the tip-over restraints to the unit and the wall.
c) The console is now ready for use.
A
W
all
W
all
Wooden stud
Short Screw
Long screw
Metal bracket
Floor leveler
Steel cable
Children have died
from furniture tip
-
over.
To reduce the risk of furniture tip-over:

ALWAYS install tip-over restraint provided.

FOR use with televisions weighing 135 lbs or less. Use with heavier televisions
may result in instability causing tip-over resulting in death or serious injury.

NEVER allow children to stand, climb or hang on drawers, doors, or shelves.

NEVER open more than one drawer at a time.

Place heaviest items in the lowest drawers.
Use of tip-over restraints may only reduce, but not eliminate, the risk of
tip-over.
WARNING
Connector
H5

Need Assistance? Visit us at: samsclub.com/membersmarkhelp 13 | P a g e
Warning
Please use your furniture correctly and safely. Improper use can cause safety hazards, or
damage to your furniture or household items. Carefully read the following safety information.
This unit is not intended for use with CRT TVs. The top surface maximum weight capacity is 135 lbs.
(61.2 kg) and maximum load 82 in. (208.3 cm) diagonal flat-panel TV. The shelf maximum
recommended weight allowance is 50 lbs. (22.7 kg). Use with heavier televisions may result
in instability causing tip over resulting in death or serious injury.
Death or serious injury may occur when children climb on audio and/or video equipment
furniture. A remote control or toys placed on the furnishing may encourage a child to climb
on the furnishing and as a result may tip over onto the child.
NEVER allow children to climb or play with the TV or furnishing supporting the TV.
NEVER place toys, food, remote, etc. on top of the TV or TV furnishing.
ALWAYS use either the safety hardware as instructed or other wall anchoring device.
Relocating audio and/or video equipment to furniture not specifically designed to support
audio and/or video equipment may result in death or serious injury due to furniture collapse
or over turning onto a child.
NEVER place a TV on furniture that is not intended to support a TV.
NEVER exceed the maximum size and weight of the TV shown in the instructions.
Be sure to refer to the TV warning label as shown in the instructions.
Overloading drawers and shelves may result in furniture that can break or sag, or tip-over
which may result in injury.
NEVER exceed the weight limits shown in the instructions.
Place the heavier items on lower shelves as far back from the front as possible.
Load the bottom surfaces first to avoid top-heavy furniture.
Moving furniture that is not designed to be moved or equipped with casters may result in
injury or damage to furnishings or personal property.
ALWAYS unload shelves and drawers, starting with the top surfaces, before moving.
NEVER push or pull furniture on carpet. Have a friend help lift properly to move and/or
reposition it.
The console is not meant as a seat and no one should be sitting or standing on the console.

Need Assistance? Visit us at: samsclub.com/membersmarkhelp 14 | P a g e
Troubleshooting
Problem
Possible Cause Prevention / Solution
Tilting / wobbling
Surface not level Adjust the floor levelers
Scratches / Nicks
Assembly or shipping damage
Use touch-up pen to cover
Doors are not level Hinges are not engaged properly
Refer to the hinge sticker for
adjustment
Care & Use Instructions
Care
Use a soft, clean cloth that will not scratch the surface when cleaning.
Use of furniture polish is not necessary. Should you choose to use polish, test first in
an inconspicuous area.
Use
Using solvents of any kind on your furniture may damage the finish.
Never use water to clean your furniture as it may cause damage to the finish.
Liquid spills should be removed immediately. Using a soft clean cloth, blot the spill
gently. Avoid rubbing.
Do not place furniture in direct sunlight.
Warranty Information
This product component has a (1) year guarantee against defects in material and/or workmanship. If you
have any questions regarding the warranty or spare / replacement parts, please call our toll-free number
1-866-942-5362 or email us at [e-mail]
NOTE: Please consider recycling all applicable packaging material.
Distributed by Sam’s West Inc.
2101 SE Simple Savings Dr.
Bentonville, Arkansas 72716-0745
Made in Vietnam

Need Assistance? Visit us at: samsclub.com/membersmarkhelp 15 | P a g e

¿ Necesita asistencia? Visítenos en: samsclub.com/membersmarkhelp 1 | P a g e
Instrucciones de ensamble & manual del usuario
para
Consola Livingston
Número del modelo: SM70TVC-WH / SM70TVC-WH-E / SM70TVC-BL-E
Asistencia al cliente
(partes extras/de repuesto)
: 1-866-942-5362
o Email: [e-mail]
ESTÉ INSTRUCTIVO CONTIENE INFORMACIÓN DE SEGURIDAD IMPORTANTE.
POR FAVOR LEA Y MANTENGA PARA USO FUTURO.
O

¿ Necesita asistencia? Visítenos en: samsclub.com/membersmarkhelp 2 | P a g e
Tabla de contenido
Declaración de calidad ........................................................................................................................... 3
Información de seguridad importante ................................................................................................ 3
Antes del ensamble ................................................................................................................................. 3
Cuidado & uso .......................................................................................................................................... 3
Contenidos del paquete ......................................................................................................................... 4
Componentes ............................................................................................................................................ 5
Material de ferretería ............................................................................................................................... 5
Herramientas (no incluidas) .................................................................................................................. 5
Paso 1 .......................................................................................................................................................... 6
Paso 2 .......................................................................................................................................................... 7
Paso 3 .......................................................................................................................................................... 8
Paso 4 .......................................................................................................................................................... 9
Paso 5-ajuste de bisagras ................................................................................................................... 10
Paso 6 ........................................................................................................................................................ 11
Paso 7 ........................................................................................................................................................ 12
ADVERTENCIA .......................................................................................................................... 13
Solución de problemas ......................................................................................................................... 14
Instrucciones de cuidado y uso ......................................................................................................... 14
Información de garantía ....................................................................................................................... 14

¿ Necesita asistencia? Visítenos en: samsclub.com/membersmarkhelp 3 | P a g e
Declaración de calidad
Información de seguridad importante
 Por favor lea todas las instrucciones antes de ensamblar el mueble.
 Donde se pueda, y por su seguridad, se recomienda el ensamble por un adulto.
 Use solo ferretería suplida por el vendedor para ensamblar la unidad. El uso de
ferretería no autorizada podría poner en riesgo la integridad estructural de la unidad.
 La ferretería se podría aflojar con el tiempo. Revisar periódicamente que las
conexiones estén apretadas
 NOTA: Para prevenir lesiones o daños de inclinación inesperada del mueble,
nosotros recomendamos instalar el juego contra inclinación incluido en este
producto.
Antes del ensamble
 Retirar todas las partes y ferretería de la caja. Poner todo sobre una alfombra o en
un are libre de rasguños, para evitar danos a las partes durante el ensamble.
 La caja de envió provee una superficie ideal de trabajo.
 Para evitar el desecho accidental de partes o ferretería pequeñas, no tire ningún
paquete o contenidos del paquete hasta terminar el ensamble.
 Usar las listas de partes y ferretería para identificar y separar cada una de las
piezas incluidas.
 El uso de herramientas eléctricas no está recomendad, a menos que se especifique.
Estas herramientas pueden dañar la ferretería o la madera.
 No apretar completamente los pernos/sujetadores hasta que las partes estén en su
lugar. La falla de seguir estas instrucciones puede causar que los
pernos/sujetadores se desalineen durante el ensamble.
Cuidado & uso
 Use una toalla suave y limpia para evitar daños y rayaduras.
 Uso de cera para pulir muebles no es necesario. Si desea usar cera cheque en un
área que no sea visible para verificar su funcionamiento.
 Usar solventes de cualquier tipo puede dañar el terminado del mueble.
 Nunca use agua para limpiar la unidad, ya que le puede dañar el acabado.
 Líquidos derramados deben limpiarse inmediatamente, con una toalla suave
evitando tallar.
 No poner el mueble en luz solar directa.

¿ Necesita asistencia? Visítenos en: samsclub.com/membersmarkhelp 4 | P a g e
Contenidos del paquete
Componente Descripción Cantidad Componente Descripción Cantidad
A
Consola de TV 1
C Repisa ajustable
grande 1
B Repisa ajustable
pequeña 2
D Inserto para puerta
de madera 4
Información del producto
Dimensiones – 70” x 19” x 34” (177.8cm x 48.3cm x 86.4cm)
Capacidad de peso
A
B
B
C
ESTA UNIDAD NO DEBE UTILIZARSE CON TELEVISIONES CRT O DE TUBO. UTILIZARSE
ÚNICAMENTE CON TELEVISIONES DE PANTALLA PLANA Y EQUIPO DE AUDIO/VIDEO QUE TENGA LA
MEDIDA/PESO RECOMENDADO. NUNCA UTILIZAR CON TELEVISIONES MÁS GRANDES/PESADAS DE LAS
RECOMENDADAS. PARA EVITAR INESTABILIDAD COLÓQUELA EN EL CENTRO DE LA UNIDAD; LA BASE DE LA
TELEVISIÓN DEBE DE REPOSAR SOBRE LA SUPERFICIE DE SOPORTE DE LA UNIDAD SIN REBASAR LAS ORILLAS.
LAS TELEVISIONES DE PANTALLA PLANA COLOCADAS INAPROPIADAMENTE, O LAS TELEVISIONES DE
PANTALLA PLANA INCLUYENDO EQUIPO QUE SOBREPASA LAS MEDIDAS Y PESOS RECOMENDADOS PUEDEN
CAERSE Y/O ROMPER LA UNIDAD, CAUSANDO POSIBLES DAÑOS O LESIONES. PARA USO DE TELEVISIONES
DE HASTA 135LBS (61.2 KG) O MENOS. USO CON TELEVISIONES DE MAYOR PESO PUEDE RESULTAR EN
INESTABILIDAD CAUSANDO QUE LA UNIDAD CAIGA, PROVOCANDO EN ALGUNOS CASOS DAÑOS O MUERTE.
ADVERTENCIA
PARA LA MAYORÍA DE LAS TVs de
PANTALLA PLANA DE 208.3 cm / 82”
CARGA MÁXIMA 61.2 kg / 135 lbs
CARGA MÁXIMA
9
.
1
kg /
20
lb
s
CARGA MÁXIMA
22
.
7
kg /
50
lb
s
PONER LA TV DETRÁS DEL TOPE
D
