MEN PX5 User manual

User Manual

PX5
USB HID to Stereo Audio Interface
PCI Express Mini Card
2018-02-1320PX05-00 E2

20PX05-00 E2 2018-02-13 Page 2
Contents
Contents
Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
About this Document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Product Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Legal Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1 Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
1.1 Product Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
1.2 Product Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
1.2.1 Interfaces. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
1.2.2 Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
1.3 Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
1.4 Product Identification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
2 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2.1 Connecting and Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
2.2 Installing Driver Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3 Functional Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.1 Power Supply. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
3.2 USB Audio Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
3.2.1 Adapter Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
3.3 PCI Express Mini Card Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Figures
Figure 1. Board layout – top view. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Figure 2. Functional diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Figure 3. Product labels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Figure 4. Installing the PCI Express Mini Card (example only). . . . . . . . . . . . . . . . . . . . . 12
Tables
Table 1. Connector types – USB audio. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Table 2. Pin assignment – USB audio. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Table 3. Signal mnemonics – USB audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Table 4. Connector types – MicroMatch cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Table 5. Pin assignment – MicroMatch connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Table 6. Connector types – D-Sub cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Table 7. Pin assignment – D-Sub connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Table 8. Pin assignment – PCI Express Mini Card connector (USB 2.0). . . . . . . . . . . . .16
Table 9. Signal mnemonics – PCI Express Mini Card . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

20PX05-00 E2 2018-02-13 Page 3
About this Document
About this Document
This user manual is intended only for system developers and integrators, it is not
intended for end users.
It describes the design, functions and connection of the product. The manual does not
include detailed information on individual components (data sheets etc.).
History
PX5 product page with up-to-date information and downloads:
www.men.de/products/px5/
Issue Comments Date
E1 First issue 2016-06-27
E2 General update 2018-02-13

20PX05-00 E2 2018-02-13 Page 4
About this Document
Conventions
Indicates important information or warnings concerning situations which
could result in personal injury, or damage or destruction of the
component.
Indicates important information concerning electrostatic discharge which
could result in damage or destruction of the component.
Indicates important information or warnings concerning proper
functionality of the product described in this document.
The globe icon indicates a hyperlink that links directly to the Internet.
When no globe icon is present, the hyperlink links to specific information
within this document.
Italics Folder, file and function names are printed in italics.
Comment Comments embedded into coding examples are shown in green text.
IRQ#
/IRQ
Signal names followed by a hashtag "#" or preceded by a forward slash "/"
indicate that this signal is either active low or that it becomes active at a
falling edge.
In/Out Signal directions in signal mnemonics tables generally refer to the
corresponding board or component, "in" meaning "to the board or
component", "out" meaning "from the board or component".
0xFF Hexadecimal numbers are preceded by "0x".
0b1111 Binary numbers are preceded by "0b".

20PX05-00 E2 2018-02-13 Page 5
Product Safety
Product Safety
Electrostatic Discharge (ESD)
Computer boards and components contain electrostatic sensitive devices.
Electrostatic discharge (ESD) can damage components. To protect the PCB
and other components against damage from static electricity, you should
follow some precautions whenever you work on your computer.
Power down and unplug your computer system when working on the
inside.
Hold components by the edges and try not to touch the IC chips, leads,
or circuitry.
Use a grounded wrist strap before handling computer components.
Place components on a grounded antistatic pad or on the bag that came
with the component whenever the components are separated from the
system.
Only store the product in its original ESD-protected packaging. Retain
the original packaging in case you need to return the product to MEN for
repair.

20PX05-00 E2 2018-02-13 Page 6
Legal Information
Legal Information
Changes
MEN Mikro Elektronik GmbH ("MEN") reserves the right to make changes without further
notice to any products herein.
Warranty, Guarantee, Liability
MEN makes no warranty, representation or guarantee of any kind regarding the
suitability of its products for any particular purpose, nor does MEN assume any liability
arising out of the application or use of any product or circuit, and specifically disclaims
any and all liability, including, without limitation, consequential or incidental damages.
TO THE EXTENT APPLICABLE, SPECIFICALLY EXCLUDED ARE ANY IMPLIED WARRANTIES
ARISING BY OPERATION OF LAW, CUSTOM OR USAGE, INCLUDING WITHOUT LIMITATION,
THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE OR USE. In no event shall MEN be liable for more than the contract price for
the products in question. If buyer does not notify MEN in writing within the foregoing
warranty period, MEN shall have no liability or obligation to buyer hereunder.
The publication is provided on the terms and understanding that:
1. MEN is not responsible for the results of any actions taken on the basis of
information in the publication, nor for any error in or omission from the publication; and
2. MEN is not engaged in rendering technical or other advice or services.
MEN expressly disclaims all and any liability and responsibility to any person, whether a
reader of the publication or not, in respect of anything, and of the consequences of
anything, done or omitted to be done by any such person in reliance, whether wholly or
partially, on the whole or any part of the contents of the publication.
Conditions for Use, Field of Application
The correct function of MEN products in mission-critical and life-critical applications is
limited to the environmental specification given for each product in the technical user
manual. The correct function of MEN products under extended environmental
conditions is limited to the individual requirement specification and subsequent
validation documents for each product for the applicable use case and has to be agreed
upon in writing by MEN and the customer. Should the customer purchase or use MEN
products for any unintended or unauthorized application, the customer shall indemnify
and hold MEN and its officers, employees, subsidiaries, affiliates, and distributors
harmless against all claims, costs, damages, and expenses, and reasonable attorney fees
arising out of, directly or indirectly, any claim or personal injury or death associated with
such unintended or unauthorized use, even if such claim alleges that MEN was negligent
regarding the design or manufacture of the part. In no case is MEN liable for the correct
function of the technical installation where MEN products are a part of.
Qualified Personnel
The product/system described in this documentation may be operated only by
personnel qualified for the specific task in accordance with the relevant documentation,
in particular its warning notices and safety instructions. Qualified personnel are those
who, based on their training and experience, are capable of identifying risks and
avoiding potential hazards when working with these products/systems.

20PX05-00 E2 2018-02-13 Page 7
Legal Information
Conformity
MEN products are no ready-made products for end users. They are tested according to
the standards given in the Technical Data and thus enable you to achieve certification of
the product according to the standards applicable in your field of application.
RoHS
Since July 1, 2006 all MEN standard products comply with RoHS legislation.
Since January 2005 the SMD and manual soldering processes at MEN have already been
completely lead-free. Between June 2004 and June 30, 2006 MEN’s selected component
suppliers have changed delivery to RoHS-compliant parts. During this period any change
and status was traceable through the MEN ERP system and the boards gradually became
RoHS-compliant.
WEEE Application
Nevertheless, MEN is registered as a manufacturer in Germany. The registration number
can be provided on request.
Copyright © 2018 MEN Holding. All rights reserved.
The WEEE directive does not apply to fixed industrial plants and tools. The
compliance is the responsibility of the company which puts the product
on the market, as defined in the directive; components and sub-
assemblies are not subject to product compliance.
In other words: Since MEN does not deliver ready-made products to end
users, the WEEE directive is not applicable for MEN. Users are
nevertheless recommended to properly recycle all electronic boards
which have passed their life cycle.
Germany
MEN Mikro Elektronik GmbH
Neuwieder Straße 3-7
90411 Nuremberg
Phone [phone]
France
MEN Mikro Elektronik SAS
18, rue René Cassin
ZA de la Châtelaine
74240 Gaillard
Phone [phone]
USA
MEN Micro Inc.
860 Penllyn Blue Bell Pike
Blue Bell, PA 19422
Phone [phone]
China
MEN Mikro Elektronik
(Shanghai) Co., Ltd.
Room 808-809, Jiaxing
Mansion, No. 877 Dongfang
Road
200122 Shanghai
Phone [phone]
[email protected]
www.men.de
[email protected]
www.men-france.fr
[e-mail]
www.menmicro.com
[e-mail]
www.men-china.cn

Product Overview
20PX05-00 E2 2018-02-13 Page 8
1 Product Overview
1.1 Product Description
Analog Audio Interface
The PX5 is a PCI Express Mini Card providing an industry-grade USB HID to analog audio
interface. It supports one differential stereo audio IN and one differential stereo audio
OUT channel at line level.
Rugged Design for Rail and Aerospace
Thanks to its standardized form factor the PX5 can be used as an audio extension for
CompactPCI and CompactPCI Serial systems as well as box and panel PCs.
Its rugged and compact design makes it especially suitable for the rail and aerospace
markets, for example for ELA systems, in-flight and rolling stock entertainment systems,
cockpit-to-passenger communication in planes, inter-phone or intercom systems.

Product Overview
20PX05-00 E2 2018-02-13 Page 9
1.2 Product Architecture
1.2.1 Interfaces
Figure 1. Board layout – top view
1.2.2 Functions
Figure 2. Functional diagram
Audioconnector
PCIExpress
MiniCard
connector
Audioconnector
USBstereoaudio
codec
USB
B
PCIExpressMiniCardconnector
B
BOnboard connector
Options
Differentialline
receiver
Differentialline
receiver
Linedriver
Audioin
Audioin
Audioout
Audioout

Product Overview
20PX05-00 E2 2018-02-13 Page 10
1.3 Technical Data
Audio
Analog signal configuration
-1 stereo audio IN
-1 stereo audio OUT
Input port line drivers: differential line in
Output port line drivers: differential line out
Input signal-to-noise ratio
-80 dB
Input dynamic range
-80 dB
Output signal-to-noise ratio
-80 dB
Output dynamic range
-80 dB
Product Standard
PCI Express Mini Card: Full-Mini; USB 2.0
Electrical Specifications
Supply voltage
-Module is powered through PCI Express Mini Card interface only (3.3 V)
Output voltage
-2 Vrms max. with 150 Ohm resistive load
Input impedance
-24 kOhm
Output impedance
-100 Ohm max.
Cable length
-150 m max.
Power consumption
-3 W max.
Mechanical Specifications
Dimensions: 30 mm x 50.95 mm x 5 mm (PCI Express Full-Mini Card)
Weight: 8 g (PX5 only); 15 g (PX5 with cable)
Environmental Specifications
Temperature range (operation):
--40°C to +85°C, compliant with EN 50155, class T1, T2, T3 or TX
Temperature range (storage): -40°C to +85°C
Cooling concept
-Air-cooled, 1.0 m/s min.
Relative humidity (operation): max. 95% non-condensing (EN 50155/EN 60068-2-30)

Product Overview
20PX05-00 E2 2018-02-13 Page 11
Relative humidity (storage): max. 95% non-condensing (EN 50155/EN 60068-2-30)
Altitude: -300 m to +3000 m
Shock: EN 50155 (12.2.11) / EN 61373 category 1 class B body mounted
Vibration: EN 50155 (12.2.11) / EN 61373 category 1 class B body mounted
Reliability
MTBF: 500 000 h @ 40°C according to IEC/TR 62380 (RDF 2000)
Safety
Flammability (PCBs)
-UL 94 V-0
EMC
EN 50121-3-2 (table 4) (EMC in rolling stock)
EN 61000-4-2/EN 50121-3-2 (table 9) (ESD)
EN 61000-4-3/EN 50121-3-2 (table 9) (electromagnetic field immunity)
EN 61000-4-4/EN 50121-3-2 (table 8) (burst)
EN 61000-4-6/EN 50121-3-2 (table 7) (immunity to conducted disturbances)
1.4 Product Identification
MEN documentation may describe several different models and design revisions of the
PX5. You can find the article number, design revision and serial number affixed to the
PX5.
Article number: Indicates the product family and model. This is also MEN’s main
ordering number. To be complete it must have 9 characters.
Revision number: Indicates the design revision of the product.
Serial number: Unique identification assigned during production.
If you need support, you should communicate these numbers to MEN.
Figure 3. Product labels
Revisionnumber Serialnumber
Completearticlenumber
00.00.00
15PX05-00

Getting Started
20PX05-00 E2 2018-02-13 Page 12
2 Getting Started
2.1 Connecting and Starting
You can use the following check list when installing the card in a system for the first time
and with minimum configuration. The installation of the PX5 depends on the carrier
board. Please refer to your carrier board’s user manual before installing the PX5.
»Power down the system and remove the PCI Express Mini Card carrier board.
»Install the PX5 on the PCI Express Mini Card slot of the carrier board as described in
the carrier board’s user manual.
»Insert the carrier board into the system again
»Power up the system.
Figure 4. Installing the PCI Express Mini Card (example only)
2.2 Installing Driver Software
The PX5 is detected automatically by the operating system. The PX5 does not require a
specific driver.
PCIe
Mini Card
30°
Card connector

Functional Description
20PX05-00 E2 2018-02-13 Page 13
3 Functional Description
3.1 Power Supply
The PX5 is supplied via the PCI Express Mini Card connector.

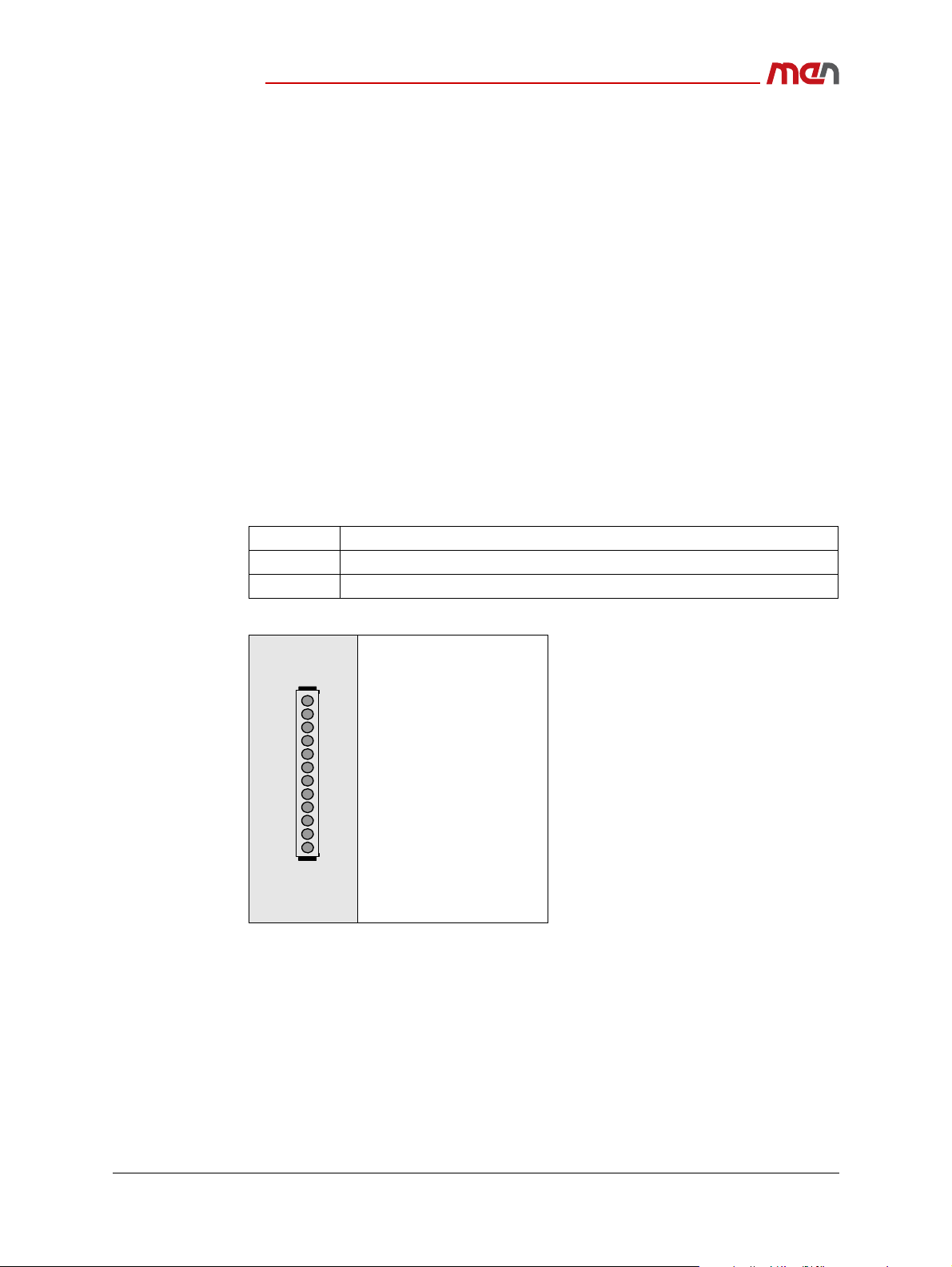

3.2 USB Audio Interface
Sampling rates with a resolution of 16bit:
8kHz
11.025 kHz
16 kHz
22.05 kHz
32 kHz
44.1 kHz
48 kHz
Table 1. Connector types – USB audio
Table 2. Pin assignment – USB audio
Connector Type
On PX5 12-pin stereo audio codec connector with USB interface, 1.25 mm
Mating 12-pin stereo audio codec plug with USB interface, 1.25 mm
1 OUT_R_GND
2OUT_Rn
3OUT_Rp
4 OUT_L_GND
5OUT_Ln
6OUT_Lp
7IN_R_GND
8IN_Rn
9IN_Rp
10 IN_L_GND
11 IN_Ln
12 IN_Lp
1

Functional Description
20PX05-00 E2 2018-02-13 Page 14
Table 3. Signal mnemonics – USB audio
3.2.1 Adapter Cables
MEN offers two standard cables for connecting an amplifier to the USB audio interface.
3.2.1.1 MicroMatch Cable
The MicroMatch cable supports:
Two outputs with differential line
One input with differential line
Table 4. Connector types – MicroMatch cable
Table 5. Pin assignment – MicroMatch connector
Signal Direction Function
IN_Ln, IN_Lp in Audio line in left, differential pair
IN_Rn, IN_Rp in Audio line in right, differential pair
IN_R_GND in Audio line in right ground
IN_L_GND in Audio line in left ground
OUT_Ln, OUT_Lp out Audio line out left, differential pair
OUT_Rn, OUT_Rp out Audio line out right, differential pair
OUT_R_GND out Audio line out right ground
OUT_L_GND out Audio line out left ground
See the MEN website for ordering information:
www.men.de/products/px5/#ord
Connector Type
On cable 10-pin MicroMatch plug connector
Mating 10-pin MicroMatch receptacle connector
12-pin DF13 Signal 10-pin MicroMatch Signal
1 OUT_R_GND 1 GND
2 OUT_Rn 2 AUDIO_OUT_0_L
3OUT_Rp3AUDIO_OUT_0_H
4 OUT_L_GND 4 GND
5 OUT_Ln 5 AUDIO_OUT_1_L
6OUT_Lp6AUDIO_OUT_1_H
7 IN_R_GND 7 GND
8 IN_Rn 8 AUDIO_IN_L
9 IN_Rp 9 AUDIO_IN_H
10 IN_L_GND 10 GND
11 IN_Ln - -
12 IN_Lp - -

Functional Description
20PX05-00 E2 2018-02-13 Page 15
3.2.1.2 D-Sub Cable
The D-Sub cable supports:
Two outputs with differential line
One input with differential line
Table 6. Connector types – D-Sub cable
Table 7. Pin assignment – D-Sub connector
Note: The signals printed in grey are not supported.
Connector Type
On cable 9-pin D-Sub receptacle connector
Mating 9-pin D-Sub plug connector
12-pin DF13 Signal 9-pin D-Sub Signal
1OUT_R_GND --
2 OUT_Rn 7 AUDIO_OUT_R+
3 OUT_Rp 3 AUDIO_OUT_R-
4 OUT_L_GND 2 AUDIO_GND
5 OUT_Ln 1 AUDIO_OUT_L+
6 OUT_Lp 6 AUDIO_OUT_L-
7 IN_R_GND 8 AUDIO_GND
8 IN_Rn 4 AUDIO_IN_L
9 IN_Rp 9 AUDIO_IN_R
10 IN_L_GND --
11 IN_Ln --
12 IN_Lp --
--5AUDIO_SPDIF

Functional Description
20PX05-00 E2 2018-02-13 Page 16
3.3 PCI Express Mini Card Interface
The PX5 uses USB isochronous data format on the PCI Express Mini Card interface.
Table 8. Pin assignment – PCI Express Mini Card connector (USB 2.0)
Note: The signals printed in grey are not supported.
Table 9. Signal mnemonics – PCI Express Mini Card
1WAKE# 2+3.3V
3COEX1 4GND
5COEX2 61.5V
7CLKREQ# 8UIM_PWR
9GND 10 UIM_DATA
11 REFCLK- 12 UIM_CLK
13 REFCLK+ 14 UIM_RST
15 GND 16 UIM_VPP
Mechanical key
17 UIM_IC_DM 18 GND
19 UIM_IC_DP 20 W_DISABLE1#
21 GND 22 PERST#
23 PERn0 24 +3.3Vaux
25 PERp0 26 GND
27 GND 28 +1.5V
29 GND 30 SMB_CLK
31 PETn0 32 SMB_DATA
33 PETp0 34 GND
35 GND 36 USB_D-
37 GND 38 USB_D+
39 +3.3Vaux 40 GND
41 +3.3Vaux 42 LED_WWAN#
43 GND 44 LED_WLAN#
45 Reserved 46 LED_WPAN#
47 Reserved 48 +1.5V
49 Reserved 50 GND
51 W_DISABLE2# 52 +3.3Vaux
Signal Function
Power GND Ground
+3.3Vaux 3.3V source
+1.5V 1.5V source
USB 2.0 USB_D- USB line negative
USB_D+ USB line positive

Functional Description
20PX05-00 E2 2018-02-13 Page 17
Please refer to the PCI Express Mini Card Specifications for further details:
PCI Express Mini Card Electromechanical Specification Rev. 2.0
August 31, 2011
PCI Special Interest Group
www.pcisig.com
