Mendota X-62 User manual

as Log Insert
IInstallation and Operating Instructions
- Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS
Do not try to light any appliance.
Do not touch electrical switches; do not
use any phone in your building.
Immediately call your gas supplier from a
neighbor’s phone. Follow your gas
suppliers instructions.
If you cannot reach your gas supplier,
call your local fire department.
- Installation and service must be performed by a
qualified installer, service agency or the gas
supplier.
- Ne pas entreposer ni utiliser d'essence ni d'autre
vaperurs ou liquides inflammables àproximité de cet
appareil ou de tout autre appareil.
- QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE GAZ:
Ne pas tenter d'allumer d'appareil.
Ne touchez à aucun interrupteur. Ne pas
vous servir des téléphones se trouvant dans
le bâtiment où vous vous trouvez.
Appelez immédiatement votre fournisseur
de gaz depuis un voisin. Suivez les
instructions du fournisseur.
Si vous ne pouvez rejoindre le fournisseur
de gaz, appelez le service dos incendies.
- L'installation et l´entretein doivent être assurés par
un installateur ou un service d´entretein qualifié ou
par le fournisseur de gaz.
WARNING: If the information in
this manual is not followed exactly, a
fire or explosion may result causing
property damage, personal injury or
loss of life.
AVERTISSEMENT : Assurez-vous de
bien suivre les instructions donné dans
cette notice pour réduire au minimum
le risque d’incendie ou d’explosion ou
pour éviter tout dommage matéeriel,
toute blessure ou la mort.
# FF 0109
X-62 FlexFire Gas Log Insert

2
TABLE OF CONTENTS
REFERENCE DIAGRAMS…………………………………………………………… 4
INSTALLATION REQUIREMENTS ……………………………………………… 5
GAS SUPPLY REQUIREMENTS ………………………………………………. 6
INSTALLATION INSTRUCTIONS ……………………………………………….. 7
OPERATING INSTRUCTIONS …………………………………………………. 13
TROUBLESHOOTING ……………………………………………………………. 14
MAINTENANCE …………………………………………………………………….. 15
REPLACEMENT PARTS ………………………………………………………….. 16

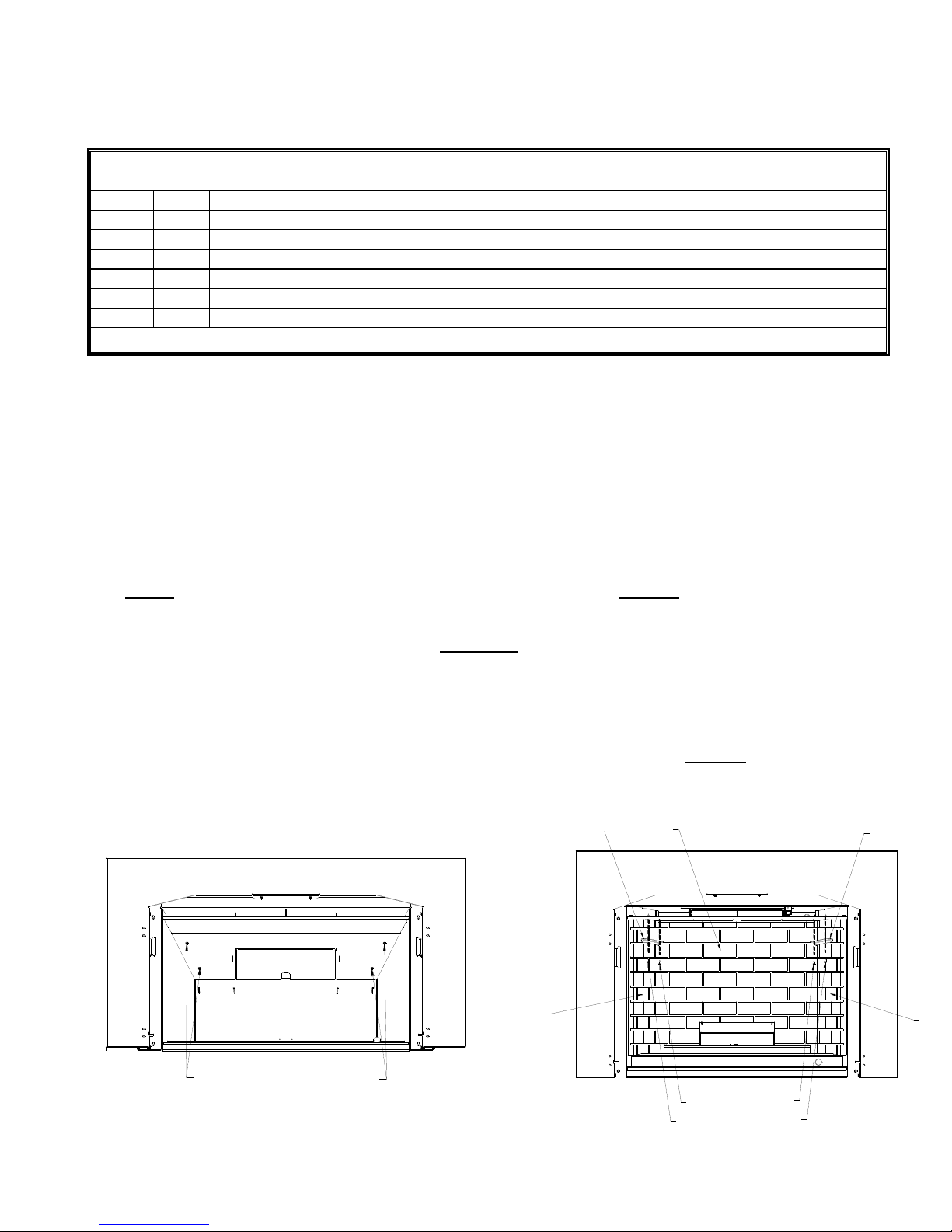

OPTIONAL BRICK PANEL INSTALLATION INSTRUCTIONS ……………. 17
WARRANTY REGISTRATION……………………………………………………… 19
WARRANTY………………………………………………………………………….. 21
SPECIFICATIONS
MODEL X-62
High Fire - Adjustable to - Low Fire Orifice Size
BTUH INPUT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . NAT.GAS 61,900 33,600 # 25 Nat.
L.P. GAS 60,000 47,400 # 43 L.P.
FLUE REQUIREMENTS . . . . . . . . . . . . . . . . . . . . . . . . . 6‖ MIN. DIA. AT 20’ MIN. HT. (See page 5)
SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . AGA Certified Electronic Ignition (activated with remote control)
COMBUSTIBLE MANTEL CLEARANCE . . . . . . . . . . . 15‖ Above Grill, 8‖ Depth
GAS SUPPLY PRESSURE . . . . . . . . . . . . . . . . . . . . . . . NAT.GAS: 7" W.C. [6.5" W.C. MIN., 10.5" W.C. MAX.]
L.P. GAS: 11" W.C. [12.2" W.C. MIN., 13" W.C. MAX.]
GAS INLET: 3/8" N.P.T.
INTERTEK TESTED TO AGA/ANSI STANDARD - Z21.60-2003 & CAN/CGA 2.26-M03, &CGA CR93-0004
This appliance may be used with A.G.A. approved flexible gas lines and shut off valves if permitted by local codes.
The X-62 Gas Log Insert has been tested and certified by:
Intertek
8431 Murphy Drive
Middleton, WI 53562
THE X-62 GAS LOG INSERT COMES STANDARD WITH:
A Variable Ceramic Combustion System; Logs and a Grate; a Variable-speed Automatic Dual Blower System; and a Variable Flame Remote
Control.
OPTIONS FOR THE X-62 GAS LOG INSERT INCLUDE:
Faceplates in three sizes (24‖ x 36‖, 27‖ x 40‖, and 31‖ X 44‖); Firescreen Doors in three styles; Screens in two styles; Brick Panels in three
patterns; Facia; and Trim. Many of the options are available in various colors and finishes.

3
CONGRATULATIONS!
You are the owner of a world-class heat-producing decorative gas log insert.
This elegant, efficient appliance will be a constant source of comfort and fascination. It will be the focal point of
beauty and interest in your home. The X-62 Gas Log Insert is a decorative heating appliance incorporating the
aesthetics of a traditional fireplace fire.
Carefully read this manual prior to installation. Proper installation and operation of the appliance will give you
years of safe, trouble-free comfort and enjoyment.
If you have any questions regarding the installation or operation of your X-62, please contact your local Mendota
dealer.
......CAUTION.....
FOR YOUR SAFETY do not install or operate your X-62 without first reading and understanding this manual. Any
deviation in the installation or operation of the appliance from the instructions provided in this manual will void the
Warranty and may prove hazardous!
To reduce the hazards associated with high temperatures, the fireplace in which the X-62 is to be installed should
be located out of the flow of traffic and away from furniture and draperies. Children and adults should be alerted to
the possibility of burns if they come into contact with the appliance. Young children should be supervised carefully
when they are in the same room as the X-62.
Clothing, drapery, or other flammable material should not be placed on or near the X-62. Do not store or use
gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
The X-62 is designed for installation in a vented, non-combustible fireplace that has a working flue. It is not
approved for bathrooms, or for any room where sleeping accommodations are provided. Solid fuels must not be
burned in any fireplace in which a decorative fireplace is installed. Any fireplace in which an insert is to be
installed MUST be vented to the outside in accordance with the latest edition of the Natural Fuel Gas Code. Do
not connect this appliance to a chimney flue serving a separate solid-fuel-burning appliance.
The X-62 is a decorative gas appliance. It has been designed as a source of supplemental heat only. It should
not take the place of, or be used as, a whole-house heating system. Such use may void the warranty.
Installation and repair should be done by a qualified service technician only. The X-62 should be inspected and
cleaned at least annually by a qualified service technician. More frequent cleaning may be required due to
excessive lint from carpeting, bedding material, etc. It is imperative that control compartments, burners, and air
passageways be kept clean. Any panel, screen, or glass removed for servicing the X-62 MUST be replaced prior
to operating the appliance. Installation and the provisions for combustion and ventilation air must conform to the
National Fuel Gas Code, ANSI Z223.1/NFPA 54, or the CSA B149.1, Natural Gas and Propane Installation Code.
DO NOT use the X-62 if any part of it has been under water. Immediately call a qualified service technician to
inspect the appliance. Any parts of the control system and any of the gas controls that have been under water
should be replaced. [Ńutilisez pas cet appareil śil a été plongé dans ľeau, même partiellement. Faites inspecter
ľappaeil par un technicien qualifié et remplacez toute partie du système de contrôle et toute commande qui ont été
plongé dans ľeau.]
DO NOT use this appliance if the burner does not light immediately (see OPERATING INSTRUCTIONS, page 12).
If the burner does not light promptly, turn off the appliance and contact your local Mendota dealer.
It is the policy of Johnson Gas Appliance Company that no responsibility is assumed by the Company or by any of
its employees or representatives for any damages caused by an inoperable, inadequate, or unsafe condition which
is the result, either directly or indirectly, of any improper installation or operation of this appliance.
INSTALLER: THESE INSTRUCTIONS ARE TO REMAIN WITH THE HOMEOWNER.

4

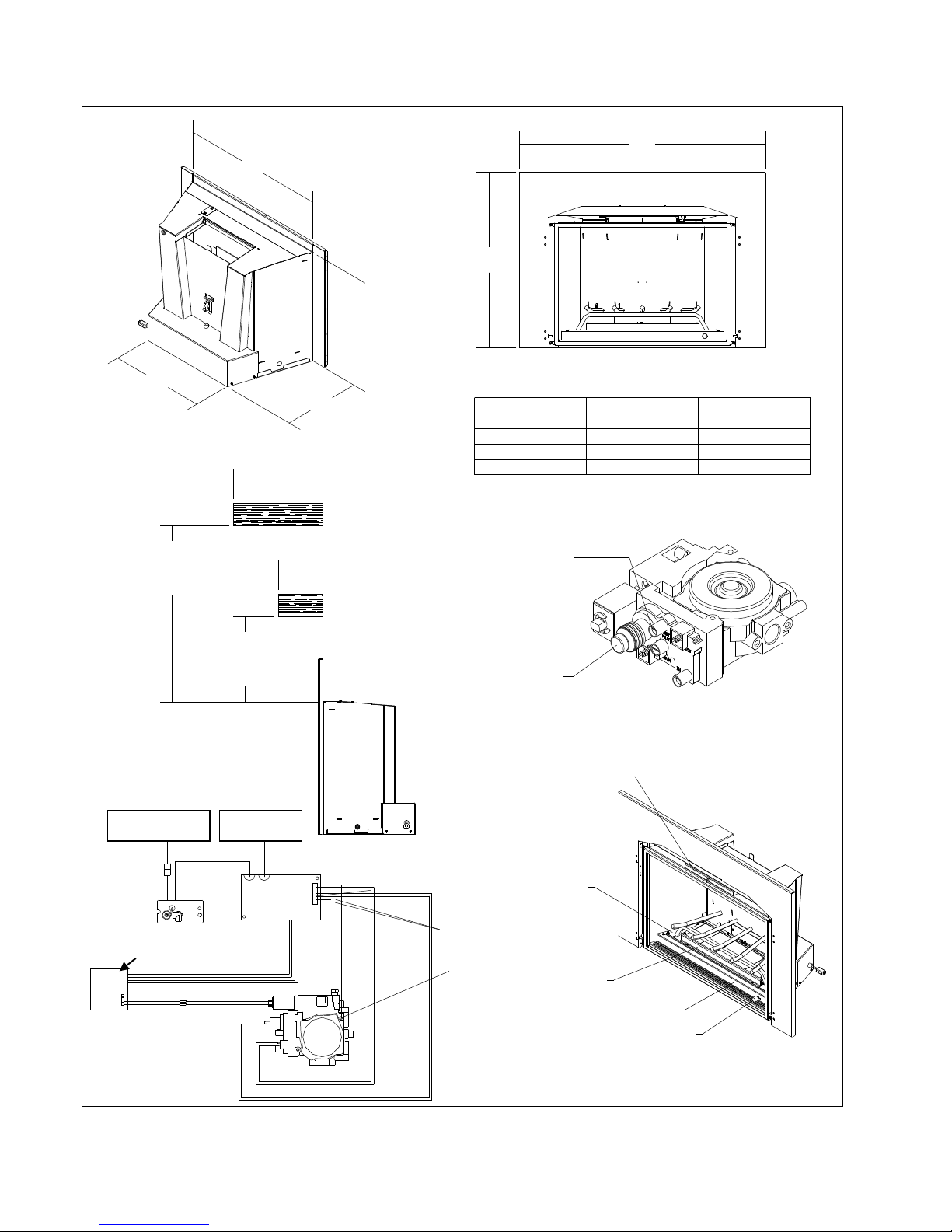

Reference Diagrams
24"
16.5"
30.5"
20"
"A"
"B"
FIGURE 2
FACEPLATE / SURR OUND SIZES
FIGURE 1
CR OSSFIRE 60 DIM ENSIONS
A
INCH ES (M M )
44 (1118)
48 (1220)
52 (1321)
FACEPLATE
SIZE
SM ALL
M ED IU M
LARGE
B
INCH ES (M M )
31 (788)
33 (839)
36 (915)
15" MIN.
TOP OF EXHAUST SLOT
TO 8" MAN TEL
TO 16" MANTEL
TOP OF EXHAUST SLOT
31" MIN.
8"
16"
FIGURE 3
M IN IM U M CLE AR AN CE FR OM
TOP OF EXHAUST OPENING TO
BO TTOM OF C OMBUSTIBLE MANTEL
FIGURE 5
BU RNER
FRON T VENT PLATE
FIREBOX FLOOR
FIGURE 4
VALVE PRESSURE TAP FITTING
FO R T ES TIN G M A NIFO LD P RES SU RE
BLO W ER ADJU STMENT
D AM PE R (O P EN )
NAT./L.P. CON VERSIO N STEM
RE D RED
BLACK BLAC K
VALVE
SO LEN O ID
MOTO R/
SO LEN O ID
S W IT CH
MOTO R
CO N TRO L
BO X
ORA NGE
W H ITE
(P ILO T)
GRE EN
W H ITE
(M AIN)
BLACK
(G R O U ND)
G R OU N D B LA C K W IR E
OF IT EM 5 TO S CR EW
OF IT EM 1
CLIP B O TH
B RO W N W IR E S
W IR IN G D IAG RA M
IT EM 1
IT EM 5
IT EM 7
W IR E H A RN E SS , IT EM 9
W IR E H A RN E SS , IT EM 1 0
I S
W IR E H A RN E SS , IT EM 1 9
W IR E H A RN E SS , IT EM 1 8
PILO T
AT T ERM INAL E NDS
Brown Wires not used –
Clipped at factory.
Slide Switch factory set
on Latching Solenoid
To Damper Limit
Swich –White to Red
To Damper Limit
Swich - Black

5
INSTALLATION REQUIREMENTS
WARNING: The X-62 Gas Log Insert must be installed in a vented, non-combustible fireplace with a working flue.
The fireplace must be approved for burning solid fuel. It cannot be installed in a bathroom, or in any
room where sleeping accommodations are provided.
FIREPLACE DIMENSIONS
The X-62 must be installed in a fireplace with dimensions equaling or exceeding each of those listed in the chart
below. (See Fig. 1.)
MINIMUM FIREPLACE DIMENSIONS
DIMENSION
INCHES (MM)
WIDTH
30 ½ (775)
HEIGHT
24 (610)
DEPTH
16 ½ (420)
NOTE: A Faceplate/Surround large enough to cover the gap between the X-62 and the existing fireplace also
should be purchased. (See Fig. 2.)
CHIMNEY OPENING
The X-62 must be installed in a fireplace with a chimney opening equaling or exceeding the minimum opening
listed in the chart below—note that shorter chimneys require larger openings.
NOTE: Massachusetts requires that the existing fireplace flue damper must be removed or
permanently welded in the "open" position.
MINIMUM CHIMNEY FLUE OPENING (SQ. IN.)
Chimney Ht.
Factory Built Firplaces
Masonry Fireplaces
10 ft.
35.3 sq. in. (7‖ dia.& above)
41.7 sq. in.
15 ft.
26.4 sq. in. (6‖ dia. & above)
37.7 sq. in.
20 ft.
22.1 sq. in. (6‖ dia. & above)
34.3 sq. in.
25 ft.
18.8 sq. in. (6‖ dia. & above)
32.8 sq. in.
30 ft.
17.3 sq. in. (6‖ dia. & above)
31.2 sq. in.
35 ft.
15.9 sq. in. (6‖ dia. & above)
30.0 sq. in.
40 ft.
15.2 sq. in. (6‖ dia. & above)
30.0 sq. in.
CAUTION: The X-62 should not be installed in any fireplace that is normally subject to severe downdrafts.
Downdraft conditions exist if, when starting a wood fire, it is difficult to establish a good upward draw
(i.e., smoke and cold air flow into the room rather than up the chimney), or if it is necessary to open a
door or window to get an upward flow of air established. For homes with downdraft conditions, we
recommend the installation of a ―lined‖ heater-rated fireplace insert (such as the Mendota DV-30 or DV-
40). NOTE: High winds or severely cold temperatures can cause downdrafts in any fireplace,
especially those with large flues. These occasional downdrafts do not preclude the use of a X-62.
NOTE: Do not connect the X-62 to a chimney flue serving a second solid-fuel-burning appliance.
NOTE: A chimney cap must be used with the X-62 to prevent rain from damaging the appliance.
MANTEL CLEARANCE
Combustible mantels located above the X-62 must conform to the minimum clearance distances listed in the chart
below. A mantel that is 8‖ (203 mm) deep or less must be at least 15‖ (381 mm) above the top of the exhaust
opening of the appliance. For mantles deeper than 8‖ (203 mm), the minimum clearance increases by 2‖ (51 mm)
for every 1‖ (25 mm) increase in mantle depth. (See Fig. 3.)
MINIMUM MANTEL CLEARANCE
MANTEL DEPTH
IN
(MM)
8
(203)
9
(229)
10
(254)
11
(279)
12
(305)
13
(330)
14
(356)
15
(381)
16
(406)
MIN. CLEARANCE
IN
(MM)
15
(381)
17
(432)
19
(483)
21
(533)
23
(584)
25
(635)
27
(686)
29
(737)
31
(787)
Round Chimney Area Reference:
6‖ dia. = 28.7 sq. in.
7‖ dia. = 38.5 sq. in.
8‖ dia. = 50.3 sq. in.
10‖ dia. = 78.5 sq. in.
For Masonry flues, multiply width
by depth of flue opening.

6
GAS SUPPLY REQUIREMENTS
CORRECT GAS PRESSURE AND PROPER GAS SUPPLY LINE SIZING ARE CRITICAL TO THE SUCCESSFUL
PERFORMANCE OF YOUR X-62 GAS LOG INSERT. BE SURE THAT THE GAS SUPPLIER OR PLUMBER CHECKS FOR
CORRECT GAS PRESSURE AND GAS LINE SIZING WHEN INSTALLING THE APPLIANCE.
GAS SUPPLY PIPING MUST INCLUDE A DRIP LEG TO ELIMINATE THE POSSIBILITY OF CONTAMINANTS ENTERING THE
GAS TRAIN. MANY LOCAL CODES ALSO REQUIRE A SHUT OFF VALVE ON THE INCOMING GAS LINE. ADHERE
STRICTLY TO LOCAL AND NATIONAL CODES.
IF GAS SUPPLY PRESSURES EXCEED ½ PSIG [3.5KPA], THE APPLIANCE MUST BE ISOLATED FROM ITS SUPPLY WITH
AN APPROVED MANUAL SHUT-OFF VALVE. THIS MANUAL SHUT-OFF VALVE MUST BE CLOSED DURING ANY SUPPLY
LINE PRESSURE TESTING.
GAS SUPPLY LINE SIZING
The X-62 comes equipped with a 3/8" N.P.T. [1.0 cm] inlet on the main gas valve.
A gas line of sufficient size to deliver 63,000 BTUH to the unit at the normal inlet pressure must be run from the
supply regulator to the appliance. Refer to the following table and to local codes to determine the correct pipe
diameter.
PIPE LENGTH
SCHEDULE 40 PIPE (INSIDE DIA.)
TUBING, TYPE L (OUTSIDE DIA.)
FEET (Meters)
NAT.
IN (CM)
L.P.
IN (CM)
NAT.
IN (CM)
L.P.
IN (CM)
0 - 10 (0 - 3.1)
1/2 (1.3)
3/8 (1.0)
1/2 (1.3)
3/8 (1.0)
10 - 40 (3.1 - 12.2)
1/2 (1.3)
1/2 (1.3)
5/8 (1.6)
1/2 (1.3)
40 - 100 (12.2 - 30.5)
3/4 (2.0)
1/2 (1.3)
3/4 (2.0)
1/2 (1.3)
100 - 150 (30.5 - 45.7)
3/4 (2.0)
1/2 (1.3)
7/8 (2.3)
5/8 (1.6)
150 - 200 (45.7 - 61.0)
3/4 (2.0)
1/2 (1.3)
7/8 (2.3)
3/4 (2.0)
Some areas allow the use of copper tubing or galvanized pipe. Check with local approval agencies and codes. NEVER use plastic pipe.
GAS PRESSURE REQUIREMENTS
A MAJOR CAUSE OF OPERATING PROBLEMS WITH GAS APPLIANCES IS IMPROPER GAS PRESSURE!
Such problems as changes in flame color or configuration, pilot or burner outages, intermittent operation, changes
in heat output, excessive burner noise, etc. can be the result of changes in gas pressure or improper gas pressure
at the time of installation. The most important item to check during installation, and the first thing to check when
problems occur, is gas pressure!
The natural gas supply normally enters a residence at ½ PSI [13‖ - 15‖ W.C.] [3.5 KPA]. A regulator located inside
the residence drops this pressure to 7‖ W.C. [1.8 KPA]. This ―inches to inches‖ regulator is sufficient to service
the existing gas appliances (stove, dryer, furnace, etc.). If the capacity of the regulator is not sufficient for the
addition of the X-62, a second ―inches to inches‖ regulator must be installed. EXCEPTION: Some codes allow 2
PSI [1.4 KPA] gas supplies to enter the residence, in which case ―pounds to inches‖ regulators are used.
The following table provides information on the requirements for correct gas pressure. Be sure your gas supplier
or plumber follows these requirements carefully.
INLET GAS PRESSURE
DESIRED
PRESSURE
MINIMUM
PRESSURE
MAXIMUM
PRESSURE
MANIFOLD
PRESSURE *
AIR SHUTTER
OPENING
NATURAL
GAS
7.0‖ W.C.
(1.75 kPa)
6.5‖ W.C.
(1.12 kPa)
10.5‖ W.C.
(2.61 kPa)
3.5‖ W.C.
(0.87 kPa)
1/4 ‖
(6 mm)
L.P. GAS
11.0‖ W.C.
(2.75 kPa)
12.2‖ W.C.
(2.75 kPa)
13.0‖ W.C.
(3.24 kPa)
10.0‖ W.C.
(2.5 kPa)
7/16 ‖
(13 mm)
* A pressure tap fitting is located on the gas valve (see Fig. 4). A qualified installer must measure the manifold
pressure at this fitting with the burner operating on its highest setting. Gas pressure may vary by ± 5%.

7

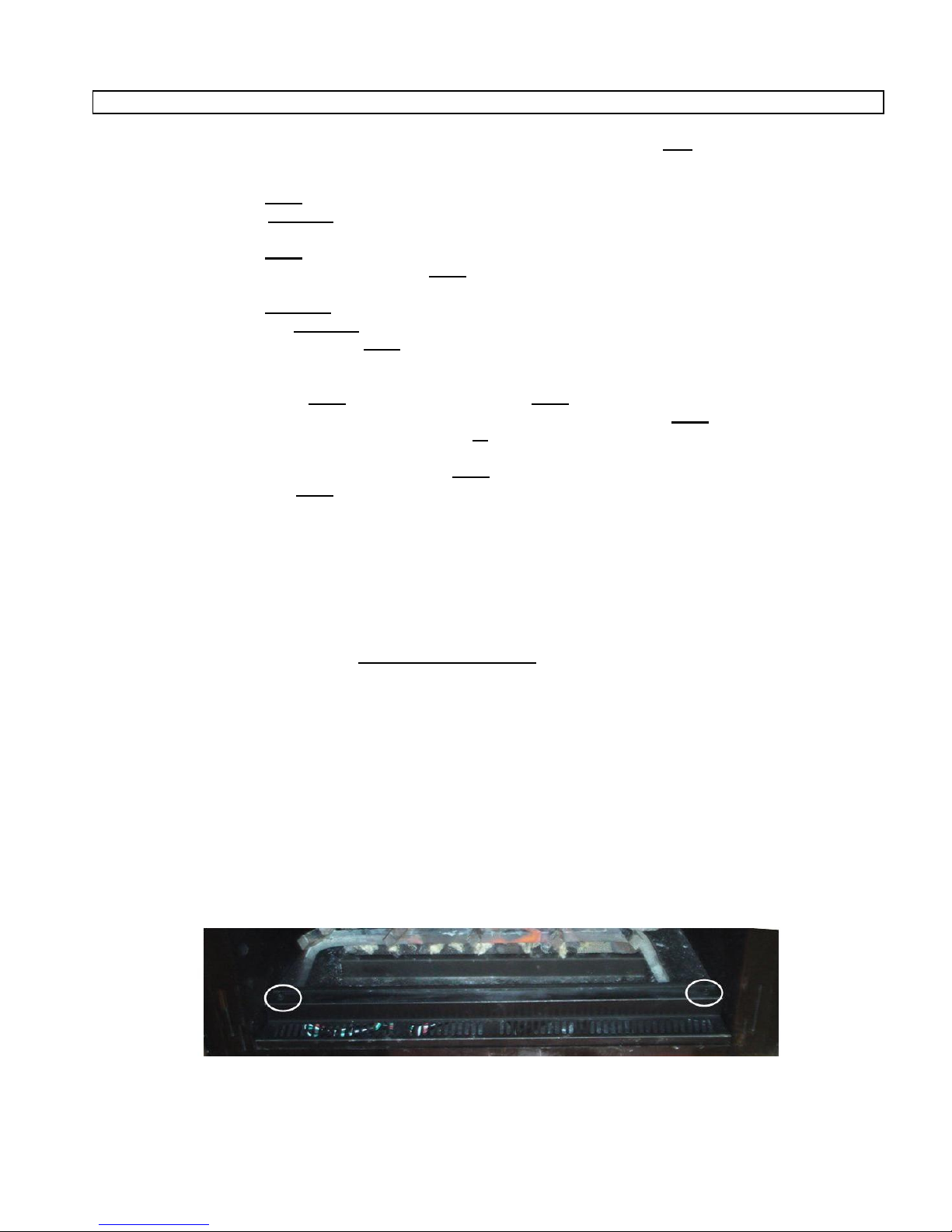

INSTALLATION INSTRUCTIONS
NOTE: The X-62 Gas Log Insert must be installed only by a qualified technician.
1. Check to be sure that the fireplace into which the X-62 is to be installed meets ALL of the installation
requirements listed on page 5, that is:
a. The fireplace must be vented and non-combustible, have a working flue, and be approved for burning
solid fuel. It must not be located in a bathroom, or in any room where sleeping accommodations are
provided.
b. The fireplace must be at least 30 ½‖ wide by 24‖ high by 16 ½‖ deep.
c. The chimney opening of the fireplace must equal or exceed the minimum opening for the height of the
chimney, as listed in the CHIMNEY OPENING chart on page 5.
d. The fireplace must not be subject to severe downdrafts during the normal course of its operation.
e. The chimney flue must not serve a second solid-fuel-burning appliance.
f.The chimney of the fireplace must be equipped with a chimney cap.
2. Check to see that the gas supply meets ALL of the requirements listed on page 6, that is:
a. The gas supply line must of the proper material and must be of the proper diameter, as listed in the
GAS SUPPLY LINE SIZING chart on page 6. Also, the gas supply line must have a drip leg, a shut-
off valve (if one is required by local codes or if the supply gas pressures exceed ½ PSIG [3.5KPA]),
and a regulator of sufficient capacity.
b. Flex hose used to connect the appliance must have brass-to-brass fittings.
c. The gas pressure must meet the requirements listed in the INLET GAS PRESSURE chart on page 6.
3. Remove any glass doors, grates, combustible materials, etc. from the existing fireplace.
4. Have the fireplace and venting system cleaned by a certified chimney sweep or qualified service technician.
The damper of the fireplace must be modified to maintain at least the minimum opening required for
the height of the chimney, as listed in the CHIMNEY OPENING chart on page 5. It is recommended
either to remove the damper completely, or to cut a hole in the damper equal the minimum opening
required. A large damper may be permanently fixed open with a screw or bolt in its edge, provided that
the opening meets the minimum requirements.
NOTE: Massachusetts requires that the existing fireplace flue damper must be removed or
permanently welded in the "open" position.
5. Remove the log package, the bag of coals, the grate, the bag containing the remote and batteries, the L.P.
conversion kit, the packing material, and any other loose items in the firebox. Set the X-62 in front of the
fireplace.

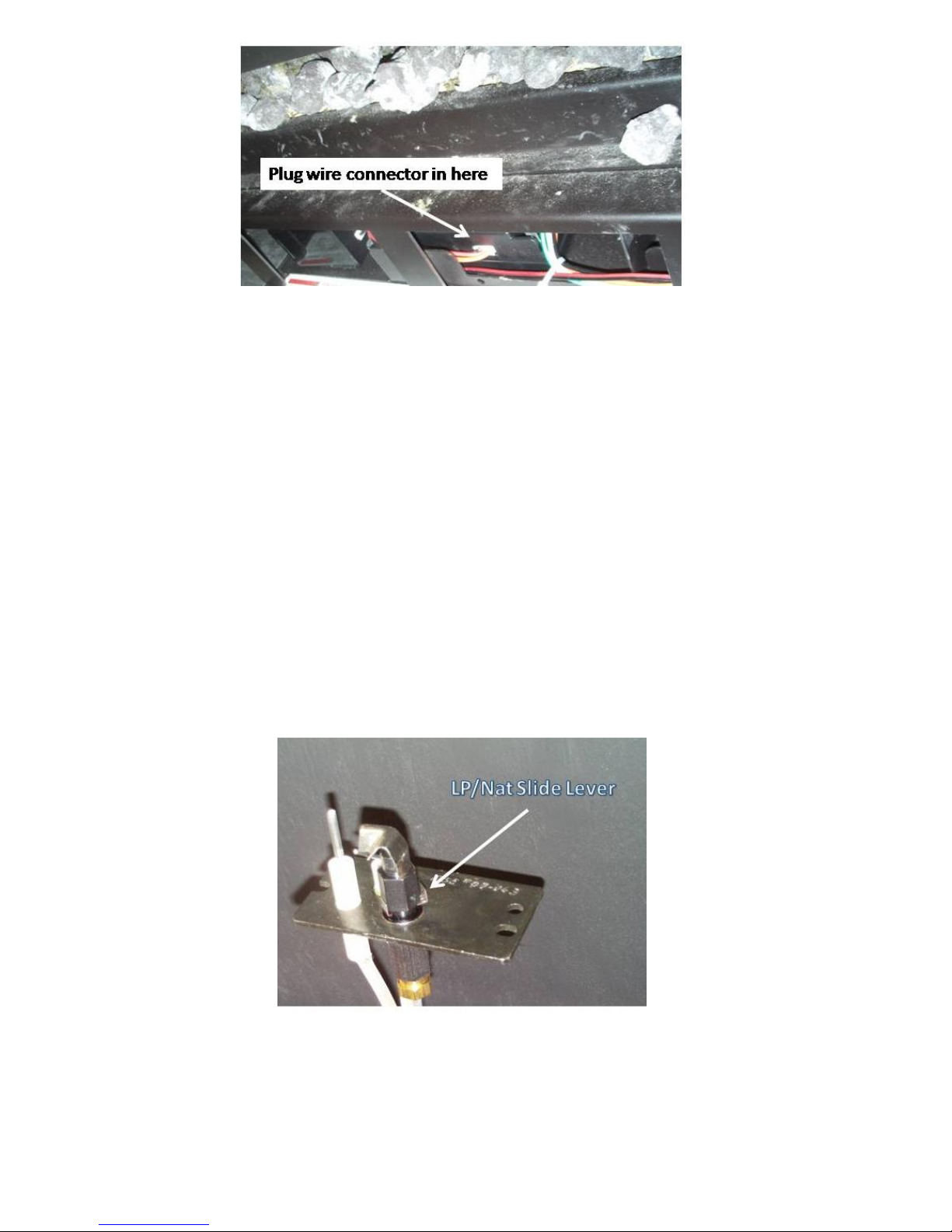

6. Take out the front vent plate by removing the 2 screws that hold it to the firebox floor (see Fig. 6). Plug the
receiver wire into the receiver (see Fig. 7, page 8).
Figure 6

8
Figure 7
IF THE X-62 IS TO BE OPERATED ON NATURAL GAS, PROCEED TO STEP #8.
7. The X-62 can operate on either Natural Gas or L.P. Gas. It arrives from the factory set up for operation on
Natural Gas. If the appliance is to be operated on L.P. Gas, a qualified technician must convert the gas valve
and the pilot from Natural Gas to L.P. Gas, and install all of the components in the L.P. Conversion Kit that is
provided with the appliance. To convert the appliance to L.P. Gas (see Fig.5):
a. Take out the burner: Remove the 4 screws that hold the burner to the firebox floor (see Fig.5, page 4).
Slide the burner to the left to disengage its inlet tube from the shutter box. Lift the burner up.
b. Take out the firebox floor by removing the 6 screws that hold it to the firebox (see Fig 5, page 4).
c. Unscrew and remove the Natural Gas orifice that was shipped with the X-62 (see Fig.4, page 4). Save
the orifice removed from the appliance for future use. [Conservez les injecteurs retirés de ĺappareil
pour utilisation future.]
d. Screw the L.P. orifice (which is part of the L.P. Conversion Kit) over the fitting on the gas valve.
e. To convert the valve to L.P. Gas, remove the rubber cap that covers the valve conversion stem.
Depress the stem and rotate it clockwise until it locks in place in the depressed position. Replace the
rubber cap. (See Fig.4, page 4.)
f.To convert the pilot to L.P. Gas, loosen the ½‖ hex fitting under the pilot hood, slide the quick adjust
lever forward (the lever is just below the hex fitting), and tighten the hex fitting (see Fig. 8).
g. Reinstall the firebox floor, the front vent plate, and the burner, in that order. To reinstall the burner, set
it in place in the left side of the opening in the firebox floor (the opening of the burner inlet tube should
be pointing to the right. Slide the burner to the left until the inlet tube engages with the shutter box
and the screw holes line up. Screw the burner in place.
Figure 8
To convert the X-62 back to natural gas, replace the L.P. orifice with the Natural Gas orifice according to the
instructions above. Also convert the gas valve and the pilot back to natural gas. Remove the rubber cap that
covers the valve conversion stem. Push in on the stem and rotate it counterclockwise until it pops out to its
full extension. Replace the rubber cap. To convert the pilot, loosen the ½‖ hex fitting under the pilot hood,
slide the quick adjust lever backward (the lever is just below the hex fitting), and tighten the hex fitting.

9
8. Connect the 3/8‖ npt flex connector (with shut-off valve) of the X-62 to the gas supply line. Take care not to
damage or kink the flex connector.
9. Check the connections for leaks. Use a solution of soap and water, and check for bubbling. IT IS CRITICAL
TO CHECK CAREFULLY FOR LEAKS!
10. Make sure all gas supply shut-off valves are open. Bleed air from supply lines. Light the X-62, and adjust the
burner to its highest setting (see OPERATING INSTRUCTIONS, page 12). Check the manifold pressure at
the pressure tap fitting on the gas valve (see Fig. 4, page 4). Manifold pressure must meet the requirements
listed in the INLET GAS PRESSURE chart on page 6 (gas pressure may vary by ± 5%).
11. Cycle the burner on and off several times to make certain that it lights promptly, and that flames cover all parts
of the burner pan. NOTE: Never turn the burner on or off quickly—always allow the X-62 to burn at least 60
seconds before turning it off, and to rest at least 60 seconds before turning it on.
12. Plug the power cord for the blower into a grounded 115-volt outlet. The outlet must be electrically grounded in
accordance with local codes, or in the absence of local codes, with the National Electric Code ANSI/NFPA 70-
1987. NOTE: The blower for the X-62 is equipped with an 8-ft power cord. If an electrical outlet has not been
wired into the existing fireplace, check to be sure that an outlet is located within reach of the power cord when
the appliance is in its installed position. Extension cords are not allowed.
13. Slide the X-62 into the fireplace, and check to see that it is level and plumb with the fireplace opening. If not,
the appliance should be squared to the opening by placing metal shims, metal washers, brick, or other non-
combustible materials beneath it.
IF YOU PURCHASED AN OPTIONAL BRICK KIT FOR YOUR X-62, INSTALL IT NOW ACCORDING TO
THE INSTRUCTIONS THAT ACCOMPANY THE KIT. THEN PROCEED TO STEP 14.
14. Open the bag of coals. Spread the coals on top of the burner to produce a glowing ember effect, and also
around the base of the burner to conceal it (see Fig. 6). DO NOT spread any coals over the slots at the front
of the appliance, as these may inhibit airflow. NOTE: Use only the larger chunks of coals—DO NOT use any
tiny fragments or coal dust, as these might clog the burner.
Positioning of the coals on the burner has a major impact on the appearance of the flame and the glow.
More coals = more glow but less flame. Fewer coals = more flame but less glow.
15. Set the grate in place over the burner (see Fig. 9, page 10). The grate should be centered left to right in the
firebox. The tines at the back of the grate should rest on the ledge in the back of the firebox. Slide the grate
as far back in the firebox as it will go.
16. Carefully open the log package, and remove the logs. Position the logs on the grate as shown in Fig. 9 (page
10). The grate and the log pile should be centered in the firebox. CAUTION: DO NOT position the logs so
that they obstruct the pilot flame—any obstruction of the pilot flame may inhibit the prompt, safe lighting of the
burner.
NOTE: The logs will produce a strong, acrid odor on initial contact with the flames. This is completely normal.
The odor will dissipate after about an hour of operation.
17. Cycle the burner on and off several times to make certain that it lights promptly, and that flames are distributed
throughout the log pile. If there is any delay in lighting, it is necessary to check for the correct positioning of
logs and coals—logs and coals must not obstruct the pilot flame. NOTE: Never turn the burner on or off
quickly—always allow the X-62 to burn at least 60 seconds before turning it off, and to rest at least 60 seconds
before turning it on.
18. Take out the front vent plate by removing the 2 screws that hold it to the firebox floor (see Fig.6, page 7).
Loosen the nut that holds the air shutter in place (see Fig.10, page 10). Light the burner, and allow the X-62
to burn for 2-3 hours. At this point, small additional adjustments may need to be made to the air shutter to
improve the appearance of the flame.

10
Figure 10
NOTE: Very small changes in air shutter position make major changes in the appearance of the flame.
a. If the flame is too blue, push the air shutter away from you in small increments (about 1/16‖) until the
appearance of the flame improves. Tighten the nut of the air shutter. Replace the front vent plate,
and screw it to the firebox floor.
b. If the flame is too orange, or if sooting occurs, pull the air shutter toward you in small increments
(about 1/16‖) until the appearance of the flame improves. Tighten the nut of the air shutter. Replace
the front vent plate, and screw it to the firebox floor. NOTE: If sooting persists, turn off the appliance,
and call your Mendota dealer.
19. Install the Faceplate / Surround, Screen, and other facings and trims according to the instructions included
with them.
Figure 9
WARNING: Failure to position the logs in accordance with Fig.8 or failure to use only parts specifically
approved with this appliance may result in property damage or personal injury.
Place the grate above the burner and coals by resting the three center bars on the ledge located on the
rear wall of the firebox. Center the grate left to right over the burner.

11
Figure 9 (continued)

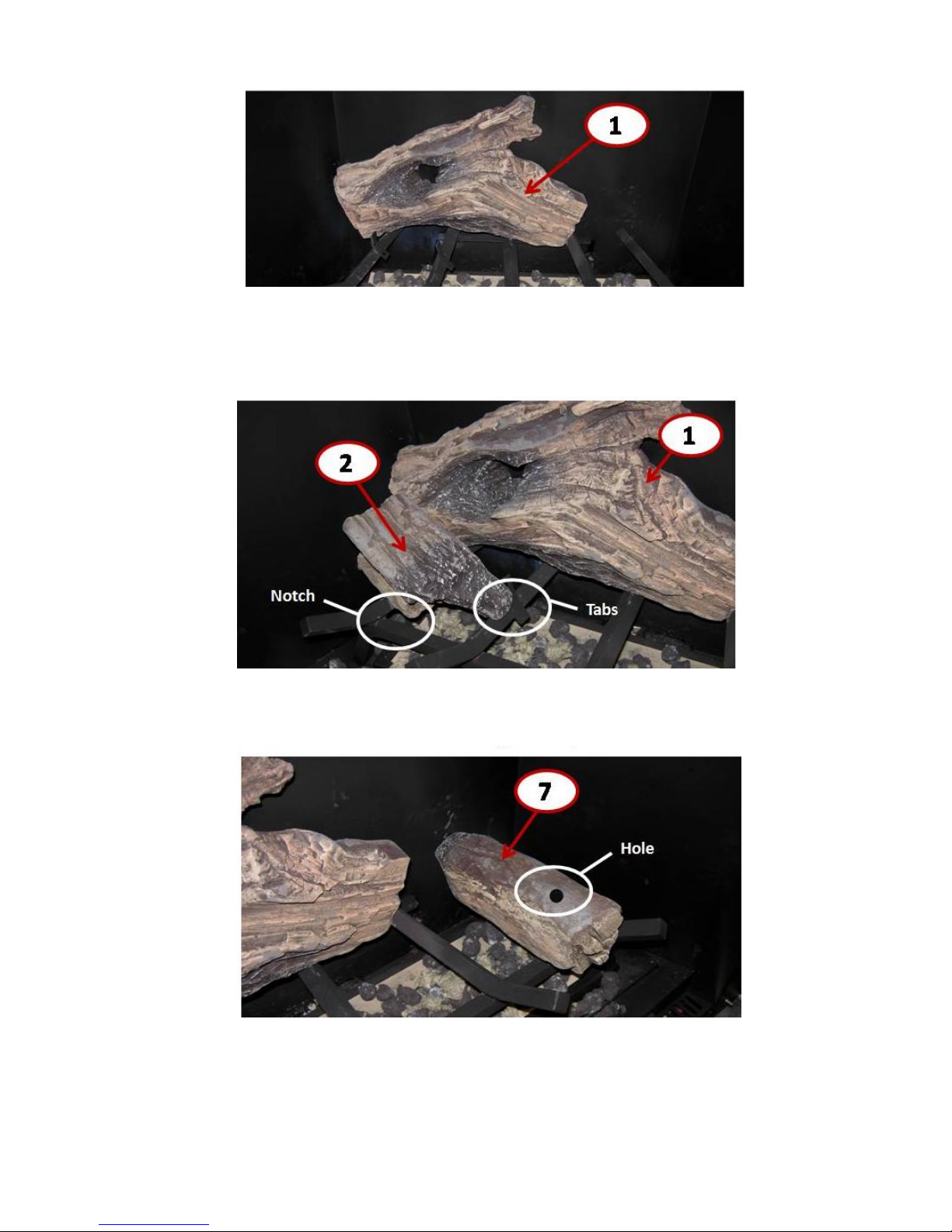

Place rear log #1 on the grate with its left end against the feft firebox wall (or against the optional firebrick
panel, if used). The right end should rest on top of the grate bar, as shown. Make sure that the log is
tight against the back of the firebox.
Place the notch on log # 2 over the left grate bar. Slide log # 2 back against the tabs that are located on
the top of the grate bars.
Place log # 7 against the right grate bar, with its front resting on the grate cross bar. Position the log so
that the locating pin hole faces up.
Figure 9 (continued)

12

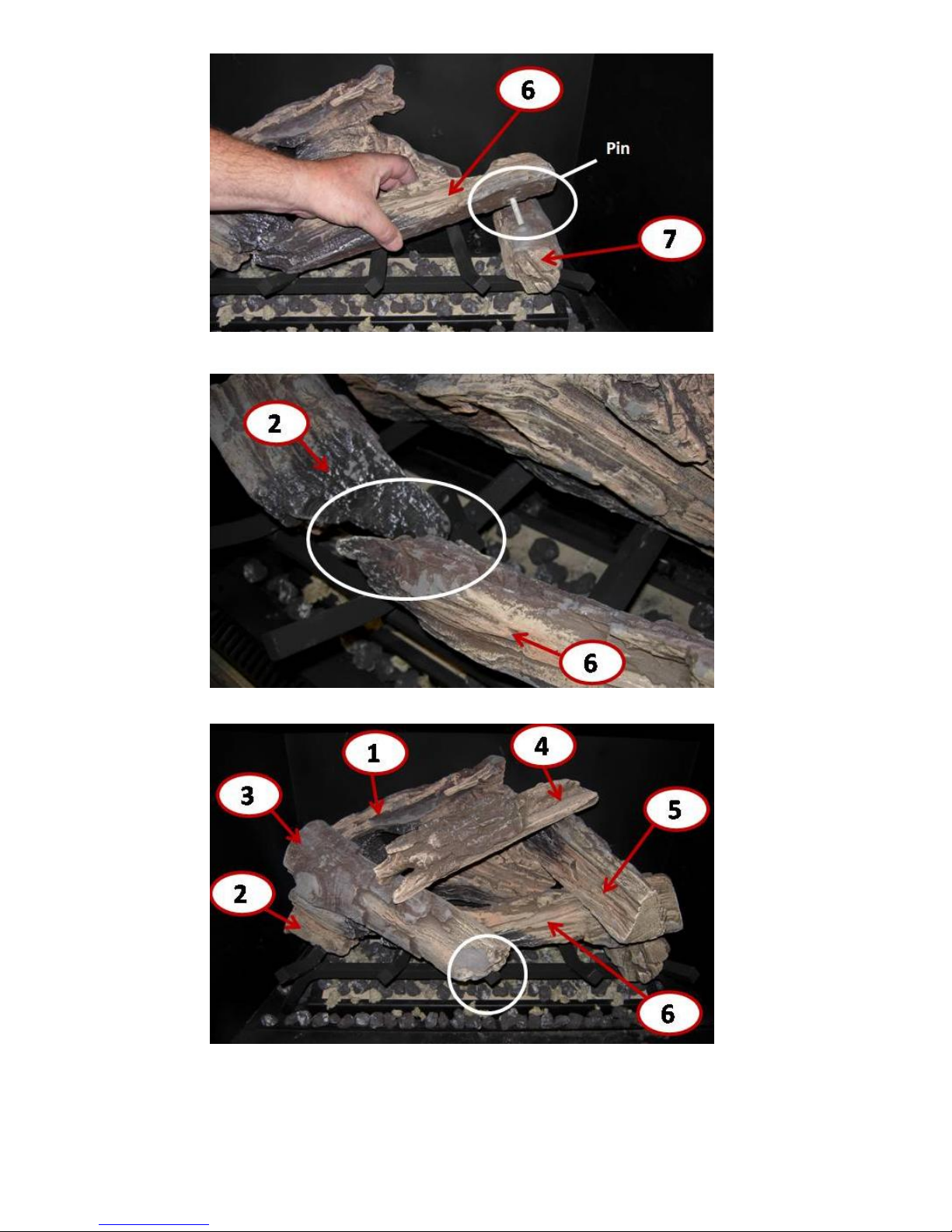

Insert the pin of log # 6 into the locating hole of log # 7.
Position pinned log # 6 so that its left end is in contact with the right end of log # 2.
Log # 3 rests on log #2, with its right end against the grate bar, as shown in the circled area. Log # 5 rests
in the notches on the tops of logs # 6 and # 1. Log # 4 lays across logs # 5 and # 3.

13
OPERATING INSTRUCTIONS
LIGHTING
1. Grab the damper of the X-62 with the damper hook. Pull the damper forward until it slides over the latch at
the front of the unit (see Fig. 11). NOTE: The appliance will not light unless the damper is pulled all the
way forward—the pilot will spark for 60 seconds and then will shut off.
FIGURE 11
2. Press the ―ON‖ button of the remote. DO NOT tap and release the button quickly, but hold it down firmly
until the X-62 lights. The appliance should light almost immediately, and the button can be released.
NOTE: Never turn the burner on or off quickly—always allow the X-62 to burn at least 60 seconds before turning it
off, and to rest at least 60 seconds before turning it on.
CAUTION: THE BURNER SHOULD LIGHT ALMOST IMMEDIATELY AFTER PRESSING THE ―ON‖ BUTTON OF THE REMOTE
CONTROL. IF THE BURNER DOES NOT LIGHT PROMPTLY, IMMEDIATELY RELEASE THE BUTTON. WAIT AT LEAST 60
SECONDS, AND TRY AGAIN. IF THE BURNER DOES NOT LIGHT PROMPTLY AFTER THE SECOND TRY, REPLACE THE
BATTERIES IN THE REMOTE, AND TRY ONCE MORE. IF THE BURNER STILL FAILS TO LIGHT PROMPTLY, CALL YOUR
LOCAL MENDOTA DEALER.
OPERATION
The X-62 will burn continuously until it is turned off. Press the ―HI‖ button on the remote to operate the appliance
with maximum flame and heat. Press the ―LOW‖ button on the remote to operate the appliance with minimum
flame and heat.
BLOWER OPERATION
To increase its heating capacity, the X-62 is equipped with a dual blower system. To increase the heating
capacity. Provided that the rheostat is turned ―ON‖, the blower operates automatically when the appliance is
burning. NOTE: After the appliance is turned on, it must heat up for approximately 15 minutes before the blower
comes on. Similarly, after the appliance is turned off, the blower will run for a cool-down period lasting
approximately 10 minutes. These times could be longer if the optional firebrick was installed.
The blower speed can be adjusted high/low or on/off as desired (see Fig. 5). First remove the firescreen. To turn
the blower on, turn the rheostat knob clockwise until it clicks. The speed of the blower can be adjusted higher (by
turning the rheostat knob clockwise) or lower (by turning the rheostat knob counterclockwise). To turn the blower
off, turn the rheostat knob counterclockwise until it clicks. NOTE: It is not necessary to turn the blower off
manually when the fireplace is turned off; the blower will shut off automatically after about 10 minutes. Replace
the firescreen after adjusting the blower.

14
HEATING PERFORMANCE
NOTE: The X-62 is a decorative gas appliance. It has been designed as a source of supplemental heat only.
It should not take the place of, or be used as, a whole-house heating system. NEVER overfire by
increasing the BTUH above the nameplate specifications.
To maximize heat circulation, provide the appliance with good air movement by using ceiling fans, through-the-wall
grills, floor grills, or the blowers of your central heating and cooling system.
The best means of heat distribution is a ceiling fan. We recommend the use of a ceiling fan for anyone who
wishes to utilize the heat of the X-62 most efficiently. CAUTION: Make sure that the ceiling fan does not blow air
directly onto the flames. Disturbing the flames can lead to sooting.
In warm weather, or whenever a log fire is desired but warmth is not, the flame of the X-62 can be reduced to
approximately 33,600 BTUH by pressing the ―LOW‖ button on the remote (to turn down the flame), and by turning
the rheostat knob on the front of the unit counterclockwise to the ―OFF‖ position (to turn off the blower).
SHUT DOWN PROCEDURE
Press the ―OFF‖ button on the remote control, and hold it briefly until the flame shuts off. If the blower was turned
on, it will remain running for a 5-minute cool-down period, and then will shut off automatically. Grab the damper
with the damper hook. (See Fig.7.) Lift the damper up off the latch at the front of the unit, and slide the damper
back into the unit as far as it will go. NOTE: The damper may be left in the open position unless cold downdarfts
are a problem, in which case the damper should be closed.
TROUBLESHOOTING THE X-62 GAS LOG INSERT
SYMPTOM
PROBABLE CAUSES
CORRECTIVE ACTION
1. The appliance fails to light.
A. The remote is too far from
the receiver.
B. The gas supply is turned off.
C. The batteries in the remote
and/or receiver need
replacing.
D. The remote needs to be
synchronized with the
receiver.
E. The pilot assembly is dirty.
F. Any other cause.
A. Make certain that the remote is within the 20-foot operational
range.
B. Turn on the gas supply to the appliance.
C. Replace the batteries in the remote and/or receiver. To change
the batteries in the receiver, take off the front vent plate by
removing the 2 screws that hold it to the firebox floor. Pull the
battery box, which is held down by Velcro, out of the unit (see
Fig.12). Slide the cover open, and replace the batteries—make
certain that they are installed in the proper direction. Close the
cover, stick the receiver to the Velcro pad, and replace the front
vent plate.
D. Take off the front vent plate by removing the 2 screws that hold it
to the firebox floor. Using a small screwdriver or other pointed
device, press the button on the receiver and HOLD IT IN (see
Fig. 13). Press the ON button of the remote—the pilot will spark
when the remote is synchronized. Replace the front vent plate.
E. Clean the pilot assembly with compressed air, available at most
electronics stores, to remove any dust or debris that has clogged
the pilot opening.
F. Call your Mendota dealer.
2. A thin black coating of soot
forms on the firescreen.
A. Incorrect gas pressure.
B. Not enough combustion air.
A. Have your gas supplier check for the correct gas pressure [7"
W.C. Nat.Gas; 11" W.C. LP Gas].
B. Open the air shutter on the burner [see "INSTALLATION
INSTRUCTIONS" step 18 b]. If sooting still continues, turn off
the unit and call your Mendota dealer.
3. Humming or whistling comes
from the appliance.
A. Normal operating noise.
A. Some noise is normal. It is caused by the gas supply flowing
through the gas orifice, and is to be expected from any gas
fireplace. The noise can be reduced operating the appliance on
its ―LOW‖ setting, though this will reduce the amount of flames
and therefore the heat output.

15
4. The appearance of the flame
or the operation of the burner
changes.
A. A change in gas pressure.
B. The burner, pilot, air shutter,
and logs need cleaning.
A. Have your gas supplier check for the correct gas pressure [7"
W.C. Nat.Gas; 11" W.C. LP Gas]. If the flame still is not right,
adjust the air shutter on the burner [see "INSTALLATION
INSTRUCTIONS" step 18 b].
B. Clean out carbon, dust, spider webs, lint, pet hair, etc. from these
areas.
FIGURE 12
FIGURE 13
MAINTENANCE
MAINTENANCE OF THE X-62 GAS LOG INSERT IS REQUIRED ANNUALLY.
We recommend that the following procedures be performed every year by your Mendota dealer:
1. Inspect and clean the control valve and burner: Check the condition of the wiring for melting or damage
from rodents. Clean all foreign matter from around the control valve and the air shutter on the venturi. Use a
brush or wire to clean the inlet of the venturi. Clean foreign matter and carbon deposits from the burner pan
and burner tiles. Check to see that the burner tiles are still porous.
2. Inspect and clean the pilot: Clean away any carbon deposits. Check the appearance of the pilot flame.
3. Inspect the gaskets: All gaskets must be tight. Replace them, if necessary.
4. Inspect the exhaust opening and the front vent plate: Make sure both areas are free from foreign matter
and other obstructions. Never block these openings.
5. Check the operation of the system: Cycle the burner on and off according to the procedure listed in
INSTALLATION INSTRUCTION step 17. Reposition the logs and the coals, if necessary.
6. Inspect the chimney: Check that chimney flue and outlet are open and free of blockage.
In addition, the homeowner periodically should dust the firescreen. The glass of any accessories may be cleaned
with standard glass cleaner, as needed.

16
REPLACEMENT PARTS
X-62 GAS LOG INSERT
WARNING: Use only authorized parts and materials obtained from Johnson Gas Appliance when
replacing any defective or damaged parts. DO NOT substitute parts and materials obtained from
other manufacturers.
PART NUMBER
ITEM
35-01-00486
LOG SET
35-01-00240
COALS
HA-74-00028
VALVE ASSEMBLY
05-02-00331
VALVE
05-02-00330
VALVE SOLENOID
HA-74-00003
BURNER ASSEMBLY
05-04-00045
PILOT ASSEMBLY
65-14-00025
NATURAL GAS ORIFICE (# 25)
65-14-00043
L.P. GAS ORIFICE (# 43)
15-02-00068
BLOWER ASSEMBLY
10-01-00047
RHEOSTAT KNOB
HA-74-00053
DAMPER SWITCH ASSEMBLY
65-06-01183
REMOTE CONTROL
HA-74-00042
BRICK CLIP (optional)
AA-11-00927
CLINKER STYLE BRICK KIT (optional)
AA-11-00944
RAPIDS ROCK STYLE BRICK KIT (optional)
AA-11-00945
FIRED BRICK STYLE BRICK KIT (optional)

17
OPTIONAL BRICK PANEL INSTALLATION INSTRUCTIONS
for use with
Mendota X-62 Gas Log Insert
PARTS LIST
ITEM
QTY
DESCRIPTION
1
1
REAR BRICK PANEL (Optional —Shipped separately)
2
1
LEFT BRICK PANEL (Optional —Shipped separately)
3
1
RIGHT BRICK PANEL (Optional —Shipped separately)
4
2
BRICK CLIPS (Shipped with the X-62)
5
4
#8 x ½” HEX HEAD SLOTTED MACHINE SCREW (Shipped with the X-62)
NOTE: Brick panels are optional with the X-62 and must be ordered separately.
CAUTION: The brick panels are fragile. Handle them with care.
Installation Instructions
1. Remove the fire screen of the X-62 Gas Log Insert. See the Owner’s Manual for instructions. Also remove the grate and
the logs, if they were installed previously.
2. Remove the four screws (ITEM 5) that are located in the top of the firebox of the X-62. Set them aside for later. See
FIGURE 1.
3. Carefully unwrap the brick panels. Set the rear brick panel (ITEM 1) in place in the back of the firebox —the cutout in
the bottom center of the panel must straddle the ledge in the back of the firebox, and the brick pattern must face forward.
NOTE: The rear brick panel is held in place by the left and right brick panels. DO NOT let the rear panel fall forward
before the side panels are installed, or the rear panel might be damaged. See FIGURE 2.
4. Set the left brick panel (ITEM 2) in place against the left side of the firebox —the rounded edge of the panel must face
forward, and the brick pattern must face outward. CAUTION: The panel fits tightly in the side of the firebox —work it
in very carefully, or the panel might be damaged (take special care of the upper outside corner). To secure the panel in
place, screw one of the brick clips (ITEM 4) to the top of the firebox using two of the screws removed in step 2. See
FIGURE 2.
5. Set the right brick panel (ITEM 3) in place against the right side of the firebox. Follow the instructions given in step 4
above.
6. Replace the grate, the logs, and the fire screen. See the Owner’s Manual for instructions. DO NOT operate the X-62
without the fire screen in place.
REM OVE THESE 4 SCR EW S (ITEM 5)
SCREW BRICK C LIPS H ER E (STEPS 4 & 5)
LO OKING UP INTO THE FIREBO X
FIGURE 1
44
1
23
555
5
FIGURE 2

18
NOTES:

19
MENDOTA WARRANTY QUALIFICATION & SERVICE REFERENCE FORM
As a part of Mendota's on-going program of customer satisfaction, this Form is used to verify proper installation
and operation. It is important as a reference for future service, it insures long life and trouble-free operation of the
Mendota product, and it qualifies the owner for Mendota’s warranty. The owner should sign this Form when it is
completed, and mail a copy, along with the Warranty Registration, to Mendota.
MODEL X-62 GAS LOG INSERT
HOME OWNER: _______________________________ DEALER: _______________________________________
ADDRESS:___________________________________ ADDRESS:_____________________________________ _
CITY/STATE/ZIP:_____________________________ _ CITY/STATE/ZIP:_________________________________ _
SIGNATURE: _________________________________ _ PHONE:_________________________________________
SERIAL #:___________________________________ DATE INSTALLED:_________________________________ _
REF: X-62 INSTALLATION MANUAL
THE EXISTING FIREPLACE & CHIMNEY MEET ALL OF THE REQUIREMENTS (see page 5).
THE GAS SUPPLY MEETS ALL OF THE REQUIREMENTS (see page 6).
MODIFY OR REMOVE THE DAMPER TO ATTAIN THE MINIMUM OPENING (see page 7).
CONNECT THE APPLIANCE TO THE GAS LINE & CHECK FOR GAS LEAKS (see page 7).
CHECK FOR THE CORRECT GAS PRESSURE AT THE MANIFOLD (see page 7).
a. 3.5 Inches Water Column Maximum —Natural Gas
b. 11 Inches Water Column Maximum —L.P. Gas
INSTALL LOGS AND COALS, AND ADJUST THE FLAME (see page 8).
CYCLE BURNER ON & OFF TO DETERMINE THAT IT LIGHTS IMMEDIATELY (see page 8).
FINAL ADJUSTMENT OF FLAME WITH THE AIR SHUTTER (see page 8).
BRIEF THE OWNER ON OPERATING & MAINTAINING THE APPLIANCE (see pages 9 & 10).
□Lighting, High/Low, Shut down □ Burner operation (& blower delays) □ Maintenance
OWNER’S SIGNATURE:________________________________________ DATE_______________________ _
Cutout this entire page and mail to: Johnson Gas Appliance Co.
520 E Avenue N.W.
Cedar Rapids, IA 52405-9904
Or register online at: WWW.JOHNSONGAS.COM

20
