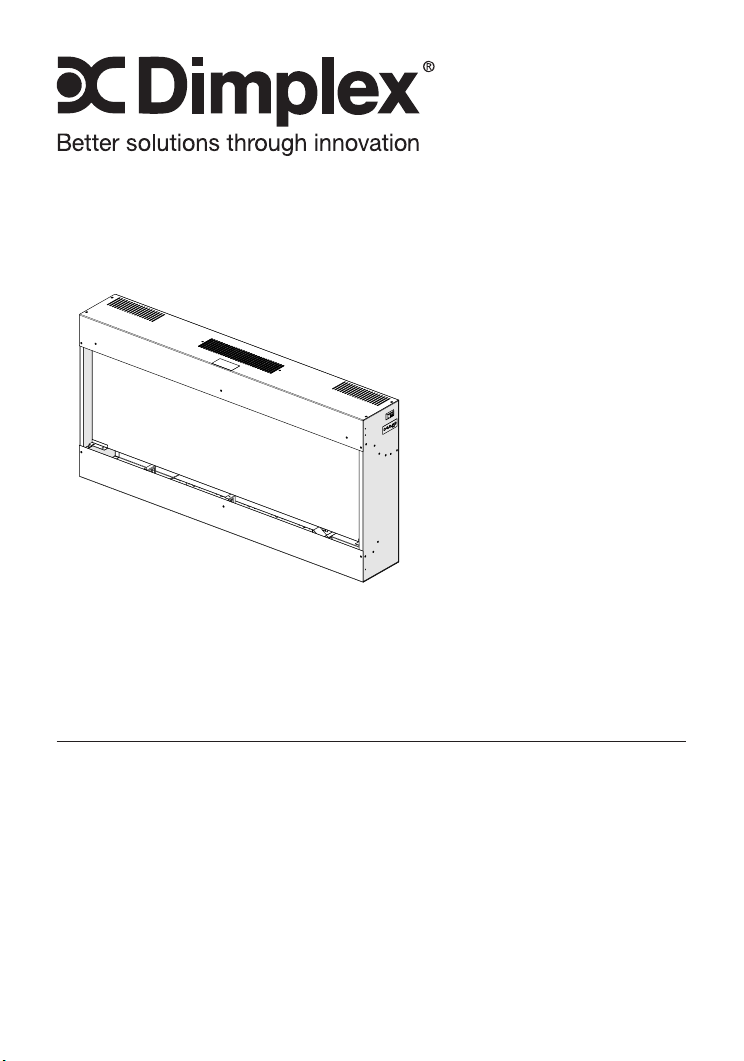

Dimplex DF1136L User manual

Owner’s Manual
Model
DF1135M
DF1136L
7212270100R04
IMPORTANT SAFETY INFORMATION: Always read this manual rst
before attempting to install or use this replace. For your safety, always
comply with all warnings and safety instructions contained in this manual
to prevent personal injury or property damage.
To view the full line of Dimplex products, please visit
www.dimplex.com

2 www.dimplex.com
Table of Contents
Always use a qualied technician
or service agency to repair
this replace.
!NOTE: Procedures and
techniques that are considered
important enough to
emphasize.
CAUTION: Procedures and
techniques which, if not
carefully followed, will result in
damage to the equipment.
WARNING: Procedures
and techniques which, if not
carefully followed, will expose
the user to the risk of re,
serious injury, or death.
Welcome & Congratulations .................3
IMPORTANT INSTRUCTIONS ............... 4
Quick Reference Guide .....................7
Fireplace Installation ......................7
Operation ...............................12
Maintenance ............................16
Warranty ...............................17
Replacement Parts .......................19

3
Welcome & Congratulations
Thank you and congratulations for choosing to purchase an electric
replace from Dimplex, the world leader in electric replaces.
Please carefully read and save these instructions.
CAUTION: Read all instructions and warnings carefully before
starting installation. Failure to follow these instructions may result in
a possible electric shock, re hazard and will void the warranty.
Please record your model and serial numbers below for future
reference: model and serial numbers can be found on the Model and
Serial Number Label of your replace.
NO NEED TO RETURN TO THE STORE
Questions with operation or assembly? Require Parts Information?
Product Under Manufacturer’s Warranty?
Contact us at: www.dimplex.com/customer_support
For Troubleshooting and Technical Support
OR Toll-Free 1-888-DIMPLEX (1-888-346-7539)
Monday to Friday 8:00 a.m. to 4:30 p.m. EST
Please have your model number and product serial
number ready. (See above)
Serial Number Label
Model Number

4 www.dimplex.com
When using electrical appliances,
basic precautions should always
be followed to reduce the risk of
fire, electric shock, and injury to
persons, including the following:
① Read all instructions before
using the electric replace.
② This replace is hot when in
use. To avoid burns, do not let
bare skin touch hot surfaces.
The trim around the heater outlet
becomes hot during heater
operation.
③ Extreme caution is necessary
when any heater is used by or
near children or invalids and
whenever the unit is left operating
and unattended.
④ Always unplug the fireplace
when not in use.
⑤ Young children should be
supervised to ensure that they do
not play with the appliance.
⑥ The appliance is not intended
for use by young children
or inrmed persons without
supervision.
⑦ If the supply cord is damaged,
it must be replaced by the
manufacturer, or its service agent,
or a qualied person in order to
avoid a hazard.
IMPORTANT INSTRUCTIONS
⑧ Do not operate any unit with
a damaged cord or plug, or if
the heater has malfunctioned,
or if the electric replace has
been dropped or damaged in
any manner, contact Dimplex
Technical Service at
1-888-346-7539.
⑨Do not use outdoors.
⑩ This fireplace is not intended
for use in bathrooms, laundry
areas and similar indoor locations.
Never locate heater where it may
fall into a bathtub or other water
container.
⑪ High temperature, keep
electrical cords, drapery, and
other furnishings at least 3 ft
(0.9m) from the front of the heater
and away from the side and rear.
⑫ Do not run the cord under
carpeting. Do not cover cord with
throw rugs, runners, or the like.
Arrange cord away from trafc
area and where it will not be
tripped over.
⑬ Do not locate the unit
directly below a xed electrical
convenience outlet.
⑭ To disconnect the replace,
turn the controls off, then remove
the plug from the outlet.

5
SAVE THESE INSTRUCTIONS
⑮ Do not insert or allow foreign
objects to enter any ventilation
or exhaust opening as this may
cause an electric shock or re, or
damage to the heater.
⑯ Do not block air intake or
exhaust in any manner. Do not
use on soft surfaces, like a bed,
where openings may become
blocked.
⑰ All electrical heaters have
hot and arcing or sparking parts
inside. Do not use in areas where
gasoline, paint, or ammable
liquids are used or stored or
where the unit will be exposed to
ammable vapors.
⑱ Do not modify the electric
replace. Use it only as described
in this manual. Any other use
not recommended by the
manufacturer may cause re,
electric shock or injury to persons.
⑲ Always plug heaters directly
into a wall outlet/receptacle.
Never use with an extension cord
or relocatable power tap (outlet/
power strip).
⑳ Do not burn wood or other
materials in the electric replace.
㉑ Do not strike the replace
glass.
㉒Always use a certied
electrician should new circuits or
outlets be required.
㉓ Always use properly grounded,
fused and polarized outlets.
㉔ Disconnect all power supply
before performing any cleaning,
maintenance or relocation of the
unit.
㉕When transporting or storing
the unit and cord, keep in a
dry place, free from excessive
vibration and store so as to avoid
damage.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
NO USER-SERVICABLE PARTS INSIDE
IMPORTANT INSTRUCTIONS

6 www.dimplex.com
!NOTE: This equipment has been
tested and found to comply with
the limits for Class B digital device,
pursuant to part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses and
can radiate radio frequency energy
and, if not installed and used in
accordance with the instructions, may
cause harmful interference to radio
or television reception, which can be
determined by turning the equipment
off and on, the user is encouraged to
try to correct the interference by one or
more of the following measures:
· Increase the separation between
the equipment and the receiver.
· Connect the equipment into an
outlet on a circuit different from that
to which the receiver is connected.
· Consult the dealer or an
experienced radio/TV technician for
help.
Operation is subject to the following
two conditions: (1) this device may not
cause interference and (2) this device
must accept any interference, including
interference that may cause undesired
operation of the device.
IMPORTANT INSTRUCTIONS
WARNING: Remote control
contains small batteries. Keep away
from children. If swallowed, seek
medical attention immediately.
WARNING: Do not install battery
backwards, charge, put in re or mix
with used or other battery types - may
explode or leak causing injury.
!NOTE: Changes or modications
not expressly approved by the party
responsible for compliance could
void user's authority to operate the
equipment.

7
Quick Reference Guide
1. Before using the fireplace
verify the circuit breakers for
the unit on.
2. If you have any technical
questions or concerns
regarding the operation
of your electric fireplace,
or require service contact
customer service.
3. The heater may emit a slight,
harmless odor when first
used. This odor is a normal
condition caused by the initial
heating of internal heater
parts.
Site Selection
The unit is packaged with two
types of mounting options:
• Wall mounting, Surface
• Pedestal
!NOTE: A 15 Amp, 120
Volt circuit is required. A
dedicated circuit is preferred
but not essential in all cases.
A dedicated circuit will be
required if, after installation,
the circuit breaker trips or the
fuse blows on a regular basis
when the heater is operating.
Additional appliances on the
same circuit may exceed the
current rating of the circuit
breaker.
Fireplace Installation
WARNING: Ensure the power
cord is not installed so that
it is pinched or against a
sharp edge and ensure that
the power cord is stored or
secured to avoid tripping or
snagging to reduce the risk of
re, electric shock or injury to
persons.
Construction and electrical
outlet wiring must comply
with local building codes and
other applicable regulations to
reduce the risk of re, electric
shock and injury to persons.
Do not attempt to wire your
own new outlets or circuits. To
reduce the risk of re, electric

8 www.dimplex.com
Fireplace Installation
shock or injury to persons,
always use a licensed
electrician.
WARNING: The supplied
mounting components are
designed for use with Dimplex
replaces only. Improper use,
or use for purposes other than
intended, may cause damage
or injury.
Wall Mounting Instructions
WARNING: Failure to install
the replace as instructed
below may result in damage
to the equipment and or may
expose the user to the risk of
re, serious injury, illness or
death.
WARNING: The replace
requires the wall mounting
bracket screws to be installed
into a minimum of two wall
studs (Figure 1).
Tools Required
• #2 Phillips screwdriver
• Pencil
• Slot screwdriver
• Bubble level (supplied)
• Drill, and drill bits as required
Approximate time: 30 minutes
for installation
1. Select an appropriate location
to mount the unit on a wall,
above an electrical outlet.
Access to the electrical outlet
must be maintained. Ensure
the installation meets the
national and state/provincial
electrical codes.
!NOTE: It is recommended
that the bottom of the unit
not be mounted higher than
1020mm (40") from the
Fireplace Installation ground
to maintain an optimized
viewing angle of the ame.
Figure 1
Figure 2
610 mm (24")
MINIMUM
1020 mm (40")
RECOMMENDED

9
be installed in the appropriate
wall locations to fasten the wall
bracket through the remaining
holes. (Figure 2) For example, if
you plan to secure the bracket to
studs through holes A&D, install
anchors centered on holes B and
C.
3. Hold the wall-mounting
bracket on the wall and mark
the location of ONE (1) of the
mounting holes.
4. Place the bubble level onto
the top of the wall-mounting
bracket.
5. Adjust the wall-mounting
bracket so the bubble on the
level is centered between the
two black lines.
6. Mark three (3) other mounting
screw locations, on the wall,
ensuring that the wall bracket
stays level.
7. Install the supplied wall
anchors on the drywall
marked locations by placing
a #2 Phillips screwdriver into
the recess of the anchor.
8. Press the anchor into the wall
in the desired marked position
while turning the anchor
clockwise until it is ush with
the wall.
CAUTION: Ensure that the
top of the unit is at least
610mm (24") from the ceiling
or any object (i.e. Electrical
receptacles) that may obstruct
or be susceptible the ow or
temperature of air out of the
unit.
CAUTION: High temperature,
keep electrical cords, drapery,
and other furnishings at least
3 ft (0.9m) from the front of the
heater and away from the side
and rear.
2. The wall-mounting bracket
must be mounted to at
least two (2) wall studs.
Studs should be accessed
through two (2) wall-bracket
holes in one of the following
combinations: A&F, B&D, or
C&E (Figure 1).
!NOTE: Wall anchors must
Fireplace Installation
Wall anchor
Screw
Wall
bracket
Figure 3

10 www.dimplex.com
Fireplace Installation
Media Tray
Figure 6
9. Insert the wall anchor screws
through the wall bracket and
thread into the wall anchors.
Tighten the screw (Figure 3).
10. Install the remaining screws
through the bracket and into
the wall studs as required.
!NOTE: At least two of
the mounting screws must be
installed into a wall stud.
11. Remove the two (2) cover
plates from the wall mounting
slots in the back of the
rebox. (Figure 4)
12. Mount the unit on the wall,
so that the tabs on the wall
bracket have been inserted
into the slots on the back of
the rebox. (Figure 5)
13. Mount hardware for frame in-
stallation to unit as described
in installation guide provided
with frame.
14. Carefully pour and evenly dis-
tribute the supplied media in
the Media tray of the rebox
(Figure 6).
15. Hang the frame assembly on
the mounting hardware of the
rebox and secure by follow-
ing the instructions included
with frame.
16. Excess electrical cord can be
inserted back into the bottom
of the unit, into the cord
storage area.
Figure 4
Figure 5
Cover Plates

11
Pedestal Installation
Instructions
WARNING: Failure to install
the replace as instructed
below may result in damage
to the equipment and or may
expose the user to the risk of
re, serious injury, illness or
death.
CAUTION: High temperature,
keep electrical cords, drapery,
and other furnishings at least
3 ft (0.9m) from the front of the
heater and away from the side
and rear.
Tools Required
• #2 Phillips screwdriver
1. Carefully lay the replace
down on its front.
!NOTE: If necessary, lay a
protective barrier between the front
glass and your work surface, (i.e.
cloth, cardboard, thick plastic) to
avoid scratching the glass or your
work surface.
2. Assemble the pedestal by
attaching the vertical supports
and rebox support (if appli-
cable) to the base. (Figure 7)
3. Position the pedestal on the
back of the rebox so that
it lines up with the provided
Fireplace Installation
Figure 8
Pedestal
Figure 7
Base
Vertical
Supports
mounting holes.
4. Secure the pedestal to the
rebox with the provided
screws. (Figure 8)
5. Orient the rebox so that it is
standing upright.
6. Mount hardware for trim in-
stallation to unit as described
in installation guide provided
with trim.
7. Carefully pour and evenly dis-
Firebox
Support

12 www.dimplex.com
Operation
Figure 9
C
A
B
The manual controls for the
electric replace are located on
the right end of the unit (Figure 9).
A. On/Off Switch
The On/Off Switch supplies power
to all replace functions. When
the switch is in the “I” position,
the unit is on. When in the “O”
position, the replace is off.
B. 3-Position Switch
The 3-Position Switch changes
the mode the replace operates
in and has three (3) positions:
“MANUAL”; “OFF”; and
“REMOTE”.
When in “REMOTE” mode,
the replace's three levels of
operation are controlled by the
ON and OFF buttons of the
remote control.
In “OFF” mode, power to all
functions is cut off.
In “MANUAL” mode, the
replace's three levels of
operation are controlled by the
Manual Control Buttons.
tribute the supplied media in
the Media tray of the rebox
(Figure 6).
8. Hang the frame assembly on
the mounting hardware of the
rebox and secure by follow-
ing the instructions included
with frame.
Fireplace Installation
9. Excess electrical cord can be
inserted back into the bottom
of the unit, into the cord
storage area.

13
Operation
Figure 10
Off Button
On
Button
Battery
Cover
Plastic
Strip
C. Manual Control Buttons
The Manual Control Buttons
operate the replace levels
sequentially (from off): ames
only; to ames and low heat; to
ames and high heat.
The level is increased every time
the “I” button is pressed, and the
replace can be turned off at any
point by pressing the “O” button.
Resetting The
Temperature Cutoff
Switch
Should the heater overheat, an
automatic switch will turn the
heater off and it will not come
back on without being reset.
The temperature cutoff switch
can be reset by unplugging the
unit, waiting ve (5) minutes and
plugging the unit back in.
CAUTION: If you need to
continuously reset the heater,
unplug the unit and call
Dimplex customer service at
1-888-DIMPLEX
(1-888-346-7539).
Remote Control
The replace is supplied with a
radio frequency remote control.
This remote control has a range
of approximately 50 feet (15.25
m), it does not have to be pointed
at the replace and can pass
through most obstacles (including
walls). It is supplied with one
of hundreds of independent
frequencies to prevent
interference with other units.
Remote Control Usage
The remote control operates the
replace levels sequentially (from
off): ames only; to ames and
low heat; to ames and high heat.
The level is increased every time
the ON button is pressed on the
remote control and the replace
can be turned off at any point by
pressing the OFF button.
!NOTE: Before attempting any
operation with the remote, pull
the plastic insulator strip out from
between the remote casing and

14 www.dimplex.com
battery cover (Figure 10).
Remote Control Initialization/
Reprogramming
If the remote control or remote
control receiver has been
replaced, follow these steps to
initialize the remote control and
receiver:
1. Ensure that power is supplied
through the main service
panel.
2. Turn On/Off Switch to “ I”
(Figure 9A).
3. Move the 3-Position Switch
to the “ REMOTE ” position
(Figure 9B).
4. Press and hold the Manual
Control Button marked “ I ” for
ve (5) seconds (Figure 9C).
After ve (5) seconds, there is
a 10 second window to press
any button on the remote
control.
5. Press any button on the
remote control within that 10
seconds.
This will synchronize the remote
control and receiver.
!NOTE: You will have only 10
seconds to perform this last step.
Failure to do so will result in these
steps needing to be followed
Operation
again.
Battery Replacement
To replace the battery:
1. Slide battery cover open on
the remote control (Figure
10).
2. Install one (1) 12-Volt (A23)
battery in the battery holder.
3. Close the battery cover.
Battery must be recycled
or disposed of properly.
Check with your Local
Authority or Retailer for recycling
advice in your area.

15
Maintenance
 WARNING: Disconnect
power before attempting any
maintenance or cleaning to
reduce the risk of re, electric
shock or damage to persons.
Partially Reective Glass
Cleaning
The Partially Reective Glass
is cleaned in the factory during
the assembly operation. During
shipment, installation, handling,
etc., the Partially Reective Glass
may collect dust particles; these
can be removed by dusting lightly
with a clean dry cloth.
To remove ngerprints or other
marks, the Partially Reective
Glass can be cleaned with
a damp cloth. The Partially
Reective Glass should be
completely dried with a lint free
cloth to prevent water spots.
To prevent scratching, do not use
abrasive cleaners.
Fireplace Surface
Cleaning
Use only a damp cloth to clean
painted surfaces of the replace.
Do not use abrasive cleaners.
Servicing
Except for installation and
cleaning described in this
manual, an authorized service
representative should perform
any other servicing.

16 www.dimplex.com
Products to which this limited warranty
applies
This limited warranty applies to the
following models of your newly purchased
Dimplex electric replace, DF1135M or
DF1136L. This limited warranty applies
only to purchases made in any province
of Canada except for Yukon Territory,
Nunavut, or Northwest Territories or in
any of the 50 States of the USA (and the
District of Columbia) except for Hawaii and
Alaska. This limited warranty applies to
the original purchaser of the product only
and is not transferable.
Products excluded from this limited
warranty
Products purchased in Yukon Territory,
Nunavut, Northwest Territories, Hawaii,
or Alaska are not covered by this limited
warranty. Products purchased in these
States, provinces, or territories are sold
AS IS without warranty or condition of
any kind (including, without limitation,
any implied warranties or conditions of
merchantability or tness for a particular
purpose) and the entire risk of as to the
quality and performance of the products is
with the purchaser, and in the event of a
defect the purchaser assumes the entire
cost of all necessary servicing or repair.
What this limited warranty covers and for
how long
Products covered by this limited warranty
have been tested and inspected prior to
shipment and, subject to the provisions
of this warranty, Dimplex warrants such
products to be free from defects in
material and workmanship for a period of
1 year from the date of the rst purchase
of such products.
The limited 1 year warranty period also
applies to any implied warranties that
may exist under applicable law. Some
jurisdictions do not allow limitations on
how long an implied warranty lasts, so
the above limitation may not apply to the
purchaser.
What this limited warranty does not cover
This limited warranty does not apply to
products that have been repaired (except
by Dimplex or its authorized service
representatives) or otherwise altered. This
limited warranty does further not apply
to defects resulting from misuse, abuse,
accident, neglect, incorrect installation,
improper maintenance or handling, or
operation with an incorrect power source.
What you must do to get service under
this limited warranty
Defects must be brought to the attention of
Dimplex Technical Service by contacting
Dimplex at 1-888-DIMPLEX (1-888-
346-7539), or 1367 Industrial Road,
Cambridge Ontario, Canada N1R 7G8.
Please have proof of purchase, catalogue/
model and serial numbers available when
calling. Limited warranty service requires a
proof of purchase of the product.
What Dimplex will do in the event of a
defect?
In the event a product or part covered
by this limited warranty is proven to be
defective in material or workmanship
during the 1 year limited warranty period
you have the following rights:
• Dimplex will in its sole discretion
either repair or replace such defective
product or part without charge. If
Dimplex is unable to repair or replace
such product or part, or if repair or
Warranty

17
replacement is not commercially
practicable or cannot be timely made,
Dimplex may, in lieu of repair or
replacement, choose to refund the
purchase price for such product or
part.
• Limited warranty service will be
performed solely by dealers or service
agents of Dimplex authorized to
provide limited warranty services.
• Dimplex will not be responsible for,
and the limited warranty services shall
not include, any expense incurred for
installation or removal of the product
or part (or any replacement product or
part) or any labour or transportation
costs. Such costs shall be the
purchaser’s responsibility.
What Dimplex and its dealers and service
agents are also not responsible for:
IN NO EVENT WILL DIMPLEX, OR ITS
DIRECTORS, OFFICERS, OR AGENTS,
BE LIABLE TO the PURCHASER OR
ANY THIRD PARTY, WHETHER IN
CONTRACT, IN TORT, OR ON ANY
OTHER BASIS, FOR ANY INDIRECT,
SPECIAL, PUNITIVE, EXEMPLARY,
CONSEQUENTIAL, OR INCIDENTAL
LOSS, COST, OR DAMAGE ARISING
OUT OF OR IN CONNECTION WITH
THE SALE, MAINTENANCE, USE, OR
INABILITY TO USE THE PRODUCT,
EVEN IF DIMPLEX OR ITS DIRECTORS,
OFFICERS, OR AGENTS HAVE BEEN
ADVISED OF THE POSSIBILITY OF
SUCH LOSSES, COSTS OR DAMAGES,
OR IF SUCH LOSSES, COSTS, OR
DAMAGES ARE FORESEEABLE. IN
NO EVENT WILL DIMPLEX, OR ITS
OFFICERS, DIRECTORS, OR AGENTS
BE LIABLE FOR ANY DIRECT LOSSES,
COSTS, OR DAMAGES THAT EXCEED
THE PURCHASE PRICE OF THE
PRODUCT.
SOME JURISDICTIONS DO NOT ALLOW
THE EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL
DAMAGES, SO THE ABOVE LIMITATION
OR EXCLUSION MAY NOT APPLY TO
THE PURCHASER.
How State and Provincial law apply
This limited warranty gives you specic
legal rights, and you may also have other
rights which vary from jurisdiction to
jurisdiction. The provisions of the United
Nations Convention on Contracts for
the Sale of Goods shall not apply to this
limited warranty or the sale of products
covered by this limited warranty.
Warranty

18 www.dimplex.com
Replacement Parts
Heater Assembly (with Cutout) .........................9600560100RP
Power Cord ........................................4100010800RP
Flicker Motor .......................................2000210500RP
Flicker Rod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5901070200RP
On/Off Switch ......................................2800070700RP
Remote Switchboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3000820300RP
Remote Control Receiver .............................3000820100RP
Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3000370900RP
Mounting Hardware Kit ...............................9600350100RP
Mounting Bracket. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1017130259RP
Pedestal - Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112440010FRP
Pedestal - Vertical Supports ...........................1025260159RP
DF1135
Partially Reective Glass . . . . . . . . . . . . . . . . . . . . . . . . . . . 5902420100RP
Flame Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5902400100RP
LED Light Assembly ..............................3000830100RP
LED Driver Board. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3000810200RP
Media Tray ......................................5902430100RP
DF1136
Partially Reective Glass ..........................5902420200RP
Flame Panel ....................................5902460100RP
LED Light Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3000830102RP
LED Driver Board ...................................3000810100RP
Media Tray ......................................5902430200RP
© 2013 Dimplex North America Limited
Dimplex North America Limited
1367 Industrial Road
Cambridge ON
Canada N1R 7G8
