Mercatus 18814 User manual
Item:
18814
10/201
4
MERCATUS Rickers & Timmermann GmbH
Rahlstedter Bahnhofstr. 17, 22143 Hamburg, Germany
Assembly Instruction and Manual
MERCATUS BBQ-Fireplace
S T A I N L E S S S T E E L # 18814
70 cm (27,5”) width x 226 cm (89”) height
Item:
18814 310/2014
MERCATUS Rickers & Timmermann GmbH
Rahlstedter Bahnhofstr. 17, 22143 Hamburg, Germany
Listofparts:
Please, check before assembly if all parts of below list exist in the shown quantity.
For assembly of the chimney and hood see text of the assembly instructions:
Pos Description Qty Item No
1 Button of ash tray 1 102553
2 Ash tray 1 103395
3 Castors / Wheels 4 102555
4 Body 1 n.v.
5 Stainless back panel
in burning room 1 103396
6 Cooking grill 1 102558
7 Inner Hood 1 103398
8 Outer Hood 1 103399
9 Outer chimney 1 103400
10 Chimney cover 1 103401
11 Fire grate 1 103402
12 Inner chimney 1 103403
13 Back brick 7 103404
14 Bottom brick 4 103405
15 Waterproof ring 1 103407
16 Wheel rack 4 n.v.
17 Screw M6x12 11 103408
Thebaseiscompletelypreassembled
Item:
18814 310/2014
MERCATUS Rickers & Timmermann GmbH
Rahlstedter Bahnhofstr. 17, 22143 Hamburg, Germany
Assembly Instruction and Manual:
CAUTION! Place BBQ-Fireplace on safe, stable, plane and firm ground!
CAUTION! Do not move during use! Make sure brakes on castors are applied
CAUTION! This BBQ-Fireplace will get very hot! – Danger, do not touch!
CAUTION! Do not use indoor! Only for outdoor use!
CAUTION! Do not use liquid lighters, fuel or other inflammable fluids for lighting! – Do not use Gas
CAUTION! Keep children, pets or people under alcohol/drugs away from fireplace
CAUTION! Do not use in strong winds!
CAUTION! Do not modify or tamper with construction of BBQ-Fireplace
CAUTION! Do not use unattended
IMPORTANT SAFTY INSTRUCTIONS:
1. Setup: The BBQ-Fireplace must be set up on a safe, plane and firm ground.
Burning materials: The BBQ-Fireplace must only be used with dry firewood (dried for 2 years) or
charcoal. Best utilization is given by well dried firewood or charcoal. Other burning materials may damage
the fireplace and pollute the environment. The maximum amount of fuel is 1 kg charcoal or 3 kg firewood,
respectively. Warranty is voided, if the fireplace will be run with unsuitable burning materials.
2. Risk of burning! Make sure that no one, especially children and pets, will touch or get into close contact
with the BBQ-Fireplace while it is used. The surfaces of the BBQ-Fireplace get’s very hot. Children and
teenager under 16 years are not allowed to use the fireplace without supervison of an adult.
3. DANGER: Do not use liquid lighters like spirit, petrol or similar highly inflammable materials. The
liquids will drop into the ash tray and funnel under the bottom panel. This will be a serious
explosion hazard and danger of burning. If any kind of liquid lighters are used, no warranty is given.
It is also forbidden to pour inflammable liquids onto the fire ash or glow, during and after the entire
BBQ or Fire - Danger of flash fire!
4. Before the first use, the fireplace must be heated up and the fuel of firewood has to glow through for at least
30 minutes.
5. Do not put barbeque food on the cooking grill until the firewood or charcoal is covered with white ash.
6. The ash tray (2) should be emptied after each use.
Remove the BBQ stainless steel cooking grill (6) if not in use and the fireplace is used as chimney.
This is to avoid damages on it.
7. Wood-shelf:
CAUTION! Put only small amounts of firewood into the lower wood-shelf. Do NOT keep any highly
flammable materials in the wood-shelf! Due to heat radiation during use of the fireplace this will be a risk of
fire.
8. The BBQ-Fireplace is only for outdoor use. It is NOT suitable for indoor use!
Keep safe and adequate distance between the BBQ-Fireplace and inflammable materials.
Setup:
The fireplace will be delivered on a pallet and has to be set up before the first use. The complete base is already
preassembled. Please remove packaging carefully. Now, lift the fireplace from the pallet. Remove the packing from
the inner and outer hood (7 and 8) and fit the hoods with notches to the front. The inner hood will be fixed with four
screws (17) on the body (4). The outer hood will be installed over the inner hood (8) and also fixed with four screws
(17) at the upper rim of the inner hood. Set up the inner chimney (12) on the waterproof ring (15) – preassembled
on the outer hood (8) and fit the outer chimney (9) on the inner chimney (12) and fix it with screws (17) on the
waterproof ring (15). Insert the chimney top cover (12) on the outer chimney (9).
Storage:
Store the BBQ-Fireplace in safe secure place and protect it from strong winds.
To minimize weathering conditions of your BBQ-Fireplace, we recommend protecting it, if not used, with a
protection cover (available as an optional accessory). The cover may only be used once the fireplace is completely
cooled down. Do not put on hot fireplace. The fireplace should be stored in a dry and roofed place during fall and
winter months.
Item:
18814 310/2014
MERCATUS Rickers & Timmermann GmbH
Rahlstedter Bahnhofstr. 17, 22143 Hamburg, Germany
Paintwork:
Avoid scratching the steel and fireproof paint during assembly and use of the fireplace. This fireproof paint is no
corrosion protection; therefore no guarantee of corrosion is included in the warranty. In case of possible scratches
you may use special heat resistant oven paint (spray can) to close the steel surface again. You may do the same if
paint comes off during cleaning procedures of the fireplace. Oven paint: for example SENOTHERM
Color: Cast Grey (Guss Grau) Item 17-1644-703.571 - spray can 400 ml - www.senotherm.com
StainlessSteelitemsarenotguaranteedtobestainlessorrustfreeandshouldbeprotected
fromhighhumidity/waterandsaltycoastalenvironment.
Attention: The change of color (blue) of the stainless steel due to extensive heat is normal. It is no reason for a
claim and not in included in the warranty.
Bricks:
The back and bottom bricks (13 + 14) are expendable parts, which are exposed to heat and weathering conditions.
They have to be renewed in due time when necessary. For these expendable parts no warranty applies.
In case of warranty or replacement- and supply order, contact your local dealer.
Original MERCATUS accessories: Item:
PROTECTION COVER 18930
SPARK GUARD stainless steel 18937
SEAK PAN 18934
WOK 18933
CHARCOAL TRAY 18935
CHIMNEY EXTENSIOIN stainless steel 18932
18937 18934
18930 18932 18933 18935
All original MERCATUS- replacement parts and the MERCATUS supplies are available at the pecialist dealer, the fireplace was bought.
Technical changes for product improvement are reserved. For more details please check our web site at
www.BBQ-FIREPLACE.de
Table of contents
Popular Grill manuals by other brands
Landmann
Landmann 520268 Assembly and operating instructions
MCZ

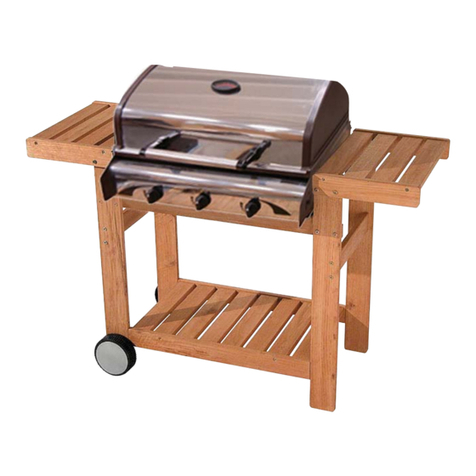

MCZ PROFY 3 INOX Assembly instruction
