Meridian Yachts 459 User manual

Date of Purchase __________________________________________________
Port Engine Serial Number: _________________________________________
Starboard Engine Serial Number: ____________________________________
Hull Identification Number:__________________________________________
Hull Identification Number
•The Hull Identification Number (HIN) is
located on the starboard side of the transom.
•Record the HIN (and the engine serial num-
bers) in the space provided above.
•Please refer to the HIN for any correspon-
dence or orders.
© 2003 Meridian Technical Publications. All rights reserved.
No part of this publication may be reproduced, stored in any retrieval system, or transmitted in any form by any means, electronic, mechanical, photocopying,
recording or otherwise, without prior written permission of Meridian.
Printed in the United States of America.
General Notes
The material in this document is for information only and is subject to change without notice. While reasonable efforts have been made in the preparation of this
document to assure its accuracy, Meridian assumes no liability resulting from errors or omissions in this document, or from the use of information contained herein.
Due to our commitment to product improvement, Meridian reserves the right to make changes in the product design, specifications, and equipment at any time
without notice or obligation. Illustrations and/or photos may show optional equipment.
All Meridian products meet or exceed USCG (Unites States Coast Guard) and/or NMMA (National Marine Manufacturer’s Association) construction standards.
Manufactured with 1,1,1 Trichloroethane, a substance which harms public health and environment during the manufacturing process by destroying ozone in the
upper atmosphere.
Proprietary Rights
This document discloses subject matter in which Meridian has proprietary rights. The information and design disclosed herein were originated by and are the prop-
erty of Meridian. Neither receipt nor possession thereof confers or transfers any right to reproduce, copy, alter or disclose the document or any part thereof, any
information contained therein, or to construct boats or any item from it, except by written permission from or written agreement with Meridian. This document is
to be returned upon request to Meridian.
HIN LOCATION

CONTENTS
1 Chapter 1: Welcome Aboard!
1 Dimensions and Tank Capacities
1 Layout View
1 Dealer Service
2 Warranty Information
2 Boating Experience
2 Engine & Accessory Guidelines
2 Engine & Accessory Literature
3 Safety Standards
3 Qualified Maintenance
4 Special Care For Moored Boats
4 Sacrificial Anodes (Zincs)
5 Yacht Lifting
6 Carbon Monoxide (CO)
6 Facts about CO
7 Where and How CO Can Accumulate
7 How to Protect Yourself and Others From CO
8 Trip Checklist
8 Monthly Checklist
8 Annual Checklist
8 Carbon Monoxide Alarm System
9 More Information
10 Chapter 2: Locations
10 Exterior Views
10 Hull Views
11 Forward Deck View
11 Aft Deck View
12 Helm Station(s)
13 Component Locations
29 Chapter 3: Propulsion &
Related Systems
29 Engines
29 Engine Cooling System
30 Exhaust System
31 Bilge Blower Systems
32 Fuel System
34 Fuel Fills & Vents
34 Fuel Transfer Pump (Diesel Engines Only)
(If Equipped)
34 Anti-siphon Valves (Gas Engines Only)
35 Fuel Filters
35 Fuel/Water Separator Filters
(Diesel Engines Only)
36 Oil Change System (If Equipped)
(Diesel Engines Only)
36 Fire Suppression System (If Equipped)
37 Shaft-Transmission Alignment
37 Shaft Log Packless Sealing System
38 Chapter 4: Controls & Gauges
38 Steering
38 Rudder Stuffing Gland
39 Autopilot (If Equipped)
39 Shift/Throttle Controls
39 Engine Synchronization (If Equipped)
40 Trim Tabs
41 Docking On Command (D.O.C.) System
(If Equipped)
42 Gauges
42 Cleaning Gauges
42 Gauge Fogging
42 Radio Transmission Interference
42 Twin Engine Readings
42 Fuel Gauge
43 Chapter 5: Navigation &
Communication Equipment
43 Compass
43 Depth Finder
43 VHF Radio (If Equipped)
44 Radar (If Equipped)
44 Global Positioning System (GPS)
(If Equipped)

45 Chapter 6: Plumbing
45 Bilge Pumps
46 Autofloat Switches
47 Seawater Systems
47 Seacocks
47 Seawater Strainers
48 Seawater Washdown (If Equipped)
49 Freshwater System
50 Freshwater System Winterization
51 Water Heater
51 Winterizing the Water Heater
52 Transom Shower
52 City Water Inlet
53 Drain Systems
53 Deck Drains
53 Galley Sink Drain
53 Sump Pump Drain Systems
53 Sump Box Cleaning
53 Sump System Winterization
54 Marine Heads & Holding Tank
55 Electric Head System
55 VacuFlush Head System (If Equipped)
55 Winterizing The Marine Head
55 Macerator (If Equipped)
56 Chapter 7: Deck Equipment
56 Cleats
56 Windlass (If Equipped)
57 Canvas
58 Chapter 8: Appliances &
Entertainment Systems
58 Refrigerator
58 Electric Stove
59 Range/Oven (If Equipped)
59 Audio & Visual Equipment
59 Dockside Television & Telephone Inlet
60 Chapter 9: Lights
60 Care and Maintenance
60 Interior & Exterior Lights
60 Spotlight (If Equipped)
61 Chapter 10: Heating & Air Conditioning
61 Air Conditioning System (If Equipped)
63 Electric Heaters (If Equipped)
63 Heat Exchanger Cabin Heat (If Equipped)
64 Chapter 11: Electrical System
65 12-Volt DC System
65 Batteries
65 Battery Switches
65 Fuses and Circuit Breakers
66 12-Volt Accessory Outlet(s)
66 Alternators
66 Battery Charger or Inverter/Charger
67 Alternating Current (AC) System
68 Shore Power
69 Connecting To Shore Power
70 Parallel Switch
70 Shore Power Cable Hoist (If Equipped)
70 Inverter Power (If Equipped)
71 Generator (If Equipped)
72 Starting Generator
73 Electrical Routings
73 12-Volt DC Electrical Harness
74 120-Volt AC Electrical Harness
75 12-Volt DC Hull Electrical System
76 Power Inverter (If Equipped)
77 Battery System
78 Bonding Harness
79 120-Volt AC Electrical System
80 Wiring Diagrams
80 Engine Electrical System
81 12-Volt DC Command Bridge
Electrical System
82 12-Volt DC Cabin Electrical System
83 12-Volt DC Auxiliary Electrical System
84 120-Volt AC Electrical System
85 120/240-Volt AC Electrical System
(If Equipped)
86 Important Records
87 Float Plan

Hazard Boxes & Symbols
The hazard boxes and symbols shown below are used throughout this manual to call attention to potentially danger-
ous situations which could lead to either personal injury or product damage. Read ALL warnings carefully and fol-
low ALL safety instructions.
This box alerts you to immediate hazards which WILL cause severe personal injury or death if
the warning is ignored.
DANGER!
!
This box alerts you to hazards or unsafe practices which COULD result in severe personal
injury or death if the warning is ignored.
WARNING!
!
This box alerts you to hazards or unsafe practices which COULD result in minor personal
injury or cause product or property damage if the warning is ignored.
CAUTION
!
This box calls attention to installation, operation or maintenance information, which is impor-
tant to proper operation but is not hazard related.
NOTICE
EXPLOSION
HAZARD! NO OPEN FLAME! HOT HAZARD!
ROTATING
PROPELLER HAZARD!
FALLING
HAZARD!
ELECTRICAL
HAZARD!
CO POISONING
HAZARD!
FIRE
HAZARD!
RUN BILGE BLOWERS
FOR 4 MINUTES!

1
459 Motoryacht •Owner’s Manual
Chapter 1: Welcome Aboard!
•This Owner’s Manual provides information about your yacht that is not covered in the Cruiser & Yacht Owner’s
Manual Supplement.
•Before using your yacht, study this Owner’s Manual, the Cruiser &Yacht Owner’s Manual Supplement, and all
engine and accessory literature carefully.
•Keep this Owner’s Manual and the Cruiser & Yacht Owner’s Manual Supplement on your yacht in a secure, yet
readily available place.
Dimensions and Tank Capacities

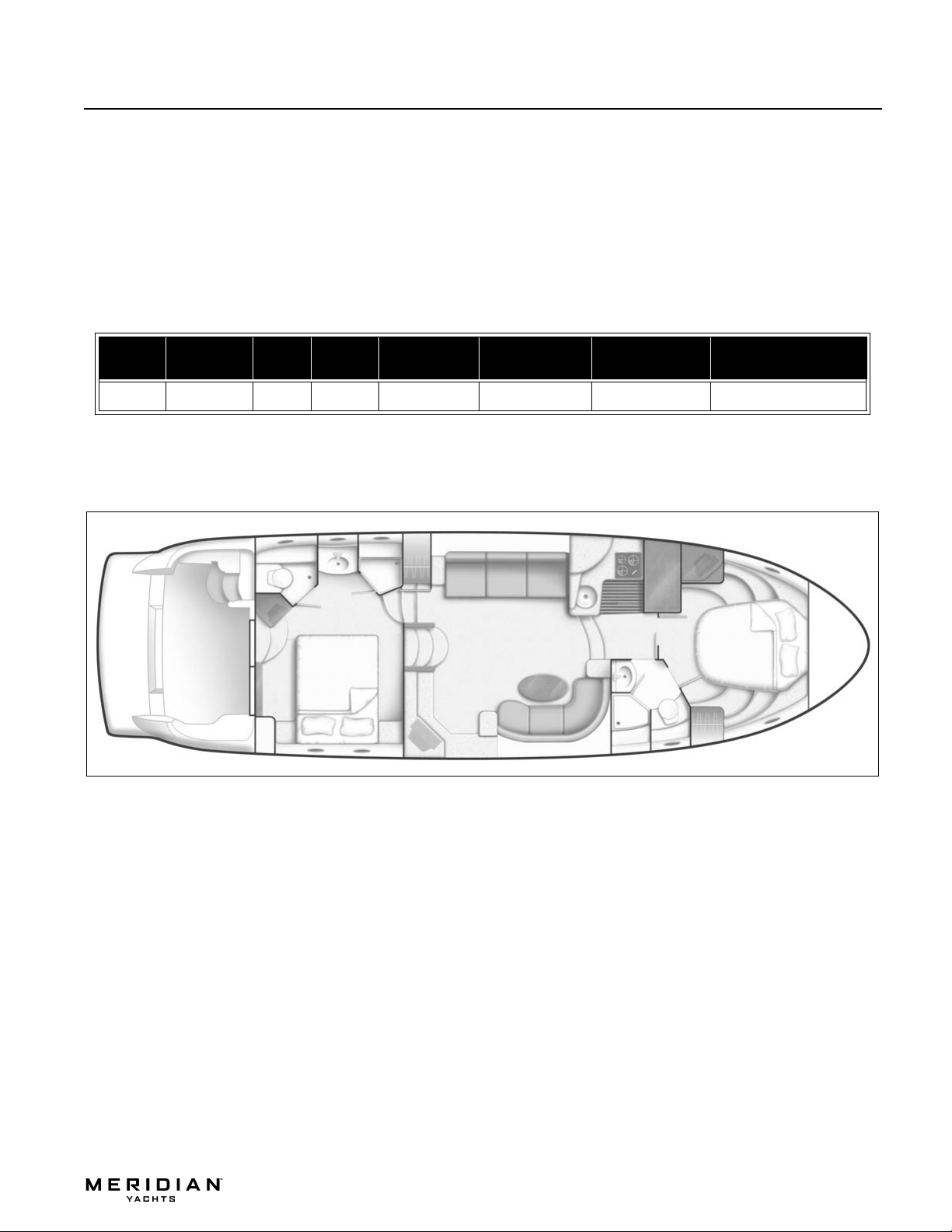

Layout View
Dealer Service
•Ask your dealer to explain all systems before taking delivery of your yacht.
•Your dealer is your key to service.
•Contact your dealer if you have any questions or problems with your new yacht.
•If your dealer cannot help, call our customer service hotline: [phone] or send us a FAX: [phone].
•Buy replacement parts from any authorized Meridian dealer.
Overall
Length Bridge Clearance Beam Draft (Hull) Draft (Maximum) FuelCapacity (gal.) Freshwater Capacity (gal.) Waste Holding Tank Capacity (gal.)
47' 8" 14' 4" 14' 4" 2' 8" 3' 10" 330 90 55

Chapter 1: Welcome Aboard! 459 Motoryacht •Owner’s Manual
2
Warranty Information
•Meridian offers an Express Limited Transferable Warranty on each new Meridian purchased through an
authorized Meridian dealer.
•A copy of the Express Limited Transferable Warranty was included in your owner’s packet.
•If you did not receive a copy of the Express Limited Transferable Warranty, please contact your dealer or
call 360-403-2198 for a copy.
Boating Experience
If this is your first yacht or if you are changing to a type of yacht you are not familiar with, obtain handling and oper-
ating experience before assuming command of the yacht.
Take one of the boating safety classes offered by the U.S. Power Squadrons or the U.S. Coast Guard Auxiliary. For
more course information, including dates and locations of upcoming classes, contact the organizations directly:
•U.S. Power Squadrons: 1-888-FOR-USPS (1-888-367-8777) or on the Internet at: http://www.usps.org
•In Canada, for the CPS courses call 1-888-CPS-BOAT.
•U.S. Coast Guard Auxiliary: 1-800-368-5647 or on the Internet at: http://www.cgaux.org
Outside the United States, your selling dealer, national sailing federation or local boat club can advise you of local
sea schools or competent instructors.
Engine & Accessory Guidelines
•Your yacht’s engines and accessories were selected to provide optimum performance and service.
•Installing different engines or other accessories may cause unwanted handling characteristics.
•Should you choose to install different engines or to add accessories that will affect the yacht’s running trim, have
an experienced marine technician perform a safety inspection and handling test before operating your yacht again.
•Certain modifications to your yacht will result in the cancellation of your warranty protection. Always
check with your dealer before making any modifications to your yacht.
Engine & Accessory Literature
•The engines and accessories installed on your yacht come with their own operation and maintenance manuals.
•Read and understand these manuals before using the engines and accessories.
•Unless noted otherwise, all engine and accessory literature referred to in this Owner’s Manual is included in your
owner’s packet.
CONTROL HAZARD!
A qualified operator must be in control of the yacht at all times. DO NOT operate your yacht
while under the influence of alcohol or drugs.
WARNING!
!
When storing your yacht please refer to your engine’s operation and maintenance manuals.
NOTICE

459 Motoryacht •Owner’s Manual Chapter 1: Welcome Aboard!
3
Safety Standards
Your yacht’s mechanical and electrical systems were designed to meet safety standards in effect at the time it was
built. Some of these standards were mandated by law, all of them were designed to insure your safety, and the safety
of other people, vessels and property.
In addition to this Owner’s Manual,please read the Cruiser & Yacht Owner’s Manual Supplement and all acces-
sory instructions for important safety standards and hazard information.
Qualified Maintenance
•Failure to maintain your yacht’s systems (listed in the warning above) as designed could violate the laws in your
jurisdiction and could expose you and other people to the danger of bodily injury or accidental death.
•Follow the instructions provided in the Cruiser & Yacht Owner’s Manual Supplement, this Owner’s Manual, the
engine owner’s manual and all accessory literature.
FALLING and ROTATING PROPELLER HAZARD!
NEVER allow anyone to ride on parts of the yacht not designed for
such use.
•Sitting on seat backs, lounging on the forward deck, bow riding, gunwale riding or occupy-
ing the transom platform while underway is especially hazardous and will cause personal
injury or death.
DANGER!
!
ROTATING PROPELLER and CARBON MONOXIDE
POISONING HAZARD!
•NEVER allow anyone to occupy, or hang from, the
back deck or swim platform while the engine(s)
are running.
•Teak surfing, dragging, or water skiing within 20 feet
of a moving watercraft can be fatal.
DANGER!
!
DANGER
PERSONAL SAFETY HAZARD!
ALWAYS secure the anchor and other loose objects before getting underway. The anchor and
other items that are not properly secured can come loose when the yacht is moving and cause
personal injury or death.
DANGER!
!
To maintain the integrity and safety of your yacht, allow only qualified personnel to perform
maintenance on, or in any way modify: The steering system, propulsion system, engine control
system, fuel system, environmental control system, electrical system or navigational system.
WARNING!
!

Chapter 1: Welcome Aboard! 459 Motoryacht •Owner’s Manual
4

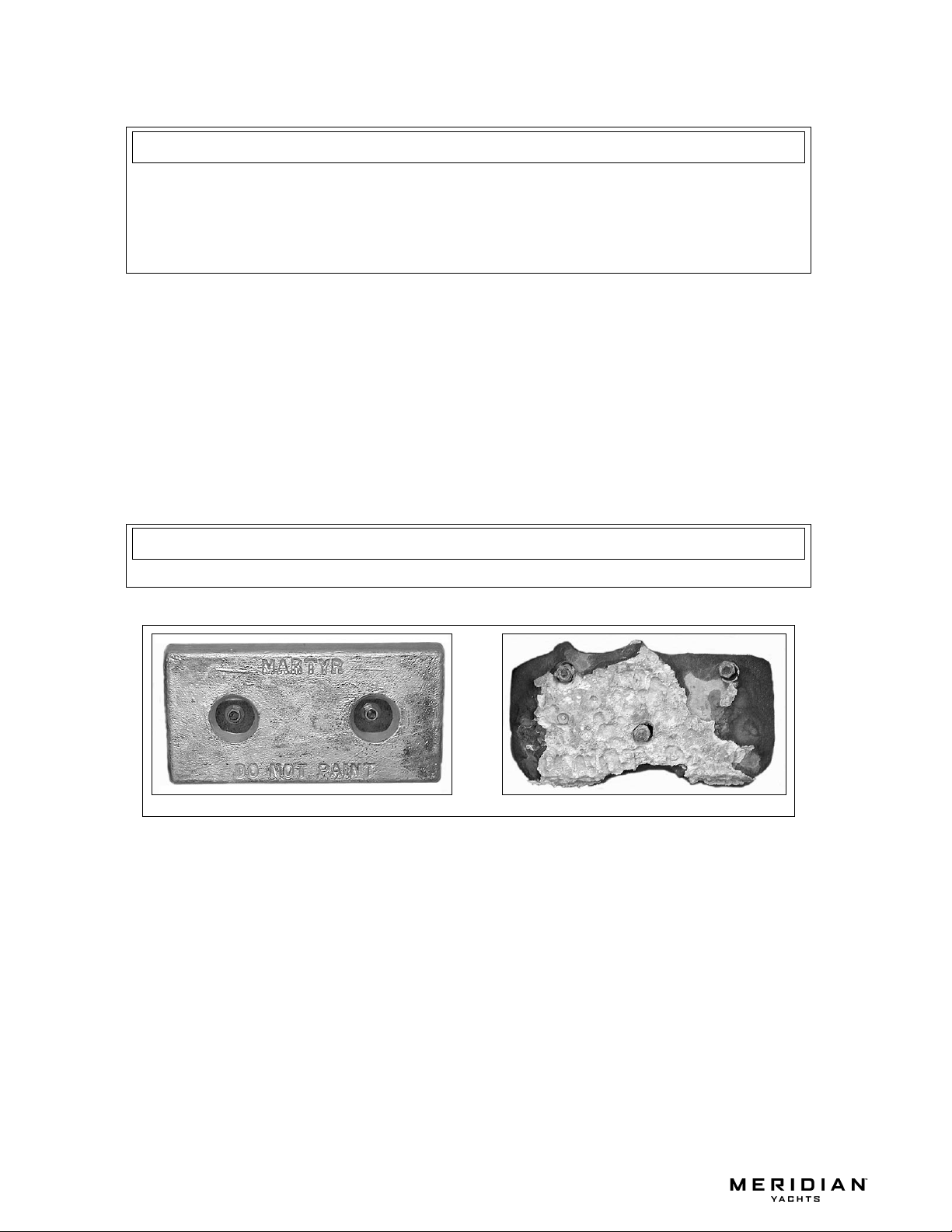

Special Care For Moored Boats
•Whether moored in saltwater or freshwater, your yacht will collect marine growth on its hull bottom.
•This will detract from the yacht’s beauty, greatly affect its performance and may damage the gelcoat.
•There are two methods of slowing marine growth:
1. Periodically haul the yacht out of the water and scrub the hull bottom with a bristle brush and a solution of soap
and water.
2. Occasionally re-paint the hull below the waterline with a good grade of anti-fouling paint.
Sacrificial Anodes (Zincs)
Your yacht features sacrificial anodes (zincs) to protect underwater metal parts from excessive deterioration. Check
the zincs regularly and replace them if they have deteriorated more than 70%.
There are many factors that affect the rate at which the zincs deteriorate, including:
•Water temperature
•Salinity
•Water pollution
Stray electrical current from the yacht or dock may cause complete deterioration in just a few weeks. If there is rapid
zinc deterioration, measure the electrolytic corrosion around your yacht with a corrosion test meter. If the zincs are
not bonded correctly, they will not provide protection.
•To help seal the hull bottom and reduce the possibilityof gelcoat blistering on moored boats,
apply an epoxy barrier coating. The barrier coating should be covered with several coats of
anti-fouling paint.
•Many states regulate the chemical content of bottom paints in order to meet environmental
standards. Check with your local dealer about recommended bottom paints, and about the
laws in effect in your area.
NOTICE
Do not paint between the zinc and the metal surface it contacts and do not paint over the zincs.
NOTICE
NEW SACRIFICIAL ANODE DETERIORATED SACRIFICIAL ANODE

459 Motoryacht •Owner’s Manual Chapter 1: Welcome Aboard!
5
Yacht Lifting
•Always follow the lift
equipment’s instructions
and requirements.
•Water in the bilge can shift
and change the balance of
the load.
•If water is present in the
bilge, pump or drain the
water out of the bilge areas
before lifting your yacht.
•When lifting your yacht,
always position the lifting
slings at the port and star-
board, lifting sling label
positions, as shown in the
illustration on the right.
PERSONAL INJURY and /or PRODUCT OR PROPERTY DAMAGE HAZARD!
•Lifting slings may slip on the hull.
•Avoid serious injury or death by securing the lifting slings together before lifting.
WARNING!
!
PERSONAL INJURY and /or PRODUCT OR PROPERTY DAMAGE HAZARD!
•NEVER lift the yacht using the cleats or the bow and stern eyes.
WARNING!
!
PRODUCT or PROPERTY DAMAGE HAZARD!
•When lifting any yacht, always use a spreader bar. The spreader bar must be equal to the
width of the yacht at each lifting point.
CAUTION
!
LIFTING SLING LABELS
(TYPICAL PORT & STARBOARD)
234"79"

Chapter 1: Welcome Aboard! 459 Motoryacht •Owner’s Manual
6
Carbon Monoxide (CO)
Facts about CO
•CO poisoning causes a significant number of boating deaths each year.
•Called the "silent killer", CO is an extremely toxic, colorless, odorless and tasteless gas.
•CO can harm or even kill you inside or outside your yacht.
•CO can affect you whether you’re underway, moored, or anchored.
•CO symptoms are similar to seasickness or alcohol intoxication.
•CO can make you sick in seconds. In high enough concentrations, even a few breaths can be fatal.
•Breathing CO blocks the ability of your blood to carry oxygen.
•The effects are cumulative, even low levels of exposure can result in injury or death.
Factors That Increase the Effects of CO Poisoning
•Age
•Smokers or people exposed to high concentrations of cigarette smoke
•Consumption of alcohol
•Lung disorders
•Heart problems
•Pregnancy
•Carbon monoxide gas (CO) is colorless, odorless, tasteless, and
extremely dangerous.
•All engines, generators, and fuel burning appliances produce CO
as exhaust.
•Prolonged exposure to low concentrations or very quick exposure to high
concentrations will cause BRAIN DAMAGE or DEATH.
•Teak surfing, dragging, or water skiing within 20 feet of a moving water-
craft can be fatal.
DANGER!
!

459 Motoryacht •Owner’s Manual Chapter 1: Welcome Aboard!
7
Where and How CO Can Accumulate
Stationary Conditions That Increase CO Accumulations Include:
To correct stationary situations A and/or B:
•Close all windows, portlights and hatches.
•If possible, move your yacht away from source of CO.
Running Conditions That Increase CO Accumulations Include:
To correct running situations C and/or D:
•Trim bow down.
•Open windows and canvas.
•When possible, run yacht so that prevailing winds help dissipate exhaust.
How to Protect Yourself and Others From CO
•Know where and how CO may accumulate in and around your yacht (see above).
•Maintain fresh air circulation throughout the yacht at all times.
•Know where your engine and generator exhaust outlets are located and keep everyone away from these areas.
•Never sit on, or hang onto, the back deck or swim platform while the engine(s) are running.
•Never enter the areas under swim platforms where exhaust outlets are located.
•Although CO can be present without the smell of exhaust fumes, if exhaust fumes are detected on the yacht, take
immediate action to dissipate these fumes.
•Treat symptoms of seasickness as possible CO poisoning. Get the person into fresh air immediately. Seek medical
attention—unless you’re sure it’s not CO.
•Install and maintain CO alarms inside your yacht. Do not ignore any alarm. Replace alarms as recommended by
the alarm manufacturer.
•Follow the checklists provided on the next page.
•Get a Vessel Safety Check.
For information on how to get a free VESSEL SAFETY CHECK, visit www.vesselsafetycheck.org or contact your
local U.S. Coast Guard Auxiliary or United States Power Squadrons®.
•U.S. Coast Guard Auxiliary: 1-800-368-5647 or on the Internet at: http://www.cgaux.org
•U.S. Power Squadrons: 1-888-FOR-USPS (1-888-367-8777) or on the Internet at: http://www.usps.org
A. Using engine,
generator, or
other fuel
burningdevice
when yacht is
moored in a
confined
space. B. Mooring too close to another boat that is using its
engine, generator, or other fuel burning device.
C. Running yacht with trim angle of bow too high. D. Running yacht without through ventilation (sta-
tion wagon effect).

Chapter 1: Welcome Aboard! 459 Motoryacht •Owner’s Manual
8
Trip Checklist
❏Make sure you know where the exhaust outlets are located on your yacht.
❏Educate all passengers about the symptoms of CO poisoning and where CO may accumulate.
❏When docked, or rafted with another boat, be aware of exhaust emissions from the other boat.
❏Confirm that water flows from the exhaust outlet when the engines and generator are started.
❏Listen for any change in exhaust sound, which could indicate an exhaust component failure.
❏Test the operation of each CO alarm by pressing the test button.
Monthly Checklist
❏Make sure all exhaust clamps are in place and secure.
❏Look for exhaust leaking from exhaust system components. Signs include rust and/or black streaking, water
leaks, or corroded or cracked fittings.
❏Inspect rubber exhaust hoses for burned, cracked, or deteriorated sections. All rubber hoses should be pliable and
free of kinks.
Annual Checklist
Have a Qualified Marine Technician:
❏Replace exhaust hoses if cracking, charring, or deterioration is found.
❏Ensure that your engines and generators are properly tuned, and well maintained.
❏Inspect each water pump impeller and the water pump housing. Replace if worn. Make sure cooling systems are
in working condition.
❏Inspect all metal exhaust parts for cracking, rusting, leaking, or loosening and check the cylinder head gasket,
exhaust manifold, water injection elbow, and the threaded adapter nipple between the manifold and the elbow.
❏Clean, inspect, and confirm proper operation of the generator cooling water anti-siphon valve (if equipped).
Carbon Monoxide Alarm System
•Your yacht may feature a carbon monoxide (CO) alarm system.
•Do not disconnect the alarm system.
•Read and understand the manufacturer’s instructions for your CO alarm system. If you did not receive an instruc-
tion manual, call [phone] and one will be mailed to you.
If your yacht is not equipped with a carbon monoxide alarm, consider purchasing one from your dealer or marine
supply store.
DANGER
CARBON MONOXIDE POISONING HAZARD!
•The house battery switch must be in the On position for the CO Monitors
to work.
•If your yacht will be unattended for an extended period of time, turn Off the
house battery or the CO Monitors will drain the house battery.
DANGER!
!
The stereo memory and CO monitor(s) place a small, but constant drain on the battery. If your
yacht will be unattended for an extended amount of time, plug into shore power with the bat-
tery charger turned On, or disconnect the battery if shore power is not an option.
NOTICE

459 Motoryacht •Owner’s Manual Chapter 1: Welcome Aboard!
9
More Information
For more information about how you can prevent carbon monoxide poisoning on recreational boats and other ways to
boat more safely, contact:
For information on how to get a free VESSEL SAFETY CHECK, visit www.vesselsafetycheck.org or contact your
local U.S. Coast Guard Auxiliary or United States Power Squadrons®.
•U.S. Coast Guard Auxiliary: 1-800-368-5647 or on the Internet at: http://www.cgaux.org
•U.S. Power Squadrons: 1-888-FOR-USPS (1-888-367-8777) or on the Internet at: http://www.usps.org
United States Coast Guard
Office of Boating Safety (G-OPB-3)
2100 Second Street SW
Washington, DC 20593
www.uscgboating.org
1-800-368-5647
National Marine Manufacturers
Association (NMMA)
200 East Randolph Drive
Suite 5100
Chicago, IL 60601-9301
www.nmma.org
312-946-6200
American Boat & Yacht Council,Inc.
(ABYC)
3069 Solomon’s Island Road
Edgewater, MD 21037-1416
www.abycinc.org
410-956-1050

10
459 Motoryacht •Owner’s Manual
Chapter 2: Locations
Exterior Views
Hull Views
PORTLIGHTS
PORTLIGHTS
ENGINE ROOM
VENT
DECK
DRAIN
DECK
DRAIN
DECK
DRAIN ENGINE ROOM VENT PORTLIGHTS
AFT SHOWER &
SINK DRAIN
BILGE PUMP
DRAIN
PORTLIGHTS
TRIM TABTRIM TAB
WATER TANK
VENT
STERN THRUSTER
SACRIFICIAL
ZINC ANODE
PLATE (IF EQUIPPED)
RUDDERRUDDER
MULTI-PORT THRU-HULL DRAIN:
GALLEY SINK, BILGE PUMP & UPPER
AIR CONDITIONER (IF EQUIPPED) DECK
DRAIN
FORWARD AIR CONDITIONER
DRAIN (IF EQUIPPED)
BOW THRUSTER
(IF EQUIPPED)
ANCHOR
LOCKER
AFT AIR CONDITIONER
DRAIN (IF EQUIPPED)
HOLDING
TANK VENT SUMP PUMP DRAIN
DRAIN
BOW THRUSTER
(IF EQUIPPED)
DECK
DRAIN
COCKPIT
DRAIN
MACHINERY ROOM
VENT
VENTILATION
LOUVER
VENTILATION
LOUVER
UPPER AIR CONDITIONER
DRAIN (IF EQUIPPED)
MACHINERY
ROOM VENT
BILGE PUMP
DRAIN
COCKPIT
DRAIN
GENERATOR EXHAUST
(IF EQUIPPED)
DISHWASHER DRAIN
(IF EQUIPPED)
PORT HULLSIDE
STARBOARD HULLSIDE
TRANSOM
AREA
GENERATOR WATER
DISCHARGE (IF EQUIPPED)

459 Motoryacht •Owner’s Manual Chapter 2: Locations
11

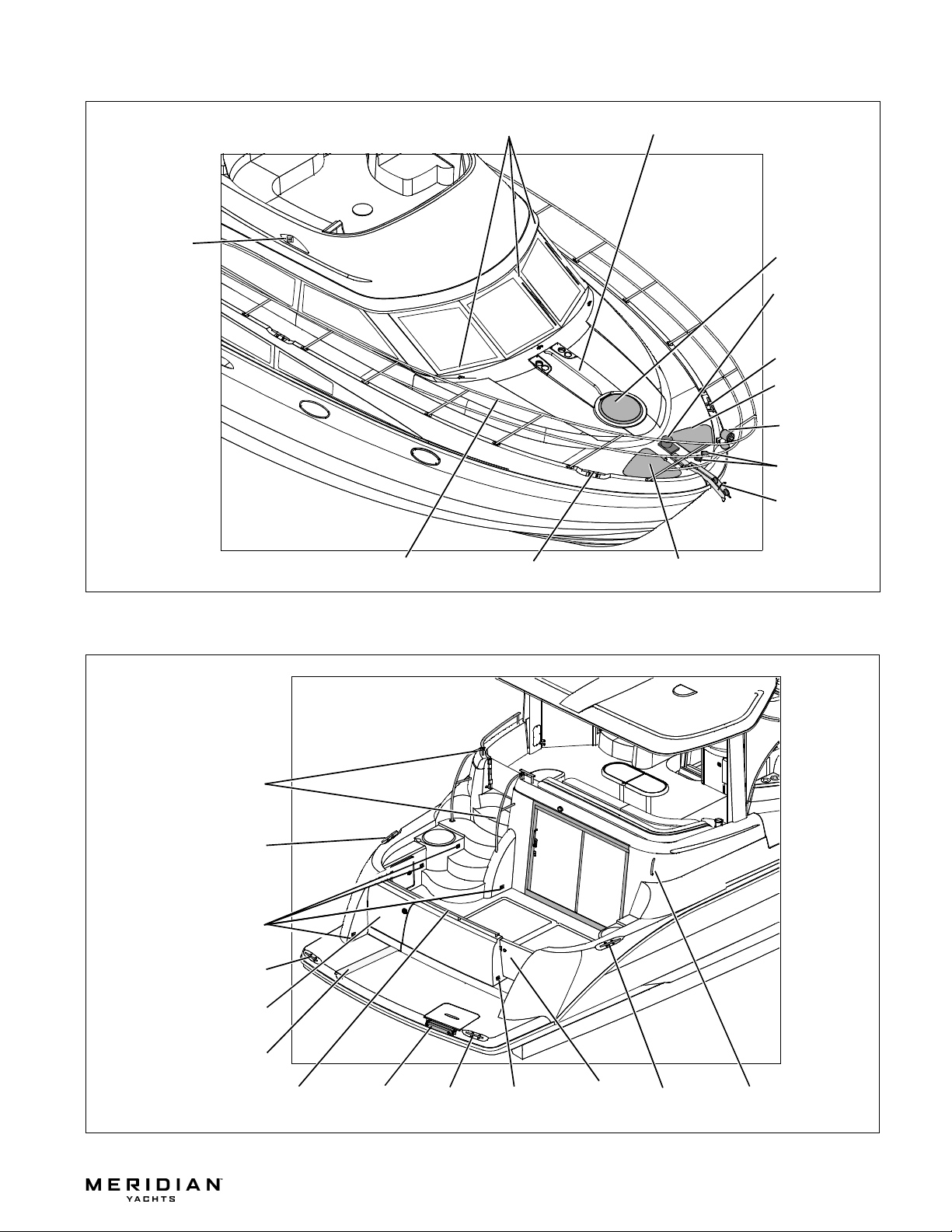

Forward Deck View
Aft Deck View
BOW
HATCH
ANCHOR
ROLLER
WINDLASS
CONTROLS
STARBOARD BOW HATCH
CLEAT
ANCHOR
WINDLASS
ANCHOR
LOCKER
CLEAT
(IF EQUIPPED)
(IF EQUIPPED)
SPOTLIGHT
(IF EQUIPPED)
WINDSHIELD WIPERS GRAB RAIL
BOW RAILS
STARBOARD
NAVIGATION
LIGHT (PORT
SIDE TYPICAL)
CLEAT
BOARDING
LADDER
COURTESY
LIGHTS
CLEAT
CLEAT
GRAB RAIL
CLEAT
GRAB RAIL COURTESY
LIGHT
GRAB RAILS
CABLE COVER
HATCH
TRANSOM
STORAGE
TRANSOM
DOOR

Chapter 2: Locations 459 Motoryacht •Owner’s Manual
12
Helm Station(s)
PORT ENGINE
FUEL, VOLT, OIL &
NOTE: TYPICAL HELM LAYOUT SHOWN. ACTUAL
UPPER HELM
LAYOUTS MAY VARY DEPENDING ON ENGINE &
ACCESSORY OPTIONS
LOWER HELM (IF EQUIPPED)
TEMPERATURE GAUGE
STARBOARD ENGINE
FUEL, VOLT, OIL &
TEMPERATURE GAUGE
PORT ENGINE
FUEL, VOLT, OIL &
TEMPERATURE GAUGE
STARBOARD ENGINE
FUEL, VOLT, OIL &
TEMPERATURE GAUGE
SWITCH
PANEL
STEREO
VHF RADIO
(IF EQUIPPED)
IGNITION
PANEL
DC PANEL
BREAKERS
RADAR
(IF EQUIPPED)
THRUSTER CONTROL
(IF EQUIPPED)
COMPASS TACHOMETERS &
HOURMETERS
12 VOLT
RECEPTACLE SPOTLIGHT
CONTROL
FIRE SYSTEM DISPLAY
(IF EQUIPPED)
AUTOPILOT
(IF EQUIPPED) DEPTH SOUNDER (IF EQUIPPED)
(IF EQUIPPED)
SHIFT/THROTTLE
CONTROLS
SWITCHPANEL
12 VOLT
RECEPTACLE
RADAR
(IF EQUIPPED)
THRUSTER CONTROL
(IF EQUIPPED)
VHF RADIO
SPOTLIGHT CONTROL
IGNITION
PANEL
AUTO PILOT
(IF EQUIPPED)
COMPASS
TACHOMETERS &
HOURMETERS
DEPTH
FINDER
(IF EQUIPPED)
(IF EQUIPPED)
SHIFT/THROTTLE
CONTROLS CONTROLS
SHIFT/THROTTLE
SHIFT/THROTTLE
CONTROLS

459 Motoryacht •Owner’s Manual Chapter 2: Locations
13
Component Locations
12-Volt Accessory Outlet - Upper Helm:
•Located just to the left of the gauge panel.
12-Volt Accessory Outlets - Lower Helm (If Equipped):
•One is located just to the right of the switch panel and
one is located on the ignition panel.
12-Volt Accessory Outlet -
Aft Cabin:
•Located on the forward wall in the
aft cabin.
12-VOLT
RECEPTACLE GAUGE PANEL
12-VOLT
RECEPTACLE
SWITCH
PANEL
12-VOLT
RECEPTACLE
IGNITION
PANEL
12-VOLT
RECEPTACLE

Chapter 2: Locations 459 Motoryacht •Owner’s Manual
14
AC & DC Main Electrical Panels
•Located in the uppersalon cabinet
next to the entry steps.
Air Conditioner Seawater
Intake Seacock (If Equipped):
•Located in the engine room,
forward of the engine
room ladder.
Air Conditioner Unit - V-berth (If Equipped):
•Located in the port storage locker under the V-
berth mattress.
SALON ENTRY STEPS
AC & DC PANELS
AIR CONDITIONER
SEAWATER INTAKE
SEACOCK
ENGINE ROOM
LADDER
PORT STORAGE
LOCKER
