Merlin CM8002ANZ-1 User manual

TO SET OUTPUT DURATION
The receiver can be set for either constant or momentary closure on the
output contacts for each channel (A and B). (Use constant closure only if
constant pressure is needed.) With the jumper in “1” (Momentary) position,
the contacts will close for 150ms regardless of the length of radio
transmission. With the jumper in “2” (Constant) position, the contacts will
stay closed as long as the radio continues transmitting.
CM8002ANZ-1 433MHz 2 Channel Billion and
Rolling Code Channel Receiver
Constant signal
(Hold to run)
Momentary
Ant
OUT A OUT B
Input
AC / DC
LearnA LearnB
Test
Test
AB
LDS2
LDS1
LDS3 LDS4
Jumper
Channel A
Program buttons
(Channel A & B )
Command buttons
(Channel A & B)
Indicator lights
(Channel A & B)
Jumper
Channel B
Antenna Connection
>24V < 24V
Transformer
or
Power Source
CN2
CN1
Indicator lights
(momentary or constant)
< 24V
12-16V AC, @ 30mA
12-24V DC, @ 30mA
> 24V
16-30V AC, @ 30mA
24-30V DC, @ 30mA MERLIN MERLIN
Example of
use Gate
Controler
Example of Use
Garage door motor
Chamberlain Australia Pty Ltd
PO Box 1446
Lane Cove NSW 1595
Chamberlain New Zealand Ltd
PO Box 100 221
North Shore 0745
gomerlin.com.au
gomerlin.co.nz
CM842 CM128
C940 C943 C945
CM844
4330A 4333A 4335A
Compatible Remotes:
Merlin Professional
Compatible Remotes:
Chamberlain
Open Garage door
Channel A
Open Garage and Gate
Channel A and B
Open Gate
Channel B
Example of Use

NOTE: The CM8002ANZ-1 can be programmed to receive up to 15 codes for each channel.
INSTALLATION
1. Fasten the receiver securely with screws through the corner holes which are located under the cover.
2. Apply power to the AC/DC terminals on the circuit board (see illustration). Ensure the Power input link is in the
correct position to suit the supply voltage.
3. Connect operator control board to the terminals (Channel A) of the Universal Receiver. At the same time connect any
other hardwired inputs in parallel (i.e.output is Normally Open). Connect any secondary hardwired inputs (if you have
to operate 2 doors) to terminals. (Channel B).
4. Plug in the transformer or apply power.
5. Ensure the door or gate is safe to use then press the Test button for Channel A or B to test your device.
SPECIFICATIONS
Output Rating ...........................Out put max. = 5 A; V max. = 30V AC/DC
Power input <24V ...............................................12-16V AC, @ 30 mA
.................................................................................12-24V DC, @ 30 mA
>24V ...............................................16-30V AC, @ 30 mA
..................................................................................24-35V DC,@ 30 mA
RF Frequency ......................................................................... 433.92MHz
DISCONNECT POWER TO GARAGE DOOR OPENER BEFORE INSTALLING
RECEIVER.
114A4786A

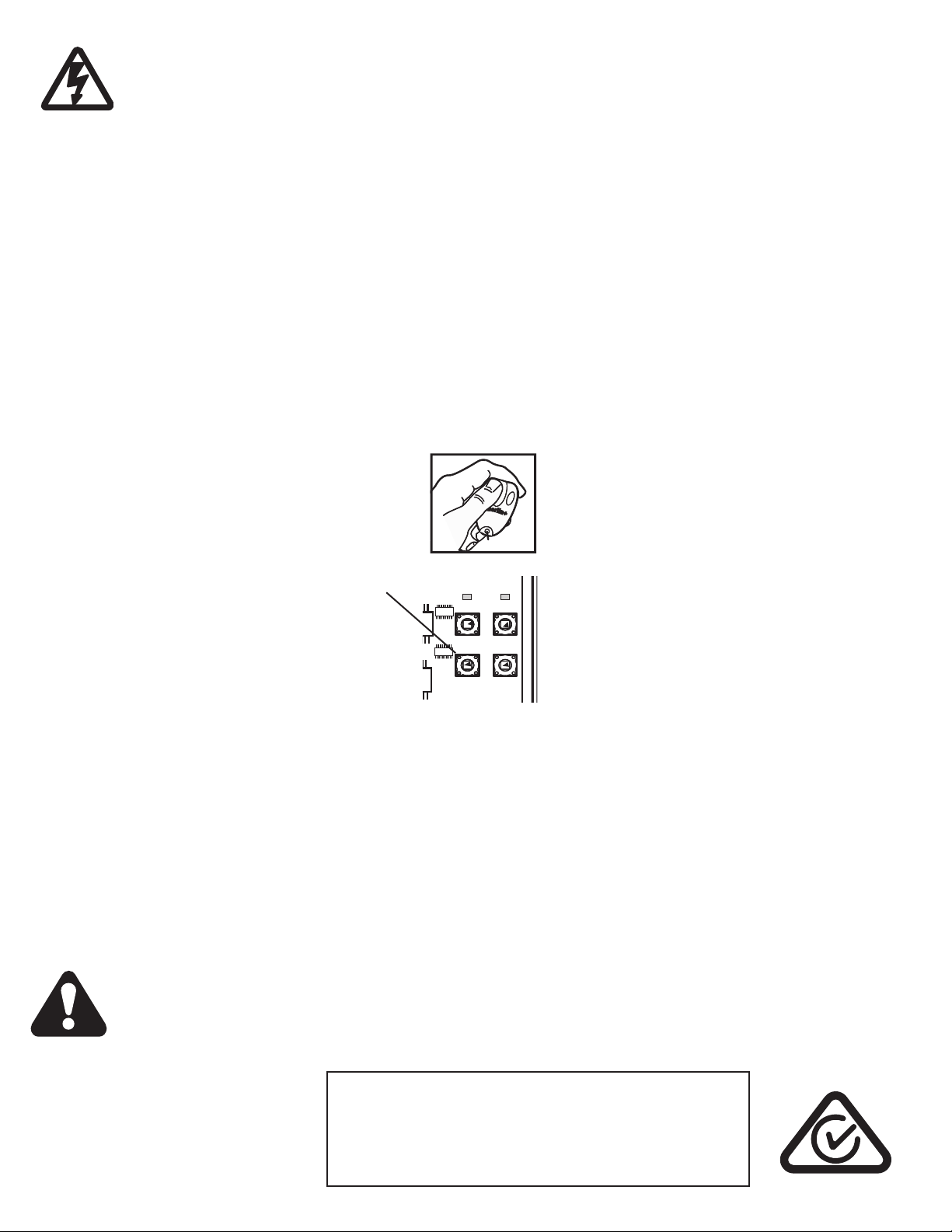

PROGRAMMING THE RECEIVER
1. Press and hold the remote control push button.
2. Press and release the Learn button
for the channel you wish to use.
The indicator light will flash once.
3. Release the remote push button.
NOTE: If you release the remote control push button before the indicator lights flash, the opener will not accept the code.
Repeat steps 1–3 to program the receiver for all remote controls in use for that door. If a second door is in use, use a
different remote control button and repeat the steps for channel B.
Replace top cover with mounting screws.
To erase all codes from the receiver: hold the receiver’s Learn button until the indicator light goes off (after 6 seconds). All
codes that the receiver has learned will be erased.
L earnA L earnB
T es t
T es t
AB
L DS 3 L DS 4
Activate the opener only when door is in full view, free of obstruction and properly
adjusted. No one should enter or leave garage while door is in motion. Do not allow
children to operate push button(s) or remote(s). Do not allow children to play near the
door.
