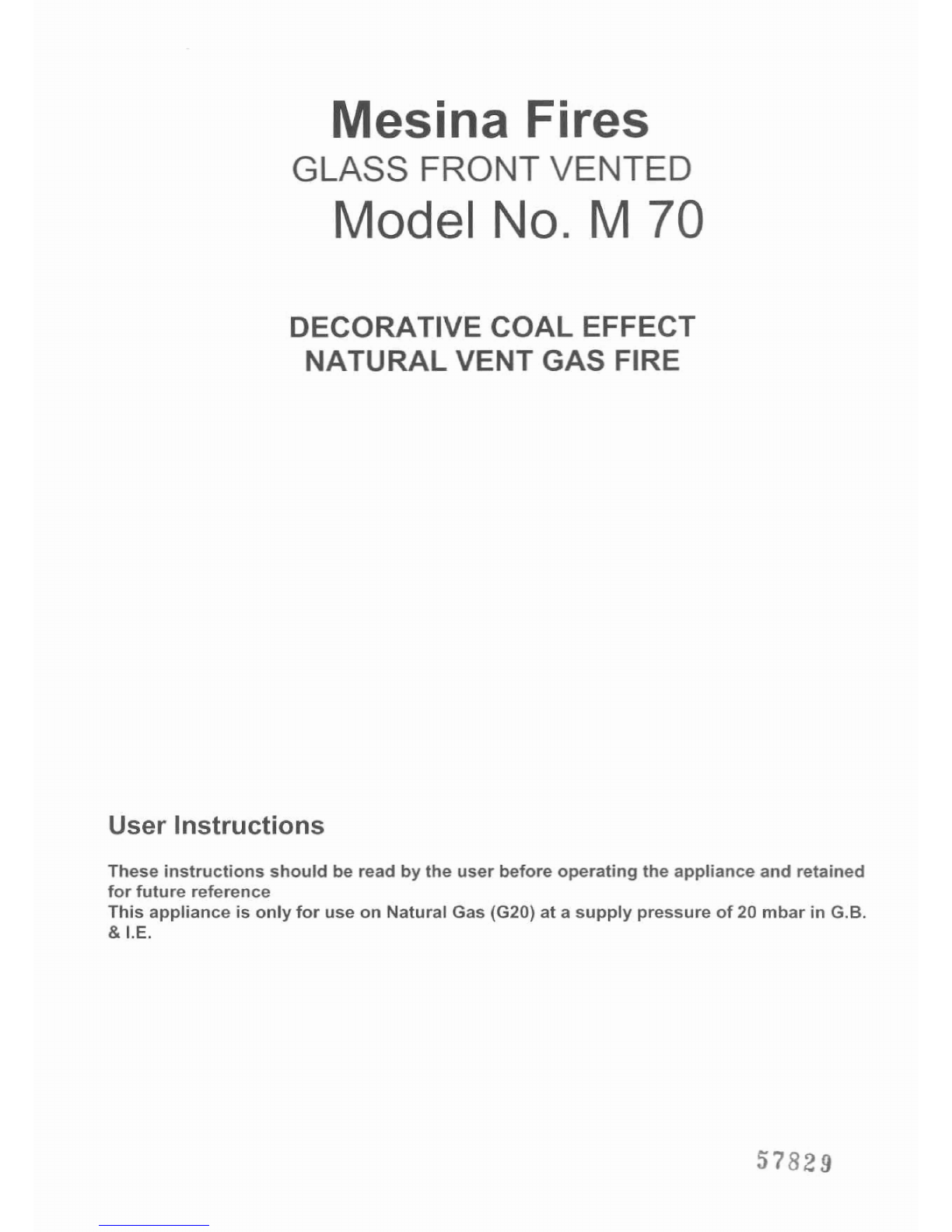

Mesina fires M 70 User manual

Mesina

Fires

GLASS

FRONT

VENTED

Model

No.

M

70

DECORATIVE COAL

EFFECT

NATURAL

VENT

GAS

FIRE

User

Instructions

These

instructions

should

be

read

by

the

user

before

operating

the

appliance

and

retained

for

future

reference

This

appliance

is

only

for

use

on

Natural

Gas

(G20)

at

a

supply

pressure

of

20

mbar

in

G.B.

&

I.E.

INSTALLATION

INFORMATION

It

is

the

law

that

all

gas

appliances

are

installed

only

by

a

competent

(e.g.

CORGl

Registered)

Installer,

in

accordance

with

the

installation

instructions

and

the

Gas

Safety

(Installation

and

Use)

Regulations

1994

as

amended.

Failure

to

install

appliances

correctly

could

lead

to

prosecution.

It

is

in

your

own

interest

and

that

of

safety

to

comply

with

the

law.

The

fire

may

be

fitted

below

a

combustibleshelf

provided

that

the

shelf

is

at

least

200mm

above

the

top

of

the

appliance

and

the

depth

of

the

shelf

does

not

exceed

7

50mm.

The

fire

may

be

installed below

combustible

shelves which

exceed

150mrn

deep

providing

that

the

clearance

above

the

fire

is

increased

by

15mm

for

each

25mm

of

additional

overhang

in

excess

of

150mrn.

If

this

appliance

is

fitted

directly

on

to

a

wall

without

the

use

of

a

fireplace

or

surround,

soft

wall

coverings

such

as

wallpaper, blown

vinyl

etc.

could

be

affected

by

the

heat

and

may

discolour

or

scorch.

This

should

be

considered

when

installing

or

decorating.

The

Model

number

of

this

appliance

is

KF

80

and

it

is

manufactured

by:-

Mesina

Fires

Trentham

Lakes

Stoke-on-Trent

Staffordshire

ST4

4TJ

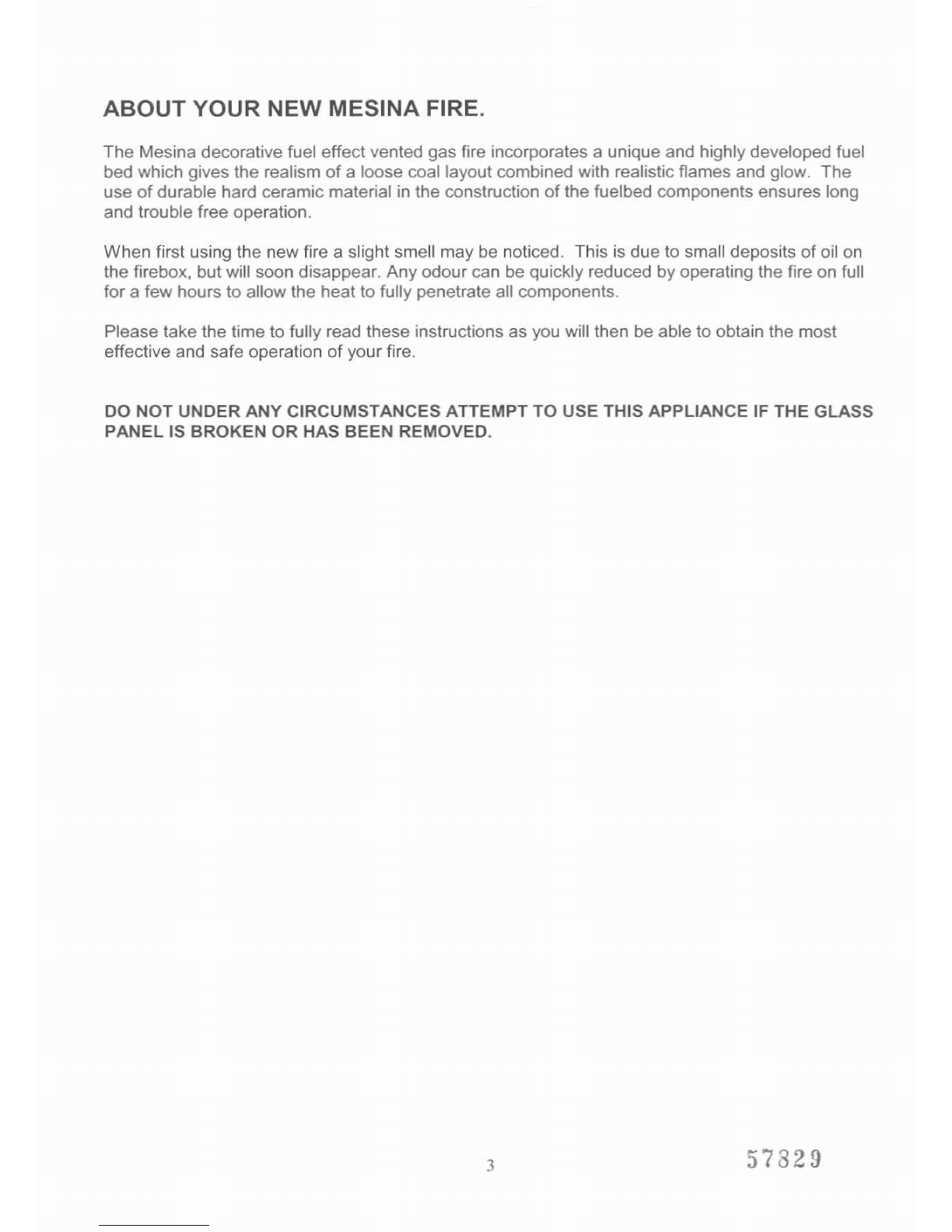

ABOUT

YOUR

NEW

MESINA

FIRE.

The

Mesina

decorative

fuel

effect

vented

gas

fire

incorporates

a

unique

and

highly

developed

fuel

bed

which

gives

the

realism

of

a

loose

coal

layout

combined

with

realistic

flames

and

glow.

The

use

of

durable

hard

ceramic

material

in

the

construction

of

the

fuelbed

components

ensures

long

and

trouble

free

operation.

When

first

using

the

new

fire

a

slight

smell

may

be

noticed.

This

is

due

to

small

deposits

of

oil

on

the

firebox,

but

will

soon

disappear.

Any

odour

can

be

quickly

reduced

by

operating

the

fire

on

full

for

a

few

hours

to

allow

the

heat

to

fully

penetrate

all

components.

Please

take

the

time to

fully

read

these

instructions

as

you

will

then

be

able

to

obtain

the

most

effective

and

safe

operation

of

your

fire.

DO

NOT

UNDER

ANY

CIRCUMSTANCES

ATfEMPT

TO

USE

THIS

APPLIANCE

IF

THE

GLASS

PANEL

15

BROKEN

OR

HAS

BEEN

REMOVED.

IMPORTANT

SAFETY

INFORMATION

WARNING

This

appliance

has

an

extremely

hot

working

surface

and

as

with

all

heating

appliances

a

fireguard

should

be

used

for

the

protection

of

children,

the

elderly

and

infirm.

Fireguards

should

conform

to

BS

6539

(1984)

(Firequards

for

use

with

solid

fuel

appliances).

Sewicing

should

be

carried

out

annually

by

a

competent

person

such

as

a

CORGT

registered engineer

We

recommend

that

during

the

annual

service,

replacement

of

the

pilot

is

carried

out

The

sewice

should

include

visually

checking

the

appliance,

flue

terminal

and

fireplace

for

accumulation

of

debris

around

the

firebox.

The

condition

of

the

coals

should

be

checked

and

if

necessary

the

whole

set

should

be

replaced

with

a

genuine

replacement

set.

After

any

servicing

work

a

gas

soundness

check

and

spillage

test

must

allways

be

carried

out.

Any

debris

or

deposits

should

be

removed

from

the

fuel

bed

from

time

to

time,

This

may

be

carried

out

by

referring

to

the

cleaning

section

as

described

later

in

this

book.

Only

the

correct

number

and

type

of

coals

must

be

used

and

only

complete

and

genuine

replacement

sets

must

be

used.

Always

keep

furniture

and

combustible

materials

well

clear

of

the

fire

and

never

dry

clothing

or

items

either

on

or

near

to

the

fire.

Never

use

aerosols

or

flammable

cleaning

products

near

to

the

fire

when

it

is

in

use.

The

hard

ceramic

fuel

bed

remains

hot

for

a

considerable

period

after

use

and

sufficient

time

should

be

allowed

for

the

fire

to

cool

before

cleaning

etc.

The

fire

must

only

be

operatedwith

the

brass

fender

and

ash

pan

cover

or

cast

iron

front

in

position.

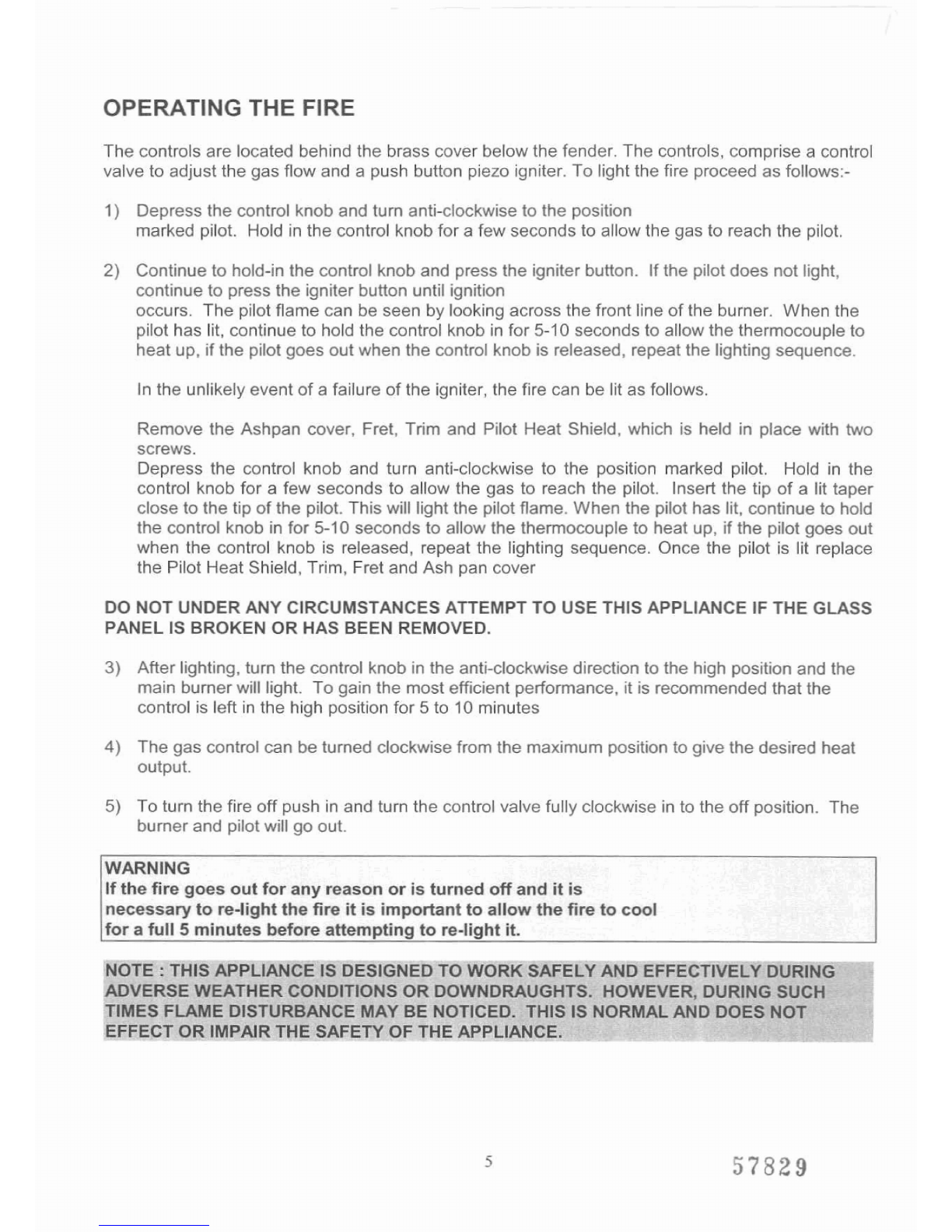

OPERATING

THE

FIRE

The

controls

are

locatedbehind

the

brass

cover

below

the

fender.

The

controls, comprise

a

control

valve

to

adjust

the

gas

flow

and

a

push

button

piezo

igniter. To

light

the

fire

proceed

as

follows:-

1)

Depress

the

control

knob

and

turn

anti-clockwise

to

the

position

marked

pilot.

Hold

in

the

control

knobfor

a

few

seconds

to

allow

the

gas

to

reach

the

pilot.

2)

Continueto hold-in

the

control

knob

and

press

the

igniter

button.

If

the

pilot

does not light,

continue

to

press

the ignites

button

until

ignition

occurs.

The

pilot

flame

can

be

seen

by

lookingacross

the

front

line

of

the

burner.

When

the

pilot

has

lit, continue to

hold

the control

knob

in

for

5-10

seconds

to allow the thermocauple

to

heat

up,

if

the

pilot

goes

out

when

the

cont~o!

knob

is

released,

repeat

the

lighting

sequence.

In

the

unlikely

event

of

a

failure

of

the

igniter,

the

fire

can

be

lit

as

follows.

Remove

the

Ashpan

cover,

Fret,

Trim

and

Pilot

Head

Shield.

which

is

held

in

place

with

two

screws.

Depress

the

control

knob

and

turn

anti-clockwise

to

the

position

marked

pilot. Hold

in

the

control

knob

for

a

few

seconds

to

allow

the

gas

to

reach

the

pilot.

Insert

the

tip

of

a

lit

taper

close

to

the

tip

of

the

pilot.

This

will light

the

pilot

flame.

When

the

pilot

has

lit,

continue

to

'hold

the control

knob

in

for

5-10

seconds

to

allow the

thermocouple

to

heat

up,

if

the

pilot

goes

out

when

the

control

knob is

released,

repeat

the

lighting

sequence.

Once

the

pilot

is

lit

replace

the

Pilot

Heat

Shield,

Trim,

Fret

and

Ash

pan

cover

00

NOT

UNDER

ANY

CIRCUMSTANCES

ATTEMPT

TO

USE

THIS

APPLIANCE

FF

THE

GLASS

PANEL

IS

BROKEN

OR

HAS

BEEN

REMOVED.

3)

After

lighting,

turn

the

control

knob

in

the

anti-clockwise

direction

to

the

high

position

and

the

main

burner

will

light.

To

gain

the

most

efficient

performance,

it

is

recommended

that

the

control

is

left

in

the

high

position

for

5

to

'l0

minutes

4)

The

gas

control

can

be

turned

clockwise

from

the

maximum

position

to

give

the

desired

heat

output.

5)

To

turn

the

fire

off

push

in

and

turn

the

control valve fully

clockwise

in

to

the

off

position.

The

burner

and

pilot

will

go

out.

WARNING

If

the

fire

goes

out

for

any

reason

or

is

turned

off

and

it

is

necessary

ta

re-light

the

dire

it

is

impo~ant

to

allow

the

fire

to

cool

for

a

full

5

minutes

before

attempting

to

re-light

it.

N~TE

:

THlS

APPLIANCE

IS-DESIGNED

TO

WORK

SAFELY

AND

EFFECTTVELY

OU~P

ADVERSE

WEATHER

CONDITIONS

OR

DOWNDRAUGHTS.

HOWEVER,

DURING

SUC

TIMES

FLAME

DlSTUR8ANCE

MAY

&E

NOTICED.

T

EFFECT

OR

IMPAIR

THE

SAFETY

OF

THE

APPLlANl

NORM.

NOT

CLEANING

-

WARNING

Before

attempting

any

deaning

operation

ensure

that

the

fire

has

been

allowed

to

fully

cool.

CLEANINGTHE FUEL

BED

We

do

not

recommend

cleaning

the

fuelbed

other

than

at

annual

service

intervals.

If

carbon

or

soot

accumulates

on

the

coals

or

fuelbed,

this

should

be

removed

by

carefully

brushing

the

fuelbed

components

using

a

soft

brush.

For

instructions

on

how

to

remove

the

glass

pane!

please

see

page

7.

Coals

are

made

from

a

form

of

refractory

ceramic

fibre

and

should

be

handled

carefully

to

avoid

generating

dust,

as

this

may

be

harmful

if

inhaled.

As

with

some

fibrous

materials,

handling coals

without

gloves

could

cause

skin

irritation.

If

coals

are

found

to

be

very

dirty

or

are

damaged

they

should

be

replaced

with

a

complete

set

of

replacement

coals

of

the

correct

type.

The

old

coals

should

be

placed

in

a

sealed

plastic

bag

and

disposed

of

as

normal

household

waste.

None

of

the

fuelbed

components

or

coals

must

be

washed

or

exposed

to

any

cleaning

agents

or

water.

Any

damaged

parts

must

be

replaced

by

contacting

your

dealer

or

telephoning

Kinder

Fires

on

the

number

stated

on

the

rear

cover

of

this

book.

Coals must

only

be

replaced

with

a

complete

and

genuine

replacement

set

and

the

fire

must

never

be

run

with

the

wrong

number

or

damaged

coals.

The

fuelbed

must

be

carefully

reassembled

as

stated

in

the

following

section.

CLEANING

THE

GLASS

PANEL

To

clean

the

glass

panel,

first

ensure

that

the

fire

is

cool,

please

note

that

the

glass

panel

will

remain

hot

for

a

considerable period

when

the

fire

has

been

switched

off.

To

remove

the

glass

panel,

follow

the instructions

overpage

for

removal

and

re-fitting.

The

glass

panel

should

be

cleaned

gently

with

a

soft

damp

cloth

and

glass

cleaner

PO

NOT

UNDER

ANY

CIRCUMSTANCES

AfTEMPf

TO

CLEAN

THE

GLASS

PANEL

WHEN

THE

APPLIANCE

1S RUNNING.

FOLLOWING

CLEANING

OF

THE

GLASS

PANEL,

ALWAYS

ENSURE

THAT

THE

ALLEN

'KEY

IS

REMOVED

FROM

THE

ALLEN

BOLTS

AND

REPLACED

INTO

ITS

LOCATION

AT

THE

BOTTOM

RIGHT

HAND

SlDE

OF

THE

FIREBOX.

REMOVING

&

REFITTING OF

THE

GLASS

'FRAME.

1

Top

infill

panel.

-

4

Allen

key

fixinpl

screws

Storage

of

Allen

key

a)

Remove

the

brass

trim,

ashpan

cover

and

fret

from

the

firebox.

b)

Remove

the

pilot

heat

shield

which

is

held

in

place

at

each

end

by

1

screw.

c)

Remove

the

top

Enfill

panel

by

sliding

it

upwards

out

of

the

clips.

d)

Obtain

the

Allen

key

which

is

located

at

the

bottom

right

hand

side

if

the

firebox.

e)

Loosen

each

Allen

bolt

a

small

amount

at

a

time

to

prevent

damage

to

the

glass

panel.

When

all

the

Allen

bolts

have

been

removed,

lift

away

the

glass

frame

and

clean

as

per

the

previous

page.

f

1

Refit

the

glass

panel

to

the

firebox,

again

tightening

each

bolt

a

small

amount

at

a

time

to

prevent

stressing

the

glass

panel.

Carefully

tighten

all

the

bolts

to

ensure

good

compression

on

the

glass

panel

seal.

g)

Refit

the

brass

trim,

ashpan

8

fret

to

the

firebox.

FOLLOWING

USE

OF

THE

ALLEN

KEY,

ALWAYS

REMOVE

IT

FROM

THE

FIRE

AND

REPLACE

IT

INTO

ITS

LOCATION

IN

THE

CLIP

AT

THE

B017QM

RIGHT

HAND

SlDE

OF

TME

FI'REBOX.

ASSEMBLING

FUEL

BED

AND

CERAMICS

FIlTING

THE

FUELBED

Place

the

fuelbed

centrally

onto

the

fuelbed

support.

Ensure

that

the

fuelbed

is

located

centrally

in

the

firebox,

and

that

the

rear

face

of

the

fuelbed

is

flush

to

the

fibreboard

which

is

mounted

on

the

rear

face

of

the

firebox.

See

below.

Fig.

2x

Warning:

Use

only

the

coals

supplied

with

the

fire.

When

replacing

the

coals remove

the

old coals

and

discard

them.

Fit

a

complete

set

of

coals

of

the

correct

type.

Do

not

fit

additional

coals

or

any

coals

other

than

a

genuine

replacement

set.

FIITFMG

OF

THE

COALS

Select

bolh

the

large

coals

and

four

of

the

small

coals

and

arrange

as

shown

below

-the

large

coals

are

located

at

each

end

of

the

front

row

and

the four

small

coals

are

placed

along

the

middle

of

the

front

row.

Fig.

3x

NOTE

:-

Ensure

that

a

small

airgap

is

left

between

the

glass

frame

and

the

front

edge

of

the

coals

Select

the remainingfive

small

coals

and

arrange

across

the

rear

of

the

fuelbed

as

shown below,

Ensuring

that

there

is

sufficient

gaps

to

allow

the flames

to

travel

between

the front

and

rear

rows

of

coals.

NOTE

:

The

rear

row

of

caals

should

'be

placed

immediatelybehind

and

in-between

the

coals

on the

front

row,

not

in

the

"W"

shaped

depressions,

which

are

intended

as

a

guide

for

placement.

Fig.

4x

When

all

the

coals

have

been

fitted, check that

gaps

are

available

to allow

the

flames

to

travel

through

the

fuelbed

as

shown

on

the drawing below,then refit

the

glass

frame

as

detailed

in

the

installation

and

maintenance

instruction

book,

then

light

the

appfiance

as

detailed

on

page

5

of

this

book.

Check

that the flame


is

as

shown

below

with a

row

of

flames between

the

front

and

rear

coals.

Flamesshould

not

pull

between

the

front

coals

and

glass.

If

this

occurs,

turn

off

the fire

and

relay

the

coals

as

described

above.

DIRECTION

OF

FLAME

PATTERN

TRAVEL

Fig.

5x

10

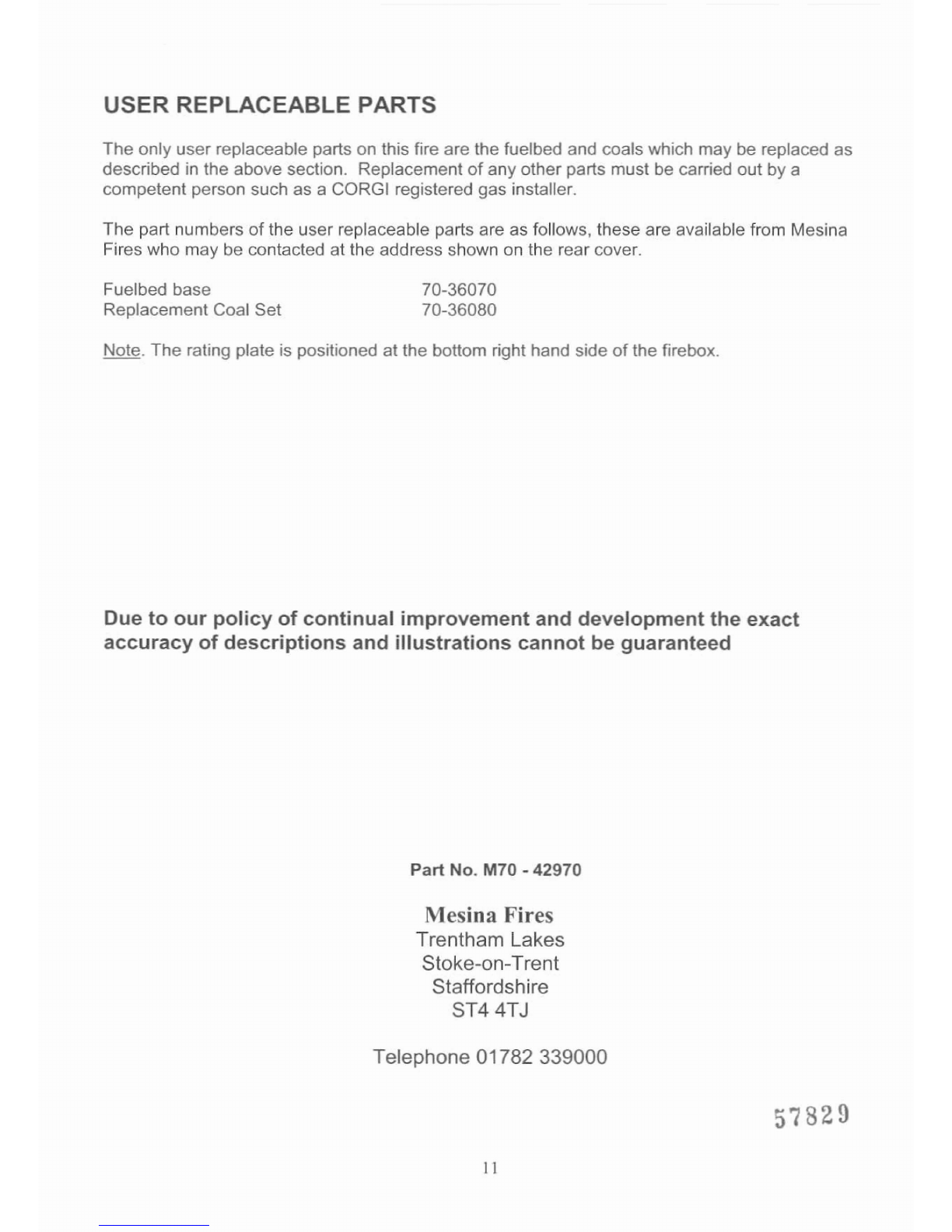

USER

REPLACEABLE

PARTS

The

only

user

replaceable

parts

on

this

fire

are

the

fuelbed

and

coals

which

may

he

replaced as

described

in

the

above

section.

Replacement

of

any

other

pads

must

be

carried out

by

a

competent

person

such

as

a

CORGl

registered

gas

installer.

The

part

numbers

of

the

user

replaceable

parts

are

as

follows,

these

are

available

from

Mesina

Fireswho

may

be

contacted

at

the

address

shown

on

the

rear

cover.

Fuelbed

base

Replacement

Coat Set

Note.

The

rating

plate

is

positioned

at

the

bottom

right

hand

side

of

the

firebox.

Due

to

our

policy

of

continual

improvement

and development

the

exact

accuracy

of

descriptions

and

illustrations

cannot

be

guaranteed

Part

No.

M70

-

42970

Mesina

Fires

Trentham

Lakes

Stoke-on-Trent

Staffordshire

ST4

4TJ

Telephone

01

782 339000

Table of contents

Popular Indoor Fireplace manuals by other brands

Morso

Morso 1412 manual

Dimplex

Dimplex DF2608 owner's guide

Blu

Blu Charnwood Cove 3 Operating & installation instructions

Majestic fireplaces

Majestic fireplaces DVB4136 Homeowner's installation and operating manual

Napoleon

Napoleon B30NTR Installation and operating instructions

StyleWell

StyleWell NORTHGLENN 1418FM-23-259 Assembly instructions

Napoleon

Napoleon Elevation E36NT owner's manual

Napoleon

Napoleon BGD38NT Installation and operation instructions

HEAT GLO

HEAT GLO SUPREME-I30-IFT owner's manual

DS Produkte

DS Produkte SF-1516 instruction manual

Dimplex

Dimplex CHADWICK CDW15XHD instruction manual

Majestic

Majestic 380IDVNVC Installation and operating instructions

Outdoor Lifestyles

Outdoor Lifestyles VOFB36-T installation manual

Baxi Fires Division

Baxi Fires Division Soraya 746 owner's guide

Superior Fireplaces

Superior Fireplaces DRI3030TEN Additional Instructions for Installation and Operation

Lennox Hearth Products

Lennox Hearth Products 038M Installation and operating instructions

Canvas

Canvas WALDON CTCFP60-5 Assembly instructions

Mendota

Mendota DXV35 DT4-LX Installation & operating instructions
