INSTRUKCJA OBSŁUGI - WYWROTKA T930
Type T930 TIPPER TRAILER
OPERATING INSTRUCTIONS
Issued: June 2013

2OPERATING INSTRUCTIONS - T930 TIPPER TRAILER
The latest operating manuals and parts catalogues are available on our website: http://www.metalfach.com.pl/en/materialy-
do-pobrania
IMPORTANT

3
OPERATING INSTRUCTIONS - T930 TIPPER TRAILER
TRAILER DATA:
Vehicle type: Mono-axial farming truck trailer
Commercial designation: Wheelbarrow
Type designation: T930
Trailer identification number1/:.........................................................................................................................................................................
Trailer manufacturer:
"METAL-FACH" Sp. z o. o.
16-100 Sokółka
ul. Kresowa 62
Tel. no. [phone]
Fax: [phone]
Sold by: Address: .........................................................................................................................................................................
.........................................................................................................................................................................
.........................................................................................................................................................................
Tel./Fax .........................................................................................................................................................................
.........................................................................................................................................................................
Date of delivery .........................................................................................................................................................................
Owner / User Full name .........................................................................................................................................................................
Address .........................................................................................................................................................................
.........................................................................................................................................................................
.........................................................................................................................................................................
Tel./Fax .........................................................................................................................................................................
.........................................................................................................................................................................
Hint: Please note down the tipper truck type and serial number - it will be required for contact with your authorised
dealership.
HINT
1/ The data is found on the trailer nameplate located on the trailer right frame side member

4OPERATING INSTRUCTIONS - T930 TIPPER TRAILER
CE DECLARATION OF CONFORMITY
FOR THE MACHINE
METAL-FACH Sp. z o. o.
ul. Kresowa 62
16-100 SOKÓŁKA
which acts as the manufacturer
declares under sole responsibility that the following machine:
this declaration concerns, meets the following requirements:
- Directive 2006/42/EC OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL
dated May 17th 2006 on machines and the Resolution of the Minister of Economy of October
21st 2008 concerning general requirements for machinery (Journal of Laws, no. 199 item 1228);
The following harmonised standards were used for compliance evaluation:
PN-EN 1853+A1:2009E PN-EN ISO 13857:2010P
PN-EN ISO 4254-1:2009E PN-EN ISO 12100:2012P
- and the following standards: PN-ISO 3600:1998, PN-ISO 11684:1998; and the Resolution of the
Ministry of Infrastructure of 31 December 2002 on technical requirements for vehicles and the
scope of their necessary equipment (Journal of Laws 2003 no. 32 item 262 as amended).
Safety Test Report no.
Unit responsible for engineering documentation: METAL-FACH Engineering Department
This Declaration of Conformity becomes void and null if the machine design is changed
or modied in any manner without prior consent from the manufacturer.
Sokółka, ......................... Chairman of the Board
Jacek Marek Kucharewicz
FARMING TRUCK TRAILER
type/model: T930 .............................................
serial number:.....................................................
year of manufacture:..........................................

5
OPERATING INSTRUCTIONS - T930 TIPPER TRAILER
NAMEPLATE
In all correspondence, questions, and warranty issues, please state
the type and identification number of the trailer.
The identification data is found on the trailer nameplate located on
the hitch beam. The serial number is stamped on the nameplate and
underneath.
THE MANUAL IS A PART OF THE TRAILER'S ESSENTIAL
EQUIPMENT.
It is forbidden to drive the trailer on public roads or
operate the trailer without its nameplate or with an
illegible nameplate.

6OPERATING INSTRUCTIONS - T930 TIPPER TRAILER
TABLE OF CONTENTS
1. BACKGROUND 7
1.1. Intended uses 7
1.2. Equipment 8
1.3. Trailer design 8
2. GENERAL SAFETY RULES 8
2.1. Symbols and nomenclature 8
2.2. Obligatory notification 9
2.3. General safety regulations of work and use 9
2.3.1. Safety of operation 9
2.3.2. Tyres 10
2.3.3. Hydraulic and pneumatic systems 11
2.3.4. Periodic maintenance 11
2.3.5. Travelling on public roads 11

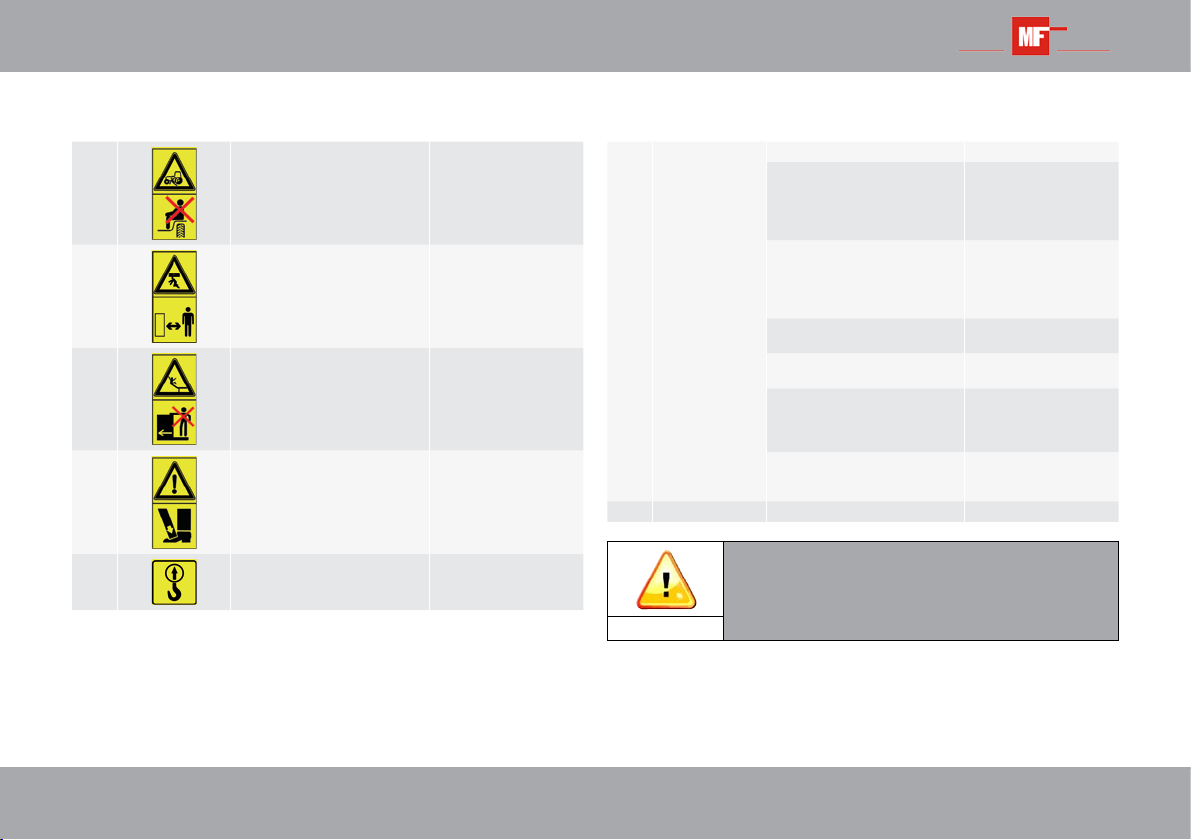

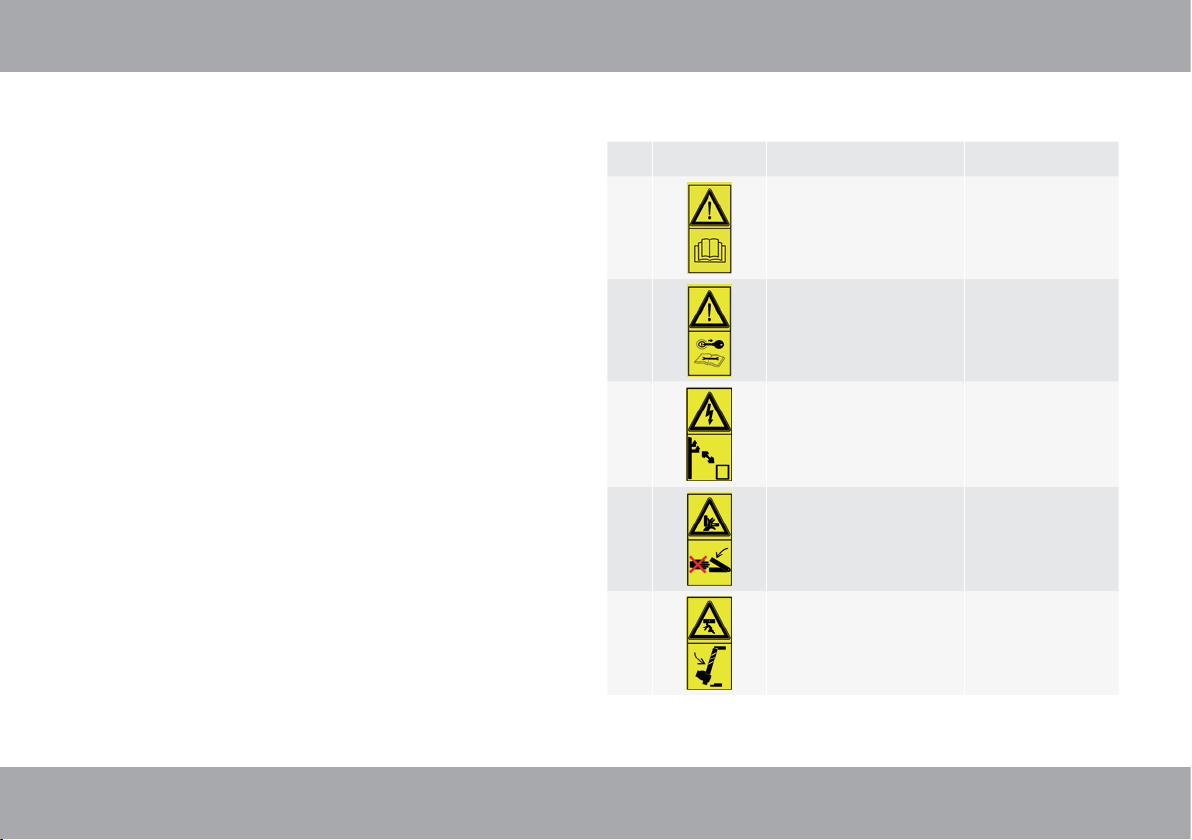

2.4. Warning signs and messages on the trailer 11
3. TECHNICAL CHARACTERISTICS 14
4. GENERAL DESCRIPTION OF DESIGN AND FUNCTION 16
4.1. Chassis 16
4.2. Load body 16

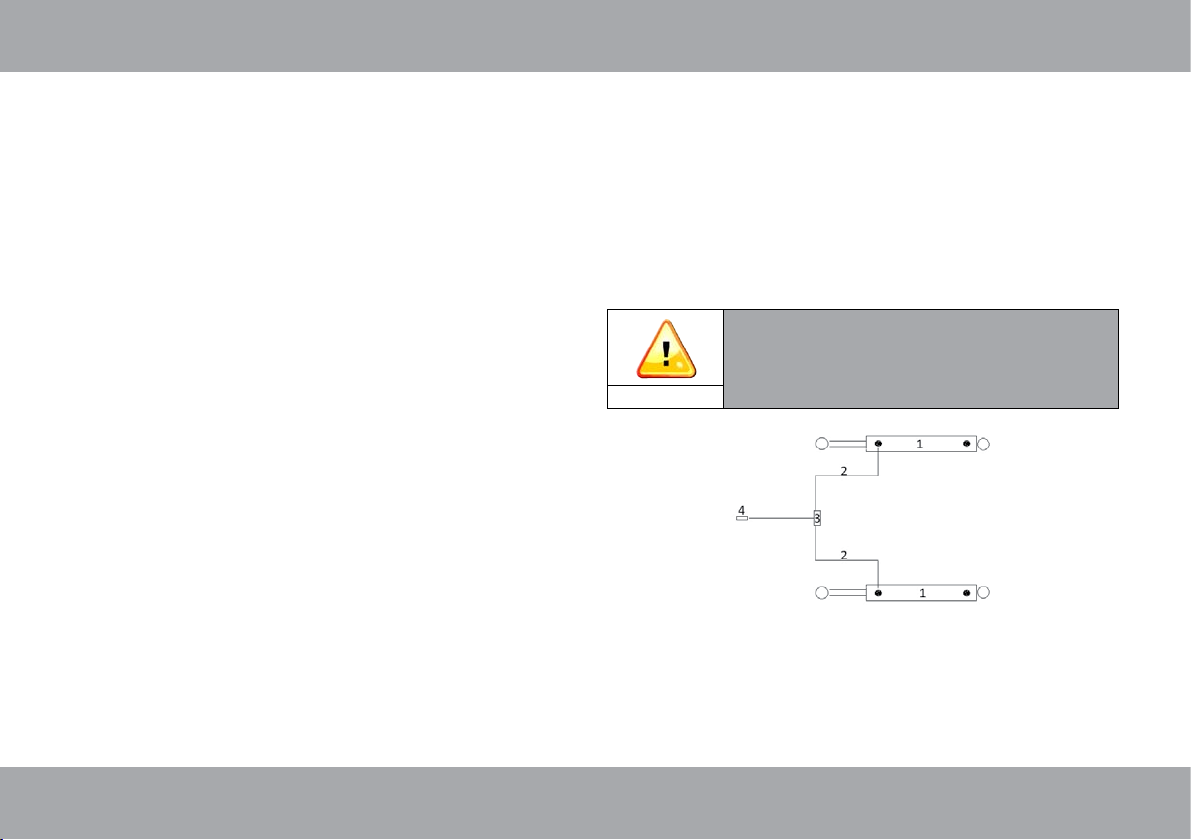

4.3. Load body hydraulic tipping mechanism 16
4.4. Electrical system (signalling and warning) 17
4.5. Support foot 17
4.6. Braking system 18
5. STORAGE, SALE AND SHIPPING TO USER 19
5.1. Storage 19
5.2. Sale 19
5.3. Shipping to user 19
6. OPERATION INFORMATION 20
6.1. Commissioning the trailer 20
6.2. Loading the body 20
6.3. Travelling on public roads 21
6.4. Unloading 21
6.5. Decoupling from the tractor 21
7. SERVICING 22
7.1. Wheels – bearing clearance adjustment 22
7.2. Brakes 22
7.2.1. Brakes – servicing the brake pneumatic system 22
7.2.2. Brakes – adjustment of the braking system components 23
7.3. Hydraulic system 24
7.3.1. Hydraulic system – servicing of the load body hydraulic tipping system 24
7.3.2. Hydraulic system – adjustment of the load body hydraulic tipping
mechanism
24
7.4. Wheels – tyres 25
8. TROUBLESHOOTING 26
9. PERIODIC MAINTENANCE 27
9.1. Lubrication 27
9.2. Maintenance and servicing 27
9.3. Repair instructions 28
10. DISPOSAL OF THE TRAILER 28
11. RESIDUAL RISKS 29
11.1. Description of residual risks 29
11.2. Description of residual risks 29
12. AUTHORISED SERVICE 29
12.1. Warranty service 29
12.2. Ongoing maintenance 29
12.3. Ordering of spare parts 29
13. WARRANTY CONDITIONS 31
TABLE OF CONTENTS

BACKGROUND
7
OPERATING INSTRUCTIONS - T930 TIPPER TRAILER
1. BACKGROUND
These Operating Instructions are intended to provide the product user
with information concerning operation, servicing and maintenance
of the machine. They contain operating performance data and the
requirements for safe and professional operation of the machine which
enable the best use of the product with the maximum operating life and
reliability. They also contain information about ordering of spare parts.
Thorough understanding of the Operating Instructions will help the
user prevent accidents, operate the machine efficiently and take
advantage of the full warranty period.
Unauthorised modification of the trailer design may release the
manufacturer from liability for resulting damage and loss.
METAL-FACH Sp. z o. o. reserves the right to introduce changes
without prior notice and without assuming any obligations resulting
from those changes.
ALL OPERATORS OF THIS AGRICULTURAL TRAILER
MUST UNDERSTAND THE CONTENTS OF THE
OPERATING INSTRUCTIONS BEFORE COMMENCING
WORK. THE MANUAL IS A PART OF THE T930
FARMING TRAILER'S ESSENTIAL EQUIPMENT.
This is intended to follow the right operation method for the trailer, its
safety of use and maximum operating life. This is also the condition
which ensures that your warranty rights are maintained.
1.1. INTENDED USES
The trailer is intended for transport of crops and other bulk or loose
materials within a farm and on public roads. The trailer is unloaded
manually or by tipping the load body to the rear. The trailer is designed
for coupling with farming tractors of varying power ratings, equipped
with an external power hydraulic system, a power outlet for the
electrical lighting and warning systems and the braking system of
hitched machines, and a transport hitch.
• Do not use this trailer to carry fuel, gas cylinders and similar due
to the compliance requirements for transport of hazardous materials.
• Any use than indicated above is unintended use. Do not use the
trailer to transport: fuel, gas cylinders, or toxic materials that may
cause environmental pollution. The manufacturer shall not be liable
for any resulting damage as it is solely incurred by the owner.
• Intended use also includes compliance with the operating, servicing
and maintenance requirements established by the manufacturer.
• The trailer shall only be used by persons who have understood the
operating manual and who have been trained in hazards and first aid
for accident victims.
• Follow all applicable laws for accident prevention and any other
recognised rules of engineering safety, work medicine and road traffic
safety.
• The manufacturer shall not be liable for damage from any
unauthorised modifications of this trailer's design.

8OPERATING INSTRUCTIONS - T930 TIPPER TRAILER
GENERAL SAFETY RULES
1.2. EQUIPMENT
The basic equipment of each trailer includes:
- operating instructions manual;
- warranty card with warranty conditions;
- the safety support;
- the two-line brake control system.
On customer's request the manufacturer can supply the trailer with
the following optional accessories (available at extra charge): a slow-
moving vehicle sign, and a single-line brake control system.

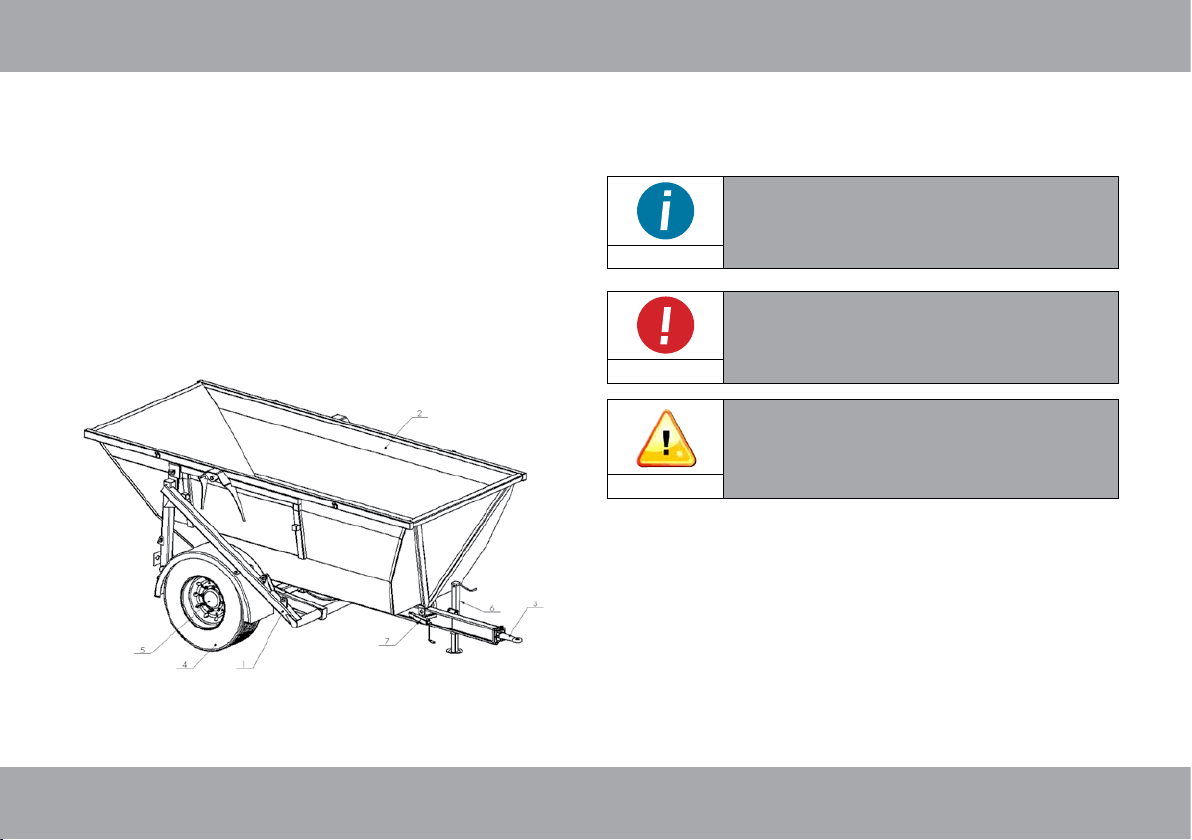

1.3. TRAILER DESIGN
1. Frame
2. Load body
3. Hitch
4. Traction wheels
5. Axle
6. Support foot
7. Parking brake pull
2. GENERAL SAFETY RULES
2.1. SYMBOLS AND NOMENCLATURE
Failure to comply with these guidelines may result in
damage of equipment or its components.
IMPORTANT
This warning sign in the operating instructions means
that special caution shall be exercised due to hazards
to persons and potential damage to the product.
CAUTION!
It is important to carefully follow these notes or
guidelines.
WARNING!
The "Qualified persons" are persons who perform the required tasks by
always using their education, experience and training, as well as their
understanding of standards, definitions, accident prevention regulations
and operating conditions; hence they are also capable of identifying and
avoiding potential hazards. Among others, these persons are also requ-
ired to understand first aid measures for the injured (e.g. by wounding).
The term "operation" includes settings, starting (preparation for use) and
operation (starting, commissioning, powering off, etc.).
The term "maintenance of proper condition" includes checks and care
(control, adjustments), servicing and repairs (troubleshooting).

GENERAL SAFETY RULES
9
OPERATING INSTRUCTIONS - T930 TIPPER TRAILER
Note all other (specially highlighted) indications for transport, assembly,
operation, servicing and technical data (in the operating instructions,
production records and on the machine itself). It is equally essential due
to the potential (direct and indirect) hazards and their consequences, i.e.
severe damage of human health and property.
2.2. OBLIGATORY NOTIFICATION
When the trailer is transferred to another user, the operating instructions
shall be transferred as well, whereas the receiving user must undergo tra-
ining according to the instructions.
2.3. GENERAL SAFETY REGULATIONS OF WORK AND
USE
Before each start of work, inspect the trailer for work safety.
1. Aside from the guidelines in these operating instructions, follow the
current general regulations for safety and accident prevention.
2. The affixed information and warning signs and text indicate important
guidance for safe operation. Follow it for your safety.
3. Start the trailer only when all required equipment is connected and
secured against unintended release or opening (e.g. the hitch and tow
bar system, couplings, locks etc.).
4. Understand all equipment and controls, as well as their functions, be-
fore work.
5. The machine must not be used by persons who are: intoxicated, irre-
sponsible in behaviour or children (underage).
2.3.1. SAFETY OF OPERATION
1. All work safety information shall be given to all other users of the tra-
iler.
2. Check the direct environment (for children and bystanders) before
start. Pay particular attention when visibility is poor.
3. Do not remain on the trailer in motion, when coupling the trailer with a
tractor and when loading or unloading the trailer.
4. After unloading the trailer, lower the load body completely. Never leave
the trailer unattended with its load body raised.
5. Enter the trailer only when it has completely stopped and with the trac-
tor engine stopped.
6. Lift and lower the load body only from the driver's seat.
7. Hitch the trailer according to regulations, couple only with recommen-
ded equipment and secure the tow bar hitch-ring to the tractor trans-
port hitch.
8. Exercise extreme caution when coupling/decoupling the trailer with/
from the tractor.
9. When installing and removing supports, security/safety equipment
and ladders, these types of equipment must always be positioned to
ensure safety to operators.
10. Follow the maximum permissible axle loads, total weight and trans-
port dimensions.
11. Do the following checks: coupling and functional test of brakes and li-
ghts, inspect the slow-moving vehicle sign, and check other protective
devices.
12. Do a functional test of lights and brakes before driving. Also prepare
the trailer as recommended in Section "Travelling on public roads".
13. Mind the changes in vehicle behaviour, steerability and braking effi-
ciency due to the hitched trailer and its load.
14. When towing the trailer, mind the layout of loads and/or inertia, espe-
cially when the load is unevenly distributed.

10 OPERATING INSTRUCTIONS - T930 TIPPER TRAILER
GENERAL SAFETY RULES
15. Bystanders must not enter the work zone of the trailer when it is wor-
king.
16. Do not remain within the range of discharged load.
17. Start the hydraulic lift (tipping) of the load body only when:
- the trailer is coupled with the tractor, AND
- the trailer is parked on a hard and level ground, AND
- no persons remain in the unloading area, AND
- the tractor's axis is aligned with the trailer, AND
- the machines are at a safe distance from all power lines, AND
- there are no strong gusts of wind.
18. If it is necessary to unload to the rear while parking on a slope, the tra-
iler with the tractor must be parked in the uphill direction. If unloading
to the side on a slope, tilt the load body in the opposite to the trailer's
direction of gradient.
19. During all work with the load body raised, secure it against falling with
the support delivered with the trailer. Turn off the tractor engine and
remove the ignition key.
20. Be careful to avoid crushing of fingers and hands.
21. Mind the warnings of crush and cut hazard areas when starting the
work with trailer. There is a risk of injury when coupling/decoupling the
trailer with/from the tractor. When coupling/decoupling, do not enter
between the trailer and the tractor or stand behind the trailer if the
trailer is not secured with wheel chocks or the parking brake.
22. No person is allowed to remain between the trailer and the tractor if
the vehicle is not secured against rolling with parking brake and/or
wheel chocks.
23. When parked, secure the tractor and the trailer against rolling.
24. Couple the trailer only with the upper hitch of a tractor that can trans-
fer at least 20 kN of load.
25. Do not drive with the lifted load body.
26. When raising the load body, maintain a safe distance from power lines.
The C.2.30. sign acc. to PN-ISO 11684:1998 on the front wall of the tra-
iler warns of power lines.
27. During all servicing or repair works which require lifting the load body,
the body must be empty and secured with the mechanical support aga-
inst accidental falling.
28. Always adapt your driving speed to the conditions. Avoid rapid turns
when driving uphill or downhill.
29. Maintain a safe distance from the U-turn range of the tractor and tra-
iler train.
30. When driving in reverse is necessary, ensure adequate visibility (with
the help of a signalling person, if necessary).
31. Mind the inertia of the trailer when cornering.
32. Additional protection for the load transported on the trailer (chains,
tarpaulin, plastic sheet, nets, transport straps, etc.) may be applied
only with tractor engine off and the ignition key removed.
33. Remove functional disturbances of attachments only with the engine
turned off and the ignition key removed.
34. Enter the load body surface only after turning off the drive and stopping
the tractor engine. Remove the ignition key.
35. Always turn off the engine and remove the ignition key before exiting
the tractor. Engage the parking brake and secure the trailer with the
wheel chock.
36. When travelling on public roads, the permissible axle load of the trailer
must not exceed 64 kN.
37. The maximum permissible pressure of the hydraulic system is 16 MPa.
38. The maximum permissible pneumatic pressure of the single-line sys-
tem is 0.63 MPa or 0.8 MPa for the two-line system.
39. Prepare the trailer for work (connect the pneumatic and hydraulic ho-
ses, etc.) with the tractor engine off and the ignition key removed.
40. The manufacturer delivers the trailer completely assembled.

GENERAL SAFETY RULES
11
OPERATING INSTRUCTIONS - T930 TIPPER TRAILER
2.3.2. TYRES
1. Make sure to secure the trailer against accidental movement when se-
rvicing the tyres.
2. The wheels and tyres shall be repaired by trained personnel with ade-
quate tools.
3. Regularly check the tire pressure. Follow the recommended pressure
values.
4. Protect the tyres against sunlight during prolonged parking of the tra-
iler.
5. Replace the wheels with the trailer empty, if possible.
2.3.3. HYDRAULIC AND PNEUMATIC SYSTEMS
1. The hydraulic and pneumatic systems are under high pressure.
2. When connecting the hydraulic cylinder, follow the manufacturer's gu-
idelines for connection of hydraulic lines.
3. When connecting the hydraulic and pneumatic lines to the hydraulic
and pneumatic systems of the tractor, ensure that the valves on the
tractor and the trailer are depressurised.
4. Periodically inspect the hydraulic and pneumatic connections. Replace
all damaged and aged parts immediately. Replace the lines as recom-
mended in the manufacturer technical requirements. Replace the lines
every five years unless damage is found earlier.
5. When inspecting for leak sources, overload the hydraulic system for
several seconds (leaking of drops is not permitted).
6. The liquid (hydraulic oil) which escapes under high pressure may
puncture the skin and cause severe injury. Immediately seek medical
attention if injured. There is a danger of infection.
7. Before working on the hydraulic and/or pneumatic systems, depressu-
rize the affected system and turn off the engine.
8. All repair work on the hydraulic and pneumatic systems may only be
performed by authorised representatives of METAL-FACH Sp. z o.o. in
Sokółka.
2.3.4. PERIODIC MAINTENANCE
1. All maintenance, repair and cleaning operations, as well as trouble-
shooting must be performed after turning the drive and the tractor en-
gine off. Remove the ignition key.
2. Inspect all bolts and nuts periodically and retighten if necessary. Re-
place regular bolts only with the bolts of the same quality and strength
ratings.
3. When servicing under the lifted and tipped but unloaded load body, al-
ways secure the body with the support supplied with the trailer.
4. Use proper tools and safety gloves when replacing any parts.
5. After completing your work, thoroughly clean the trailer to leave no
remains of the load on the body.
6. Isolate the continuous power supply before arc welding and/or working
on the electrical system.
7. The safety/protection equipment wears out, which requires periodic
adjustments, inspection and replacement when necessary.
8. Use only original spare parts recommended by the trailer manufactu-
rer, i.e. METAL-FACH Sp. z o.o.
9. Store the trailer in sheltered areas (preferably on level and hardened
ground) and in a manner which prevents injuries of people and animals.
10. Release all worn out parts to authorised recycling points while follo-
wing all applicable environmental protection requirements.

12 OPERATING INSTRUCTIONS - T930 TIPPER TRAILER
GENERAL SAFETY RULES
2.3.5. TRAVELLING ON PUBLIC ROADS
1. Before departing, check that the trailer lighting is working and that the
trailer identification is complete.
2. Follow the traffic code regulations when travelling on public roads.
3. Exceeding the permissible payload and driving speed may damage the
trailer and compromise traffic safety.
4. Do not exceed the permissible driving speed of 30 km/h.
5. The trailer is designed for operation at grades of 8° maximum.
6. When travelling on public roads, the trailer must feature a reflective
warning triangle, and the slow-moving vehicle sign in the trailer brac-
ket located on the load body wall (included with the trailer).
7. Do not leave the loaded trailer on slopes and when it is not secured
against rolling. Secure the trailer by engaging the parking brake and
chocking the wheels.
2.4. WARNING SIGNS AND MESSAGES ON THE TRAILER
The warning signs and messages on the trailer must not be removed.
They are intended for safe handling of the trailer. If any information la-
bel is damaged or removed, order a spare one. Text and symbol label
stickers are available from service agents or the trailer manufacturer.
Item Safety symbol
(sign)
Meaning of the symbol (sign)
or text Location on the machine
1.
Read the manual On the load body's front
wall
2.
Turn off the engine and remove
the ignition key before servicing
or repairs
On the load body's front
wall
3.
Keep a safe distance from power
lines
On the load body's front
wall
4.
Do not reach into the crushing
area if the parts may move On side walls
5.
Install the support before
entering the hazardous area
On the chassis side frame
beam, at the support

GENERAL SAFETY RULES
13
OPERATING INSTRUCTIONS - T930 TIPPER TRAILER
6.
Do not ride on the machine – use
the passenger seat only
On the load body front
wall
7.
Keep a safe distance from the
machine
On the load body's front
wall
8.
Do not stand on ladders and
platforms while the tractor is
moving
At the ladder
9.
Feet (toes) crushing hazard.
Force applied from above
At the support
10.
Lifting point On the chassis frame
side members
11 Warning text on
the trailer
20 kN max On the tow bar
12 Note!
Do not perform any checks or
servicing under the loaded or
tilted load body without the
support.
At the support
13 Note!
Do not remain within the range of
discharged loads.
Do not enter the trailer when it
is hauled.
On the load body's front
wall
14 "Load capacity 6 t" On the load body left and
right wall
15 Maximum hydraulic system
pressure: 16 MPa
Maximum hydraulic
system pressure: 16 MPa
16 Maximum pneumatic system
pressure
- 0.6 MPa, single-line system
- 0.8 MPa, two-line system
On the load body front
wall
17 Approximate weight values of
certain goods –
acc. to section 5.3 on p. 19
On the load body front
wall
18 Tyre pressure 385/65 R22.5 8.5 bar Over the wheels
The trailer user is required to keep the warning
symbols and text on the trailer legible during its
entire operating life.
If damaged or destroyed, replace with new ones.
WARNING!

14 OPERATING INSTRUCTIONS - T930 TIPPER TRAILER
TECHNICAL CHARACTERISTICS
3. TECHNICAL CHARACTERISTICS
Item
no.
Contents
I General data
1. Vehicle type farming truck trailer
2. Manufacturer METAL-FACH Sp. z o.o.
16-100 Sokółka, ul. Kresowa 62
3. Type (model) T930
4. Body type rocker car
5. Nameplate location hitch beam
6. S/N stamping
location
on the nameplate and underneath
II Dimensions and weight
7. Length, mm 5180
8. Width, mm 2450
9. Height, mm 2030
10. Number of axles, pcs. 1 (singe axle)
11. Wheel track, mm 2050
12. Front overhang, mm 3320
13. Loading room size
- length, mm 4390
- width, mm 2040
- height, mm 1300
14. - capacity, m37.5 m3
15. Loading surface
height, mm
2030
16. Tow bar hitch-ring
height, mm
560
17. Tow bar hitch-ring
diameter, mm
40
18. Vehicle ramp
clearance, mm
300
19. Vehicle kerb weight,
kg
1900
20. Permissible vehicle
overall weight, kg:
7900
- per axle, kg 5900
- on the hitch, kg 2000
21. Maximum axle load,
kN
- per axle, kN 59
- on the tow bar hitch-
ring (hitch), kN
20
22. Permissible vehicle
load capacity, kg
6000
III Suspension
23. Suspension type rigid, dependent, w/o suspension
springs
IV Wheels and tyres
24. Number of wheels,
pcs.
2
25. Wheel disk size 22.5x11.75

TECHNICAL CHARACTERISTICS
15
OPERATING INSTRUCTIONS - T930 TIPPER TRAILER
26. Tyre size 385/65 R 22.5 160 K/160 J, 22.5x11.75
385/55 R 22.5 160 K/160 J, 22.5x11.75
27. Tyre pressure, kPa 850-900
V Braking system
28. Service brake;
- type mechanical, drum-type
- control pneumatic, positive pressure, two-line
brake system;
(single-line system available on
request)
- no. of wheels
operated
2 wheels
29. Parking brake
- type mechanical, drum-type
- control manual, by a screw gear
- operated
components
2 wheels on the axle
VI Electrical system
30. Voltage rating, V 12, feed by the driving tractor
VII Unloading mechanism
31. Mechanism type Hydraulic
32. No. of actuators 2./1.
33. Maximum load body
tilt angle, back
87
34. Maximum system
pressure, MPa
16
35. Hydraulic connection
type
ZSR-6-13/200 or acc. to PN-ISO 5675
VIII Operating data
36. Minimum U-turn
diameter, left/right,
mm
5160
37 Maximum speed,
km/h
30
IX Additional information
38. Other information:
tractor hitch coupling upper or lower transport hitch
driving tractor 35 kW minimum
requirements for the
driving tractor
minimum load transferred by the hitch:
20 kN

16 OPERATING INSTRUCTIONS - T930 TIPPER TRAILER
GENERAL DESCRIPTION OF DESIGN AND FUNCTION
4. GENERAL DESCRIPTION OF DESIGN AND
FUNCTION
The T930 trailer is a steel structure with the load body tipped to the
sides and to the rear. The trailer features a pneumatic service brake
(with variable load braking force control) and a parking brake that is
hand-operated via a screw gear, actuating the friction components of
the axle service brake. The trailer features a complete signalling and
warning system (an electrical system and reflective lights). The trailer
is also suitable for transport on public roads.
The trailer is manufactured in accordance with Directive 98/37/EC
and the following harmonised standards: PN-EN 1853:2002, PN-EN
ISO 4254-1:2006, PN-EN ISO 12100-1:2005, PN-EN ISO 12100-2:2005,
PN-EN 294:1994.
4.1. CHASSIS
The trailer chassis is composed of the following subassemblies: bottom
frame, hitch, support foot, wheel set and fastening components.
The bottom frame and the tow bar are welded structures made of steel
sheet and profiles.
The trailer wheel set is composed of: a single axle, land wheels and
land wheel brakes.
The axle is made of a square bar terminated with plugs on which land
wheel hubs are set by cone bearings. They are single wheels equipped
with drum brakes with the shoes actuated by mechanical expander
cams.
4.2. LOAD BODY
The loading space of the trailer is made of the following:
A sealed load body that rests on two pins which serve as the rotation
axis during work. The body is tilted by two hydraulic actuators with one
end of each set on pins on the frame and the other end on the body.
4.3. LOAD BODY HYDRAULIC TIPPING MECHANISM
The hydraulic mechanism is designed for automatic unloading of
the trailer by tipping the load body backwards. The hydraulic tipping
system is fed with oil from the tractor hydraulic system.
The hydraulic system includes: the coupling valve plug, hydraulic lines,
the single-action hydraulic actuators, and connecting and fastening
components. Figure 1 shows the diagram of the load body hydraulic
tipping system. The lifting and lowering of the load body is controlled
by the DCV in the tractor hydraulic system.
* The actuators limit the tilting angle of the body
during the rearward movement.
WARNING!
Fig. 1 Diagram of the load body hydraulic tipping system
1 - hydraulic actuator; 2 - hydraulic lines; 3 - cut-off valve; 4 - cut-off valve control cable;
5 - coupling valve plug.

GENERAL DESCRIPTION OF DESIGN AND FUNCTION
17
OPERATING INSTRUCTIONS - T930 TIPPER TRAILER
4.4. ELECTRICAL SYSTEM (SIGNALLING AND WARNING)
The trailer electrical system is designed for 12 V DC supply from the
driving tractor system. Connect the trailer electrical system with the
tractor system by an appropriate coupling cable.
The diagram of the electrical system and the trailer lights layout is
shown in fig. 2 and 3.
Fig. 2 Trailer's electrical system diagram
1 - 7-pin plug; 2 - 7-pin socket; 3 - right tail cluster lamp; 4 - left tail cluster lamp; 5 - turn
indicator light bulbs; 6 - tail parking light bulbs; 7 - stop light bulbs; 8 - registration plate light
bulbs; 9 - front parking light bulb.
Fig. 3 Diagram of trailer lights layout
1 - cable harness with plug; 2 - right wire harness; 3 - front wire harness; 4 - rear wire
harness; 5 - front parking lamp; 6 - front reflector (white); 7 - tail reflector (red); 8 - right
tail cluster lamp; 9 - left tail cluster lamp; 10 - registration plate lamps; 11 - side reflector
(yellow).
4.5. SUPPORT FOOT
The T930 trailer is equipped with a mechanically operated support foot.
It is designed to support the tow bar when the trailer is decoupled from
the tractor. The foot is installed on the tow bar beam.
Do not rest the trailer on the support feet when it is
loaded.
WARNING!

18 OPERATING INSTRUCTIONS - T930 TIPPER TRAILER
GENERAL DESCRIPTION OF DESIGN AND FUNCTION
4.6. BRAKING SYSTEM
The T930 trailer is equipped with the following braking systems:
• Service brake: pneumatically actuated two-line system, operates
the axle wheels; controlled from the driver's seat by pressing the
tractor's brake lever;
• Parking brake: hand mechanical control via a crank lever mechanism
and a screw gear, located on the right side of the trailer and operating
the axle wheels.
• The service brake design ensures automatic braking of all trailer
land wheels if the pneumatic system is accidentally decoupled
between the trailer and the tractor. On customer's request, the trailer
can be alternately equipped with a single-line braking system (i.e. for
adaptation to tractors which support such system configuration).
Figure 4 shows the pneumatic braking system diagram:
a) single-line system;
b) two-line system.
Fig. 4 Pneumatic braking system diagram
1 - pneumatic connector plug for coupling with the tractor; 2 - air filter; 3 - control valve;
4 - air tank;
5 - water drain valve; 6 - manual braking force control; 7 - check connector; 8 - pneumatic
membrane actuator.

STORAGE, SALE AND SHIPPING TO USER
19
OPERATING INSTRUCTIONS - T930 TIPPER TRAILER
5. STORAGE, SALE AND SHIPPING TO USER
5.1. STORAGE
• Protect the trailer against direct exposure to sunlight and rain. Park
it with its land wheels and with the supports extended and locked (if
the tyres can be exposed to sunlight, reduce their pressure).
• If the trailer is stored outdoors, periodically check for rainwater
accumulation in the trailer. Note all damage to the paint coat. Clean
and degrease spots of damaged paint. Next, repaint with the same
colour and coat thickness.
• Long-term storage is allowed in sheltered rooms only.
5.2. SALE
• The buyer picks the trailer from the manufacturer or the sales
representative on their own, or arranges for the shipping with the
manufacturer.
• The trailer is sold as fully assembled and ready for operation,
complete with the basic equipment listed in section 1.2 of this
manual. All optional accessories or their parts are available at extra
charge.
• The sales representative personnel is required to introduce the
buyer to the design and operation of the trailer, along with safety
requirements and warranty conditions.
• The buyer shall verify the following:
- the trailer is complete, undamaged and with all basic equipment;
- the nameplate located on the load body's front frame crosspiece
and the surface under it has the serial number stamped that
matches the data in the warranty card;
- the warranty card has been properly filled out with the identification
data on the nameplate.
5.3. SHIPPING TO USER
The trailer shall be transported from the sales representative on
wheels as coupled with a tractor or on a low-bed trailer. Before loading
on a low-bed trailer, connect the farming trailer with the transport
hitch and the braking lines of the tractor. Drive the farming trailer to
the low-bed trailer with the extended ramps. Next, secure the farm
trailer with wheel chocks. Afterwards, disconnect the braking system
and decouple from the tractor. Secure the farming trailer with special
transport straps. Before unloading the transported trailer, first extend
the low-bed trailer ramps and release the transport straps used to
secure the farming trailer from falling down in transit. Approach with a
tractor and connect the trailer braking system. Next, remove the wheel
chocks from the trailer. When all of the above has been completed,
drive the trailer from the low-bed.

20 OPERATING INSTRUCTIONS - T930 TIPPER TRAILER
OPERATION INFORMATION
6. OPERATION INFORMATION
6.1. COMMISSIONING THE TRAILER
*Use only tractors that are fit for service (with the
transport hitch, the pneumatic and hydraulic systems,
and the signalling/warning system working)
IMPORTANT!
Do the following before commissioning the trailer:
• Understand the names and locations of individual assemblies/
components of the trailer
• check the tyre pressure
• couple the trailer with the tractor:
- Set the tow bar hitch-ring of the trailer at the trailer transport hitch
height;
- Couple the hitch-ring with the trailer hitch;
- Secure the hitch pin against falling out;
- Turn off the tractor's engine;
- Engage the tractor's parking brake;
- Release the trailer's parking brake.
- Connect the appropriate sockets and plugs of the following
systems: pneumatic, hydraulic and electrical;
• do the functional checks of the electrical, pneumatic and hydraulic
systems of the tractor and of the trailer, and check leak tightness of
the hydraulic and pneumatic systems on both vehicles;
• check all equipment, connections and safety against accidental
release or breaking.
Do all these actions each time you start the trailer.
Only couple the trailer with the tractor transport hitch
rated for the minimum load of 20 kN. No bystanders
shall remain between the trailer and the tractor when
the two are being coupled.
WARNING!
6.2. LOADING THE BODY
Load the body only when the trailer is coupled with the tractor, parked
on level ground and with the tow bar in the forward driving direction.
Use mechanical loading equipment (cranes, loaders, conveyors, etc.)
to load the trailer.
Spread the load evenly across the entire load body surface. When
transporting materials that exert focused (topical) pressure on the
load body (e.g. large rocks), line the floor with thick planks first. This
will reduce the surface load on the floor and protect it against damage.
If the transported materials protrude from the trailer, follow the
applicable traffic code regulations for proper marking of such loads.
• Do not exceed the permissible payload and
permissible axle loads, otherwise the trailer can
be damaged and the traffic safety compromised.
• The transported load must be secured against
shifting, generating excessive noise and falling
down on the road.
WARNING!
Approximate weight values of certain goods
1m3= kg
Soil 1400 – 2000 Legumes 760 – 820
Wheat 750 – 800 Construction rubble/
aggregate
1400 – 1850
Rape 700 – 720 Lime 600 – 1430
Potatoes 625 – 725 Hard coal 650-900
Sugar beets 600 – 700
