Metrik Mobile Electronics MIN-T66 User manual
MIN-T66
Mobile multimedia receiver
IN-DASH 7 INCH WIDE COLOR LCD WITH DVD RECEIVER
Contents
Safety Precautions....................................................2
1
General Features........................................................5
Open/Close
Source/Power
Mute
N/P
PBC
Eject
TFT-LCD adjustment
play/pause
Display position adjustment
TV tuner
CD changer
How to set clock
Volume setting
Bass setting
Treble setting
Balance setting
Fader setting
Remote Control..................................................11
Loading and Replacing the battery
Basic operation
Electric Connection...................................................3
Receiption collection
Speaker collection
Installation.................................................................4
Install the unit
Remove the unit
Specifications....................................................16
Trouble Shooting................................................17
Radio Operation.................................................10
Band
Band tuner
AS/PS
Speaker setting............................................................9
Accessories......................................................15
2
CAUTION

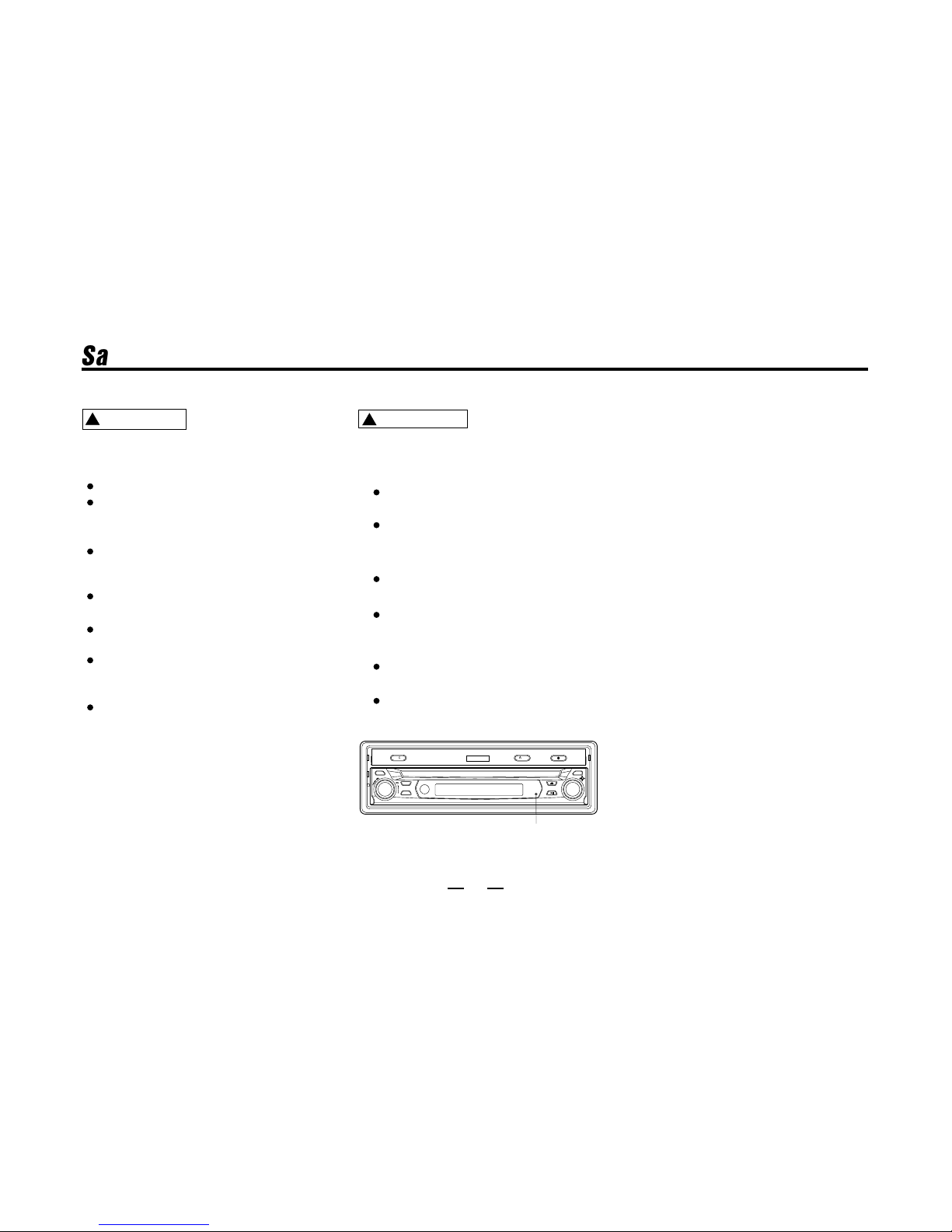

Safety precautions
Be sure the unit is connected to a 12V
DC power with a Negative Ground.
Do not install the unit in places where
it is exposed to direct sunlight,high heat
or humidity,water splash or dust.
To change fuse,please use the same
one in specification and capacity.
When changing fuse,please do it
after pulling down power wires to avoid
short circuit.
Do not place anything on the display
when then panel is tilted.
If the unit seems not work properly press
the reset button to reset the memory of the
unit.
Do not operate when driving.
Be sure to store the liquid crystal panel
inside the main unit when parking the car
outdoors for long time.
To prevent electric,etc,Please do not
let
If you smell or see smoke,turn off the
power immediately and consult our dealer.
Be careful not to drop or shock the unit
strongly.
Do not touch the liquid crystal to avoid the
life hurt.If the clothes is stained with it,Please
clean it immediately by soap.
the metal goods(silver,coin,tools..)fall into
the installation.
In extremely cold weather, the display
movement may slow down and the display
may darken, but this is not a malfunction.
Then display will work normally when the
temperature increases.
To prevent damage to the machine,
take the following precautions:
WARNING
To prevent injury or fire,Please
take the precautions:following
SRC
ADJ
OPEN/CLOSE
MUT
APS
BAND
MENU
RESET
RESET
ON/OFF
Electric Connection
3
Electric Connection
To main left
speaker
To right
speaker
main
To rear left
speaker
To rear right
speaker
White/Black
White
Gray/Black
Gray
Green Black/
Green
Purple/Black
Purple
Lgnition key
swtich
Car fuse box
(main fuse)
Battery
Connect control for antenna
or remote control for amplifier (Blue)
ACC wire (Red)
Battery wire (Yellow)
Car fuse box
Ground wire(Black) (To car chassis)
CAR ANTENNA
MAIN LEFT RCA OUT
AUX LEFT IN
MAIN.L
MAIN.R
SURROUND.
L
1
12
2
MAIN RIGHT RCA OUT
AUX RIGHT IN
VIDEO IN
TV ANTENNA PLUG
VIDEO OUT
SURROUND LEFT
SURROUND RIGHT
SUB
CENTER
Light wire( )Orange SURROUND.
R
CD CHANGE
4
Before installing the receiver permanently, fit it in the approximate place in your car ,and connect the
equipment according to the speakers and electrical connections. When
your system is operated properly,(preferably with the
car engine running), follow the instructions
for permanent installation
of your system.

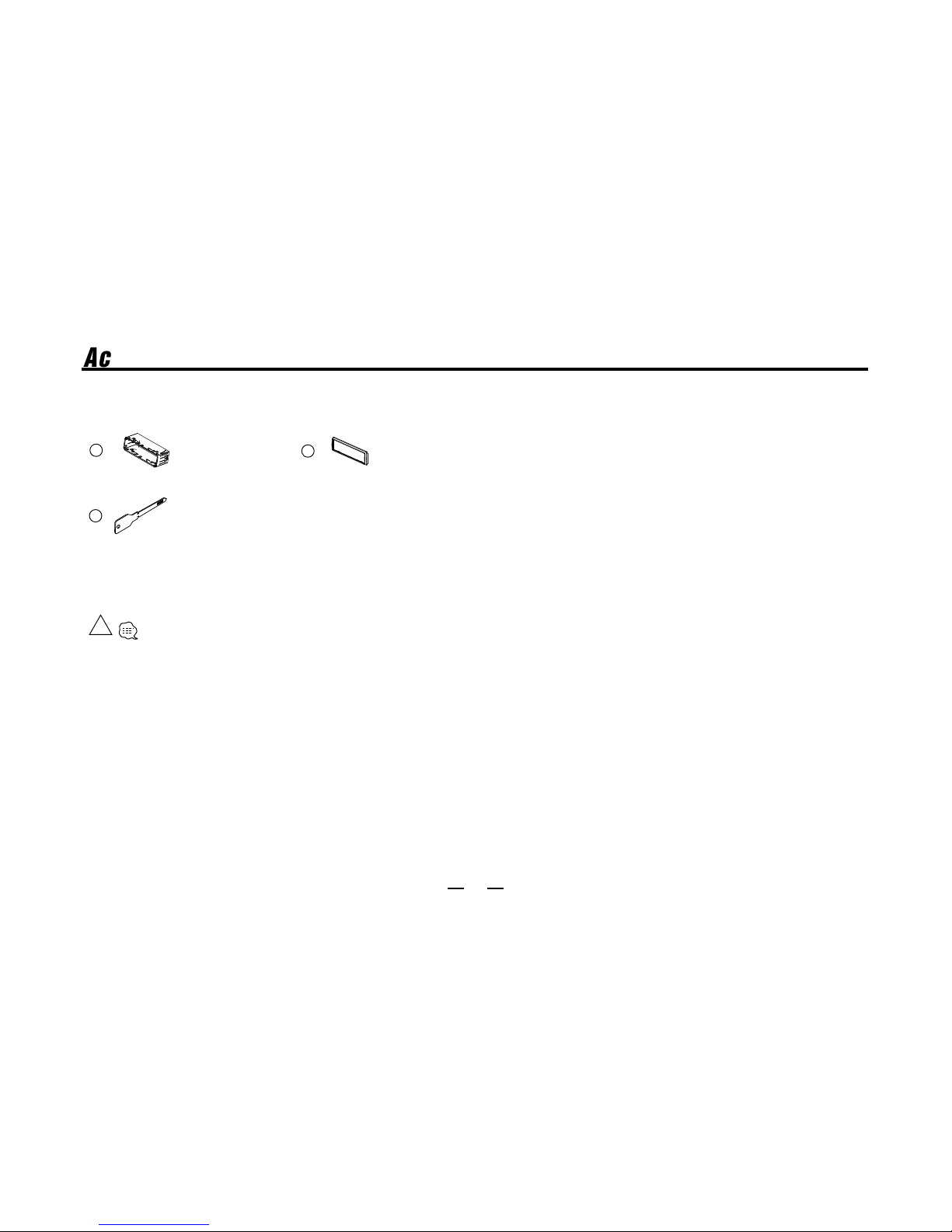

1) Adapter
(not supplied)
2)Bend over tabs
of half sleeve
(supplied)
3)Support strap
(supplied)
Half sleeve
(supplied)
4) Two wrenches for releasing
the unit (supplied)
INSTALL THE UNIT
1)Install half sleeve, can be with or
without adapter. It will fit better
with adapter.
2)Bend over some tabs to secure the
half sleeve inside of dash.
3) Support strap to be strutted under
dash, secure this strip to avoid skipping
of disc.
Insert removal wrench into the small
gap on the right side of the unit and pull
the unit slightly out on the same side,
then release the wrench. Repeat the
same action for the left side. By now,
you can remove the unit and unplug
the wires connector.
REMOVE THE UNIT
Installation
SRC
ADJ
OPEN/CLOSE
MUT
APS
BAND
MENU
RESET
5
General Features
MUTE
APS/PBC
SEL/VOL EJECT PLAY/PAUSE
OPEN/CLOSE

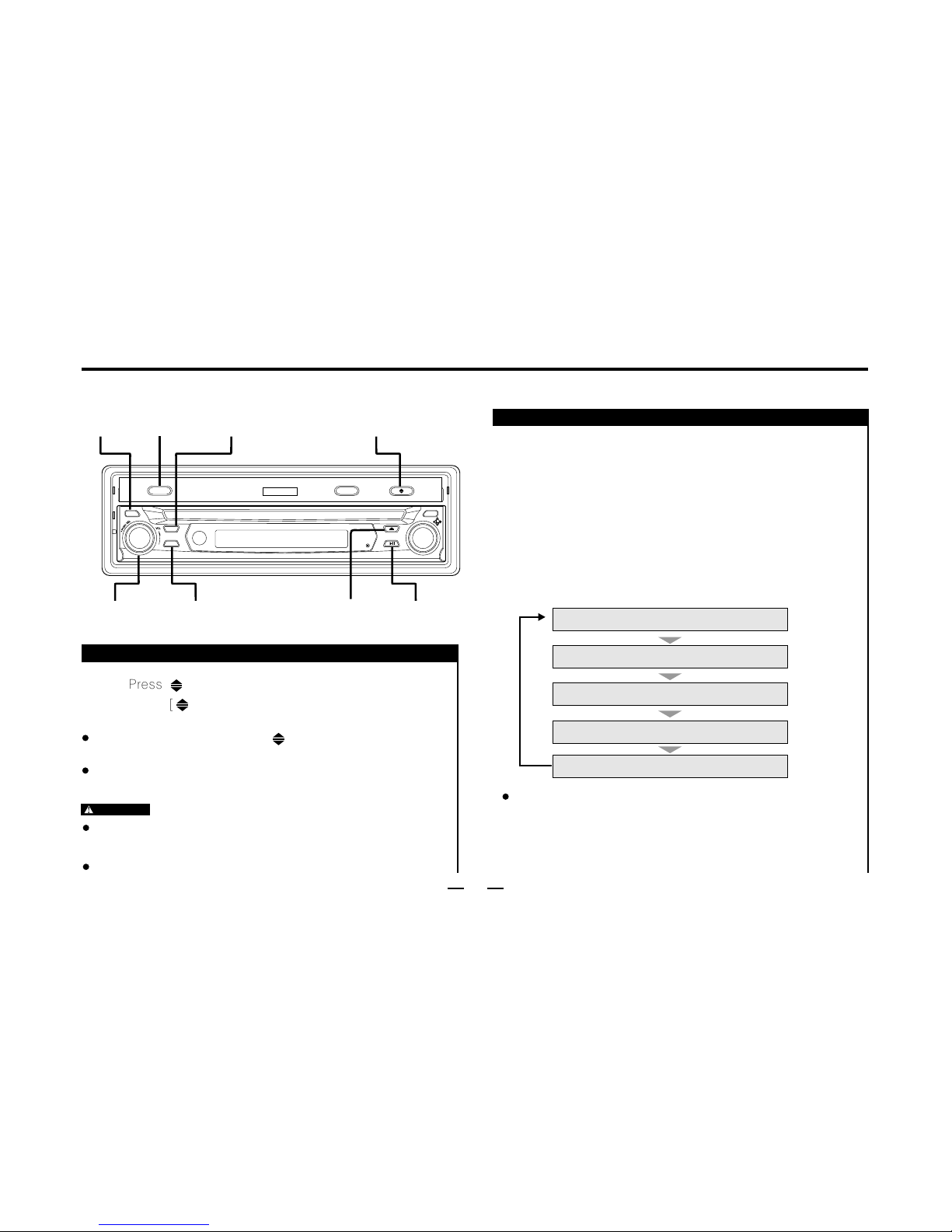

Display Open/Close
Press[ ]( )OPEN/CLOSE
Press[ ]( )again.OPEN/CLOSE
Notes:
If the unit stops halfway,press[ ]again and draw it all the
way in.
Opening/closing the display can also be done when the
power is off.
WARNING
Do not touch the unit while the display is moving. Inserting
hands,fingers or foreign objects into the unit can cause
injuries and damage to the unit.
Keep babies and children away from the unit.

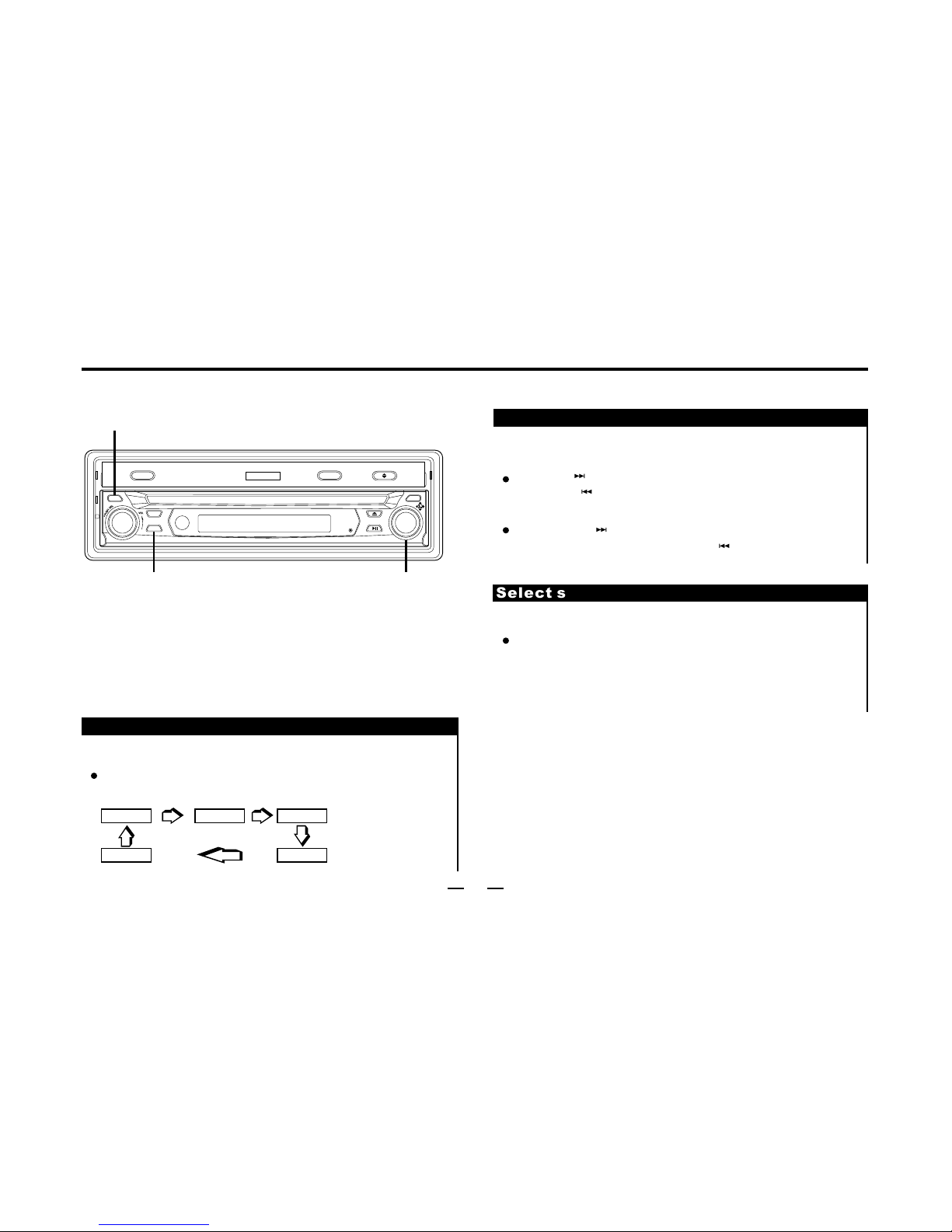

SOURCE/POWER
Turn your car`s ignition key to ACC or ON position.
ON:
On being off,please short press[SRC]and it can be
turned on,and still keep the showing angle when it
was turned off last time.
On being open,please long press[SRC] then it can
be turned off.
On being open,please short press [SRC] then can
transit among the following status.
SRC/PWR
N/P RADIO
CDC
CDC/AUX IN can be skipped when no external devices are
connected.
TV
AUX IN
DVD
OFF:
SRC:
ON/OFF
6
Mute
Press the [MUT]button
Press the [MUT]button again.
General Features
Eject
Press the [ ]button to eject the disc out of the unit .
N/P
PBC
Under the playing, press [BAND] and can transit among
PAL/AUTO/NTSC
Under the songs, press [APS] then show song content of
disc and stop the playing song. If press again then com
back the playing status.
SRC
ADJ
OPEN/CLOSE
MUT
APS
BAND
MENU
RESET
SOURCE ADJ ANGLE
Play/Pause
If with DISC in unit,Press the [ ]to pause music.
Press the [ ]button again , come back DISC playing.
If a disc is loaded,a sector sign will show on the display.
7 inches wide LCD
display
SRC
ADJ
OPEN/CLOSE
MUT
APS
BAND
MENU
RESET
SRC
ADJ
OPEN/CLOSE
General Features
Display position Adjustment
CAUTION
For smooth adjustment,make sure to first return the lateral angle to
the neutral position and then adjust the tilt angle.
Avoid physical shock on the display.
Tilt angle
Press [ADJ] button ,it can adjust screen
angle gradationally.The unit has 4 grades
for adjustment ,and each time you
press the button ,it can move one
grade down along indication; it can
resume up along indication.
AS/PS
AS/PS ADJUSTADJUST
AS/PS
AS/PS ADJUSTADJUST
AS/PS
AS/PS ADJUSTADJUST
ADJ ANGLE
Do not place any object on
thedisplay unit,or subject it
to undue force.
Do not move the display
forcibly.
The monitor movable range
may be limited by a type of
car,a position where the
display is mounted,etc.
7
Press the [MENU] button,it will show as follows:
Press and to remote cursor up and down,and press
or to adjust.
R
GB
15
In radio mode ,16:9 don t operation.
STANDARD
SOFT
BRIGHTNESS
USER
USER
MODE
15
15
16:9
MUT
APS
BAND
IN-DASH 7INCH WIDE COLOR LCD TV WITH DVD RECEIVER
MENU
RESET
SOURCE ADJ ANGLE
SRC
ADJ
OPEN/CLOSE
MUT
APS
BAND
MENU
RESET
General Features
SOURCE

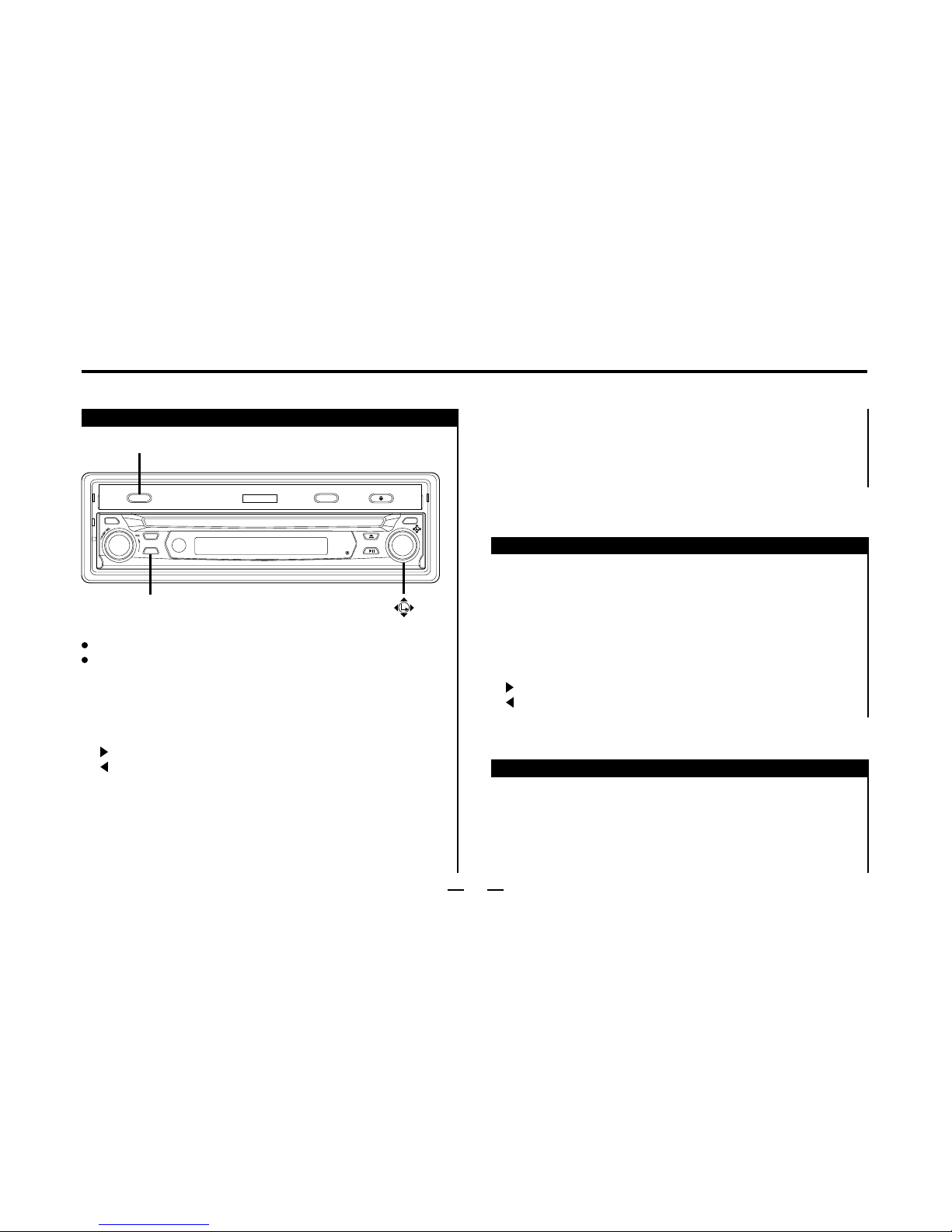

CD Changer
Press [MODE] to change to CD/Video CD Change mode and
playback starts.
CD Change/Video CD Change Mode
Disc Selection
(Only select sanyo CD Change 10disc or 6disc))
[ ](CHANNEL):Up
[ ](CHANNEL):Down
How to set clock
Press [CLOCK] button can show clock.
Long press [CLOCK] button,when hour hand twinkling,
press VOL- or VOL+ to adjust hour.then Press [CLOCK]
button,when minute hand twinkling,press VOL- or VOL+ to
adjust minute.
8
TV Tuner
Preparation:
To receiver TV broadcasts,install the TV antenna.
For receiving TV broadcasts, stop your car where there is no
obstacle to broadcast reception around.
TV mode
Press [MODE] to change to TV mode.
Channel Selection
[ ](CHANNEL):Up
[ ](CHANNEL):Down
Channel Search
Long press the [APS] button and automatically search and keep
TV station
Direct Channel Selection
Enter a channel number by pressing [0]to[9].
Example:Channel Number 17
press [1]and [7].
(Only for remote control)
8
Transit the channels
Under TV mode, press [N/P] button to switch the TV audio style.
N/P
ON/OFF
(Page 14)
9
VOL set mode
BAS set mode
TRE set mode
Speaker setting
Speaker mode
Press SEL/VOL button fourth,display will show TRE
on,then rotate the button to adjust treble level up/down
in different direction.
VOL BAS MID
FAD
TRE
BAL
EQ
Press SEL/VOL button once,display will show VOL
on,then rotate the button in clockwise direction to
increase volume level;rotate the button in anticlockwise
direction todecrease volume level.
Press SEL/VOL button twice,display will show BAS
on,then rotate the button to adjust bass level up/down
in different direction.
MID set mode
Press SEL/VOL button third,display will show MID
on,then rotate the button to adjust MID level up/down
in different direction.
FAD set mode
Press SEL/VOL button sixth, display will show FAD
on,then rotate the button to adjust FAD level up/down
in different direction.
BAL set mode
Press SEL/VOL button fifth, display will show BAL
on,then rotate the button to adjust BAL level up/down
in different direction.
EQ set mode
Press SEL/VOL button fifth, display will show EQ
on,can be select sound effect:
CLAS
ROCK
NORM
Once
FLAT
Third
Fourth
POP
Fifth
Twice
10
FM1 FM2 FM3
AM2
Band
Press BAND button to select among three FM or two AM bands.
(FM1-FM2-FM3-AM1-AM2)
Selecting band
Radio Operation
AM1
Press [APS]button
Seek Tune:
In FM (FM1 FM2 FM3) or AM(AM1 AM2 playing mode, long
press "APS" button, it can seek and store strong frequecy
station automatically in to1-6 memory buttons.
Select station
FM can memorize 18 stations. AM can memorize 12 stations.FM can memorize 18 stations. AM can memorize 12 stations.
Tuner
the long press button it can automatically select higher
frequency station. And the long press it can automatically
select lower frequency station.
In radio mode:
manual tuning:
short press button it can select higher frequency station.
Short press can select lower frequency station.
Auto loading tuning:
SRC
ADJ
OPEN/CLOSE
MUT
APS
BAND
MENU
RESET
AS/PS
BAND
ON/OFF
SEEK
11
Remote control
Pull out
Loading and replacing the battery
Use one lithium battery(CR2025)
Insert the batteries with the +and - poles aligned properly.
Following the illustration inside the case.
Store unused batteries out of the reach of children.contact a
doctor immediately if the battery is accidentally swallowed.
Do not set the remote on hot places such as the above dashboard.
GOTOGOTO
TitleTitle
APSAPS
TATA
PTYPTY
AFAF
CLKCLK
DI-DI- DI+DI+
EQEQ
OSDOSD N/PN/P
R/LR/L
SELSEL
MUTEMUTE
SOURCESOURCE
12
Press this button to turn on/off the unit.
POWER
CLK
Press this button can show the time,and long press to enter clock
adjustment.
SOURCE
Press this button can select needed receiving and playing mode.
SEEK+/SEEK-
Press this button can manually search tune,fast,back and track
searching control.
BAND RDM
Under receiving position,press this button can select band;
under VCD,DVD position,press this button can play randomly.
VOL+/VOL-
Press this button can increase or decrease volume.
SEL
Repeatfully press this button can select needed mode.
APS/PRG
Under receiving position,press this button can do seek station
;under VCD,CD playing,press this button can play programe.
Press this button can switch between play and pause.Under stop
state, similarly press it to play.
Play/pause
ST/RPT
Under receiving state,press this button can select stereo or single
track;under playing state,it can play repeat.
Basic operation
N/P(Angle)
Under the playing, press [N/P] and can transit among
PAL/AUTO/NTSC
In DVD mode, Long press can adjust the angle of the video.
(The DVD disc record the angle with this function.)
N/P
Angle
13
[ ][ ][ ][ ]
[ENTER]
Under DVD mode, press this button can move cursor in
up,down,left and right directions after entering SETUP
Menu.Press ETR button can confirm selected item.
SETUP
Under playing mode, press this button can open SETUP Menu.
TITLE
Under VCD mode,press this button to enter Menu selection same as
PBC.
Under DVD mode,press this button to return to the top of Menu.
Basic operation
Press this button once to stop play music .
GOTOGOTO
TitleTitle
APSAPS
TATA
PTYPTY
AFAF
CLKCLK
DI-DI- DI+DI+
EQEQ
OSDOSD N/PN/P
R/LR/L
SELSEL
MUTEMUTE
SOURCESOURCE
14
SUBTITLE
Under DVD mode,press this button can switch dialogue language.
Press this button can directly select track and chapter,and 1-6
buttons can select preseted stations.
R.L/LANGUAGE
Under VCD mode,press this button can switch track.
Under DVD mode,press this button can switch dialogue language.
MUTE
Press this button to turn off volume out ,and again to resume.
Press this button can show play time, surplus time.
OSD
Basic operation
EQ
Press SEL/VOL button fifth, display will show EQ on,can
be select sound effect:
CLAS POP
FLAT ROCK
When playing DVD, long press this button for 3 seconds, sound can
be switched between 4.0CH and 5.1CH.
Under TV mode, press this button to switch the TV audio style.
GOTOGOTO
TitleTitle
APSAPS
TATA
PTYPTY
AFAF
CLKCLK
DI-DI- DI+DI+
EQEQ
OSDOSD N/PN/P
R/LR/L
SELSEL
MUTEMUTE
SOURCESOURCE
12
............1............1
Accessories
External view
........ Number of items
External view
........ Number of items
The use of any accessories except of those provided
might result in damage to the unit .Make sure only to
use the accessories shipped with the unit ,as shown
above.
............2
3
15
16
Liquid crystal panel.........................................7 inches wide
Display weight ...........................................................1.7kg
Number of pixels............................................33,6960 pixels
Display method........................Transparent color filter format
Drive method....................................TFT (thin film transistor)
active matrix format
Light source.....................................................internal light
(built-in small fluorescent lamp)
Tuning range..................................
USA:87.5-108MHz
(100KHz step)
FM usable sensitivity(S/N=30dB)...............................<12dB
Stereo separation......................................................>45dB
EUROPE:87.5-108.0MHz
(50KHz step)
FM Tuner
AM Tuner
Tuning range.....................................
USA:520-1720KHz
(10KHz step)
AM sensitivity..............................................................28dB
EUROPE:522-1620KHz
(9KHz step)
Operating power....................................12 Volts DC,negative
ground
%10THD output wiring.........................Designed for using four
speakers only front and rear
channels cannot be combined
in use with 2speakers.
Load impedance..................................compatible 4 to 8 ohm
speakers
Fuses............................................................ ..........10 amp
Dimensions......................... 187mm(L)x170mm(W)x50mm(H)
Weight......................................................................2.5Kgs
DISPLAY UNIT GENERAL
Specifications subject to change without notice.
Specifications
17
What might seem to be a malfunction in your unit may just be the result
of slight misoperation or miswiring.Before calling service, first check the
following table for possible problems.
Trouble shooting guide
The fuse has blown.
Confirm whether the lead short circuit,then replace fuse with same capacity.
The cable connect incorrectness.
Exactitude connect of the cable.
Antenna and Antenna Cable.
Check antenna and antenna cable, the antenna base must be
grounded and connected with good condition, replace
antenna or antenna cable if needed.
Poor ground,dirty or corroded at the car Battery posts
Check the black wire for proper grounding clean and tighten ground
connection.
Speakers or speaker wiring or volume, Balance and
Fader setting
Check the speaker wiring and test the speakers all in good condition
check the setting of volume, Balance and Fader controls.
Installation the unit angle is greater than 45 ,or
mounting is not fixed and the back strap is not secure.
Adjust the unit with mounting angle less than 45 and make sure the
unit is mounted securely and tighten with the back strap(supplied)
Incorrect wire connection, Power RED/YELLOW or
Ground wire or Blown fuse
Check the Red wire to +12 Volts with key lgnition witch, yellow wire to
+12 Volts battery and black wire to ground. Check Fuse with red/yellow
wire, or check the fuse block on your car.
There is an obstacle
Install the unit where the unit moves freely.
The display stops on the way to the home position.
Press [ ](OPEN/CLOSE)
OWNER'S MANUAL
Before installation and operating the unit please read
this manual thoroughly and retain
it for future reference
Table of contents
