Miccus Stealth Mini User manual
Miccus® Stealth Mini
Water Resistant Sport Headphones Featuring
Bluetooth® 5 Wireless Technology
Model No.: MSMSH-50
Contents:
Introduction & Overview ...................................2
Specifications & Contents ..................................3
LED Light Indicator Guide & Charging ........................4
Powering On/Off & Pairing .................................5
Reconnection .............................................6
Pairing to 2 Devices & Troubleshooting ......................7
Factory Reset & Changing Ear Tips ...........................8
Wearing the Stealth Mini ...................................9
Phone Operations ........................................11
Playing Music & Safety Information ........................13
Care, Maintenance & Support .............................14
Thank you for choosing the Miccus® Stealth Mini;
In-ear Sport headphones featuring Bluetooth® 5
wireless technology.
Featuring Bluetooth® 5 wireless technology, the water resistant
Miccus® Stealth Mini Headphones are designed for sport and
portability. Stream music or make a phone call; the Miccus® Stealth
Mini Headphones are compatible with the latest smartphones, tablets,
and other transmitting devices supporting the A2DP and HFP (Hands
free) Bluetooth® profiles. Take them anywhere! They easily fit in your
pocket, purse or backpack.
Miccus® Stealth Mini Overview
1Ear Tips 5LED Indicator
2 Ear Hook 6 Microphone
3Volume Up/Down 7Cable Management Clip
4 Multi-function Button 8 USB Charging Jack
2
3
Product Specifications
Bluetooth® version: 5
Bluetooth® profiles supported: HFP/HSP/A2DP/AVRCP/SPP1/PBAP
Codec Support: SBC/AAC
Bluetooth® wireless operating range: up to 60ft (20M)
Audio Impedance: 16 Ohms
Frequency Response: 20Hz-20KHz
Charging Time: 1.5 hours
Music Play Time: Up to 10 hours
Standby Time: up to 800 hours
Package Contents
Miccus® Stealth Mini Headphones
Silicone Ear Tips - 3 sizes (Small, Medium & Large)
USB Charging Cable
EVA Hard Case
User Manual
4
Getting Started
LED Indicator Light Guide
The Stealth Mini communicates with you via LED indicator lights, the
following is a brief description:
LED INDICATOR STATUS OF HEADSET
LED flashes Red and Blue
rapidly Pairing mode, Searching for a device
LED flashes Blue once
every 2 seconds
Standby mode (not connected to any
device)
LED flashes Blue twice every
5 seconds Connected to a device
LED flashes Red Low battery, Need Charging
LED Solid Red Headphones are charging
Charging the Miccus® Stealth Mini
Fully charge the Miccus® Stealth Mini before first use. Use the included
USB charging cable.
1. Open the cover of the USB charging jack, and plug in the USB
charging cable.
2. Connect the other end of the USB charging cable to any USB port
or USB phone charger. When the indicator light is solid red, the
headphones are charging. When the red indicator light is off, the
headphones are fully charged.
3. Charging takes approximately 90 minutes.
Note:
When the headset emits two beeps continually and the indicator
light is flashing red, The Stealth Mini needs a charge.
When the Stealth Mini is paired to a phone or tablet, IOS devices
will display the battery life of the Stealth Mini.
Powering the Headset On / Off
FUNCTIONS OPERATION VOICE CONFIRMATION
Power On
Press and hold the
Multi-Function Button
for 3 seconds until the
LED indicator flashes blue.
“Power On”
Press and hold the
Multi-Function Button
for 5 seconds until the
red LED flashes and then
turns off.
Note: In order to save power, the Miccus® Stealth Mini will turn off
automatically if there is no device connected after 5 minutes.
Pairing the Miccus® Stealth Mini
To use your Miccus® Stealth Mini, you must pair or connect it with a
capable transmitter. This process takes less than 5 minutes as pairing
creates a wireless bridge between your audio source device and the
headphones. The Miccus® Stealth Mini receives audio from Bluetooth®
wireless enabled transmitters such as phones, tablets, PCs or adapters
such as the Miccus® Swivel Jack RTX or Home RTX 2.0.
Please follow the below steps in a timely manner, without interruptions
for best results:
1.
headphones or speakers.
2.
3. Put the Stealth Mini into pairing mode:
indicator beeps twice.
5
Release the MFB. The Stealth Mini is now searching for a
4.
5.
and select “Miccus Stealth Mini” from the list of devices shown.
6.
“0000” and press “OK”. Not all devices require a code.
7. When the pairing is completed, the Stealth Mini voice says
5 seconds.
8. Pick your favorite tune on your audio source device, press play and
then kick back and enjoy.
Note:
If there are pairing problems, the Stealth Mini will default to
standby after two minutes. Turn off the Stealth Mini and repeat
the pairing process.
When in standby mode, quickly press and release the MFB and the
Stealth Mini will attempt to connect with the last paired device.
Automatic Reconnection
After initial pairing, the Stealth Mini will automatically reconnect to the
last paired device upon subsequent uses.
1.
2.
Note: When in use, if the Stealth Mini is moved beyond the
connection range, it will continue to attempt reconnection for up
to 5 minutes. If moved back within range, it will automatically
reconnect. If reconnection cannot be completed in 5 minutes the
Stealth Mini will automatically power off.
6
Pairing the Miccus® Stealth Mini with 2 Devices at
the same time
1.
2.
3. Next, Pair the Stealth Mini to the second device just as you did for
4. Once the second device is paired with the Stealth Mini, turn on
Note: On some phones you may need to select Miccus® Stealth Mini
from the paired devices list to get it to reconnect.
Troubleshooting
If you are unable to connect your headphones and your phone, please
try the following:
1.
2. Ensure the headphones are paired with your mobile phone.
3.
4. Ensure the headphones are within range of your phone or other
such as walls or other electronic devices that might interfere with
If the above steps do not solve your problem, please recharge your
headphones and reboot your mobile phone. If something gets
corrupted during the initial pairing, you may need to remove the
Miccus® Stealth Mini from the paired devices list and then re-add it
as a brand new device.
If all else fails, perform a Factory Reset of the Stealth Mini.
7
Factory Reset
1.
reset and the pairing memory is wiped clean.
2. Power down the headphones.
3.
Choose and install the right ear tip for your ear.

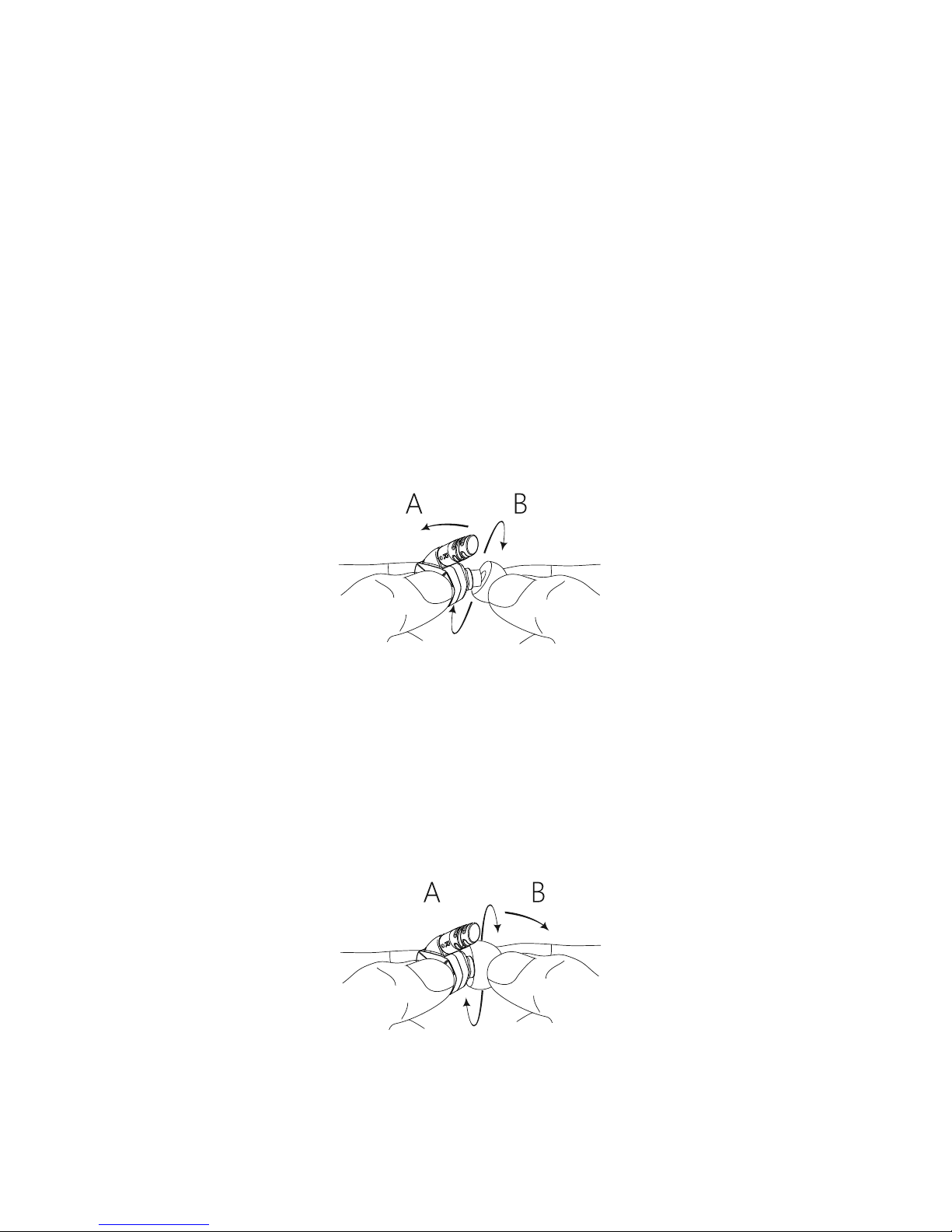

1. If the ear tips that come installed don’t fit you well, remove the
silicon ear tips by holding the earbud body tightly with one hand
(A) and pinching the ear tip with the other hand (B). Gently twist
left and right while pulling the ear tip in a downward motion.
2. Install new ear tips by holding the earbud body tightly with one
hand (A) and connecting the tip nozzle at a 45-degree angle with
the other hand (B), then twist left and right while gently pushing
the tip onto the earbud.
8

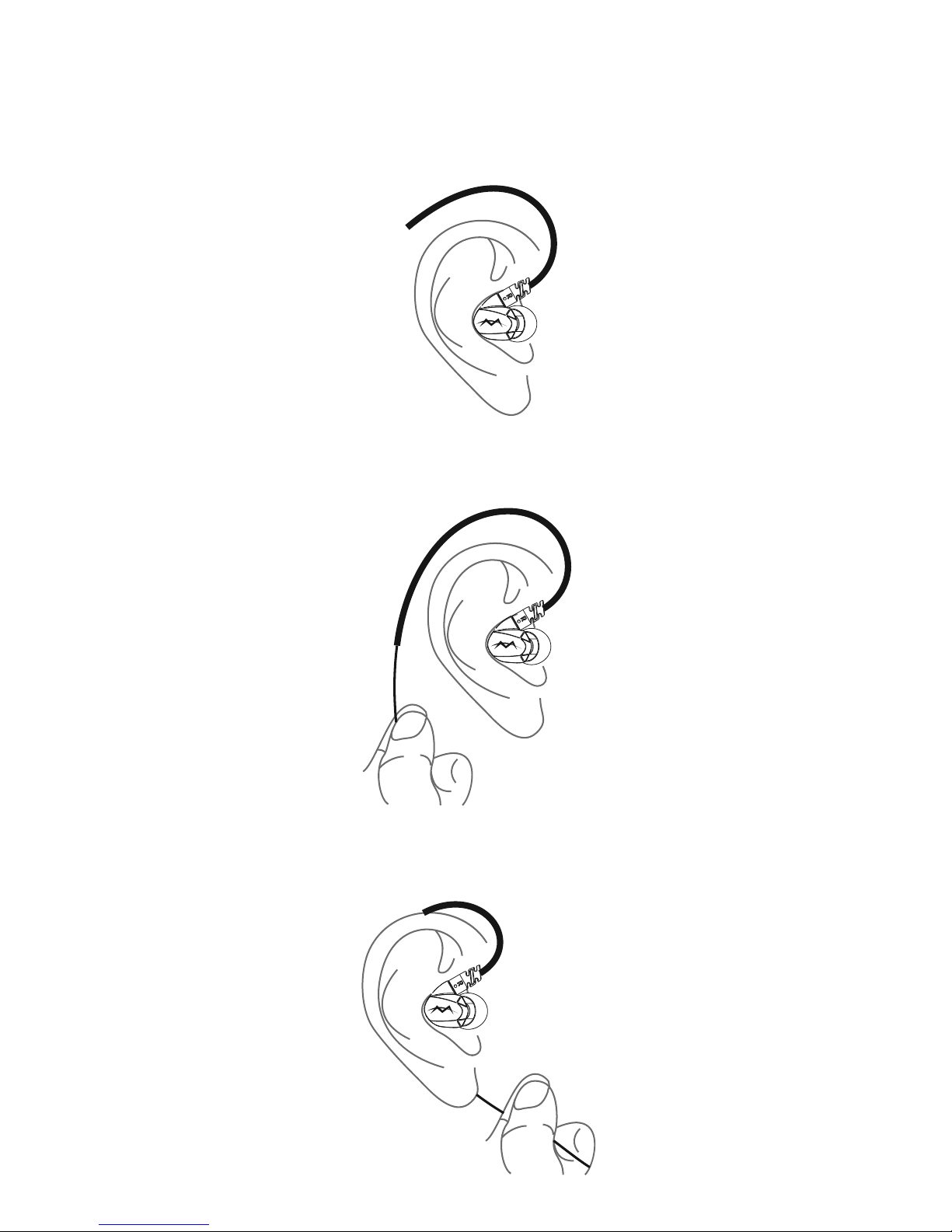

Wearing the Miccus® Stealth Mini
1.
placement.
2. Place cable over and behind the ear.
3. Gently push earbud further in until it fits comfortably. Adjust the
position for a good seal.
9
4. The headset is equipped with a clip, which allows the cable to be
slip tightened for a better fit.
5. When not in use, the Stealth Mini can be conveniently worn
around the neck.
10
Making a call with the headset: Basic Operation
FUNCTION STATUS OF HEADPHONES OPERATION
Cancel a call Calling
once
Answer a call Incoming call ringing
once
Reject a call Incoming call ringing
Press and hold MFB
hearing a beep
End a call During Call
once
Volume Up During Call
Volume down During Call
Transfer
mobile phone
During Call Press and hold MFB
for 2 seconds
Transfer
headset
During Call Press and hold MFB
for 2 seconds
Voice dial Standby mode
(connected device)
Redial the last
number
Standby mode
(connected device)
Double click MFB
Note:
To make your voice louder during a call, move the microphone
closer to your mouth.
When using the answer button on some mobile phones, the call
will be transferred to the phone. Switch the call back to the Stealth
Mini by holding the MFB button for 2 seconds or by selecting the
Stealth Mini in your phone’s call options list.
11
Using the hold feature and switching between calls
FUNCTION STATUS OF HEADPHONES OPERATION
Answer a new
call and end the
current call
New call is ringing in
once
Answer a new
call and place
current call on
hold
New call is ringing in Double click MFB
Switch between
calls Call on Hold Double click MFB
button
End current call
and switch to call
on hold
Call on Hold
once
Connect with two cell phones
FUNCTION STATUS OF HEADPHONES OPERATION
End phone 1 call
and answer
phone 2
During call, other phone
has incoming call
once
Place phone 1
call on hold and
answer phone 2
During call, other phone
has incoming call
Double click MFB
button
Switch back to
phone 1
During call, other phone is
on hold
Double click MFB
End current call,
switch back to
phone 1
During call, other phone is
on hold
once
12
Playing Music
FUNCTION STATUS OF HEADPHONES OPERATION
Volume up Playing music Click + button once
Volume down Playing music
Last song Playing music
hold for 2 seconds
Next Song Playing music
hold for 2 seconds
Pause Playing music
once
Play Pausing
once
Safety Information
Check local laws regarding the use of mobile phones and
headphones while driving. If you use the headphones while
you drive in a responsible and safe manner.
Never allow children to play with the headphones; small parts may
be a choking hazard.
Observe all signs that require an electrical device or RF radio
Never mount or store your headphones over any air bag
development area as serious injury may result when the air
bag deploys.
as household waste.
13
Headphone Care and Maintenance
phone may place an unintended call.
Do not expose the headphones to liquid, moisture or humidity, as
they are not waterproof.
Do not use abrasive cleaning solvents to clean the headphones.
Do not expose the headphones to extreme temperature
exposure to extreme temperatures.
explosion.
Avoid sharp objects; they may damage or destroy your
headphones.
contain serviceable components.
If you do not use the headphones for long periods, be sure to store
dust.
Built-in Battery
built into the headphones and is not user replaceable.
wall adapter or car adapter will work.
Support
Further details and answers to common questions are found at
http://www.miccus.com
If your question is not answered via the support page, feel free to email
us at [email protected] for 24 hr support; please include a product
name in your email subject line. For live technical assistance please call
1(616) 604-4449 Monday-Friday, 11am-4pm EST.
14
15
FCC Information
This device complies with part 15 of the FCC rules. Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device
must accept any interference received; included interference that may
cause undesired operation.
Federal Communications Commission (FCC) Statement:
This Equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy, and, if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio / TV technician for help..
Warning
Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user authority to
operate the equipment.
Tested to comply with FCC standard: FOR HOME OR OFFICE USE.
This equipment complies with FCC RF radiation exposure limits set forth
for an uncontrolled environment. This device and its antenna(s) must not
be co-located or in conjunction with any other antenna or transmitter.
Miccus Inc. has made every effort at the time of print to ensure the
accuracy of the information provided herein, product specifications
configurations, warranty, pricing system/component/options availability
are all subject to change without prior notice. We will not be liable for
editorial, pictorial, and typographical errors.
©2018 Miccus, Inc. All rights reserved. Bluetooth is a trademark of the
Bluetooth SIG and used under license. Made in China to Miccus
specifications.
16
Table of contents
Other Miccus Headphones manuals
