MICODUS MV66 User manual

MV66 User Manual V1.0
Learn how to set up your new MiCODUS Tracker
Copyright ©2023 MiCODUS | All Rights Reserved
R

1. Main Features
2.Specifications
Compact
Size
Shift Alarm Vibration
Alarm
Geo-fence Plug Out Alarm Low Voltage
Alarm
Plug & Play Real-time
Tracking
Historical Route
Playback
Overspeed
Alarm
Engine On/
OFF Alarm
Voice Monitor
MV66
30g
48.2mm(L) * 28.6mm(W) * 29.1mm(H)
3.7V 60mAh Li-Polymer Battery
Device Information
Model
Weight
Dimensions
Backup Battery
Working Voltage
Working Current
Sleep Current
Working Temperature
Working Humidity
SIM Card
Communication Module
Celluar Antenna
Working Frequencies
GNSS
Satellite Channels
GPS Frequencies
BDS Frequencies
Hot/warm/cold Start
Tracking sensitivity
GNSS Antenna
Positioning Type
GPS+BDS
32
L1: 1575.42±1.023MHz
B1: 1561.098±2.046MHz
<1s, <32s @ Open Sky
-162dBm
Built-in Ceramics GNSS Antenna,
18mm*18mm*4mm
GNSS+LBS+AGPS
Micro Size
QUECTEL MC25
2G GSM/GPRS: 850/900/1800/1900MHz
DC 9V - 35V
12V/45mA
12V/8mA
-20℃- 75℃
5%-95%RH
Working Parameters
Cellular Specifications
GNSS Specifications
ON / OFF
Built-in

3. Activate Device
LED Event State
Charging
Charger inserted and battery has been fully charged
Charger has not been inserted
Searching for network
POWER LED (RED)
CELL LED
(YELLOW) Network has been registered
Solid
Dark
Dark
Flash every 1 second
Solid
GPS has fixed
GPS is in fixing Flash every 1 second
Device is working but stopped more than 5min
Device has not been turn on
Device ran out of battery
GPS LED (BLUE)
ALL LED
Solid
ALL LED TURN OFF

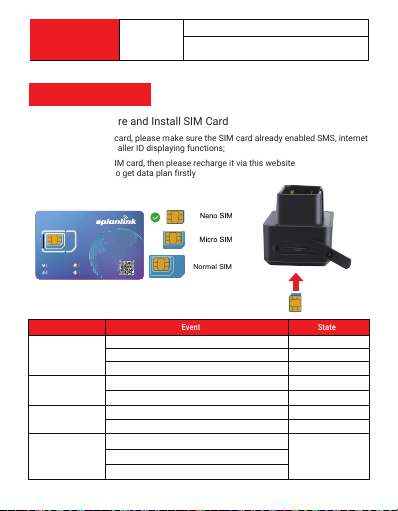

First Step：Prepare and Install SIM Card
* If use your local SIM card, please make sure the SIM card already enabled SMS, internet
data traffic, call and caller ID displaying functions;
* If use our spionlink SIM card, then please recharge it via this website
www.spionlink.com to get data plan firstly
Accurancy
GNSS Accuracy: <10M @ Open Sky
LBS Accuracy: 100-2000m
(Depend on density of base stations)
GNSS Specifications
Normal SIM
1MB Free
PrepaidData
www.spionlink.com
AddCredit
Data Only
NoSMS & Call
Roaming
Unavailable
TopUp

4. Package Content
MV66 OBD Tracker
User Guide
Packing Box
OBD Extension Cable（optional）
x 1
x 1
x 1
x 1
apn,apn content,
apnuser,apnpasswd# apn ok apn,orange, orange,orange#
apn,internet#apn okapn,apn content#
SMS Command
Format Reply Example Note
If there has APN user and APN apnpassword,
then please use this command for
configuration
If there doesn't have APN user and APN
password, then please use this command for
configuration
5. Functions Explanation
1. Voice Monitor
Please get the exact correct APN name from local SIM card provider.Take the tracker to a good
signal place for operation and configure the APN for it as below:
Second Step: Configure APN
Step 1: Set up a center number for the device:
CENTER,A,CENTER NUMBER#
Step 2: Use the center number to set up a number
for the tracker to call back:
MONITOR,number for monitor#
For example, if your cellphone number is
008613655559999, then you can set up the center
number like this: CENTER,A,[phone]#
For example: MONITOR,[phone]#
The tracker will make a call to this number [phone] and this
number can pick up the call to monitor the voice around it.
Note: Please add country code as prefix with your
cellphone number!
For example:
CENTER,A,008613655559999#
MONITOR,[phone]#
SET CENTER NUMBER OK
SET MONITOR OK
MV66
Note: The APN information is very important, it must 100% correct to match with the sim card
of the tracker, if you configured wrong APN, the tracker also will reply "SET APN ok"
but it will can't get online!

2. Set Data Upload Interval
3. Vibration Alarm
TIMER,T1,T2#
Step 1: Set up a center number for the device:
CENTER,A,CENTER NUMBER#
Step 2: Set up SOS contact numbers:
SOS,A,SOS1,SOS2,SOS3#
Step 3: Set up the vibration alarm way: SENALM,A,M#
M=0/1/2, way of alarming, 0 : Server only, 1: SMS+Server,
2 : SMS+Server+Call, default:2
This means the vibration alarm message will be sent out via server and SMS
A=ON/OFF, default: OFF;
T1 ranges 0/5~18000 or 0(seconds), upload interval
when ACC ON, 0 means no upload, default is 10;
T2 ranges 0/5~18000 (seconds), upload interval
when ACC OFF, 0 means no upload, default is 10;
This command means the tracker will upload every 10 seconds when it
engine is on, and every 3600 seconds when engine is off.
For example:
TIMER,10,3600#
SET TIMER OK
MV66
For example:
CENTER,A,[phone]#
SET CENTER NUMBER OK
SOS,A,[phone],+86133
66667778,[phone]#
SET SOS NUMBER OK
SENALM,ON,1#
SET VIBRATE ALARM OK
MV66
For example: TIMER,10,3600#
For example: if you want to set up this number as
center number:[phone], the command
should be sent like this: CENTER,A,[phone]#
For example: SOS,A,[phone],[phone],[phone]#
For example: SENALM,ON,1#
Note: You can set up 3 SOS alarm numbers for the device at the same time
Note: Please put the country code as prefix with the
center number!

6. Installation Recomendation

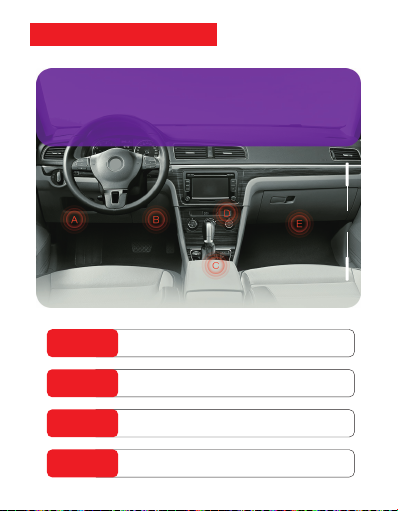

Where is the OBD interface?
Most of the car's OBD interface is located in A and B,
A small part of the car will be in C,D and E.
Where is the OBD interface?
Most of the car‘s OBD interface is located in A and B,
A small part of the car will be in C,D and E.
Explanation
Area A VW、Ford、Toyota 、Hyundai 、Citroen、BMW、
etc./Most cars.
Explanation
Area B Honda,Lexus,etc.
Explanation
Area C Dongfeng Citronen,etc.
Explanation
Area D/E A few cars...

Map URL Inquiry URL#
http://map.google.com/?q=22.557868,113.
935090 <0.0km/h 0.0> <2023-01-06
17:32:13> IMEI:354188047752402
Version Inquiry VERSION#
Device Reply Example:
ID:7201074948
IMEI:354188046912460
ICCID:898602A51314F1298017
VERSION:MV66_V2.0.2
BUILD:OCT 19 2016 16:31:00
Unable to connect to
tracking platform
Check the APN and settings.
Check whrther the data service of SIM card is enabled.
Check the balance of SIM card.
Tracker shows offline
Check whether external power is still connected.
Check if the vehicle entered netword blind area.
Check the balance of SIM card.
7. Trouble shooting
Type Use
Location drift
In area with poor GNSS signal (tall building around or
basement), drifting may happen.
Check whether vibration happens around to trigger the
accelerator.
Unable to locate
Make sure the top side facing upward without metallic things
shielded.
Make sure it’s not in area with no satellite coverage.
No command reply
Make sure command format is correct.
Vehicle may be in network blind area.
Make sure SIM card is well inserted and has SMS servi.
Functions Command Format Explanation
8. Full SMS Commands List
Check IMEI IMEI# DEVICE IMEI No. : 354188046912458
Query Commands

Functions Command Format Explanation
Address Inquiry
Parameter Inquiry
Status Inquiry
Alarms Parameters ALARM#
ID: 19172012644 (ID number of device)
STATE: ARM(DISARM)(Defense status of device)
SPEED: ON/OFF(alarm status); 30km/h(alarm value);
alarm way
SHIFT: ON/OFF(alarm status); 300m(alarm value);
alarm way
VIBRATE: ON/OFF(alarm status);3(sensitivity level);
alarm way
ACC: ON/OFF(alarm status); 0/1/2(0: ACC ON, 1: ACC
OFF; 2: ACC ON&OFF) (alarm situation); alarm way ;
POWER DOWN: ON/OFF(alarm status);alarm way
LOW VOLTAGE: ON/OFF(alarm status);alarm way
NOTE: Alarm Ways: Server Only, Server+SMS,
Server+SMS+Call
NOTE: Reply message’s language is determined by
device’s language setting, if get position content
failed, device will reply Google Map location link.
POSITION#
PARAM#
STATUS#
ID: ID number of the tracker
IMEI: IMEI number of the
APN:APN name,APN user,APN password,
IP:Domain name and port number or IP address,
port pumber
TIMER:Moving upload interval; Static upload interval
SPEEDLIMIT: The overspeed threshold
ANGLERPT: Data uploading angle
CENTER: Center number of the tracker
SOS: SOS1,SOS2,SOS3
GMT:Time zone
GPRS: CLOSED (No Network) FAILED (Connecting
Network or Failure) SUCCESS (Connected to Network）
GSM: NONE (No celluar Signal), HIGH / MED/ LOW
(Signal Strength) , 18(Signal value)
GPS: CLOSED (GPS Module Closed); FIXED,N
(Positioned and satellite number);
UNFIX,0 (Not Positioned yet)
SPEED: 30KM/H
ACC: ON / OFF (ACC on or off)
POWER: CONNECTED / DISCONNECTED
(Power Connected or Disconnected),
12.5V (Vehicle battery voltage)
SENSOR: ON/OFF (Sensor on or off),
LEVEL: 3 (Sensitivity level 1-9)
STATE: ARM (Arm or Disarm)
Latitude&Longitude
Inquiry WHERE# LAT:N23.02930,LON:E114.32180,COURSE:
0.00,S PEED:0.00KM/H,DATETIME:
2023-01-06 17:39:11

Time Zone Setting
Set the angle
upload
Mileage Statistics
Add SOS
Administrator
Number
GMT,Time zone
orientation,Whole Time
Zone [,Half Time Zone]#
ANGLEREP,X,A,B#
ANGLEREP,OFF#
MILEAGE,A,B#
MIELEAGE#
SOS,A,1st number,
2nd number,
3rd number#
CANCEL UPLOAD ANGLE OK
Example: ANGLEREP,ON,30,3# ( Means the tracker
will send a data supplement when the angle change
exceeds 30 degrees and lasts for 3 seconds)
Example: MILEAGE,ON,5000# (Means the initial
mileage value is 5000KM)
A=ON/OFF, On/Off mileage calculation, default: Off
B=0～999999，Mileage initial value , unit：km ;
default: 0, mileage return to zero
Query current mileage
GMT,E,8# (if no half time zone)
GMT,W,9,30# (if has half time zone)
NOTE: Parameter : E / W；0 ~ 12; 0/15/30/45
X=ON/OFF, default: ON;
A=5～180 degrees, diversion angle degree, default：
30 degrees；
B=2～5 seconds, detecting time, default：3 seconds,
Restore factory
settings
Restart device
FACTORY#
RESTART#
RESTORE FACTORY SETTINGS OK
RESTARTING...1 MINUTE WILL BE OK
Functions Command Format Explanation
Change IMEI IMEICHG,
354188046912460# NEW IMEI No. : 354188046912460
APN Setting
Server Setting
Internet
Traffic Switch
If set with IP:
SERVER,0,IP,Port#
TRAFFIC,ON#
TRAFFIC,OFF#
APN,Network name
[,name,password]#
If set with Domain Name:
SERVER,1,Domain,Port# SERVER,1,d.micodus.net,7700#
SERVER,0,47.254.77.28,7700#
OPEN TRAFFIC OK
CLOSE TRAFFIC OK
APN,CMNET# (if no name & Password)
APN,internet,internet,internet# (if with name
& Password)
Set 3 numbers at a time:
SOS,A,13800138000,1380013800 1,13800138002#
Set the first numberseparately:
SOS,A,13800138000#
Set the second number separately:
SOS,A,,13800138001#
Means to set 3rd number separately:
SOS,A,,,13800138002#
Setting Commands

Directly delete the number:
SOS,D,13800138000#
Delete 1st number: SOS,D,1#
Delete 2nd number: SOS,D,2#
Delete the 2nd and 3rd number: SOS,D,2,3#
T1 ranges 0/5~18000 or 0(seconds), upload
interval when ACC ON, 0 means no upload,
default is 10;
T2 ranges 0/5~18000 (seconds), upload interval
when ACC OFF, default is 10;
Example: ACCARM,ON,60# (Means the tracker will
enter into arm status automatically when the ACC
off more than 60 seconds)
Arm Time: M=5-1800s, default: 60s
Example: MONITOR,[phone]#
(Means the tracker will make call to this number
[phone],then this number [phone]
can pick up the call to monitor the voice)
N: Number for Voice Monitoring
Example: TIMER,5,3600#
Example: SENLEVEL,4# ( Means shake sensor level
is set to 4 )
A=1-9
NOTE: 1-9 is from week to strong vibration
Example: HBT,3# ( Means the tracker will send
hearbeat data package to server very 3min to keep
the network connected )
Time: 1-60min, default 3min
NOTE: 1.Please send this monitor command via the
center number; 2. Any number can be set up to monitor
the voice, the tracker will make a call to the number
N and it will can pick up the call to monitor voice
Delete SOS
Administrator
Number
Add
Center Number
Delete Center
Number
Data Upload
Time Interval
Heartbeat Packet
Upload
Sensor Sensitivity
Arm manually
Disarm manually
DISARM#
NOTE: Please remember to add the country code as
prefix with the cellphone number!
CENTER,A,[phone]#
SOS,D,1st number,2nd
number,3rd number# or
SOS,D,1,2,3#
CENTER,A,center
number#
CENTER,D# DEL CENTER OK
TIMER,T1,T2#
HBT,time#
LEVEL,A#
ARM#
Set the device into arm mode
Set the device out of arm mode
Functions Command Format Explanation
Voice Monitor MONITOR,
[phone]#
Auto Arm By ACC ACCARM,ON,M#
ACCARM,OFF# Close auto arm function
Set 3 numbers at a time:
SOS,A,13800138000,1380013800 1,13800138002#
Set the first numberseparately:
SOS,A,13800138000#
Set the second number separately:
SOS,A,,13800138001#
Means to set 3rd number separately:
SOS,A,,,13800138002#

Directly delete the number:
SOS,D,13800138000#
Delete 1st number: SOS,D,1#
Delete 2nd number: SOS,D,2#
Delete the 2nd and 3rd number: SOS,D,2,3#
Example: SHIFT,ON,100,1# ( Means Setting 100
meters shift alarm range, when the ignition turned
off, vehicle’s 100 meters’ shift will trigger the alarm.)
Example: SPEED,ON,120,1# ( Means the speed limit is
120km/h and the alarm way is via SMS and Server )
A=ON/OFF, open or close over speed alarm,
default: OFF
B=1～255(km/h), speed limit, default：100(km/h);
M=0/1/2, way of alarm, 0 : SERVER only, 1: SERVER+
SMS, 2: SERVER+SMS+CALL; default: 1
Example: SENALM,ON,2# ( Means the vibration alarm
already been enabled and the alarm message will be
sent via Server, SMS and Call )
A=ON/OFF, default: OFF;
M=0/1/2, way of alarming, 0 :GPRS only, 1: SMS+GPRS,
2: GPRS+SMS+phone call, default:1
A=ON/OFF; default:ON
B=Shift Distance (Range: 100-9999m)
M=0/1/2; way of alarm, 0 : GPRS only,
1: SMS+GPRS, 2: GPRS+SMS+CALL, default:1
Shift Alarm Setting
Vibration
Alarm Setting
Overspeed
Alarm Setting SPEED,A,B,M#
SENALM,A,M#
SENALM,OFF# CANEL VIBRATE ALARM OK
SHIFT,A,B,M#
SHIFT,OFF# CANCEL SHIFT ALARM OK
Functions Command Format Explanation
ACC Status
Change Alarm
Power
Disconnect Alarm
ACCALM,A,B,M#
ACCALM,OFF#
PWRALM,A,M#
PWRALM,OFF#
Cancel ACC alarm function
Close power disconnect alarm
Example: PWRALM,ON,2# (Means if the external power
disconnect the tracker will send alarm message out
via Server, SMS and Call)
A=ON/OFF, default ON;
M=0/1/2, ways of alarming, 0: Serveronly,
1: SMS+Server, 2 : SMS+Server+Call, default:2；
Example: ACCALM,ON,0,2# (Means the tracker will
send alarm message out via Server, SMS and Call when
the engine is start)
A=ON/OFF, Default: ON;
B: 0/1/2; 0: ACC ON Alarm; 1: ACC OFF
Alarm; 2: ACC ON&OFF Alarm; Default:2
M: 0/1/2 (way of alarm): 0 : Server only,
1: SMS+Server, 2: SMS+Server+Call, Default:1;
Alarm Setting Commands

A=ON/OFF; default:ON
B=Shift Distance (Range: 100-9999m)
M=0/1/2; way of alarm, 0 : GPRS only,
1: SMS+GPRS, 2: GPRS+SMS+CALL, default:1
Functions Command Format Explanation
Low Voltage
Alarm Setting
LVALM,A,B,M#
LVALM,OFF# CANCEL LOW VOLTAGE ALARM OK
Example: LVALM,ON,13,2# (Means when the voltage
of the car battery is lower than 13V, the tracker
will send alarm message via Server, SMS and Call )
A=ON/OFF, default：ON;
B=9-95V (Low Voltage Limit Value)
M=0/1/2, way of alarming, 0: GPRS only,
1: SMS+GPRS, 2: SMS+GPRS+Call,default:1；
E-mail: [email protected]
Skype: MiCODUS
9. Any Questions?
10. Download the APP
Download on the
APP Store
Download for
Android
Search "MiCODUS" in iOS APP store or Google Play Store, or
just scan the QR code as below to download MiCODUS APP:
