MICROMATIC California User manual

Page: 1
Coffee Dispenser California
Owners Manual

Page: 2
Table of Content:
Contents
3 Product description
4 TechnicalSpecications
5 Parts overview
6 Installation and basic setup guide
8 Daily cleaning
10 Every two week cleaning
12 Keg cleaning
13 How to change gas bottle
14 Common issues and how to resolve them
15 Contact info

Page: 3
Product description
California is a Keg Cooler for serving cold Black Coffee and Nitro Coffee.
The built in dNim, Direct Nitrogen Injection Module is developed by Micro Matic for maximum
performance, hygiene and consistency.
Thecompletesystemincludesgasregulator,lterandkegcouplerandalltubingandttings
required for installation.

Page: 4
Technical Specications Example
Compressor Embraco EMT6152U
Cooling Power 418W
Emitted condenser heat 750W
Refrigerantllingquantity 90g
Weight 76kg
Width 780mm
Depth 600)mm
Height 850mm
Refrigerant R290
Control Type Electronic Thermostat Eliwell
Casing Stainless Steel
Voltage/Frequency 230V 50Hz
Max. Current 3,5A
Run amps 1,43A
All data about cooling capacity are based on:
Condensing temp (Tcond 55°C)
Evaporating temp. (Tev -5°C)
Ambient temp. (Tamb 32°C)
And relative humidity 65 ±5%
Refers to Cooling Unit - Keg Cooler Low

Page: 5
Parts overview
1
2
5
3
4
7
8
9
10
16
15
14
13
12
11
6
10: Electronic Thermostat
5: Tube, green for Nitro Coffee
3: Taps, nitro tap to the left.
4: Drip tray
6: Tube, pink for Cold Coffee
11: Nitrogen bottle
9: Gas regulator
1: Keg Cooler
8: Filter
7: 2-Way divider
13: Keg
12: Keg coupler
14:Producttube(green)tolter
15: Gas tube between regulator and Keg Coupler
16: High pressure hose.
2: dNim Unit

Page: 6
Installation and setup guide
Depending on the type of Tower, drill appropriate holes (~Ø60mm) through the top of the Keg
Cooler and install the Towers.
Mount the gas regulator, the dNim Module and the gas bottle holder bracket to the side walls
inside the Keg Cooler, a suggested layout is shown on the image to the right.
Install a mixer disc between the shank and the tap, se image 1
Connectthegasbottletotheregulatorwiththehighpressurehose,makesurethehoseisrmly
connected.
Gas lines:
Connect one gas line to the Keg coupler
Connect the other gas line to the dNim module
Product lines:
For Nitro product,usegreen3/16”-5/16”tubebetweenthekegcouplerviatheltertothetwo
way divider. Continue with green tube from the two-way divider to the dNim and from the dNim
to the Tap.
For the Non-Nitro product, use at least 1½m of pink 3,3mm - 5/16” tubing from the two-way
divider to the tap.
Connect the power plug to an electric outlet (230V~).
Check on the electronic thermostat display that the temperature is set to +2°C.
Make sure all tubing are seated and secured properly and that the taps are closed.
Open the gas bottle by turning the wheel counterclockwise until it’s fully open.
Using a hex key, set an initial pressure on the regulator for the keg on 2,5bar and dNim to an
initial pressure of 1,6 Bar, see Image 2
For higher head foam, increase the pressure to the dNim, and vice versa.
Place a bucket under the taps and connect the Keg.
Open the taps, one at a time, and purge all gas out until there is a steady stream of Coffee.
Close the taps.
1
Mixer disc

Page: 7
2

Page: 8
Daily cleaning
1. Unscrew the nozzles from the taps.
2. Place the nozzles in a glass of clean water, let them soak overnight
3. Remove the drip tray and rinse it in water.
4. Wipe the machine with a soft damp cloth.
5. Check the level of nitrogen in the gas bottle, when the needle is in the red
area it’s time to change to a new bottle. (See separate instruction)
6. Before use, reinstall the nozzles and the drip tray

Page: 9
!
2
3
4
5
1
6

Page: 10
Every two week cleaning
Caution: Wash off all detergent spillage immediately to avoid stains and damage.
If detergent gets anywhere on your body or clothes, wash it off immediately.
Remember to always wear rubber gloves and safety glasses.
1. Disconnect the Keg Coupler from product keg.
2. Fill a Cleaning Bottle with 5L cold water and add 2dl of Draftline15 detergent.
3. Connect the Keg Coupler to the cleaning bottle.
4. Hold a bucket up close to the Taps, open them and keep them open until the line has been
thoroughlyclearedofproductandcleaningsolutionowsoutofthetap.Pour~1L/Tap.
5. Close the Taps and turn the dispense mode valve knob to position “CLEANING MODE”
6. Open the Taps again and pour about a half liter of cleaning solution per Tap.
7. Let the cleaning solution soak for 20 minutes.
8. Open the Taps and pour another half-liter of cleaning solution per tap and then close the Taps.
9.DisconnecttheKegCoupler(PlaceKegCouplerinthebuckettopreventleakageonoorsetc.)
and release pressure from the cleaning bottle by pulling up the safety pin located on top of lid.
10.RinsetheCleaningBottlewithfreshcoldwaterthreetimesandthenllitwithabout5Lofcold
water.
11. Reconnect the Keg Coupler to cleaning keg.
12. Open the Taps and pour the rinse water through until only gas is coming out of
the taps, then close the Taps.
14. Turn the dispense mode valve knob to position “DISPENSE MODE”.
15. Disconnect the Keg Coupler and open the Taps to relief pressure
in the system.
16. Close the Taps.
17.Openthein-linelterandcleanitwithfreshwater,thenreassemble
thelter.
18.ConnectproductKeg-Checklterforleaks.
19.OpenTapsuntilfreshproductows,closeTaps.
20. Carefully wipe all areas on and around the Coffee Dispenser
with a soft cloth to remove any residues of detergent.
Control panel
Keg coupler
Pressure release
Filter

Page: 11
2.
5L
2dl
5. 7.
20 Minutes
9.17.
4.

Page: 12

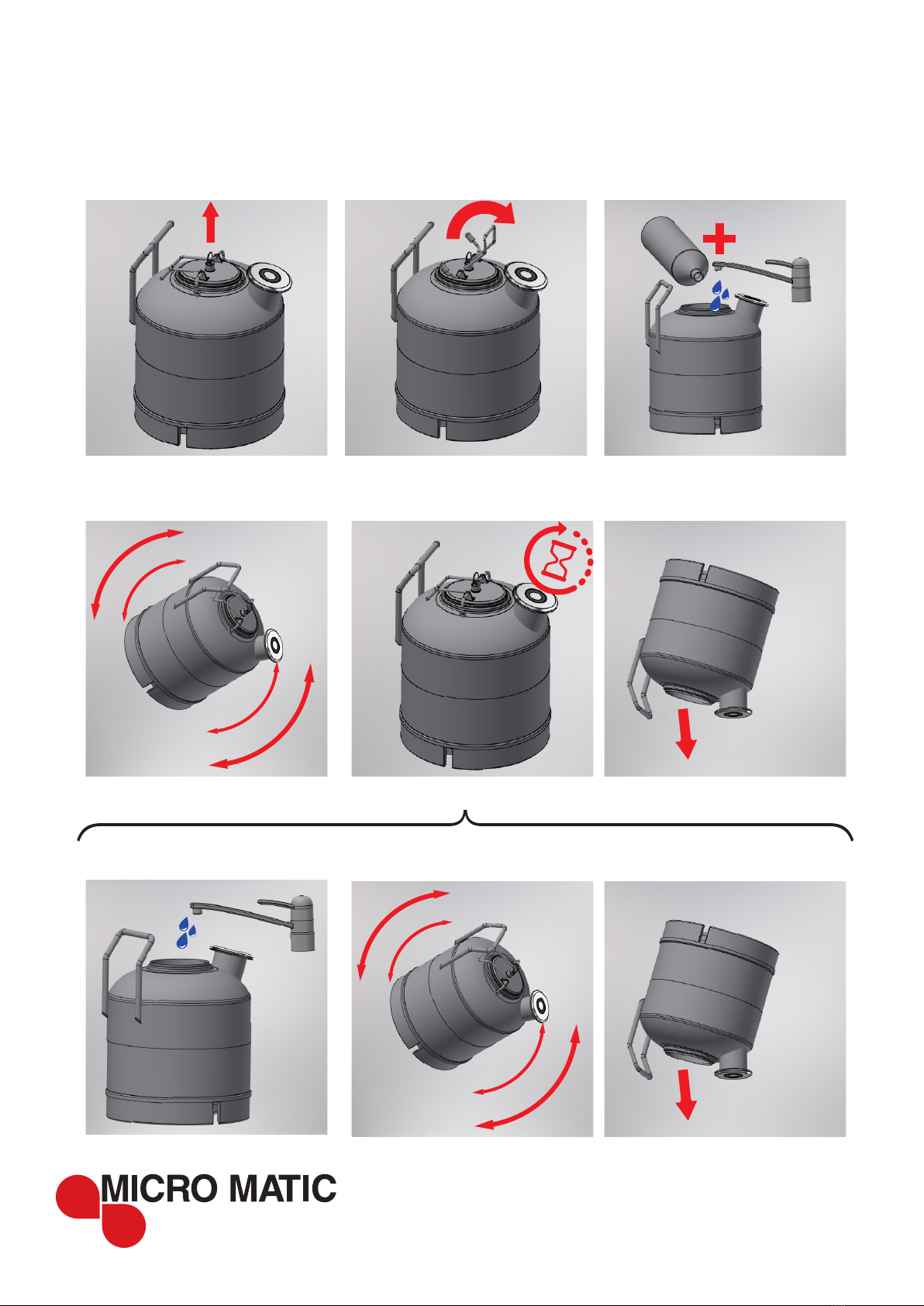

Keg cleaning
Repeat rinse x 3
Fill the keg with cold water
Degas the keg Open the keg Fill the keg with 5L of cold water
and 2dl of Draftline 15
Close the keg and shake it to cover
all internal areas
Let the cleaning solution sit for 10
minutes, repeat the process x 2.
Degas the keg and empty it
carefully from cleaning solution.
Shakethekegtoushallinternal
surfaces clean from detergent
Degas and empty the keg, repeat
the process 3 times.

Page: 13
How to change gas bottle
When the needle has reached the
redeldonthehighpressurema-
nometer. - Replace the gas bottle.
Remove the high pressure hose,
unlock the security chain and re-
place the bottle with a new one.
Shut the gas valve by turning the
wheel knob clockwise until fully
closed.
Reconnect the high pressure hose
and tighten the nut clockwise with
the wrench.
Use the wrench provided to loosen
the High Pressure hose nut. There
will be a slight sound of gas pour-
ing out
Open the gas valve counterclock-
wise until fully opened.

Page: 14
Common issues and how to resolve them
Product is not cold:
- Check settings on the electronic thermostat, the setting should be +2°C
- Check that the electric plug is connected to the wall socket, also check so that the corre-
sponding fuse is ok.
Nitro Coffee has to much head height:
The pressure settings on dNim-regulator might be to high, try lowering the pressure
Nitro Coffee has to low head height:
- The pressure settings on dNim-regulator might be to low, increase pressure.
- Check that the gas in the Nitrogen bottle isn’t empty.
- Make sure the Dispense Mode valve is set to Dispense Mode.

Page: 15
Contact info
CONTACT INFO:
MM Service Center AB
Honungsgatan 2
SE-432 48 Varberg
Sweden
Phone: +46 340 545 700
Email: [email protected]
www.micro-matic.se
