Micronix MSG703 User manual

5MHz to 3GHz
MSG703
RF SIGNAL
GENERATOR
IQ vector generation function
Sufficient modulation and sweep functions
C & U
CREATIVE
& UNIQUE

Features of MSG703
The fast switching of 0.5μs at frequency (however,
1.5ms at 10N-3(MHz)(N: integer) point) and 200μs
at level is possible. For command and external trig-
ger receiving, both are 1.5ms (however, 3ms at
frequency 10N-3(MHz)(N: integer) point).
2Fast switching
MSG703 ensures the high accurate RF output level
by ALC circuit (Auto Level Control circuit).
3ALC function
The frequency can be set at maximum 11 digits in
0.1Hz resolution. The accuracy of level is ± 0.6dB
(excluding 625 to 725MHz) in "ALC on".
4
High accurate frequency and level output
Since frequency and level can be set by using ten
key, rotary encoder and arrow key, the operability
will increase dramatically.
5
Frequency and level setting by three ways
The IQ modulated
signal is output by
inputting such IQ
signal as analog, digi-
tal or list data(USB
flash drive and
manual) in IQ modu-
lator (option) from the
outside.
1IQ modulation signal output
64QAM output
Waveform of frequen-
cy or level sweep, and
modulation waveform
of FSK, PSK or AM
are displayed on the
screen.
12 Displaying sweep waveform and
modulation waveform on the screen
PSK modulation waveform
The phase of the output signals of two MSG703
can be synchronized.
8Phase offset function
Since MSG703 is portable size as 360 (W) × 160
(H) × 360 (D) mm and is lightweight as 8.5kg, it can
be used easily anywhere and anytime.
9Small size and lightweight
USB host, USB device and LAN (1000BASE-T) are
equipped as standard.
10 Sufficient interfaces
The easy-to-read screen by 640 × 480 dots, 5.7
inches and color LCD.
11 Large and color LCD display
MSG703 has the list
sweep by arbitrary lists
of frequency and level,
and the step sweep at
which frequency/level
from the start until the
stop is swept by speci-
fied step. Moreover, it
is possible to control
the sweep by the trigger signal, and there are four
trigger modes of EDGE 1, EDGE 2, LEVEL 1 and
LEVEL 2.
7Sufficient sweep functions
Sweep waveform
They can be used simultaneously with the
sweep function. Frequency hopping is possible.
FSK and PSK of
digital modulation,
and AM of analog
modulation are
provided as stan-
dard. FSK and
PSK have the reg-
ister mode with
fast transmission
rate and the direct mode with generation of arbitrary
modulation.
In addition, the burst control is available.
6Abundant modulation functions
Spectrum waveform of FSK(PN15)

Function key
640 x 480 dots
5.7inches,color LCD
USB A
socket
Power switch
Sweep function
selection/setting
Manual trigger key
Trigger input
System setting
Select either RF output
or AUX output (option)
On/off switch
of RF output
RF output
RF on : turn on
RF off : turn off
Arrow key
Rotary
encoder
On/off of modulation
On/off
of sweep
LAN socket USB B socket Slot 1 for option card
Slot 2 for option card
Reference
frequency output
Reference
frequency input
AC power input
(100 to 240V AC)
Frame ground
Ten key
Initial setting
Level setting
Option selection
Space
USB A plug
(Used at modulation and sweep functions.)
Synchronous output
Save/load
setting
When using LAN, connects to
USB B socket with USB A/B
connection cable MI701.
*Cannot use a USB flash drive.

Frequency, level or other various functions can be set with ten key, rotary
encoder or arrow key.
Frequency and level setting
Rotary encoder
Arrow key
Ten key
Frequency range
5MHz to 3GHz
Frequency
Frequency setting screen
Synchronizes to (A) by adjusting the phase offset of (B).
MSG703(A) MSG703(B)
REF OUT REF IN
SSB phase noise
As shown at the SSB phase noise in the figure below, MSG703 provides
such a high spectral purity as -95 to -105dBc/Hz.
RF OUT(A)
RF OUT(B)
Phase offset
dBc/Hz
110 100 1000 10000
Frequency offset [kHz]
100MHz
1GHz
3GHz
Frequency setting resolution
The frequency can be set at maximum 11 digits in 0.1Hz resolution.
Example. 2.793 015 286 3GHz
Reference frequency
Highly stable reference frequency source with temperature stability of
<±0.2ppm @ 0 to 50°C and aging rate of <±0.5ppm/year is installed.
Furthermore, "High stability timebase MSG700-03" (option) is ready for
meeting the demands of more stable reference frequency source.
Phase offset function
MSG703 is equipped with the reference frequency input (REF IN) and
output (REF OUT). By using these two terminals and the phase offset
function, the phase of the output signals of two MSG703 can be synchro-
nized. However, it is necessary that the two units have the same
frequency. Also if the frequency is changed (even if both units are the
same frequency), the phase offset should be set again because the
phase will be shifted.

Level setting screen
Level
Sweep setting screen
Sweep function
List sweep setting screen
Step sweep setting screen
Types of sweep
There are two types of sweep methods.
(1) List sweep
The sweep by arbitrary values of the frequency and level is operable in
list sweep.
It's possible to do the input and editing of the frequency and level in the
following edit screen.
The number of sweep points can be set in the range from 1 to 2,048
points. The sweep rate of level is in the range from 500μs to 10s/point.
Also, for “frequency sweep” and “level+frequency sweep”, it is 600μs to
10s/point.
However, in the case of logarithmic steps (frequency only), the maximum
rate is 2ms/point. At 10N-3(MHz) (N: integer) point, the sweep rate
changes to 3ms/point maximum. For example, if the number of sweep
points is 80 points, the sweep rate is 800μs/point, and 10N-3(MHz) point
is 1 point, the time for one sweep is 66.2ms.
Level setting screen
Reverse power protection
When an excessive power is supplied to the output terminal RF OUT, the
reverse power protection function works to prevent damage to the equip-
ment. MSG703's specification of the protection power is "+ 30dBm
(CW average power), 50VDC". The situations where excessive input is
supplied will be considered as follows.
ALC function
MSG703 ensures the high accurate RF output level by ALC circuit (Auto
Level Control circuit).
The feedback loop works to become the level set in this circuit.
Indication of maximum output level
The maximum output level corresponding to the frequency is displayed
on the screen.
P1dB (typical value) when ALC is off and the maximum setting level
when ALC is on are displayed.
In case of supplying high-power signal to the output connector by
mistake.
Case1
Case2
In case of connecting two units of MSG703 in order to output two mixed
frequencies.
Output
+34dBm(6dB attenuation in divider)
+40dBm
amplifier
MSG703
MSG703
Resistor type
power divider

(2)Step sweep
The frequency or level is swept from the start until the stop by specified
step.
The number of sweep points can be set in the range from 2 to 65,536.
The sweep rate is the same as list sweep.
In addition, the linear sweep or logarithm sweep can be selected at step
sweep.
Note
Max. 3ms
Sweep rate 800μs
10N-3(MHz)
800μs
The sweep rate is changed to 3ms at frequency points of 10N-3(MHz)
(N: integer).
Display of sweep waveform
The waveform swept is displayed by frequency or level vs. time.
Sweep control by trigger signal
By a trigger signal supplied to TRIG IN connector, the sweep can be
controlled. There are four types of trigger modes as shown in the figure
below.
External/manual trigger
Edge 1/Level 1
Edge 2/Level 2
Tsw p>Ttr ig
Sweep time：Tswp
Trigger interval：Ttrig
Tsw p>Ttr ig
Tsw p>Ttr ig
Tsw p>Ttr ig
Trigger signal
Edge 1
Edge 2
Trigger signal
Level 1
Level 2
Tswp<T tri g
Tswp<T tri g
Tswp<T tri g
Tswp<T tri g
Repeat sweep
Single sweep
Sweep in free run
Repeat sweep
Single sweep
The moment entering free run and repeat
The moment entering free run and single
Final address
Trigger source and synchronous output
Trigger source can be selected among free run, external and manual .
■External
If the trigger source is external, "TRIG IN" connector on the front panel is
used.
· Input frequency range : DC to 5MHz
· Input voltage range : 1 to 10Vp-p
· Trigger level : approx.+0.56V(fixed)
· Input register : approx.36kΩ
Example 1. Repeat sweep/EDGE 1
Trigger signal
Sweep
Synchronous output
Example 2. Repeat sweep/free run
Sweep
Synchronous output
more than 50μs
■Synchronous output
The high level is output to synchronous output on the rear panel during
the sweep.
If the sweep is continuous, low level of more than 50μs is output when
each sweep is completed.

It's possible to output the three modulation signals of FSK, PSK and AM.
The modulation signal source is equipped in this equipment. Valid only in
"ALC off”.
Modulation function
(1) FSK modulation
In FSK modulation, the frequency shift amount can be set in the range
from 0 to ± 500kHz at 1Hz resolution. The carrier frequency is set in the
center of the shift using the FREQ key.
FSK modulation waveform which is set is displayed in frequency vs. time
on the screen.
Time
Frequency
(2) PSK modulation
In PSK modulation, the phase shift amount can be set in the range from 0
to ± 180 degree by 0.1 degree resolution.
The carrier frequency is set using the FREQ key.
Moreover, PSK modulation waveform which is set is displayed in phase vs.
time on the screen.
Time
Phase
(3) AM(Amplitude Modulation)
The modulation frequency can be set in the range from 100Hz to 5kHz at
100Hz step. The modulation waveform is a sine wave. The modulation
depth can be set at 1% step from 0 to 99%.
In addition, it's valid only in "ALC off" and "FREE RUN" (in other words,
burst control is not allowed).
The AM waveform which is set is displayed in amplitude vs. time on the
screen.
Amplitude
Time
FSK/PSK data mode
There are register mode and direct mode. These modes are valid only in
FSK and PSK.
(1) Register mode
The data transmission rate in this mode is so fast as 1MHz maximum in
comparison with 20kHz in direct mode.
The shift amount of frequency or phase written previously in eight regis-
ters are read out by modulation signal.
The modulation signal is stored in the modulation signal memory in
which the register numbers are written, and these are read out at the
specified transmission rate.
Modulation signal source can be selected among PN9, PN15 and list.
Fig.1 Waveform by two levels
F0F1
Fig.2 Spectrum of Fig.1
F0F0F0F0F0 F0
F1F1
F1
F2F2
F3F3
F4F4
F5
Fig.3 Filtering Fig.1
(using six registers)
Fig.4 Spectrum of Fig.3
List edit screen of FSK modulation/register mode
[Example] Modulation by two levels
As shown in Fig.1, the modulation by two levels (frequency : F0/F1, phase:
P0/P1) is possible.
However, in case of a rectangular wave, the spectrum will spread as
shown in Fig.2.
Therefore, if generating the filtered waveform using several registers as
shown in Fig.3, the spread of spectrum will be prevented as shown in
Fig.4.
Transmission rate
FSK/PSK signal
Register number
is written.
100Hz to 1MHz/point
100Hz step
Eight registers
Modulation signal memory
2k×3bit

The modulation function and sweep function can be used
simultaneously. Therefore, it's possible to output a frequency hopping
signal. For frequency hopping, the hopping frequency is set with the
sweep function and the modulation signal is set with the modulation
function.
The figure below shows an example where the hopping frequency
interval is 2MHz and the modulation signal is FSK.
Overwrite screen of signal analyzer MSA538
■Handheld signal analyzer MSA538
■Frequency：20kHz to 3.3GHz
With Fast Fourier Transform (FFT) and conven-
tional sweep systems, each strong point of both
systems is usable.
REAL TIME system enables unsteady signal
measurement, time domain analysis and modu-
lation analysis. SWEEP system enables mea-
surement over wide span.
List setting of FSK modulation/direct mode
Meanwhile, the modulation signal
source is a list.The right figure shows
the spectrum waveform of FSK (direct
mode).
The list edit screen is shown below.
List edit screen of FSK modulation/direct mode
(2) Direct mode
The shift amount of the frequency or phase stored in the modulation
signal memory is read out at the specified transmission rate. The trans-
mission rate can be set in the range from 100Hz to 20kHz at 100Hz step.
Compared with register mode, the transmission rate is slower, but the
arbitrary signal can be output.
Transmission rate
FSK/PSK signal
List data is written.
100Hz to 20kHz/point
100Hz step
Frequency/phase conversion
Modulation signal memory
2k×32bit
Example of modulation signal:
FSK(direct mode)
Burst control
Simultaneous use with sweep function
The burst control is a function for outputting a signal intermittently. Valid
in FSK and PSK. AM is valid only in free run.
The period in which the signal is not output is carrier-off and is set to the
minimum level.
(1) Control mode
Free run Continuous output (Burst control off)
External
The signal of "TRIG IN" connector on the front panel is
control signal.
High : signal output, Low : carrier off.
Manual
The control signal is generated by the manual trigger
key TRIG .
Signal output/carrier off signal is generated.
(2) Operation mode
There are single and repeat.
Control
signal
Carrier off level
Carrier off level
Top data
Top data
Top data
Final data
Final data
Output
signal
Synchronous
output
Output
signal
Synchronous
output
Control
signal
Repeat
Single

Interface
USB device, USB host and LAN (1000BASE-T) are equipped as stan-
dard interfaces.
Other functions
(2) Load operation
Either one list data of sweep or FSK/PSK/IQ modulation, and one setting
parameter are allowed to load.
Front panel Rear panel
USB A
socket
USB A
socket
USB B
socket
LAN
socket
USB flash drive
Using USB A socket (host) on the front panel, data such as list sweep
data, FSK/PSK modulation signal data, list data of optional IQ modulator
and setting parameters can be saved and loaded.
Save/Load
(1) Save operation
Each 10 list data for sweep and FSK/PSK/IQ modulation, and 200
setting parameters can be saved.
USB A socket (front panel) A USB flash drive is inserted.
USB B socket Used to communicate with a PC. The
transfer rate is 12Mbps (full speed).
USB A socket (rear panel)
When using LAN, used to connect to USB B
plug with USB A/B connection cable MI701.
*Cannot use a USB flash drive.
LAN socket Used to communicate with a PC.
System
Make the basic setting for MSG703 as shown below.
Definition of label
The label attached to the head of the file name is defined. It'll be used in
every save operation.
Time setting
The time is set for displaying in the lowest column on the screen and
using in save operation of a file.
Color of LCD
Either of five kinds of colors or monochrome can be selected as the
color of LCD screen.
Backlight
The backlight on or off can be selected. However, when it is off, it turns
on the moment any key is pressed.
Brightness of backlight
The brightness of the backlight can be adjusted in the range from 0 to
100 (maximum brightness).
Buzzer
The buzzer on or off can be selected.
1
2
3
4
5
6

Option
I and Q are each 10 bit × 8,192 word maximum. The readout rate can be
set in the range from 100Hz to 40MHz at 100Hz step.
Since IQ data stored in a USB flash drive can be used, this is the easiest
way to generate a vector modulation signal.
*Waveform display
I/Q vs. time and polar coordinates (I vs. Q) are displayed only by list data.
(3) List data input
Modulated with data loaded from USB flash drive or IQ data entered on
the list data edit screen.
· IQ vector signal generator
· IQ signals are three kinds of external analog, external digital and list
data.
· EVM of 1.3%
*Factory option
By installing the IQ modulator MIQ700 in "Slot 1 for option card" on the
rear panel, MSG703 will be a vector signal generator. Valid only in “ALC
off”.
Ex.1 IQ display of 64QAM constellation Ex.2 π/4QPSK constellation
3 types of IQ inputs
(1) Analog input
The modulation wave is generated by the
voltage supplied to I and Q inputs.
The full scale voltage is ± 600mV.
The input is DC coupling, single-ended
and 50Ω. The baseband bandwidth is
10MHz maximum (RF bandwidth 20MHz).
The burst control can be also performed
by the signal input to TRIG IN connector
on the front panel.
(2) Digital input
Using optional "50P twisted pair cable
MSG700-04”, the IQ data are input.
The number of bits is 10 bits in each of I
and Q, and the data format is two's
complement. The data rate is 80MSPS
maximum and the bandwidth is 10MHz
maximum. The synchronous clock should
be input at the same time.
The input format conforms to TIA/EIA-644
(LVDS) standard.
The burst control can be performed the
same as analog input. In this case, "CAR-
RIER ON" signal should be supplied to the
digital input connector.
List data setting screen
List data edit screen
I/Q vs. time Polar coordinates
I Q
I
Q
Burst control
The burst control is effective to analog input and digital input.
TRIG IN or
CARRIER ON
Output signal
Signal output Carrier off
■IQ modulator MIQ700
Uses slot 1
for option card
50P twisted pair cable MSG700-04
Digital input
Analog input
Time
Level

· Uses high stability OCXO (oven-controlled crystal oscillator) .
· Excellent temperature stability and aging rate
*Factory option
Temperature stability <±10ppb @ 0 to 50°C
Aging rate
<±1ppb/day
<±100ppb/year
<±1ppm/10years
■High stability timebase MSG700-03

Accessory
■ 50P twisted pair cable MSG700-04
This cable is used to connect to the
digital IQ input of IQ modulator
MIQ700.
Length : 1 m
This is a kit for mounting MSG703
on the rack and corresponds to JIS
standard and EIA standard.
■ Rack-mount kit MSG700-06
Length : 3m
■ LAN cable MI700
Length : 30cm
■ USB A/B connection cable MI701
Connector : A Plug/B Plug
Length : 1m
■ USB cable MI400
■ Coaxial attenuator MG-XXdB
Model
MG-1dB, 2dB, 3dB, 4dB
MG-5dB, 6dB, 7dB, 8dB
MG-9dB, 10dB, 12dB, 13dB
MG-14dB, 15dB, 20dB
MG-30dB
Attenuation error
DC to 12.4GHz
<±0.5dB
<±0.7dB
<±1.0dB
<±1.2dB
12.4GHz to 18GHz
<±1dB
<±1.2dB
<±1.25dB
<±1.3dB
<±1.2dB @ DC to 8GHz <1.2 @ DC to 8GHz
VSWR
<1.15 @ DC to 4GHz
<1.2 @ 4 to 12.4GHz
<1.3 @ 12.4 to 18GHz
1W
Rated
power
*Connector : SMA(P)/SMA(J), Impedance : 50Ω
■ Terminator MG-50S/-50N
Model
MG-50S
MG-50N
SMA(P)
N(P)
Frequency
range
DC to 18GHz
DC to 8GHz
VSWR
<1.2 @ DC to 8GHz
DC to 4GHz 4 to 8GHz 8 to 12.4GHz 12.4 to 18GHz
<1.08 <1.10 <1.15 <1.20 0.25W
2W
Termination
power Connector
*Impedance : 50Ω
■ Adapter
Model
MA301
MA302
MA303
MA304
MA305
MA306
MA307
MA308
MA309
Connector
BNC(P)/BNC(J)
BNC(P)/N(J)
BNC(P)/N(P)
BNC(P)/F(J)
BNC(P)/F(P)
N(P)/SMA(J)
N(P)/BNC(J)
N(P)/BNC(J)
N(J)/BNC(P)
Impedance
50Ω/75Ω
75Ω/75Ω
75Ω/75Ω
75Ω/75Ω
75Ω/75Ω
50Ω/50Ω
50Ω/50Ω
50Ω/75Ω
50Ω/50Ω
Frequency range
DC to 2GHz
DC to 1.8GHz
DC to 1.8GHz
DC to 1.8GHz
DC to 1.8GHz
DC to 12.4GHz
DC to 2GHz
DC to 2GHz
DC to 2GHz
■ Coaxial Cable
Model
MC102
MC201
MC202
MC203
MC204
MC301
MC302
MC303
MC304
MC305
MC306
MC307
MC308
MC309
MC310
MC312
MC311
MC313
MC314
Connector
SMA(P)/BNC(P)
SMA(P)/SMA(P)
SMA(P)/SMA(P)
SMA(P)/SMA(P)
SMA(P)/SMA(P)
SMA(P)/SMA(P)
SMA(P)/SMA(P)
SMA(P)/SMA(P)
SMA(P)/N(J)
SMA(P)/N(P)
SMA(P)/BNC(J)
SMA(P)/BNC(P)
N(P)/N(P)
N(P)/N(P)
N(P)/N(P)
N(P)/BNC(J)
N(P)/SMA(J)
N(P)/BNC(P)
BNC(P)/BNC(P)
Length
1.5m
0.5m
3m
4m
1.5m
0.5m
1m
1.5m
0.2m
0.2m
0.2m
0.2m
0.5m
1m
1.5m
0.2m
0.2m
0.2m
1.5m
Frequency range
DC to 2GHz
DC to 18.5GHz
DC to 18.5GHz
DC to 18.5GHz
DC to 18.5GHz
DC to 10GHz
DC to 10GHz
DC to 10GHz
DC to 4GHz
DC to 4GHz
DC to 2GHz
DC to 2GHz
DC to 10GHz
DC to 10GHz
DC to 10GHz
DC to 2GHz
DC to 10GHz
DC to 2GHz
DC to 2GHz
*Impedance : 50Ω

Specifications
Phase offset -180 to 180deg, 0.022 deg step
Frequency
Step change Linear, Logarithm
Sweep point number 1 to 2,048 @ list sweep
2 to 65,536 @ step sweep
Sweep
Step sweep Frequency or level is swept from the start
until the stop at specified step.
Harmonics <-30dBc @ in-band
Non-harmonics <-65dBc @ 5 to <750MHz
<-60dBc @0.75 to <1.025GHz
<-57dBc @1.025 to <1.5GHz
<-53dBc @1.5 to <2.25GHz
<-50dBc @2.25 to <2.5GHz
<-47dBc @2.5 to 3GHz
Setting resolution 0.1dB
Level setting Ten key, Rotary encoder, Arrow key
Level unit dBm、dBμV、Vrms、mVrms、mW
Maximum attenuation 80dB（min）
Setting range -70dBm to +20dBm
Reverse power protection +30dBm(CW average power), 50VDC
Output connector N(J)
Output on/off At on
At off
Green LED turns off and the
output level is attenuated lower
than 80dB from maximum output
level.
Green LED turns on.
Output impedance 50Ω
VSWR <1.6 @ < -10dBm
Amplitude
Maximum output level <at ALC on>
+14dBm @ 5MHz to <1.025GHz
+13dBm @ 1.025 to <2.025GHz
+11dBm @ 2.025 to <2.825GHz
+10dBm @ 2.825 to 3GHz
Level [dBm]typical
Frequency [GHz]
00.5 11.5 22.5 3
0.0
2.0
4.0
6.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0
<at ALC off>
0.1Hz(maximum 11digits setting)
Frequency setting resolution
5MHz to 3GHz
Output frequency range
Ten key, Rotary encoder, Arrow key
Frequency setting
Internal, External
Reference frequency
Internal reference frequency
<±0.2ppm @ 0 to 50°C
Temperature stability
<±0.5ppm/year
Aging rate
Reference frequency output
10MHz
Frequency
approx.1Vp-p
Output level
50Ω(nominal)
Output impedance
AC couplingOutput coupling
+27dBm(CW average power), 50VDCReverse power protection
BNC(J)
Connector
External reference input
10MHz
Frequency
40 to 60% duty square wave
(40 to 53% when the input is less than 1.2Vp-p)
Waveform
1.0 to 3.3Vp-p
Input level
AC coupling
Input coupling
50Ω
Input impedance
+30dBm(CW average power), 50VDC
Input damage level
BNC(J)
Connector
Spectral purity
SSB phase noise <-95dBc/Hz @ 1 to 3GHz, 20kHz offset
<-100dBc/Hz @ 5M to <1GHz, 20kHz offset
Sweep mode Single sweep, Repeat sweep
Kinds of sweep List sweep, Step sweep
List sweep Sweep by arbitrary list of frequency or level
Level accuracy
ALC on
±0.6dB(typ)
@other than below
±1.2dB(typ)
@625 to 725MHz
ALC off
±0.9dB(typ)
@other than below
±1.5dB(typ)
@25 to 75MHz
at 25±5°C
*
Switching speed Frequency transition time
<1.5ms @ 10N-3(MHz)(N
：
integer)
<0.5μs @ other points
Command and external trigger receiving
<3ms @ 10N-3(MHz)(N
：
integer)
<1.5ms @ other points
1
2
Switching speed Level transition time
<200us
Command and external trigger receiving
<1.5ms
1
2
Manual : Set high/low level by TRIG key.
*
Trigger
Trigger source Free run, External, Manual
Polarity Rising, Falling @ edge trigger 1 and 2
High active, Low active @ level trigger 1 and 2
Save/Load Save :
Load :
10 lists(Step sweep information
can’t be saved.)
1 list
Trigger mode Edge trigger 1 and 2, Level trigger 1 and 2
Valid in external and manual trigger source.
*
Sweep rate Level sweep
：
Frequency sweep
：
500μs to 10s/point,
100μs step
600μs to 10s/point,
100μs step
For logarithmic steps (frequency only), it's
2ms/point fastest. At 10N-3(MHz) (N:
integer) point, it changes to 3ms/point.
*
When used simultaneously with the
modulation function, the fastest speed is 1
ms/point.
*

General
Communication
USB device, USB host, LAN(1000BASE-T)
Interface
Full speed(12Mbps) @ USB 1.1
Transfer rate
Display
5.7 inches and color LCD
Display
LED backlight
Backlight
640(H) x 480(V) dots
Number of dots
Power supply
100 to 240VAC, 50 to 60Hz
Supply voltage
approx. 18W
approx. 20W
@ without option
@ with IQ modulator MIQ700 and
High stability timebase MSG700-03
Power consumption
Save Saves each 10 lists for sweep and
FSK/PSK/IQ modulations, and 200 setting
parameters.
Load Loads 1 list of sweep or FSK/PSK/IQ
modulation, and 1 setting parameter.
Save/Load
List sweep data, FSK/PSK modulation
signal data, list data for IQ modulator and
setting parameters can be saved.
USB flash drive
Synchronous output High at signal output state and low at
carrier off state.
Other specifications are the same as
SWEEP section.
DC to 5MHz
1 to 10Vp-p
approx.+0.56V(fixed)
DC coupling
approx.36kΩ
±50V(DC+ACpeak)
External trigger
Frequency range
Input voltage range
Trigger level
Input coupling
Input resistance
Maximum input voltage
Connector BNC(J)
Waveform display
Display waveform Frequency/level vs. time
approx.2Vp-p @ no load, 0V at low level
Amplitude
approx.200ΩOutput impedance
DC couplingOutput coupling
9Vrms(including DC component)
Reverse voltage protection
BNC(J)
Connector
Synchronous output Positive pulse is output during swept.
When the sweep is continuous, negative
pulse of more than 50μs width is output at
end of sweep.
Valid only in ALC off.
Modulation
Modulation signal source Internal
Register mode, Direct mode
FSK/PSK data mode
Register mode The shift amount of frequency or phase
written previously in eight registers (register
0 to 7) are read out by the internal modula-
tion signal. Internal modulation signal is
stored in the modulation signal memory
(storing register number), and is read out at
the specified rate. Allows high-speed trans-
mission.
Kinds of modulation FSK modulation, PSK modulation, Ampli-
tude modulation(AM)
Direct mode The shift amount of frequency or phase
stored in modulation signal memory is
sequentially read out at specified rate.
Transmission rate 100Hz to 1MHz/point @ register mode
100Hz to 20kHz/point @ direct mode
100Hz/point
Setting resolution
Internal modulation signal source
The modulation signal is stored in modula-
tion signal memory. At register mode, the
register numbers are stored, and at direct
mode, the frequency values or phase
values are stored.
Save/Load Save :
Load :
each 10 lists of FSK and PSK.
each 1 list of register mode and
direct mode (each of FSK and PSK).
Length of modulation
signal memory
2,048
An arbitrary memory length of 1 to 2,048
can be set.
*
Kinds of
modulation signal
PN9, PN15, List
PN9 and PN15 can be set only in binary
for both frequency and phase.
*
Burst control Valid only in FSK and PSK
Control mode
Free run, External, Manual
Free run Continuous output
Manual
External
TRIG IN connector
High level : signal output
Low level : carrier off
Sets the signal output/carrier
off with TRIG key.

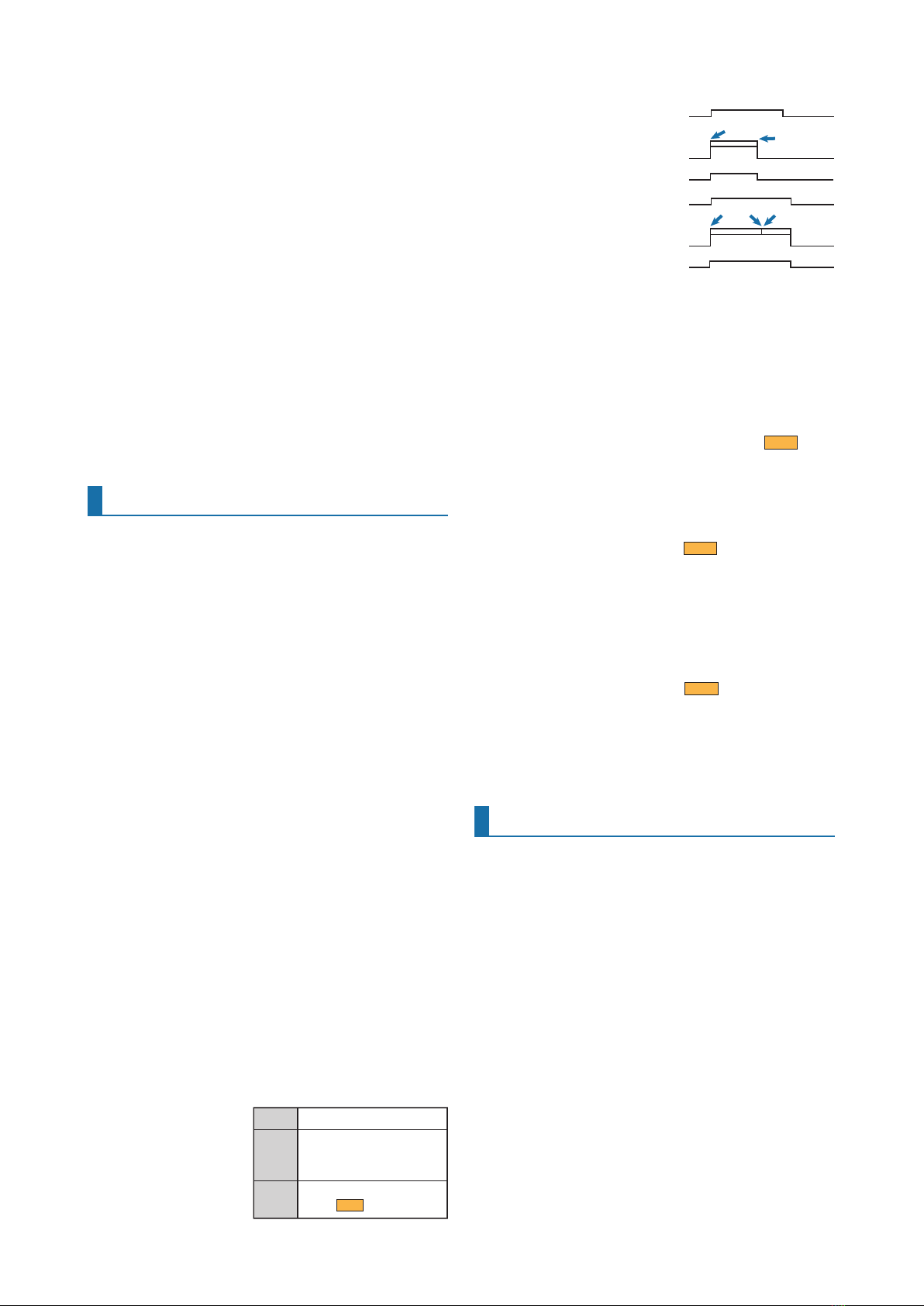

Single, Repeat
Operation mode
Single :
Control signal
Repeat :
Control signal
Output signal
Synchronous
output
Output signal
Synchronous
output
Top address of memory
Top Final To p
Final address
of memory
Carrier off level
Carrier off
level
FSK modulation
±500kHz
Frequency shift
1Hz
Resolution
Carrier frequency
Frequency vs. time
Waveform display
Sets the center of shift with FREQ key.
PSK modulation
±180deg
Phase shift
0.1degree
Resolution
Phase vs. time
Waveform display
Carrier frequency Sets with FREQ key.
Sine wave
Waveform
Modulation waveform
Waveform display
0 to 99%, 1% step
Modulation depth
100Hz to 5kHz, 100Hz step
Frequency
Carrier frequency
Amplitude modulation Burst control mode can be used only in free
run.
Sets with FREQ key.
*Can be used simultaneously with the modulation function.
*Can be used simultaneously with the sweep function.

Option
■IQ modulator MIQ700
■50P twisted pair cable MSG700-04
Use : connects external digital signal for IQ modulation
Length : 1m
List data
10 bits×8,192 words for each I,Q
Data size
100Hz to 40MHz, 100Hz step
Readout rate
Waveform display IQ vs. time and I vs. Q (Polar coordinates)
@ list data only
AccessoriesOther
■Rack-mount kit MSG700-06
■LAN cable MI700
■USB A/B connection cable MI701
■USB cable MI400
Operating temperature
0 to 50°C(guaranteed at 25±10°C)
Operating humidity less than 40°C/80%RH
(guaranteed at less than 33°C/70%RH)
Storage temperature -20°C to 60°C, less than 60°C/70%RH
Dimensions 360(W) x 160(H) x 360(D) mm
(excluding projections)
Weight approx.8.5kg @ without option
Standard accessories Power cable(1), Fuse(1), Operation manual
(1)
Valid only in ALC off.
IQ input signal External analog, External digital, List data
Quadrature error 0.65deg.rms (typ)
Amplitude balance 0.2dB (typ)
Carrier feed-through -41dBc(typ)
Sideband suppression -41dBc(typ) @ baseband frequency 1MHz
-36dBc(typ) @ baseband frequency 10MHz
EVM 1.3%(typ)
External analog
Single end
Input format
10MHz max(RF bandwidth 20MHz max)
Baseband bandwidth
Each ±600mV
IQ full scale
50Ω
Input impedance
DC coupling
Input coupling
+30dBm(including DC component)
Maximum input voltage
BNC(J)Connector
External digital
Each 10 bits
IQ bit number
2's complement
IQ data format
Conforms to TIA/EIA-644 (LVDS) standard.Input format
80MSPS max(bandwidth 10MHz max)
Rate
Samples the data on the rising edge.Synchronous clock
Burst control List data isn't allowed.
· ”TRIG IN” @ external analog
· ”CARRIER ON” @ external digital
Control signal
High level : signal output
Low level : carrier off
Polarity
■High stability timebase MSG700-03
Temperature stability <±10ppb @ 0 to 50°C
Aging rate <±1ppb/day
<±100ppb/year
<±1ppm/10years

*MICRONIX Corporation reserves the right to make change in design, specification and other information without prior notice.
2987-2, KOBIKI-CHO, HACHIOJI-SHI, TOKYO 193-0934 JAPAN
URL : http://www.micronix-jp.com
AGENCY
TEL : [phone] FAX : [phone]
E-mail : [email protected]
MICRONIX CORPORATION
CV2022E
