Tsun TSOL-M350 User manual

Quick Installation Guide
CAUTION
TSOL-M350/ M400 / M800 / M1600

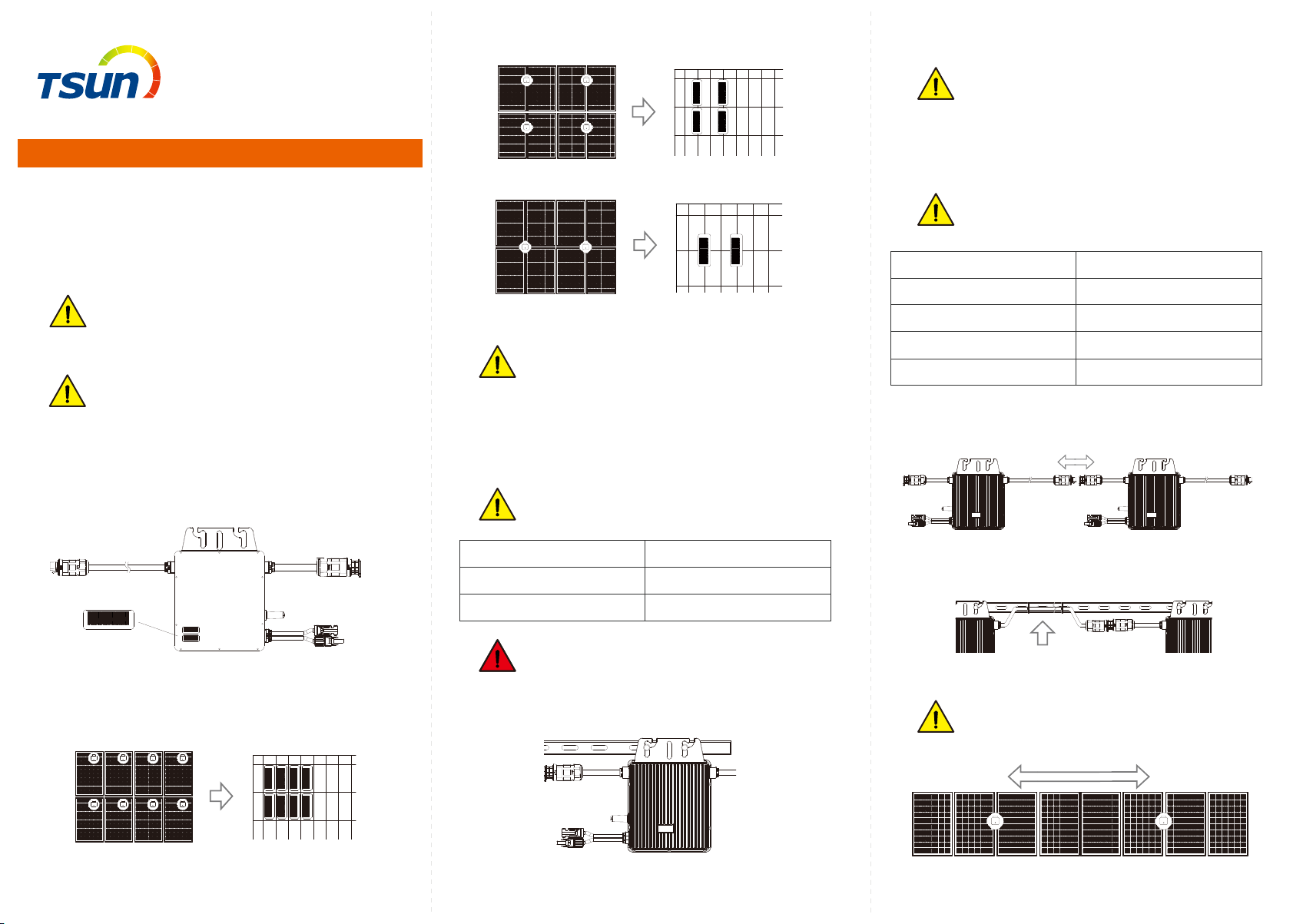

Step 1. Make an installation map
Use the blank installation map in the package to record the location of
micro-inverters according to the system design. Each cell of the map
corresponds to one PV module.
There are two SN labels on the backside of micro-inverter. Pick up one
and stick the SN label to the corresponding cell of the installation map
according to the actual installation. As TSOL-M800 and M1600 are
connected to several PV modules, the SN label should be sticked as
shown below.
Mark the approximate center of PV module on the frame and install the
micro-inverter with the LED side facing outside.
Using two pairs of screws and nuts to fix the bracket holes of the
micro-inverter onto the frame.
Figure Installation example Figure TSOL-M1600 installed in one line
Step 2. Install micro-inverter
Every micro-inverter could be connected to the other one by its AC
cables.
Plug the female AC connector of one microinverter into a male AC
connector of another micro-inverter to form a continuous AC branch
circuit.
Use Nylon cable ties to fix the AC cables onto the frame.
Step 3. Connect AC cable
If there are more than one installation site,
please make the installation map
separately and give a clearly description
about the installation site.
CAUTION
The row of the table corresponds the
shorter side of PV module and the column
of the table corresponds the longer side of
PV module. The direction on the upper left
corner means the actual installation
orientation.
CAUTION
In order to provide a better after-sale
service, please make the installation map
carefully and keep the drawing in good
condition.
CAUTION There are no screws and nuts in the
package.
CAUTION
According to the max current of the AC
cables, there is a max installation quantity
for the micro-inverter in each cable
section.
CAUTION
The distance between every two
micro-inverters should meet the length of
AC cables. The length of AC cables are
shown as below:
CAUTION
If the AC cable is too short for
installation, use an Interconnection Cable
(TSOL-MC200-G2, 2m) to connect two
TSOL-M1600 which are installed in one
line or two TSOL-M350/400 which are
installed in two different lines.
WARNING
Micro-inverter should be installed in a
suitable position with good ventilation and
no directly sunshine.
Figure the SN label of micro-inverter
Figure Connect the AC cables
Figure Fix the AC cable
01 02 03
Model
TSOL-M350/400
TSOL-M800/1600 2.08m
1.25m
Length
Model
TSOL-M350
TSOL-M400
TSOL-M800
TSOL-1600
16 pcs
7 pcs
3 pcs
18 pcs
Quantities for each cable section
The finished installation map is shown as below:
Figure The installation map (TSOL-M350/M400)
Figure The installation map (TSOL-M800)
Figure The installation map (TSOL-M1600)
A
B
C
1 2 3 4 5 6 7
012345678912032156 012345678912032156 012345678912032156 012345678912032156
012345678912032156 012345678912032156 012345678912032156 012345678912032156
A
B
C
1 2 3 4 5 6 7
012345678912032156 012345678912032156
012345678912032156 012345678912032156
A
B
C
1 2 3 4 5 6
7
012345678912032156 012345678912032156
012345678912032156
012345678912032156

el: [phone]
Plug the AC connector of the AC end cable into the micro-inverter.
Reassemble the AC connector as shown below.
Connect the cable to the right port of the connector. The definition of the
port is shown below:
L: Live (Brown/Red)
N: Neutral (Blue/Black)
PE: Ground (Yellow-Green)
Connect the DC cables of the PV module to the DC connectors of
micro-inverter.
Figure Connect the DC connector
Figure Connect the AC connector
Figure Reassemble the AC connector
Separate the AC connector as shown below.
Step 4. Connect AC end cable
Step 5. Connect PV module
While installation is all finished, turn on the main utility-grid AC circuit
breaker. Your system will start producing power after about a
two-minute wait time.
The LED will flash green and red at start up. The definition of LED is
shown as below.
Step 6. Start the system
CAUTION
There are no cables for the AC end cable
in the package. The installation technician
is responsible for selecting a kind of AC
cable and connecting the micro-inverter
system into the home distribution network
correctly.
CAUTION
If the DC cable is too short for installation,
use a DC Extension Cable to connect two
PV modules to TSOL-M1600 which are
installed in one line.
WARNING Use AWG 12 (4 mm²) cable for AC end
cable.
Use a Connector Protective Cap
(TSOL-MP-F/M) to make sure the unused
AC connector to be closed.
DANGER
Make sure each cable is connected to the
right port.
DANGER
When the PV module is exposed to light, it
will supply a DC voltage to the micro-in-
verter.
DANGER
To prevent electrical hazards, Make sure
the micro-inverter system is disconnected
from the home distribution network and
the AC breaker is open.
DANGER
Figure Separate the AC connector
Figure TSOL-M350/400 installed in two different lines
Figure Connector Protective Cap
Figure TSOL-M1600 installed in one line
04 05 06
Figure Definition of the port
LED
Fast Flashing Green
Slow Flashing Green
Flashing Red
Solid Red
Working normally but no communication
with the monitoring system
The power grid is abnormal
GFDI Fault
Working normally and communicate
with the monitoring system
Quantities for each cable section
