DS3106DK Demo Kit
Evaluates: DS3106 Timing IC
General Description
The DS3106DK is an easy-to-use demo and
evaluation kit for the DS3106 line card timing IC. A
surface-mounted DS3106 and careful layout provide
maximum signal integrity. An on-board 8051-
compatible microcontroller and included software
give point-and-click access to configuration and
status registers from a Windows®-based PC. LEDs
on the board indicate interrupt, power-supply
function, and lock status. Single-ended and
differential clocks are accessed via SMB connectors.
All LEDs and connectors are clearly labeled with
silkscreening to identify associated signals.
Demo Kit Contents
DS3106DK Board
CD-ROM Includes:
DS3106 Software
DS3106 Initialization File
DS3106DK Data Sheet
DS3106 Data Sheet/Errata Sheet
Features
♦Soldered DS3106 for Best Signal Integrity
♦SMB Connectors and Termination Ease
Connectivity
♦Careful Layout for Analog Signal Paths
♦On-Board Stratum 3 Oscillator with Footprints
for Stratum 3E and Stratum 4 Oscillators
♦On-Board Microcontroller and Included
Software Provide Point-and-Click Access to
the DS3106 Register Set
♦LEDs for Interrupt, Power Supplies, and Lock
Status
♦Banana Jack VDD and GND Connectors
Support Use of Lab Power Supplies
♦Easy-to-Read Silkscreen Labels Identify the
Signals Associated with All Connectors,
Jumpers, and LEDs
♦Software Provides GUI Fields for Most
Commonly Used Features Plus Full
Read/Write Access to the Entire Register Set
♦Software Support for Creating and Running
Configuration Scripts Saves Time During
Evaluation
Minimum System Requirements
♦PC Running Windows XP or Windows 2000
♦Display with 1024 x 768 Resolution or Higher
♦Available USB or Serial (COM) Port
♦USB Cable or DB-9 Serial Cable
Ordering Information
PART
DESCRIPTION
DS3106DK Demo kit for DS3106
Windows is a registered trademark of Microsoft Corp.
Data Sheet
May 2012

_________________________________________________________________________________________DS3106DK
2
Table of Contents
1. BOARD FLOORPLAN .................................................................................................................. 4
1.1 INPUT AND OUTPUT CLOCKS......................................................................................................... 5
1.2 JUMPERS,HEADERS,AND SWITCH SETTINGS................................................................................. 5
1.3 MICROCONTROLLER ..................................................................................................................... 5
1.4 POWER-SUPPLY CONNECTORS..................................................................................................... 5
2. BASIC HARDWARE SETUP......................................................................................................... 6
2.1 USB DRIVER INSTALLATION .......................................................................................................... 6
3. INSTALLING AND RUNNING THE SOFTWARE.......................................................................... 7
3.1 COMMAND LINE OPTIONS.............................................................................................................. 7
4. OVERVIEW OF THE SOFTWARE INTERFACE........................................................................... 8
4.1 GLOBAL CONFIGURATION.............................................................................................................. 8
4.2 INPUT CLOCK MONITOR,DIVIDER,AND SELECTOR ......................................................................... 8
4.3 T0 DPLL ..................................................................................................................................... 9
4.4 T0 APLL AND T0 APLL2 .............................................................................................................10
4.5 T4 APLL.....................................................................................................................................10
4.6 OUTPUT CLOCKS.........................................................................................................................10
4.7 DPLL FREQUENCY LIMITS,PHASE DETECTORS,DPLL LOCK CRITERIA ..........................................11
4.8 REFCLK CALIBRATION................................................................................................................11
4.9 PROGRAMMABLE DFS.................................................................................................................12
4.10 I/O PINS ..................................................................................................................................14
4.11 REGISTER VIEW WINDOW.........................................................................................................15
4.12 CONFIGURATION SCRIPTS AND LOG FILE...................................................................................16
4.12.1 Configuration Log File.......................................................................................................................... 16
4.12.2 Configuration Scripts............................................................................................................................ 16
5. APPENDIX 1: HARDWARE COMPONENTS...............................................................................17
6. APPENDIX 2: SCHEMATICS.......................................................................................................19
7. DOCUMENT REVISION HISTORY ..............................................................................................19

_________________________________________________________________________________________DS3106DK
3
List of Figures
Figure 1-1. DS3106DK Board Floorplan.......................................................................................................................4
Figure 4-1. Software Main Screen................................................................................................................................8
Figure 4-5. Software-Programmable DFS Window................................................................................................... 13
Figure 4-6. Software I/O Pins Window ...................................................................................................................... 14
Figure 4-7. Software Register View Window............................................................................................................. 15
List of Tables
Table 4-1. Mapping Between Input Clock Software Fields and DS3106 Register Fields ............................................9
Table 4-2. Mapping Between T0 DPLL Software Fields and DS3106 Register Fields................................................9
Table 4-4. Mapping Between T0 APLL Software Fields and DS3106 Register Fields ............................................. 10
Table 4-5. Mapping Between T4 APLL Software Fields and DS3106 Register Fields ............................................. 10
Table 4-6. Mapping Between Output Clock Software Fields and DS3106 Register Fields....................................... 11
Table 4-7. Mapping Between DPLL Software Fields and DS3106 Register Fields .................................................. 11
Table 4-8. Mapping Between REFCLK Software Fields and DS3106 Register Fields............................................. 11
Table 4-9. Mapping Between I/O Pins Software Fields and DS3106 Register Fields............................................... 14

_________________________________________________________________________________________DS3106DK
4
1. Board Floorplan
Figure 1-1 shows the DS3106DK floorplan. The DS3106 is in the center of the board, input clock SMB connectors
are along the left edge of the board, and output clock connectors are on the right edge. Between the input clock
connectors and the DS3106, land patterns are provided for several different types of local oscillators, ranging from
inexpensive XOs to higher performance TCXOs. The top edge contains, from left to right, power-supply
connectors, DC-DC converters and power-indicator LEDs, reset pushbutton, serial connector, and USB connector.
An on-board DS87C520 microcontroller is located near the USB connector. The bottom edge of the board is
occupied by a JTAG connector and LED indicators. The DS3106DK has the same PCB design as demo kits for
timing ICs with more clock I/Os. As a result, many of the connectors are not populated in the DS3106DK. See
Appendix 1: Hardware Components for a complete component list. Complete board schematics follow in Section 7.
Figure 1-1. DS3106DK Board Floorplan

_________________________________________________________________________________________DS3106DK
5
1.1 Input and Output Clocks
There are two SMB connectors at the left of the board labeled IC3 and IC4 that provide a single-ended clock input
to the DS3106. These clock inputs are connected to the DS3106 with a 50Ωcharacteristic impedance trace and
terminated with 50Ωat the device.
On the other side of the PCB are three SMB clock output connectors labeled OC3, FSYNC, and MFSYNC. All
single-ended clock outputs are buffered at the DS3106 and connected to the SMB connector via a 50Ω
characteristic impedance trace. Two additional SMB connectors labeled OC6P and OC6N provide connections to
the OC6 differential output from the DS3106.
1.2 Jumpers, Headers, and Switch Settings
Jumpers JMP9 to JMP12 and JMP16 (lower right of board) provide the means to pull up or pull down the
O3F1/SRFAIL, O3F2/LOCK, SRCSW, SONSDH, and TEST pins of the DS3106. Labels specify which position is
used to pull each pin to a 1 or a 0 (if jumper is not installed pin is left to float to accommodate a pin’s output
function). Jumpers JMP1 to JMP4 (middle right of board) provide access to the IPF0/SYNC1, IPF1/SYNC2,
IPF2/IC9, and O3F0/SYNC3 pins of the DS3106. Labels specify the position to install the jumper to pull the pin up
(signified by “1”) or pull it down through a 50Ωresistor (signified by “TERM\0”). The 50Ωresistor is used as a
termination resistor when the pin is used as a input clock signal. Jumper JMP6 (labeled VDDIOB) is not used in the
DS3106DK. Jumpers JMP62 and JMP63 select the computer interface to be USB or RS232. Jumper JMP5 (upper
left) selects whether the board should be powered from the USB connector or from the power-supply jacks (J3 or
J13/J19). LEDs DS1–DS4 (upper left) indicate the labeled power supply is operational. LED DS16 (upper right)
indicates the microprocessor is operational. LEDs DS5, DS6, and DS10 (lower middle) indicate the status of
SRFAIL, LOCK, and INTREQ pins, respectively. Switch SW1 is used to select a squaring circuit to accommodate a
sinusoidal input on IC3. Header J51 provides access to the JTAG port of the DS3106. Test points are provided for
differential the differential output (OC6), SPI port pins, ground plane connection, and pings O6F0/GPIO1,
O6F1/GPIO2, O6F2/GPIO3.
1.3 Microcontroller
The DS87C520 microcontroller has factory-installed firmware in on-chip nonvolatile memory. This firmware
translates memory access requests from the RS232 serial port or USB port into register accesses on the DS3106.
When the microcontroller starts up it turns on DS16 to indicate that the controller is working correctly. A pushbutton
switch labeled RESET near the RS232 connector resets the microcontroller as well as the DS3106.
1.4 Power-Supply Connectors
A 5V lab power supply can be connected across the red (J13) and black (J19) banana jacks. Optionally the board
can be powered from the USB connector by placing jumper JMP5 in the USB position. The 5V input from any of
these sources is then regulated to 3.3V, 2.5V, and 1.8V and distributed to board components.
Note that the board cannot be USB powered through some USB hubs. Before trying to power the board through a
USB hub, check the voltage at JMP5 to ensure the board is getting 5V from the hub.

_________________________________________________________________________________________DS3106DK
6
2. Basic Hardware Setup
Note: In the following sections, software-related items are identified by bolding. Text in bold refers to items directly
from the demo kit (DK) software. Text in bold and underlined refers to items from the Windows operating system.
The following steps provide a quick start to using the DS3106DK.
1) Place the POWER jumper (JMP5) in the PS position.
2) To communicate with the board using a USB cable:
a) Configure the board for USB communication by placing jumpers to connect the middle and right pins of
JMP62 and JMP63 (i.e., place the jumpers toward the “USB” silkscreen).
b) Connect a USB cable between the USB connector on the DS3106DK and an available USB port on the
host computer.
3) To communicate with the board using a serial (RS232) cable:
a) Configure the board for serial communication by placing jumpers to connect the left and middle pins of
JMP62 and JMP63 (i.e., place the jumpers toward the “RS232” silkscreen).
b) Connect a standard DB-9 serial cable between the serial port connector on the DS3106DK and an
available serial port on the host computer. (Be sure the cable is a standard straight-through cable
rather than a null-modem cable. Null-modem cables prevent proper operation.)
4) Attach the appropriate AC power-supply prongs to the included international power supply.
5) Plug the power supply into an AC power outlet and connect the DC output of the supply to connector J3
(upper-left corner in Figure 1-1).
At this point the power indicator LEDs DS1–DS4 should be lit. Microcontroller status LED DS16 (to the right of the
USB connector) should also be lit.
2.1 USB Driver Installation
When the DS3106DK is first connected to the PC using a USB cable, an on-board USB-to-serial converter IC is
automatically detected by Windows and the Found New Hardware Wizard is automatically started. Follow these
steps to install the drivers:
1) In the first screen of this wizard, select Install from a list or specific location and click Next.
2) In the second screen, select Search for the best driver in these locations, check Include this location
in the search, and browse to the USB directory in the DS3106DK CD-ROM or downloaded ZIP file. Click
Next.
3) Click Finished.
4) Repeats steps 1 to 3 the second time the Found New Hardware Wizard starts.
After the drivers are installed, whenever the DS3106DK board is connected to a USB port on the PC, the Windows
operating system will see the USB-to-serial converter IC as an additional COM port. The DS3106DK software will
automatically list the additional COM port in the PORT selection combo box in the upper-left corner of the main
window.

_________________________________________________________________________________________DS3106DK
7
3. Installing and Running the Software
At this time the DS3106 demo kit software only runs on Windows 2000 or Windows XP operating systems.
To install the demo kit software, run SETUP.EXE from the disk included in the DS3106DK box or from the zip file
available on the Microsemi website or from Microsemi timing products technical support.
After software installation is complete, set up the hardware as described above and run the software by double-
clicking the DS3106 Demo Kit icon on the Windows desktop or by selecting Start→Programs→Microsemi→
DS3106 Demo Kit. When the main window appears, select the correct serial port in the box in the upper-left
corner. When communication has been properly established between the software and the hardware, the ID field in
the upper-left corner should indicate 3106 rev x, where x = 0 for a revision A1 device, and x = 1 for a revision A2
device.
The demo kit software always starts in demo mode (with the DEMO MODE checkbox in the upper-left corner
checked) to allow a user to look at the software without having the DK hardware connected to the PC. To connect
the software with the demo kit hardware, uncheck the DEMO MODE box. The software optionally initializes the
DS3106 device and then reads the state of the device to get ready for use.
3.1 Command Line Options
The demo kit software has these command line options:
-l <filepath>
specifies an alternate log file
example: “DS3106DK.exe –l mylog.mfg
-p[port#] sets the serial (COM) port number example: “DS3106DK.exe –p2” sets COM2
To add command line options to the DS3106 demo kit shortcut that the installer adds to the desktop, right-click on
the shortcut and select Properties. In the Shortcut tab, at the end of the text in the Target text box, add a space
followed by the command line option.

_________________________________________________________________________________________DS3106DK
8
4. Overview of the Software Interface
Figure 4-1. Software Main Screen
4.1 Global Configuration
In the upper-left corner of the main window are several global status and configuration fields. The ID field displays
the device part number and revision. The PORT field shows the COM port to which the DK board is connected.
The DEMO MODE checkbox, which is checked by default, must be unchecked to enable the software to
communicate with the DK board. The ENABLE POLLING checkbox, also checked by default, controls software
polling of the device. The RESET checkbox controls MCR1:RESET in the device. Finally, the SDH and SONET
radio buttons (which control device register field MCR3:SONSDH) specify whether 1.544MHz (SON) or 2.048MHz
(SDH) is an available frequency option for input clocks IC3 and IC4.
4.2 Input Clock Monitor, Divider, and Selector
This box occupying the lower left section of the main window contains the configuration and status associated with
input clocks IC3 and IC4.
Just to the right of the input clock numbers 3 and 4 are software LEDs that indicate the state of each input as
reported by its input monitor. These LEDs are red in the absence of any other condition. When a clock of the
correct frequency is applied to an input, the associated LED turns green when activity is detected. If an input is
disqualified by one of the DPLLs because the DPLL could not lock to it, the LED turns magenta.
In the middle of the box, the FREQ and LK MODE fields configure the frequency and lock mode (direct-lock, DIVN,
LOCK8K, or alternate direct-lock) for each input clock. Near the lower right corner is a field to configure the DIVN
divider used for inputs configured for DIVN mode.
The SEL REF field shows the selected reference for the DPLL. (Reminder: The DS3106 only supports manual
switching between IC3 and IC4, controlled by the SRCSW pin.) The FREQ and PHASE fields show the real-time
frequency and phase reported by the DPLL.
The field labeled 8K Polarity specifies the significant edge that the DS3106 will lock to when the input clock is
8kHz. The Freq Range Enable checkbox controls whether the DS3106 checks the input clocks for frequency
accuracy (within 10,000ppm).

_________________________________________________________________________________________DS3106DK
9
Table 4-1. Mapping Between Input Clock Software Fields and DS3106 Register Fields
SOFTWARE FIELD DS3106 REGISTER FIELDS
Input Clock Status LEDs 3 and 4
ISR2 register
LED red when ACT = 1, LOCK = 0
LED green when ACT = 0, LOCK = 0
LED magenta when LOCK = 1
FREQ 3 and 4
ICR3 and ICR4:FREQ[3:0]
LK MODE 3 and 4
ICR3 and ICR4:LOCK8K, and DIVN
SEL REF
PTAB1:SELREF
FREQ (ppm)
FREQ1, FREQ2, and FREQ3 registers concatenated
PHASE (deg)
PHASE1 and PHASE2 register concatenated
LEAKY BUCKET SETTINGS
LBxU, LBxL, BLxS, LBxD (x = 1 to 4)
DIVN
DIVN1, DIVN2
8K Polarity
TEST1:8KPOL
Freq Range Enable
MCR1:FREN
4.3 T0 DPLL
The state of the T0 DPLL (free-run, locked, holdover, etc.) is shown in the STATE text box. The STATE and
SRFAIL buttons represent latched status bits in the device. When the button is red, the corresponding latched
status bit has been set in the DS3106. Pressing the button clears the latched status bit and changes the color of
the button back to green. The STATE button indicates that the state of the T0 DPLL has changed since the last
time the button was pressed. SRFAIL indicates that the selected reference has failed since the last time the button
was pressed. The state of the T0 DPLL can be forced using the combo box to the left of the STATE text box.
The frequency of the T0 DPLL is displayed in the FREQ field (fixed at 77.76MHz for the DS3106 T0 DPLL). The
acquisition and locked bandwidths are set by the ABW and LBW fields, respectively, and the damping factor is set
by the DAMP field. The acquisition bandwidth is only used if AUTOBW is checked. If the frequency of the T0
DPLL’s selected reference exceeds the SOFT LIMIT setting (in the DPLL FREQUENCY LIMITS box at the top of
the main window), the SOFTLIM LED turns red.
When the Freerun Holdover box is checked, the T0 DPLL will holdover at 0ppm with respect to the REFCLK
oscillator rather than at the long-term frequency average of the last valid input clock. When the Freerun Holdover
box is not checked, holdover type can be set to instant or averaged. The PALARM status LED and the phase
detector 2 (PD2) fields are advanced topics. See Table 4-2 and the DS3106 data sheet for more details.
Table 4-2. Mapping Between T0 DPLL Software Fields and DS3106 Register Fields
SOFTWARE FIELD
DS3106 REGISTER FIELDS
STATE combo box
MCR1:T0STATE
STATE status box
OPSTATE:T0STATE
FREQ
Fixed by T0 DPLL architecture
ABW
T0ABW
LBW
T0LBW
DAMP
T0CR2:DAMP
STATE latched status button
MSR2:STATE
SRFAIL
MSR2:SRFAIL
PALARM
TEST1:PALARM
SOFTLIM
OPSTATE:T0SOFT
AUTOBW
MCR9:AUTOBW
LIMINT
MCR9:LIMINT
Freerun Holdover
MCR3:FRUNHO
Holdover Type
HOCR3:AVG
HO Ready
VALSR2:HORDY
PD2 Enable
T0CR3:PD2EN
PD2G
T0CR3:PD2G
PD2G8K
T0CR2:PD2G8K

_________________________________________________________________________________________DS3106DK
10
4.4 T0 APLL and T0 APLL2
The Input Freq field configures the frequency of the T0 APLL DFS (refer to the DS3106 data sheet for details). The
APLL output frequency is always four times the input frequency. When the Input Freq field is changed, the Output
Freq field changes to match, and all the T0 options in the OC3 and OC6 output clock combo boxes also change to
frequencies derived from the new T0 APLL frequency. These changes match what happens in the DS3106.
In normal operation the T0 APLL2 has a fixed output frequency of 312.5MHz (twice the standard XGMII clock rate).
The rate is displayed in the T0 APLL2 Output Freq text box.
Whenever the T0 APLL DFS or the T0 APLL2 DFS are configured for programmable DFS operation (see Section
4.9), their respective Input Freq and Output Freq fields specify their frequencies with a “P” prefix to indicate that
programmable DFS mode is enabled.
Table 4-3. Mapping Between T0 APLL Software Fields and DS3106 Register Fields
SOFTWARE FIELD DS3106 REGISTER FIELDS
Input Freq
T0CR1:T0FREQ
Output Freq
Derived by software from Input Freq
4.5 T4 APLL
The Input Freq field in the T4 APLL box configures the frequency of the T4 APLL DFS (refer to the DS3106 data
sheet for details). The APLL output frequency is always four times the input frequency. When the Input Freq field
is changed, the Output Freq field changes to match, and all the T4 options in the OC3 and OC6 output clock
combo boxes also change to frequencies derived from the new T4 APLL frequency. These changes match what
happens in the DS3106.
Whenever the T4 APLL DFS is configured for programmable DFS operation (see Section 4.9), the Input Freq and
Output Freq fields specify their frequencies with a “P” prefix to indicate that programmable DFS mode is enabled
for the T4 APLL DFS.
Table 4-4. Mapping Between T4 APLL Software Fields and DS3106 Register Fields
SOFTWARE FIELD DS3106 REGISTER FIELDS
Input Freq
T0CR1:T0FT4
Output Freq
Derived by software from Input Freq
4.6 Output Clocks
The fields in the OUTPUT CLOCKS box configure the DS3106’s output clocks. The DIG1 and DIG2 fields
configure the Digital1 and Digital2 frequency options for OC3 and OC6 (refer to the DS3106 data sheet for details).
The OC3 and OC6 fields specify the output frequencies for outputs OC3 and OC6. Note that when the T0 APLL
setting is changed, the frequencies of all the T0 options in the OC3 and OC6 fields automatically change to
frequencies derived from the new T0 APLL frequency. Similarly, when the T4 APLL setting is changed, the
frequencies of all the T4 options in the OC3 and OC6 fields automatically change to frequencies derived from the
new T4 APLL frequency. These changes match what happens in the DS3106.
Whenever the T0 APLL DFS, T4 APLL DFS, or T0 APLL2 DFS are configured for programmable DFS operation
(see Section 4.9), the T0, T4, and T02 options, respectively, in the OC3 and OC6 fields change to frequencies
derived from the programmable DFS settings. These options all have a “P” prefix, for example, “PT0” or “PT4” to
indicate that they are controlled by the programmable DFS mode. Similarly, whenever the DIG1 DFS or the DIG2

_________________________________________________________________________________________DS3106DK
11
DFS are configured for programmable DFS operation, the DIG1 and DIG2 fields change to display the
programmable DFS frequency with a “P” prefix.
FSYNC is an 8kHz output that can be configured as a 50% duty cycle clock or a frame pulse and can optionally be
inverted. MFSYNC is a 2kHz output that can be similarly configured.
Table 4-5. Mapping Between Output Clock Software Fields and DS3106 Register Fields
SOFTWARE FIELD DS3106 REGISTER FIELDS
DIG1
MCR6:DIG1SS, MCR7:DIG1F
DIG2
MCR6:DIG2SS, MCR7:DIG2F, MCR7:DIG2AF
OC3 and OC6
OCR2 and OCR3
FSYNC
OCR4:FSEN, FSCR1:8KPUL, FSCR1:8KINV
MFSYNC
OCR4:MFSEN, FSCR1:2KPUL, FSCR1:2KINV
4.7 DPLL Frequency Limits, Phase Detectors, DPLL Lock Criteria
The DPLL frequency limits specify the hard and soft limits of the T0 DPLL frequency range. When the selected
reference exceeds the soft limit, the SOFTLIM LED turns red but the selected reference is not disqualified. If the
FLLOL (frequency limit loss of lock) box is checked in the DPLL LOCK CRITERIA box, when the selected
reference exceeds the hard limit the DPLL will lose lock (transition to LOL state).
The remaining fields are advanced topics. See Table 4-6 and the DS3106 data sheet for more details.
Table 4-6. Mapping Between DPLL Software Fields and DS3106 Register Fields
SOFTWARE FIELD DS3106 REGISTER FIELDS
MCPDEN
PHLIM2:MCPDEN
USEMCPD
PHLIM2:USEMCPD
D180
TEST1:D180
COARSELIM
PHLIM2:COARSELIM
FINELIM
PHLIM1:FINELIM
FLEN
PHLIM1:FLEN
CLEN
PHLIM2:CLEN
FLLOL
DLIMIT3:FLLOL
NALOL
PHLIM1:NALOL
HARD LIMIT
HARDLIM[9:0] in DLIMIT1 and DLIMIT2
SOFT LIMIT
DLIMIT3:SOFTLIM
4.8 REFCLK Calibration
Any known frequency error in the local oscillator can be calibrated out inside the DS3106 by setting the ppm value
in the REFCLK CAL box. Also, the significant edge of the REFCLK signal can be selected in XOEDGE field.
Table 4-7. Mapping Between REFCLK Software Fields and DS3106 Register Fields
SOFTWARE FIELD DS3106 REGISTER FIELDS
REFCLK slider/text box
MCLKFREQ[15:0] in MCLK1 and MCLK2
XOEDGE MCR3:XOEDGE

_________________________________________________________________________________________DS3106DK
12
4.9 Programmable DFS
When the Programmable DFS button in the upper-right corner of the main window is pressed, the Programmable
DFS window appears (Figure 4-2). In this window one or more of the output DFS engines in the DS3106 can be
configured to synthesize a custom frequency that is a multiple of 2kHz (f < 77.76MHz) or a multiple of 8kHz (f ≤
311.04MHz). The desired frequency can be entered in the Target Output Clock Frequency (MHz) box at the top
of the window, and the software will perform the necessary computations to fill in the other numerical fields in
window.
The programmable DFS configuration can be applied to one or more DFS engines as specified in the Use
Programmable DFS box. Frequencies below 77.76MHz are typically synthesized by the DIG1 or DIG2 DFS
engine and brought out on CMOS/TTL output clock pin(s) by selecting DIG1 or DIG2 in the appropriate output
clock configuration field in the main window of the software. Frequencies of 77.76MHz or above must be
synthesized using an APLL DFS and its associated APLL, and are typically brought out on differential output clock
pin(s).
If a group of custom clock rates that are related to one another by factors of 1, 2, 4, 6, 8, 10, 12, 16, 20, 48, or 64
are needed, often the highest frequency clock can be produced through one of the APLL DFS blocks and then
various lower rate clocks can be selected on one or more of the output pins. Refer to the OCR2 and OCR3
registers in the DS3106 data sheet for details.
If the software-computed values for DFS Frequency (MHz), DIG1/DIG2 Freq & APLL Input Freq, or APLL
Multiplier are manually overridden, the user must manually ensure that the DFS Frequency (MHz) falls within its
allowed range and that the APLL VCO Frequency falls within its allowed range. Note that the APL VCO
Frequency does not need to be within its allowed range if none of the APLL DFS blocks are selected for use.
The Register Configuration section of the Programmable DFS window shows the values that are written to the
DFSC1–DFSC15 registers to get the configuration specified in the upper part of the window. DFSC1–DFSC15 are
located at device addresses 1E0h–1EEh, respectively.

_________________________________________________________________________________________DS3106DK
13
Figure 4-2. Software-Programmable DFS Window

_________________________________________________________________________________________DS3106DK
14
4.10 I/O Pins
The fields in this window configure the general-purpose I/O available on the DS3106. See Figure 4-3,
Table 4-8, and the DS3106 data sheet for details.
Figure 4-3. Software I/O Pins Window
Table 4-8. Mapping Between I/O Pins Software Fields and DS3106 Register Fields
SOFTWARE FIELD DS3106 REGISTER FIELDS
GPIO1 to GPIO4 Config GPCR:GPIOxD and GPIOxO
GPIO1 to GPIO4 Status GPSR:GPIOx
INTREQ Mode INTCR:LOS, GPO
INTREQ Polarity INTCR:POL
INTREQ Open Drain Enable INTCR:OD
LOCK Pin Enable MCR1:LOCKPIN
LOS Pin Enable MCR10:SRFPIN
OC6POS/OC6NEG Format MCR8:OC6SF

_________________________________________________________________________________________DS3106DK
15
4.11 Register View Window
When the Register View button in the upper-right corner of the main window is pressed, the Register View
window appears (Figure 4-4). In this window the DS3106’s entire register set can be viewed and manually written
as needed.
The large grid that takes up most of the window displays the DS3106 register map. For each register, its
hexadecimal address in square brackets is followed by its register name and its contents in two-digit hex format.
When a register is clicked in the main register grid, its register description and fields are displayed at the bottom of
the window. Due to the limited speed of the serial port, the demo kit software does not continually poll every
register and does not make real-time updates to the data displayed on the Register View screen. Registers can be
manually read as described below.
The Register View window supports the following actions:
•Read a register. Select the register in the register map.
•Read a register field. Select the register in the map or the register field at the bottom of the window.
•Read all registers. Press the Read All button.
•Write a register. Double-click the register name in the register map and enter the value to be written.
•Write a register field. Select the register, double-click the field, and enter the value to be written.
•Write a multiregister field. Double-click one of the register names and enter the value for the field.
Figure 4-4. Software Register View Window

_________________________________________________________________________________________DS3106DK
16
4.12 Configuration Scripts and Log File
4.12.1
Configuration Log File
Every write command issued by the software to the DS3106DK board is logged in file DS3106DKLog.mfg located
in the same directory as the software executable. This file can be viewed in Notepad by pressing the Log File
button in the upper-right corner of the main window. Command line option "-l <filepath>" can be used to cause the
software to write to a file other than DS3106DKLog.mfg.
4.12.2 Configuration Scripts
All or part of the text in the configuration log file can be copied to a text file with a .mfg file extension for use as a
configuration script. Configuration scripts are useful for quickly configuring the DS3106 without having to remember
all the required settings.
Two types of configuration scripts are possible: full and partial. A full configuration script can start with the DS3106
in its power-on default state and configure every aspect of the device to bring it to a desired state. To make a full
configuration script, run the software, uncheck the Demo Mode checkbox, initialize the device, configure the device
using the DK software fields, press the Log File button, and use File→Save As in Notepad to save a copy of the
entire log file to a different file name.
A partial configuration file only affects a subset of the DS3106 device settings. To make a partial configuration
script, press the Log File button to view the log file, press Ctrl-End to jump to the end of the file, and add to the
end of the file a carriage return or comment line (starting with a semicolon) to delimit the start of the desired
configuration. Then save and exit the log file. Next, configure the device using the DK software fields. Finally, view
the log file again, jump to the end, and copy everything from the delimiter to the end of the file into a new .mfg file.
To run a configuration script, press the Config Script button in the upper-right corner of the main window. In the
script window, type the path to the file or press the Browse button to navigate to the file.
Note that when the Demo Mode checkbox is unchecked, during the Initializing the DS3106 step, the software
runs configuration script startup.mfg located in the same directory as the software executable. The startup.mfg file
can be edited or replaced as needed to change the initial configuration of the device. Be aware, however, that the
section of the startup.mfg file labeled Required Initialization must be executed after device power-up or reset for
the DS3106 to operate correctly.

_________________________________________________________________________________________DS3106DK
17
5. Appendix 1: Hardware Components
DESIGNATION QTY DESCRIPTION SUPPLIER PART
C1, C2, C5, C6,
C9–C12, C15, C42,
C59–C138, C140,
C142, C143, C145,
C147, C151, C155,
C163–C166, C168,
C169
103 0.1µF ±20% 16V X7R ceramic capacitors (0603) AVX 0603YC104MAT
C3, C13 ,C14, C16,
C41
5 4.7µF ±10%, 25V X5R ceramic capacitors (1206) PAN ECJ-3YB1E475K
C4, C17, C18, C20 4 6.8µF ±10%, 6.3V X5R ceramic capacitors (1206) PAN ECJ-3YB0J685K
C7 1 68µF ±20%, 16V tantalum capacitor (D case) PAN ECS-T1CD686R
C8 1 0.01µF ±10%, 50V X7R ceramic capacitor (0603) AVX 06035C103KAT
C19 1 100µF ±20%, 4V ceramic capacitor (1206) TAI AMK316BJ107ML-T
C34–C38, C51–C58,
C139, C141, C153,
C154
17 10µF ±20%, 10V ceramic capacitors (1206) PAN ECJ-3YB1A106M
C39, C40 2 22pF ±10%, 100V ceramic capacitors (1206) AVX 12061A220KAT2A
C43 1 1µF ±10%, 16V ceramic capacitor (1206) PAN ECJ-3YB1C105K
D1 1 DIODE 1A 50V GEN PURPOSE SILICON GEN 1N4001
D2, D7 2 SCHOTTKY DIODE, 1 AMP 40 VOLT IRF 10BQ040
DS1–DS4, DS6 5 SMD green LEDs PAN LN1351C
DS5, DS10 2 SMD red LEDs PAN LN1251C
DS16 1 SMD green LED PAN LN1351C
J1, J6, J7, J22, J27,
J40, J41 7 CONNECTOR, SMB, 50 OHM VERTICAL, 5PIN AMP 413990-1
J3 1 CONN 2.1MM/5.5MM PWRJACK RT ANGLE PCB,
closed frame, high current 24VDC@5A CUI, INC PJ-002AH
J13 1 SOCKET, BANANA PLUG, HORIZONTAL, RED MSR 164-6219
J14 1 CONNECTOR, SMB, 50 OHM VERTICAL, 5PIN,
DO NOT POPULATE AMP 413990-1
J19 1 SOCKET, BANANA PLUG, HORIZONTAL, BLACK MSR 164-6218
J50
1
CONN, DB9 RA, LONG CASE
AMP
747459-1
J51 1 TERMINAL STRIP, 10 PIN, DUAL ROW, VERT NA NA
J54 1 CONN, USB, TYPE B SINGLE RT ANGLE, BLACK MOL 67068-0000
JMP1–JMP6,
JMP9–JMP12,
JMP16
11 L_HEADER, 3-PIN, .100 CENTERS, VERTICAL STC TSW-103-07-T-S
JMP7, JMP8,
JMP36, JMP37
4 L_2 PIN HEADER, .100 CENTERS, VERTICAL STC TSW-102-07-T-S
JMP13, JMP14,
JMP15
3 DO NOT PLACE, SHORTED 2PIN TH JUMPER NA NA
JMP62, JMP63 2 L_3 PIN HEADER, .100 CENTERS, VERTICAL STC TSW-103-07-T-S
R1–R4, R17, R19,
R20, R25–R27, R33,
R34, R41, R43, R45,
R47–R63, R111,
R112, R117, R118
36 L_RES 0603 0 Ohm 1/16W 1% AVX CJ10-000F

_________________________________________________________________________________________DS3106DK
18
DESIGNATION QTY DESCRIPTION SUPPLIER PART
R5, R11, R13, R15,
R21–R24, R29–R32,
R65–R68
16 L_RES 0603 51.1 Ohm 1/16W 1% PAN ERJ-3EKF51R1V
R6
1
RES 0603 100K Ohm 1/16W 5%
PAN
ERJ-3GEYJ104V
R7, R9, R10, R12,
R14, R84, R110,
R113, R115, R116,
R120–R123
14 L_RES 0603 10K Ohm 1/16W 5% PAN ERJ-3GEYJ103V
R8, R16, R18, R46,
R64, R83, R100,
R101, R102
9 RES 0603 DO NOT POPULATE NA NA
R28 1 RES 0603 33.2 Ohm 1/16W 1% PAN ERJ-3EKF33R2V
R35–R40, R42, R44,
R94, R108 10 L_RES 0603 330 Ohm 1/16W 5% PAN ERJ-3GEYJ331V
R97 1 RES 0603 20K Ohm 1/16W 5% PAN ERJ-3GEYJ203V
SW1 1 SWITCH DPDT SLIDE 6PIN TH TYC SSA22
SW5
1
SWITCH MOM 4PIN SINGLE POLE
PAN
EVQPAE04M
TP1–TP22,
TP49–TP60,
TP65–TP84
54 Test Points, 1 PLATED HOLE, DO NOT STUFF NA NA
U1, U2, U5, U13,
U14, U23, U24, U28 8 L_TINYLOGIC HIGH SPEED 2-INPUT OR GATE,
5 PIN SOT23 FAI NC7SZ32M5
U3 1 IC, LINE CARD TIMING, -40°C to +85°C, 64 PIN
QFP
DAL DS3106
U4, U6 2 LINEAR REGULATOR, 3.3V, 16 PIN TSSOP-EP MAX MAX1793EUE-33
U7, U25 2
L_TINYLOGIC HIGH SPEED 2-INPUT XOR
GATE, 5 PIN SOT23
FAI NC7SZ86M5
U8 1 LINEAR REGULATOR, 1.8V, 16 PIN TSSOP-EP MAX MAX1793EUE-18
U26 1 IC, LINEAR REGULATOR, 1.5W, 2.5V OR ADJ,
1A, 16 PIN TSSOP-EP
MAX MAX1793EUE-25
U29 1 IC, TCXO, 12.8MHz, 0°C to +70°C, 16-PIN SOIC,
DO NOT POPULATE
DAL DS4026+BCC
U35 1
IC, LINE CARD TIMING WITH SYNCHRONOUS
ETHERNET SUPPORT, -40 TO 85C, 81 PIN BGA,
DO NOT POPULATE
DAL NOT POPULATED
U41 1
DUAL RS232 XMITR/RCVR 16 PIN SOIC (300
MIL)
DAL DS232AS
U42 1 HIGH SPEED MICRO 44-PIN TQFP 0°C to +70°C DAL DS87C520-ECL
U44 1
MICROPROCESSOR VOLTAGE MONITOR,
3.08V RESET, 4PIN SOT143
MAX MAX811TEUS-T
U45 1
MICROPROCESSOR VOLTAGE MONITOR,
4.38V RESET, 4PIN SOT143
MAX MAX812MEUS-T
U46 1
IC, SINGLE-CHIP USB TO UART BRIDGE, 28 PIN
QFN
SIL CP2101

_________________________________________________________________________________________DS3106DK
19
DESIGNATION QTY DESCRIPTION SUPPLIER PART
Y1 1 OSCILLATOR, CRYSTAL CLOCK, 3.3V -
12.8MHz, DO NOT POPULATE
SAR NTH069A3-12.8
Y2 1
OSCILLATOR, RAKON TCXO, 3.3V, 12.8MHz, 4
PIN SMD
RAK E4837LF
Y3 1 OSCILLATOR, CRYSTAL CLOCK XO 1613, 3.3V CMOS, LOW JITTER-12.8MHz, 4-PIN
SMD, DO NOT POPULATE
SAR S1613A-12.8000
Y4 1 OSCILLATOR, CRYSTAL CLOCK XO 1633, 3.3V CMOS, LOW JITTER-12.8MHz, 4-PIN
SMD, DO NOT POPULATE SAR S1633A-12.8000
Y7 1 XTAL, LOW PROFILE, 11.0592MHz PLE LP49-33-11.0592M

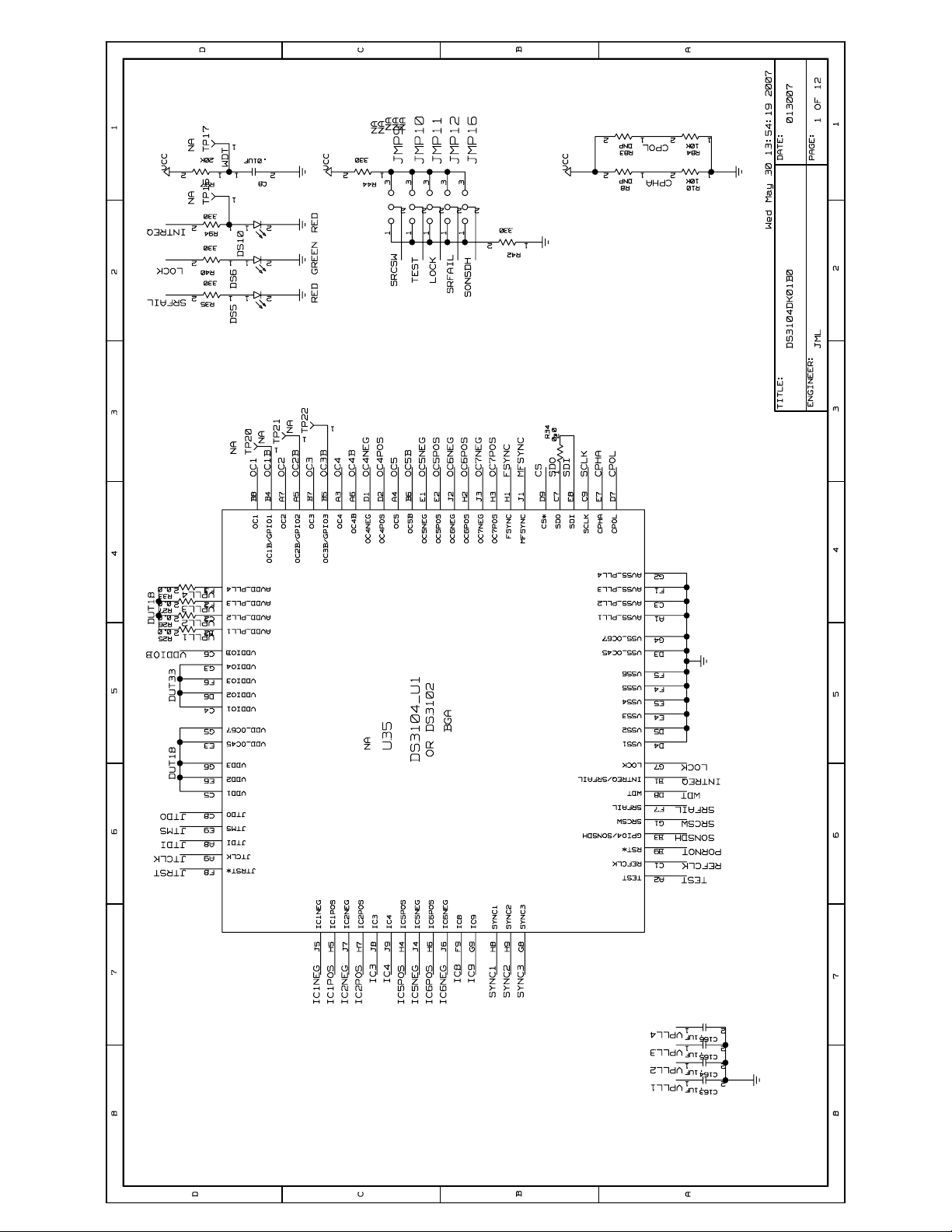

6. Appendix 2: Schematics
The schematics are featured in the following pages.
7. Document Revision History
REVISION
DATE
DESCRIPTION
012208 Initial release.
2012-05 Reformatted for Microsemi. No content change.

OR DS3102
Wed May 30 13:54:19 2007
DS3104DK01B0 JML
013007
1OF 12
1
TP20
1
TP22
1
TP21
1
TP17
1
TP16
2 1
R42
2 1
R44
3
2
1
JMP16
3
2
1
JMP12
3
2
1
JMP11
3
2
1
JMP10
3
2
1
JMP9
2
1
R34
2 1
C163
2 1
C164
2 1
C165
2 1
C166
2 1
DS5
2 1
R35
2 1
DS6
2 1
R40
2 1
R33
2 1
R27
2 1
R26
2 1
R25
D8
G4
D3
F5
F4
E5
E4
D5
D4
C6
G3
F6
D6
C4
G5
E3
G6
E6
C5
A2
G8
H9 H8
F7
G1
B3
C7 E8 C9
B9
C1
H3
J3
H2
J2 E2 E1 B6 D2 D1 A6 B5 A5 B4 A4 A3 B7 A7 B8 J1
G7
F8
E9
C8
A8
A9
B1
H6
J6
H4
J4
H7
J7
H5
J5 G9 F9 J9 J8
H1
D9 D7 E7
G2
F1
C3
A1
F3
F2
C2
B2
U35
2 1
R84
2 1
R10
2 1
R83
2 1
R8
2 1
DS10
2 1
C8
2 1
R94
2 1
R97
JTDI
NA
VPLL1
VPLL4
VPLL3
VPLL2
VDDIOB
0.0
0.0
0.0
OC4POS OC4NEG OC4B OC3 OC2 OC2B OC4
NA
OC3B
NA
OC1B OC1 NA
330
SRFAIL
IC8
DUT33
JTDO
DUT18
330
.01UF
20K
NA
WDT
NA
LOCK
SRFAIL
RED
GREEN
RED
PORNOT
REFCLK
INTREQ
SRFAIL
IC6POS IC6NEG
IC4
SONSDH
TEST
SONSDH
MFSYNC OC7NEG
NA NA NA
LOCK
DNP
DNP 10K
CPOL
CPHA
OC5POS
SYNC3 SYNC2
IC9 IC3
IC1NEG
WDT
0.0
FSYNC OC7POS SCLK SDI
VPLL1
.1UF
.1UF
.1UF
VPLL3
VPLL2
LOCK
SRCSW
OC6NEG OC5
.1UF
IC5POS IC2NEG IC2POS
OC6POS
VPLL4
CPHA SDO
330
NA NA
INTREQ
JTRST
IC1POS
DUT18
10K
JTCLK
TEST
SRCSW
CS
0.0
330
OC5B OC5NEG
IC5NEG
SYNC1
330
CPOL
JTMS
PAGE: DATE:
TITLE:
ENGINEER:
A A B B C C DD
1
1
2
2
3
3
4
45
56
6
7
7
8 8
VCC VCC
BGA
DS3104_U1
JTCLK
SRFAIL
SRCSW
GPIO4/SONSDH
VDD1
VSS_OC45
VSS_OC67
AVSS_PLL1
JTMS
VDD_OC67
VDD_OC45
IC2NEG IC1POS IC4 IC9 IC5POS IC5NEG
AVSS_PLL4
VSS6
AVSS_PLL3
AVSS_PLL2
IC3 IC8 IC6POS IC6NEG
REFCLK
VSS2
VSS3
VSS5
VSS4
VSS1
RST*
SYNC1 SYNC2 SYNC3
WDT
TEST
IC1NEG
VDDIOB
AVDD_PLL1
VDDIO3
VDDIO2
VDDIO4
VDDIO1
VDD3
VDD2
JTDO
JTDI
JTRST*
LOCK
AVDD_PLL4
AVDD_PLL3
AVDD_PLL2
OC1
OC1B/GPIO1
OC2
OC2B/GPIO2
OC3
OC3B/GPIO3
OC4
OC4B
OC4NEG OC4POS
OC5
OC5B
OC5NEG OC5POS OC6NEG OC6POS OC7NEG OC7POS
FSYNC
CS*
MFSYNC
SDI
SCLK
SDO
CPOL CPHA
IC2POS
INTREQ/SRFAIL
VCC
