PD70210 Evaluation Board –User Guide
PD70210EVB
PD70210 HDBT level PD
Evaluation Board User Guide
Revision 1.0
PRODUCTION DATA –Information contained in this document is proprietary to
Microsemi and is current as of publication date. This document may not be
modified in any way without the express written consent of Microsemi. Product
processing does not necessarily include testing of all parameters. Microsemi
reserves the right to change the configuration and performance of the product and
to discontinue product at any time.
Downloaded from Arrow.com.

PD70210 Evaluation Board –User Guide
Copyright © 2013 Microsemi Page 2
Rev. 1.0 09-Oct-13 Analog Mixed Signal Group
1 Enterprise, Aliso Viejo, CA 92656, USA; Phone (USA): [phone], (ROW): [phone] Fax: [phone]
Table of Contents
1ABOUT THIS GUIDE ........................................................................................................................................3
1.1 Audience ..................................................................................................................................................3
1.2 Organization.............................................................................................................................................3
1.3 Reference Documents .............................................................................................................................3
2INTRODUCTION...............................................................................................................................................4
2.1 Evaluation Boards Ordering Information..................................................................................................5
2.2 Evaluation Board Features ......................................................................................................................5
3PHYSICAL DESCRIPTION.................................................................................................................................6
3.1 Physical Characteristics...........................................................................................................................6
3.2 Package Contents....................................................................................................................................6
3.3 Connectors...............................................................................................................................................6
3.4 Indications................................................................................................................................................8
4ELECTRICAL CHARACTERISTICS .....................................................................................................................8
5INSTALLATION................................................................................................................................................9
5.1 Preliminary Considerations and Safety Precautions................................................................................9
5.2 Initial Configuration ..................................................................................................................................9
6SCHEMATIC..................................................................................................................................................10
7LIST OF MATERIALS .....................................................................................................................................12
8BOARD LAYOUT...........................................................................................................................................14
Downloaded from Arrow.com.Downloaded from Arrow.com.

PD70210 Evaluation Board –User Guide
Copyright © 2013 Microsemi Page 3
Rev. 1.0 09-Oct-13 Analog Mixed Signal Group
1 Enterprise, Aliso Viejo, CA 92656, USA; Phone (USA): [phone], (ROW): [phone] Fax: [phone]
1 About this Guide
This user guide provides both description and operation procedures for Microsemi's PD70210 evaluation board.
This board type is used for evaluating the performance of PD70210 device.
PD70210ILD device supports both HDBT standard or standard IEEE802.3at PD application interface. The board
supports a 95 Watt output at the received voltage level.
1.1 Audience
This user guide is intended for qualified personnel, that is, operators and technicians who have a background in
basic concepts of electronics.
1.2 Organization
This guide is arranged according to the following:
Chapter 2
About this Guide: Describes the objectives, audience, and organization.
Chapter 2
Introduction: Provides an overview about evaluation board’s main functions, features, physical
characteristics and ordering information.
Chapter 3
Physical Description: Provides explanation related to the physical description (switches,
jumpers, connectors).
Chapter 4
Electrical Characteristics: Provides electrical characteristics of the evaluation board.
Chapter 5
Installation: Provides a description of the installation process.
Chapter 6
Schematic: Provides a board schematic diagram.
Chapter 7
List of Materials: Provides the board’s list of materials.
Chapter 8
Board Layout: Provides board Gerber files description for all layers.
1.3 Reference Documents
PD70210 datasheet, catalog number DS_PD70210_PD70210A
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

PD70210 Evaluation Board –User Guide
Copyright © 2013 Microsemi Page 4
Rev. 1.0 09-Oct-13 Analog Mixed Signal Group
1 Enterprise, Aliso Viejo, CA 92656, USA; Phone (USA): [phone], (ROW): [phone] Fax: [phone]
2 Introduction

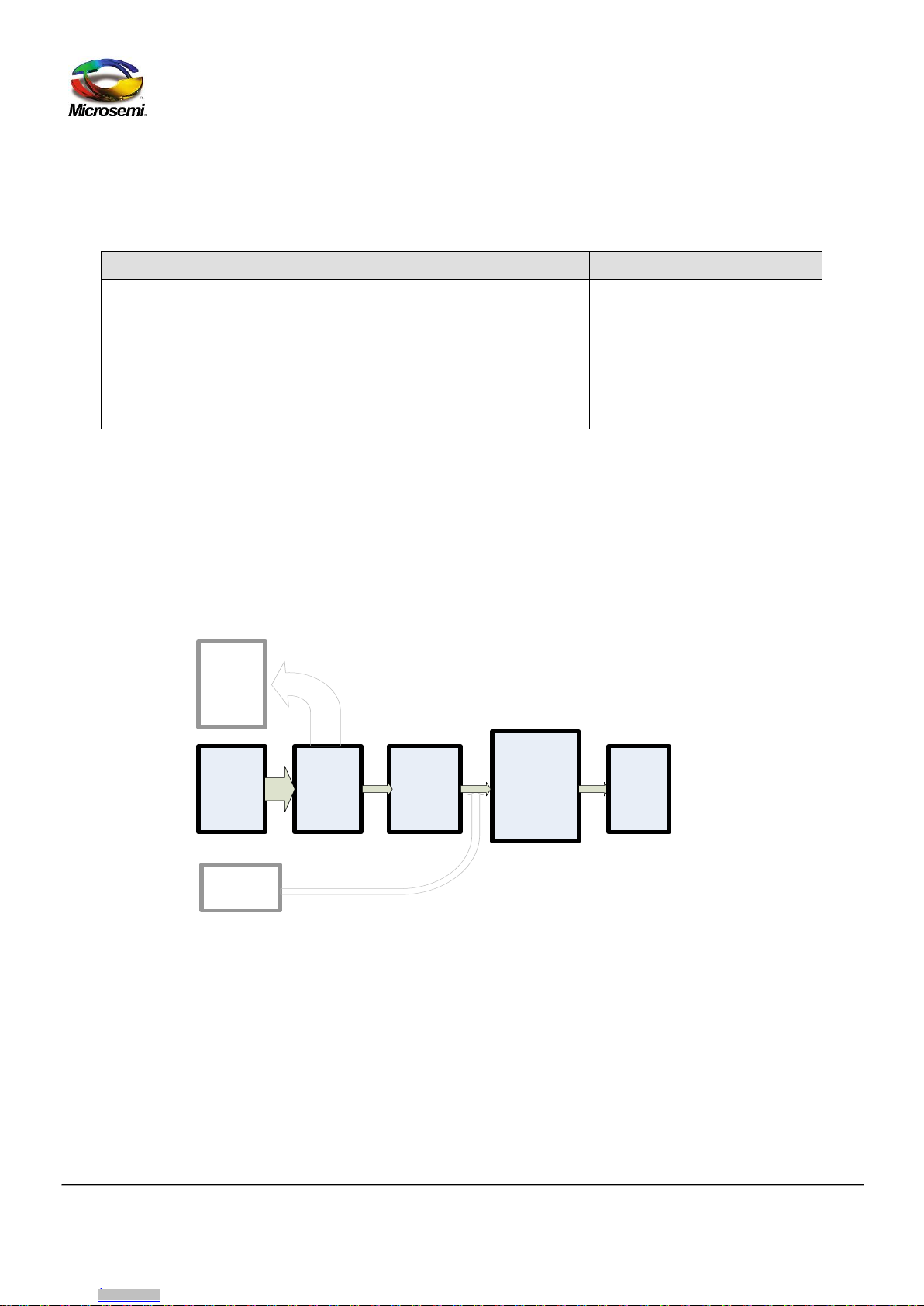

Microsemi’s PD70210ILD device is part of a family of devices which are targeted for realizing the HDBT or multi
802.3at standard PD interface.
The PD interface family of devices includes the following:
Device type
Power Capability
Integrates PWM Controller
PD70210ILD
Twin HDBT ports
No
PD70210AILD
Twin HDBT ports supporting Wall adapter
connection
No
PD70211ILQ
Twin HDBT ports supporting Wall adapter
connection
Yes
Microsemi’s PD70210 Evaluation Board (see Figure 2) provides designers with the environment needed for
evaluating the performance and implementation of PD applications based on PD70210 device.
The board uses a single PD device, PD70210ILD, to support the Detection, Class, and Power Supplying phases on
the 2/4 Pairs of the Cat5 cable. PD70210ILD supports a standard Twin HDBT interface and compatible to
IEEE802.3AT Type 2 interface.
All necessary steps and connection instructions required to install and operate this board are provided within this
document.
PD70210
Based
Interface
RJ
Data
out
RJ45
Data
+
Power
Wall
adapter
In
Pulse
XFMR
Vout
conn
Active
Mosfet
Bridge
Vin
Figure 1: PD70210EVB Block Diagram
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

PD70210 Evaluation Board –User Guide
Copyright © 2013 Microsemi Page 5
Rev. 1.0 09-Oct-13 Analog Mixed Signal Group
1 Enterprise, Aliso Viejo, CA 92656, USA; Phone (USA): [phone], (ROW): [phone] Fax: [phone]
Figure 2: PD70210 Evaluation Board –General View
2.1 Evaluation Boards Ordering Information
Microsemi’s supplies the following Evaluation Boards:
Ordering Number
Description
PD70210EVB
IEEE802.3AT Type 2 PD, based on PD70210 device,
2.2 Evaluation Board Features
Designed to support Data and Spare current by a single PD70210 device
Input RJ45 connectors (Data and Power In)
Output voltage connector.
On board PSE type LED indicators
Evaluation Board working temperature: 0° to +70°C
RoHS compliant
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

PD70210 Evaluation Board –User Guide
Copyright © 2013 Microsemi Page 6
Rev. 1.0 09-Oct-13 Analog Mixed Signal Group
1 Enterprise, Aliso Viejo, CA 92656, USA; Phone (USA): [phone], (ROW): [phone] Fax: [phone]
3 Physical Description
3.1 Physical Characteristics
The following Table 1 lists the evaluation board’s physical characteristics.
Table 1: Physical Characteristics
Parameter
Value
Mechanical dimensions in mm
134 x 45 x 19mm (L x W x H)
3.2 Package Contents
Upon opening the Evaluation Board package, verify the following part is included; If it seems damaged, contact
local representative or Microsemi's headquarters.
Package content for standard shipments is:
PD70210 Evaluation Board
3.3 Connectors
The following sections provide both general and detailed information regarding unit’s connectors.
3.3.1 Connectors Table
Table 2 lists the Evaluation Board's connectors.
Table 2: Connectors List
#
Connector
Name
Description
1
J1
RJ45 Connector
RJ45 port for Data and Power In for PSE connection
2
J5
PD device Output
Terminal blocks for connecting a load to output.
3
J4,J6
PD device Output
Banana Jacks for connecting a load to output.
3.3.2 Connectors Detailed Explanation
The numbering is in reference to the numbers listed in Table 2.
1. RJ45 Connector
There is a Data+Power dedicated RJ45 connector, See Figure 3.
Table 3: RJ45 Connectors
CON1 Pin No
Signal Name
Description
1, 2
Data and Power In
Data and power input to powered device (HDBT Master
Negative data port)
3, 6
Data and Power In
Data and power input to powered device (HDBT Master
Positive data port)
4, 5
Data and Power In
Data and power input to powered device (HDBT Master
Positive data port)
7, 8
Data and Power In
Data and power input to powered device (HDBT Master
Negative data port)
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

PD70210 Evaluation Board –User Guide
Copyright © 2013 Microsemi Page 7
Rev. 1.0 09-Oct-13 Analog Mixed Signal Group
1 Enterprise, Aliso Viejo, CA 92656, USA; Phone (USA): [phone], (ROW): [phone] Fax: [phone]

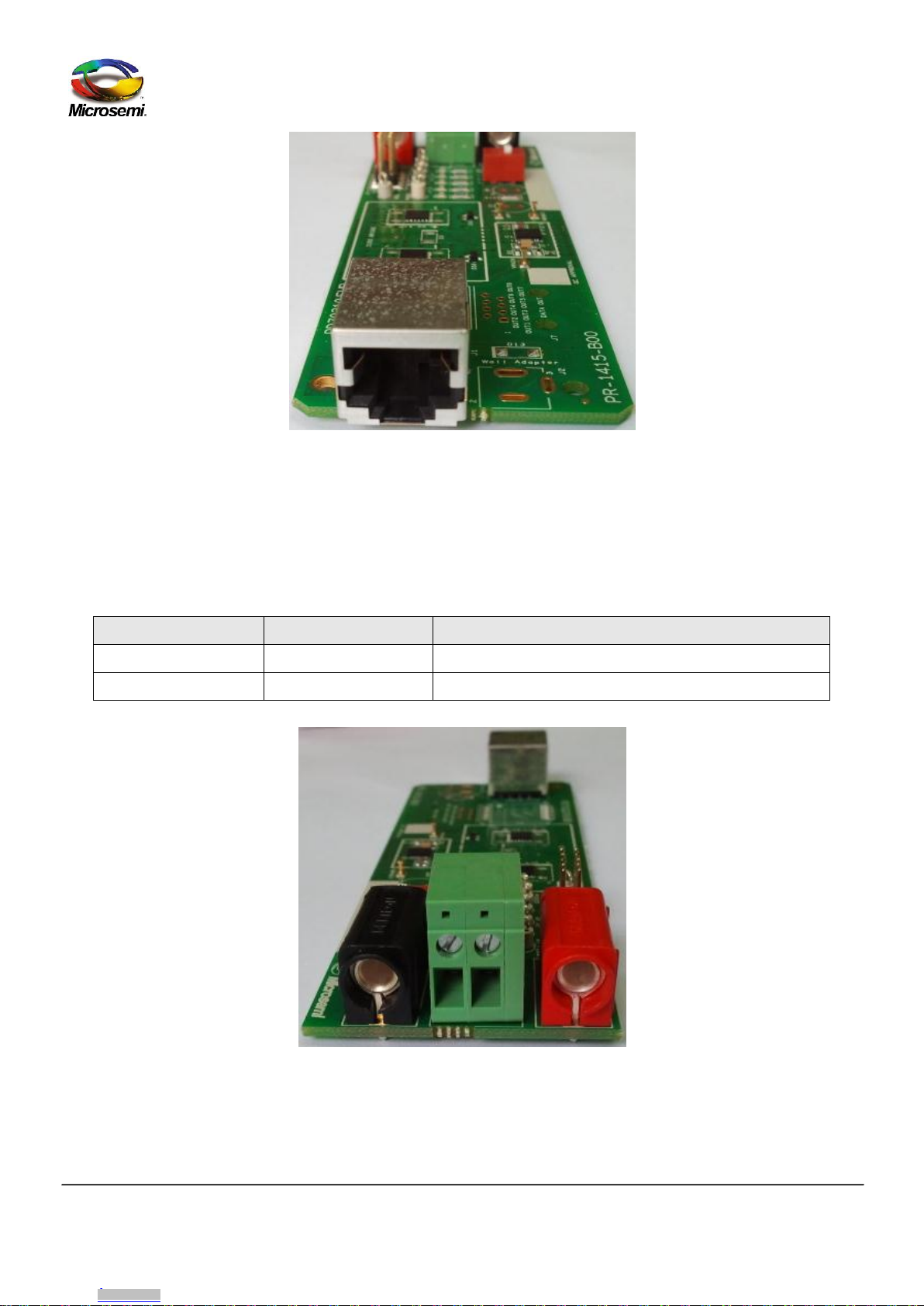

Figure 3: Front RJ45 Connector
2. Vout Connectors
See Figure 4.
J5 –output connection, used for connecting to external load.
For easy connection, Black and Red Banana jacks are parallel to J5 connections.
Table 4: J5 Connector (Green)
Pin No.
Signal Name
Description
J5 (Left)- Pin 1
Vout_Rtn
Return PD received output voltage
J5 (Right)-Pin 2
Vout
Positive PD received output voltage
Figure 4: Vout Connectors
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

PD70210 Evaluation Board –User Guide
Copyright © 2013 Microsemi Page 8
Rev. 1.0 09-Oct-13 Analog Mixed Signal Group
1 Enterprise, Aliso Viejo, CA 92656, USA; Phone (USA): [phone], (ROW): [phone] Fax: [phone]
3.4 Indications
The following sections provide general information regarding unit indications.
3.4.1.1 LED Indication
See Figure 5.
D14 is the Power_GOOD indication LED, a PD70210 device output signal indicating the device isolation switch is
operated. In all operating state this flag is lit.
D12 is the AT_FLAG indication LED, a PD70210 device output signal indicating the device has detected a 2 finger
class event from the PSE side in the class stage. The flag will be operative at 3, 4, and 6 fingers detection as well.
D10 is the 4P_AT indication LED, a PD70210 device output signal indicating the device has detected a 4 finger
class event from the PSE side in the class stage, or a 2 finger class event from the PSE side in the class stage,
and SUPP_Sa and SUPP_Sb are both High.
The flag will be operative at 6 fingers detection as well.
D11 is the HD_FLAG indication LED, a PD70210 device output signal indicating the device has detected a 3 finger
class event from the PSE side in the class stage.
The flag will be operative at 6 fingers detection as well.
D9 is the 4P_HD indication LED, a PD70210 device output signal indicating the device has detected a 6 finger
class event from the PSE side in the class stage.
Figure 5: LED Indications
4 Electrical Characteristics
Evaluation board’s electrical characteristics are described below:
Table 5: Electrical Characteristics
Parameter
Min
Max
RJ45 connector
38
57
V
Maximum Available Current
2.2
A
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

PD70210 Evaluation Board –User Guide
Copyright © 2013 Microsemi Page 9
Rev. 1.0 09-Oct-13 Analog Mixed Signal Group
1 Enterprise, Aliso Viejo, CA 92656, USA; Phone (USA): [phone], (ROW): [phone] Fax: [phone]
5 Installation
5.1 Preliminary Considerations and Safety Precautions
Verify board's power supply is turned off before all peripheral devices are connected.
Note: In maximum power at the output, some of the devices may reach high temperatures (still less than 70
degrees). Pay attention while testing these devices.
5.2 Initial Configuration
Note: Prior to starting any operation, it is important to verify that the Evaluation Board is setup as shown in Figure
6.
1. Connect load to main board (J5), while it is turned Off.
Notice: To comply with IEEE802.3AT standard, the load should be set only after the PSE is On.
The indication for PSE On is PGOOD led lit.
2. Connect a Cat5 cable from PSE to Evaluation Board (J1).
3. Turn On the Load.
Cat5
cable
Electronic Load
Power
Cable
DC output
PSE
Data +
Power
input
Cat5
cable
Figure 6: Test Setup
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

PD70210 Evaluation Board –User Guide
Copyright © 2013 Microsemi Page 10
Rev. 1.0 09-Oct-13 Analog Mixed Signal Group
1 Enterprise, Aliso Viejo, CA 92656, USA; Phone (USA): [phone], (ROW): [phone] Fax: [phone]
6 Schematic

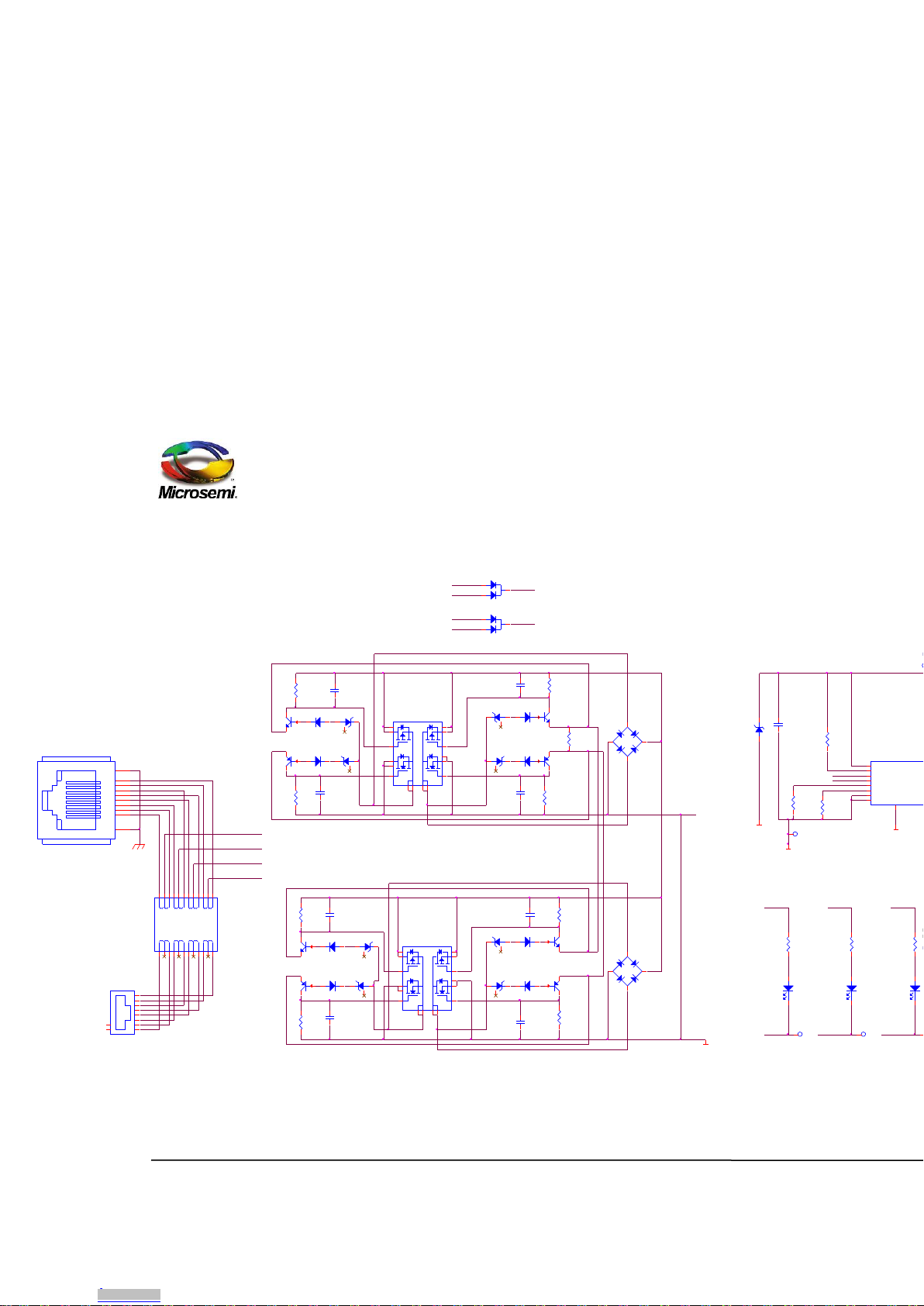

Figure 7: Board Schematics (1 of 2)
Power_sapre-
VAUX
R136 0PD-0805
N.C
R137 0PD-0805
N.C
R138 0PD-0805
N.C
VPNin
tp135x70
HK-2-G-S05
1
VPNout
tp135x70
HK-2-G-S05
1
+C7
22uF
100V
ALU
D8H12F3_5
N.C
R75
20K
PD-1206
Q18
MMBT2222ALT1
PD-SOT23
1
2 3
D39
BAV21WS
PD-SOD323
21 D40
BZX84C8V2 LT1G
PD-SOT23
1 3
2
D41
BZX84C8V2 LT1G
PD-SOT23
13
2
D42
BAV21WS
PD-SOD323
2 1
C80
1nF
PD-0603
Power_Data-
C81
1nF
PD-0603
Power_sapre-
Power_sapre-
Power_sapre+
Q19
MMBT2222ALT1
PD-SOT23
1
2 3
D44
BZX84C8V2 LT1G
PD-SOT23
13
2
D43
BAV21WS
PD-SOD323
2 1
D46
BAV21WS
PD-SOD323
21
D45
BZX84C8V2 LT1G
PD-SOT23
1 3
2
C82
1nF
PD-0603
C83
1nF
PD-0603
Q5
FMMT549
PD-SOT23
1
3 2
VPP
U1
PD-70210
PD-DFN-16-5X4-15-via
VPP
1
RDET
2
SUPP_S1
3
SUPP_S2
4
RREF
5
RCLS
6
VPN_IN7
7
VPN_IN8
8
VAUX 16
PGOOD 15
4P_HD_FLAG 14
4P_AT_FLAG 13
HD_FALG 12
AT_FLAG 11
VPN_OUT10 10
VPN_OUT9 9 Trm_P
17
-
+
~~
D6
SDB203
N.C
DFS-BRIDGE
2
1
3
4
D47
BAV21WS
PD-SOD323
21
Q20
MMBT2222ALT1
PD-SOT23
1
2 3
D49
BZX84C8V2 LT1G
PD-SOT23
13
2
D48
PD-SOT23
1 3
2
D50
BAV21WS
PD-SOD323
2 1
C84
1nF
PD-0603 D51
BAV21WS
PD-SOD323
2 1
C85
1nF
PD-0603
D52
PD-SOT23
1 3
2
Q21
PD-SOT23
1
2 3
D53
BZX84C8V2 LT1G
PD-SOT23
13
2
D54
PD-SOD323
21
C86
1nF
PD-0603
C87
1nF
PD-0603
Q8
FMMT549
PD-SOT23
1
3 2
U17
PD-Mosfet_Dual
PD-MLP12-4_5X5
$PIN0
7
$PIN1
8
$PIN2
9
$PIN3
10
$PIN4
11
$PIN5
12
$PIN6 6
$PIN7 5
$PIN8 4
$PIN9 3
$PIN10 2
$PIN11 1
$PIN12
13 $PIN13 14 $PIN14 15 $PIN15 16
Q9
FMMT549
PD-SOT23
1
3 2
POWER + DATA INPUT
Power_Data-
IN6
IN7
IN8
IN2
IN3
IN4 IN5
12345678
J1
SS71800-007F
RJ45-I
11
22
33
44
55
66
77
88
99
10 10
IN1
T1
VP6014 LF
BEL-S558-10GB-02V
N.C
13 15 14 16 18 17 19 21 20 22 24 23
12 10 11
9 7 8 6 4 5 3 1 2
U16
PD-Mosfet_Dual
PD-MLP12-4_5X5
$PIN0
7
$PIN1
8
$PIN2
9
$PIN3
10
$PIN4
11
$PIN5
12
$PIN6 6
$PIN7 5
$PIN8 4
$PIN9 3
$PIN10 2
$PIN11 1
$PIN12
13 $PIN13 14 $PIN14 15 $PIN15 16
Power_Data+
-
+
~~
D7
SDB203
N.C
DFS-BRIDGE
2
1
3
4
Power_sapre+
VPP
Q10
FMMT549
PD-SOT23
1
3 2
Power_Data+
SUPP_S1
SUPP_S2
VPNin_BR
PGOOD
1
PGOOD
R3
24.9K
PD-0603
HD_FLAG
4P_AT_FLAG
4P_HD_FLAG
C4
100n
100V
R1
30.9
PD-0603
VPNin_BR
4P_HD_FLAG 4P_HD
14P_AT 1HD_FLAG 1AT_FLAG 1
R2
60.4K
PD-0603
PGOOD C3
100v
100nF
N.C
+C6
22uF
100V
ALU
D8H12F3_5
N.C
C2
1uF
R120
20K
PD-0603
R122
20K
PD-0603
R121
20K
PD-0603
R123
20K
PD-0603
RDET
R117
20K
PD-0603
R116
20K
PD-0603
R118
20K
PD-0603
R119
20K
PD-0603
R124
20K
PD-0603
RREF
J4
CON-F602-2P
571-0500
1
1
2
2
J6
CON-F602-2P
571-0100
11 22
RCLASS AT_FLAG
VAUX
1
D9
Super Yellow Green
21
VPP
R71
20K
PD-1206
PD-1206-W
4P_AT_FLAG
D10
Super Yellow Green
21
VPP
R72
20K
PD-1206
PD-1206-W
HD_FLAG
D11
Super Yellow Green
21
VPP
R73
20K
PD-1206
PD-1206-W
AT_FLAG
D12
Super Yellow Green
21
VPP tp135x70
HK-2-G-S05
1
VPP
VPP
R74
20K
PD-1206
PD-1206-W
D14
Super Yellow Green
21
VPP
R76
20K
PD-1206
PD-1206-W
J5
1
12 2
33 44
VPP
D3
NC
N.C
2 1
J7
5558397-1
rj45-5
N.C
1
2
3
4
5
6
7
8
9
10
VPNin
VPNin
Power_sapre+
VPNout
D55
BAV70
PD-SOT23
13
2
C1
100v
100nF
SUPP_S1
Power_Data+
Power_Data-
D56
BAV70
PD-SOT23
13
2SUPP_S2
SW1
SW-4P
78F01S
1
23
4
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

PD70210 Evaluation Board –User Guide
Copyright © 2013 Microsemi Page 11
Rev. 1.0 09-Oct-13 Analog Mixed Signal Group
1 Enterprise, Aliso Viejo, CA 92656, USA; Phone (USA): [phone], (ROW): [phone] Fax: [phone]
Figure 8: Board Schematics (2 of 2)
C88
2000V
1n
X7R
Power_sapre+
Power_Data-
C37
100V
10n
X7R
PD-0805
Power_sapre-
C35
100V
10n
X7R
PD-0805
C38
100V
10n
X7R
PD-0805
C36
100V
10n
X7R
PD-0805
R139
75
PD-0805
R141
75
PD-0805
R140
75
PD-0805
R142
75
PD-0805
R79
0PD-1206
R78
0PD-1206
Power_Data+
J2
RAPC722X-TB13
SWITCHCRAFT-RAPC722
N.C
2
3
1
VPNin_BR
VPP
VPNin
D13 PD-SMA
N.C2 1
VPNinVPNin_BR
C5
100v 100nF N.C
VAUX
JP11
CVILUX-CH82-10P-V
1
122
3
344
5
566
7
788
9
910 10
4P_HD_FLAG
AT_FLAG
PGOOD
HD_FLAG
4P_AT_FLAG
VPNout
R128
0
PD-0402
Power_Data-
IN2
R129
0
PD-0402
IN1
R130
0
PD-0402
IN6
Power_Data+
R131
0
PD-0402
IN3
R132
0
PD-0402
Power_sapre-
IN5
R133
0
PD-0402
IN4
R134
0
PD-0402
Power_sapre+
R135
0
PD-0402
IN8
IN7
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

PD70210 Evaluation Board –User Guide
Copyright © 2013 Microsemi Page 12
Rev. 1.0 09-Oct-13 Analog Mixed Signal Group
1 Enterprise, Aliso Viejo, CA 92656, USA; Phone (USA): [phone], (ROW): [phone] Fax: [phone]
7 List of Materials
Table 6: PD70210EVB Components
Item Description
Qty
Ref Des
Mfr
Manufacturer P\N
1
HDbaseT, AF/AT PD CHIP Front
End
1
U1
Microsemi
PD70210ILD
2
CAP CRM 10nF 100V 5%
X7R 0805 SMT
4
C35-C38
AVX
08051C103JAT2A
3
CAP CRM 1nF/2000V 10%++X7R
1206 SMT
1
C88
AVX
1206GC102KAT1A
4
CAP CRM 100nF 100V 10%
X7R 1206 SMT
1
C4
AVX
12061C104KAT2A
5
Cap 1nF 100V 10% X7R 0603 SMT
8
C80-C87
Hitano
0603B102K101NT
6
Capacitor,X7R, 1uF, 25V, 10% 06
03
1
C2
Murata
GRM188R71E105
KA12D
7
Capacitor, X7R, 100nF,100v, 10%
0603
1
C1
Murata
GRM188R72A104
KA35D
8
PIN HEADER 2*5 PINs SMT
0.1" PIN SQUER TIN
1
JP11
CviLux
CH81-102M100-00
9
CON RJ45 SINGLE 8 POS. SHILD
ED
1
J1
Bel Stewart
SS71800-007F
10
90o Socket 4mm Red
1
J4
Deltron
571-0500
11
90oSocket 4mm Black
1
J6
Deltron
571-0100
12
Terminal block 2 pole insert
1
J5
DINKLE
DT-123RA-02P
13
DIO 200V 250mA SOD323
SMT trr=50nSEC SWI
8
D39,D42,D43,D46,D47,
D50,D51,D54
Diodes Inc.
BAV21WS-7-F
14
DIO DUAL 70V 200mA 250mW
Trr=6nS COM. CAT SOT23
2
D55,D56
Infineon
BAV70
15
DIO 8.2V 225mW 5% Ir=5uA
SOT23 SMT ZENER
8
D40,D41,D44,D45,D48,
D49,D52,D53
ON Semi
BZX84C8V2 LT1G
16
LED SuperYelGrn 100-130o 20-
40mcd h=1 0603 SMD
5
D9-D12,D14
Everlight
19-21-
SYGCS530E3TR8
17
RES 75R 125mW 1% 0805 SMT
4
R139-R142
Bourns
CR0805-FX-75R0-
ELF
18
Resistor, 0 Ohm, 5%, 1/16W 0402
8
R128-R135
ASJ
CR10-000ZK
19
RES 0R 250mW 5%
1206 SMT JUMPER<0.05R
2
R78,R79
Samsung
RC3216J000CS
20
RES TK FLM 20K 250mW 1%
1206
6
R71-R76
Bourns
CR1206-FX-2002-
ELF
21
Resistor, 20K, 5%, 1/16W 0603
9
R116-R124
ASJ
CR16-203JL
22
RES TCK FLM 24.9K 62.5mW 1%
0603 SMT
1
R3
ASJ
CR16-2492FL
23
Resistor, 30.9R 1%, 1/10W 0603
1
R1
KOA
RK73H1JTTD30R9
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

PD70210 Evaluation Board –User Guide
Copyright © 2013 Microsemi Page 13
Rev. 1.0 09-Oct-13 Analog Mixed Signal Group
1 Enterprise, Aliso Viejo, CA 92656, USA; Phone (USA): [phone], (ROW): [phone] Fax: [phone]
Item Description
Qty
Ref Des
Mfr
Manufacturer P\N
F
24
RES TCK FLM 60.4K 62.5mW 1%
0603 SMT
1
R2
ASJ
CR16-6042FL
25
DIP SWITCH 2 Positions 1 pole
1
SW1
Grayhill
7801T
26
TRN PNP -30V -1A SOT23
4
Q5,Q8-Q10
Fairchild
FMMT549
27
TRN NPN 40V 600mA SOT23 300
mW
4
Q18-Q21
Diodes Inc.
MMBT2222A-7-F
28
IC Dual N/P CH power mosfet 100v
6A SMT
2
U16,U17
Fairchild
FDMQ8203
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

PD70210 Evaluation Board –User Guide
Copyright © 2013 Microsemi Page 14
Rev. 1.0 09-Oct-13 Analog Mixed Signal Group
1 Enterprise, Aliso Viejo, CA 92656, USA; Phone (USA): [phone], (ROW): [phone] Fax: [phone]
8 Board Layout
This paragraph presents the layout of the evaluation board.
The board is a 2 layer board. The layers are 2 Oz layers. Below figures present the two copper layers and the silk
of the board for tracking devices placements.
Figure 9: Top Silk
Figure 10: Top Layer
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

PD70210 Evaluation Board –User Guide
Copyright © 2013 Microsemi Page 15
Rev. 1.0 09-Oct-13 Analog Mixed Signal Group
1 Enterprise, Aliso Viejo, CA 92656, USA; Phone (USA): [phone], (ROW): [phone] Fax: [phone]

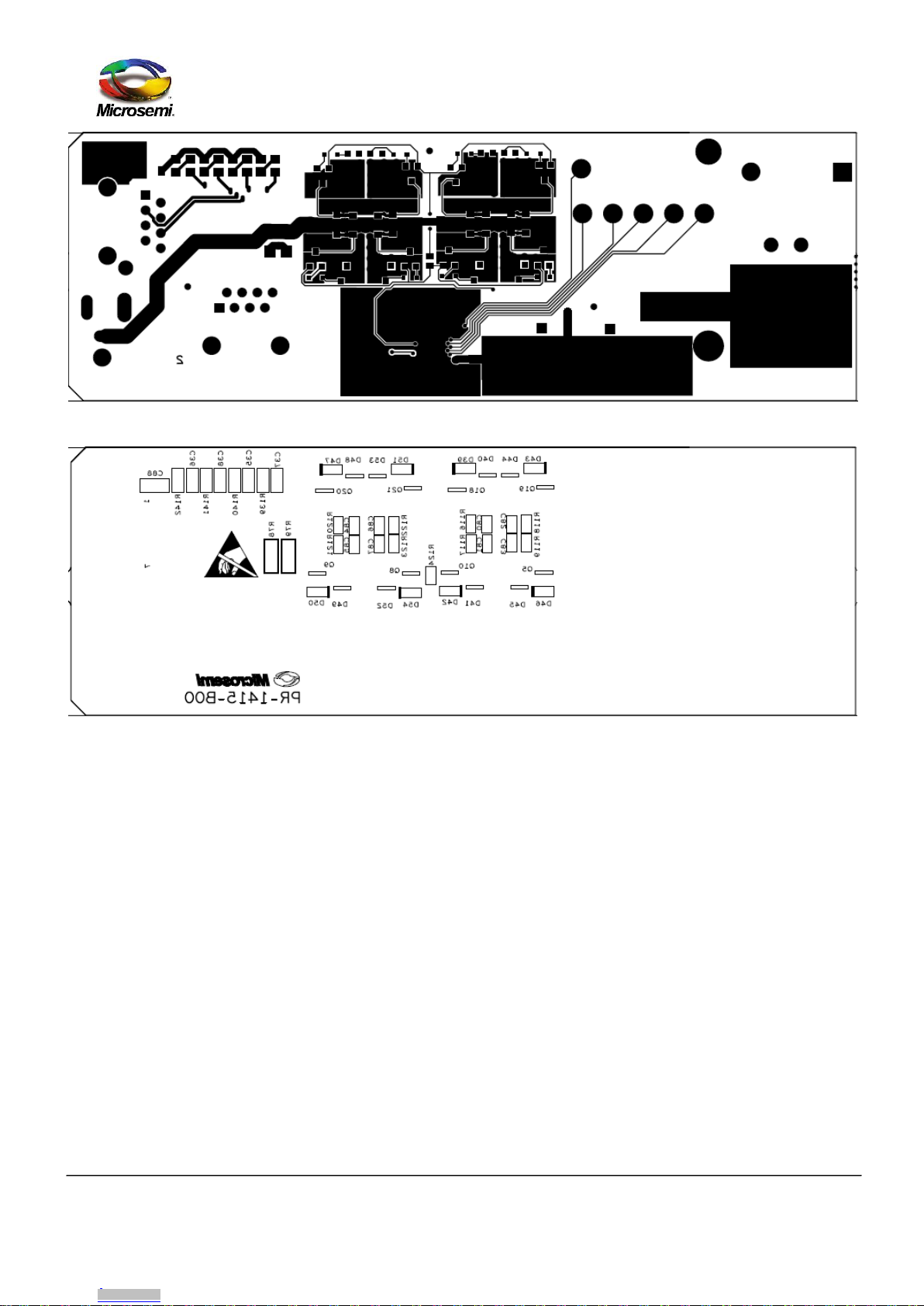

Figure 11: Bottom Layer
Figure 12: Bottom Silk
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

PD70210 Evaluation Board –User Guide
Copyright © 2013 Microsemi Page 16
Rev. 1.0 09-Oct-13 Analog Mixed Signal Group
1 Enterprise, Aliso Viejo, CA 92656, USA; Phone (USA): [phone], (ROW): [phone] Fax: [phone]
The information contained in the document is PROPRIETARY AND CONFIDENTIAL information of
Microsemi and cannot be copied, published, uploaded, posted, transmitted, distributed or disclosed or
used without the express duly signed written consent of Microsemi If the recipient of this document has
entered into a disclosure agreement with Microsemi, then the terms of such Agreement will also apply .
This document and the information contained herein may not be modified, by any person other than
authorized personnel of Microsemi. No license under any patent, copyright, trade secret or other
intellectual property right is granted to or conferred upon you by disclosure or delivery of the
information, either expressly, by implication, inducement, estoppels or otherwise. Any license under
such intellectual property rights must be approved by Microsemi in writing signed by an officer of
Microsemi.
Microsemi reserves the right to change the configuration, functionality and performance of its products
at anytime without any notice. This product has been subject to limited testing and should not be used
in conjunction with life-support or other mission-critical equipment or applications. Microsemi assumes
no liability whatsoever, and Microsemi disclaims any express or implied warranty, relating to sale and/or
use of Microsemi products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright or other intellectual property right. The product
is subject to other terms and conditions which can be located on the web at
http://www.microsemi.com/legal/tnc.asp
Revision History
Revision Level / Date
Para. Affected/Page
Description
0.1 / 07-01-13
Initial revision
1.0 / 09-10-13
updated BOM
© 2013 Microsemi Corp.
All rights reserved.
For support contact: [e-mail]
Visit our web site at: www.microsemi.com Catalog Number: PD70210_UG_EVB
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.
