MidiLand 4060 User manual

OWNER’S MANUAL
Please read this manual thoroughly
and retain it for future reference.
OWNER’S RECORD
The model and serial numbers are located on
the back of the subwoofer. Record the serial
number in the space above for future reference.
S4 MidiLand™™ 4060
SERIAL #
S4 MidiLand
4060/4060M
SELF-POWERED MULTIMEDIA
SPEAKER SYSTEM
© 2000 By MidiLand, Inc. All Rights Reserved.

IMPORTANT SAFEGUARDS
About operating voltageAbout operating voltage
Operatetheunitwiththeappropriatevoltageasindicatedon
theouterpackagingandwherepowercordcomesoutofthe
ACadapter. Itwillbeoneofthefollowing:
•110V-120V @60 Hz • 220V-240V @50Hz
AboutsafetyAboutsafety
• The nameplate indicating operating voltage, power con-
sumption, etc…is located on the AC adapter.
• Unplug the unit from the wall outlet when it is not to be
used for an extended period of time. To disconnect the
cord, pull it out by grasping the plug, never pull it out by
the cord.
• Should any solid object or liquid fall into the unit,
disconnect the AC power cord, and have qualified service
professional check the unit before operating the unit
again.
AboutinstallationAboutinstallation
• Do not place the unit near heat sources, moisture, rain or
mechanical shock, and ensure that there is nothing to
interfere with proper ventilation/airflow.
• Although the unit is magnetically/video shielded, it is
recommended that magnetically sensitive equipment such
as personal credit cards, floppy disks, TV screens,
etc…be placed as far as reasonably possible away from
the unit.
• The unit should only be used with a cart or stand that is
recommended by the manufacturer.
• The unit should be mounted to a wall or ceiling only as
recommended by the manufacturer.
The“lighteningbolt”symbol
isintendedtoalerttheuserto
thepresenceofuninsulated
“dangerousvoltage”withinthe
product’senclosurethatmaybe
ofelectricshocktopersons.
The“exclamationmark”symbol
isintendedtoalerttheuser
tothepresenceofimportant
operatingandmaintenance
instructionsintheliterature
accompanyingtheappliance.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THE UNIT TO RAIN OR MOISTURE!TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THE UNIT TO RAIN OR MOISTURE!
The S4 MidiLand™4060, High Performance Multimedia 60W RMS Powered Loudspeaker System you areThe S4 MidiLand™4060, High Performance Multimedia 60W RMS Powered Loudspeaker System you are
about to set-up and install is one of the finest multimedia products available today. Please locate all ofabout to set-up and install is one of the finest multimedia products available today. Please locate all of
the parts below before you begin.the parts below before you begin.

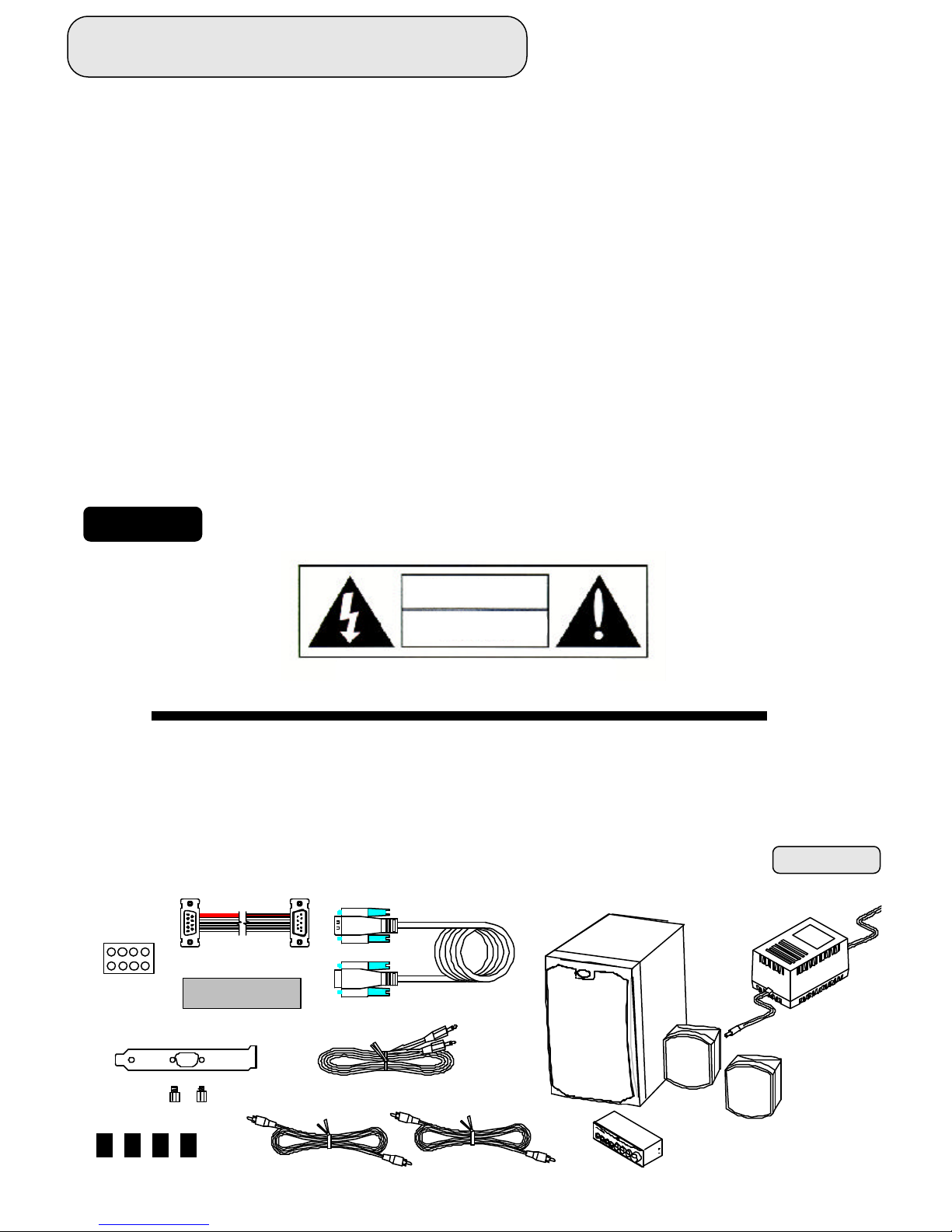

SELF-THREADING
SCREWS
SLOT COVER
MOUNTING STRIPS
RUBBER FEET INTERFACE CABLE
RIBBON CABLE
SPEAKER CABLES
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN!
AVIS: RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR
SATELLITE SPEAKERS
CONTROL MODULE
AUDIO CABLE
CONTENTS
POWERED
SUBWOOFER
AC ADAPTER

Check your S4 MidiLand™ 4060S4 MidiLand™ 4060 packaging for the following items:
• Two (2) Satellite SpeakersSatellite Speakers.
• One (1) SubwooferSubwoofer with integrated 60W RMS power amplifier.
• One (1) CM-4 Control ModuleControl Module.
• One (1) 10 Feet, 15-Pin to 15-Pin Interface CableInterface Cable (subwoofer to CM-4 control module).
• Two (2) 6 Feet and 8 inches, high performance Wire Speaker CablesSpeaker Cables.
• One (1) 4 Feet, Audio CableAudio Cable w/ 3.5mm to 3.5mm stereo male connectors.
• One (1) 2’ 15-pin to 15-pin flat Ribbon CableRibbon Cable with separate metal Slot CoverSlot Cover.
• Eight (8) non-marring, self-adhesive Rubber FeetRubber Feet.
• Two (2) 4” self-adhesive control module Mounting StripsMounting Strips.
• Four (4) Self-threading ScrewsSelf-threading Screws for internal mounting of control module.
• One (1) AC Power Adapter
Your packaging may also contain other printed material with special offers for direct purchase of related multimedia products as well as optional MidiLand™
accessories.
Preparetheareawhereyouwillbeinstallingyourmultimediasystem.
Following are some tips you might want to consider:
1
2
SETUP
33
Select a location for the satellite speakerssatellite speakers which is solid and places them an appropriate distance apart for good
stereo imaging (2-3’ apart if using on a desktop with your multimedia computer, personal stereo or mini-bookshelf
audio system; at least 3-4’ apart if using fairly close to a television set with your set top video game and at least 6’-
8” apart if using them in a home theater or traditional audio setup (i.e., when listening from across the room).
Featuringadualangleelipsoidaldesign,thesatellitespeakersmaybeusedineitheroftwo(2)“tilt”anglessimplyby
turning the unit “upside-down”. The angle can be 15° or 25° to help raise the stereo image and improve focus and
clarity. The satellite speakers may also be wall mounted with optional bracket available separately from your dealer.
Selectasolid locationfor the subwoofersubwoofer(generallyonthefloor)whichallowsadequateventilationforthe60WRMS
Integrated Amplifier mounted in the rear of the subwoofer enclosure. To enhance bass performance, it is generally
advisabletoplacethesubwoofernexttoawallorsolidpieceoffurniturewiththewoofer/grillesidepointingawayfrom
the wall or furniture. You’ll probably want to experiment with several different locations once you’ve completed the
installationandhookup.Place4 RubberFeetRubberFeetundersubwoofertoprotectthemountingsurface,ifnecessary.
If you choose to mount the control modulecontrol module internal to a computer, refer to illustration I-2illustration I-2. However, if you
choose to mount the control module externally (i.e. the underside of your desktop, underneath your monitor, on top
of your desktop, etc.), we have supplied self-adhesive mounting strips or 4 Rubber FeetRubber Feet to secure/place thecontrols
wherever it is most convenient.
•
•
•
•

CONNECTIONS
WiththepowerswitchintheoffpositionandtheACadapterplugnotconnected,
refertotheinstructionsandillustrationsbelow.
Locate the 10’ 15-pin to 15-pin interface cableinterface cable, plug one end into the 15-pin CM-4 interface connector of the
subwoofer’s amplifier located at the rear of the subwoofer unit and the other end to rear of the CM-4 controlCM-4 control
modulemodule. If you have chosen to mount the control module internal to a computer, than you must locate the 2’ 15-
pin to 15-pin ribbon cable and refer to illustration I-2illustration I-2.
Using the supplied RCARCA speaker cablespeaker cable connect the left and right satellite speakers to the subwoofer amplifier’s
outputoutput. The connection terminals are simple plug-in type, needing only to be concerned with connecting the Left
output to the Left speaker and vice-versa. Refer to illustration I-1illustration I-1.
In the package please locate a, 4 feet, stereo 3.5mm plug to stereo 3.5mm plug audio cableaudio cable. This cable is
intended to be connected to a computer’s sound card, a portable CD player, or wherever a source with a 3.5mm
jack is required. If another type of connector is required, your MidiLand dealer should have whatever adapter you
may need. Using this cable, simply plug one end of the 3.5mm audio cable3.5mm audio cable into the source’s output jacksource’s output jack and
connect the other end of the 3.5mm plugs3.5mm plugs into the amplifier’s inputinput. Refer to illustration I-1.illustration I-1.
Power is supplied to the S4 MidiLand™ 4060S4 MidiLand™ 4060 via a supplied external AC adapterAC adapter. The correct voltage adapter is
supplied for the territory you purchased the unit in. First, make sure the on/off MidiLand logo, on the subwoofer’s
front panel, is set to off which the logo is not “ILLUMINATED”. Second, connect the coaxial power plug into the
labeled power receptacle on the rear of the subwoofer. Third, connect the country specific corded plug into an
approved and properly functioning AC wall outlet. DO NOTDO NOT use an extension cord or an overly crowded wall plate.
FEATURES
44
•
•
•
•
3
• 60 WATT RMS INTEGRATED POWER AMPLIFIER
• 6½” (165mm) SUBWOOFER
• 2½” (65mm) WIDEBAND SATELLITE SPEAKERS
• INTERNAL/EXTERNAL REMOTE CONTROL MODULE
• COMPLETE MAGNETIC/VIDEO SHIELDING
• EXTERNAL LOW-NOISE AC ADAPTER
• SMALL DESKTOP “FOOTPRINT”
• DYNAMIC SOUND QUALITY
• PATENT PENDING CM-4 INTERFACE

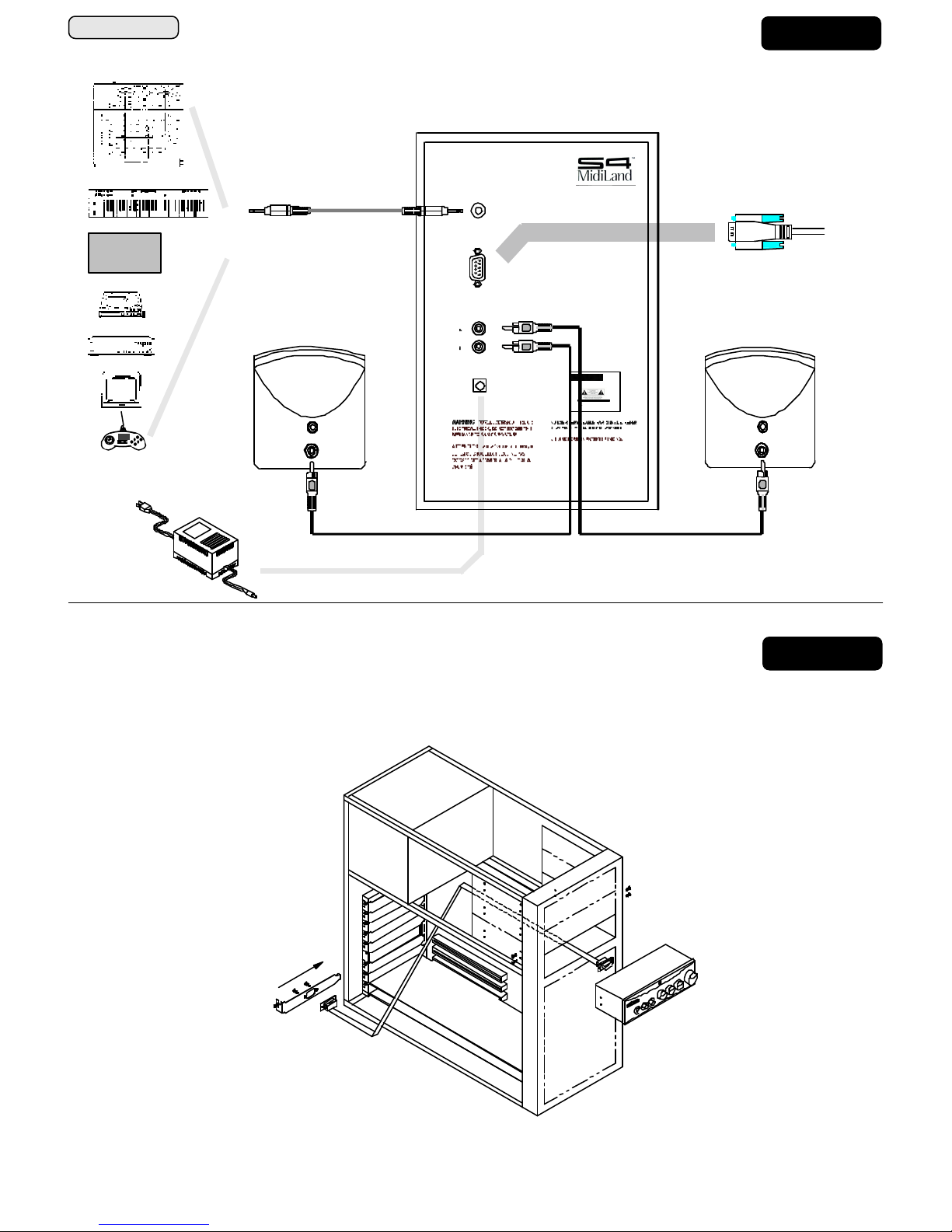

Illustration I-1Illustration I-1
APPLICATIONSAPPLICATIONS
SUBWOOFER-REARVIEW
Illustration I-2Illustration I-2
CONTROLMODULE
INTERNALMOUNTING
CONTROL MODULE
RIBBON CABLE
SLOT COVER
*TYPICAL COMPUTER
SELF-THREADING
SCREWS
* Please note that the
control module may not
fit into all computers.
You may need to pur-
chase “rails” or other
adapters from the maker
of your computer.
55
(supplied)
Keyboard/MIDI/Mixer/PA
Computer/Sound Card
Portable stereo
CD/Laser Disc/VCR/TV/DVD
Video Games
Interface Cable
3a
3b
3b
AC adapter
Audio Cable
3c
POWER IN
OUTPUT
REMOTE CONTROL S4 BUS
LOUD SPEAKERLOUD SPEAKER
SYSTEMSYSTEM
S4 MidiLand 4060 Speaker System
S/N:
MIDILAND,INC.
SEE INSTRUCTION MANUAL

66
HOW TO USE
Afterverifyingthateverythinghasbeenconnectedproperly,plugthepowercordintoanavailableACwalloutlet.
Onthecontrolmodule,setthecontrolsasfollows:
• Rotate the VolumeVolume control fully couterclockwise.
• Press the 3D3D and MuteMute buttons so that they are in the out position, not “engaged”.
• Turn the BassBass, TrebleTreble, and BalanceBalance to the center detent position, “12 o’clock”.
5
4
Startyourmusic,CD-ROM,movie,orothersoundsourceplayingandturnupitsoutputlevel,ifavailable.
Rotatethe VVolumeolumecontrolclockwisetothedesiredlisteninglevel.
Adjustthe BalanceBalancecontrolleftandrighttoaudiblycheckyourconnections.
Rotate the BassBass and TrebleTreble left and right. You should noticably hear an increase or decrease in tone.
For private listening, use the headphone jack locacted on the CM-4 control module.
Make sure to experiment with all of the controls to customize the sound just the way you like it. If you have any
questions, look to our troubleshootingtroubleshooting section.
For further support e-mail us at [email protected] or call Customer Service at [phone].
1. Push the S4 logo power switch located on the front
the subwoofer.
2. The S4 MidiLand logo LED should illuminate.
To start making music, adjust the controls as follows:
Powerswitch
•
•
•
•
•
•
•

77
TROUBLESHOOTING
For further information or support, e-mail us at [email protected] or call Customer Service at [phone].
Three Years Limited WarrantyThree Years Limited Warranty
MidiLand, Inc. warrants to the end user that all of its computer speakers are free from defects in
materials and workmanship in the course of normal and reasonable use for a term of three (3) years
from the date of purchase.
This warranty is the exclusive and only warranty in effect relative to MidiLand, Inc. computer
speakersystemsandanyotherwarranties,eitherexpressedorimplied,areinvalid. NeitherMidiLand
Inc., nor any authorized MidiLand, Inc. reseller is responsible for any incidental damages incurred in
the use of the speakers. (This limitation of incidental or consequential damage is not applicable
where prohibited).
MidiLand, Inc. obligation under this warranty does not apply to any defect, malfunction or failure
asaresultof misuse,abuse, improperinstallation, usewith faultyor improperequipmentoftheuse
of the computer speaker systems with any equipment for which they are not intended.
The terms of this warranty apply only to computer speaker systems when such speakers are re-
turned to the respective authorized MidiLand, Inc. reseller where they were purchased. Under the
terms of the warranty the original consumer purchaser has certain legal rights and may have other
rights which vary worldwide.
WARRANTY
PROBLEM POSSIBLESOLUTION
No sound at all
Verify that the system is plugged into wall outlet and that the connection is secure.
Make sure that the amplifiers power “S4 MidiLand” logo is pushed and that the green
CM-4 LED and the S4 MidiLand logo is illuminated.
Turn the volume on the control module up.
Turn the output level from your sound source up.
Verify that your source is working properly.
Only one channel is working Check that the balance control is centered and that input connections are ok.
Make sure that there are no loose speaker cable connections. The speaker cable plug
must be firmly seated in the proper jack on the rear side of the satellite and amplifier.

SPECIFICATIONS
SYSTEM TYPE:Self-Powered Multimedia Satellite/Subwoofer Loudspeaker System
SYSTEM COMPONENTS:6½" (165mm) Subwoofer (contains Integrated Power Amplifier)
2½" (65mm) Wideband Satellites (two)
CM-4 Control Module
Connecting Cables
OVERALLACOUSTICOVERALLACOUSTIC
FREQUENCY RESPONSE: 20 Hz to 20 kHz (+/- 3dB @ 1 Watt/1 Meter)
AMPLIFIER TYPE/Class A/B Hybrid-Monolithic Design, Proprietary CM-4 Interface, UL 94V-0 Spec Printed Circuit
DESIGN FEATURES: Boards, Redundant Protection Circuits (Thermal, Short-Circuit, Under/Over Voltage), Gold-Plated
Outputs, and Mute/Power Circuits
AMPLIFIER POWER: 60 Watts RMS (l x 30 Watt, 2 x 15 Watt) 20 Hz to 20 kHz
INPUT IMPEDANCE: > 50k Ohms
MAXIMUM INPUT: 8V (peak-to-peak, before input clipping)
INPUTS: Low Level via 3.5mm Stereo Jack
OUTPUTS: Left and Right Satellite Speakers via Gold-Plated, RCA Jacks
SUBWOOFER: 165mm Poly Laminated Paper Cone with 25mm OFC Voice Coil on TSV Composite Former,
Shielded Magnet Structure
SUBWOOFER ENCLOSURE: Rigidly-braced MDF (Wood), Computer-Optimized Front-Firing Vented Design
(8.7"W x 13.4"H x 12.2"D) with Turbulence-Free Port and Non-Removable Fabric Grille
SATELLITE SPEAKERS: 65mm Computer-Optimized Wideband Paper Cone Drivers,
Speaker Magnet Structures (inherent magnetic shielding)
SATELLITE ENCLOSURES: Two-Piece Molded, Dual-Slope Ellipsoidal Acoustic Suspension Design,
(3.3"W x 3.9"H x 4.2"D) Embedded ¼"-20 Threaded Inserts (for optional mounting brackets) and decorative cloth grilles
CROSSOVER FREQUENCY: 180 Hz
CONTROL MODULE:Patent-Pending S4Bus™ Interface to Integrated Power Amplifier for control of Major System
(5.8"W x 1.7"H x 3.1"D) Functions—Volume, Balance, Bass, Treble, 3D, Mute, Headphone jack
NoteNote
Design and specifications are subject to change without notice.
