Orban iMix 5.1 User manual

[e-mail]
www.Orban.com
FRONT PANEL FEATURES
INPUT LEVELS: Displays audio levels of the inbound audio stream
OVER TARGET: Red LED illuminates if the measured audio value is
over the user specificd target range
ON TARGET: Green LED illuminates when the measured audio value
is within the defined range Default +/-2 LU
UNDER TARGET: Blue LED illuminates if the measured audio value
drops below the user specified range
NETWORK: Green LED indicator will illuminate when a network
connection has been established
VACUUM FLORESCENT DISPLAY: Displays current operating status
of the unit and programming menus
ROTARY KNOB: Changes the headphone volume; Selects values
and navigates through the user interface
ENTER KEY: Used to enter a sub-menus or confirm/save selections
HOME KEY: Returns to the home screen or enters home screen
selection mode
BACK KEY: Returns to the previous menu or revert any selection
without saving
HEADPHONE JACK: Aceepts any headphone or monitor that has
a 3.5mm stereo mini-jack connection.
This guide references iMix 5.1 Headphone
Monitorand offers the quickest way to install and
begin using your new 5.1 Headphone Monitor.
WhileiMix’s default settings are found to work in
most applications, please read through the
documentationto ensure you are getting the best
experience fromiMix. The full owner’s manual
may be downloadedfrom our website at
www.Orban.com. Whileyou are there, please
take a few moments to complete the warranty
registration form.
1. Mount the unit into your rack or place on a
stable surface.
2. Connect your BNC AES input cables and
output cables.
3. Connect iMix 5.1 to a power source with the
supplied cables,
4. iMix 5.1 will automatically power up when AC
power is applied.
5. Connect any pair of headphones with a 3.5mm
TRS for monitoring.
iMix 5.1 has been designed with ease of use in mind. Most of the common settings are available for
modification right from the home screen - we call this featur home screen selection mode. When the unit
is at the home screen, press the HOME key to invoke this mode; a selection box will appear. Rotate the
selection knob to move the selection boc to the desired setting to be changed and press the ENTER key
to modify the selected value. Rotate the selection knob again to change the setting, andthen press the
ENTER key to confirm. Pressing the HOME or BACK keys exits this mode.
Rotate the knob right or left to change the headphone volume up or down. A sub-menu with 24 segment
volume control is displayed. Press ENTER to toggle to the monitor selector. L/R, C/LFE, Ls/Rs, LtRT
output, 5.1 Surroundoutput, and L/R inout are available for listening. Press HOME or Back to exit out.

[e-mail]
www.Orban.com

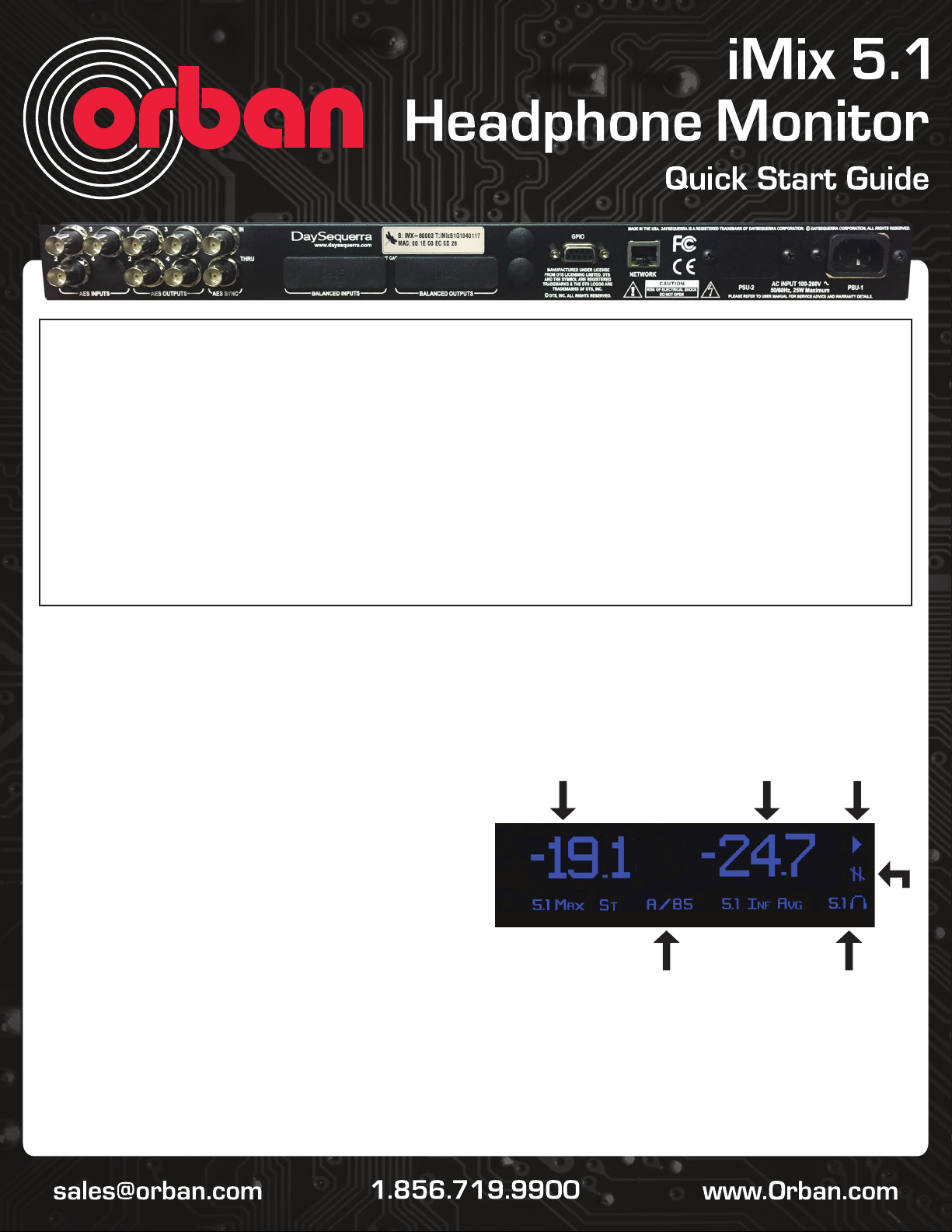

HOME SCREEN FEATURES
1 2 4
5
63
REAR PANEL FEATURES
AES INPUTS: Four ΩBNC connectors will accept an AES3 digital audio stream. AES 1/2 - L and R; AES 3/4 - C and LFE; AES 5/6 - Ls and Rs
AES OUTPUTS: Four Ω BNC connectors output a pass-through AES digital audio stream. AES 1/2 - L and R; AES 3/4 - C and LFE; AES 5/6 - Ls and Rs
SYNC: Selectable internal clock source (with SRC) or any AES-3 input; supported clock: 32 KHz, 44.1 KHz, 48 KHz, 88.2 KHz, 96 KHz
BALANCED AES I/O (Optional): TASCAM format DB-25 connection for using iMix with balanced AES digital audio equipment. (DB-25 not displayed)
HD/SDI (Optional): One input and one passive bypass measures loudness on 8 channels from group one or group two of an HDSDI signal
GPIO: A female DB-9 connection that allows iMix 5.1 to be monitored and conrolled externally
NETWORK: Connects iMix to an Ethernet network to enable firmware updates
1 -FIELD #1 selector: 5.1 Max SL and
ML, 5.1 Infinite Average, L, R, C, Ls, Rs,
5.1 Max True Peak 5.1 LRA
2 -FIELD #2 selector: 5.1 Max SL and
ML, 5.1 Infinite Average, L, R, C, Ls,
Rs, 5.1 True Peak, 5.1 Max True Peak
5.1 LRA4. Surround/Stereo Input
indicator display
3 -Preset industry standard indicator
4 -Play/Stop/Reset Infinite Average
5 -Pause/Resume Infinite Average
6 -Headphone menu

[e-mail]
www.Orban.com
Using the iMix 5.1 Headphone Monitor
Using the iMix 5.1 Headphone Monitor
Orban’s iMix 5.1 Surround Monitor works with any type of headphone and just about any type of “head”
with out the need for individual HRTF calibration. A built-in Zenith control allows you to adjust the relative
heights of the center and rear surround channels. Zero Zenith is what we have determined to be a good
starting point.
To enter the 5.1 Headphone Menu, press HOME and adjust the rotary encoder until the 5.1 Headphone
Menu icon is in the selection box, and press ENTER. Use the rotary encoder to select desired test and
press ENTER.
The SWOOP test uses pink noise that sequences from L to C to R to Rs and then Ls; it loops
continuously. It is useful when setting Zenith Q. When SWOOP test is active, rotary encoder adjusts
headphone volume; press ENTER to adjust Zenith Q for best C and Ls/Rs relative height. Press BACK
to return to the 5.1 Headphone Menu.
Use rotary encoder to select Black & Lane Ident Tones for Surround (BLITS) test and press ENTER.
When BLITS is active, rotary encoder adjusts headphone volume; press ENTER. Use rotary encoder to
select channel test tone and headphone location: L, C, R, Rs and then Ls. Press HOME to return to the
Home Screen.

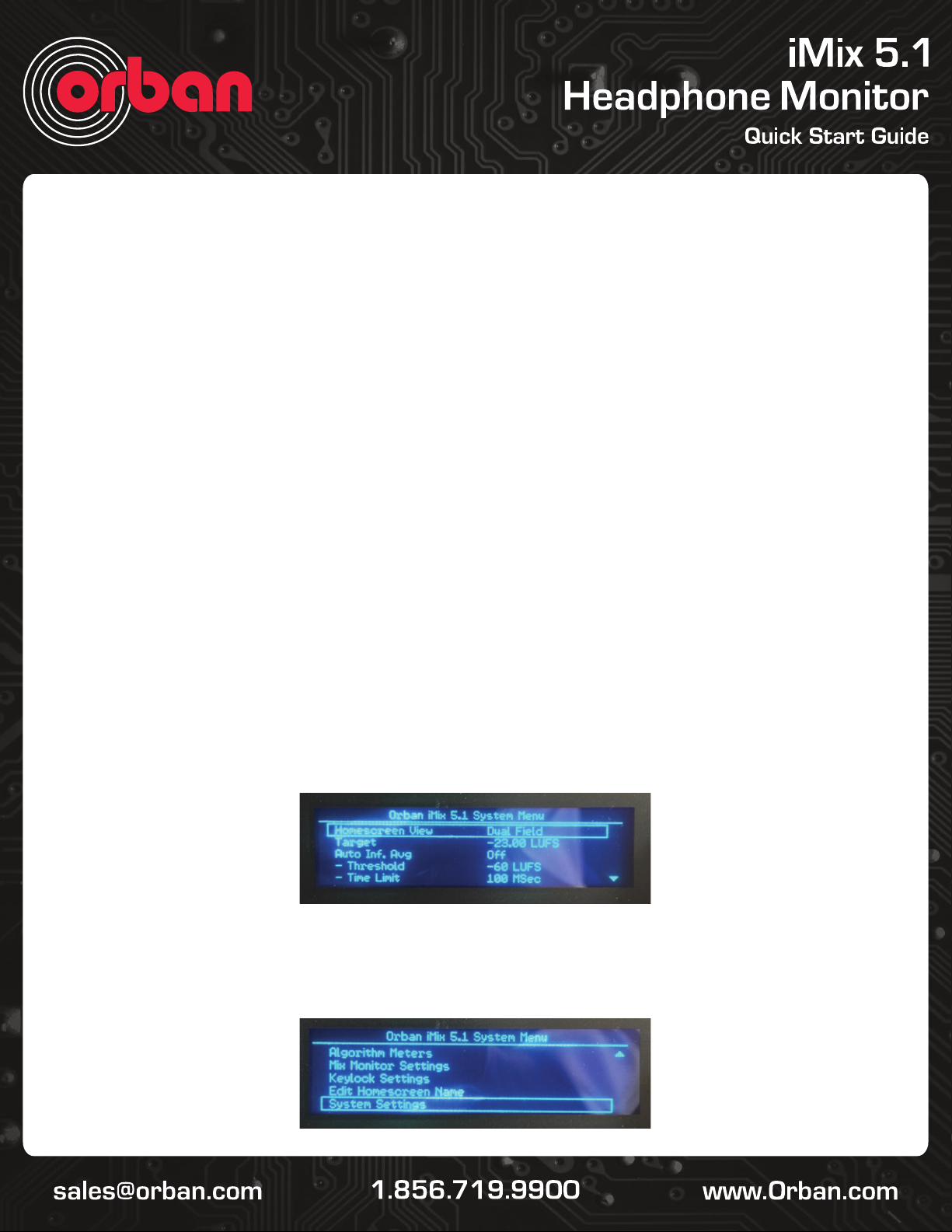

Push the ENTER button to enter the System Menu; the rotary encoder scrolls up and down though each
menu item. Push ENTER to select a specific menu item and then use the rotary encoder to select the
desired value; push ENTER to save the selection. From any System Menu sub-menu, push the BACK
button to return to the main menu. Press HOME to return to the Home Screen.
From System Menu use the rotary encoder to scroll down to the last menu item System Settings and
push the ENTER button.

[e-mail]
www.Orban.com
Height and Perimeter
Zenith Q
LFE Gain
The patented DSX Surround Headphone algorithm includes intelligent upmixing - 5.1 Surround content is
automatically upmixed to include with hemispherical height channels in the headphone output; 2.0 stereo
sources are automatically upmixed to 5.1 Surround with hemispherical height channels. You can defeat
the Height upmixer by selecting Off. Perimeter controls the 5.1 sound field in the headphone output.
NOTE: If both Height and Perimeter are set to off when 5.1 Surround Output is the selected headphone
mode, audio will not be present at the headphone jack.
Orban’s iMix 5.1 Surround Monitor works with any type of headphones and just about any type of “head”
with out the need for individual HRTF calibration. A built-in Zenith control allows you to adjust the relative
heights of the center and rear surround channels. Zero Zenith is what we have determined to be a good
starting point. Press ENTER to adjust Zenith Q for best C and Ls/Rs relative height using any audio
content.
The low frequency performance of different types of headphones can vary significantly. The LFE Gain
control lets you adjust for those differences; the range of this control is +/-5 dB in 1 dB increments.

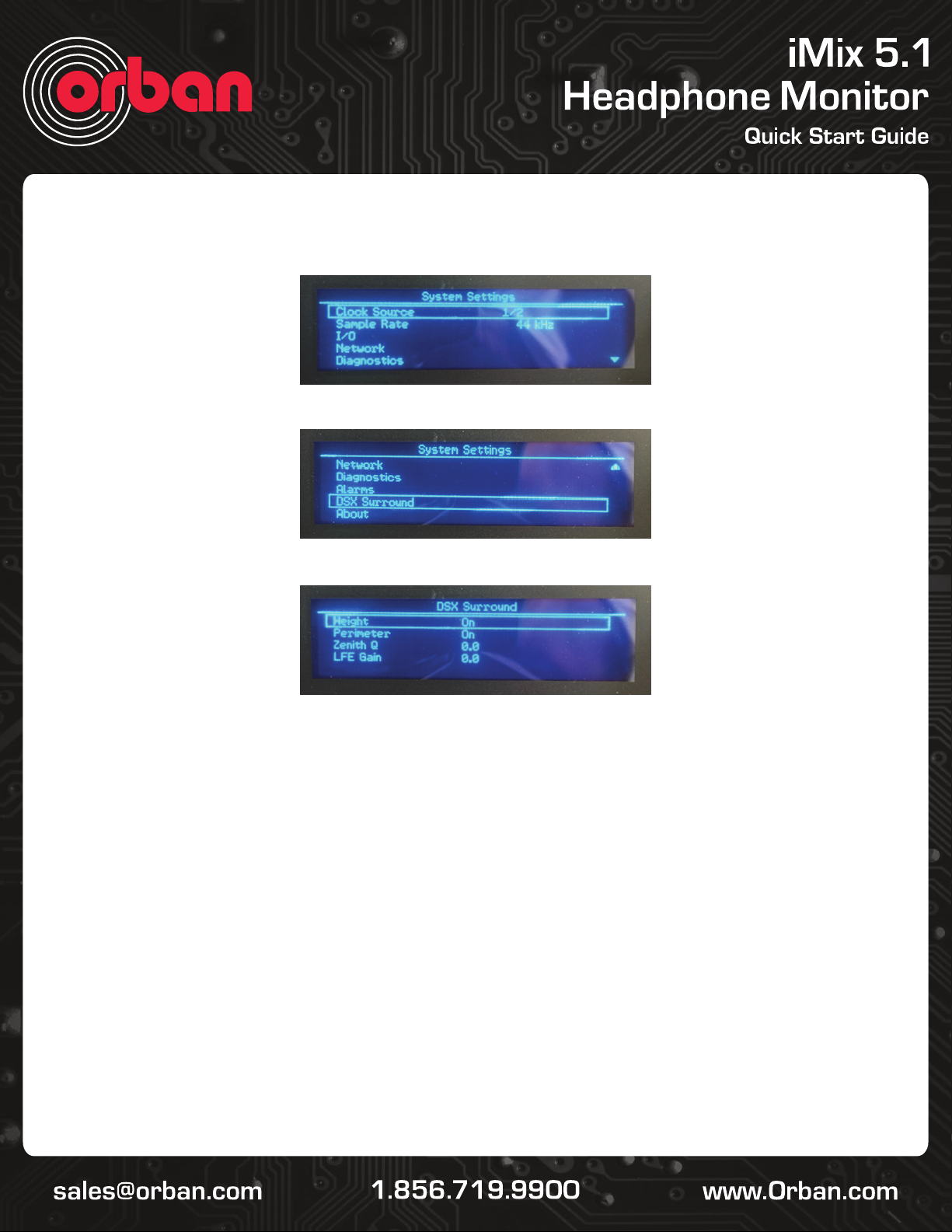

Set the Clock Source and Sample Rate from here to ensure iMix 5.1 is passing audio properly. Other
SYSTEM SETTINGS submenus are available; again push ENTER to select a specific menu item and
then use the rotary encoder to select the desired value; push ENTER to save the selection.
Use the rotary encoder scroll down to the DSX Surround menu and push ENTER.
The DSX Surround menu has the following controls.
