midiplus ED9pro User manual

MIDIPLUS Co, Ltd.
http://www.midiplus.com.tw

MIDIPLUS Co, Ltd.
http://www.midiplus.com.tw
CONTENTS
Preface..................................................................................................................................................1
What’s in the Box? ...............................................................................................................................1
ED9pro Overview .................................................................................................................................1
Caution.................................................................................................................................................1
Chapter1. Setup ............................................................................................................................2
1.1. Quick Start....................................................................................................................2
1.1.1. Choosing Drum Sounds........................................................................................2
1.1.2. Playing Along with a Song or MP3 .......................................................................2
1.1.3. Practicing with the Metronome...........................................................................2
1.1.4. Recording Your Performances..............................................................................2
1.1.5. Playing Your Performances...................................................................................2
1.1.6. Snare Rim shot/Cross stick...................................................................................2
1.2. Overview ......................................................................................................................3
1.2.1. Front Panel ...........................................................................................................3
1.2.2. Rear Panel ............................................................................................................4
1.3. Basic settings................................................................................................................5
1.3.1. Connect drum accessories ...................................................................................5
1.3.2. Connecting the power..........................................................................................5
1.3.3. Connect headphones or speakers........................................................................5
1.3.4. Play the song USB disk (USB MEMORY)...............................................................5
1.3.5. USB port ...............................................................................................................5
1.3.6. Restore factory settings........................................................................................5
Chapter2. Basic skills.....................................................................................................................6
2.1. Basic operation.............................................................................................................6
2.1.1. Adjust the volume................................................................................................6
2.1.2. Select the Drum Kit ..............................................................................................6
2.2. Playing in the music accompaniment ..........................................................................6
2.2.1. Select Song...........................................................................................................6
2.2.2. Adjust the song volume/ tempo ..........................................................................6
2.2.3. Song of the drum part mute ................................................................................6
2.2.4. Loop playback of the song ...................................................................................6
2.3. Play music with USB disk (USB MEMORY) ...................................................................7
2.3.1. Support playback format......................................................................................7
2.3.2. Sequence of music playing priority......................................................................7
2.3.3. Selection of music ................................................................................................7
2.3.4. Select play mode..................................................................................................7
2.3.5. Selection music mode..........................................................................................7
2.4. Using the metronome ..................................................................................................8

MIDIPLUS Co, Ltd.
http://www.midiplus.com.tw
2.4.1. Start and stop.......................................................................................................8
2.4.2. Adjust the tempo .................................................................................................8
2.5. Record Performance.....................................................................................................8
2.5.1. Recording .............................................................................................................8
2.5.2. Playing..................................................................................................................8
Chapter3. Drum group editor .......................................................................................................9
3.1. Create your own original sound group ........................................................................9
3.1.1. Enter edit mode ...................................................................................................9
3.1.2. Select Edit item ....................................................................................................9
3.1.3. Select Edit part.....................................................................................................9
3.1.4. Changing values....................................................................................................9
3.1.5. Storage edit ..........................................................................................................9
3.1.6. Changing values....................................................................................................9
Chapter4. Advanced Function Setting ..........................................................................................9
4.1. Select the set................................................................................................................9
4.2. Sensitive .....................................................................................................................10
4.3. Retrig..........................................................................................................................10
4.4. Thresh.........................................................................................................................10
4.5. Velocity Curve ............................................................................................................10
4.6. Hi-hat splash...............................................................................................................10
4.7. Reverb on/off .............................................................................................................10
4.8. X-talk...........................................................................................................................10
4.9. Surround on/off .........................................................................................................10
Chapter5. Reference ...................................................................................................................11
5.1. Inventory data............................................................................................................11
5.1.1. Drum setting.......................................................................................................11
5.1.2. Click setting ........................................................................................................11
5.1.3. Demo setting......................................................................................................11
5.1.4. Advanced setting................................................................................................12
5.2. Specification...............................................................................................................12
5.3. Drum Voice List ..........................................................................................................13
Chapter6. Appendix ....................................................................................................................16
6.1. Drum kit assembly......................................................................................................17
6.2. Control box assembly.................................................................................................21

MIDIPLUS Co, Ltd.
1
http://www.midiplus.com.tw
Preface
Thank you for buying a ED9pro electronic drums, MIDIPLUS company with the most simple and
convenient setting operation mode to make it easier for beginners handy target, please read the
instruction manual before use.
What’s in the Box?
One (1) e-drum control Box (Z12K)
One (1) owner’s manual
One (1) 9V DC power adaptor
One (1) drum stand (attached assembly diagram).
One (1) package blow kit accessories.

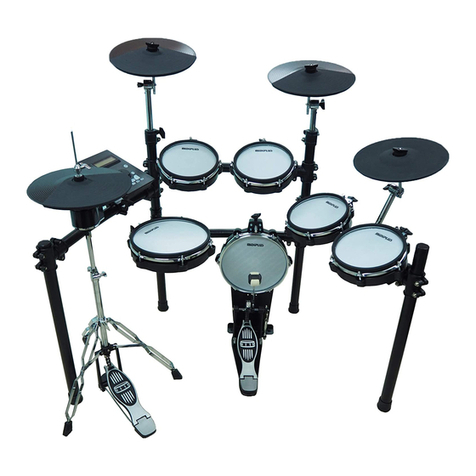

ED9pro Overview
Built 20 group preset drum kits, 10 user groups may edit drum set, using a true multi-sampled
drum lossless studio recording drums.
Built-in metronome, 10 demo songs and easy listening learning fast recording function.
Crash cymbals, support double trigger, cymbals face, cymbals edge and stop tones.
Ride cymbals, support 3 triggered cymbals face, cymbals heart, cymbal edge and stop tones.
Pedal cymbals (hi-hat) support closed, semi-open, open, Pedal hi-hat, Foot splash and stop tones.
Special material multilayer woven mesh drum skin can best simulate real drums crackdown and
feel, support dual trigger.
Kick (Bass drum) and drum kits use a fixed link bracket, firmly positioning drum hit hard step will
not shift.
Snare rim can quickly switch Cross-stick, Rim-shot sound.
Scalable two Crash cymbals (Crash2) and (Crash3), a fourth Tom drum (Tom4).
Support USB disk MP3, WAV, Bluetooth audio.
Caution
Do not place the power cord near heat sources such as heaters or radiators. Also, do not
excessively bend or otherwise damage the cord, or place heavy objects on it.
Only use the voltage specified as correct for the instrument. The required voltage is printed on the
name plate of the instrument.
Use the specified adaptor only. Using the wrong adaptor can result in damage to the instrument or
overheating.
Check the electric plug periodically and remove any dirt or dust which may have accumulated on it.
Never insert or remove an electric plug with wet hands.
This instrument contains no user-serviceable parts. Do not open the instrument or attempt to
disassemble or modify the internal components in any way

MIDIPLUS Co, Ltd.
2
http://www.midiplus.com.tw
Chapter1. Setup
1.1. Quick Start
1.1.1. Choosing Drum Sounds
1. Press the [Kit] button.
2. Note display subtitles on the screen, use the [value knob] or [+], [-] button to select the
type of drum set.
3. Listen percussion drum set type (preset drum kits 20 groups, 10 user-defined groups).
1.1.2. Playing Along with a Song or MP3
1. Not insert a USB disk, or it is no supporting file for USB disk, Press the [SONG]
button, play built-in 10 music MIDI song ,LCD display[Midi song 1],[Volume:85
b=140].
2. Insert USB disk, USB disk with MP3 or WAV file, press [Song] button to play the USB
disk song files, the LCD display [USB song: 1], [single stop].
3. Turn the [value knob] or [+], [-] button to select the playback.
4. Press the start / stop button [ ] to play or stop demo.
1.1.3. Practicing with the Metronome
1. Press the [Click] button.
2. Turn the [value knob] or [+], [-] button to select the tempo.
3. Press the start / stop button [ ] to play or stop tempo.
1.1.4. Recording Your Performances
1. Press the [Rec] button.
2. When the lights begin recording.
3. Then click the [Rec] button.
4. After the lights off to stop recording.
1.1.5. Playing Your Performances
1. Press the [Play] button.
2. When the lights begin playing.
3. Then click the [Play] button.
4. After the lights off to stop playing.
1.1.6. Snare Rim shot/Cross stick
1. Press the [Kit] button. Press the [Mute] button to display the top right corner of the
screen displays the CS (cross stick).
2. Then click the [Mute] button, CS disappear (rim shot).

MIDIPLUS Co, Ltd.
3
http://www.midiplus.com.tw
1.2. Overview
1.2.1. Front Panel
LCD Display
RECORD
VOLUME
Decrease values
Click button
Song button
Start/Stop button
Mute button
Snare Rim shot/Cross stick
Increase values
Edit button
Play button
Data Dial
Kit button

MIDIPLUS Co, Ltd.
4
http://www.midiplus.com.tw
1.2.2. Rear Panel
DC 9V
POWER ON/OFF
HEADPHONE
USB
USB disk
TOM 4
CRASH 2
CRASH 3
Left sound channel output/MONO
Right sound channel output
DB25：KICK, SNARE, TOM1~3、
CRASH, RIDE, HI-HAT, HH-CTRL.

MIDIPLUS Co, Ltd.
5
http://www.midiplus.com.tw
1.3. Basic settings
1.3.1. Connect drum accessories
1. Use the line to connect the drum to [TRIGGER INPUT].
2. Additional expansion [CARSH2],[CARSH3],[TOM4].
1.3.2. Connecting the power
1. Confirm the drum trigger module is turned off (no display on the display screen).
2. Plug the power cord into the jack.
3. The power supply plug into the wall outlet.
4. Turn the power switch.
1.3.3. Connect headphones or speakers
1. Connect the headset.
2. The headphone jack is inserted [ ].
3. Connect the speakers.
4. The speaker wire is connected to the Output of [L] and [R] jacks (standard mono
audio).
1.3.4. Play the song USB disk (USB MEMORY)
1. After inserting a USB disk with MP3 or WAV songs, press the “SONG” button to
automatically search all the song files.
1.3.5. USB port
1. This jack is used to connect the keyboard with the computer, send MIDI messages
directly to the sound card (only drums Channel 10).
1.3.6. Restore factory settings
1. Factory reset all settings.
Before turning the first press [Edit], and then turn on the power switch.
2. The basic rhythm set to restore factory default settings.
Before turning to hold down [Kit], and then turn on the power switch.
3. Advanced Drum Set restores factory default setting.
Before turning to hold down [Mute], then turn on the power switch.

MIDIPLUS Co, Ltd.
6
http://www.midiplus.com.tw
Chapter2. Basic skills
2.1. Basic operation
2.1.1. Adjust the volume
1. Turn the Volume knob to the right, you can turn up the volume.
2. Turn the Volume knob to the left, you can adjust the volume.
2.1.2. Select the Drum Kit
1. Press [Kit] button lights.
2. Note display subtitles on the screen, use the [value knob] or [+], [-] button to select the
type of drum set.
3. Percussion Drum group audition type (preset drum kits 20 groups, 10 groups of
user-defined).
2.2. Playing in the music accompaniment
2.2.1. Select Song
1. Press [SONG] button lights.
2. Turn the [value knob] or [+], [-] button to select the playback.
3. Press the Start / Stop button [ ] to play or stop demo.
2.2.2. Adjust the song volume/ tempo
1. Press the [SONG] button lights.
2. Turn the [value knob] or [+], [-] button to select the playback.
3. Then press the [Edit] button, after the lights, press [SONG] button and select Volume /
Tempo option.
4. Turn the [value knob] or [+], [-] button to adjust the music volume.
5. Setup is complete then press [Edit] button, you can put out the lights.
2.2.3. Song of the drum part mute
4. Press the [SONG] button lights.
5. Turn the [value knob] or [+], [-] button to select the playback.
6. When you need to practice on their own drum music, just press [Mute] to mute the
music of drums.
2.2.4. Loop playback of the song
1. Press the [SONG] button.
2. Turn the [value knob] or [+], [-] button to select the playback.
3. Press the Start / Stop button [ ] to play or stop demo.
4. If there is no press Stop, you can continue to single loop playback.

MIDIPLUS Co, Ltd.
7
http://www.midiplus.com.tw
2.3. Play music with USB disk (USB MEMORY)
2.3.1. Support playback format
1. .MP3
2. .WAV
2.3.2. Sequence of music playing priority
1. Insert a USB disk, the USB disk has a file of .mp3 or .wav format, Press the [SONG]
button, LCD display [USB song 1],[single stop].
2. Not insert a USB disk, or it is no supporting file for USB disk, Press the [SONG]
button, play built-in 10 music MIDI song, LCD display[Midi song 1],[Volume:85
b=140]..
3. Then press the [Edit] button, after the lights, press [CLICK] button to select Volume
/Tempo option.
4. Turn the [value knob] or [+], [-] button to adjust the tempo.
5. Setup is complete then press [Edit] button, you can put out the lights.
2.3.3. Selection of music
1. Insert a USB disk with .mp3 or .wav format.
2. Press [SONG] button to automatically read the music in USB disk (maximum support
of 9999).
3. Rotation [knob], choose to play music, [+], [-] button to adjust volume.
4. Press the Start / Stop button [ ] to play or stop music.
2.3.4. Select play mode
1. Press [EDIT] button.
2. Press [SONG] button to select.
3. LCD display [MP3 play mode], [Single Stop], this is to say stop playing after the hit
single .MP3 file.
4. Rotation [knob] or [+],[-] button,select All, Single, File,Random, Single Stop, All stop.
Repeat All：Repeat the songs in the all folders.
Repeat Single：Repeat the songs in the current folders.
Repeat File：Repeat a single song.
Random：Play the song randomly.
Single Stop：Play the song of the current folder, it will stop playing.
All Stop：After all the songs are played, stop playing.
2.3.5. Selection music mode
1. Press [EDIT] button, then press [SONG] , LCD display[MP3 EQ mode:] ,[Normal].
2. Rotation [knob] or [+], [-] button, choose Normal, POP, Rock, Jazz, Classic.

MIDIPLUS Co, Ltd.
8
http://www.midiplus.com.tw
2.4. Using the metronome
2.4.1. Start and stop
1. Press [Click] button.
2. Turn the [value knob] or [+], [-] button to select the metronome.
3. Press the Start / Stop button [ ] to play or stop the metronome.
2.4.2. Adjust the tempo
1. Press [CLICK] button lights.
2. Turn the [value knob] or [+], [-] button to select the playback.
3. Then press the [Edit] button, after the lights, press [CLICK] button to select
Volume/Tempo option.
4. Turn the [value knob] or [+], [-] button to adjust the tempo.
5. Setup is complete then press [Edit] button, you can put out the lights.
2.5. Record Performance
2.5.1. Recording
1. Press [Rec] button lights. (automatically deleted Before tracks)
2. Percussion Drum group began recording.
3. Press [Rec] button, lights off, it stops recording.
2.5.2. Playing
1. Press the [Play] button lights.
2. Started playing percussion drum set.
3. Press the [Play] button, lights off, it stops recording

MIDIPLUS Co, Ltd.
9
http://www.midiplus.com.tw
Chapter3. Drum group editor
3.1. Create your own original sound group
3.1.1. Enter edit mode
1. Press [Kit] button lights.
2. Then press the [Edit] button, after the lights, enter edit mode.
3.1.2. Select Edit item
1. Use [Kit] key to select (Voice / volume / Pan / pitch / Reverb /MIDI note) item.
3.1.3. Select Edit part
1. Knock panel to select the editing position, you can also press [Record] / [Play] option.
(Kick，Snare，Tom1，Tom2，Tom3，Hihat，Hihat-ctrl，Crash，Ride…)
3.1.4. Changing values
1. By rotating [value knob] or [+], [-] button, to increase its value set.
3.1.5. Storage edit
1. Press the Start / Stop button [ ], the screen will display the Store data to?
2. Use the [value knob] or [+], [-] key to select To set the user-defined groups (USER KIT 1
~ 10)
3. Press the start / stop key [ ], the screen will display saving.......
4. The complete storage.
3.1.6. Changing values
1. Press [Edit] button lights out, exit edit mode.
Chapter4. Advanced Function Setting
4.1. Select the set
Press the [Edit] button, after lights, press [Mute] button to select the option I want to be a set of
other adjustments.(Sensitive/Trigger/Thresh/Velocity Curve/X-talk/Hi-hat splash/Reverb)
Press [ ] button lights. Screen: Are you sure to Store advance?
Press [ ] button lights out.
Press [Edit] button, the lamp is off, to complete the setting.

MIDIPLUS Co, Ltd.
10
http://www.midiplus.com.tw
4.2. Sensitive
Detection sensitivity can be adjusted batting drum, each drumhead set independently.
4.3. Retrig
Drum speed can be adjusted to detect batter batting, each drumhead set independently.
4.4. Thresh
Drum speed can be adjusted to detect batter batting, each drumhead set independently.
4.5. Velocity Curve
There are four selectable velocity curves, each drumhead independent set.
1. Exp
2. Log
3. Loud
4. Linear
4.6. Hi-hat splash
Exclusive adjustment "pedal cymbals" caused by water splashing on the ground similar to the
natural sound effects, the more obvious the higher the value.
4.7. Reverb on/off
All drums echo control master switch.
4.8. X-talk
Noise interference when the X-talk larger the value, the better to prevent crosstalk.
4.9. Surround on/off
All drums surround effect switch.

MIDIPLUS Co, Ltd.
11
http://www.midiplus.com.tw
Chapter5. Reference
5.1. Inventory data
5.1.1. Drum setting
Edit + Kit(Cycle selection)
Display
Range
Press Kit Button - 1
Voice
Drum Voice list
Press Kit Button - 2
Volume
0-100
Press Kit Button - 3
Pan
L5~Center~R5
Press Kit Button - 4
Pitch
-12~0~+12
Press Kit Button - 5
Reverb
0~127
Press Kit Button - 6
Midi note
0~127
5.1.2. Click setting
Edit+ Click(Cycle selection)
Display
Range
Press Click Button - 1
Click Volume
0~100
Press Click Button - 2
Click Tempo
30~250
5.1.3. Demo setting
Edit+ Song(Cycle selection)
Display
Range
Press Song Button - 1
Snog Volume
0~100
Press Song Button - 2
Snog Tempo
30~250

MIDIPLUS Co, Ltd.
12
http://www.midiplus.com.tw
5.1.4. Advanced setting
Edit+ Mute(Cycle selection)
Display
Range
Press Mute Button - 1
Sensitive
0~32
Press Mute Button - 2
Retrig
0~50
Press Mute Button - 3
Thresh
0~50
Press Mute Button - 4
Velocity Curve
1~4
Press Mute Button - 5
X-talk
0~100
Press Mute Button - 6
Hi-Hat splash
0~50
Press Mute Button - 7
Reverb
ON/OFF
5.2. Specification
Model
Type
Z12K
Trigger
Kick,Snare,Tom1,Tom2,Tom3,Hihat,Hihat-ctrl,Crash,Ride
Optional Expansion
Tom4, Crash2, Crash3
Maximum polyphony
81
Effect units
reverb
Kit
Classification
Kick, Snare, Tom, Hi-hat, Crash, Ride, percussion
Number of voices
229
Song
Quantity
10
Song format
MIDI
USB Disk
Number
999
Format
.MP3 .WAV
Metronome
Tempo
30-250
Time signatures
1-6
Audio files
Sampling format
44.1Khz/16bit PCM
Other items
Display
16x2 LCD
Connectors
Line out, head phone, USB, DB25, Tom4, Crash2, Crush3,
USB Memory

MIDIPLUS Co, Ltd.
13
http://www.midiplus.com.tw
5.3. Drum Voice List
Kick PC:100 Total = 17
1
Kick-Pop-1
2
Kick-Pop-XL
3
Kick-Metalt-1
4
Kick-Jungle-Comp-XL
5
Kick-Jungle-XL
6
Kck-Vintage-long
7
Kick-Vintage-released-Bright
8
Kick-Vintage-released-XL
9
Kick-House
10
Kick-Indie
11
Kick-Jazz
12
Kick- Metalt-2
13
Kick- Metalt-3
14
Kick- Metalt-4
15
Kick-Pop-2
16
Kick-Rock
17
Kick-Custom
Snare PC:101 Total=41
1
Snare-Metal-3-rods-XL
2
Snare-Metal-3-Rods-Rimshot
3
Snare-Metal-4-Open-S
4
Snare-Metal-4-RimShot
5
Snare-Jazz-1-XL
6
Snare-Jazz-1-Snappy
7
Snare-Jazz-1-z2-XL
8
Snare-Jazz-1-rimshot-full-XL
9
Snare-Brush-1-XL
10
Snare-Brush-1-Rimshot
11
Snare-Brush-2
12
Snare-Jungle-1-Rimshot-XL
13
Snare-Jungle-1-Rimshot
14
Snare-Vintage-1
15
Snare-Vintage-1-z2
16
Snare-Vintage-1-rimshot-XL
17
Snare-MetalSnare 01
18
Snare-MetalSnare Rimshot 01
19
Snare-MetalSnare 02
20
Snare-MetalSnare Rimshot 02
21
Snare-MetalSnare 03
22
Snare-MetalSnare Rimshot 03
23
Snare-PopSnare
24
Snare-PopSnare Rimshot
25
Snare-RockSnare
26
Snare-RockSnare Rimshot
27
Snare-FunkSnare 02
28
Snare-FunkSnare Rimshot 02
29
Snare-Custom_Snare3
30
Snare-Custom_Snare4
31
Snare-Custom_Snare1
32
Snare-CustomSnareRimShor1
33
Snare-IndieSnare
34
Snare-IndieSnare Rimshot
35
Snare-Std37d
36
Snare-SN_brady
37
Snare-Gretcsh
38
Snare-Peral
39
Snare-Yamaha
40
Snare- Custom_Snare2
41
Snare- CustomSnareRimShor2
Toms PC:102 Total=80
1
Tom-Rock1-4-XL
2
Tom-Rock1-3-XL
3
Tom-Rock1-2-XL
4
Tom-Rock1-1-XL
5
Tom-Rock1-4-Rim
6
Tom-Rock1-3-Rim
7
Tom-Rock1-2-Rim
8
Tom-Rock1-1-Rim
9
Tom-Rock1-EQ-4-XL
10
Tom-Rock1-EQ-3-XL
11
Tom-Rock1-EQ-2-XL
12
Tom-Rock1-EQ-1-XL
13
Tom-Rock1-EQ-4-Rim
14
Tom-Rock1-EQ-3-Rim
15
Tom-Rock1-EQ-2-Rim
16
Tom-Rock1-EQ-1-Rim
17
Tom-Vintage1-4
18
Tom-Vintage1-3
19
Tom-Vintage1-2
20
Tom-Vintage1-1
21
Tom-Vintage1-4-Rim
22
Tom-Vintage1-3-Rim
23
Tom-Vintage1-2-Rim
24
Tom-Vintage1-1-Rim
25
Tom-Metal2-4-XL
26
Tom-Metal2-3-XL
27
Tom-Metal2-2-XL
28
Tom-Metal2-1-XL
29
Tom-Metal2-4-Rim
30
Tom-Metal2-3-Rim
31
Tom-Metal2-2-Rim
32
Tom-Metal2-1-Rim
33
Tom-Jungle1-4
34
Tom-Jungle1-3
35
Tom-Jungle1-2
36
Tom-Jungle1-1
37
Tom-Jungle1-4-Rim
38
Tom-Jungle1-3-Rim
39
Tom-Jungle1-2-Rim
40
Tom-Jungle1-1-Rim
41
IndieTom4
42
IndieTom3
43
IndieTom2
44
IndieTom1
45
IndieTom4_rim
46
IndieTom3_rim
47
IndieTom2_rim
48
IndieTom1_rim

MIDIPLUS Co, Ltd.
14
http://www.midiplus.com.tw
49
JazzTom4
50
JazzTom3
51
JazzTom2
52
JazzTom1
53
JazzTom4_rim
54
JazzTom3_rim
55
JazzTom2_rim
56
JazzTom1_rim
57
MetalTom4
58
MetalTom3
59
MetalTom2
60
MetalTom1
61
MetalTom4_rim
62
MetalTom3_rim
63
MetalTom2_rim
64
MetalTom1_rim
65
PopTom4
66
PopTom3
67
PopTom2
68
PopTom1
69
PopTom4_rim
70
PopTom3_rim
71
PopTom2_rim
72
PopTom1_rim
73
Custom_Btt
74
Custom_Ftt
75
Custom_Mtt
76
Custom_Htt
77
Custom_BttRim
78
Custom_FttRim
79
Custom_MttRim
80
Custom_HttRim
HiHat PC:103 Total=44
1
HH_Classic_14_Shoulder_OpenX
2
HH_Classic_14_Shoulder_HalfOp3X
3
HH_Classic_14_Shoulder_Closed2X
4
HH_Classic_14_TchickX
5
HH-Rock-Top-open
6
HH-Rock-Top-half4
7
HH-Rock-Top-closed
8
HH-Rock-chick
9
HH-Brush-1-open
10
HH-Brush-1-half3
11
HH-Brush-1-chick
12
HH-Brush-1-chick
13
HH-Vintage-Top-open
14
HH-Vintage-Top-Half2
15
HH-Vintage-Top-closed
16
HH-Vintage-chick
17
HH-Electro8-open
18
HH-Electro8-Half3
19
HH-Electro8-closed
20
HH-Electro8-chick
21
IndieHH Open Top
22
IndieHH 1_2 Open Top
23
IndieHH Closed Top
24
IndieHH Pedal
25
JazzHH Open Top
26
JazzHH 1_2 Open Top
27
JazzHH Closed Top
28
JazzHH Pedal
29
RockHH Open Top
30
RockHH 1_2 Open Top
31
RockHH Closed Top
32
RockHH Pedal
33
Custom_HihatOpenTip1
34
Custom_Hihat1_2OpenTip1
35
Custom_HihatCloseTip1
36
Custom_HihatOpenPedal1
37
RockCrash2 Top
38
RockSplash
39
TranceCrash1
40
TranceCrash2
41
TrapCrash1 01
42
Custom_CrashEdge1
43
Custom_CrashBow1
44
Std57d_crash2
Crash PC:104 Total=36
1
Crash_Classic_CHB_H_Edge
2
Crash_Classic_CHB_H_Shoulder
3
Crash_Rock-V20-Edge
4
Crash_Rock-V20-Shoulder
5
Crash-Rock-1-edge-XL
6
Crash-Rock-2-edge
7
China-Metal-1
8
China-Metal-1-XL
9
Crash-Metal-2-edge
10
Crash-Jungle-1-edge
11
Crash-Jungle-3-edge
12
Crash-Jungle-4-splash-hi
13
Crash-Jungle-4-splash-hi2
14
Crash-Jungle-5-splash-muted
15
Crash-Jungle-5-splash-muted-XL
16
Crash-Jungle-6-splash-side
17
Crash-Vintage-1-edge
18
Crash-Vintage-2-edge
19
Crash-Vintage-3-edge
20
FunkCrash1 01
21
FunkCrash1 02
22
FunkCrash2 01
23
FunkCrash2 02
24
IndieCrash1 01
25
IndieCrash1 02
26
IndieCrash2 01
27
IndieCrash2 02
28
JazzCrash2 Top
29
JazzSplash 01
30
JazzSplash 02
31
PopChina
32
PopCrash
33
RockChina
34
RockCrash1 Edge
35
RockCrash1 Top
36
RockCrash2 Edge
Ride PC:105 Total=34

MIDIPLUS Co, Ltd.
15
http://www.midiplus.com.tw
1
Ride_Rock-ping24-Bell
2
Ride_Rock-ping24-Shoulder
3
Ride_Rock-ping24-Edge
4
Ride_Rock-ping24-VeloBell
5
Ride_Dark_20_Edge
6
Ride-Rock-1-bell
7
Ride-Jazz-1-bell
8
Ride-Jazz-1-top
9
Ride-Jazz-2-bell
10
Ride-Jazz-2-top2
11
Ride-Brush-1-bell-XL
12
Ride-Brush-2-bell
13
Ride-Jungle-1-bell
14
Ride-Vintage-1-Bell
15
Ride-Vintage-1-shoulder
16
Ride-Fiesta-1-top
17
Ride-Metal-1-bell
18
Ride-Metal-1-shoulder
19
FunkRide Bell 02
20
FunkRide Edge 02
21
IndieRide Edge
22
MetalRide Bell
23
MetalRide Edge
24
MetalRide Top
25
PopRide Bell
26
PopRide Edge
27
PopRide Top
28
RockRide Bell
29
RockRide Edge
30
RockRide Top
31
Custom_RideEdge1
32
Custom_RideBow1
33
Std51NEW_ride1
34
Std59NEW_ride2
Perc PC:106 Total=33
1
ma808
2
mcg808
3
Std54d
4
Std56d
5
Std58d
6
Std60d
7
Std61d
8
Std62d
9
Std63d
10
Std64d
11
Std65d
12
Std66d
13
Std67d
14
Std68d
15
Std69d
16
Std70d
17
Std71d
18
Std72d
19
Std73d
20
Std74d
21
Std75d
22
Std76d
23
Std77d
24
Std78new
25
Std79new
26
Std80d
27
Std81d
28
Std82d
29
Std83d
30
Std84d
31
Std85d
32
Std86d
33
Std87d

MIDIPLUS Co, Ltd.
16
http://www.midiplus.com.tw
Chapter6. Appendix
Crash
Ride
Hi-Hat
H.H-Ctrl
Kick
Snare
Tom 4
Tom 2
Tom 1
Z12K
Tom 3
Crash 2

MIDIPLUS Co, Ltd.
17
http://www.midiplus.com.tw
6.1. Drum kit assembly
kick rod x1
KICK
X3
X4
Cymbal mounts x4
RIDE
snare rod x1
4
