MidNite Solar The Kid User manual

S
www.midnitesolar.com
17722 - 67th Ave NE, Arlington, WA 98223
PH 360-403-7207 FAX [phone]
SSSSS Symbolizes the SETUP button being pushed.
S
Absorb
Volts
Time
Flt
Volts
EQ
Equalize Battery
On/O
Start
Volts
Time
AmpLmt
Load - Amps
Battery - Amps
Tcomp
mV/dC/Cell - mV
EQ - Yes/No
TcompLimits
Min Volts - Volts
Max - Volts
Advanced
End Amps - Amps
Rebulk - Volts
BATTERY MENU - Adjust Setpoints
S
S
S
S
S
S
S
S
S
S
S
Func:
Manual - OFF/ON
Lowbatt
Reconn
Dusk + Hours - OFF/Auto
Dusk+
Night Light - OFF/Auto
Lowbatt
Reconn
Day Light - OFF/Auto
Lowbatt
Reconn
PWM Divert - OFF/Auto
Oset
Width
Float On - OFF/Auto
Lowbatt
Reconn
Float O - OFF/Auto
Lowbatt
Reconn
Diversion - OFF/Auto
VoltOn
VoltO
Toggle - OFF/Auto
Beta Unit - No/Yes
NightVarOFF - OFF/Auto
Dusk+
Dawn-
Hourly - OFF/Auto
OnTime
OTime
LOAD MENU - Set Load/Clipper
S
S
S
INPUT MENU - Adjust MPPT Mode
Mode
SOLAR - OFF/On
Sweep Internal - Auto/Minutes
SOLAR 2 O&P - OFF/On
SOLAR O&P - Setup
U-Set Voc % - OFF/ON
Interval - Disable/Minutes
VOC% - #%
LEGACY P&O - OFF/ON
S
S
AUX MENU - Setup Aux Func
Func:
WBJR - OFF/Auto
Battery Capacity - Ah
Batt Eciency - %
Batt Temp Ref - OC
Batt Change % - %
Gen Start - OFF/AUTO/ON
Generator On at
GenStart Delay
MIN Gen Run Time
MAX Gen Run Time
Gen Run Conrm
LBD High
LBD Low
Battery Nominal Voltage Battery Type Battery Absorb Battery Float Battery Equalize Input Function Save
Custom
Lithium
Calcium SMF
Gel
AGM
Flooded - defalt

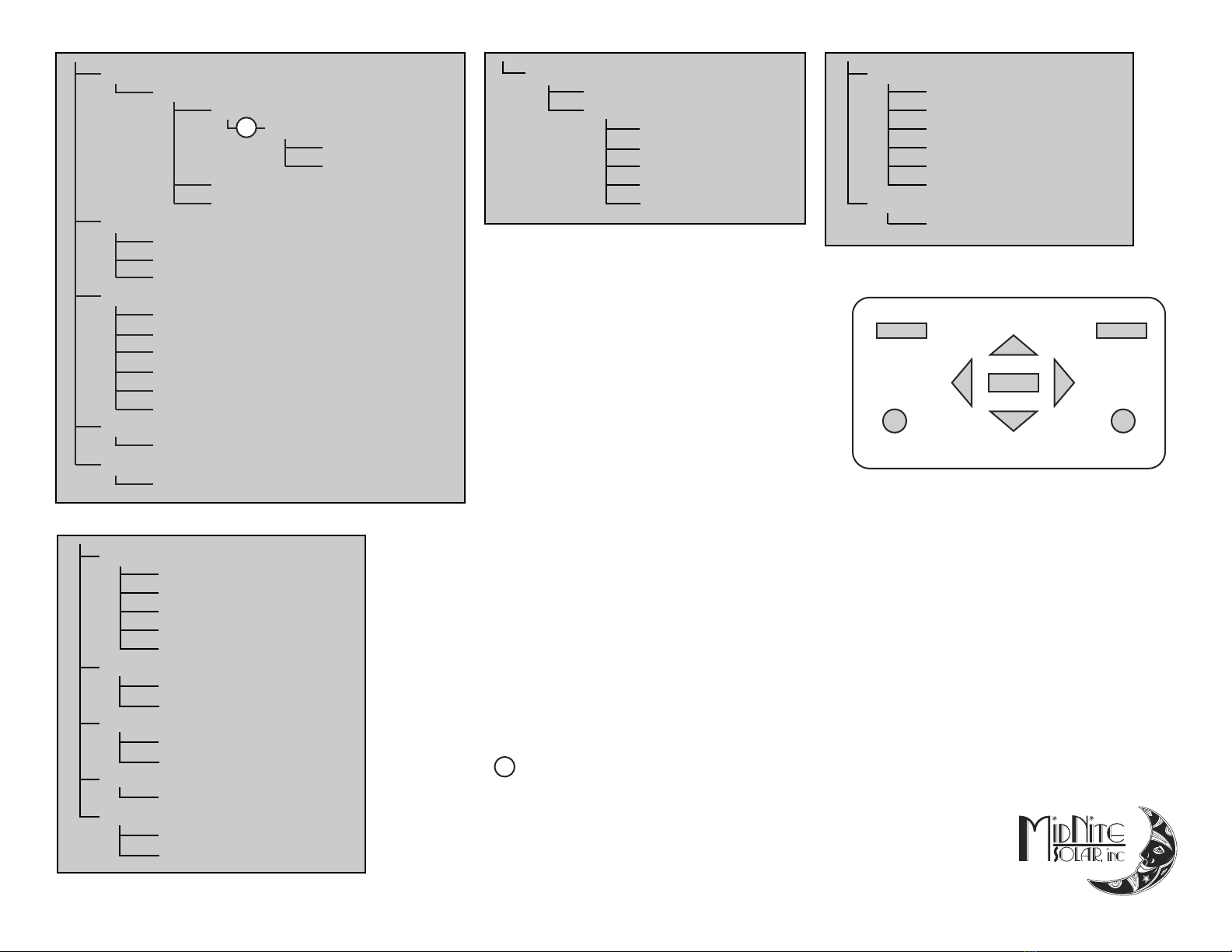

QUICK START SETUP
Status Menu
12V, 24V, 36V & 48V Volts Volts Volts Solar
Solar 2
USet
MIDNITE SOLAR INC. - KID MENU MAP Oct 10, 2014 REV: v1761 Pg 1

www.midnitesolar.com
17722 - 67th Ave NE, Arlington, WA 98223
PH 360-403-7207 FAX [phone]
SSymbolizes the SETUP button being pushed.
SAVESETUP
MENU
BACK
STATUS
ENTER
KID NAVIGATION PANEL
SETUP
Displays the adjustable parameters of the
specic function selected.
SAVE
Saves all the modied functions and
parameters.
ENTER
Enters the selected menu item.
STATUS
Displays the current Status of the Kid. Press
once to go back to the previous status
screen, press twice to go to main status.
MENU/BACK
When pressed from Status Menu, it will go
to Main Menu. If inside a menu it is used to
go back one menu.
UP, DOWN, LEFT & RIGHT ARROWS
Used to navigate the menus, select and
modify the functions.
S
MISC MENU - Other Stu
LCD
LCD Power Mode
ECO
ADJUST UP/DOWN
BKLITE
CONTRAST
NORMAL
STATUS SCROLL? - ENABLE/DISABLE
TEMP
CPU - C
FET - C
BATT
LEDS
NRML
BCM
RICK
PLAY
TEST
OFF
TIMER:
TIME - 00:00:00
PASSWORD
PASSWORD ENABLE - NO/YES
COMM MENU - Multiple Units
Parallel Mode
Bully
FollowMe
Battery Absorb - Volts
Absorb Time - Minutes
Battery Float - Volts
Battery Equalize - Volts
DATA SAVED
TECH MENU - Advanced Menu
Calibration
Battery V OFFSET - Volts
Input V OFFSET - Volts
AntiClick Sensit
EndAmp Shunt Sel UP/DOWN
Pre Matching
Min Low Power
Factory Reset
Press and Hold Left and Right
STATUS MENU
Screen 1
Battery Output Current
Bulk MPPT - State Of Charger
Battery Voltage
Charger Mode (Solar)
Wattage Into Battery
Screen 2
Input - PV Array Voltage
Battery - Battery Voltage
Screen 3
WBJR Amps
Shunt
Screen 4
Load: Function
Screen 5
KWhr
Ahr
Pushing the right/left arrow button will cycle
through the Status Menu screens.
Pg 2
