Miele F 12011 S User manual

Operating and installation instructions
Freezer
F 12010 S
F 12011 S
To avoid the risk of accidents or
damage to the appliance, it is
essential to read these instructions
before it is installed and used for the
first time. M.-Nr. 07 297 121
en-GB

Guide to the appliance .............................................4
Caring for the environment..........................................5
Warning and Safety instructions .....................................6
How to save energy ...............................................11
Switching on and off ..............................................12
Switching off for longer periods of time .................................12
The correct temperature ...........................................13
Temperature selection ..............................................13
Temperature alarm................................................14
Switching on the alarm system .......................................14
Super freeze .....................................................15
Super freeze .....................................................15
Freezing and storing food..........................................16
Maximum freezing capacity..........................................16
Freezing fresh food ................................................16
Storing frozen food ................................................16
Home freezing ....................................................17
Hints on home freezing...........................................17
Packing .......................................................17
Before placing food in the freezer ..................................18
Placing food in the freezer ........................................18
Freezing large items ...............................................18
Defrosting .......................................................18
Ice cubes ........................................................19
Cooling drinks ....................................................19
Defrosting .......................................................20
Cleaning and care ................................................22
Cleaning the outer casing, the interior and accessories ....................22
Ventilation gaps ...................................................22
Door seal ........................................................22
Metal grille at the back of the appliance ................................23
Problem solving guide ............................................24
Noises .........................................................26
After Sales / Guarantee ............................................27
Electrical connection..............................................28
Contents

Installation ......................................................29
Location .........................................................29
Climate range ..................................................29
Ventilation .......................................................30
Installation .......................................................30
Aligning the appliance..............................................30
Appliance dimensions ..............................................31
Changing the door hinging .........................................32
Changing over the door handle.......................................33
Contents

aIn-operation indicator light
bAlarm indicator light
aFreezer drawers
(number of drawers will depend on
model)
cSuper freeze button with indicator light
dOn/Off and temperature selector dial
Guide to the appliance
4

Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for
disposal, and should be recycled.
Ensure that any plastic wrappings,
bags etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation!
Disposal of your old appliance
Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Please do not therefore dispose of it
with your household waste.
Please dispose of it at your local
community waste collection / recycling
centre or contact your dealer for
advice. Ensure that it presents no
danger to children while being stored
for disposal.
Take care not to damage the pipework
at the back of it before or during
transportation to an authorised
collection depot.
In this way, refrigerant in the pipework
and oil in the compressor will be
contained, and will not leak out into the
environment.
Caring for the environment
5

This appliance complies with all
relevant legal safety requirements.
Improper use can, however, present
a risk of both personal injury and
material damage.
To avoid the risk of accidents and
damage to the appliance, please
read these instructions carefully
before installation and before using
it for the first time. They contain
important notes on the installation,
safety, operation and care of the
appliance.
Keep these instructions in a safe
place and pass them on to any
future user.
Correct application
~This appliance is not designed for
commercial use. It is intended for use in
domestic households and in similar
working and residential environments
such as:
–Shops
–Offices and showrooms
and by residents in establishments
such as:
–Hostels and guest houses.
This appliance is not intended for
outdoor use.
It must only be used as a domestic
appliance to store deep frozen food, to
freeze fresh food and to prepare ice.
Any other usage is not supported by
the manufacturer and could be
dangerous. Miele cannot be held liable
for damage resulting from incorrect or
improper use or operation of the
appliance.
~This appliance is not intended for
use by people with reduced physical,
sensory or mental capabilities, or lack
of experience and knowledge, unless
they are supervised whilst using it, or
have been shown how to use it
correctly by a person responsible for
their safety.
Safety with children
~This appliance is not a toy! To avoid
the risk of injury, do not allow children
to play on or near it or to play with the
controls. Do not let them swing on the
door or climb into drawers. They should
be supervised whenever you are
working in the kitchen.
~Older children may only use the
appliance when its operation has been
clearly explained to them and they are
able to use it safely, recognising the
dangers of misuse.
Warning and Safety instructions
6

Technical safety
~Before setting up the appliance,
check it for any externally visible
damage. Do not install and use a
damaged appliance.
It could be dangerous.
~If the connection cable is faulty it
must only be replaced by a service
technician authorised by the
manufacturer to protect the user from
danger.
~This appliance contains the coolant
Isobutane (R600a), a natural gas which
is environmentally friendly. Although it
is flammable, it does not damage the
ozone layer and does not increase the
greenhouse effect. The use of this
coolant has, however, led to a slight
increase in the noise level of the
appliance. In addition to the noise of
the compressor, you might be able to
hear the coolant flowing around the
system. This is unavoidable, but does
not have any adverse effect on the
performance of the appliance.
Care must be taken during the
transportation and installation of the
appliance that no parts of the cooling
system are damaged. Leaking coolant
can damage the eyes.
In the event of any damage:
- avoid open flames and anything
which creates a spark,
- disconnect from the mains,
- air the room in which the appliance
is located for several minutes and
- contact the Service Department for
advice.
~The more coolant there is in an
appliance, the larger the room it should
be installed in. In the event of a
leakage, if the appliance is in a small
room, there is the danger of
combustible gases building up.
For every8gofcoolant at least 1 m3of
room space is required. The amount of
coolant in the appliance is stated on the
data plate inside the appliance.
~Safe operation of the appliance is
only assured if it has been installed and
connected in accordance with these
operating and installation instructions.
~Before connecting the appliance,
make sure that the connection data on
the data plate (voltage and connected
load) match the mains electricity
supply.
This data must correspond in order to
avoid the risk of damage to the
appliance. Consult a qualified
electrician if in any doubt.
~Do not connect the appliance to the
mains electricity supply by a
multi-socket unit or an extension lead.
These do not guarantee the required
safety of the appliance (e.g. danger of
overheating).
Warning and Safety instructions
7

~The electrical safety of this
appliance can only be guaranteed
when continuity is complete between it
and an effective earthing system which
complies with current local and national
safety regulations. It is most important
that this basic safety requirement is
present and tested regularly, and
where there is any doubt, the
household wiring system should be
inspected by a qualified electrician.
The manufacturer cannot be held liable
for damage or injury caused by the lack
of or inadequacy of an effective
earthing system (e.g. electric shock).
~Installation, maintenance and
repairs may only be carried out by a
suitably qualified and competent
person in strict accordance with current
national and local safety regulations.
Repairs and other work by unqualified
persons could be dangerous. The
manufacturer cannot be held liable for
unauthorised work.
~While the appliance is under
guarantee, repairs should only be
undertaken by a service technician
authorised by the manufacturer.
Otherwise the guarantee will be
invalidated.
~The appliance must be isolated from
the electricity supply during installation,
maintenance and repair work.
~Faulty components must only be
replaced by genuine Miele original
spare parts. The manufacturer can only
guarantee the safety of the appliance
when Miele replacement parts are
used.
~This appliance must not be used in
a non-stationary location (e.g. on a
ship).
~In countries where there are areas
which may be subject to infestation by
cockroaches or other vermin, pay
particular attention to keeping the
appliance and its surroundings in a
clean condition at all times. Any
damage which may be caused by
cockroaches or other vermin will not be
covered by the guarantee.
Warning and Safety instructions
8

Correct use
~Never handle frozen food with wet
hands. Your hands may freeze to the
frozen food. Danger of frost burn.
~Do not take ice cubes out with your
bare hands and never place ice cubes
or ice lollies in your mouth straight from
the freezer.
The very low temperature of the frozen
ice or lollies can cause frost burn to the
lips and tongue.
~Do not refreeze thawed or partially
thawed food.
Defrosted food should be used up as
quickly as possible, as food soon loses
its nutritional value and goes off.
Defrosted food may only be re-frozen
after it has been cooked.
~Observe the "use by" dates given on
food to avoid the risk of food poisoning.
Storage times will depend on several
factors, including the freshness and
quality of the food as well as the
temperature at which it is stored. Follow
the instructions given on food
manufacturer's packaging on storage
conditions required, as well as the “use
by” date.
~Do not store explosive materials in
the appliance or any products
containing propellants (e.g. spray
cans). Thermostats switching on may
produce sparks which could present a
fire hazard. Flammable compounds
could explode.
~Do not operate any electrical
equipment (e.g. an electric ice-cream
maker) inside the appliance. Danger of
sparking and explosion.
~Do not store cans or bottles
containing carbonated drinks or liquids
which could freeze in the freezer. The
cans or bottles could explode.
Danger of injury and damage to the
appliance.
~When cooling drinks quickly in the
freezer, make sure bottles are not left in
for more than one hour, otherwise they
could burst, resulting in injury or
damage.
~Do not use sharp edged objects to
– remove frost and ice,
– separate frozen foods or remove ice
trays.
They will damage the evaporator,
causing irreversible damage to the
appliance.
~Do not use any oils or grease on the
door seal, as these will cause the seal
to deteriorate and become porous with
time.
~Do not block the ventilation gaps in
the appliance as this would impair the
efficiency of the appliance, increase the
electricity consumption and could
cause damage to the appliance.
Warning and Safety instructions
9

~The appliance is designed for use
within certain climate ranges (ambient
temperatures), and should not be used
outside this range. The climate range
for your appliance is stated on the data
plate inside the appliance.
Installing it in a room with too low an
ambient temperature, e.g. a garage,
can lead to the appliance switching off
for longer periods so that it cannot
maintain the required temperature.
~Do not place electric heaters or
candles in the appliance to defrost it.
These can damage the plastic parts.
~Do not use defrosting sprays or
de-icers, as they might contain
substances which could damage the
plastic parts or which could cause a
build-up of gases and pose a danger to
health.
~Do not use a steam-cleaning
appliance to defrost or clean this
appliance. Steam could reach the
electrical components and cause a
short circuit.
Disposal of your old appliance
~Before disposing of an old
appliance, first make the door latch or
lock unusable.
This way you will prevent children from
accidentally locking themselves in and
endangering their lives.
~Be careful not to damage any part of
the pipework whilst awaiting disposal,
e.g. by
–puncturing the refrigerant channels
in the evaporator.
–bending any pipework.
– scratching the surface coating.
Splashes of refrigerant can damage the
eyes.
The manufacturer cannot be held
liable for damage caused by
non-compliance with these Warning
and Safety instructions.
Warning and Safety instructions
10

Normal energy
consumption
Increased energy
consumption
Installation site In a ventilated room. In an enclosed, unventilated room.
Protected from direct sunlight. In direct sunlight.
Not near to a heat source (radiator,
oven).
Near to a heat source (radiator,
oven).
Where the ideal ambient room
temperature is approx. 20°C.
Where there is a high ambient room
temperature.
Do not cover the ventilation gaps
and dust them regularly.
Temperature setting
with a thermostat
which is approximate
(set in stages).
With a medium setting of 2 to 3. With a high setting: the lower the
temperature in the compartment, the
higher the energy consumption.
Temperature setting
with a thermostat which
is exact to the degree
(digital display).
Larder section 8 to 12 °C
On appliances with winter setting,
please make sure that the winter
setting is switched off when the
ambient temperature is warmer than
16 °C .
Refrigerator section 4 to 5 °C
PerfectFresh zone just above 0 °C
Freezer section -18 °C
Wine storage section 10 to 12 °C
Use Drawers, shelves and racks
arranged as they were when the
appliance was delivered.
Only open the door when necessary
and for as short a time as possible.
Frequent opening of the door for
long periods will cause a loss of
coldness.
Store food in an organised way. Searching for an item will mean the
door is open for longer.
Allow hot food and drinks to cool
down before placing them in the
appliance.
Hot food will cause the refrigerator
unit to run for a long time, as the
appliance will have to work harder
to reduce the temperature.
Store food covered or packaged. The evaporation or condensation of
liquids will cause a loss of coldness
in the refrigerator.
Place frozen food in the refrigerator
to defrost.
Do not over-fill the appliance to
allow air to circulate.
Defrosting Defrost the freezer section when a
layer of ice 0.5 cm thick has built
up.
A layer of ice hinders the cold from
reaching the frozen food, and
increases energy consumption.
How to save energy
11

Before using for the first time
^Clean the inside of the appliance and
the accessories with warm water and
a little washing up liquid, and then
dry with a soft cloth.
Switching on
^Using a coin, turn the On-Off /
Temperature dial in a clockwise
direction away from the "0" position.
The higher the setting, the lower the
temperature in the appliance.
Forcing it beyond its range will
damage it. Turn it only as far as it
will go, then turn it back again.
The "in operation" and the alarm
indicator lights come on, and the
appliance starts cooling.
Allow the appliance to run for a few
hours before placing food in it. This will
ensure that the temperature is
sufficiently low.
Switching off
^Using a coin, turn the On-Off /
Temperature dial in an anti-clockwise
direction back to the "0" position.
All indicator lights go out and the
cooling process is switched off.
Switching off for longer
periods of time
If the appliance is not going to be used
for a longer period of time, e.g. whilst
on holiday,
^switch the appliance off,
^disconnect it from the mains. Switch
off at the wall and withdraw the plug
from the socket, or disconnect the
mains fuse.
^defrost and clean the appliance out
and
^leave the door ajar to air the
appliance.
If, during a long absence, the
appliance is switched off but not
cleaned out and the door is left shut
there is a danger of mould and
odours building up inside the
appliance.
Switching on and off
12

It is very important to set the correct
temperature for storing food in the
appliance. Micro-organisms will cause
food which is not stored at the correct
temperature to deteriorate rapidly.
Temperature influences the growth rate
of these micro-organisms. Reducing
the temperature reduces their growth
rate.
To freeze fresh food and to store frozen
food for a long time, a temperature of at
least -18 °C is required. At this
temperature the growth of
micro-organisms is generally halted. As
soon as the temperature rises to above
-10 °C, the micro-organisms become
active in the food again so that it cannot
be kept as long. For this reason,
partially defrosted or defrosted food
must not be re-frozen. Food may be
re-frozen once it has been cooked as
the high temperatures achieved when
cooking destroy most micro-organisms.
The temperature in the appliance will
rise:
–the more often the door is opened
and the longer it is kept open,
–if too much food is stored in it at
once,
–the warmer the food is which is being
put into it,
–the higher the ambient temperature
surrounding the appliance.
The appliance is designed for use in
specific ambient temperatures
(climate ranges). Do not use in
ambient temperatures for which it is
not designed.
Temperature selection
The temperature is set with the
temperature dial.
^Use a coin to turn the temperature
dial clockwise away from the "0"
position to the required setting.
Forcing it beyond its range will
damage it. Turn it only as far as it
will go, then turn it back again.
The higher the setting, the lower the
temperature in the appliance.
In normal use, a midway setting is
generally sufficient. You should also
check the temperature inside the
appliance from time to time.
The correct temperature
13

Your appliance is fitted with a warning
system which ensures that the
temperature in the freezer cannot rise
unnoticed. The alarm indicator light will
come on as soon as the temperature
becomes too warm. The setting on the
temperature dial determines the range
of temperatures the appliance recog-
nises as too warm.
The alarm indicator light will come on
–when the freezer is switched on.
–if the lid has been left open for a
while, e.g. in order to load, to
re-arrange or to take food out.
– when freezing large amounts of food
at once.
– if there has been a lengthy
interruption to the power supply.
The alarm indicator light goes out when
the temperature which has been set is
reached.
Activating the alarm system
The alarm system is always active. It
does not have to be switched on
manually.
Temperature alarm
14

Super freeze
Switch on Super freeze before putting
fresh food into the freezer.
This helps food to freeze quickly and
retain its nutrients, vitamins, flavours
and appearance.
Super freeze is not necessary:
–when placing food in the freezer that
is already frozen.
–when freezing less than 2 kg fresh
food daily.
Switching on Super freeze
When freezing small quantities of food
in the freezer, the Super freeze function
should be switched on 6 hours
beforehand. When freezing the
maximum load of food the Super
freeze function should be switched on
24 hours beforehand.

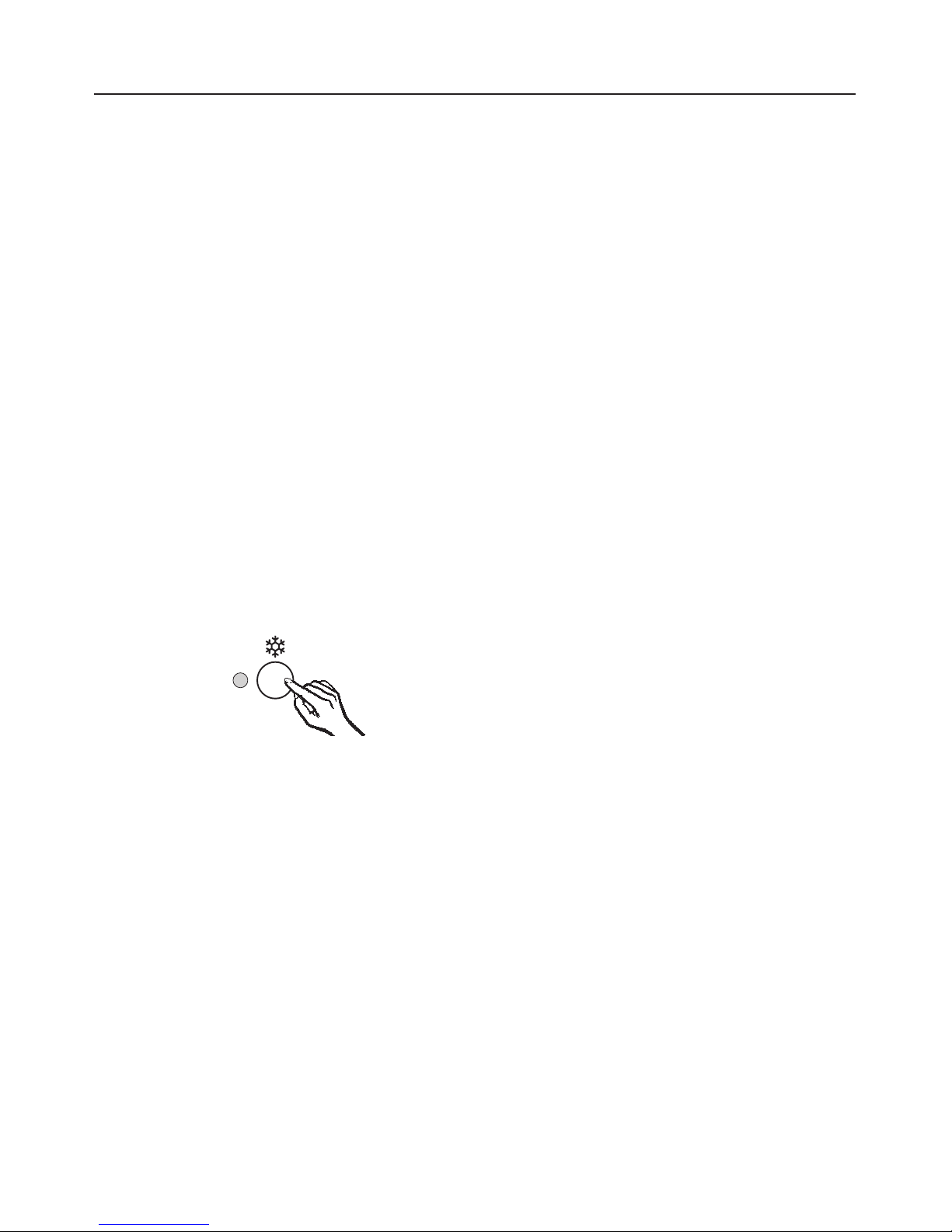

^Press the Super freeze button; the
Super freeze indicator light will come
on.
The appliance works at full power to
lower the temperature in the freezer.
Switching off Super freeze
The Super freeze function will switch off
automatically after approx. 65 hours.
The indicator light goes out and the
appliance continues running at normal
power.
To save energy the Super freeze
function can be switched off once a
constant temperature of -18°C or
colder has been reached in the freezer.
^Press the Super freeze button. The
Super freeze indicator light will go out
and the appliance will continue to
operate at normal power.
Super freeze
15

Maximum freezing capacity
To ensure that fresh food placed in the
freezer freezes through to the core as
quickly as possible, the maximum
freezing capacity must not be
exceeded. The maximum freezing
capacity for freezing within a 24-hour
period is given on the data plate
“Freezing capacity ....kg/24 hrs”.
The maximum freezing capacity given
on the data plate has been calculated
according to DIN EN ISO 15502 Stan-
dard.
Freezing fresh food
Fresh food should be frozen as quickly
as possible. This way the nutritional
value of the food, its vitamin content,
appearance and taste are not impaired.
Food which takes a long time to freeze
will lose more water from its cells, which
then shrink.
During the defrosting process, only
some of this water is reabsorbed by the
cells; the rest collects around the food.
In practice this means that the food
loses a large degree of its moisture.
You can tell if this has happened by the
amount of liquid around the food.
If food is frozen quickly, the cells have
less time to lose moisture, so they
shrink less.
As there is not so much moisture, it is
easier for the food to reabsorb it during
the defrosting process, and very little
water collects around the defrosted
food.
Storing frozen food
When buying frozen food to store in
your freezer check
–that the packaging is not damaged,
–the use-by date,
–the temperature at which the frozen
food is being stored in the shop. The
length of time it can be kept is
reduced if it has been stored at a
temperature warmer than -18 °C.
^Buy frozen food once you have
finished the rest of your shopping,
and wrap it in newspaper or use a
cool bag or cool box to transport it.
^Store it in the freezer as soon as
possible.
Never re-freeze partially or fully
defrosted food. Consume defrosted
food as soon as possible as it will
lose its nutritional value and spoil if
left for too long. Defrosted food may
only be re-frozen after it has been
cooked.
Freezing and storing food
16

Home freezing
Only freeze fresh food which is in good
condition.
Hints on home freezing
–The following types of food are
suitable for freezing:
Fresh meat, poultry, game, fish,
vegetables, herbs, fresh fruit, dairy
products, pastry, leftovers, egg
yolks, egg whites and a range of
pre-cooked meals.
–The following types of food are not
suitable for freezing:
Grapes, lettuce, radishes, sour
cream, mayonnaise, eggs in their
shells, onions, whole raw apples and
pears.
– To retain colour, taste and vitamin C,
vegetables should be blanched after
they have been trimmed and
washed.
To blanch: bring a large saucepan of
water to the boil and immerse the
vegetables in the fast boiling water
for 2-3 minutes, depending on
variety. Remove, and plunge into
ice-cold water to cool quickly. Drain
and pack ready for freezing.
–Lean meat freezes better than fatty
meat, and can be stored for
considerably longer.
–To prevent chops, steaks, cutlets or
rolled meat from freezing together in
solid blocks when packed, separate
with a sheet of plastic freezer film.
–Do not season fresh foods or
blanched vegetables before
freezing. Only season cooked food
lightly before freezing, but care
should be taken as the taste of some
spices alters when frozen.
–Do not place hot food or drinks in the
freezer. This causes already frozen
food to thaw and increases the
energy consumption considerably.
Allow hot food and drinks to cool
down before placing them in the
freezer.
Packing
^Freeze food in portions.
Unsuitable packing material
- wrapping paper
- grease-proof paper
- cellophane
- dustbin liners
- plastic carrier bags
Suitable packing material
- plastic freezer film
- freezer bags
- freezer containers
- aluminium foil
^Expel as much air as possible from
bags etc. before sealing them, to
prevent freezer-burn on food.
^Close the packaging tightly with
- rubber bands
- plastic clips
- string or bag ties
- freezer tape.
Freezer bags may also be sealed
using home heat-sealing kits.
^Make a note of the contents and the
date of freezing on the packaging.
Freezing and storing food
17

Before placing food in the freezer
^When freezing more than 2 kg of
fresh food, switch on the Super
freeze function for some time before
placing the food in the freezer (see
"Super freeze").
This also helps to prevent food that is
already in the freezer from starting to
defrost.
Placing food in the freezer
Fresh food can be placed in any
drawer for freezing, however it is
preferable to use the upper drawers.
Large quantities should be placed
directly on the glass cold plates to
freeze the food quickly. To do this first
take out one or several freezer drawers.
Each drawer and glass cold plate
can take a maximum of 25 kg.
^Place the food flat in the base of the
drawers or on the glass cold plates
so that it freezes through to the core
as quickly as possible.
^Make sure that the packaging and
containers are dry to prevent them
sticking together when frozen.
When freezing, make sure that food
already frozen does not come into
contact with fresh food being frozen
as this could cause the frozen food
to begin to defrost.
Freezing large items
To freeze a large item such as a turkey
or joint of meat, the glass cold plates
between the freezer drawers can be
removed. To do this:
^Remove the freezer drawers, and
carefully slide out the glass cold
plate you wish to remove.
Defrosting
Frozen food can be defrosted in
different ways:
–in a microwave oven,
– in the oven using the “Fan” or
“Defrost” setting,
– at room temperature,
– in the refrigerator (the cold given off
by the frozen food helps to keep
other food cold),
– in a steam oven.
Poultry It is particularly important to
observe food hygiene rules when
defrosting poultry. Do not use the liquid
from defrosted poultry. Pour it away
and wash the container it was in, the
sink and your hands. Danger of
salmonella poisoning.
Fruit should be defrosted at room
temperature in its packaging, or in a
covered bowl.
Most vegetables can be cooked while
still frozen. Just put straight into boiling
water or hot fat. The cooking time is
slightly less than that of fresh
vegetables due to changes in the cell
structure.
Freezing and storing food
18

Never re-freeze partially or fully
defrosted food. Consume defrosted
food as soon as possible as it will
lose its nutritional value and spoil if
left for too long. Defrosted food may
only be re-frozen after it has been
cooked.
Ice cubes
^Fill the ice tray three quarters full with
water, and place it in the bottom of
one of the drawers.
^Once frozen, use a blunt instrument,
for example a spoon handle, to
remove the ice tray from the freezer.
^Ice cubes can be removed easily
from the tray by twisting the tray
gently or by holding it under cold
running water for a short while.
Cooling drinks
When cooling drinks quickly, make sure
bottles are not left in the freezer for
more than one hour, as they could
burst.
Freezing and storing food
19

In normal use, ice and frost will form in
the freezer. If allowed to accumulate,
this will impair efficiency and increase
the consumption of electricity.
Do not scrape ice and frost off, and
do not not use any sharp edged or
pointed instruments to aid the
defrosting process.
They will damage the evaporator,
causing irreversible damage to the
appliance.
The freezer should be defrosted from
time to time. It must be defrosted if a
layer of ice approx. 5 mm thick has
accumulated. It is best to defrost when
only very little food or no food at all is
left in the freezer.
Before defrosting
^Switch on the Super freeze function
at least 4 hours before defrosting to
ensure frozen food retains its cold
reserve for longer when taken out of
the freezer.
^Remove the frozen food from the
freezer and place it in another freezer
or cool box, or wrap it in several
layers of newspaper or cloths and
store in a cool place until the freezer
is ready for use again.
^Remove all the freezer drawers and
glass cold plates from the freezer.
To defrost
Carry out the defrosting procedure
as quickly as possible if food has
not been placed in another freezer.
The longer the food is left out at
room temperature, the faster it
defrosts.
^Switch the appliance off.
^Disconnect it from the mains. Switch
off at the wall and withdraw the plug
from the socket, or disconnect the
mains fuse or remove the screw-out
fuse in countries where this is
applicable.
^Open the freezer door.
To speed up defrosting, a bowl
containing hot water (not boiling) can
be placed in the appliance. Closing the
door in this instance will help retain the
warmth and speed up the defrosting
process.
We do not recommend the use of
hot air blowers such as hairdryers
for defrosting your appliance.
Do not use a steam-cleaning
appliance to aid the defrosting
process. Steam could reach the
electrical components and cause a
short circuit.
Never place electric heaters or
candles in the appliance to defrost
it. These can damage the plastic
parts.
Defrosting
20
