Miele KFN 8700 SE ed Specification sheet

Operating and installation instructions
Frost free freezer
with StayFresh zone
and ice cube maker
KFN 8700 S ed
To avoid the risk of accidents or
damage to the appliance, it is
essential to read these operating instructions
before it is installed or used for the
first time.
G
M.-Nr. 06 434 590

Description of the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
How to save energy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Switching on and off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
StayFresh zone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Freezer section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Safety lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Switching off for longer periods of time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
The correct temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
. . . in the StayFresh zone. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Setting the temperature in the StayFresh zone . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
. . . in the freezer section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Setting the temperature in the freezer section. . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Temperature displays. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Temperature display brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Alarm. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Temperature alarm. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Door alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Switching on the alarm system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Switching the alarm off early . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Super cool and Super freeze . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Super cool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Freezing fresh food . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Super freeze. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Using the StayFresh zone efficiently . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
StayFresh zone compartments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Low humidity level ,. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
High humidity level -. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Food which should not be stored in the StayFresh zone. . . . . . . . . . . . . . . . . . . . 22
Storing food correctly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Fruit and vegetables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Protein rich foods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Meat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Ad usting the interior fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Freezing and storing food. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Maximum freezing capacity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Contents

Storing frozen food. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Home freezing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Hints on home freezing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Packing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Before placing food in the freezer compartment . . . . . . . . . . . . . . . . . . . . . . . 26
Placing food in the freezer compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Freezer calendar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Marker system for frozen food . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Defrosting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Cooling drinks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Freezer tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Cool pack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Ice cube maker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Defrosting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Cleaning the outer casing, the interior and accessories . . . . . . . . . . . . . . . . . . . . 32
Cleaning the ice cube tray. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Ventilation gaps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Door seals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Metal grille at the back of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Problem solving guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Noises . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Mains water connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Notes on connecting to the mains water supply . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Connection to the water inlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Electrical connection U.K. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Climate range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Ventilation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Aligning the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Changing the door hinging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Building in the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Contents

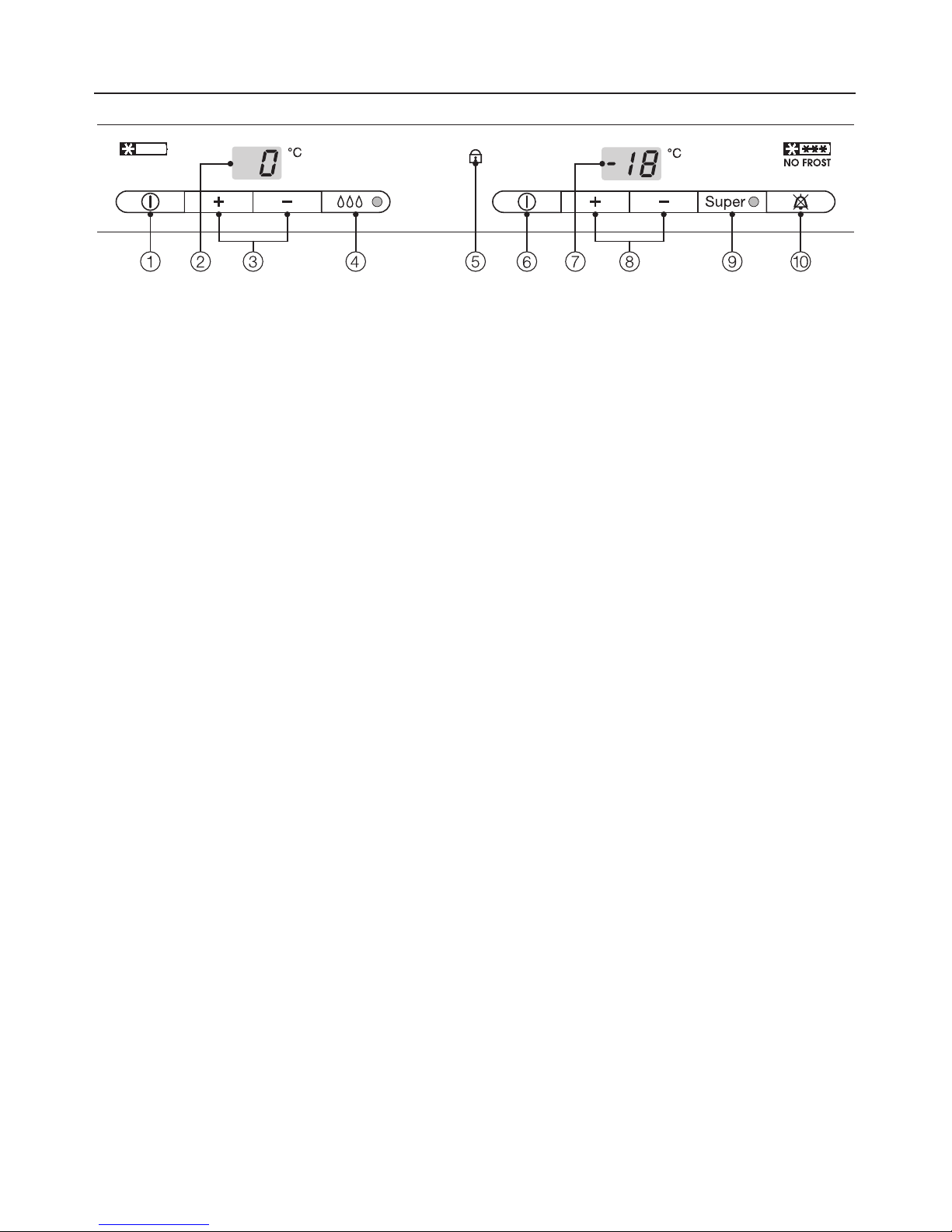

aStayFresh zone On/Off button
bStayFresh zone temperature display
cStayFresh zone
temperature selector buttons
left hand button: warmer
right hand button: colder
dStayFresh zone Super cool button
and indicator light
eSafety lock indicator light
fFreezer section On/Off button
gFreezer section temperature display
hFreezer section
temperature selector buttons
left hand button: warmer
right hand button: colder
iSuper freeze button and indicator
light
jAlarm off button
Description of the appliance
4

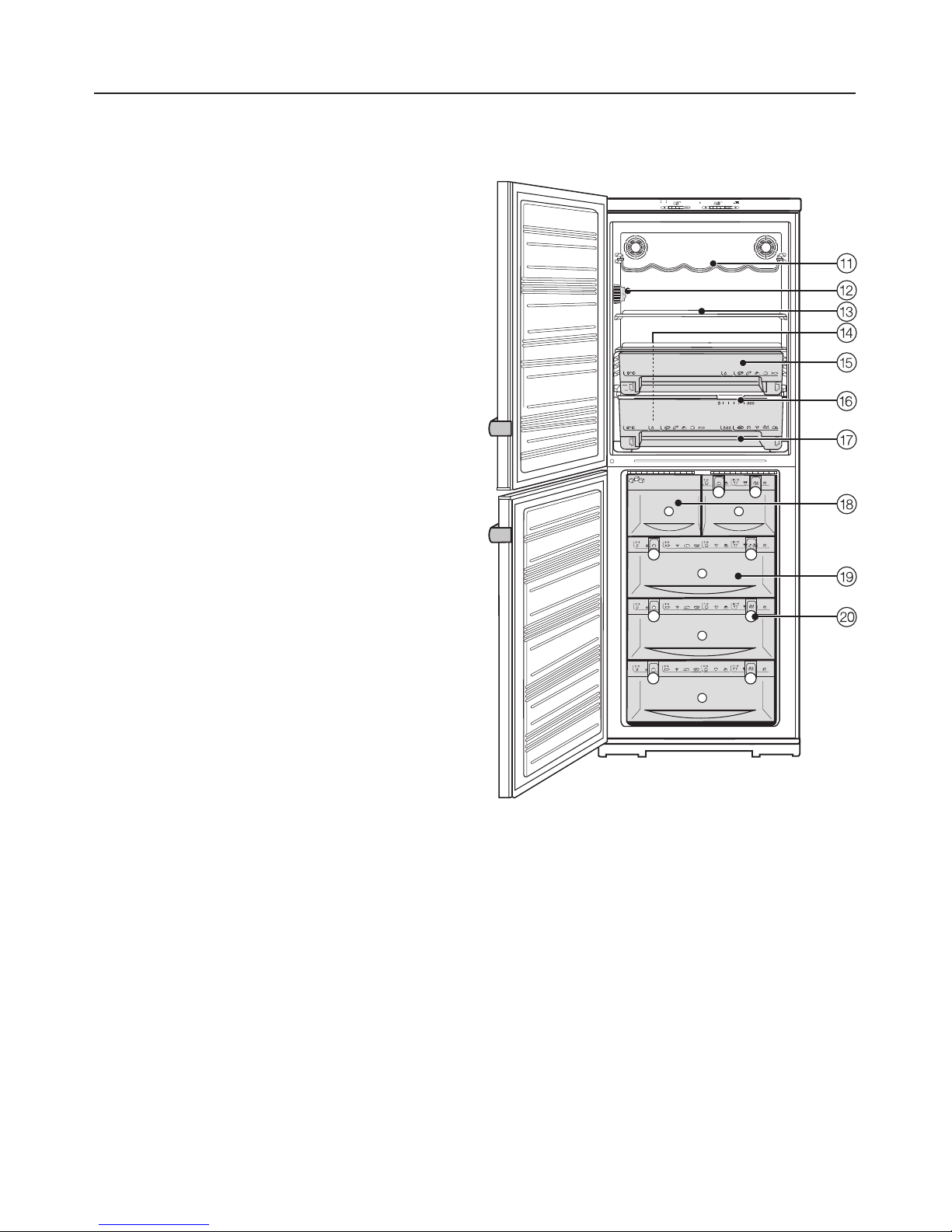

kBottle rack
lInterior lighting
mShelves
nCondensate channel and
drain hole
oStayFresh zone, dry compartment
pControl for setting the moisture level
in the humidity controlled
compartment
qStayFresh zone, humidity controlled
compartment
rIce cube drawer with
automatic ice cube maker
sFreezer drawers with
freezer calendar
tMarker system for frozen food
Description of the appliance
5

Disposal of packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and can normally be recycled.
Ensure that any plastic wrappings,
bags etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation!
Rather than just throwing these
materials away, please ensure that they
are recycled.
Disposal of your old appliance
Please ensure that your old appliance
is disposed of at an authorised disposal
centre only. Contact your local authority
for advice if required.
Make sure that the pipework is not
damaged whilst moving an old
appliance. This is to ensure that the
refrigerant and oil in the compressor
cannot leak into the environment.
It is important that they are disposed of
in a safe manner by authorised persons
only.
Ensure that the appliance presents no
danger to children while being stored
for disposal.
See the appropriate section in the
Warning and Safety instructions.
Caring for the environment
6

This machine complies with all
relevant legal safety requirements.
Improper use of the appliance can,
however, present a risk of both
personal injury and material
damage.
Before installation and before using
for the first time, read the operating
instructions carefully. They contain
important notes on installation,
safety, operation and care of the
appliance. This way you will avoid
the risk of accidents and damage to
the appliance.
This appliance is not a toy! To avoid
the risk of injury, do not allow
children to play on or near it, or to
play with the controls. Supervise its
use by the elderly or infirm.
Keep these operating instructions in
a safe place and pass them on to
any future user.
Correct usage
This appliance is intended for
domestic use only for the cool
storage of foodstuffs as well as for
storing deep frozen food, freezing fresh
food and for preparing ice.
Any other usage is not supported by
the manufacturer and could be
dangerous. The manufacturer cannot
be held liable for damage caused by
incorrect or improper use of the
appliance.
Technical safety
This appliance contains the coolant
Isobutane (R600a), a natural gas
which is environmentally friendly.
Although it is flammable, it does not
damage the ozone layer and does not
increase the greenhouse effect. The
use of this environmentally friendly
coolant has, however, led to a slight
increase in the noise level of the
appliance. In addition to the noise of
the compressor, you might be able to
hear the coolant flowing around the
system. This is unavoidable, but does
not have any adverse effect on the
performance of the appliance.
Care must be taken during
transportation and setting up of the
appliance that no parts of the cooling
system are damaged. Leaking coolant
can damage the eyes.
In the event of any damage:
- avoid open fires
and anything which creates a spark,
- disconnect from the mains,
- air the room in which the appliance is
located for several minutes and
- contact the Service Department
for advice.
The more refrigerant there is in an
appliance, the larger the room it
should be installed in. In the event of a
leakage, if the appliance is in a small
room, there is the danger of
combustible gases building up.
For every 8 g of coolant at least 1 m3
room space is required. The amount of
coolant in the appliance is stated on the
data plate inside the appliance.
Warning and Safety instructions
7

Before connecting the appliance to
the mains supply make sure that
the rating on the data plate
corresponds to the voltage and
frequency of the household supply. This
data must correspond in order to avoid
risk of damage to the appliance. If in
any doubt, consult a qualified
electrician.
The electrical safety of this
appliance can only be guaranteed
when continuity is complete between
the appliance and an effective earthing
system, which complies with local and
national safety regulations. It is most
important that this basic safety
requirement is present and regularly
tested and where there is any doubt
the household wiring system should be
inspected by a qualified electrician.
The manufacturer cannot be held liable
for the consequences of an inadequate
earthing system (e.g. electric shock).
Safe operation of the appliance is
only assured if it has been installed
and connected in accordance with
these operating and installation
instructions.
This equipment may only be used
in mobile installations such as
ships, caravans, aircraft etc. if a risk
assessment of the installation has been
carried out by a suitably qualified
engineer.
Installation work, maintenance and
repairs may only be carried out by
suitably qualified and competent
persons to ensure safety.
Repairs and other work by unqualified
persons could be dangerous and the
manufacturer will not be held liable.
The manufacturer cannot be held
liable for damage due to a faulty
connection to the mains water supply.
Connection to the mains water
supply and any repairs to the ice
maker must only be carried out by a
suitably qualified and competent
person.
This ice maker is not suitable for
connection to a hot water supply.
Before making plumbing
connections, ensure the appliance
is disconnected from the mains
electricity supply.
The appliance is only completely
isolated from the electricity supply
when:
– it has been switched off at the wall
socket and the plug has been
withdrawn.
– the fuse from the fused spur
connection unit is withdrawn, or
–the screw-out fuse is removed (in
countries where this is applicable).
Do not connect the appliance to
the mains electricity supply by an
extension lead.
Extension leads do not guarantee the
required safety of the appliance (e.g.
danger of overheating).
Warning and Safety instructions
8

Use
Never handle frozen food with wet
hands. Your hands may freeze to
the frozen food. Danger of frost burn.
Do not take ice cubes out with your
bare hands and never place ice
cubes or ice lollies in your mouth
straight from the freezer.
The very low temperature of the frozen
ice or lollies can cause frost burn to the
lips and tongue.
Do not refreeze thawed or partially
thawed food. Defrosted food
should be used up as quickly as
possible as food soon loses its
nutritional value and goes off. Defrosted
food may only be re-frozen after it has
been cooked.
Do not store explosive materials in
the appliance or any products
containing propellants (e.g. spray
cans). Thermostats switching on may
produce sparks which could present a
fire hazard.
If storing alcohol with a high
percentage proof, make sure it is
tightly closed and stored upright.
Danger of explosion.
Do not store cans or bottles
containing carbonated drinks or
liquids which could freeze in the
freezer. The cans or bottles could
explode.
Danger of injury and damage to the
appliance.
When cooling drinks quickly in the
freezer make sure bottles are not
left in for more than one hour, otherwise
they could burst. Danger of injury and
damage to the appliance.
Observe the "use by" dates given
on food to avoid the risk of food
poisoning.
Storage times will depend on several
factors including the freshness and
quality of the food as well as the
temperature at which it is stored. Follow
the instructions given on food
manufacturer's packaging on storage
conditions required as well as the "use
by" date.
Do not use sharp edged objects to
– remove frost and ice,
– separate frozen foods and remove
ice trays.
They will damage the evaporator
causing irreversible damage to the
appliance.
Never place electric heaters or
candles in the appliance to defrost
it. These can damage the plastic parts.
Do not use defrosting sprays, or
de-icers as they could contain
substances which could damage the
plastic parts and which may cause the
build up of gases and pose a danger to
health.
Do not use any oils or grease on
the door seals as these will cause
the seals to deteriorate and become
porous with time.
Warning and Safety instructions
9

Do not block the ventilation grilles
in the appliance as this would
impair the efficiency of the appliance,
increase the electricity consumption
and could cause damage to the
appliance.
The appliance is designed for use
within certain climate ranges
(ambient temperatures) and should not
be used outside this range. The climate
range for your appliance is stated on
the data plate inside the appliance.
Installing it in a room with too low an
ambient temperature, e.g. a garage,
will lead to the appliance switching off
for longer periods so that it cannot
maintain the required temperature.
Never use a steam-cleaning
appliance to defrost or clean this
appliance. Pressurised steam could
reach the electrical components and
cause a short circuit.
In countries where there are areas
which may be subject to infestation
by cockroaches or other vermin, pay
particular attention to keeping the
appliance and its surrounding in a
clean condition at all times. Any
damage caused by cockroaches or
vermin will not be covered by the
appliance guarantee.
Disposal of old appliances
Before disposing of an old
appliance first make the door latch
or lock unusable.
This way you will prevent children from
accidentally locking themselves in and
endangering their lives.
Before disposing of an old
appliance, unplug it and render the
plug unusable. Cut off the cable
directly behind the appliance and at the
plug to prevent misuse.
Be careful not to damage any part
of the pipework whilst awaiting
disposal, e.g. by
– puncturing the refrigerant channels
in the evaporator.
– bending any pipework.
– scratching the surface coating.
Splashes of refrigerant can damage the
eyes.
The manufacturer cannot be held
liable for damage caused by
non-compliance with these Warning
and safety instructions.
Warning and Safety instructions
10

normal energy
consumption
increased energy
consumption
Installation In a ventilated room. In an enclosed, unventilated room.
Protected from direct sunlight. In direct sunlight.
Not situated near to a heat source
(radiator, oven).
Situated near to a heat source
(radiator, oven).
Where the ambient room
temperature is ideal at approx.
20°C.
Where there is a high ambient room
temperature.
Temperature setting with
a thermostat which is
approximate
(set in stages).
With a medium setting of 2 to 3. With a high setting: The lower the
compartment temperature, the
higher the energy consumption.
Temperature setting with
a thermostat which is
exact to the degree
(digital display).
Cellar section 8 to 12°C On appliances with winter setting,
please make sure that the winter
setting is switched off when the
ambient temperature is warmer
than 16 °C.
Refrigerator section 4 to 5 °C
StayFresh zone approx. 0°C
Freezer section -18°C
Use Only open the door when
necessary and for as short a time
as possible.
Frequent opening of the door for
long periods will cause a loss of
coldness.
Store food in an organised way. If food is not stored in an organised
way, searching for an item will
mean the door is open for longer.
Allow hot food and drinks to cool
down before placing them in the
appliance.
Placing hot food in the appliance
will cause the compressor to run for
a long time, as the appliance will
have to work harder to lower the
temperature.
Store food covered or packaged. The evaporation or condensation of
liquids will cause a loss of coldness
in the refrigerator.
Place frozen food in the refrigerator
to defrost.
Do not over-fill the sections to allow
air to circulate.
Defrosting Defrost the freezer section when a
layer of ice one centimetre thick
has built up.
A layer of ice hinders the cold from
reaching the frozen food, and
causes an increase in energy
consumption.
How to save energy
11

Before using for the first time
The stainless steel surface and the
decor strips have a protective cover to
prevent scratching during
transportation.
^Do not remove this foil until the
appliance has been installed or built
in. Start at one of the upper corners.
^Clean the inside of the appliance and
the accessories with warm water and
a little washing up liquid, and then
dry with a soft cloth.
Important:
To ensure the correct functioning of
the appliance, let it stand for
between ½ and 1 hour after
transporting it to its final location
before connecting it to the mains.
Switching on
The StayFresh zone and the freezer
section are switched on independently
of one another so that, if required, you
can switch on only one section.
StayFresh zone
^Press the StayFresh zone On/Off
button on the left hand side of the
control panel.
The StayFresh zone temperature
display lights up. The StayFresh zone
starts cooling. The interior light will
come on if the door is opened.
Freezer section
^Press the freezer section On/Off
button on the right hand side of the
control panel.
Bars light up in the freezer section
temperature display and the freezer
section starts cooling.
Allow the appliance to run for a few
hours before placing food in it. This will
ensure that the temperature is
sufficiently low.
Cool pack
Place the cool pack in the top freezer
drawer or to save space on the freezer
tray. The cool pack will be at its most
effective after it has been in the freezer
for approx. 24 hours.
Switching off
^Press the appropriate On/Off button
until the temperature display goes
out.
The cooling system is switched off. (If
this does not happen, the safety lock is
still activated).
Switching on and off
12

Safety lock
The safety lock can be activated to
prevent the appliance being switched
off inadvertently.
Activating or de-activating the safety
lock
^Press and hold the Super freeze
button for approx. 5 seconds.
The Super freeze indicator light flashes
and a ;flashes in the temperature
display.
^Press the Super freeze button again.
;lights up in the temperature display.
^You can now choose between ;0
and ;1by pressing the temperature
selector buttons:
0: the safety lock is de-activated,
1: the safety lock is activated.
^Press the Super freeze button to save
the setting.
The safety lock indicator light Xwill
light up when the safety lock has been
activated.
^Press the freezer section On/Off
button to come out of the setting
mode.
The electronics will then switch over to
normal operation after a couple of
minutes.
Switching off for longer
periods of time
If the appliance is not going to be used
for a longer period of time, e.g. whilst
on holiday,
^switch the appliance off,
^switch off at the wall socket and
withdraw the plug,
^close the stopcock for the water inlet,
^clean the appliance out and
^leave the doors ajar to air the
appliance.
If, during a long absence, the
appliance is switched off but not
cleaned out and the doors are left
shut, there is a danger of mould and
odours building up inside the
appliance.
Switching on and off
13

It is very important to set the correct
temperature for storing food in the
appliance. Micro-organisms will cause
food which is not stored at the correct
temperature to deteriorate rapidly.
Temperature influences the growth rate
of these micro-organisms. Reducing
the temperature reduces their growth
rate.
The temperature in the appliance will
rise
–the more often the door is opened
and the longer it is kept open,
– if too much food is stored in it at
once.
– the warmer the food is which is being
put into it,
– the higher the ambient temperature
surrounding the appliance.
The appliance is designed for use in
specific ambient temperatures
(climate ranges). Do not use in
ambient temperatures for which it is
not designed.
. . . in the StayFresh zone
The temperature in the StayFresh zone
is automatically held at approx. 0 -2 °C.
Setting the temperature in the
StayFresh zone
The temperature in the StayFresh zone
can be raised or lowered, e.g. if you
want to use it for storing items like fish.
^You can adjust the temperature by
pressing the temperature selector
buttons.
You can choose from settings
=1to =9:
1: lowest temperature,
9: highest temperature.
Press the
left hand button: to raise the
temperature
right hand button: to reduce the
temperature.
=5is the default setting for the
StayFresh zone. If a setting of =1to
=4is selected, the temperature
can fall below 0°C. Food could
freeze!
Approx. 5 seconds after letting go of
the button the current temperature of
the StayFresh zone is automatically
shown.
The correct temperature
14

. . . in the freezer section
To freeze fresh food and to store frozen
food for a long time, a temperature
colder than -18 °C is required. At this
temperature the growth of
micro-organisms is generally halted. As
soon as the temperature rises above
-10 °C, the micro-organisms become
active in the food again so that it cannot
be kept as long. For this reason,
partially defrosted or defrosted food
must not be re-frozen. Food may be
re-frozen once it has been cooked, as
the high temperatures achieved when
cooking destroy most micro-organisms.
Setting the temperature in the
freezer section
Use the two buttons directly below the
freezer section temperature display to
set the temperature.
Press the
left hand button: to raise the
temperature
right hand button: to reduce the
temperature.
The temperature being set will flash in
the display.
After setting the temperature you can
see the following information in the
display by pressing the +/- buttons:
–When first pressed, the last
temperature selected flashes.
–Each subsequent press of the button
adjusts the temperature shown in
1 °C steps.
–Keeping the button pressed in
adjusts the temperature continually.
Approx. 5 seconds after letting go of
the button, the current temperature of
the freezer section is automatically
shown.
If you have adjusted the temperature,
wait for approx. 6 hours if the
appliance is not very full and for
approx. 24 hours if the appliance is
full before checking the temperature
display as it will take this long for the
display to show the accurate
temperature. If, after this time, the
temperature is still too high or too low,
you will need to adjust it again.
Temperature range
The temperature in the freezer section
can be adjusted from -14 °C to -28 °C
The ambient temperature in the room
and the installation location can affect
the time it takes for the appliance to
reach the lowest temperature. If the
ambient temperature is too high, the
appliance may not reach the lowest
temperature.
The correct temperature
15

Temperature displays
During normal operation the
temperature displays on the control
panel show the average temperature in
the StayFresh zone and the
temperature in the warmest part of the
freezer section.
If the temperature in the freezer section
is not within the range that the
appliance is able to display (below
0 °C), bars will flash in the temperature
display.
Depending on the ambient temperature
and the setting, it can take the
appliance up to 8 hours to reach the
temperature required and for this
temperature to then be shown as a
constant temperature in the display.
The temperature displays flash, if
– a different temperature is being set,
– the temperature in the appliance has
risen by several degrees, indicating
that the appliance is warming up too
much.
This loss of coldness is no cause for
concern in the following circumstances:
–when the door has been left open for
a while, e.g. for removing or storing a
large amount of food,
–when fresh food is being frozen.
However, if the temperature in the
freezer section remains above -18 °C
for a long time, check that the frozen
food has not started to defrost. If it has
started thawing, check that the food is
safe to use and if it is, use it as quickly
as possible.
Temperature display brightness
The appliance is supplied with the
brightness of the temperature display
set as low as possible. However, if the
door is opened, a setting changed or if
the alarm is sounding, the temperature
display will appear much brighter for
approx. 1 minute.
You can adjust the level of brightness:
^Press and hold the Super freeze
button for approx. 5 seconds.
The Super freeze indicator light flashes
and a ;flashes in the temperature
display.
^Press one of the temperature selector
buttons repeatedly until an ^appears
in the display.
^Press the Super freeze button again.
^lights up in the temperature display.
^You can now adjust the level of
brightness by pressing the
temperature selector buttons. You
can choose from settings 1to 5:
1: lowest setting,
5: brightest setting.
The correct temperature
16

^Press the Super freeze button to save
the setting.
^Press the freezer section On/Off
button to come out of the setting
mode.
The electronics will then switch over to
normal operation after a couple of
minutes.
The correct temperature
17

Your appliance has been fitted with a
warning system which ensures that the
temperature in the freezer section
cannot rise unnoticed and to avoid
energy being wasted if the door is left
open.
Temperature alarm
An alarm will sound and the
temperature display will flash if the
temperature in the freezer section gets
too warm. The temperature the
appliance is set at determines the
temperature the appliance recognises
as being too warm.
The alarm will sound and the
temperature display will flash,
– if the freezer section door has been
left open for a while, e.g. in order to
load, re-arrange or take food out.
– when freezing large amounts of food
at once.
– if there has been a lengthy
interruption to the power supply.
Door alarm
If the door has been left open for more
than approx. 60 seconds the alarm will
sound.
Switching on the alarm system
The alarm system is always active. It
does not have to be switched on
manually.
Switching the alarm off early
Once the set temperature has been
reached in the freezer section, the
alarm switches off and the temperature
display stops flashing and lights up
constantly. However, if the noise
disturbs you, you can turn the alarm off
before this if you wish.
^Press the alarm off button.
The alarm will stop. The temperature
display will continue to flash until the
set temperature has been reached.
The display then stops flashing and
lights up constantly. The alarm
system is now ready should it be
needed again.
Alarm
18

Super cool
The Super cool function can be used to
rapidly reduce the temperature
throughout the StayFresh zone to its
lowest setting (depending on the room
temperature).
Switching on Super cool
Super cool is particularly
recommended for faster chilling of
large amounts of fresh food or drink.
^Press the StayFresh zone Super cool
button, the super cool indicator light
will come on.
The appliance works at full power to
lower the temperature in the
StayFresh zone.
Switching off Super cool
The Super cool function switches itself
off automatically after approx. 6 hours.
The indicator light goes out and the
appliance continues running at normal
power.
To save energy, the Super cool function
can be switched off once food and
drinks are sufficiently chilled.
^Press the Super cool button. The
Super cool indicator light will go out,
and the appliance will continue to
operate at normal power.
Freezing fresh food
Fresh food should be frozen as quickly
as possible. This way the nutritional
value of the food, its vitamin content,
appearance and taste are not impaired.
Food which takes a long time to freeze
will lose more water from its cells, which
then shrink.
During the defrosting process, only
some of this water is reabsorbed by the
cells; the rest collects around the food.
In practice this means that the food
loses a large degree of its moisture.
If food is frozen quickly, the cells have
less time to lose moisture, so they
shrink less. As there is not so much
moisture, it is easier for the food to
reabsorb it during the defrosting
process. There will be very little water
around the defrosted food.
Super cool and Super freeze
19

Super freeze
Switch the Super freeze function on
before putting fresh food into the
freezer section.
Exceptions:
–when putting in food that is already
frozen.
–when freezing up to 2 kg fresh food
daily.
Switching on Super freeze
When freezing small quantities of food
in the freezer section, the Super freeze
function should be switched on 6 hours
beforehand. When freezing the
maximum load of food the Super
freeze function should be switched on
24 hours beforehand.
^Press the Super freeze button. The
Super freeze indicator light will come
on.
The appliance works at full power to
lower the temperature in the freezer
section.
Switching off Super freeze
Depending on the amount of food
placed in the freezer section, the Super
freeze function will switch off
automatically after approx. 30 to 65
hours. The Super freeze indicator light
will go out and the appliance will
continue running at normal power.
To save energy the Super freeze
function can be switched off once a
constant temperature of -18 °C or
colder has been reached in the freezer
section.
^Press the Super freeze button. The
Super freeze indicator light will go out
and the appliance will continue to
operate at normal power.
Super cool and Super freeze
20
