Miele F 5122 Ui User manual

Operating and installation instructions
Freezer
F 5122 Ui
To avoid the risk of accidents or
damage to the appliance, it is
essential to read these operating instructions
before it is installed or used for the
first time. M.-Nr. 09 087 950
en-GB

Guide to the appliance .............................................4
Caring for the environment..........................................5
Warning and Safety instructions .....................................6
How to save energy ...............................................11
Switching on and off ..............................................12
Switching off for longer periods of time .................................12
The correct temperature ...........................................13
Setting the temperature .............................................13
Temperature display ...............................................14
Alarm...........................................................15
Switching on the alarm system .......................................15
Temperature alarm ................................................15
Switching the alarm off early .........................................15
Super freeze .....................................................16
Super freeze .....................................................16
Switching on Super freeze ........................................16
Switching off Super freeze ........................................16
Freezing and storing food..........................................17
Maximum freezing capacity..........................................17
Freezing fresh food ................................................17
Storing frozen food ................................................17
Home freezing ....................................................18
Hints on home freezing...........................................18
Packing ......................................................18
Placing food in the freezer ........................................19
Freezer calendar ..................................................19
Defrosting .......................................................19
Ice cubes ........................................................20
Cooling drinks ....................................................20
Cool pack........................................................20
Defrosting the appliance ...........................................21
Cleaning and care ................................................23
Cleaning the interior and accessories ..................................23
Ventilation gaps ...................................................23
Door seal ........................................................24
Contents

Problem solving guide ............................................25
Noises .........................................................27
After Sales/Guarantee .............................................28
Guarantee .....................................................28
Electrical connection..............................................29
Installation tips...................................................30
Location .........................................................30
Climate range ..................................................30
Ventilation .......................................................30
Before installation .................................................30
Building in dimensions ...........................................31
Changing the door hinging .........................................32
Installing the appliance ............................................33
Weight of the furniture door ..........................................33
Installation .......................................................33
Fitting the plinth facing .............................................35
Fitting a furniture door ..............................................37
Drilling positions on framed doors ..................................37
Aligning the furniture door ...........................................38
Contents

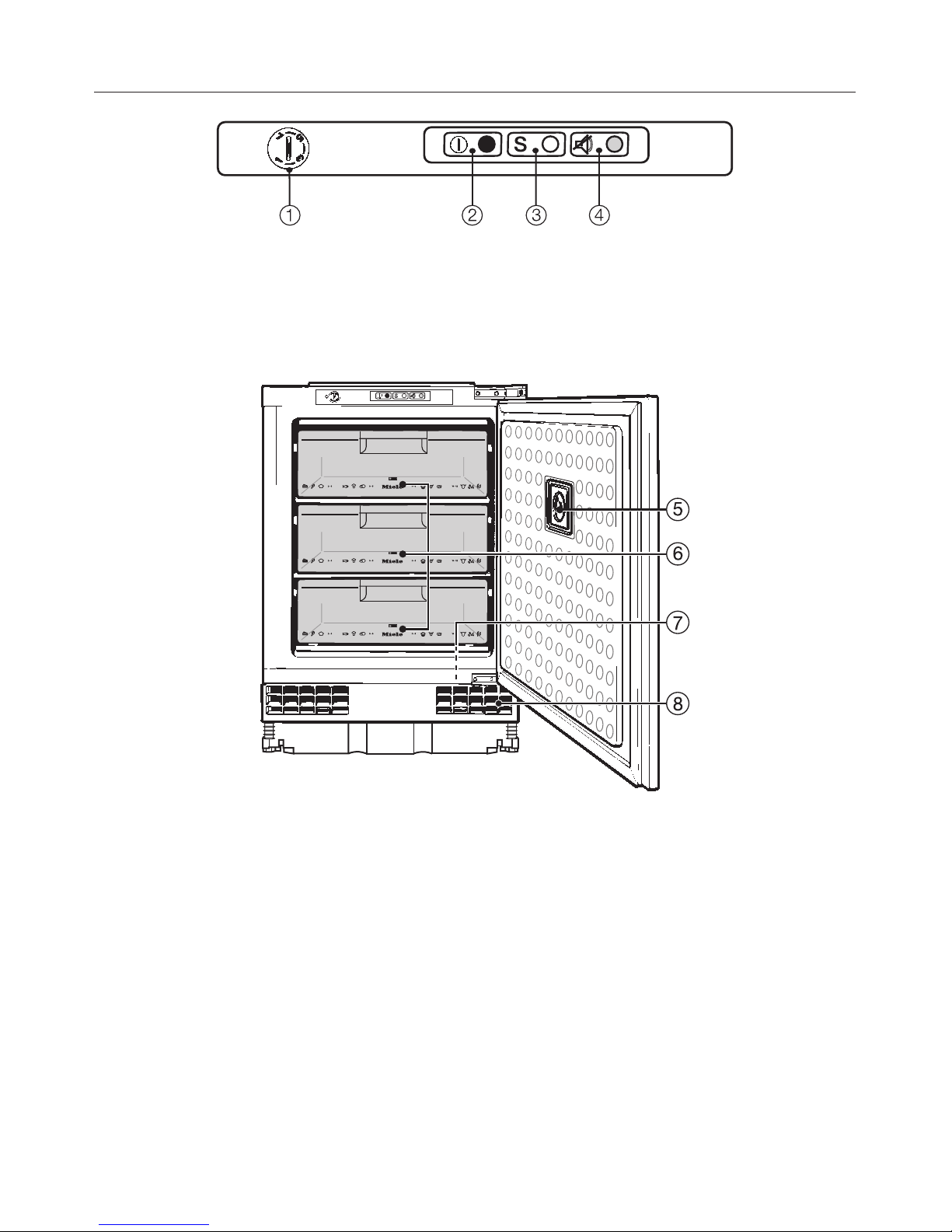

aTemperature selector
bOn/Off button with indicator light
eTemperature display
fFreezer drawers with
freezer calendar
cSuper freeze button with indicator
light
dAlarm off button with
indicator light
gAdditional storage compartment
(e.g. for storing cool packs)
hVentilation grille
Guide to the appliance
4

Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for
disposal, and should be recycled.
Ensure that any plastic wrappings,
bags etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation!
Disposal of your old appliance
Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Please do not therefore dispose of it
with your household waste.
Please dispose of it at your local
community waste collection / recycling
centre or contact your dealer for
advice. Ensure that it presents no
danger to children while being stored
for disposal.
Take care not to damage the pipework
at the back of it before or during
transportation to an authorised
collection depot.
In this way, refrigerant in the pipework
and oil in the compressor will be
contained, and will not leak out into the
environment.
Caring for the environment
5

This appliance complies with all
relevant legal safety requirements.
Improper use can, however, present
a risk of both personal injury and
damage to property.
To avoid the risk of accidents and
damage to the appliance, please
read these instructions carefully
before using it for the first time. They
contain important notes on
installation, safety, operation and
maintenance.
Keep these instructions in a safe
place and pass them on to any
future user.
Correct application
~This appliance is not designed for
commercial use. It is intended for use in
domestic households and in similar
working and residential environments
such as:
–Shops
–Offices and showrooms
and by residents in establishments
such as:
–Hostels and guest houses.
This appliance is not intended for
outdoor use.
It must only be used as a domestic
appliance to store deep frozen food, to
freeze fresh food and to prepare ice.
Any other usage is not supported by
the manufacturer and could be
dangerous. Miele cannot be held liable
for damage resulting from incorrect or
improper use or operation of the
appliance.
~This appliance is not intended for
use by people with reduced physical,
sensory or mental capabilities, or lack
of experience and knowledge, unless
they are supervised whilst using it, or
have been shown how to use it
correctly by a person responsible for
their safety.
Safety with children
~This appliance is not a toy! To avoid
the risk of injury, do not allow children
to play with it or near it or to play with
the controls. Older children may only
use the the appliance when its
operation has been clearly explained to
them and they are able to use it safely,
recognising the dangers of misuse.
~Supervise children whilst you are
using it.
Warning and Safety instructions
6

Technical safety
~Before setting up the appliance,
check it for any externally visible
damage. Do not install and use a
damaged appliance.
It could be dangerous.
~If the connection cable is faulty it
must only be replaced by a service
technician authorised by the
manufacturer to protect the user from
danger.
~This appliance contains the coolant
Isobutane (R600a), a natural gas which
is environmentally friendly. Although it
is flammable, it does not damage the
ozone layer and does not increase the
greenhouse effect. The use of this
coolant has, however, led to a slight
increase in the noise level of the
appliance. In addition to the noise of
the compressor, you might be able to
hear the coolant flowing around the
system. This is unavoidable, and does
not have any adverse effect on the
performance of the appliance.
Care must be taken during the
transportation and installation of the
appliance that no parts of the cooling
system are damaged. Leaking coolant
can damage the eyes.
In the event of any damage:
- avoid open flames and anything which
creates a spark,
- disconnect from the mains,
- air the room in which the appliance is
located for several minutes and
- contact the Service Department for
advice.
~The more coolant there is in an
appliance, the larger the room it should
be installed in. In the event of a
leakage, if the appliance is in a small
room, there is the danger of
combustible gases building up.
For every8gofcoolant at least 1 m3of
room space is required. The amount of
coolant in the appliance is stated on the
data plate inside the appliance.
~Safe operation of the appliance is
only assured if it has been installed and
connected in accordance with these
operating and installation instructions.
~Before connecting the appliance to
the mains supply, make sure that the
rating on the data plate corresponds to
the voltage and frequency of the
household supply.
This data must correspond in order to
avoid the risk of damage to the
appliance. Consult a qualified
electrician if in any doubt.
~Do not connect the appliance to the
mains electricity supply by a
multi-socket adapter or an extension
lead. These do not guarantee the
required safety of the appliance (e.g.
danger of overheating).
Warning and Safety instructions
7

~The electrical safety of this
appliance can only be guaranteed if
correctly earthed. It is most important
that this basic safety requirement is
observed and regularly tested and
where there is any doubt, the
household wiring system should be
inspected by a qualified electrician.
The manufacturer cannot be held liable
for damage or injury caused by the lack
of or inadequacy of an effective
earthing system (e.g. electric shock).
~Installation, maintenance and
repairs may only be carried out by a
suitably qualified and competent
person in strict accordance with current
national and local safety regulations.
Repairs and other work by unqualified
persons could be dangerous. The
manufacturer cannot be held liable for
unauthorised work.
~While the appliance is under
guarantee, repairs should only be
undertaken by a service technician
authorised by the manufacturer.
Otherwise the guarantee will be
invalidated.
~The appliance must be isolated from
the electricity supply during installation,
maintenance and repair work.
~Faulty components must only be
replaced by genuine Miele original
spare parts. The manufacturer can only
guarantee the safety of the appliance
when Miele replacement parts are
used.
~This appliance must not be used in
a non-stationary location (e.g. on a
ship).
~In areas which may be subject to
infestation by cockroaches or other
vermin, pay particular attention to
keeping the appliance and its
surroundings in a clean condition at all
times. Any damage which may be
caused by cockroaches or other vermin
will not be covered by the guarantee.
Warning and Safety instructions
8

Correct use
~Never handle frozen food with wet
hands. Your hands may freeze to the
frozen food. Danger of frost burn.
~Do not take ice cubes out with your
bare hands and never place ice cubes
or ice lollies in your mouth straight from
the freezer.
The very low temperature of the frozen
ice or lollies can cause frost burn to the
lips and tongue.
~Do not refreeze thawed or partially
thawed food.
Defrosted food should be used up as
quickly as possible, as food soon loses
its nutritional value and goes off.
Defrosted food may only be re-frozen
after it has been cooked.
~Observe the "use by" dates given on
food to avoid the risk of food poisoning.
Storage times will depend on several
factors, including the freshness and
quality of the food as well as the
temperature at which it is stored. Follow
the instructions given on food
manufacturer's packaging on storage
conditions required, as well as the "use
by" date.
~Do not store explosive materials in
the appliance or any products
containing propellants (e.g. spray
cans). Thermostats switching on may
produce sparks which could present a
fire hazard. Flammable compounds
could explode.
~Do not operate any electrical
equipment (e.g. an electric ice-cream
maker) inside the appliance. Danger of
sparking and explosion.
~Do not store cans or bottles
containing carbonated drinks or liquids
which could freeze in the freezer. The
cans or bottles could explode.
Danger of injury and damage to the
appliance.
~When cooling drinks quickly in the
freezer, make sure bottles are not left in
for more than one hour, otherwise they
could burst, resulting in injury or
damage.
~Do not use sharp edged objects to
–remove frost and ice,
– separate frozen foods or remove ice
trays.
They will damage the evaporator,
causing irreversible damage to the
appliance.
~Do not use any oils or grease on the
door seal, as these will cause the seal
to deteriorate and become porous with
time.
Warning and Safety instructions
9

~This appliance is designed for use
within certain climate ranges (ambient
temperatures), and should not be used
outside this range. The climate range
for your appliance is stated on the data
plate inside the appliance.
Installing it in a room with too low an
ambient temperature, e.g. a garage,
can lead to the appliance switching off
for longer periods so that it cannot
maintain the required temperature.
~Never place electric heaters or
candles in the appliance to defrost it.
These can damage the plastic parts.
~Do not use defrosting sprays or
de-icers, as they might contain
substances which could damage the
plastic parts or which could cause a
build-up of gases and pose a danger to
health.
~Do not block the ventilation gaps in
the plinth as this would impair the
efficiency of the appliance, increase the
electricity consumption and could
cause damage to the appliance.
~Never use a steam-cleaning
appliance to defrost or clean this
appliance. Steam could reach the
electrical components and cause a
short circuit.
Disposing of your old
appliance
~Before disposing of an old
appliance, first make the door latch or
lock unusable.
This way you will prevent children from
accidentally locking themselves in and
endangering their lives.
~Be careful not to damage any part of
the pipework whilst awaiting disposal,
e.g. by
–puncturing the refrigerant channels
in the evaporator.
– bending any pipework.
– scratching the surface coating.
Splashes of refrigerant can damage the
eyes.
The manufacturer cannot be held
liable for damage caused by
non-compliance with these Warning
and Safety instructions.
Warning and Safety instructions
10

Normal energy
consumption
Increased energy
consumption
Installation site In a ventilated room. In an enclosed, unventilated room.
Protected from direct sunlight. In direct sunlight.
Not near to a heat source (radiator,
oven).
Near to a heat source (radiator,
oven).
Where the ideal ambient room
temperature is approx. 20°C.
Where there is a high ambient room
temperature.
Do not cover the ventilation gaps
and dust them regularly.
Temperature setting
with a thermostat
which is approximate
(set in stages).
With a medium setting of 2 to 3. With a high setting: the lower the
temperature in the compartment, the
higher the energy consumption.
Temperature setting
with a thermostat which
is exact to the degree
(digital display).
Larder section 8 to 12 °C
On appliances with winter setting,
please make sure that the winter
setting is switched off when the
ambient temperature is warmer than
16 °C .
Refrigerator section 4 to 5 °C
PerfectFresh zone just above 0 °C
Freezer section -18 °C
Wine storage section 10 to 12 °C
Use Drawers, shelves and racks
arranged as they were when the
appliance was delivered.
Only open the door when necessary
and for as short a time as possible.
Frequent opening of the door for
long periods will cause a loss of
coldness.
Store food in an organised way. Searching for an item will mean the
door is open for longer.
Allow hot food and drinks to cool
down before placing them in the
appliance.
Hot food will cause the refrigerator
unit to run for a long time, as the
appliance will have to work harder
to reduce the temperature.
Store food covered or packaged. The evaporation or condensation of
liquids will cause a loss of coldness
in the refrigerator.
Place frozen food in the refrigerator
to defrost.
Do not over-fill the appliance to
allow air to circulate.
Defrosting Defrost the freezer section when a
layer of ice 0.5 cm thick has built
up.
A layer of ice hinders the cold from
reaching the frozen food, and
increases energy consumption.
How to save energy
11

Before using for the first time
^Clean the inside of the appliance and
the accessories with lukewarm water
and a little washing-up liquid, and
then dry with a soft cloth.
Switching on

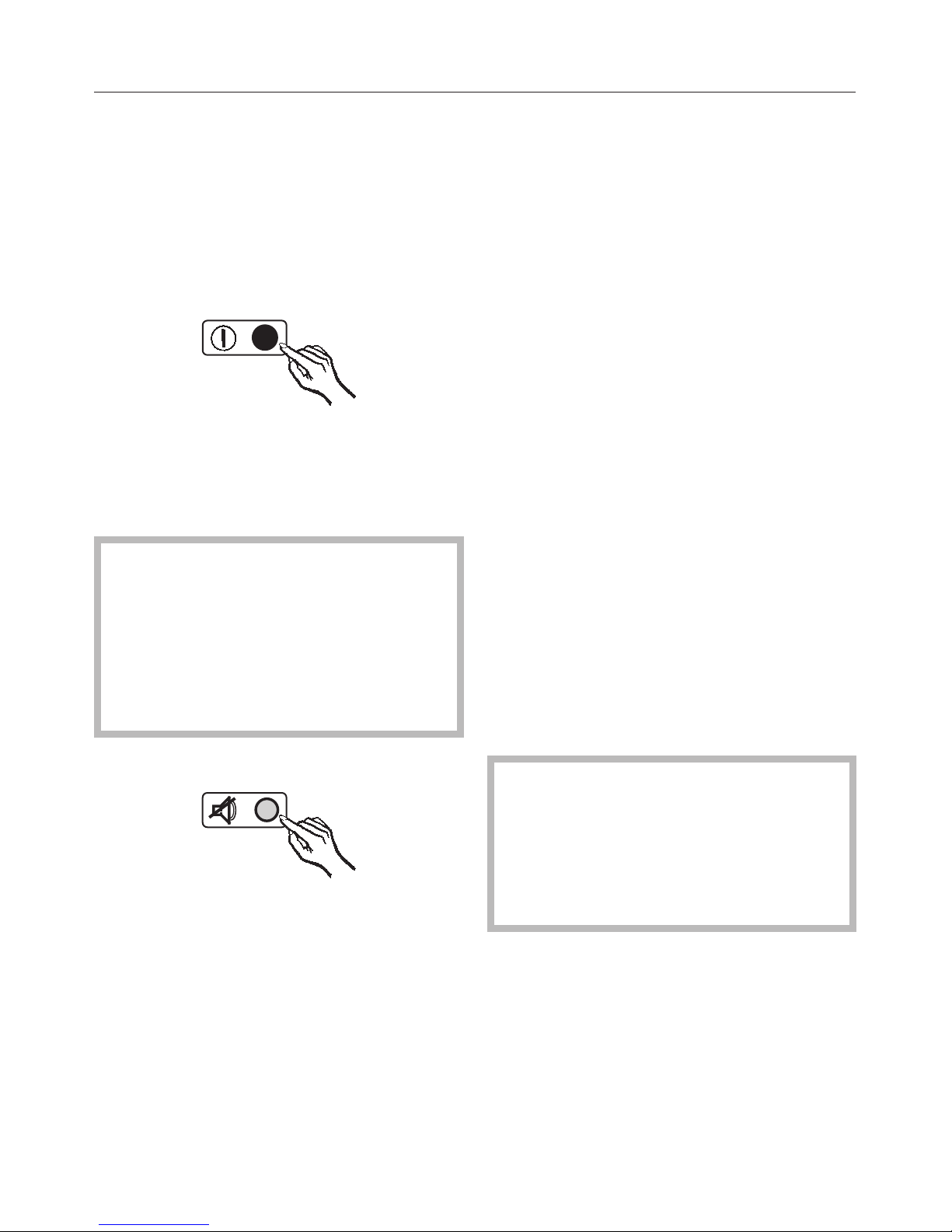

^Press the On/Off button in.
The On/Off and the alarm off indicator
lights come on. An alarm sounds and
the appliance starts cooling.
To enable the temperature to get
sufficiently cold inside the
appliance, allow it to run for a few
hours before placing food in it.
Do not place food in the appliance
until the temperature is at least
-18°C.

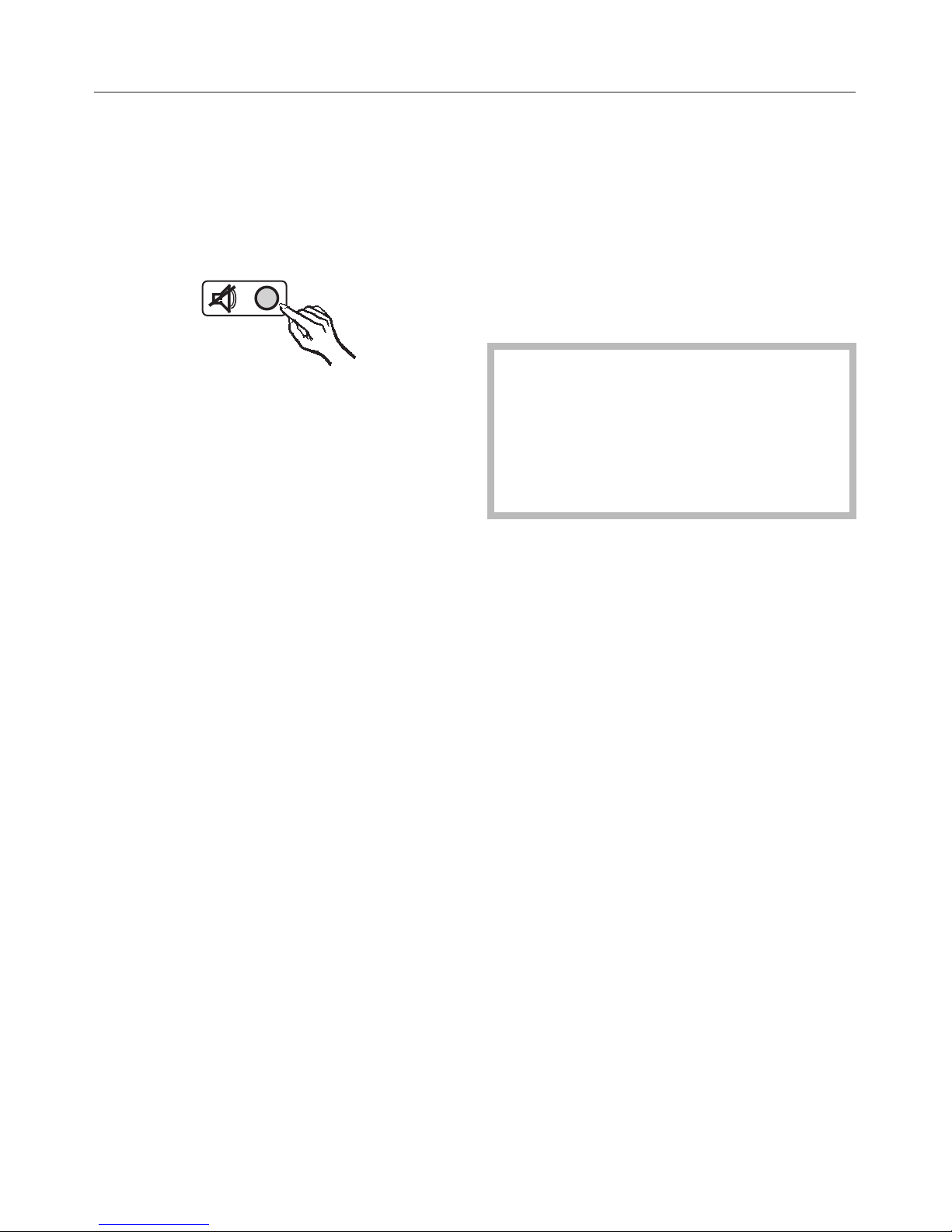

Switching off the alarm
^Press the alarm off button in.
The alarm will stop. The alarm off
indicator light remains on until the
temperature which has been set is
reached.
Cool pack
Place the cool packs in the freezer. The
cool packs will be at their most effective
after they have been in the freezer for
approx. 24 hours.
Switching off
^Press and release the On/Off button.
All the indicator lights will go out and
the cooling system will switch off.
Switching off for longer
periods of time
If the appliance is not going to be used
for a longer period of time, e.g. whilst
on holiday:
^switch the appliance off,
^disconnect it from the mains.
^defrost and clean the appliance, and
^leave the door ajar to air the
appliance.
If, during a long absence, the
appliance is switched off but not
cleaned out and the door is left shut,
there is a danger of mould and
odours building up inside the
appliance.
Switching on and off
12

It is very important to set the correct
temperature for storing food in the
appliance. Micro-organisms will cause
food which is not stored at the correct
temperature to deteriorate rapidly.
Temperature influences the growth rate
of these micro-organisms. Reducing
the temperature reduces their growth
rate.
To freeze fresh food and to store frozen
food for a long time, a temperature of
-18 °C is required. At this temperature
the growth of micro-organisms is
generally halted. As soon as the
temperature rises above -10 °C, the
micro-organisms become active in the
food again so that it cannot be kept as
long. For this reason, partially defrosted
or defrosted food must not be re-frozen.
Food may be re-frozen once it has
been cooked, as the high temperatures
achieved when cooking destroy most
micro-organisms.
The temperature in the appliance will
rise:
–the more often the door is opened
and the longer it is kept open,
–if too much food is stored in it at
once,
–if too much fresh food is being frozen
at once,
–the higher the ambient temperature
surrounding the appliance.
The appliance is designed for use in
specific ambient temperatures
(climate ranges). Do not use in
ambient temperatures for which it is
not designed.
Setting the temperature
The temperature is set using the
temperature dial.
^Use a coin to turn the temperature
dial clockwise to the required setting.
Forcing it beyond its range will
damage it. Turn it only as far as it
will go, then turn it back again.
The temperature can be set gradually,
at any point on the dial. The higher the
setting, the lower the temperature in the
appliance.
In normal use, a setting between 3 and
5 is generally sufficient. You should
also check the temperature inside the
appliance from time to time.
The correct temperature
13

Temperature display
The temperature display inside the door
shows whether the temperature inside
the appliance is cold enough. This
works independently of the electricity
supply.
A temperature above -18 °C is no
cause for concern in the following
circumstances:
–when the appliance has just been
switched on,
–when the door has been left open for
a short while, e.g. for removing or
storing a large amount of food,
– when fresh food is being frozen.
However, if the temperature remains
above -18 °C for a long time, check that
the frozen food has not started to
defrost. If this is the case, check that
the food is safe to use and, if it is, then
use it as soon as possible.
Temperature dial:
–If the temperature needle is pointing
to the solid line around the dial, the
temperature in the appliance is cold
enough.
–If it is pointing to the broken line
around the dial, the temperature in
the appliance is not cold enough.
The correct temperature
14

Your appliance has been fitted with a
warning system which ensures that the
temperature in the freezer cannot rise
unnoticed.
Switching on the alarm system
^Press and release the alarm off
button to switch on the alarm system.
Temperature alarm
An alarm will sound if the temperature
becomes too warm. The alarm-off
indicator light will come on at the same
time. The setting on the temperature
dial determines the range of
temperatures the appliance recognises
as too warm.
The alarm will sound and the alarm off
indicator light will come on, for
example,
–if the appliance has just been
switched on.
–if the freezer door has been left open
for a while, e.g. in order to load, to
re-arrange or to take food out.
–when freezing large amounts of food
at once.
–in the event of a power cut.
Once the set temperature has been
reached in the freezer, the alarm
switches off and the alarm off indicator
light goes out.
Switching the alarm off early
^Press the alarm off button in.
The alarm will stop. The alarm-off
indicator light will not go out until the
set temperature range has been
reached.
As soon as the alarm-off indicator
has gone out, switch the alarm
system on again so that you are
alerted in good time if the
temperature in appliance rises too
much.
Alarm
15

Super freeze
Switch the Super freeze function on
before putting fresh food into the
freezer.
This helps food to freeze quickly and
retain its nutrients, vitamins, flavours
and appearance.
Super freeze is not necessary:
–when putting in food that is already
frozen.
–when freezing less than 2 kg fresh
food daily.
Switching on Super freeze
The Super freeze function should be
switched on 4 - 6 hours before placing
food in the freezer. When freezing the
maximum load of food, the Super
freeze function should be switched on
24 hours beforehand.
^Press the Super freeze button in. The
Super freeze indicator light will come
on.
The appliance works at full power to
lower the temperature in the
appliance.
Switch Super freeze off once you have
loaded the freezer.
Switching off Super freeze

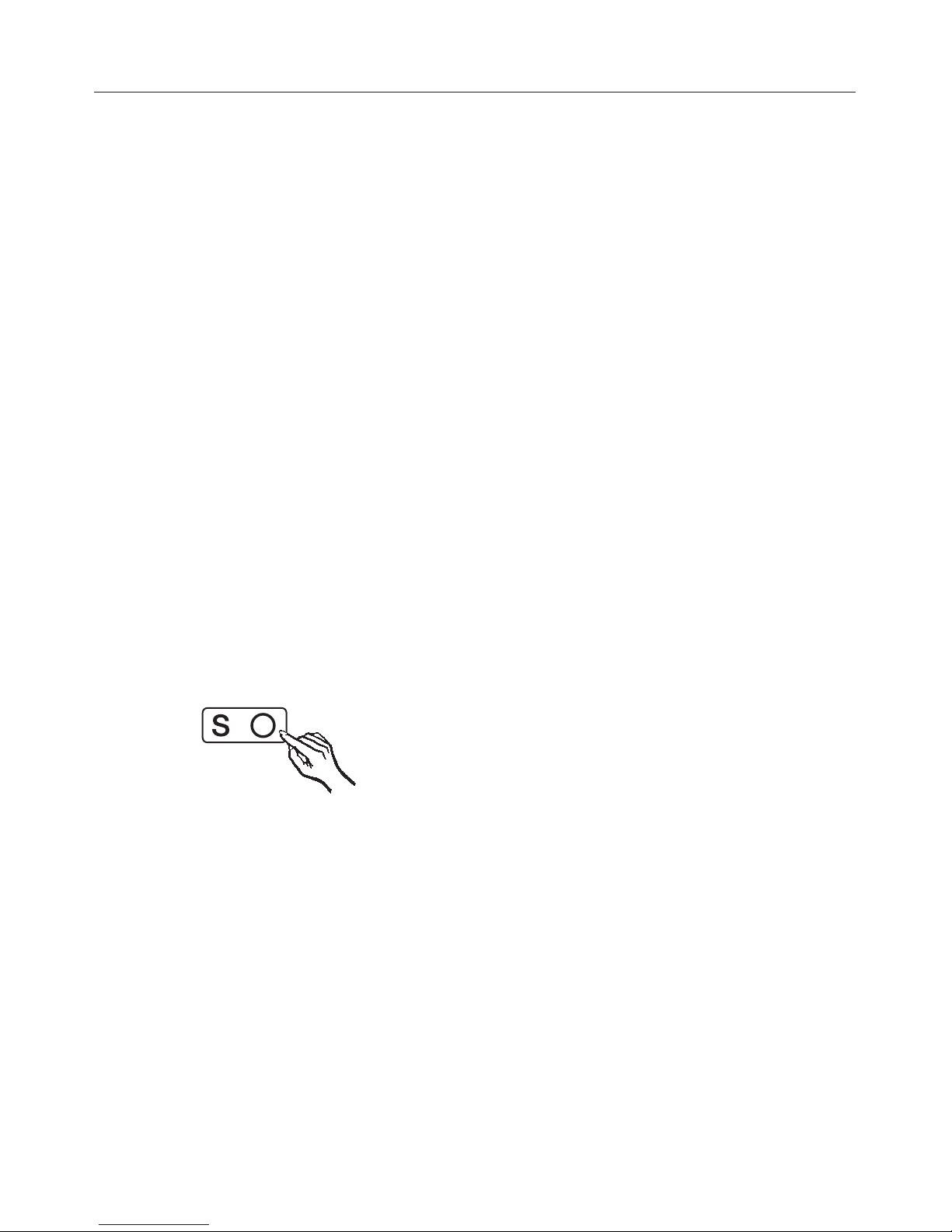

^Press and release the Super freeze
button. The Super freeze indicator
light will go out, and the appliance
will continue to operate at normal
power.
Super freeze
16

Make sure that all the freezer
drawers are fully pushed in. This is
important for efficient air circulation
in the freezer.
Maximum freezing capacity
To ensure that fresh food placed in the
freezer freezes through to the core as
quickly as possible, the maximum
freezing capacity must not be
exceeded. Up to 12 kg of food can be
frozen at the same time on the
evaporator plates in a 24 hour period.
When freezing food in the drawers, the
maximum quantity is slightly less.
The maximum freezing capacity given
on the data plate has been calculated
according to DIN EN ISO 15502 Stan-
dard.
Freezing fresh food
Fresh food should be frozen as quickly
as possible. This way the nutritional
value of the food, its vitamin content,
appearance and taste are not impaired.
Food which takes a long time to freeze
will lose more water from its cells, which
then shrink.
During the defrosting process only
some of this water is reabsorbed by the
cells; the rest collects around the food.
In practice this means that the food
loses a large degree of its moisture.
You can tell if this has happened by the
amount of liquid around the food.
If food is frozen quickly, the cells have
less time to lose moisture, so they
shrink less.
As there is not so much moisture, it is
easier for the food to reabsorb it during
the defrosting process, and very little
water collects around the defrosted
food.
Storing frozen food
When buying frozen food to store in
your freezer, check
–that the packaging is not damaged,
–the use-by date,
–and the temperature at which the
frozen food is being stored in the
shop. The length of time it can be
kept is reduced if it has been stored
at a temperature warmer than -18 °C.
^Buy frozen food once you have
finished the rest of your shopping,
and wrap it in newspaper or use a
cool bag or cool box to transport it.
^Store it in the freezer as soon as
possible.
Never re-freeze partially or fully
defrosted food. Consume defrosted
food as soon as possible as it will
lose its nutritional value and spoil if
left for too long. Defrosted food may
only be re-frozen after it has been
cooked.
Freezing and storing food
17

Home freezing
Only freeze fresh food which is in good
condition.
Hints on home freezing
–The following types of food are
suitable for freezing:
Fresh meat, poultry, game, fish,
vegetables, herbs, fresh fruit, dairy
products, pastry, leftovers, egg
yolks, egg whites and a range of
pre-cooked meals.
–The following types of food are not
suitable for freezing:
Grapes, lettuce, radishes, sour
cream, mayonnaise, eggs in their
shells, onions, whole raw apples and
pears.
– To retain colour, taste and vitamin C,
vegetables should be blanched after
they have been trimmed and
washed.
To blanch: bring a large saucepan of
water to the boil and immerse the
vegetables in the fast boiling water
for 2-3 minutes, depending on
variety. Remove, and plunge into
ice-cold water to cool quickly. Drain
and pack ready for freezing.
–Lean meat freezes better than fatty
meat, and can be stored for
considerably longer.
–To prevent chops, steaks, cutlets or
rolled meat from freezing together in
solid blocks when packed, separate
with a sheet of plastic freezer film.
–Do not season fresh foods or
blanched vegetables before
freezing. Only season cooked food
lightly before freezing, but care
should be taken as the taste of some
spices alters when frozen.
–Do not place hot food or drinks in the
freezer. This causes already frozen
food to thaw and increases the
energy consumption considerably.
Allow hot food and drinks to cool
down before placing them in the
freezer.
Packing
^Freeze food in portions.
Suitable packing material
- plastic freezer film
- freezer bags
- freezer containers
- aluminium foil
Unsuitable packing material
- wrapping paper
- grease-proof paper
- cellophane
- bin liners
- plastic carrier bags
^Expel as much air as possible from
bags etc. before sealing them, to
prevent freezer-burn on food.
^Close the packaging tightly with
- rubber bands
- plastic clips
- string or bag ties
- freezer tape.
Freezer bags may also be sealed
using home heat-sealing kits.
^Make a note of the contents and the
date of freezing on the packaging.
Freezing and storing food
18

Placing food in the freezer
Food to be frozen can be placed
anywhere in the freezer. Large
quantities can be placed directly on the
evaporator plates to freeze the food
quickly. To do this first take out one or
several freezer drawers.

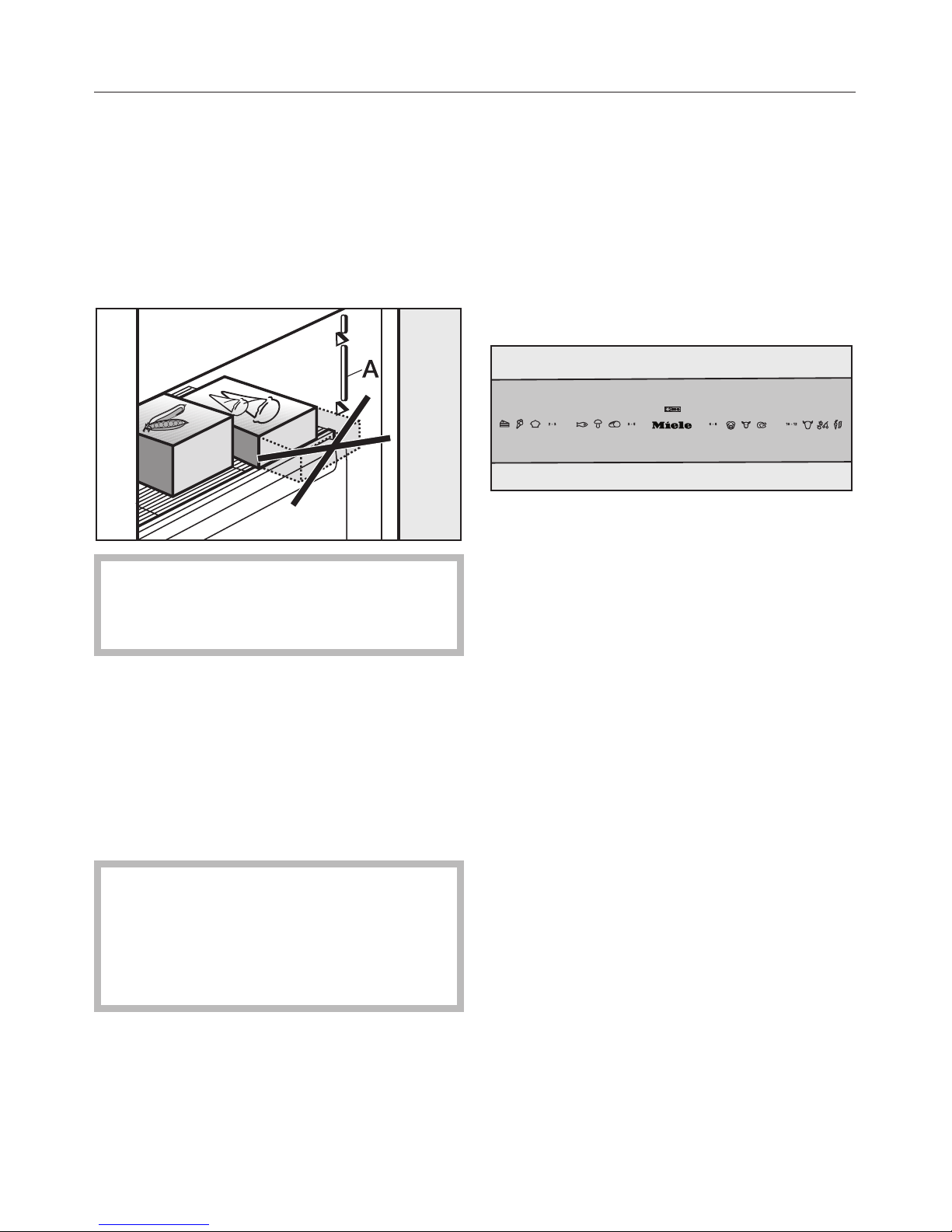

Do not place food beyond the level
marked (A) as this will hinder air
circulation within the appliance.
^Place the food flat in the bottom of
the drawers or on the evaporator
plates so that it freezes through to the
core as quickly as possible.
^Make sure that the packaging and
containers are dry to prevent them
sticking together when frozen.
When freezing, make sure that food
already frozen does not come into
contact with fresh food being frozen
as this could cause the frozen food
to begin to defrost.
Freezer calendar
The freezer calendar on the freezer
drawer gives the length of time in
months which various foods can be
stored for effectively.
Where the storage time given on the
packaging differs, follow the advice on
the packaging.
2-3 months:
Cakes, ice cream, stew
3-5 months:
Fish, mushrooms, bread
6-8 months:
Pork, veal, poultry
10-12 months:
Beef, fruit, vegetables
Defrosting
Frozen food can be defrosted in
different ways:
–in a microwave oven,
–in an oven using the "Fan" or
"Defrost" setting,
–at room temperature,
–in the refrigerator (the cold given off
by the frozen food helps to keep
other food cold),
–in a steam oven.
Freezing and storing food
19

Poultry It is particularly important to
observe food hygiene rules when
defrosting poultry. Do not use the liquid
from defrosted poultry. Pour it away
and wash the container it was in, the
sink and your hands. Danger of
salmonella poisoning.
Fruit should be defrosted at room
temperature in its packaging, or in a
covered bowl.
Most vegetables can be cooked while
still frozen. Just put straight into boiling
water or hot fat. The cooking time is
slightly less than that of fresh
vegetables due to changes in the cell
structure.
Never re-freeze partially or fully
defrosted food. Consume defrosted
food as soon as possible as it will
lose its nutritional value and spoil if
left for too long. Defrosted food may
only be re-frozen after it has been
cooked.
Ice cubes

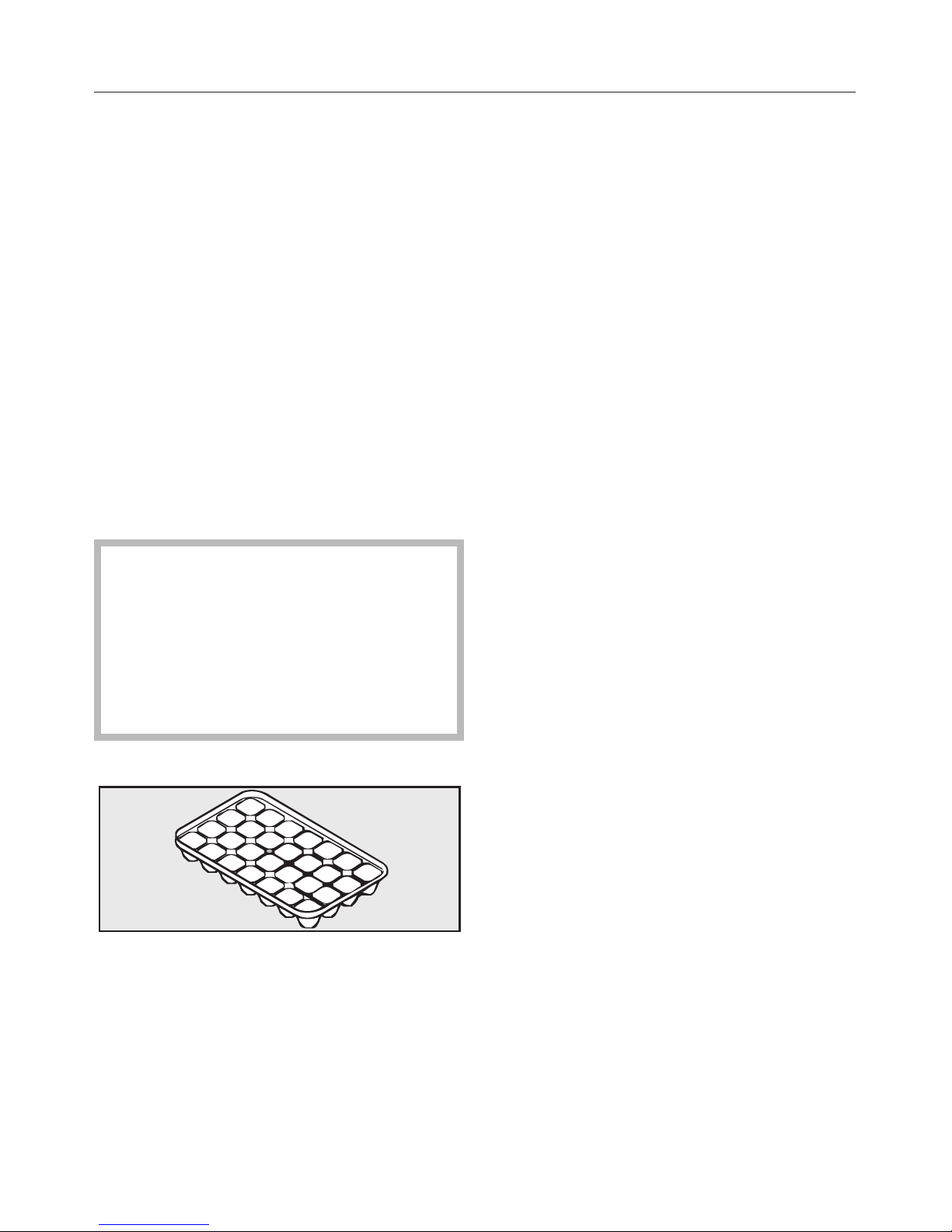

^Fill the ice tray three quarters full with
water, and place it in the bottom of
one of the drawers.
^Once frozen, use a blunt instrument,
for example a spoon handle, to
remove the ice tray from the freezer.
^Ice cubes can be removed easily
from the tray by twisting the tray
gently or by holding it under cold
running water for a short while.
Cooling drinks
When cooling drinks quickly, make sure
bottles are not left in the freezer for
more than one hour, as they could
burst.
Cool pack
The cool pack prevents the
temperature in the freezer rising too
quickly in the event of a power cut.
Place the cool pack directly in the
freezer. The cool pack will be at its
most effective after it has been in the
freezer for approx. 24 hours.
If there is a power cut, place the cool
pack directly on top of the frozen food
so that the food will be kept cold for as
long as possible.
When placing fresh food in the freezer,
use the cool pack to separate the fresh
food from the food which is already
frozen so that the frozen food does not
begin to thaw.
The cool pack can also be used in a
cool bag to keep food or drinks cool for
a short period of time.
Freezing and storing food
20
