Miele FN 35402 i User manual

Operating and installation instructions
Freezer
To prevent the risk of accidents or damage to the appliance, it is
essential to read these instructions before it is installed and used for the
first time.
M.-Nr. 09 943 050en - AU, NZ

Guide to the appliance .............................................4
Caring for the environment..........................................7
Warning and Safety instructions .....................................8
How to save energy ...............................................17
Switching the appliance on and off ..................................19
Before using for the first time.........................................19
Operating the appliance ............................................19
Switching on .....................................................19
Switching off .....................................................20
Switching off for longer periods of time .................................20
The correct temperature ...........................................21
Temperature display ...............................................21
Setting the temperature .............................................22
SuperFreeze .....................................................23
Temperature and door alarm .......................................24
Temperature alarm ................................................24
Door alarm .......................................................25
Further settings ..................................................26
Safety lock 0.....................................................26
Audible tones )..................................................28
Display brightness ^..............................................29
Sabbath mode ¬..................................................30
Adjusting the interior fittings .......................................32
Freezer drawers on telescopic runners .................................32
Shelves .........................................................32
Freezing and storing food..........................................33
Maximum freezing capacity..........................................33
Freezing fresh food ................................................33
Storing frozen food ................................................33
Home freezing ....................................................34
Tips on home freezing ...........................................34
Packing .......................................................34
Before placing food in the freezer ..................................35
Placing food in the freezer ........................................35
Contents
2

Defrosting .......................................................36
Making ice cubes .................................................36
Cooling drinks quickly ..............................................36
Cool pack........................................................37
Automatic defrosting..............................................38
Cleaning ........................................................39
Cleaning the interior and accessories ..................................41
Ventilation gaps ...................................................42
Door seals .......................................................42
Problem solving guide ............................................43
Noises ..........................................................50
Miele|home .....................................................51
After Sales / Warranty .............................................53
Warranty ......................................................53
Information for Miele Centers and Chartered Agents....................54
Demo mode r.....................................................54
Electrical connection..............................................56
Installation advice ................................................57
Side-by-side units: .................................................57
Location .........................................................57
Climate range ..................................................58
Ventilation .......................................................58
Before installation .................................................59
Does your old appliance have a different hinging mechanism? ..............60
Building-in dimensions ............................................61
Adjusting the door hinges .........................................62
Changing the door hinging .........................................63
Installation ......................................................67
Fitting a furniture door ..............................................75
Contact details ..................................................83
Contents
3

Control panel
aFor switching the entire appliance on
and off
bOptical interface (for Service only)
cFor switching the SuperFreeze
function on and off.
dFor setting the temperature
(Xcolder), selection sensor in
settings mode
eFor confirming a selection
(OK sensor)
fFor setting the temperature
(Ywarmer), selection sensor in
settings mode
gFor selecting and deselecting the
settings mode
hFor switching the door alarm off
iDisplay with temperature display and
symbols (symbols are only visible in
settings mode, if an alarm is
sounding, or if a message appears;
for an explanation of the symbols,
see the following chart)
Guide to the appliance
4

Explanation of symbols
Symbol Meaning Function
0Safety lock Secures against unintended switching off of
the appliance, unintended temperature
adjustment, unintended switching on of
SuperFreeze, and unintended entry of
settings
)Audible tones Selection options for the keypad tone and
the door and temperature alarm tones
<Miele|home Only visible when a communication module
is fitted and signed on (see "Miele|home")
SmartGrid Only visible when a communication module
is fitted and signed on (see "Miele|home")
sDisplay brightness Setting the brightness of the display
¬Sabbath mode Switching Sabbath mode on and off
tElectrical connection Confirms that the appliance is connected to
the electricity supply when it is not switched
on; Flashes when there is a power cut
;Alarm Illuminates when the door alarm is activated;
Flashes when the temperature alarm is
activated, there is a power cut or in the case
of other fault messages
rDemo mode
(only visible when
Demo mode is active)
Switching off Demo mode
Guide to the appliance
5

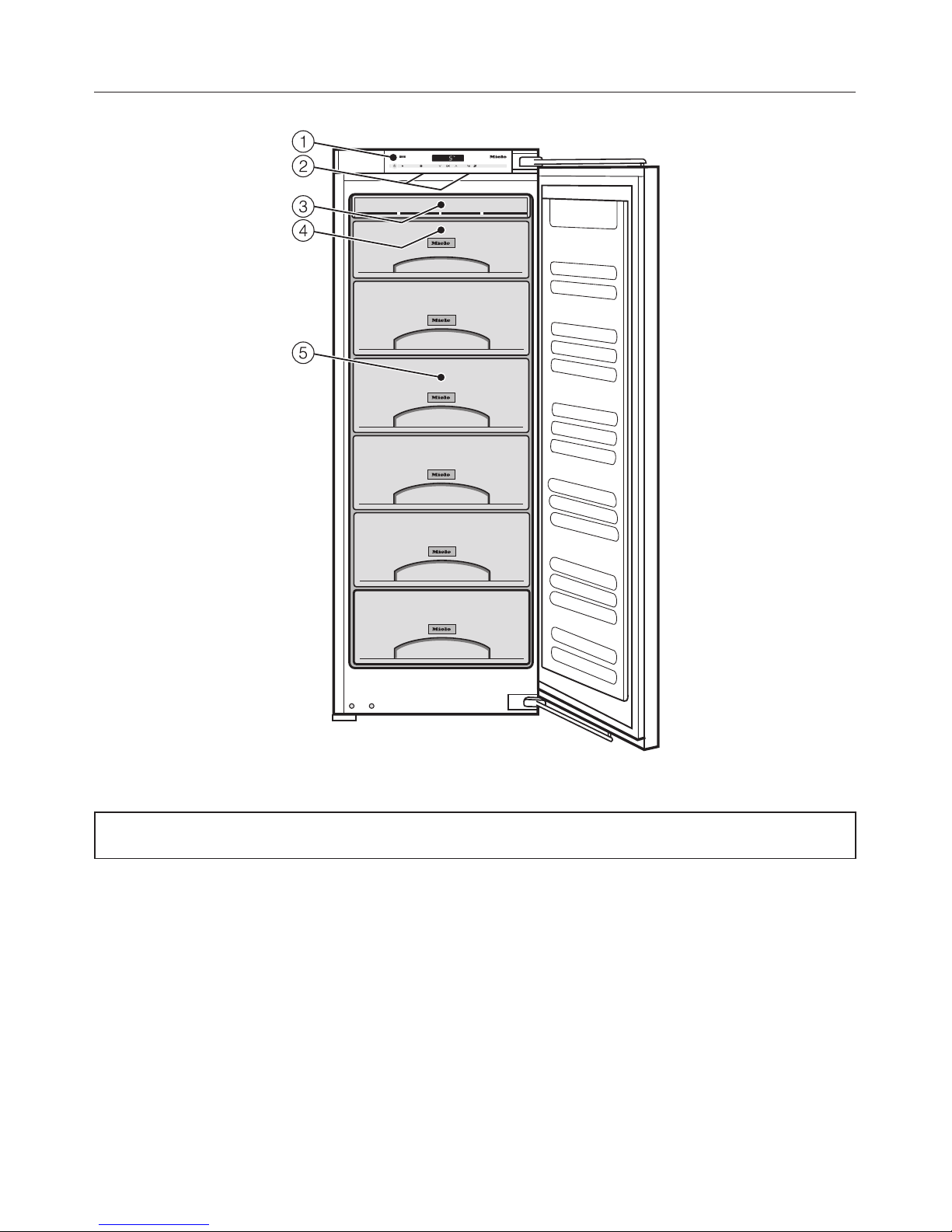

This picture is an example of an appliance model.
aControl panel
bInterior lighting
cFrost-free unit
dTop freezer drawer, can also be used as a freezing tray
eFreezer drawers*
* Depending on model
Guide to the appliance
6

Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and can normally be recycled.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation.
Rather than just throwing these
materials away, please ensure they are
offered for recycling.
Disposing of your old
appliance
Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Please do not therefore dispose of it
with your household waste.
Please dispose of it at your local
community waste collection / recycling
centre and ensure that it presents no
danger to children while being stored
for disposal.
The plug must be rendered useless
and the cable cut off directly behind the
appliance to prevent misuse. Take care
not to damage the pipework at the back
of it before or during transportation to
an authorised collection depot.
In this way, refrigerant in the pipework
and oil in the compressor will be
contained, and will not leak out into the
environment.
Caring for the environment
7

This appliance conforms to current safety requirements.
Inappropriate use can, however, lead to personal injury and
damage to property.
To avoid the risk of accidents and damage to the appliance,
please read these instructions carefully before using it for the first
time.
They contain important notes on installation, safety, use and
maintenance. Miele cannot be held liable for non-compliance with
these instructions.
Keep these instructions in a safe place and ensure that new users
are familiar with the contents. Pass them on to any future owner.
Correct application
~This appliance is designed for domestic use and for use in similar
environments by guests in hotel or motel rooms, bed & breakfasts
and other typical living quarters. This does not include
common/shared facilities or commercial facilities within hotels,
motels or bed & breakfasts.
This appliance is not suitable for outdoor use.
~This appliance is intended to store deep frozen food, freeze fresh
food, and to make ice.
Any other usage is not supported by the manufacturer and could be
dangerous.
Warning and Safety instructions
8

~This appliance is not suitable for storing and keeping cool
medicines, blood plasma, laboratory preparations or other such
materials or products. Incorrect use of the appliance for such
purposes can cause deterioration of the items stored. The appliance
is not suitable for use in areas where there is a risk of explosion.
Miele cannot be held liable for damage resulting from improper or
incorrect use of the appliance.
~This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning its use by a person
responsible for their safety, and are able to recognise the dangers of
misuse.
Safety with children
~Young children must not be allowed to use this appliance.
~Older children may only use the appliance when its operation has
been clearly explained to them and they are able to use it safely,
recognising the dangers of misuse.
~Cleaning work may only be carried out by older children under
the supervision of an adult.
~Children should be supervised when they are near the appliance.
This appliance is not a toy! To avoid the risk of injury, do not allow
children to play with it or to use the controls. They will not
understand the potential dangers posed by it. They should be
supervised whenever you are working in the kitchen.
Warning and Safety instructions
9

~Danger of suffocation! Children may be able to wrap themselves
in packing material or pull it over their heads with the risk of
suffocation. Keep children away from any packing material.
Technical safety
~The refrigerant circuit has been checked for leaks. This appliance
complies with all current local and national safety requirements.
~This appliance contains the coolant Isobutane (R600a), a natural
gas which is environmentally friendly. Although it is flammable, it
does not damage the ozone layer and does not increase the
greenhouse effect.
The use of this coolant has, however, led to a slight increase in the
noise level of the appliance. In addition to the noise of the
compressor, you might be able to hear the coolant flowing around
the system. This is unavoidable, and does not have any adverse
effect on the performance of the appliance.
Care must be taken during the transportation and setting up of the
appliance that no parts of the cooling system are damaged. Leaking
refrigerant can damage the eyes.
In the event of any damage:
–avoid any flames or anything which creates a spark,
–switch off at the mains and unplug the appliance,
–ventilate the room where the appliance is located for several
minutes, and
–call Miele.
Warning and Safety instructions
10

~The more coolant there is in an appliance, the larger the room it
should be installed in. In the event of a leakage, if the appliance is in
a small room, there is the danger of combustible gases building up.
For every8gofcoolant at least 1 m3of room space is required. The
amount of coolant in the appliance is stated on the data plate inside
the appliance.
~Before connecting the appliance, make sure that the connection
data on the data plate (fuse rating, voltage and rated load) match
the mains electricity supply. This data must correspond in order to
avoid the risk of damage to the appliance.
Consult a qualified electrician if in any doubt.
~The electrical safety of this appliance can only be guaranteed
when continuity is complete between it and an effective earthing
system. It is most important that this basic safety requirement is
present and tested regularly and, where there is any doubt, the
household wiring system should be inspected by a qualified
electrician.
~If the connection cable is faulty, it must only be replaced by a
Miele approved service technician to protect the user from danger.
~Do not connect the appliance to the mains electricity supply by a
multi-socket unit or an extension lead. These do not guarantee the
required safety of the appliance (e.g. danger of overheating).
~If moisture gets into electrical components, it could cause a short
circuit.
Therefore, do not operate this appliance in areas which are exposed
to moisture.
~This appliance must not be installed and operated in mobile
installations (e.g. on a ship).
Warning and Safety instructions
11

~A damaged appliance is dangerous. Check it for any visible
damage. Never install or attempt to use a damaged appliance.
~Do not damage the refrigerant circuit.
~For safety reasons, this appliance may only be used when it has
been fully installed.
~During installation, maintenance and repair work, the appliance
must be disconnected from the mains electricity supply. It is only
completely isolated from the electricity supply when:
–the mains fuse has been disconnected, or
– the screw-out fuse is removed (in countries where this is
applicable), or
– it is switched off at the wall socket and the plug is withdrawn from
the socket, or it is switched off at the isolator.
~Repairs and other work by unqualified persons could be
dangerous. Installation, maintenance work and repairs to electrical
appliances must only be carried out by a Miele approved service
technician.
~The manufacturer's warranty will be invalidated if the appliance is
not repaired by a Miele approved service technician.
~Faulty components must only be replaced by genuine Miele
spare parts. The manufacturer can only guarantee the safety of the
appliance when Miele replacement parts are used.
Warning and Safety instructions
12

Correct use
~The appliance is designed for use within a certain climate range
(ambient temperatures), and should not be used outside this range.
The climate range for your appliance is stated on the data plate
inside the appliance.
Installing it in a room with too low an ambient temperature, e.g. a
garage, can lead to the appliance switching off for longer periods so
that it cannot maintain the required temperature.
~To ensure proper air flow in and out of the appliance, the air vents
must not be covered or blocked in any way.
This would also increase the energy consumption and could cause
damage to the appliance.
~If storing food which contains a lot of fat or oil, make sure that it
does not come into contact with plastic components as this could
cause stress cracks.
~Do not store explosive materials in the appliance or any products
containing propellants (e.g. spray cans). Flammable gas mixtures
can be ignited by electrical components.
Danger of fire and explosion!
~Do not operate any electrical equipment (e.g. an electric ice
cream maker) inside the appliance. Danger of sparking and
explosion!
Warning and Safety instructions
13

~Do not store cans or bottles containing carbonated drinks or
liquids which could freeze in the freezer. The cans or bottles could
explode. Danger of injury and damage to the appliance.
~When cooling drinks quickly in the freezer, make sure bottles are
not left in for more than one hour; otherwise they could burst,
causing injury and damage.
~Never handle frozen food or the metal parts of the appliance with
wet hands. Your hands may freeze to the frozen food or to the metal.
Danger of frost burn!
~Do not take ice cubes out with your bare hands and never place
ice cubes or ice lollies in your mouth straight from the freezer. The
very low temperature of the frozen ice or lollies can cause frost burn
to the lips and tongue. Danger of injury!
~Do not refreeze thawed or partially thawed food. Defrosted food
should be used up as quickly as possible, as food soon loses its
nutritional value and goes off. Defrosted food may only be re-frozen
after it has been cooked.
~Food stored for too long may present a risk of food poisoning.
Storage times will depend on several factors, including the
freshness and quality of the food, as well as the temperature at
which it is stored. Follow the instructions given on the food
manufacturer's packaging regarding storage conditions and "use
by" dates.
~Use only genuine original Miele spare parts. If spare parts or
accessories from other manufacturers are used, the warranty will be
invalidated, and Miele cannot accept liability.
Warning and Safety instructions
14

Cleaning and care
~Do not use any oils or grease on the door seals, as these will
cause the seals to deteriorate and become porous with time.
~Do not use a steam cleaning appliance to clean this appliance.
Pressurised steam could reach the electrical components and
cause a short circuit.
~Do not use sharp edged objects to
–remove frost and ice, or accelerate the defrosting process,
–separate frozen foods and remove ice trays.
They will damage the evaporator, causing irreversible damage to
the appliance.
~Never place electric heaters or candles in the appliance to
defrost it. These can damage the plastic parts.
~Do not use defrosting sprays or de-icers, as they might contain
substances which could damage the plastic parts or which could
cause a build-up of gases and pose a danger to health.
Warning and Safety instructions
15

Transporting the appliance
~To avoid damage to the appliance, always transport it upright and
in its packaging.
~Due to the size and weight of the appliance, it must be
transported by two people. Danger of injury and damage to the
appliance!
Disposal of your old appliance
~Before disposing of an old appliance, first make the door lock
unusable.
This way you will prevent children from accidentally locking
themselves in and endangering their lives.
~Be careful not to damage any part of the pipework whilst awaiting
disposal, e.g. by
– puncturing the refrigerant channels in the condenser,
– bending any pipework, or
– scratching the surface coating.
Splashes of refrigerant can damage the eyes.
Warning and Safety instructions
16

Normal energy
consumption
Increased energy
consumption
Installation/Mainte
nance
In a ventilated room. In an enclosed,
unventilated room.
Protected from direct
sunlight.
In direct sunlight.
Not situated near a heat
source (radiator, oven).
Situated near a heat source
(radiator, oven).
Where the ideal ambient
room temperature is approx.
20 °C.
Where there is a high room
temperature.
Where the cross-section of
the air inlet and outlet is not
covered and kept free of
dust.
Where the air inlets and
outlets are covered or dusty.
Temperature
settings
Freezer section -18 °C With a low temperature
setting: The lower the
temperature in the
appliance, the higher the
energy consumption.
How to save energy
17

Normal energy
consumption
Increased energy
consumption
Use Drawers and shelves arranged
as they were when the
appliance was delivered.
Only open the door when
necessary and for as short a
time as possible.
Store food in an organised
way.
Frequent opening of the door
for long periods will cause a
loss of coldness. The
appliance will try to cool down
and the running time of the
compressor will increase.
Take a cooler bag when
shopping and load food in the
appliance as quickly as
possible on your return home.
When food is taken out of the
refrigerator, be sure to put it
back before it becomes warm.
Allow hot food and drinks to
cool down before placing
them in the appliance.
Warm food and food brought
in from room temperature add
heat to the appliance. The
appliance will try to cool down
and the running time of the
compressor will increase.
Store food covered or
packaged.
The evaporation or
condensation of liquids will
cause a loss of coldness.
Do not overfill the appliance to
allow air to circulate.
How to save energy
18

Before using for the first time
Packaging material
^Remove all packaging material from
the inside of the appliance.
Cleaning
Please refer to the relevant
instructions in "Cleaning".
^Clean the inside of the appliance and
the accessories.
Operating the appliance
A light touch of the finger on the
sensors is all that is required to operate
this appliance.
Each touch of a sensor is confirmed
with a keypad tone. The keypad tone
can be switched off if you wish (see
"Further settings - Audible tones").
Switching on
The mains connection symbol t
appears in the display when the
appliance is plugged in and switched
on at the wall socket.
^Touch the On/Off sensor.
The mains connection symbol tgoes
out and the temperature appears in the
display.
Two bars will flash in the display while
the current temperature is above 0 °C.
The appliance begins to cool.
The temperature display and the alarm
symbol ;will flash at the same time
until the required temperature is
reached.
When the appliance door is opened,
the interior lighting comes on and the
LED lighting becomes brighter until it
reaches its maximum brightness.
To enable the temperature to get
sufficiently cold inside the appliance,
allow the appliance to run for a few
hours before placing food in it.
Switching the appliance on and off
19

Switching off
^Touch the On/Off sensor.
If this is not possible, the safety lock
is active.
The temperature display disappears
and the mains connection symbol t
lights up.
The cooling process will be switched
off.
Switching off the appliance in
Sabbath mode
The appliance can be switched off
directly at any time.
^Touch the On/Off sensor.
The temperature display disappears
and the mains connection symbol t
lights up.
The interior lighting goes out and the
cooling is switched off.
When the appliance is switched
back on again, Sabbath mode is
deactivated.
Switching off for longer
periods of time
If the appliance is not going to be used
for a longer period of time, e.g. whilst
on holiday:
^switch the appliance off,
^disconnect the appliance from the
mains. Switch off at the wall and
withdraw the plug from the socket, or
disconnect the mains fuse or remove
the screw-out fuse in countries where
this is applicable.
^clean the appliance and
^leave the door ajar to air the
appliance.
If, during a long absence, the
appliance is switched off but not
cleaned and the door(s) left shut,
there is a danger of mould and
odours building up inside the
appliance.
Switching the appliance on and off
20
