Miele KTN 12720 SD Specification sheet

Operating and installation instructions
Frost free fridge freezer
with dynamic cooling
KTN 12720 SD
To avoid the risk of accidents or
damage to the appliance, it is
essential to read these instructions
before it is installed or used for the
first time. M.-Nr. 07 286 720
en-GB

Guide to the appliance .............................................4
Caring for the environment..........................................6
Warning and Safety instructions .....................................7
How to save energy ...............................................12
Switching on and off ..............................................13
Switching off for longer periods of time .................................13
The correct temperature ...........................................14
...intherefrigerator section.........................................14
...inthefreezer section ............................................14
Setting the temperature .............................................15
Alarm...........................................................16
Temperature alarm ................................................16
Door alarm .......................................................16
Switching on the alarm system .......................................16
Switching the alarm off early .........................................16
Super freeze and Dynamic cooling ..................................17

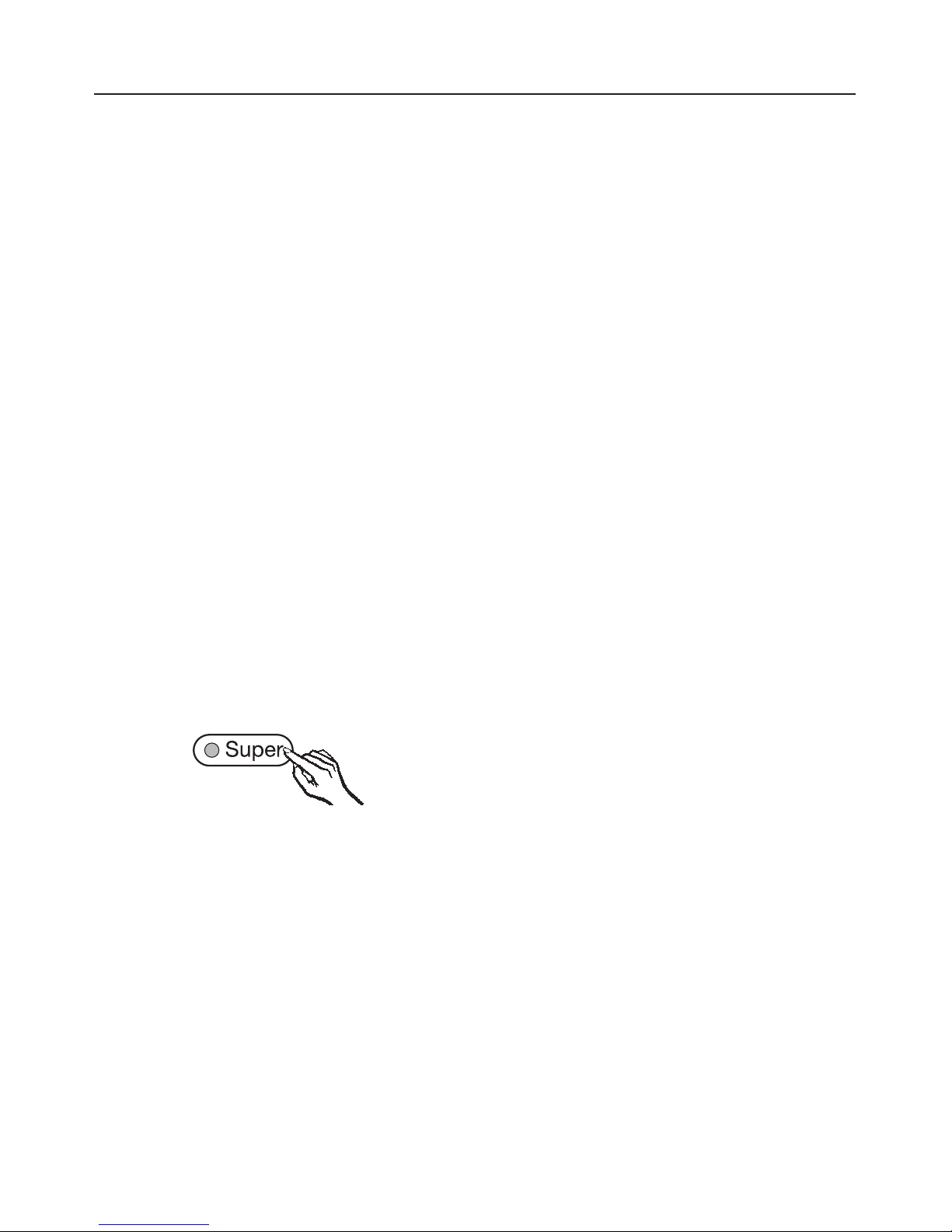

Super freeze .....................................................17
Dynamic cooling ..................................................18
Using the refrigerator efficiently ....................................19
Different storage zones .............................................19
Food which should not be stored in a refrigerator.........................20
When shopping for food ............................................20
Storing food correctly ..............................................20
Fruit and vegetables .............................................20
Unpacked meat and vegetables ...................................21
Protein rich foods ...............................................21
Meat .........................................................21
Adjusting the interior fittings .......................................22
Moving the shelves ................................................22
Split shelf ........................................................22
Adjusting the door shelf/bottle shelf ...................................22
Moving the bottle divider ............................................22
Freezing and storing food..........................................23
Maximum freezing capacity..........................................23
Freezing fresh food ................................................23
Storing frozen food ................................................23
Home freezing ....................................................24
Contents

Hints on home freezing...........................................24
Packing .......................................................24
Before placing food in the freezer ..................................25
Placing food in the freezer ........................................25
Defrosting .......................................................25
Ice cubes ........................................................26
Cooling drinks ....................................................26
Automatic defrost ................................................27
Cleaning and care ................................................28
Cleaning the outer casing, the interior and accessories ....................28
Ventilation gaps ...................................................28
Door seals .......................................................29
Problem solving guide ............................................30
Noises .........................................................33
After Sales / Guarantee ............................................34
Electrical connection..............................................35
Electrical connection U.K. ...........................................35
Installation ......................................................36
Location .........................................................36
Climate range ..................................................36
Ventilation .......................................................36
Installation .......................................................36
Aligning the appliance..............................................37
Appliance dimensions ..............................................38
Changing the door hinging .........................................39
Building in the appliance ..........................................43
Contents

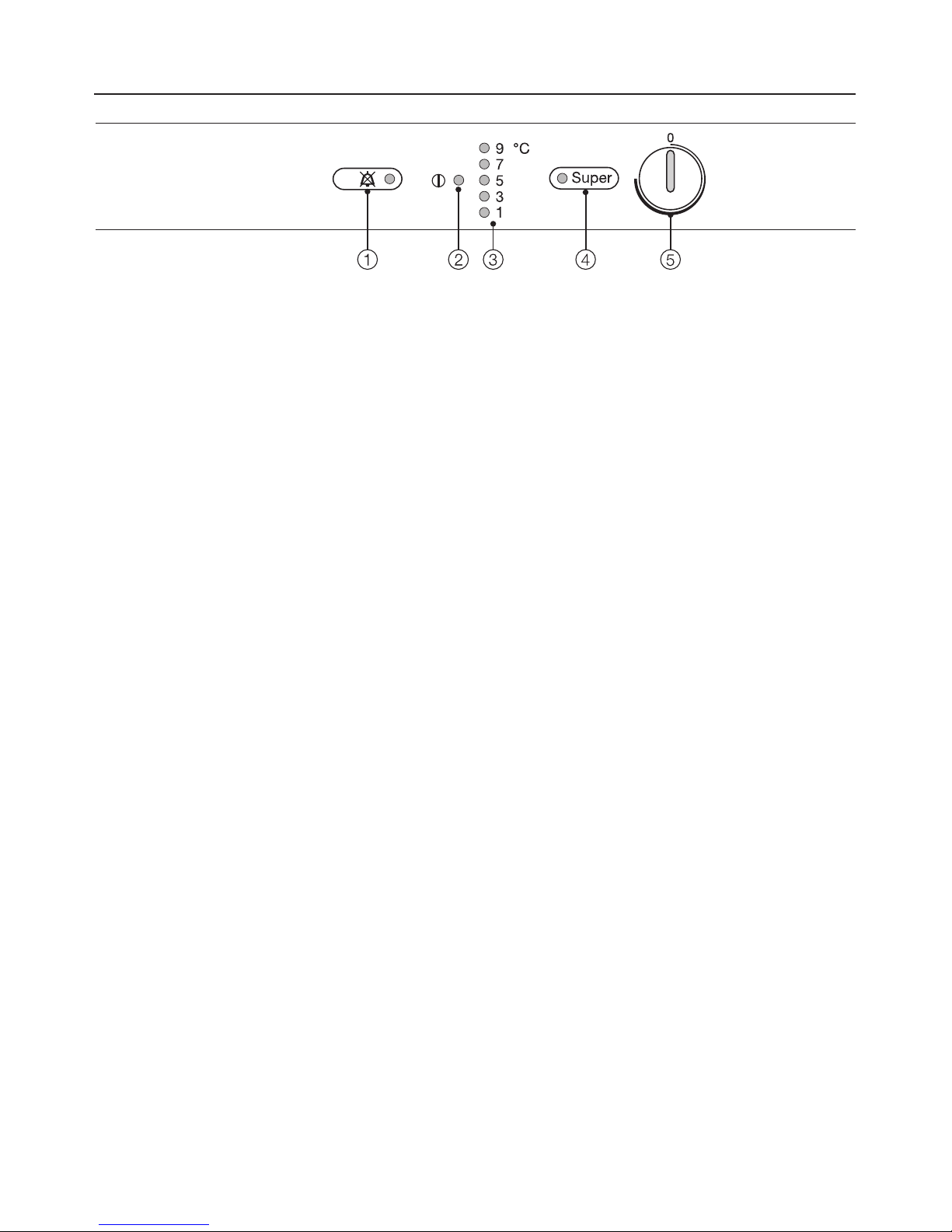

aAlarm off button and indicator light
bIn-operation indicator light
cRefrigerator section temperature
display
dSuper freeze button and indicator
light
eOn/Off and temperature selector dial
Guide to the appliance
4

aFreezer section shelf
bDynamic cooling fan with On/Off
switch
cButter and cheese compartment
dRefrigerator shelves
eDoor shelf/Egg tray
fInterior lighting
gCondensate channel and
drain hole
hFruit and vegetable containers
iBottle divider*
jBottle shelf
* Depending on model
Guide to the appliance
5

Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for
disposal, and can normally be
recycled.
Ensure that any plastic wrappings,
bags etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation!
Rather than just throwing these
materials away, please ensure that they
are recycled.
Disposal of your old appliance
Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Please do not therefore dispose of your
old appliance with your household
waste.
Please dispose of it at your local
community waste collection / recycling
centre or contact your dealer for
advice. Ensure that it presents no
danger to children while being stored
for disposal.
It should be unplugged or
disconnected from the mains electricity
supply by a competent person.
Take care not to damage the pipework
at the back of it before or during
transportation to an authorised
collection depot.
In this way, refrigerant in the pipework
and oil in the compressor will be
contained, and will not leak out into the
environment.
Caring for the environment
6

This appliance complies with all
relevant local and national safety
requirements. Improper use can,
however, present a risk of both
personal injury and material
damage.
To avoid the risk of accidents and
damage to the appliance, please
read these instructions carefully
before installation and before using
it for the first time. They contain
important notes on the installation,
safety, operation and care of the
appliance.
Keep these instructions in a safe
place and pass them on to any
future user.
Correct application
~This appliance is intended for
domestic use only for the cool storage
of food and drink as well as for storing
deep frozen food, freezing fresh food
and for preparing ice.
Any other usage is not supported by
the manufacturer and could be
dangerous. The manufacturer cannot
be held liable for damage resulting
from incorrect or improper use or
operation.
~This appliance is not intended for
use by persons (including children)
with reduced physical, sensory or
mental capabilities, or lack of
experience and knowledge, unless they
are supervised whilst using it, or have
been shown how to use it by a person
responsible for their safety.
Safety with children
~This appliance is not a toy! To avoid
the risk of injury, do not allow children
to play with it or near it, or to play with
the controls. Neither should they be
allowed to swing on the door. Please
supervise young children whilst you are
using it. Older children may only use
the appliance when its operation has
been clearly explained to them and
they are able to use it safely,
recognising the dangers of misuse.
Warning and Safety instructions
7

Technical safety
~Before setting up the appliance,
check it for any externally visible
damage. Do not install and use a
damaged appliance.
A damaged appliance is dangerous.
~If the connection cable is faulty it must
only be replaced by a service technician
authorised by the manufacturer to protect
the user from danger.
~This appliance contains the coolant
Isobutane (R600a), a natural gas which
is environmentally friendly. Although it
is flammable, it does not damage the
ozone layer and does not increase the
greenhouse effect. The use of this
coolant has, however, led to a slight
increase in the noise level of the
appliance. In addition to the noise of
the compressor, you might be able to
hear the coolant flowing around the
system. This is unavoidable, but does
not have any adverse effect on the
performance of the appliance.
Care must be taken during the
transportation and installation of the
appliance that no parts of the cooling
system are damaged. Leaking coolant
can damage the eyes.
In the event of any damage:
- avoid open flames and anything which
creates a spark,
- disconnect from the mains,
- air the room in which the appliance is
located for several minutes and
- contact the Service Department for
advice.
~The more coolant there is in an
appliance, the larger the room it should
be installed in. In the event of a
leakage, if the appliance is in a small
room, there is the danger of
combustible gases building up.
For every8gofcoolant at least 1 m3of
room space is required. The amount of
coolant in the appliance is stated on the
data plate inside the appliance.
~Safe operation of the appliance is
only assured if it has been installed and
connected in accordance with these
operating and installation instructions.
~Before connecting the appliance,
make sure that the connection data on
the data plate (voltage and connected
load) match the mains electricity
supply.
This data must correspond in order to
avoid the risk of damage to the
appliance. Consult a qualified
electrician if in any doubt.
~Do not connect the appliance to the
mains electricity supply by a
multi-socket unit or an extension lead.
These do not guarantee the required
safety of the appliance (e.g. danger of
overheating).
Warning and Safety instructions
8

~The electrical safety of this
appliance can only be guaranteed
when continuity is complete between it
and an effective earthing system which
complies with current local and national
safety regulations. It is most important
that this basic safety requirement is
present and tested regularly, and
where there is any doubt, the
household wiring system should be
inspected by a qualified electrician.
The manufacturer cannot be held liable
for damage or injury caused by the lack
of or inadequacy of an effective
earthing system (e.g. electric shock).
~Installation, maintenance and
repairs may only be carried out by a
suitably qualified and competent
person in strict accordance with current
national and local safety regulations.
Repairs and other work by unqualified
persons could be dangerous. The
manufacturer cannot be held liable for
unauthorised work.
~While the appliance is under
guarantee, repairs should only be
undertaken by a service technician
authorised by the manufacturer.
Otherwise the guarantee will be
invalidated.
~The appliance must be isolated from
the electricity supply during installation,
maintenance and repair work.
The appliance is only completely
isolated from the electricity supply
when:
–it has been switched off at the socket
and the plug has been withdrawn, or
–the fuse from the fused spur
connection unit has been withdrawn,
or
–the mains fuse has been
disconnected, or
– the screw-out fuse has been
removed (in countries where this is
applicable).
~Faulty components must only be
replaced by genuine Miele original
spare parts. The manufacturer can only
guarantee the safety of the appliance
when Miele replacement parts are
used.
~This appliance may only be used in
mobile installations such as ships, if a
risk assessment of the installation has
been carried out by a suitably qualified
engineer.
~In countries where there are areas
which may be subject to infestation by
cockroaches or other vermin, pay
particular attention to keeping the
appliance and its surroundings in a
clean condition at all times. Any
damage which may be caused by
cockroaches or other vermin will not be
covered by the guarantee.
Warning and Safety instructions
9

Correct use
~Never handle frozen food with wet
hands. Your hands may freeze to the
frozen food. Danger of frost burn.
~Do not take ice cubes out with your
bare hands and never place ice cubes
or ice lollies in your mouth straight from
the freezer.
The very low temperature of the frozen
ice or lollies can cause frost burn to the
lips and tongue.
~Do not refreeze thawed or partially
thawed food. Defrosted food should be
used up as quickly as possible, as food
soon loses its nutritional value and goes
off. Defrosted food may only be
re-frozen after it has been cooked.
~Do not store explosive materials in
the appliance or any products
containing propellants (e.g. spray
cans). Thermostats switching on may
produce sparks which could present a
fire hazard. Flammable compounds
could explode.
~Do not operate any electrical
equipment (e.g. an electric ice-cream
maker) inside the appliance. Danger of
sparking and explosion.
~If storing alcohol with a high
percentage proof, make sure it is tightly
closed and stored upright.
Danger of explosion.
~Do not store cans or bottles
containing carbonated drinks or liquids
which could freeze in the freezer. The
cans or bottles could explode. Danger
of injury and damage to the appliance.
~When cooling drinks quickly in the
freezer, make sure bottles are not left in
for more than one hour; otherwise they
could burst, resulting in injury or
damage.
~Observe the "use by" dates given on
food to avoid the risk of food poisoning.
Storage times will depend on several
factors, including the freshness and
quality of the food as well as the
temperature at which it is stored. Follow
the instructions given on the food
manufacturer's packaging regarding
storage conditions and "use-by" dates.
~Do not use sharp edged objects to
– remove frost and ice,
– separate frozen foods and remove
ice trays.
They will damage the evaporator,
causing irreversible damage to the
appliance.
~Do not place electric heaters or
candles in the appliance to defrost it.
These can damage the plastic parts.
Warning and Safety instructions
10

~Do not use defrosting sprays or
de-icers, as they might contain
substances which could damage the
plastic parts or which could cause the
build-up of gases and pose a danger to
health.
~Do not use any oils or grease on the
door seals, as these will cause the
seals to deteriorate and become
porous with time.
~Do not store cooking oil in the
refrigerator door. Traces of oil can
cause stress cracks to occur in the
plastic components in the door.
~Do not block the ventilation gaps in
the appliance as this would impair the
efficiency of the appliance, increase the
electricity consumption and could
cause damage to the appliance.
~The appliance is designed for use
within certain climate ranges (ambient
temperatures), and should not be used
outside this range. The climate range
for your appliance is stated on the data
plate inside the appliance.
Installing it in a room with too low an
ambient temperature, e.g. a garage,
can lead to the appliance switching off
for longer periods so that it cannot
maintain the required temperature.
~Do not use a steam-cleaning
appliance to defrost or clean this
appliance. Pressurised steam could
reach the electrical components and
cause a short circuit.
Disposal of your old appliance
~Before disposing of an old
appliance, first make the door latch or
lock unusable.
This way you will prevent children from
accidentally locking themselves in and
endangering their lives.
~Be careful not to damage any part of
the pipework whilst awaiting disposal,
e.g. by
–puncturing the refrigerant channels
in the evaporator.
–bending any pipework.
– scratching the surface coating.
Splashes of refrigerant can damage the
eyes.
The manufacturer cannot be held
liable for damage caused by
non-compliance with these Warning
and Safety instructions.
Warning and Safety instructions
11

Normal energy
consumption
Increased energy
consumption
Installation site In a ventilated room. In an enclosed, unventilated room.
Protected from direct sunlight. In direct sunlight.
Not situated near to a heat source
(radiator, oven).
Situated near to a heat source
(radiator, oven).
Where the ideal ambient room
temperature is approx. 20°C.
Where there is a high ambient
room temperature.
Temperature setting with
a thermostat which is
approximate
(set in stages).
With a medium setting of 2 to 3. With a high setting: the lower the
temperature in the compartment,
the higher the energy
consumption.
Temperature setting with
a thermostat which is
exact to the degree
(digital display).
Cellar section 8 to 12°C
On appliances with winter setting,
please make sure that the winter
setting is switched off when the
ambient temperature is warmer
than 16 °C.
Refrigerator section 4 to 5 °C
PerfectFresh zone just above 0 °C
Freezer section -18°C
Wine storage section 10 to 12 °C
Use Only open the doors when
necessary and for as short a time
as possible.
Frequent opening of the doors for
long periods will cause a loss of
coldness.
Store food in an organised way. If food is not stored in an
organised way, searching for an
item will mean the door is open for
longer.
Allow hot food and drinks to cool
down before placing them in the
appliance.
Placing hot food in the appliance
will cause the compressor to run
for a long time, as the appliance
will have to work harder to lower
the temperature.
Store food covered or packaged. The evaporation or condensation
of liquids will cause a loss of
coldness in the refrigerator.
Place frozen food in the
refrigerator to defrost.
Do not over-fill the appliance to
allow air to circulate.
Defrosting Defrost the freezer compartment
when a layer of ice 0.5 cm thick
has built up.
A layer of ice hinders the cold
from reaching the frozen food, and
causes an increase in energy
consumption.
How to save energy
12

Before using for the first time
The stainless steel trim to the interior
shelves and the door shelves has a
layer of protective foil to prevent
damage during transportation. Please
remove this carefully after installation.
^Clean the inside of the appliance and
the accessories with luke warm water
and a little washing-up liquid, and
then dry with a soft cloth.
Important:
To ensure the correct functioning of
the appliance, let it stand for
between 1½ and 2 hours after
transporting it to its final location
before connecting it to the mains.
Switching on
^Using a coin, turn the On/Off dial in a
clockwise direction away from the "0"
position until the temperature display
lights up.
Forcing the dial beyond its range will
damage it. Turn it only as far as it
will go, then turn it back again.
The in-operation indicator light will
come on.
The alarm indicator will light up. It will
go out when the temperature in the
freezer section is cold enough.
The appliance will start cooling down
and the interior light in the refrigerator
section will come on if you open the
door.
Allow the appliance to run for a few
hours before placing food in it. This will
enable the temperature to get
sufficiently low.
Switching off
^Using a coin, turn the On/Off selector
in an anti-clockwise direction back to
the "0" position.
All the indicator lights will go out.
The cooling system and the interior
lighting are now switched off.
Switching off for longer
periods of time
If the appliance is not going to be used
for a longer period of time, e.g. whilst
on holiday:
^switch the appliance off,
^switch off at the wall socket and
withdraw the plug,
^clean the appliance out and
^leave the doors ajar to air the
appliance.
If, during a long absence, the
appliance is switched off but not
cleaned out and the doors are left
shut, there is a danger of mould and
odours building up inside the
appliance.
Switching on and off
13

It is very important to set the correct
temperature for storing food in the
appliance. Micro-organisms will cause
food which is not stored at the correct
temperature to deteriorate rapidly.
Temperature influences the growth rate
of these micro-organisms. Reducing
the temperature reduces their growth
rate.
The temperature in the appliance will
rise:
–the more often the door is opened
and the longer it is kept open,
– the more food that is stored in it,
– the warmer the food is which is being
put into it,
– the higher the ambient temperature
surrounding the appliance.
The appliance is designed for use in
specific ambient temperatures
(climate ranges). Do not use in
ambient temperatures for which it is
not designed.
...intherefrigerator section
We recommend a temperature of 5°C
in the middle of the refrigerator.
...inthefreezer section
To freeze fresh food and to store frozen
food for a long time, a temperature of
-18 °C is required. At this temperature
the growth of micro-organisms is
generally halted. As soon as the
temperature rises above -10 °C, the
micro-organisms become active in the
food again so that it cannot be kept as
long. For this reason, partially defrosted
or defrosted food must not be re-frozen.
Food may be re-frozen once it has
been cooked, as the high temperatures
achieved when cooking destroy most
micro-organisms.
The correct temperature
14

Setting the temperature
The temperatures for both the
refrigerator section and for the freezer
section are set using the same
temperature selector.
To set the temperature in the
refrigerator section to 5 °C,
^turn the temperature selector
clockwise from 0 until the 5 lights up
in the temperature display.
The temperature display on the
control panel always shows the
required temperature.
However, if frozen food is to be stored
in the freezer section then a setting of
between 3°Cto5°is recommended to
ensure that the required temperature in
the freezer section is maintained.
It is also advisable to set the
temperature within this range if the
doors are opened frequently, large
quantities of food are being stored in
the appliance or there is a high ambient
temperature.
The correct temperature
15

Your appliance has been fitted with a
warning system which ensures that the
temperature in the freezer section
cannot rise unnoticed and to avoid
energy being wasted if a door is left
open.
Temperature alarm
An alarm will sound and the alarm
indicator light will flash if the
temperature in the freezer section
becomes warm.
The alarm will sound and the alarm
indicator light will flash,
– if the freezer section door has been
left open for a while, e.g. in order to
load, re-arrange or take food out.
– when freezing large amounts of food
at once.
– if there has been a lengthy
interruption to the power supply.
Door alarm
The alarm will sound if the freezer
section or refrigerator section door is
left open for more than approx. 60
seconds.
Switching on the alarm system
The alarm system is always active. It
does not have to be switched on
manually.
Switching the alarm off early
The alarm stops and the indicator light
goes out once the temperature in the
freezer section is sufficiently cold or
with the door alarm, once the appliance
doors have been closed. However, if
the noise disturbs you, you can turn the
alarm off before this if you wish.
^Press the alarm off button.
The alarm will stop. The alarm
indicator light will stop flashing, but
will remain lit until the temperature in
the freezer section is sufficiently cold.
The indicator light will then go out
and the alarm system is now ready
should it be needed again.
Alarm
16

Super freeze
Switch the Super freeze function on
before putting fresh food into the
freezer.
This helps food to freeze quickly and
retain its nutrients, vitamins, flavours
and appearance.
Super freeze is not necessary:
–when putting in food that is already
frozen.
–when freezing less than 2 kg fresh
food daily.
Switching on Super freeze
When freezing small quantities of food
in the freezer, the Super freeze function
should be switched on 6 hours
beforehand. When freezing the
maximum load of food the Super
freeze function should be switched on
24 hours beforehand.
^Press the Super freeze button. The
Super freeze indicator light will come
on.
The appliance works at full power to
lower the temperature in the
appliance.
Switching off Super freeze
The Super freeze function will switch off
automatically after approx. 65 hours.
The indicator light will go out and the
appliance will run at normal power
again.
To save energy, the Super freeze
function can be switched off once a
constant temperature of -18°C or
colder has been reached in the freezer.
You should also check the temperature
inside the appliance from time to time.
^Press the Super freeze button. The
Super freeze indicator light will go
out, and the appliance will continue
to operate at normal power.
Super freeze and Dynamic cooling
17

Dynamic cooling
When the Dynamic cooling function is
not switched on, the natural circulation
of air in the appliance will cause
different temperature zones in the
refrigerator as the cold, heavy air will
sink to the lowest section of the
appliance. You should bear this in mind
when placing food in the appliance
(see "Using the refrigerator efficiently").
However, if you are placing a large
amount of food in the refrigerator at any
one time, it is a good idea to switch on
Dynamic cooling. This way you can
distribute the temperature inside the
appliance to all areas more evenly so
that all the food will be chilled to about
the same degree.
The temperature is set as normal with
the temperature control.
Dynamic cooling should also be
selected when:
– the ambient temperature in the room
is high (above approx. 30 °C), and
–the room humidity level is high.
Switching on Dynamic cooling
^Press the Dynamic cooling switch
above the fan to "I".
Switching off Dynamic cooling
^Press the Dynamic cooling switch to
"0".
The fan automatically switches off
when the door is open.
Super freeze and Dynamic cooling
18

Different storage zones
Due to the natural circulation of the air
in the appliance, there are different
temperature zones in the refrigerator.
Cold, heavy air sinks to the lowest
section of the appliance. Make use of
the different zones when placing food
in the appliance.
This appliance has Dynamic
cooling, which helps to keep an
even temperature when the fan is
running. When Dynamic cooling is
switched on, the difference between
the various zones is less
pronounced.
Warmest area
The warmest area is in the top section
of the door. Use this for storing butter
and cheese.
Coldest area
The coldest area in a refrigerator is
directly above the vegetable
containers.
Use this for all delicate and highly
perishable food, e.g.
–fish, meat, poultry,
–sausage products, ready meals,
–dishes or baked goods containing
eggs or cream,
–fresh dough, cake mixtures, pizza or
quiche dough,
–soft cheese and other dairy
products,
–pre-packed vegetables and other
fresh food with a label stating it
should be kept at a temperature of
approx. 4 °C.
Do not store explosive materials in
the appliance or any products
containing propellants (e.g. spray
cans). Danger of explosion.
If storing alcohol with a high
percentage proof, make sure it is
tightly closed, and store upright.
Do not store cooking oil in the
refrigerator door. Traces of oil can
cause stress cracks to occur in the
plastic components in the door.
Food must not touch the back wall of
the refrigerator, as it may freeze to
the back wall.
To allow air to circulate efficiently,
do not pack food too closely
together in the refrigerator. Do not
cover the fan in the rear wall of the
refrigerator, as this is essential for
keeping the appliance cool.
Using the refrigerator efficiently
19

Food which should not be
stored in a refrigerator
Not all food is suitable for refrigeration.
This includes:
–Fruit and vegetables which are
sensitive to cold, such as bananas,
avocado, papaya, passion fruit,
aubergines/eggplant,
peppers/capsicum, tomatoes and
cucumbers
–Fruit which is not yet ripe
–Potatoes
– Some hard cheeses, e.g. Parmesan
When shopping for food
The freshness of food when first placed
in the appliance is an important factor
in determining how long it stays fresh,
and how long it can be kept in the
refrigerator. Time out of the refrigerator,
e.g. during transportation, should be
kept to a minimum. For example, do not
allow food to stay in a hot car for too
long. Once food has started to
deteriorate, this process cannot be
reversed. As little as two hours outside
the refrigerator can cause food to start
deteriorating.
Storing food correctly
Food should generally be stored
covered or packaged. This will prevent
food smells from affecting other foods,
food from drying out, and also any
cross-contamination of bacteria. The
growth of bacteria, such as salmonella,
can be avoided by setting the correct
temperature and maintaining good
standards of hygiene.
Fruit and vegetables
Fruit and vegetables may be stored
loose in the vegetable containers.
Please be aware that not all types of
fruit and vegetables are suitable for
storing in the same container. Aromas
and flavours can transfer from one type
of food to another (e.g. carrots absorb
the smell and flavour of onions very
easily). Some food also gives off a
natural gas (ethylene) which speeds up
the rate at which other food perishes.
– Examples of fruit and vegetables
which produce a large amount of
this natural gas are:
Apples, apricots, pears, nectarines,
peaches, plums, avocado, figs,
blueberries, melons and beans.
Using the refrigerator efficiently
20
