Miele KWTN 14826 SDE ed/cs-2 User manual

Operating and installation instructions
Frost free freezer
with wine conditioning unit
To avoid the risk of accidents or damage to the appliance
it is essential to read these instructions
before it is installed and used for the first time.
M.-Nr. 09 836 250en-GB

Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for
disposal, and should be recycled.
Ensure that any plastic wrappings,
bags etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation!
Disposal of your old appliance
Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Please do not therefore dispose of it
with your household waste.
Please dispose of it at your local
community waste collection / recycling
centre or contact your dealer for
advice. Ensure that it presents no
danger to children while being stored
for disposal.
Take care not to damage the pipework
at the back of it before or during
transportation to an authorised
collection depot.
In this way, refrigerant in the pipework
and oil in the compressor will be
contained, and will not leak out into the
environment.
Caring for the environment
2

Caring for the environment..........................................2
Guide to the appliance .............................................6
Optional accessory .................................................8
Warning and Safety instructions .....................................9
How to save energy ...............................................18
Switching on and off ..............................................20
Before using for the first time.........................................20
Cleaning and care ..............................................20
Operating the appliance ............................................20
Switching on .....................................................20
Switching off .....................................................22
Switching off the wine conditioning zones separately ...................22
Settings mode ....................................................23
Switching the sensor tone on/off....................................23
Activating and deactivating the safety lock ...........................24
Switching off for longer periods of time .................................25
The correct temperature ...........................................26
...inthewine conditioning zones ....................................26
Isolator plate for thermal separation .................................26
...inthefreezer section ............................................27
Setting the temperature .............................................27
Temperature range ..............................................28
Temperature display ...............................................29
Changing the temperature display brightness .........................29
Alarm...........................................................30
Temperature alarm ................................................30
Door alarm .......................................................31
Using Dynamic cooling ............................................32
Constant humidity (Dynamic cooling) sensor m.......................32
Using Super freeze ...............................................34
Storing wine bottles...............................................35
Wooden shelves ..................................................35
Descriptive labels .................................................35
Maximum capacity.................................................35
Air filtering with active charcoal filters ..................................35
Contents
3

Freezing and storing food..........................................36
Maximum freezing capacity..........................................36
Freezing fresh food ................................................36
Storing frozen food ................................................36
Home freezing ....................................................37
Hints on home freezing...........................................37
Packaging ....................................................37
Before placing food in the freezer ..................................38
Placing food in the freezer ........................................38
Freezer calendar ..................................................39
Defrosting .......................................................39
Cooling drinks ....................................................40
Cool pack........................................................40
Making ice cubes .................................................41
Setting the water intake time for the ice cube maker ......................43
Automatic defrost ................................................44
Cleaning and care ................................................45
Cleaning the interior and accessories ..................................46
Appliance doors, side panels ........................................46
Cleaning the condensate drain hole ...................................47
Cleaning the ice cube tray...........................................48
Ventilation gaps ...................................................49
Door seals .......................................................49
Metal grille at the back of the appliance ................................49
Active charcoal filter ..............................................50
To change the active charcoal filters...................................50
Problem solving guide ............................................52
Noises .........................................................56
After Sales / Guarantee ............................................57
Guarantee .....................................................57
Note for test institutes.............................................58
Mains water connection ...........................................59
Notes on connecting to the mains water supply ..........................59
Connection to the water inlet .........................................60
Contents
4

Electrical connection..............................................62
Installation ......................................................63
Location .........................................................63
Climatic classification ............................................63
Ventilation .......................................................64
Installation .......................................................64
Aligning the appliance..............................................64
Levelling the appliance door .........................................64
Appliance dimensions ..............................................65
Installing in a side-by-side combination ..............................66
Installing the appliances ............................................66
Instructions for moving the appliances once they have been joined ........66
Joining the two appliances together ...................................67
Aligning the appliance door .........................................72
Changing the door hinging .........................................73
Aligning the appliance doors .......................................84
Building in the appliance ..........................................85
Addresses.......................................................87
Contents
5

aOn/Off sensor for the
whole appliance and
On/Off sensor for switching the wine
conditioning zones on and off
separately
bConstant humidity (Dynamic cooling)
sensor for the wine conditioning
zones
cSuper freeze sensor for the freezer
section
dSensor for setting a lower
temperature (X)
eSafety lock indicator light (only
visible when the Safety lock is
activated)
fTemperature display for the wine
conditioning zones and for the
freezer section
gSensor for switching between the
wine conditioning zones and the
freezer section
(top and middle = "Wine
conditioning" symbol; bottom =
"Freezer" symbol)
hSensor for setting a higher
temperature (Y)
iAlarm off sensor
(only visible when the door or
temperature alarm sounds)
jChange active charcoal filter
indicator
(only visible when the active
charcoal filters need to be changed)
Guide to the appliance
6

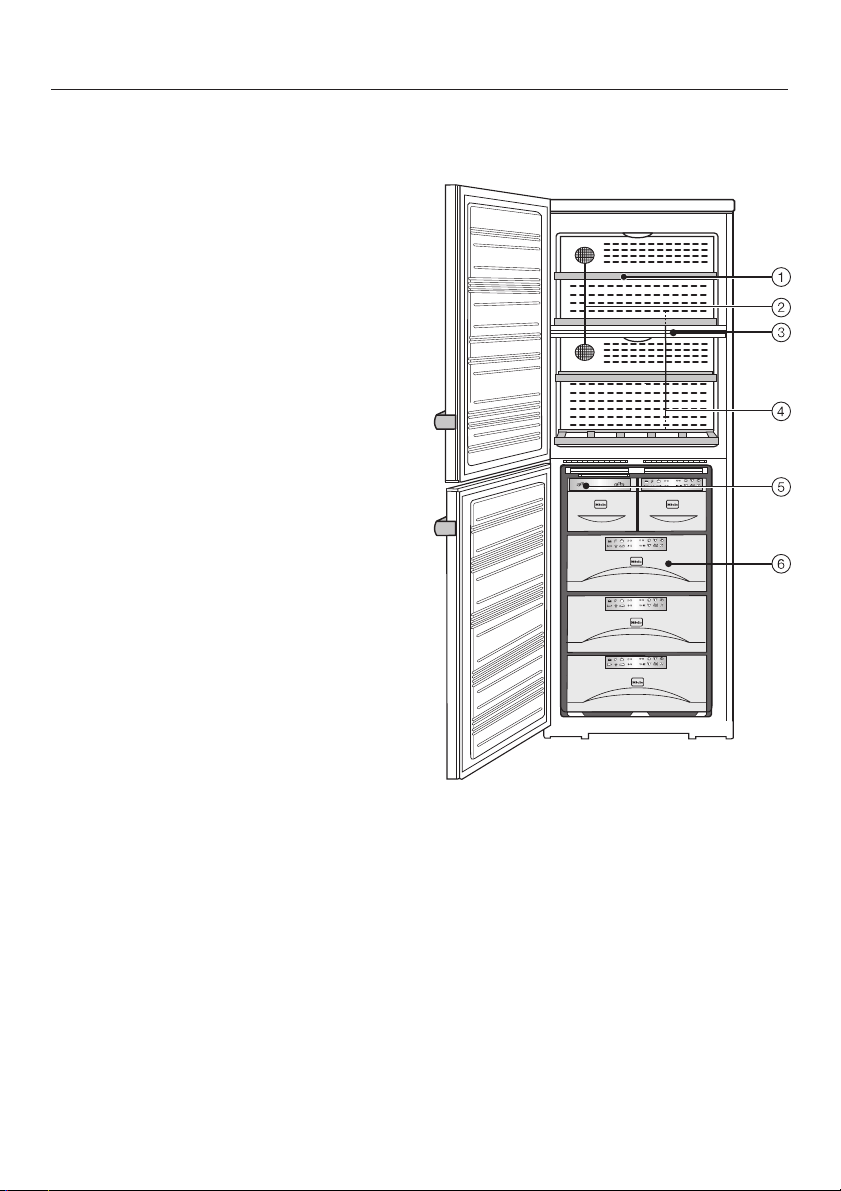

aWooden shelves with shelf edge trim
for descriptive labels
bActive charcoal filter
cIsolator plate for thermal separation
of the wine conditioning zones
dCondensate channel and
drain hole
(behind the metal covers)
eIce cube drawer with
automatic ice cube maker
fFreezer drawers with
freezer calendar
Guide to the appliance
7

Optional accessory
Active charcoal filter
(Active Air Clean filter)
The active charcoal filter achieves
odour-free, optimum air quality for your
wine by filtering the incoming air.
Stainless steel care
–Each application of the Miele
stainless steel conditioner forms a
water and dirt repellent protective
coating. It gently removes water
marks, fingerprints and other dirt for
a uniformly shiny surface.
– The stainless steel cleaning cloth is
impregnated with stainless steel
conditioner for optimum cleaning and
protection.
Multi-purpose microfibre cloth
The microfibre cloth is suitable for
removing fingerprints and light soiling
from surfaces such as stainless steel,
glass, plastic and chrome without the
use of chemicals.
Optional accessories are available
from Miele or via the internet
Guide to the appliance
8

This appliance complies with all statutory safety requirements.
Inappropriate use can, however, lead to personal injury and
damage to property.
To avoid the risk of accidents and damage to the appliance,
please read these instructions carefully before using it for the first
time. They contain important notes on installation, safety, use and
maintenance.
Miele cannot be held liable for non-compliance with these
instructions.
Keep these instructions in a safe place and ensure that new users
are familiar with the contents. Pass them on to any future owner.
Correct application
~This appliance is intended for use in domestic households and
similar working and residential environments.
It is not intended for outdoor use.
~It must only be used as a domestic appliance to store wine as
well as to store deep frozen food, freeze fresh food, and to make
ice.
Any other usage is not supported by the manufacturer and could be
dangerous.
Warning and Safety instructions
9

~This appliance is not suitable for storing and keeping cool
medicines, blood plasma, laboratory preparations or other such
materials or products. Incorrect use of the appliance for such
purposes can cause deterioration of the items stored. The appliance
is not suitable for use in areas where there is a risk of explosion.
Miele cannot be held liable for damage resulting from incorrect or
improper use or operation.
~The appliance can only be used by people with reduced
physical, sensory or mental capabilities, or lack of experience and
knowledge, if they are supervised whilst using it, or have been
shown how to use it in a safe way and recognise and understand the
consequences of incorrect operation.
Safety with children
~Children under 8 years of age must be kept away from the
appliance unless they are constantly supervised.
~Children 8 years and older may only use the appliance
unsupervised if they have been shown how to use it in a safe way
and recognise and understand the consequences of incorrect
operation.
~Children must not be allowed to clean or maintain the appliance
unsupervised.
~Please supervise children in the vicinity of the appliance and do
not let them play with it.
Warning and Safety instructions
10

~Danger of suffocation. Packaging, e.g. plastic wrappings, must
be kept out of the reach of babies and children. Whilst playing,
children could become entangled in packaging or pull it over their
head and suffocate.
Technical safety
~The coolant system is tested for leaks. This appliance complies
with statutory safety requirements and the appropriate EU
guidelines.
~This appliance contains the coolant Isobutane (R600a), a natural
gas which is environmentally friendly. Although it is flammable, it
does not damage the ozone layer and does not increase the
greenhouse effect.
The use of this coolant has, however, led to a slight increase in the
noise level of the appliance. In addition to the noise of the
compressor, you might be able to hear the coolant flowing around
the system. This is unavoidable, and does not have any adverse
effect on the performance of the appliance.
Care must be taken during the transportation and setting up of the
appliance that no parts of the cooling system are damaged. Leaking
refrigerant can damage the eyes.
In the event of any damage:
–avoid naked flames or anything which creates a spark,
–disconnect the appliance from the mains electricity supply,
–ventilate the room where the appliance is located for several
minutes, and
–contact the Miele Service Department.
Warning and Safety instructions
11

~The more coolant there is in an appliance, the larger the room it
should be installed in. In the event of a leakage, if the appliance is in
a small room, there is the danger of combustible gases building up.
For every8gofcoolant at least 1 m3of room space is required. The
amount of coolant in the appliance is stated on the data plate inside
the appliance.
~To avoid the risk of damage to the appliance, make sure that the
connection data (fuse rating, frequency and voltage) on the data
plate corresponds to the household supply.
Check that this is the case before connecting the appliance. Consult
a qualified electrician if in any doubt.
~The electrical safety of this appliance can only be guaranteed
when correctly earthed. It is essential that this standard safety
requirement is met. If in any doubt please have the electrical
installation tested by a qualified electrician.
~If the electrical connection cable is faulty it must only be replaced
by a Miele authorised service technician to protect the user from
danger.
~Do not connect the appliance to the mains electrical supply by a
multi-socket adapter or extension lead. These are a fire hazard and
do not guarantee the required safety of the appliance.
~Do not use in a damp or wet environment (e.g. garage or utility
room). Moisture could reach live components or the electrical
connection and cause a short circuit.
Warning and Safety instructions
12

~This appliance must not be used in a non-stationary location (e.g.
on a ship).
~Do not use a damaged appliance. It could be dangerous. Check
the appliance for visible signs of damage.
~The appliance must be disconnected from the mains electricity
supply during installation, maintenance and repair work, and
installation work on the mains water connection.
~Unauthorised installation, maintenance and repairs as well as a
faulty mains water connection can cause considerable danger to
users.
Installation, maintenance work and repair work, including installation
work on the mains water connection and repairs to the ice/water
dispenser, must only be carried out by a Miele authorised service
technician.
~The ice cube maker is not suitable for connection to a hot water
supply.
~While the appliance is under guarantee, repairs should only be
undertaken by a Miele authorised service technician. Otherwise the
guarantee is invalidated.
~Miele can only guarantee the safety of the appliance when
original Miele replacement parts are used. Faulty components must
only be replaced by genuine Miele original spare parts.
Warning and Safety instructions
13

~Miele cannot be held liable for damage caused by a faulty
connection to the mains water supply.
Correct use
~The appliance is designed for use within a certain climate range
(ambient temperatures), and should not be used outside this range.
The climate range for your appliance is stated on the data plate
inside the appliance.
Installing it in a room with too low an ambient temperature, e.g. a
garage, will lead to the appliance switching off for longer periods so
that it cannot maintain the required temperature.
~Do not cover or block the air vents as this could impair the
efficiency of the appliance, increase the electricity consumption and
could cause damage to the components.
~If storing food which contains a lot of fat or oil in the appliance,
make sure that it does not come into contact with plastic
components as this could cause stress cracks or break the plastic.
~Do not store explosive materials in the appliance or any products
containing propellants (e.g. spray cans). Electrical components
could cause flammable vapours to ignite. Danger of fire and
explosion.
~Do not operate any electrical equipment (e.g. an electric ice
cream maker) inside the appliance. Danger of sparking and
explosion.
Warning and Safety instructions
14

~Do not store cans or bottles containing carbonated drinks or
liquids which could freeze in the freezer. The cans or bottles could
explode. Danger of injury and damage to the appliance.
~When cooling drinks quickly in the freezer, make sure bottles are
not left in for more than one hour; otherwise they could burst,
causing injury and damage.
~Never handle frozen food or the metal parts of the appliance with
wet hands. Your hands may freeze to the frozen food or to the metal.
Danger of frost burn.
~Do not take ice cubes out with your bare hands and never place
ice cubes or ice lollies in your mouth straight from the freezer.The
very low temperature of the frozen ice or lollies can cause frost burn
to the lips and tongue.
~Do not refreeze partially or fully defrosted food. Consume
defrosted food as soon as possible, as it will lose its nutritional value
and spoil if left for too long. Defrosted food may only be re-frozen
after it has been cooked.
~Observe the manufacturer's "use-by" dates and storage
instructions given on food to avoid the risk of food poisoning.
Storage times will depend on several factors, including the
freshness and quality of the food, as well as the temperature at
which it is stored.
~Only use genuine original Miele accessories with this appliance.
Using spare parts or accessories from other manufacturers will
invalidate the guarantee, and Miele cannot accept liability.
Warning and Safety instructions
15

Stainless steel appliances
~Do not use sticky notes, transparent adhesive tape, masking tape
or other types of adhesive on the surface of the door. These will
damage the surface, causing it to lose its dirt repellent protective
coating.
~The high-quality surface of the door is susceptible to scratching.
Even fridge magnets can cause scratching.
Cleaning and care
~Do not use any oils or grease on the door seals, as these will
cause the seals to deteriorate and become porous with time.
~Do not use a steam cleaning appliance to clean or defrost this
appliance.
Steam could reach electrical components and cause a short circuit.
~Do not use sharp edged objects to
– remove frost and ice,
– separate frozen foods and remove ice trays.
They will damage the evaporator, causing irreversible damage to
the appliance.
~Never place electric heaters or candles in the appliance to
defrost it. These can damage the plastic parts.
~Do not use defrosting sprays or de-icers, as they could contain
substances which could damage the plastic parts or which might
cause the build-up of gases and pose a danger to health.
Warning and Safety instructions
16

Transporting the appliance
~Always transport the appliance in an upright position and in its
original transport packaging to avoid damage in transit.
~Danger of injury and damage. The appliance is very heavy and
must be transported by two people.
Disposal of your old appliance
~Before disposing of an old appliance, first make the door latch or
lock unusable.
This way you will prevent children from accidentally locking
themselves in and endangering their lives.
~Be careful not to damage any part of the pipework whilst awaiting
disposal, e.g. by
– puncturing the coolant channels in the condenser,
– bending any pipework, or
– scratching the surface coating.
Splashes of coolant can damage the eyes.
Warning and Safety instructions
17

Normal energy
consumption
Increased energy
consumption
Installation site /
Maintenance
In a ventilated room. In an enclosed,
unventilated room.
Protected from direct
sunlight.
In direct sunlight.
Not near to a heat source
(radiator, oven).
Near to a heat source
(radiator, oven).
Where the ideal ambient
room temperature is approx.
20 °C.
Where there is a high
ambient room temperature.
Ventilation gaps uncovered
and dusted regularly.
Where the ventilation gaps
are covered or dusty.
Compressor and metal grille
(heat exchanger) at the back
of the appliance dusted at
least once a year.
Dust build-up on the
compressor and metal grille
(heat exchanger).
Temperature
setting
Wine conditioning zones 8 to
12 °C
Freezer section -18 °C
The lower the temperature,
the higher the energy
consumption.
How to save energy
18

Normal energy
consumption
Increased energy
consumption
Use Wooden shelves and drawers
arranged as they were when
the appliance was delivered.
Only open the door when
necessary and for as short a
time as possible.
Store wine bottles/food in an
organised way.
Frequent opening of the door
for long periods will cause a
loss of coldness. The
appliance works harder to
cool down and the
compressor runs for longer
periods.
Take an insulated cool bag
when shopping and load food
in the appliance as soon as
possible.
Replace any food removed
rapidly, before it begins to
thaw.
Allow hot food and drinks to
cool down before placing
them in the appliance.
Hot food or food at room
temperature raises the
temperature inside the
appliance. The appliance
works harder to cool down
and the compressor runs for
longer periods.
Store food covered or
packaged.
The evaporation or
condensation of liquids will
cause a loss of coldness.
Do not overfill the appliance to
allow air to circulate.
How to save energy
19

Before using for the first time
Packaging material
^Remove all packaging material from
the inside of the appliance.
Protective foil
On stainless steel appliances, the outer
surfaces are covered with protective
foil.
^Do not remove the foil until the
appliance has been positioned in its
final location.
Cleaning and care
It is essential to follow the relevant
instructions in "Cleaning and care".
^On stainless steel appliances treat
the side panels with Miele stainless
steel conditioning agent as soon as
you have removed the protective foil.
The appliance doors have a special
finish which is resistant to soiling. Do
not use Miele stainless steel
conditioner on the appliance door.
Important. Each time it is used, the
Miele stainless steel conditioning
agent forms a water and dirt repellant
protective coating.
^Clean the inside of the appliance and
the accessories with lukewarm water
and a little washing-up liquid, and
then dry with a soft cloth.
Operating the appliance
A light touch of the finger on the
sensors is all that is required to operate
this appliance.
Switching on
Both of the wine conditioning zones
and the freezer section are switched on
together with the On/Off sensor.
^Touch the On/Off sensor until the
temperature display lights up.
The temperature displays for the wine
conditioning zones show the current
temperatures in the different zones.
If the temperature in the freezer section
is above 0 °C, only bars will light up in
the temperature display for the freezer
section. As soon as the temperature is
below 0 °C, the temperature display for
the freezer section will show the current
temperature in the freezer section.
The "Freezer" symbol and the Alarm off
sensor will flash until the temperature in
the freezer section has cooled down to
the correct temperature for freezing.
The appliance will start to cool and the
interior lighting will come on when the
appliance door is opened.
Switching on and off
20
