Mimosa First Class Travel System User manual

Malaysia Importer/Distributor:
Global Product Solutions Sdn. Bhd. (705154-M)
Wisma Pang Cheng Yean, Lot 5205C,
Jalan Perindustrian Balakong Jaya 1/3,
Taman Perindustrian Balakong Jaya,
43300 Seri Kembangan, Selangor Darul Ehsan, Malaysia
Tel: [phone]
[email protected]
Hong Kong Importer/Distributor:
Trade Solutions Ltd
Unit D, 13A/F, Gemstar Tower, 23 Man Lok Street,
Hunghom, Kowloon, Hong Kong
Singapore Importer/Distributor:
Global Outsource Solutions Pte Ltd
601 Sims Drive, Pan-I Complex, Singapore 387382
Tel: [phone]
[email protected]

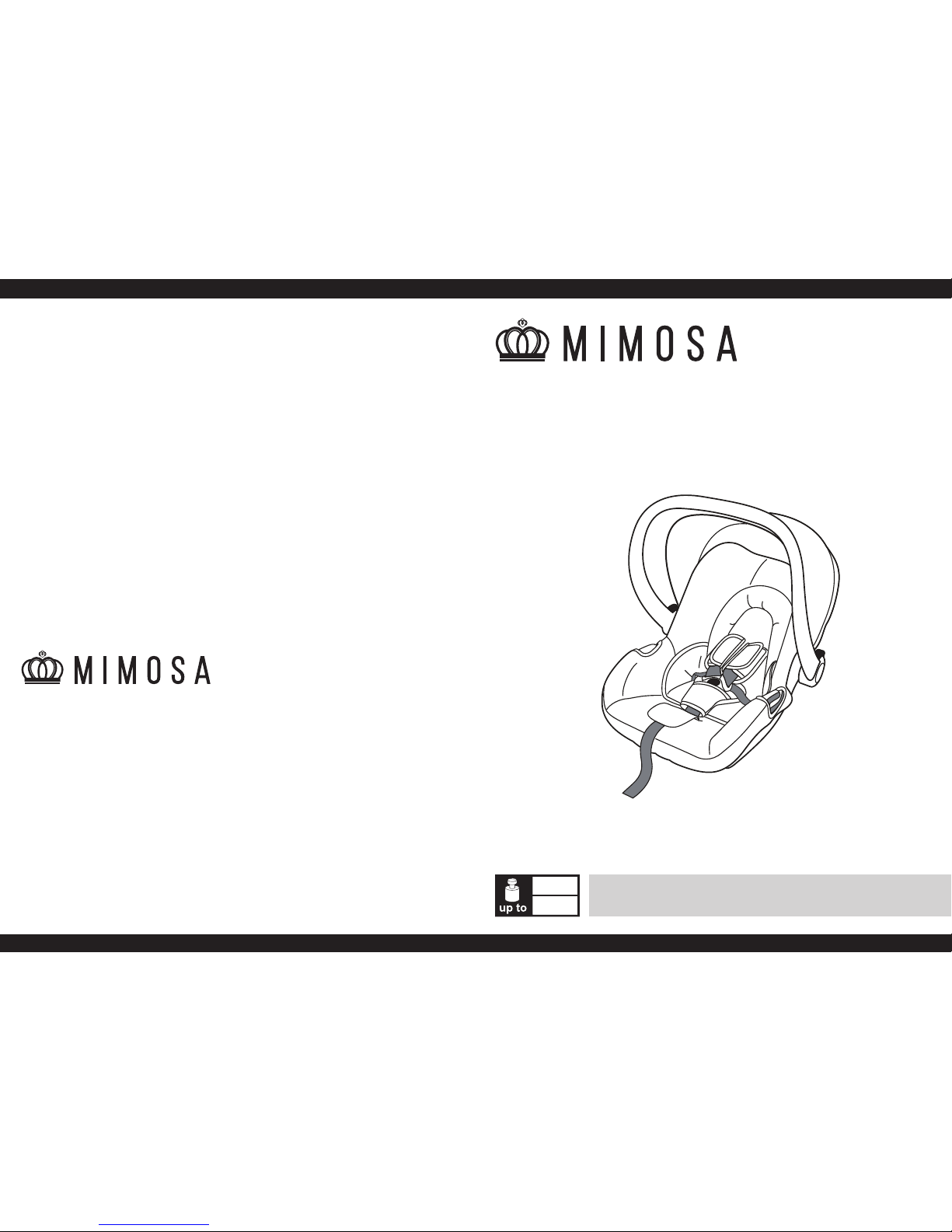

FIRST CLASS TRAVEL SYSTEM
Infant Car Seat User Manual
28lbs
13kg
Infant car seat suitable from birth to 12 months and the maximum load is 13kg
Important – Please read the instruction before assembly.

1. SAFETY INFORMATION...............................................................................................................................2
2. INFANT CAR SEAT PARTS .......................................................................................................................3
3. ADJUST THE HANDLE..................................................................................................................................4
4. SECURE THE HARNESS..............................................................................................................................5
5. ADJUST THE CROTCH STRAP POSITION......................................................................................6
6. SECURE CHILD USING 5-POINT HARNESS SYSTEM...........................................................7
7. INFANT CAR SEAT INSTALLATION IN VEHICLE SEAT.........................................................9
8. REMOVE CANOPY AND COVER.......................................................................................................10
9. CLEANING AND MAINTENANCE......................................................................................................13
Please read this user manual carefully before using First Class Travel
System – Infant car seat. Please keep this user manual for future reference.
• This infant car seat should only be installed by an adult. It is suitable for child
from 0 to 13 kg (approx. from birth to 1 year) and height 74cm or less (i.e. top
of child’s head is more than 2cm away from the top of car seat).
• This infant car seat can only be installed in a rear-facing position using a
vehicle 3-point seat belt.
• Do not put your child at risk by using other replacement cover which could
prevent the infant car seat from protecting your child as it should.
• For your child’s safety, do not use a damaged or second-hand infant car seat.
This infant car seat should be changed timely when it has been subject to
violent stress in an accident.
• Always use the 5-point harness provided and make sure it is correctly fitted.
Ensure the harness is not twisted.
• Make sure the vehicle seat belt is tight and not twisted.
• Do not leave your child on the infant car seat unattended.
• Never place the infant car seat on a vehicle seat with an active airbag.
• Please follow the installation diagrams on the infant car seat or user manual
when installing the infant car seat in your vehicle.
• Do not allow the infant car seat to be jammed in the vehicle door, seat
runners, etc.
• Do not install infant car seat on an unlocked foldable vehicle seat as it may
lead to the car seat losing its effectiveness in an emergency brake situation.
• Any luggage or other objects liable to cause injuries in the event of collision
should be properly secured.
• The infant car seat should be properly secured so that your child is well
protected in the event of an accident.
• Always make sure the handle is properly locked in the upright carrying
position before carrying a child in the infant car seat.
• Please cover the infant car seat properly when the vehicle is parked under
direct sunlight. The parts of the infant car seat that are not provided with a
textile cover should be kept away from the sunlight, otherwise it may be too
hot for your child’s skin. Never use the infant car seat without the cover.
• Do not put any padding under the car seat to increase height because it may
cause the infant car seat to lose its effectiveness in the event of an accident.
Always keep the infant car seat secured in the vehicle even when it is
unoccupied. Do not place heavy objects on it.
CONTENTS 1. SAFETY INFORMATIONS
21

3 4
• Do not make any additions or changes to the infant car seat. Do not use
other installation methods except for the instructions provided in the user
manual.
• Do not use any load bearing contact points other than those described in
the instructions and marked on the infant car seat.
• Do not use the infant car seat with a shopping cart.
• The user manual should be retained for the life span of the infant car seat.
2. INFANT CAR SEAT PARTS
3. ADJUST THE HANDLE
1. There are 4 positions:
A – In vehicle and carry positions
B & C – Middle positions
D – Stationary position
2. To adjust, squeeze handle release
buttons on both side, then rotate
the handle. The handle will lock into
position.
3. You should hear a “click” sound
when the handle button is engaged
and handle is locked into upright
carrying position.
Note: Always make sure the handle
is securely locked in the upright
carrying position before carrying.
1. Adjuster button
2. Adjuster strap
3. Crotch pad
4. 5-point harness system
5. Crotch belt
6. Canopy
7. Head support
8. Shoulder pads
9. Buckle
10. Lap belt guide
11. Infant pad
12. Handle
13. Handle release button
14. Crotch strap slot
15. Shoulder belt guide
16. Harness slot
17. Yoke connect plate
18. Shell
FRONT VIEW BACK VIEW

5 6
4. SECURE THE HARNESS
5. ADJUST THE CROTCH STRAP POSITION
1. Align the shoulder straps with
the height of your child’s
shoulders.
4. Insert the harness straps through the
appropriate harness slot. Make sure the
both shoulder straps are of the same
height, not twisted. From the rear of the
car seat, fit the harness strap onto the
yoke connector plate. Pull to make sure
the harness straps are firmly secured into
the yoke connector plate.
1. The crotch strap can be adjusted in 2
positions. Only move the crotch strap
position to outer position when your child
weighs more than 7kg. Typically this is
when harness is in middle harness slots.
To adjust the crotch strap, locate the
metal plate attached to crotch strap
under the infant car seat. Rotate the
metal plate and push it through the
infant car seat base and seat cover. Loosen
harness adjuster strap if it is in the way.
2. Locate the appropriate crotch strap slot
and insert the metal plate and crotch
strap through the infant car seat cover
and base. Pull on harness buckle to make
sure the crotch strap is secure.
2. To adjust the height of
shoulder straps, you need to
take out the straps from the
yoke connector plate located at
the back of the seat.
3. Pull both shoulder straps
through the front of the infant
car seat.

6. SECURE CHILD USING 5-POINT HARNESS SYSTEM
1. Press the adjuster button and pull
both shoulder straps to loosen the
harness.
2. Press the button on the buckle to
release the shoulder straps and move
them to the side.
3. Place your child in the infant car seat.
Slide shoulder straps over child’s
shoulder. Make sure the shoulder straps
is aligned with the height of your child’s
shoulders.
4. Put the right and left tongues of the
buckle together. Ensure the buckle
tongues are firmly together.
5. Insert into the buckle until you hear
a “click” sound. Make sure the
shoulder straps are not twisted.
Adjust the shoulder pads over the
child’s shoulders.
6. Pull the adjuster strap until the
harness is tight.
7. Tighten the harness as far as
possible, with one finger gap between
the harness straps and your child’s
shoulders.
Note: Discontinue to use when child’s
weight is more than 13kg, height is
more than 74cm or child’s head is less
than 2cm from top of car seat.
7 8

7. INFANT CAR SEAT INSTALLATION IN VEHICLE SEAT
1. Place the infant car seat rear-facing
on the vehicle seat and make sure the
handle is in the appropriate position.
Your child should face the vehicle seat
backrest.
2. Pull out the vehicle seat belt and pass
the vehicle lap belt through the infant
car seat lap belt guide. Fasten the seat
belt into the buckle until you hear a
“click” sound.
3. Pass the vehicle shoulder belt
through the shoulder belt guide located
at the back of the infant car seat.
4. Tighten the vehicle seat belt by
pulling the seat belt in the direction of
the arrows as shown. Make sure the seat
belt is tight and not twisted. Adjust the
car seat to the proper recline position to
ensure maximum protection for the
child.
9 10
Warning! Do not install the infant car seat at the lateral and rear-facing passenger seat
(1a, 1b). This infant car seat can only be installed on a forward facing passenger seat (1c,
1d). Only use 3-point vehicle seat belts to install this infant car seat.

9. CLEANING AND MAINTENANCE
8. REMOVE CANOPY AND COVER
1. Remove the elastic band and detach
the canopy frame from the infant car seat.
2. Pull out the cover from shell front.
11 12
Periodically check the infant car seat for damage or worn parts. Do not use this infant
car seat if any part is damaged or worn.
5-point harness buckle
A 5-point harness buckle is a safety feature. Please use water to clean the 5-point
harness buckle as food, drink and other residues may easily accumulate in the buckle.
If the buckle is jammed, please contact manufacturer or retailer.
5-point harness belts and plastic components
Wipe the 5-point harness belts and plastic components with warm water and mild
soap.
Infant car seat cover
Never use this car seat without the cover.
The infant car seat cover is washable according to the instructions on the washing
label.
Avoid drying the cover in direct sunlight.
Cover: 100% Polyester
Wipe clean with damp cloth if necessary
DO NOT
IRON
DO NOT
DRY CLEAN
DO NOT
TUMBLE DRY
DO NOT
BLEACH
DO NOT
MACHINE WASH
