Graco Extend2Fit User manual

Extend2Fit®
3-IN-1 CAR SEAT
www.gracobaby.com
FAILURE TO PROPERLY USE THIS
CHILD RESTRAINT INCREASES THE
RISK OF SERIOUS INJURY OR DEATH
IN A SUDDEN STOP OR CRASH.
Do not install or use this child restraint
until you read and understand the
instructions in this manual.
NWL0000978533A 7/19

2
1-A A Quick Guide to Your Manual
1-B Welcome to the Graco Family
1-C Right Mode of Use
1-D Before You Begin
Register This Car Seat
If You Need Help
Certification
Car Seat’s Useful Life
Vehicle Seat Protection
Warm Weather Use
1-E Safety Warnings
2-A Car Seat Features
1 Important Pages 6-27
2 Features Pages 28-33

3
1 Important Pages 6-27
2 Features Pages 28-33
4-A Forward-Facing
4-B Installing Forward-Facing With LATCH
4-C Install Forward-Facing With Vehicle Seat Belt
4 Forward-Facing Use Pages 52-65
3-A Rear-Facing
3-B Installing Rear-Facing With Lower Anchor Attachment
3-C Install Rear-Facing With Vehicle Seat Belt
3 Rear-Facing Use Pages 34-51

4
6-A Securing Child 5-Point Harness
6-B Securing Child Backed Booster
6 Securing Child Pages 76-85
7 Accessories Pages 86-87
8 Moving Lower Anchor Pages 88-90
5-A Booster Use
5-B Install Backed Booster
5 Booster Pages 66-75
Attachment

5
6 Securing Child Pages 76-85
7 Accessories Pages 86-87
8 Moving Lower Anchor Pages 88-90
9-A How to Uninstall Lower Anchor Connector and Tether
9-B Choosing Vehicle Seat Location
9-C Unsafe Vehicle Seat Locations
9-D Vehicle Seat Belts
9 Additional Information Pages 91-101
10-A Cleaning Seat Pad
10-B Cleaning Crotch Buckle
10-C Cleaning Harness and Lower Anchor Attachment and Tether
10 Cleaning Seat Pad Pages 102-106
5 Booster Pages 66-75
Attachment

6
1-A A Quick Guide to Your Manual
This car seat is for children: Rear-Facing: 4-50 lb (1.8-22.5 kg)
Forward Facing: 22-65 lb (10-30 kg)
Booster: 40-100 lb (18.1-45 kg)
• Children less than 22 lb (10 kg) MUST use this car seat rear-facing.
Review section 1-C for more information.
Note: Preterm or low birth weight infants may be at special risk in a vehicle or aircraft.
According to the AAP, these infants may suffer breathing issues if improperly reclined in
a car seat. When rear-facing, use the corrected age for preemies. Graco advises that you
have your physician or hospital staff evaluate your infant and recommend the proper car
seat or car bed before you and your infant leave the hospital.

7
Car Seat Assembly (On Select Models)
Adult Assembly Required
1. Attach Cup Holders
You MUST attach cup holders. Line up the
T-slot and side-tab to “click” into place.

8
Get to Know Your Car Seat
What Seating Location Should I Use?
Review section 2-A to see all of the features of this car seat.
The best seating location for this car seat is one that:
• Is recommended by your vehicle owner’s manual, and
• Results in a secure installation of this car seat.
Some vehicles have specific requirements for where the car seat can be
installed, so be sure to check your vehicle owner’s manual for available
seating positions, if any.
Review section 9-B, 9-C of this manual AND your vehicle owner’s manual.

9
Which Installation Method Should I Use?
This car seat can be installed in your vehicle using either the vehicle seat belt OR the
LATCH system OR the lower anchor attachment. All are equally safe to use. INSTALL
USING ONLY ONE METHOD. Graco allows the securing of the car seat with LATCH in
the booster mode, only if the vehicle manufacture allows it.
Vehicle Seat Belt: Review section 9 and your vehicle owner’s manual to learn how
to install your car seat with the vehicle seat belts.
LATCH or Lower Anchor Attachment: The LATCH system or lower anchor
attachment allows you to securely attach your safety seat in your car without using
the vehicle seat belt and possibly to get a better fit. All 2003 and newer model year
vehicles are required to have a LATCH system, although some manufacturers began
including LATCH earlier. Some vehicle owner manuals use the term ISOFIX to identify
the LATCH system.
According to accident statistics, the safest
place for your child in any vehicle is the back
seat. The center of the back seat can be the
safest during a possible side impact.

10
LATCH consists of lower anchors and top tether anchors, which are built-in
to your vehicle, and lower anchor attachment and tether that are built-in to
your car seat. Lower anchor attachment are used INSTEAD of the vehicle’s
seat belt to secure the child seat to the vehicle. Top tethers are used IN
ADDITION to the lower anchor attachment OR the vehicle’s seat belt to
secure a forward-facing car seat to the vehicle.
Review your vehicle’s owner manual for exact location and use.
What is LATCH?
Vehicle Tether
Anchor
Vehicle Lower
Anchor
Typical seat in a passenger
vehicle. Other vehicle types
may have different LATCH
locations.
Vehicle Seat Bight
11”
(28 cm)

11
Lower Anchor Attachment
Lower Anchor Attachment consists of two lower anchors,
which are built-in to your vehicle, and lower anchor connectors
that are built-in your car seat. Review section 3-C, 4-C & 5-B
of this manual AND your vehicle owner’s manual.
Lower anchor attachment can ONLY be used if the vehicle
lower anchor spacing is 11 inches (28 cm) from the center
of one lower anchor to
the center of the other
lower anchor.
Typical seat in a passenger
vehicle. Other vehicle types
may have different LATCH
locations.
When Installing This Car Seat
Vehicle Seat Belt
There are two types of vehicle seat belts that can
be used When Installing Rear-Facing & Forward-
Facing. Lap/Shoulder Seat Belt or Lap Only Seat
Belt.
Only use the Lap/Shoulder seat belt
configuration when Installing As a Booster
Review section 3-C, 4-C & 5-B of this manual
AND your vehicle owner’s manual.

12

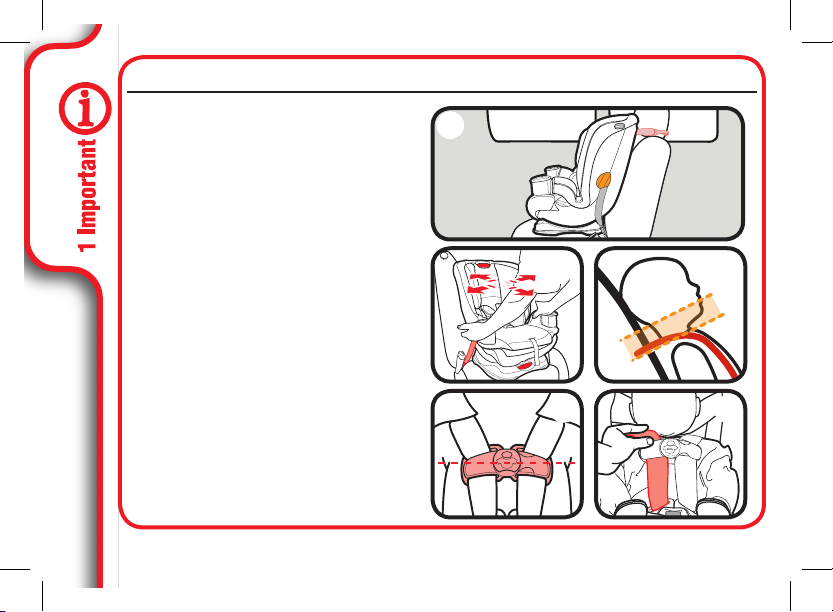

Does Your Car Seat Fit Your Child Correctly?
To make sure your child is secured properly, review section 3, 4 & 5 to
understand all of the actions you need to take to properly adjust the car seat
to fit your child.
Harness Height, Rear-Facing(A)
Harness straps at or just below the child’s
shoulders and top of head must be 1” (2.5 cm)
below the headrest adjustment lever (B). Review
section 6.
Buckle Position (C)
The correct slot is the one that is closest to
your child without being underneath them.
Review section 6.

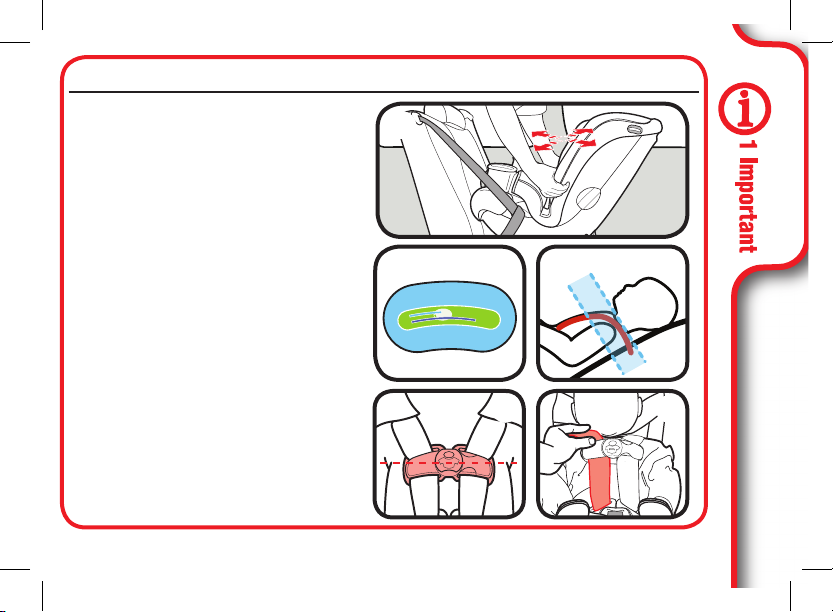

Harness Tightness (D)
If your fingers slide off the harness straps
without pinching the straps, it is tight enough.
Review section 6.
For Rear-Facing, You Need to Adjust:
1” (2.5 cm)1” (2.5 cm)
A
C
B
D

13
Harness Height, Forward-Facing (A)
Harness straps at or just above the child’s
shoulders and top of child’s ears below top of
headrest (B). Review section 6.
Buckle Position (C)
The correct slot is the one that is closest to
your child without being underneath them.
Review section 6.
Harness Tightness (D)
If your fingers slide off the harness straps
without pinching the straps, it is tight enough.
Review section 6.
For Forward-Facing, You Need to Adjust:
A
C
B
D

14

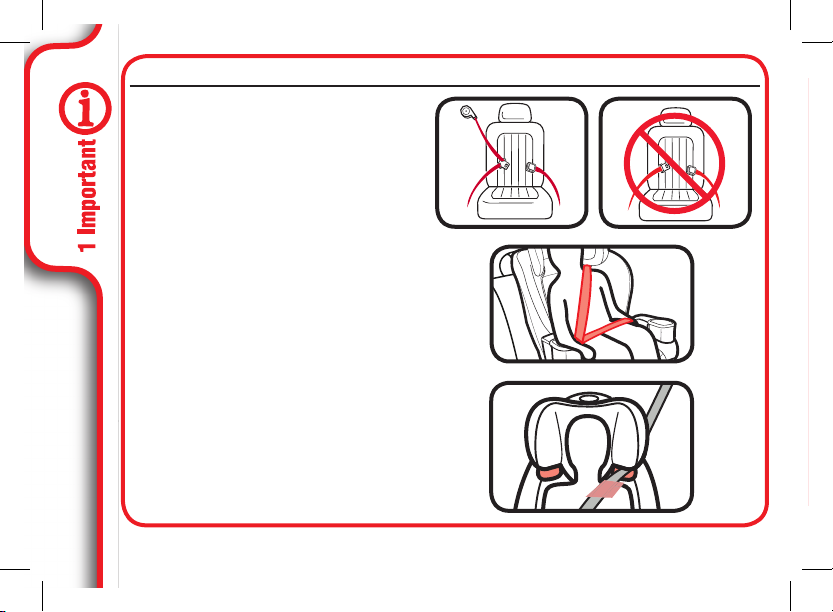

Use Lap/Shoulder Belt Only
Position Lap Belt
Lap belt must go behind armrest
and lie low across your child’s
hips and thighs.
Position Shoulder Belt
Shoulder belt lies across shoulder
between neck and edge of
shoulder.
For Booster, You Need to Adjust:

15
Car Seat Does Not Move More
than 1” (2.5 cm) at the Belt
Path (A)
Review section 3
Check level indicator (B)
Review section 3
Harness Straps at or Just
Below Child’s Shoulders (C)
Review section 6
Chest Clip Even With Armpits(D)
Review section 6
Cannot Pinch Harness Straps
at the Shoulder (E)
Review section 6
Rear-Facing Installation
B
A
D E
C

16
Use the top tether strap when
using forward-facing (A)
When used properly, the top tether
helps reduce injury in a sudden
stop or crash.
Review section 4
Car Seat Does Not Move More
than 1” (2.5 cm) at the Belt
Path (B)
Review section 4
Harness Straps at or Just
Above Child’s Shoulders (C)
Review section 6
Chest Clip Even With Armpits(D)
Review section 6
Cannot Pinch Harness Straps
at the Shoulder (E)
Review section 6
Forward-Facing Installation
B
A
D E
C

17
Never Use Lap Belt Only
Review section 5
Lap Belt Behind Armrest and
Lies Low Across Hips and Thighs
Review section 5
Shoulder Belt Lies On the
Shoulder, Between the Neck and
Edge of Shoulders
Review section 5
Booster Installation

18
1-B Welcome to the Graco Family!
Your child’s safety depends on you. No car seat can guarantee protection from injury in
every situation, but proper use helps reduce the risk of serious injury or death.
Even if this car seat seems easy to figure out on your own, you must follow the detailed
instructions in this instruction manual to ensure all steps are preformed correctly.
*Check your local and state laws and the AAP/NHTSA recommendations. See page 25
for more information.

19
Your child’s safety depends on you. No car seat can guarantee protection from injury in
every situation, but proper use helps reduce the risk of serious injury or death.
Even if this car seat seems easy to figure out on your own, you must follow the detailed
instructions in this instruction manual to ensure all steps are preformed correctly.
1-C Right Mode of Use
*Check your local and state laws and the AAP/NHTSA recommendations. See page 25
for more information.
4 lb
(1.8 kg)
22 lb
(10 kg)
50 lb
(22.5 kg) 65 lb
(30 kg)
Rear-Facing with 5-Point Harness
Must be 49” (125 cm) or less: 4-22 lb (1.8-10 kg)
less than 1 year old MUST be rear-facing. 22-50
lb (10-22.5 kg) SHOULD be rear-facing.*
Forward-Facing with 5-Point Harness
Must be 49” (125 cm) or less: 22-50 lb (10-22.5
kg) can sit upright unassisted CAN be forward-
facing. 50-65 lb (22.5-30 kg) SHOULD be
forward-facing.*
Booster Mode with Vehicle Lap/Shoulder
Seat Belt Must be 43-57” (110.1-145 cm)
tall and 4+ years old. 40-65 lb (18.1-30 kg)
CAN be in booster mode. Over 65 lb (30 kg)
MUST be in booster mode.*
100 lb
(45 kg)
40 lb
(18.1 kg)

20
1-D Before You Begin
Please fill out the prepaid registration postcard attached to the harness
and mail it in today or register online at www.gracobaby.com/
carseatregistration.
Child restraints could be recalled for safety reasons. You must register
this restraint to be reached in a recall. Send your name, address, and the
restraint’s model number and manufacturing date to:
Graco Children’s Products, Inc.
Attn: Customer Service
P.O. Box 169, Elverson, PA 19520-9901
or call 1-800-345-4109
or register online at
www.gracobaby.com/carseatregistration
For recall information, call the U.S. Government’s Vehicle Safety Hotline at 1-888-327-
4236 (TTY: 1–800–424–9153), or go to http://www.NHTSA.gov.
Register This Child Restraint
