USER MANUAL
LS
EXAMINATION LAMP
LS LED | LS INFRA | LS INFRA TIMER
F3P34
Rev. 01
20.06.2022

ENG
Dear user, we encourage you to read this manual carefully before using the product.
The manufacturer states that this product complies with the following directives:
• 2014/35/EU (LVD) Low Voltage Directive Class II
• 2014/30/EU Electromagnetic Compatibility (E.M.C)
This manual’s content may be modified in part or in whole by MISMAL without prior notice in
order to make changes and improvements.
MIMSAL has a Customer Support service available.
Your team:
MIMSAL TRADE S.L.
C/ Mollet, 17
Polígono Industrial Palou Nord
08401 – Granollers (Barcelona) SPAIN
Tel. [phone]
mimsal@mimsal com
www.mimsal.com

ENG
3
TABLE OF CONTENTS
1.Safety instructions 5
2. Brief description 6
3. Installation and supports 7
3.1 Trolley Stand 8
3.2 AH Table Clamp 9
3.3 Wall B Support 10
3.4 Rail Plus Bracket 11
3.5 Extension arm 12
4. Operation of the lighting unit 13
4.1 Check before each use 13
4.2 Operation of the lighting unit head 13

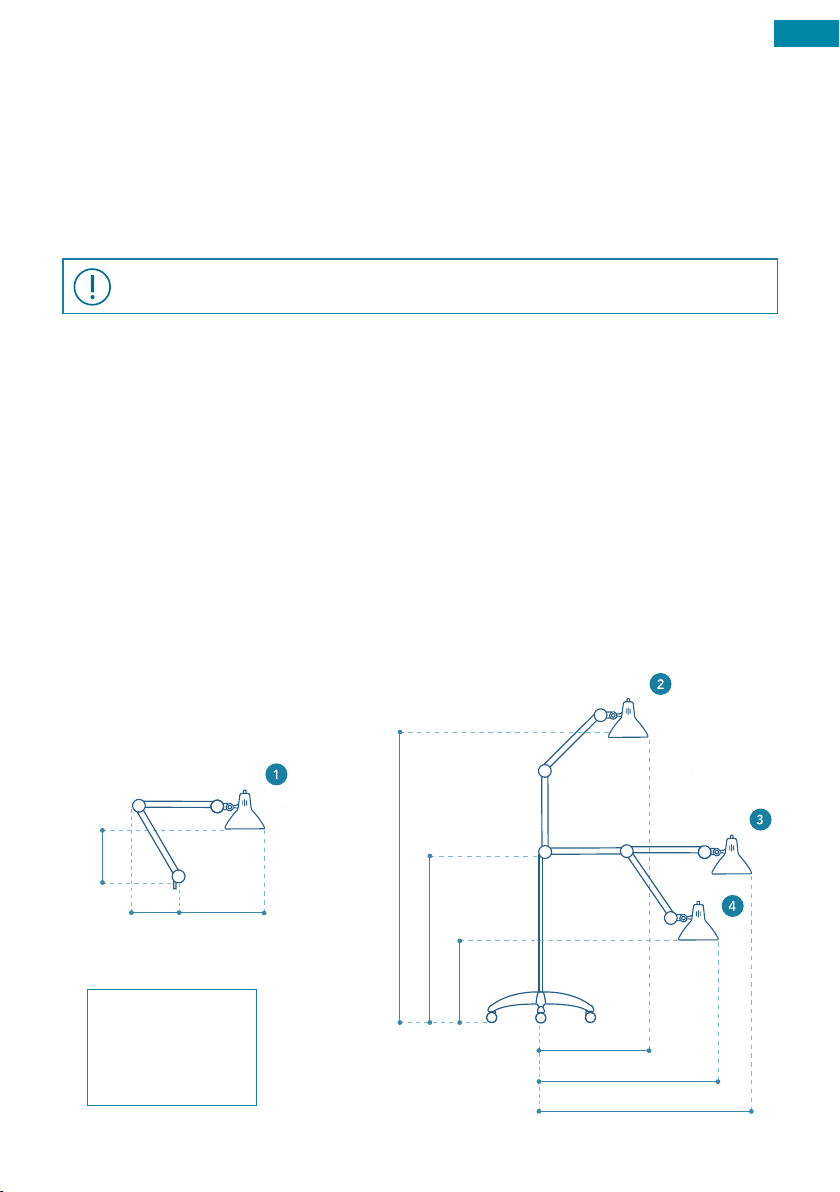

4.3 Articulated arms measurement details 13
5. Safety functions 14
5.1 Voltage drop 14
5.2 Power cuts 14
5.3 Electrical malfunction 14
6. Cleaning/Disinfection 14
6.1 General safety instructions 14
6.2 Cleaning 14
6.3 Disinfection 15
7. Maintenance 15
7.1 Lighting unit support arms 15
7.2 Lighting unit head 16
7.3 Repairs 16
7.4 Adjustments 16
7.5 Troubleshooting 16
8. Recycling 16
9. Technical data 17
10. Electromagnetic Emissions 18
11. Warranty 19
12. Industrial and Intellectual Property 20
13. Confidentiality 20
14. Declaration of Conformity 21
15. Certificate ISO 9001 23

ENG
4
SYMBOLS
INSTRUCTIONS
DECLARATION OF CONFORMITY
ITEM CODE
BATCH NUMBER
MANUFACTURING DATE
NAME AND ADDRESS OF THE MANUFACTURER
ELECTRONIC WASTE RECYCLING
ELECTRICAL INSULATION CLASS
Class II
MINIMUM DISTANCE TO THE ILLUMINATED OBJECT
AMBIENT TEMPERATURE
Shows the permitted ambient temperature of between -25°C and 70°C for transportation and
storage.
HUMIDITY
Shows the permitted humidity values of between 10% and 75% for transportation and storage.
WARNING
Not doing so could result in serious or even fatal injuries.
CAUTION
Not doing so could result in minor to moderate injuries or damage.
NOTE | INFORMATION
Provides application tips and useful information.
FALLING OF THE LIGHTING UNIT
Warns about the sudden collapse of the support arm system if the maximum useful load is
exceeded.
TIPPING HAZARD
The brackets are only designed to support the weight of the head. If additional weight is added, the
unit may tip over, which could cause damage of varying degrees.
SAFETY RULES

ENG
5
1. SAFETY INSTRUCTIONS
REFERENCE AND MODEL
REF MODEL
LS010316LED LS LED
E020412 LS INFRA 150W
E02041250 LS INFRA 250W
E020412T LS INFRA TIMER 150W
E02041250T LS INFRA TIMER 250W
ENVIRONMENT
1. This device is not designed to be operated in potentially explosive areas!
2. Do not use it in oxygen-enriched areas!
3. Do not use it near flammable anesthetic gases!
4. Do not place it close to strong magnetic fields! e.g. Magnetic resonance systems.
5. Do not cover the top of the lamp head! Risk of overheating!
ELECTRONIC SAFETY
1. Only use the built-in power source unit!
2. The lighting unit does not include a fail-safe power source or an emergency battery!
3. In the event of a power cut, the lighting unit will shut off completely!
4. Short black-outs are possible in the event of external EMC interference!
5. To switch off the lamp completely, the power plug must be removed from the outlet or the
live outlet must be disabled using a separate switch.
MAINTENANCE AND RESPONSABILITY
1. Installation and electrical maintenance work must only be carried out by qualified personnel!
2. The manufacturer is not responsible for any damage caused by improper use!
3. The final user is responsible for the product’s installation and MIMSAL accepts no responsibility.
4. The manufacturer is responsible for the safety of the lamp only if repairs and modifications are
carried out by the manufacturer itself or by a company that ensures compliance with safety
rules, using original replacement parts!
Prior to each use, make sure that the lamp is in perfect technical condition.
Check the operating instructions when handling the device.

ENG
6
2. BRIEF DESCRIPTION
INTENDED USERS
These operating instructions are intended for the users who use, clean, and disinfect MISMAL
lighting units.
INTENDED USE
This lighting unit is intended for carrying out very meticulous work that requires a high degree
of precision and good lighting.
INDICATION
The light is only used to provide optimal visibility of the surface under examination. The light is
external to the body and the device never enters into contact with users.
CONTRAINDICATION
The products must not be used close to strong magnetic fields.
The device must not be used in oxygen-enriched environments or in close to flammable
anesthetic gases.
RESIDUAL RISKS – RISK IN THE EVENT OF DAMAGE TO THE LIGHTING UNIT
Protect the lighting unit from knocks. Collision with other objects could result in the failure of
the device and/or damage to the cover and the support arm system, causing parts to fall off.
The lighting unit does not include a fail-safe power source. A power cut will cause the device
to switch off.
Do not aim the light source directly at the eyes of the user.
Always properly protect the user’s eyes.
Failing to comply with these precautions could cause blinding and damage to the retina.
Never place and/or hang any object on the lighting unit. If this precaution is not taken, the unit’s
position will be unstable and these objects could fall onto the work area.
Never hang the body weight of a person from the lighting unit. Failing to comply with this
precaution could damage the structure of the device.

ENG
7
3. INSTALLATION AND SUPPORTS
Before starting to install the device, check that the content is in good condition and that it has
not been damaged or degraded during transportation.
Claims will only be accepted if the vendor or the carrier is notified immediately. All claims must
be made in writing.
The goods always travel under the buyer’s responsibility and at the buyer’s risk.
Keep the original packaging in the event the product needs to be returned.
TYPES OF SUPPORT
The lighting unit may come with several different types of brackets, allowing the most suitable
one to be selected for its use.
All accessories must be assembled by an authorized installer.
Do not make any modifications to the product, other than those mentioned in this user manual.
MODEL SUPPORT
TROLLEY STAND Rolling base with 5 wheels
AH TABLE CLAMP Table clamp
WALL B SUPPORT Reinforced wall B bracket
RAIL PLUS BRACKET Bracket for mounting on an ICU rail
EXTENSION ARM Extension arm + Reinforced wall B bracket

ENG
8
3u. 4,0 Kg
1u. 8,8 Kg
Allen n. 2
3.1 TROLLEY STAND
REF MODEL DESCRIPTION
09655 TROLLEY STAND 4 Kg 4 Kg rolling base
09651 TROLLEY STAND 8,8 Kg 8.8 Kg rolling base
1. Installation and assembly
- Insert piece (2) totally into the base (3) and press down.
- Insert the legs with the wheels (4) through the base slot (3) until it completely fits, and if
necessary helping with a nylon hammer.
- Fit piece 5 into the interior leg slots (4) by pressing down.
- Put the screw (7) through the washer (6) and insert the screw into piece 5 to connect the set.
- Join the pole (1) directly with the screw (7) without
tightening the pole (1) with the piece (2) so as not to
damage the paint.
- Hold the pole (1) firmly and turn the screw (7) with a
wrench or a scanner until the whole set is tight.
- Luminaries fixation system (8). Allen number 2.
2. Technical characteristics
- Length of pole: 75 cm
- Total length: 92 cm
- Base diameter: 60 cm
- Wheel diameter: 50 mm
- Number of wheels: 5
- Number of brakes: 3
Install the accessory without the lighting unit installed on it.
It is the customer’s responsibility to ensure that the surface that it is attached to is
secure and sufficiently strong.
The rolling base is only designed to support the weight of the lighting unit. If additional
weight is added, the unit may tip over and cause damage to the lighting unit and/or
injury to the user.
Check regularly that the unit is still stable in order to avoid the possibility of the
lighting unit falling down.

ENG
9
3.2 AH TABLE CLAMP
REF MODEL DESCRIPTION
B010190 AH TABLE CLAMP Table clamp
Installation and assembly
- Use the handle to loosen the adjustment screw (1).
- Rest the base of the clamp on the surface of the table (2).
- Adjust the body of the clamp (3) until it is touching the edge of the table.
- Turn the handle (4) until the clamp and the table are firmly attached.
- Once the clamp is fixed and secure, position the lamp through the upper hole (5).
Install the accessory without the lighting unit installed on it.
It is the customer’s responsibility to ensure that the surface that it is attached to is
secure and sufficiently strong.
The bracket is only designed to support the weight of the lamp. If additional weight is
added, this may cause damage to the lighting unit and/or injury to the user.
Check regularly that the unit is still stable in order to avoid the possibility of the
lighting unit falling down.

ENG
10
3.3 WALL B SUPPORT
REF MODEL DESCRIPTION
B0101800 WALL B SUPPORT Reinforced wall B bracket. 7 cm shaft-wall separation.

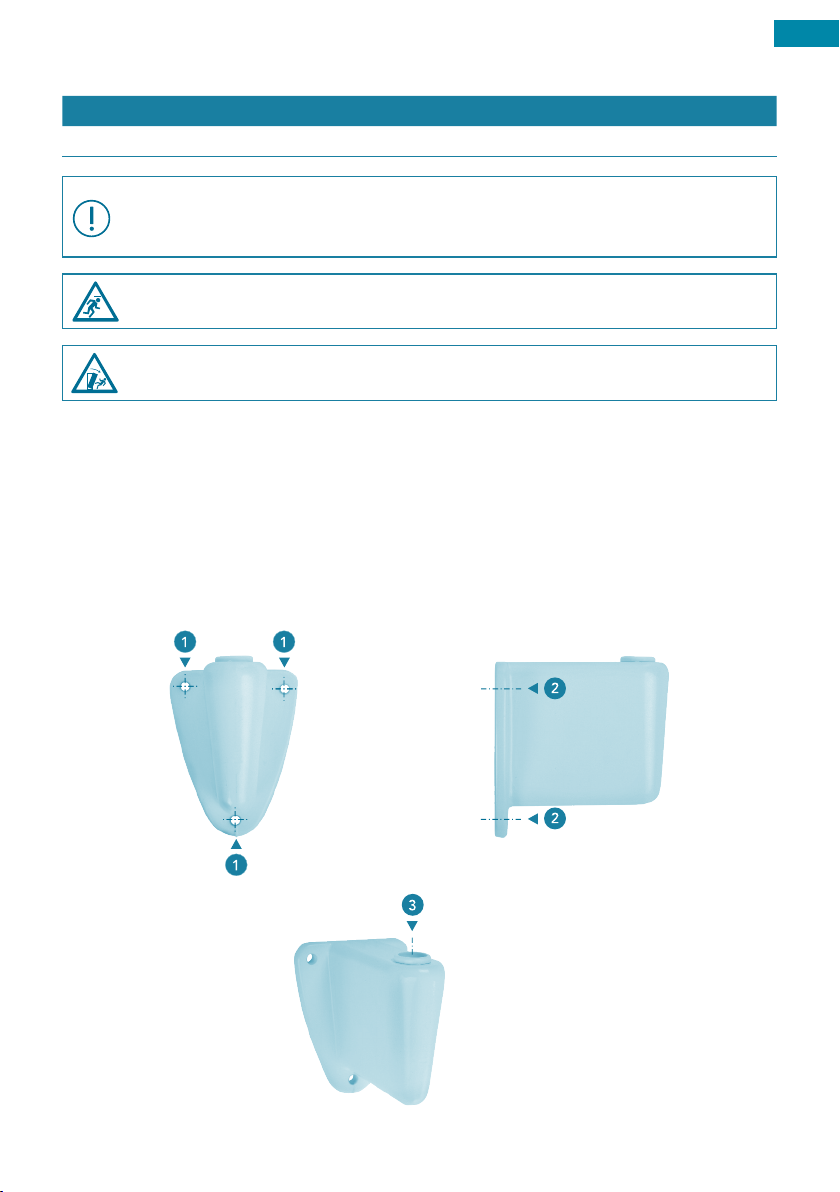

Installation and assembly
- Check that the wall is sufficiently hard-wearing and flat.
- Use the bracket to mark the holes on the wall with the help of a pencil (1).
- Drill holes and put the plugs into the wall (1).
- Position the wall support, lining it up with the location of the holes (2).
- Tighten the screws until the assembly, the guide separator and the screw are firmly attached
(2).
- Once the support is fixed and secure, position the lamp through the upper hole (3).
Install the accessory without the lighting unit installed on it.
It is the customer’s responsibility to ensure that the surface that it is attached to is
secure and sufficiently strong.
The bracket is only designed to support the weight of the lamp. If additional weight is
added, this may cause damage to the lighting unit and/or injury to the user.
Check regularly that the unit is still stable in order to avoid the possibility of the
lighting unit falling down.

ENG
11
3.4 RAIL PLUS BRACKET
REF MODEL DESCRIPTION
82026 RAIL PLUS BRACKET Bracket for mounting on an ICU rail.
Installation and assembly
- Loosen the adjustment screw via the wing screw (1).
- Fit the upper part of the support to the rail (2).
- The interior body of the support needs to be touching the rail (2).
- Tighten the wing screw until the support and the rail are firmly attached (3).
- Once the support is fixed and secure, position the lamp through the upper hole (4).
Install the accessory without the lighting unit installed on it.
It is the customer’s responsibility to ensure that the surface that it is attached to is
secure and sufficiently strong.
The bracket is only designed to support the weight of the lamp. If additional weight is
added, this may cause damage to the lighting unit and/or injury to the user.
Check regularly that the unit is still stable in order to avoid the possibility of the
lighting unit falling down.

ENG
12
Installation and assembly
- Check that the wall is sufficiently hard-wearing and flat.
- Use the bracket to mark the holes on the wall with the help of a pencil (1).
- Drill holes and put the plugs into the wall (1).
- Position the wall support, lining it up with the location of the holes (2).
- Tighten the screws until the assembly, the guide separator and the screw are firmly attached
(2).
- Once the wall bracket is fixed and secure, position the end of the arm in the upper hole of the
support (3).
- Insert the shaft of the luminaire into the hole located at the other end of the extension arm (4).
- Turn the extension arm’s side screw in order to secure the luminaire (5).
3.5 EXTENSION ARM
REF MODEL DESCRIPTION
B0101S0 EXTENSION ARM Extension arm including Wall B Bracket. Provides an
additional 40 cm, with horizontal rotation along both axes.
Install the accessory without the lighting unit installed on it.
It is the customer’s responsibility to ensure that the surface that it is attached to is
secure and sufficiently strong.
The bracket is only designed to support the weight of the lamp. If additional weight is
added, this may cause damage to the lighting unit and/or injury to the user.
Check regularly that the unit is still stable in order to avoid the possibility of the
lighting unit falling down.

4.3 ARTICULATED ARMS MEASUREMENT DETAILS
ENG
13
4. OPERATION OF THE LIGHTING UNIT
4.1 CHECK BEFORE EACH USE
1. Check if the unit is visibly deformed. If any deformities are detected, contact the Customer
Support Department immediately.
2. Make sure the lamp is in the required hygienic conditions for use.
3. Always check the correct operation of the whole unit before turning it on. The unit must
move in every degree of motion whilst verifying the main function and the control system.
4.2 OPERATION OF THE LIGHTING UNIT HEAD
Lighting unit with simple and ergonomic operation for intuitive handling.
For LS LED, LS INFRA:
-The power switch is on the power cable.
-Select the switch position. I (On) | 0 (Off).
-Move the arm position to get an optimal lighting distance.
For LS INFRA TIMER:
-The timer is on the power cable at the bottom of the articulated arm.
-To turn on the lamp, select the required time by moving the selector clockwise to a position
between 0 and up to 15 minutes.
-To decrease the time selected, move the selector counterclockwise. Never move the selector
clockwise from 15 to 0.
-Once the time has elapsed and it reaches 0, the lamp will switch off.
Do not use the unit if there are any doubts about its electrical safety or static and
dynamic stability.
160 cm
92 cm
65 cm
23 cm
108 cm
28 cm 39 cm
89 cm
41 cm
1. Minimum length
2. Maximum height
3. Maximum length
4. Minimun height

ENG
14
WARNING: ELECTRICAL SHOCK
The lighting units may transmit electricity and must be handled carefully during
cleaning and disinfection.
WARNING: RISK OF INFECTION AND CONTAMINATION OF USERS
Solvents could corrode the plastics. Strong acids, alkalies, and agents that contain
more than 60% alcohol could turn plastics brittle. Damaged parts could fall into open
wounds.
6. CLEANING / DISINFECTION
6.1 GENERAL SAFETY INSTRUCTIONS
1. Disconnect the unit from the network before disinfecting it.
2. Never use an aerosol cleaner and/or disinfectant.
3. Do not spray liquid into sockets or slits on the unit or allow liquid to get into them.
4. Apply the cleaner by wetting a cloth, never by applying it directly to the device.
6.2 CLEANING
SAFETY
Check the general safety instructions.
RECOMMENDED CLEANING
1. Use a mild soap solution as a cleaning agent.
2. Thoroughly clean the surfaces with a dampened cloth, adding a bit of mild soap solution if
necessary.
3. Finally, thoroughly dry the exterior surface with a clean soft cloth (anti-static if necessary).
5. SAFETY FUNCTIONS
5.1 VOLTAGE DROP
5.2 POWER CUTS
5.3 ELECTRICAL MALFUNCTION
In the event of a network voltage drop, the light will automatically switch off.
In the event of a total power cut, the light will switch off. As soon as voltage
is reestablished on the network, it can be turned on again using the most recent
established parameters.
NOTE: In the event of this error, please contact the technical service.

ENG
15
Contact your hygiene specialist to coordinate the disinfectant and the proper
procedures with your internal requirements! Always follow the internal disinfection
plan!
6.3 DISINFECTION
SAFETY
Check the general safety instructions.
DISINFECTION PROCESS
The disinfection process is done using a cloth. The hygiene guidelines and safety measures for
the disinfection processes to be used must be defined by the operator.
We recommend using MELISEPTOL disinfectant made by Braun Melsungen and/or “neoform
MED rapid” made by Dr. Weigert. Follow all of the protection measures. Respect the
manufacturer’s instructions and follow the hygiene guidelines.
WARNING: HEALTH HAZARD
Disinfectants may contain harmful substances that could injure the skin or eyes or
damage respiratory organs if inhaled.
7. MAINTENANCE
Lamp devices must undergo regular cycles of maintenance and review. This is fundamental for
complying with safety measures.
NOTE: Always disconnect the device from the power source before doing any
maintenance or inspection work to prevent the device from turning on involuntarily.
7.1 LIGHTING UNIT SUPPORT ARMS
All brackets must be checked by the operator for the following points:
• Every 6 months:
1. Deformations of the bracket system.
2. Cracks in plastic pieces.
3. Damage to the paint.
• Every year:
1. A detailed inspection of the bracket system, such as the clamping force of the spring arm,
the fastening of the bracket etc.
2. Extensive operational test, including the ease of movement of the joints.
3. Electrical safety tests.
WARNING: ELECTRICAL SHOCK
Disconnect the unit from the power source during the whole of the checking process.

ENG
16
7.4 ADJUSTMENTS
The product is sold fully calibrated and does not require any additional adjustments.
If the product becomes unstable over time and cannot maintain its position, please contact the
Customer Support department.
7.5 TROUBLESHOOTING
Contact the Customer Support department in the following cases:
- The device does not operate.
- The product does not maintain its position.
- The light flashes.
- The light beam does not focus.
8. RECYCLING
After the useful life of the unit has come to an end, the device must be taken out of service
and properly cleaned and disinfected for subsequent recycling. For its correct disposal, please
contact an authorized recycling company.
NOTE: Do not dispose of the product with the usual domestic waste.
Take all the disinfection and/or sterilization measures before disposing of the device
so as to not contaminate the environment.
7.2 LIGHTING UNIT HEAD
The following inspections/maintenance must be carried out:
1. Check for any possible anomalies, cracks, deformations in plastic pieces and seals.
2. Carry out electrical safety tests.
3. Extended operational test.
4. Damage to the paint.
7.3 REPAIRS
The following indications must be followed:
- The product may only be opened and repaired by the manufacturer. Contact the Customer
Support department if necessary.
- It is totally prohibited to modify the device in any way.
* (See Warranty Section).

ENG
17
PHOTOMETRIC AND
ELECTRICAL DATA LS LED LS INFRA LS INFRA TIMER
Light Source LED 7,5W IR E-27 150W / 250W
Base E-27 Ceramic
Timer NO SI / 0 – 15 min
Protection Class Class II
Voltage 220/240 V
Frequency 50/60 Hz
Types of plugs available F, G, I
PHYSICAL CHARACTERISTICS LS LS INFRA LS INFRA TIMER
Box Dimensions 280 x 270 x 500 mm
Gross Weight 2,74kg 2,80kg 3,02kg
Lighting unit Net Weight 1,80kg 1,88kg 2,08kg
Articulated Arm Length 900mm (450 + 450)
Head Dimensions Ø210 mm x Height 190 mm
Metal Protection Grid N/A YES
Color White
Head Rotation 200º
* All of the lighting units include the AH TABLE CLAMP mounting accessory by default.
* The gross weight of the lighting unit includes the net weight of the AH TABLE CLAMP accessory.
9. TECHNICAL DATA
ENVIRONMENTAL CONDITIONS FOR OPERATION
Ambient temperature 10 °C a 40 °C
Relative Humidity (without condensation) 30% a 75%
Atmospheric Pressure 700hPa a 1060hPa
ENVIRONMENTAL CONDITIONS FOR STORAGE AND TRANSPORTATION
Ambient temperature -25 °C a 70 °C
Relative Humidity (without condensation) 10% a 75%
Atmospheric Pressure 500hPa a 1060hPa

ENG
18
MANUFACTURER DIRECTIVES AND DECLARATION – ELECTROMAGNETIC EMISSIONS
Our devices are designed to be used in an ELECTROMAGNETIC ENVIRONMENT as specified below. The user must
ensure that the units can operate in that environment.
EMISSIONS TESTS
STANDARD BASIC EMC COMPLIANCE ELECTROMAGNETIC ENVIRONMENT
Conducted RF Emissions
CISPR11 Group 1
The device only uses RF energy for its internal operations. Its
RF emissions are therefore very low and are unlikely to cause
interferences with nearby electronic equipment.
Radiated RF Emissions
CISPR11 Class B
The device is suitable to be used in all establishments connected
directly to the public low-voltage power mains, except domestic
establishments.
Harmonic Distortion
IEC (EN) 61000-3-2 Class A
Voltage Fluctuations and Flashing
IEC (EN) 61000-3-3
10. ELECTROMAGNETIC EMISSIONS
REF MODEL GROSS WEIGHT NET WEIGHT BOX DIMENSIONS
B0101800 WALL B SUPPORT 0,25 KG 0,20 KG 91 x 221 x 122 mm
B010190 AH TABLE CLAMP 0,37 KG 0,29 KG 91 x 221 x 122 mm
82026 RAIL PLUS BRACKET 0,24 KG 0,19 KG 115 x 175 x 75 mm
09651 TROLLEY STAND 8,8 kg 9,18 KG 8,56 KG 160 x 160 x780 mm
09655 TROLLEY STAND 4 kg 4,71 KG 4,10 KG 160 x 160 x 780 mm
B0101S0 EXTENSION ARM 0,74 KG 0,56 KG 160 x 520 x 90 mm

ENG
19
11. WARRANTY
The Buyer must report any visible damage to the Products within a maximum of forty-eight
(48) hours of receipt. After this time, MIMSAL will not be liable for the apparent damages the
products may have and that have not been reported by Buyer.
MIMSAL offers a guarantee of five (5) years from delivery on any defects that the Products may
have.
It will be understood that the Products have a defect when, without having suffered any damage
after their delivery, they are not suitable for use or they have a quality or performance level that
is inferior to that stated in their technical specifications. It will be up to the Buyer to prove that
the Product is non-compliant.
To exercise the warranty, the Buyer must inform MIMSAL in writing by sending an email to
[email protected], indicating the defect, identifying the Product, the Batch number, the REF
number of the purchase order and a photograph of the Product. This email must be sent within
a maximum of ten (10) days of detecting the Product defect.
Upon receipt of this email, MIMSAL will try to see if it is possible to resolve the incident remotely,
in which case it will respond to the Buyer with instructions on how to proceed or, conversely, if
the Product must be sent to MIMSAL to be examined and, if necessary, repaired or replaced.
The shipment of Products (including disassembly, transport, taxes, etc.) will be at the expense
of the Buyer.
The warranty will consist of the repair or replacement of the Products, its elements and/or
installation that are defective or deficient, or a refund for the amount of the price at MIMSAL’s
discretion.
The warranty granted to the Buyer by MIMSAL will not be applicable in the following cases:
- When the Products have not been used, stored, conserved, installed, handled, etc. in
accordance with the instructions given by MIMSAL.
- When the Products have been manipulated, altered or modified by third parties.
- When the origin of the defects is not due to issues related to their manufacture or defects
in the quality of their components.
- In the case of damage and/or defects suffered due to wear and tear from normal use of the
Products.
The defective Products and/or materials that have been replaced by others will remain the
property of MIMSAL. The warranty established in this clause is exclusive and replaces all
other warranties related to the Products.

ENG
20
12. INDUSTRIAL AND INTELLECTUAL PROPERTY
All of the industrial and intellectual property rights relating to the Products, as well as the
designs, texts, labeling, images, graphics, brands, technical documentation, manuals, etc., are
the exclusive property of MIMSAL and the Buyer acknowledges and accepts this. In any case,
these rights are protected by the regulations governing intellectual and industrial property,
meaning it is forbidden to reproduce, modify, distribute and/or manipulate them.
Also, the Buyer will collaborate with MIMSAL in the maintenance of said intellectual and
industrial property rights, immediately notifying MIMSAL of any action or circumstance that
may infringe them and refraining from carrying out such actions.
The Buyer is obliged to abstain from registering in their name or in the name of third parties,
brands or trademarks that are identical or similar to those used by MIMSAL or that could cause
confusion for customers regarding the identity or character of MIMSAL or of the Products.
It is expressly forbidden to use the Products or any element of Industrial or Intellectual Property
related to the Products that are the property of MIMSAL in such a way that may constitute
a violation of the rights protected by law and specifically by any applicable legislation on
Industrial and Intellectual Property.
MIMSAL reserves all actions that may protect it in the defense of its interests and rights.
13. CONFIDENTIALITY
All of the industrial and intellectual property rights relating to the Products, as well as the
designs, texts, labeling, images, graphics, brands, technical documentation, manuals, etc., are
the exclusive property of MIMSAL and the Buyer acknowledges and accepts this. In any case,
these rights are protected by the regulations governing intellectual and industrial property,
meaning it is forbidden to reproduce, modify, distribute and/or manipulate them.
