CONTENTS
1151W. Bradford Court, Corona CA 92882 For Customer Assistance Call: 1-800-307-3267
SAFETY FIRST 1
PACKAGE CONTENTS 2
BEGIN INSTALLATION 3
HANGING THE FAN 4
ELECTRICAL CONNECTIONS 5
INSTALLING THE WALL TRANSMITTER 6
ATTACHING THE FAN BLADES 8
ATTACHING THE SWITCH CUP 9
OPERATING THE REMOTE CONTROL/WALL CONTROL 10
MAINTENANCE 11
TROUBLESHOOTING 12
FINISHING THE INSTALLATION 7
SPECIFICATIONS 13

1. Before you begin installing the fan, shut power off at the circuit breaker of the fuse box.
2. Be cautious! Read all instructions and safety information before installing your new fan. Review accompanying assembly diagrams.
3. Make sure that all electrical connections comply with local codes, ordinances, or National Electrical Codes. Hire a qualified electrician or consult a
do-it-yourself wiring handbook if you are unfamiliar with installing electrical wiring.
4. Make sure the installation site you choose allows the fan blades to rotate without any obstructions. Allow a minimum clearance of 7 feet from
the floor and 18 inches from the tip of the blades to the wall.
5. NOTE: THIS CEILING FAN EXCEEDS THE MAXIMUM WEIGHT SPECIFIED BY UL FOR HANGING FROM A STANDARD OUTLET BOX. SPECIAL
REINFORCEMENT OF THE CEILING IS REQUIRED FOR INSTALLATION.
6. CAUTION: Use the wood screws provided for fan installation. The wood screws must go through the outlet box via the knock outs and secured
directly to the building joist.
7. After you install the fan, make sure that all mounting components are secured to prevent the fan from falling.
8. Do not insert anything into the fan blades while the fan is operating.
9. Turn the fan off and wait for the blades to stop completely before cleaning or performing any maintenance.
1
SAFETY FIRST

WARNING
SUPPORT DIRECTLY FROM BUILDING STRUCTURE.
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR OTHER PERSONAL INJURY. MOUNT FAN DIRECTLY TO THE BUILDING JOIST USING THE
WOOD SCREWS AND WASHERS PROVIDED WITH THE FAN. THE WOOD SCREWS MUST GO THROUGH THE OUTLET BOX VIA THE KNOCK
OUTS. CONSULT A QUALIFIED ELECTRICIAN IF IN DOUBT.
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE BLADE HOLDERS WHILE INSTALLING, BALANCING THE BLADES, OR
CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS BETWEEN ROTATING FAN BLADES.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS FAN WITH ANY SOLID-STATE SPEED CONTROL DEVICE.
TO REDUCE THE RISK OF FIRE OR ELECTRONIC SHOCK, THIS FAN ONLY CAN USE UC7067RY SOLID-STATE SPEED CONTROL WITH UC9040T
WALL CONTROL ONLY.
NOTE:The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situations that may
occur. It must be understood that common sense, caution and care are factors which can not be built into this product. These factors must be
supplied by the person (s) installing, caring for and operating the unit.
NOTE: READ AND SAVE ALL INSTRUCTIONS!

1. Fan motor/housing
ass'y
2. Canopy
3. Switch Cup
4. Fan blade
5. Coupling cover
6. Blade bracket
7. Standard 6"downrod
assembly
8. Minimum 3-1/2" length
downrod (for close to
ceiling mounting only)
9a. Hanger bracket plate
9b. Hanger bracket
10. Balancing kit
11. Receiver with 6 wire
nuts
12a.Wall plate (includes 2
mounting screws)
12b.Wall control transmitter
(includes 2 mounting
screws)
A. Blade Attachment Hardware:
3/16"-14mmscrews(16
pcs.)
Fiber washers (16 pcs.)
B. Mounting Hardware:
M6.5X89mm wood
screws (3pcs)
Ø6.5X19mm Flat washer
(3pcs)
Star washer (3pcs)
3/16" spring washer
(3pcs)
Ø5X14mm Flat ashers (3
pcs.)
C. Bracket Attachment
Hardware:
1/4"-11mm screws (11
pcs.)
D. Wire Nut (3 pcs.)
2
PACKAGE CONTENTS

BEGIN INSTALLATION
MOUNTING OPTIONS
If there isn't an existing mounting box,then read the following instructions.Shut the
power off at the circuit breaker or fuse box.
NOTE: THIS CEILING FAN EXCEEDS THE MAXIMUM WEIGHT SPECIFIED BY UL FOR
HANGING FROM A STANDARD OUTLET BOX. SPECIAL REINFORCEMENT OF THE
CEILING IS REQUIRED FOR INSTALLATION.
Secure the ceiling fan's hanging bracket directly from the building structure via the
outlet box.
Figures 1,2 and 3 are examples of different ways to mount the outlet box.
Note:You may need a longer downrod to maintain proper blade clearance when
installing on a steep,sloped ceiling. Longer downrods are available from your Minka-
Aire®dealer.
To hang your fan where there is an existing fixture but no ceiling joist,you may need
to install a hanger bar as shown in Fig. 4 (available at your Minka-Aire®dealer).
Tools Required: Phillips screw driver; slotted screw driver;pliers;wire cutters; electrical tape. 3
CEILING JOIST
CEILING JOIST
OUTLET BOX
CROSS BRACE
PARALLEL WOOD BRACE
(MIN. 2" THICK)
OUTLET
BOX
CEILING JOIST
OR CROSS BRACE
Fig.1 Fig.2
Fig.3 Fig.4
ANGLED CEILING
MAXIMUM 27
ANGLE
PROVIDE STRONG
SUPPORT
HANGER
OPENING
MUST
BE FACING
UP-SIDE
OUTLET BOX
HANGER BAR
(OPTIONAL)
CEILING
JOIST

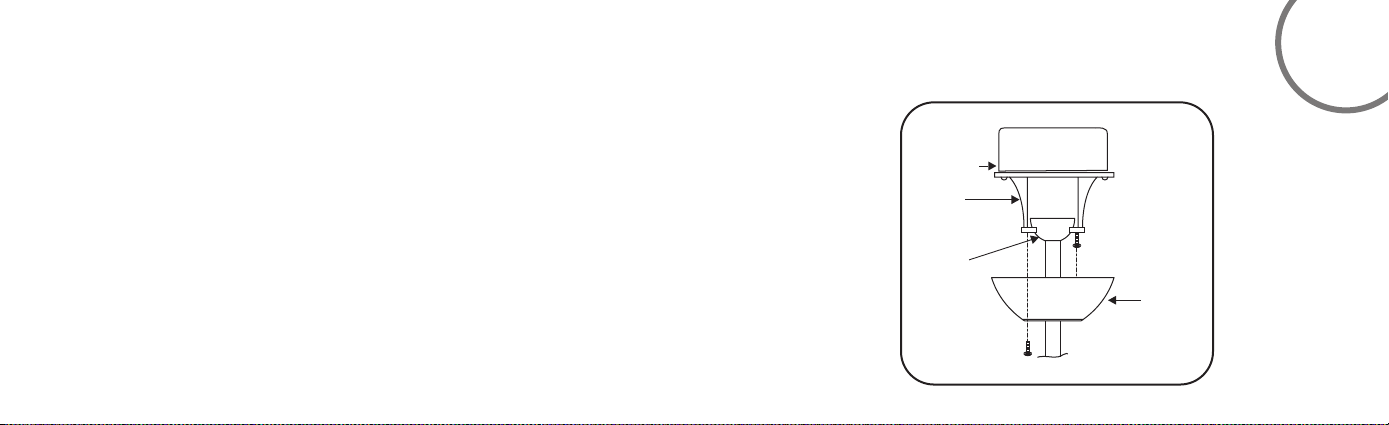

HANGER
BRACKET

REMEMBER to turn off the power. Follow the steps below to hang your
fan properly;
Step 1. Remove two knock-outs from the outlet box to expose the joist.
(Fig. 5)
Step 2. Use the two wood screws and washers to secure the hanger bracket
plate directly to the building joist via the knock-out holes from the outlet
box. (Fig. 6)
CAUTION! THE HANGER BRACKET PLATE MUST BE INSTALLED DIRECTLY
TO THE BUILDING JOIST USING THE TWO WOOD SCREWS AND
WASHERS PROVIDED.
Step 3. Secure hanger bracket to hanger bracket plate using the two hex
nuts and washers provided, make sure nuts are securely tighten. (Fig. 7)
Step 4. Loosen the two Set Screws from the coupling. (Fig. 8)
Step 5. Remove the Hanger Ball from the Down Downrod Assembly by
loosening the Set Screw and removing the Cross Pin. Remove the Hitch Pin
and Lock Pin. (Fig. 9)
Step 6. Carefully feed fan wires up through the downrod. Insert the rod
into the coupling and tighten onto fan until the holes are aligned. Next
replace lock pin and hitch pin. Tighten the screws (Fig.10)
Step 7. Slip coupling cover and canopy onto downrod. Let canopy rest on
top of the coupling cover. Carefully reinstall hanger ball onto rod being
sure that cross pin isin correct position set screw on hanger ball istight and
wires are not twised. (Fig. 10)
Step 8. Now lift motor assembly into position and place downrod
ball into hanger bracket. Rotate until the check groove has dropped
into the registration slot and seats firmly. Rod should not rotate if this is
done correctly (Fig. 11)
HANGING THE FAN
4
WARNING: All of the parts, hardware and components such as the
hanger bracket and hanger ball have been provided for your safety
and the proper installation of your new ceiling fan. The use of other parts,
hardware or components not supplied by Minka Aire with the fan will
void the Minka Aire Warranty.

Fig.11
SET SCREW
SET SCREW
OUTLET
BOX
OUTLET
BOX
KNOCK
OUT
Fig.8Fig.6
Fig.5
Fig.9Fig.7 Fig.10
HANGER
BRACKET
PLATE
STAR WASHERS
LOCK WASHERS
FLAT WASHERS
WOOD SCREWS
FLAT
WASHERS
SPRING
WASHERS
HEX NUTS
HANGER
BRACKET
REGISTRATION
SLOT
HITCH PIN
SET SCREW
CROSS PIN
HANGER
BALL
DOWNROD
LOCK PIN
CANOPY
LOCK PIN
HITCH PIN
SCREW
COUPLING
COVER

WARNING:To avoid possible electrical shock be sure electricity is
turned off at the main fuse or breaker box before wiring.
Step 1.Insert Receiver into Hanger Bracket with the flat side of the Receiver
facing the ceiling. (Fig. 13)
Step 2.Motor to Receiver Electrical Connections: Connect the WHITE
wire from the fan to the WHITE wire marked "TO MOTOR N" from the
Receiver. Connect the BLACK wire from the fan to the BLACK wire
marked "TO MOTOR L" from the Receiver. Connect the BLUE wire from
the fan to the BLUE wire marked "For Light" from the Receiver.
Note: If your ceiling fan features an UP Light: Connect the ORANGE wire
from the fan to the ORANGE wire marked "For Up Light" from the
Receiver. Otherwise disregard this step and proceed to secure all wire
connections with the plastic wire nuts provided. (Fig. 14 & 15)
Step 3. Receiver to House Supply Wires Electrical Connections: Connect the
WHITE wire (Neutral) from the outlet box to the WHITE wire marked "AC in
N" from the receiver. Connect the BLACK wire (Hot) from the outlet box to
the BLACK wire marked "AC in L" from the receiver. Secure all wire
connections with the plastic wire nuts provided. (Fig. 14 & 15)
ELECTRICAL CONNECTIONS
5
Note: The Aire Control System is equipped with a learning frequency
function which has 256 code cominations to prevent potential interference
from other remote units. The frequency on your Receiver and Transmitter units
have been preset at the factory. (Fig.12). No frequency change is necessary,
should you desire to install another fan within the same home or area with
a seperate frequency code please see the “frequency interference ” troub-
leshooting section of this instruction manual to learn how to change the
frequency.

After all splices are made, check to make
sure there are no loose strands. As an
additional precaution we suggest to secure
the plastic wire connectors to the wires
with electrical tape.
Note: Fan must be installed from a maximum
distance of 40 feet from the transmitting
unit for proper signal transmission between
the transmitting unit and the fan's receiving
unit. Fig.13
Fig.12
Fig.14 Fig.15
RECEIVER
OUT LET
BOX
RECEIVER
FAN
DOWNROD
HANGER
BRACKET
RECEIVER
WALL
CONTROL
GROUND
GREEN
GREEN
BLACK
BLACK
BLACK
BLACK
Step 4. If your outlet box has a GROUND
wire (Green or Bare Copper) connect this
wire to the Hanger Ball and Hanger Bracket
Ground wires. If your outlet box does not
have a Ground Wire, then connect the
Hanger Ball and Hanger Bracket Ground
Wires together. Secure wire connection
with the plastic wire nut provided. (Fig. 14
& 15)

WARNING! HOOK UP "IN SERIES" ONLY. DO NOT CONNECT NEUTRAL SUPPLY WIRE
OF ELECTRIC CIRCUIT TO THE TRANSMITTER WALL SWITCH, DAMAGE TO THE
TRANSMITTER WALL SWITCH AND POSSIBLE FIRE COULD OCCUR.
Step 1.Remove the existing wall plate and switch from the wall outlet box.
Step 2.Make the electrical connections as shown in Fig.15. If your outlet box has a ground
wire (Green or Bare Copper) connect the Transmitter's ground wire directly to one of the
screws from the outlet box . Secure all wire connections with the plastic wire nuts provided.
Step 3.Carefully tuck the wire connections inside the outlet box. Use the screws provided to
secure the wall transmitter and wall plate to the outlet box. (Fig. 16)
TM
NOTE: Your Aire Control System includes two sets of face and decorative plate color options.
The wall control comes with standard white faceplate attached. If you desire to replace it with
the lvory color faceplate included, use a small flat screw driver and gently pry it apart from the
top or bottom of the plate.
INSTALLING THE WALL TRANSMITTER
6
Fig.16

Step 1. Remove 1 of the 2 screws from the bottom of the hanger bracket and loosen the other
one half a turn from the screw head.
Step 2. Slide the canopy up towards the hanger bracket and place the key hole on the canopy
over the screw on the hanger bracket, turn canopy until it locks in place at the narrow section
of the key holes. (Fig. 17)
Step 3. Align the circular hole on canopy with the remaining hole on the hanger bracket, secure
by tightening the two set screws.
Note: Adjust the canopy screws as necessary until the canopy are snug.
FINISHING THE INSTALLATION
7
Fig.17
HANGER
BRACKET
OUTLET
BOX
HANGER
BALL
CANOPY

8
Step 1. Attach the fan blade to the blade bracket using the screws
provided. Tighten screws securely. Repeat for remaining blades.
(Fig. 18).
Step 2. Remove the rubber stops from the motor and discard.
Rotate the motor so that the screw holes are revealed through
the opening from the switch cup plate. Align holes in blade
bracket and motor and secure with proper screws and fiber
washers provided. Repeat process with the other blade brackets.
(Fig. 19).
ATTACHING THE FAN BLADES
Fig.18 Fig.19
BLADE BRACKET
FAN BLADE
SCREW
FIBER WASHER
FAN BLADE
SCREW
FAN

Step 1. Remove the screws from the switch cup plate. Connect the switch cup and fan
wire molex connectors, Place the switch cup over the switch cup plate and secure
with screws previously removed. (Fig.20).
NOTE: DO NOT PINCH WIRES BETWEEN THE SWITCH CUP AND THE SWITCH CUP
PLATE.
ATTACHING THE SWITCH CUP
9
Fig.20
CAP
SCREW
LIGHT KIT
MOLEX

A. Buttons:
These buttons are used to set the fan speeds
as follows; = Low Speed
= Medium Speed
= High Speed
B. Button:
This button turns the fan off.
C. Button:
These buttons turn the light ON or OFF and also
control the brightness settings of the
light. The following instructions apply
to ceiling fans that feature a DOWN
light ( button) only or ceiling fans that
feature an UP light ( button) and a DOWN
light ( button) that are controlled
independent of each other;
Press and release the button for the desired light
to turn the light ON or OFF. Press and hold the
button to set the desired light brightness. The
light will cycle between bright and dim settings
as long as the button is pressed.
The light key has an automatic auto-resume
feature that allows the light to remain at the same
brightness as the last time it was turned off.
D. OFF-ON Slide Button (Wall Control Fans
Only) This button turns the power Off and On
to the Fan and Light(s).
E. Button: (Full Function Remote Control
Units Only) This button is used to change the
direction of the rotation of the blades; forward
for warm weather or reverse for warm
weather.
NOTE: If your Remote Control or Wall Control
does not have a "REV" button, Please look for a
slide reverse switch on the motor housing.
Remote Control fans only: Install the A23, 12v battery (included) . To prevent damage to transmitter remove the battery if not used for long
periods of time.
OPERATING THE REMOTE CONTROL/WALL CONTROL
10

Fig 21 Fig 22
SUMMER OPERATION WINTER OPERATION
Speed settings for warm or cold weather depend
on factors such as room size, ceiling height and
number of fans.
NOTE: To change the direction of the rotation of
the blades the fan must be in operation mode.
Warm Weather (forward)
A DOWNWARD airflow creates a cooling effect
as shown in Figure 21. This allows you to set your
air conditioner on a warmer setting without
affecting your comfort.
Cool Weather (Reverse)
An UPWARD airflow moves warmer air off the
ceiling area as shown in Figure 22.This allows
you to set your heating unit on a cooler setting
without affecting your comfort.

Here are some suggestions to help you maintain your fan.
1. Because of the fan's matural novement,some connections may become
loose. Check the support connections,brackets, and blade attachments
twice a year. Make sure they are secure (It is not necessary to remove
fan from ceiling. )
2. Clean your fan periodically to help maintain its new appearance over
the years. Do not use water when cleaning. This could damage the
motor,or the wood,or possibly cause an electrical shock.
3. Use only a soft brush or lint-free cloth to avoid scratching the finish.
The plating is sealed with a lacquer to minimize discoloration or
tarnishing.
4. You can apply a light coat of furniture polish to the wood for
additional protection and enhanced beauty. Cover small scratches
with a light application of shoe polish.
5. There is no need to oil your fan. The motor has permanently
lubricated bearings.
6. All glass should be cleaned using lukewarm soapy water and a soft
cloth or sponge DO NOT IMMERSE GLASS IN HOT WATER DO NOT PUT
GLASS INTO AN AUTOMATIC DISHWASHER.
11
MAINTENANCE
WARNING
MAKE SURE THE POWER IS OFF AT THE ELECTRICAL PANEL BOX
BEFORE YOU ATTEMPT ANY REPAIRS. REFER TO THE SECTION,
"MAKING ELECTRICAL CONNECTIONS".
