minkaAire BARN H2O User manual

INSTRUCTION MANUAL WARRANTY CERTIFICATE
BARN H2O

©2021 Minka Lighting Inc. Manual design and all elements of manual design are protected by United States Federal and/or State Law including
Patents, Trademark, and/or Copyright Laws.

The Minka-Aire® warranty is for one (1) year from the date of purchase from an authorized Minka-Aire® dealer.
This warranty is only valid to the original purchaser or user against all defects in material and workmanship (light bulbs
excluded) for one (1) full year. Additionally, Minka-Aire® warrants the motor only for the lifetime of the Minka Aire ceiling
fan (excluding wall controls and electrical components), to the original purchaser or user.
* The warranty is voided with the use of any non- Minka-Aire®electrical devices, E.g., wall controls or electrical dimmer switches, etc…
* The warranty is void once the original purchaser or user ceases to own the fan or the fan is moved from its original point of installation.
* The warranty is void with the use of any hanger bracket (non-Minka Aire or non-fan specific) other than the hanger bracket supplied & installed
with this specific fan.

Warranty Service Information
To obtain warranty service during the warranty period, the purchaser should return the fan with the sales receipt to the original place of
purchase. The authorized Minka-Aire® dealer, at its sole discretion, will either repair or replace the fan after verifying the legitimacy of the warranty
claim. Replacement is subject to availability of the same model. If the model is unavailable it will be replaced by one of equal value. This is a limited
warranty; the original purchaser or user is responsible for the cost of removal and reinstallation of repaired or replacement product.
To obtain the name of the Minka-Aire® authorized dealer nearest you call the Minka-Aire® customer care department at 1-800-307-3267, or
contact Minka-Aire® through www.minkagroup.net and select FAQ to answer any questions or if you require additional assistance submit the
question form found there.
Date Purchased Store Purchased Model Number F865L

CONTENTS
SAFETY RULES...........................................................................................
PACKAGE CONTENTS............................................................................
INSTALLING THE FAN............................................................................
HANGING THE FAN................................................................................
ELECTRICAL CONNECTIONS..............................................................
FINISHING THE INSTALLATION.......................................................
ATTACHING THE FAN BLADES.........................................................
INSTALLING THE MOUNTING PLATE............................................
INSTALLING THE LED LIGHT KIT ..............................................................
INSTALLING THE GLASS SHADE .............................................................
OPERATING THE REMOTE CONTROL...................................................
ENJOY YOUR SMART CEILING FAN......................................................
CARE OF YOUR FAN......................................................................................
TROUBLESHOOTING...................................................................................
SPECIFICATIONS............................................................................................
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1151 W. Bradford Court, Corona, CA 92882 For Customer Assistance Call: 1-800-307-3267

1
SAFETY RULES
1. Before you begin installing the fan, shut power off at the circuit breaker of the fuse box.
2. Be cautious! Read all instructions and safety information before installing your new fan. Review accompanying assembly diagrams.
3. Make sure that all electrical connections comply with local codes, ordinances, or National Electrical Codes. Hire a qualified electrician or consult a
do-it-yourself wiring handbook if you are unfamiliar with installing electrical wiring.
4. Make sure the installation site you choose allows the fan blades to rotate without any obstructions. Allow a minimum clearance of 7 feet from
the floor and 18 inches from the tip of the blades to the wall.
5. NOTE: THIS CEILING FAN EXCEEDS THE MAXIMUM WEIGHT SPECIFIED BY UL FOR HANGING FROM A STANDARD OUTLET BOX. SPECIAL
REINFORCEMENT OF THE CEILING IS REQUIRED FOR INSTALLATION.
6. CAUTION: To reduce the risk of injury use only the screws provided with the outlet box in conjunction with the lock washers provided with the fan.
7. After you install the fan, make sure that all mounting components are secured to prevent the fan from falling.
8. Do not insert anything into the fan blades while the fan is operating.
9. Turn the fan off and wait for the blades to stop completely before proceeding with maintenance or cleaning.
SUITABLE FOR USE IN
WET LOCATIONS

WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR OTHER PERSONAL INJURY, MOUNT FAN ONLY TO A U.L. LISTED OUTLET BOX OR SUPPORTING SYSTEM MARKED
ACCEPTABLE FOR FAN SUPPORT AND USE MOUNTING SCREWS PROVIDED WITH THE OUTLET BOX IN CONJUCTION WITH THE LOCK WASHERS PROVIDED WITH THE
FAN. MOST OUTLET BOXES COMMONLY USED FOR FAN SUPPORT OF LIGHTING FIXTURES ARE NOT ACCEPTABLE FOR FAN SUPPORT AND NEED TO BE REPLACED.
CONSULT A QUALIFIED ELECTRICIAN IF IN DOUBT.
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE BLADE HOLDERS WHILE INSTALLING, BALANCING THE BLADES OR CLEANING THE FAN. DO NOT
INSERT FOREIGN OBJECTS BETWEEN ROTATING FAN BLADES.
TO REDUCE THE RISK OF FIRE OR ELECTRONIC SHOCK, THIS FAN ONLY CAN USE AL-168-MK966-84T0700001 SOLID-STATE SPEED
CONTROL WITH RC1000 REMOTE CONTROL ONLY.
NOTE: The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situations that may
occur. It must be understood that common sense, caution and care are factors which can not be built into this product. These factors must be
supplied by the person (s) installing, caring for and operating the unit.
NOTE: READ AND SAVE ALL INSTRUCTIONS!

2
1.5V AAA battery (2)
Balancing kit
Mounting hardware:
#14 x 3.5" Wood screws (2 PCs.)
Lock washers (2 PCs.)
4mm Star washers (2 PCs.)
Wire nuts (3 PCs. )
Washers (2 PCs.)
Blade attachment hardware:
3/16" x 15mm Screws with lock
washers (31 PCs.)
Blade holder attachment hardware:
1/4"*1/2" Screws with lock washers
(11 PCs.)
Extension safety cable
Fan blades (10)
Hanger bracket plate
Hanger bracket
Canopy
Canopy cover
Downrod rubber cover
Downrod assembly
Coupling cover
Fan motor/housing assembly
Blade holders (5) &
blade medallions (10)
Mounting plate
40 Watt LED light
Glass shade
Remote control with holder
and 2 mounting screws
PACKAGE CONTENTS
Unpack your fan and check the contents. You should have the following items:
1
3
210
11
14
13
16
15
4
6
5
7
8
9
12
B
C
D
1
2
34
5
6
A
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14
15.
16.
A.
B.
C.
D.

3
INSTALLING THE FAN
Tools Required: Phillips screw driver; slotted screw driver; step-ladder; wire cutters; electrical tape.
MOUNTING OPTIONS
If there isn't an existing mounting box,then read the following instructions.Shut the power off
at the circuit breaker or fuse box.
NOTE: THIS CEILING FAN EXCEEDS THE MAXIMUM WEIGHT SPECIFIED BY UL FOR HANGING
FROM A STANDARD OUTLET BOX. SPECIAL REINFORCEMENT OF THE CEILING IS REQUIRED
FOR INSTALLATION.
Secure the ceiling fan's hanging bracket directly from the building structure via the outlet box.
Figures 1,2 and 3 are examples of different ways to mount the outlet box.
NOTE: You may need a longer downrod to maintain proper blade clearance when installing on
a steep,sloped ceiling. Longer downrods are available from your Minka-Aire®dealer.
To hang your fan where there is an existing fixture but no ceiling joist,you may need to install
a hanger bar as shown in Fig. 4 (available at your Minka-Aire®dealer).
FIG. 1
FIG. 3
FIG. 2
FIG. 4
CROSS BRACE
CEILING
JOIST
CEILING
JOIST
CEILING
JOIST
OUTLET BOX
PARALLEL WOOD BRACE
(MIN. 2" THICK)
OUTLET
BOX
OUTLET BOX
CEILING JOIST OR
CROSS BRACE
ANGLED CEILING
MAXIMUM 18° ANGLE
PROVIDE
STRONG
SUPPORT
RECESSED
OUTLET BOX
HANGER
OPENING
MUST BE
FACING
UPSIDE
HANGER BAR
(OPTIONAL)
HANGER
BRACKET

4
WARNING: All of the parts, hardware and components such as
the hanger bracket and hanger ball have been provided for your
safety and the proper installation of your new ceiling fan. The use
of other parts, hardware or components not supplied by Minka Aire®
with the fan will void the Minka Aire® Warranty.
REMEMBER to turn off the power. Follow the steps below to hang your
fan properly:
Step 1. Remove two knock outs from the outlet box to expose the joist.
(Fig. 5)
Step 2. Use the two wood screws and washers to secure the hanger
bracket plate directly to the building joist via the knock outs holes from
the outlet box. (Fig. 6)
CAUTION! THE HANGER BRACKET PLATE MUST BE INSTALLED
DIRECTLY TO THE BUILDING JOIST USING THE TWO WOOD SCREWS
AND WASHERS PROVIDED.
Step 3. Secure hanger bracket to hanger bracket plate using the two hex
nuts and washers provided, make sure nuts are securely tighten. (Fig. 7)
Step 4. Loosen the two set screws and remove the hitch pin and lock pin in
the top coupling of the motor assembly. (Fig. 8)
Step 5. Remove hanger ball from downrod assembly by loosening set
screw, removing the cross pin, and sliding ball off rod. (Fig. 9)
Step 6. Carefully feed fan wires up through the downrod. (Fig. 10) Thread
the rod into the coupling, next line up holes and replace lock pin and hitch
pin. Tighten set screws.
Step 7. Slip coupling cover, canopy cover and canopy onto downrod. (Fig.
11) Carefully reinstall hanger ball onto rod being sure that cross pin is in
correct position, set screws are tighten and wires are not twisted.
Step 8. Place downrod rubber cover onto the hanger ball. (Fig. 11)
HANGING THE FAN

FLAT
WASHERS
Fig. 7
SPRING
WASHERS
HEX NUTS
Fig. 5
KNOCK OUT
OUTLET
BOX
Fig. 10
SUPPLY
WIRES
Fig. 8
DOWNROD
HITCH
PIN LOCK
PIN
SET SCREWS
Fig. 9
DOWNROD
CROSS PIN
HANGER
BALL SET SCREW
Fig. 6
FLAT WASHERS
WOOD SCREWS
LOCK WASHERS
OUTLET
BOX
HANGER
BRACKET
PLATE

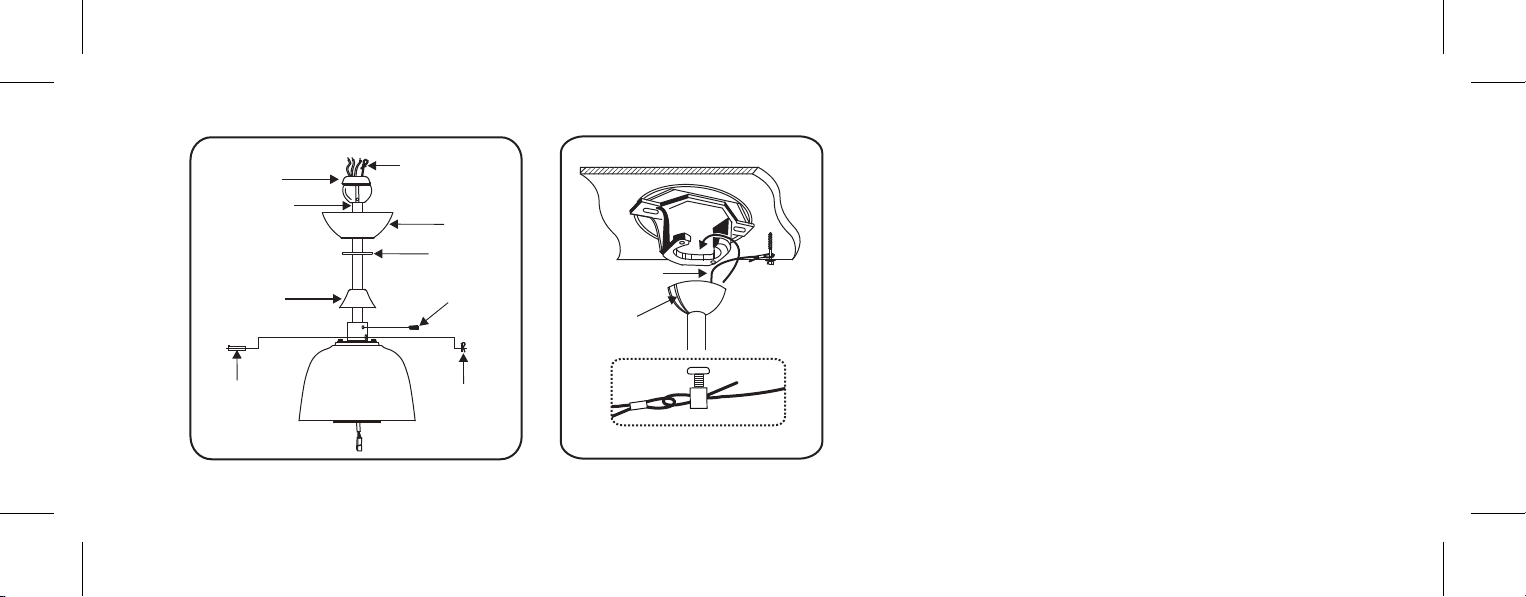

Step 9. Now lift motor assembly into position and place hanger ball into hanger bracket. Rotate until the check groove has dropped into the
registration slot and seats firmly. (Fig. 12) Rod should not rotate if this is done correctly.
Step 10. Secure the safety cable to the building structure using a wood screw (not included). If necessary, connect the extension safety cable to the
safety cable (from fan), feed end of cable into clamp hole and firmly tighten screw. as noted in the circle inset of Figure 12.

Fig. 11
DOWNROD
CANOPY
HITCH PIN
SAFETY
CABLE
LOCK PIN
COUPLING
COVER
SET SCREWS
CANOPY
COVER
Fig. 12
REGISTRATION
SLOT
SAFETY CABLE
DOWNROD
RUBBER COVER

5
ELECTRICAL CONNECTIONS
WARNING: To avoid possible electrical shock be sure electricity is turned off at the
main fuse or breaker box before wiring.

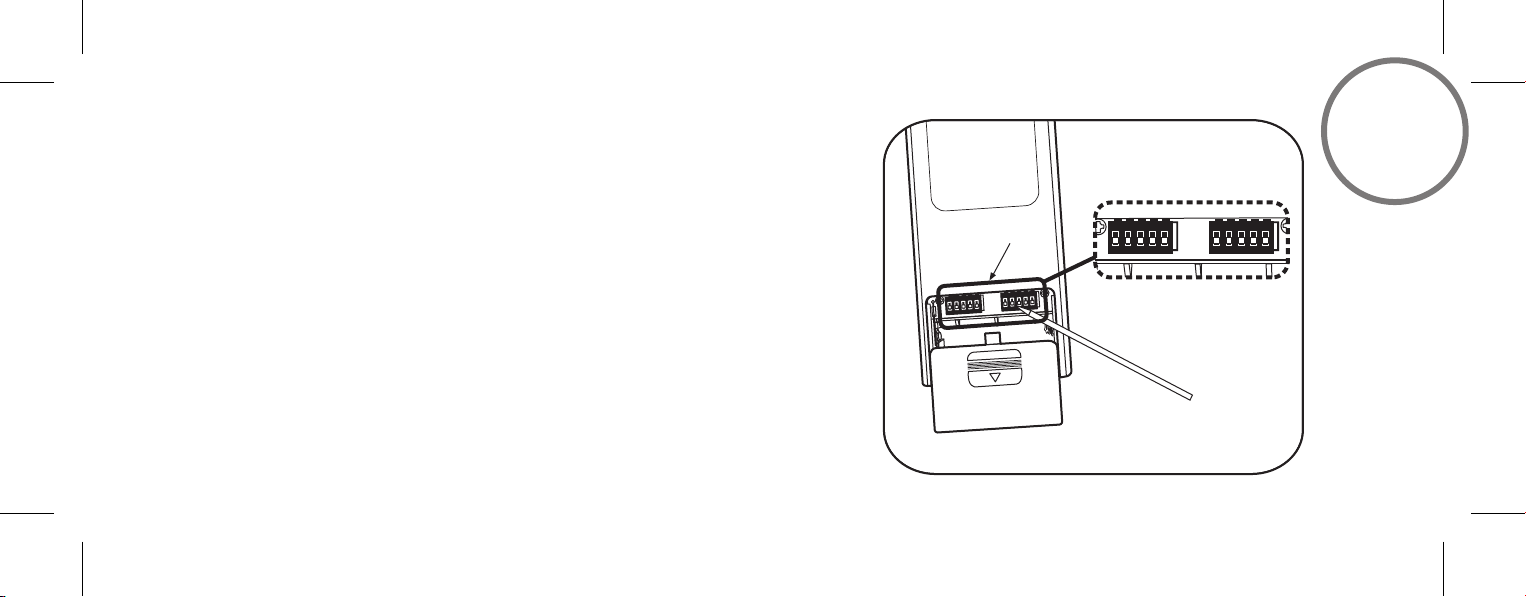

NOTE: The Aire Control®System is equipped with a learning frequency function
which has 1024 code combinations to prevent potential interference from other
remote units. The frequency on your Receiver and Transmitter units have been preset
at the factory. (Fig. 13) No frequency change is necessary, should you desire to install
another fan within the same home or area with a seperate frequency code please see
the "frequency interference" troubleshooting section of this instruction manual to
learn how to change the frequency.
ON
12 3 4 5
ON
12345
ON
12345
ON
12 3 4 5
FREQUENCY
Fig. 13

Step 1. Motor to House Supply Wires Electrical Connections: Connect the WHITE wire (Neutral)
from the outlet box to the WHITE wire marked "AC in N" from the motor. Connect the BLACK wire
(Hot) from the outlet box to the BLACK wire marked "AC in L" from the motor. Secure all wire
connections with the plastic wire nuts provided. (Fig. 14)
Step 2. If your outlet box has a GROUND wire (Green or Bare Copper) connect this wire to the
Hanger Ball and Hanger Bracket Ground wires. If your outlet box does not have a Ground Wire,
then connect the Hanger Ball and Hanger Bracket Ground Wires together. Secure wire connection
with the plastic wire nut provided. (Fig. 14)
After all splices are made, check to make sure there are no loose strands. As an additional
precaution we suggest to secure the plastic wire connectors to the wires with electrical tape.
WHITE (NEUTRAL)
WHITE ("AC IN N")
GREEN OR BARE
COPPER (GROUND)
GROUND
(GREEN)
(CONNECT TO
GROUND WIRE
ON HANGER
BRACKE IF NO
HOUSE GROUND
WIRE EXISTS.)
BLACK (HOT)
BLACK ("AC IN L")
Fig. 14

6
Step 1. Remove 1 of the 2 screws from the bottom of the hanger bracket and loosen the
other one half a turn from the screw head.
Step 2. Slide the canopy up towards the hanger bracket and place the key hole on the
canopy over the screw on the hanger bracket, turn canopy until it locks in place at the
narrow section of the key holes. (Fig. 15)
Step 3. Align the circular hole on canopy with the remaining hole on the hanger bracket,
secure by tightening the two set screws.
NOTE: Adjust the canopy screws as necessary until the canopy and canopy cover are snug.
FINISHING THE INSTALLATION
Fig. 15
OUTLET BOX
HANGER
BRACKET
HANGER
BALL
CANOPY
CANOPY
COVER

7
ATTACHING THE FAN BLADES
Fig. 16
Step 1. Attach the blade to the blade holders and blade medallions using the blade
mounting screws with lock washers (3/16" x 15mm) as shown in Figure 16. Start a
screw into the blade holder, do not tighten. Repeat for the 2 remaining screws and
washers.
Step 2. Tighten each screw securely starting with the center screw. Make sure the
blade is straight.
Step 3. Fasten blade assembly to motor using the blade holder mounting screws
(1/4"*1/2") supplied. (Fig. 16)
FAN BLADE
BLADE
HOLDER
MOUNTING
SCREWS
BLADE MOUNTING SCREWS
WITH LOCK WASHERS
BLADE
MEDALLION
BLADE
HOLDER

8
INSTALLING THE MOUNTING PLATE
Step 1. Remove 1 of 3 screws from the mounting ring and loosen the other 2 screws. (Do not
remove)
Step 2. Place the key holes from the mounting plate over the 2 screws previously loosened
from the mounting ring, turn mounting plate until it locks in place at the narrow section of the
key holes. Secure by tightening the 2 screws previously loosened and the one previously
removed. (Fig. 17)
Fig. 17
MOUNTING
PLATE
SCREWS
MOUNTING RING

9
INSTALLING THE LED LIGHT KIT
NOTE: Before starting installation, make sure power is turned off at the circuit breaker.
CAUTION: The light source is designed for this specific application and can overheat if serviced by
untrained personnel. If any servicing is required, the product should be returned to an authorized
service facility for examination or repair.
1. Remove 1 of 3 screws from the mounting plate and loosen the other 2 screws. (Do not remove)
2. While holding the LED light kit under the fan motor assembly, make the 2-pin wire connections:
(Fig. 18)
- White to white - Black to blue
3. Place the key holes from the LED light kit over the 2 screws previously loosened from the mounting
plate, turn light kit until it locks in place at the narrow section of the key holes. Secure by tightening
the 2 screws previously loosened and the one previously removed.
Fig. 18
MOUNTING
PLATE
SCREWS
CONNECTORS
LED LIGHT
KIT

10
Fig. 19
Raise glass shade up against LED light kit and secure it to the fan by turning the glass shade
clockwise until snug. DO NOT OVERTIGHTEN. (Fig. 19)
INSTALLING THE GLASS SHADE
GLASS SHADE

11
OPERATING THE REMOTE CONTROL
Remote Control only: Install two AAA 1.5 volt batteries (included). To prevent damage to transmitter remove the battery if not used for long periods
of time. IMPORTANT: THIS REMOTE CONTROL & DC FAN MOTOR ARE DESIGNED TO PERFORM A ONE TIME SELF CALIBRATION TEST. THIS
TEST WILL BEGIN ONCE A NEW CODE HAS BEEN SET, AND WILL LAST APPROXIMATELY ONE MINUTES.
A. 1, 2, 3, 4, 5 and 6 button:
These six buttons are used to set the fan speed
as follows:
1 = minimum speed
2 = low speed
3 = medium low speed
4 = medium speed
5 = medium high speed
6 = high speed
Your DC brushless motor is equipped with a self
learning frequency function remote control.
Restore power to ceiling fan and test the
transmitter as below for proper operation:
fans that feature an UP light ( button) and a
DOWN light ( button) that are controlled
independent of each other;
Press and release the button for the desired light
to turn the light ON or OFF. Press and hold the
button to set the desired light brightness. The
light will cycle between bright and dim settings
as long as the button is pressed. The light key
has an automatic auto-resume feature that
allows the light to remain at the same brightness
as the last time it was turned off.
B. Reverse button:
This button is used to change the direction of
the rotation of the blades; forward for warm
weather or reverse for cool weather.
C. button:
This button turns the power Off to the Fan.
D. Button:
These buttons turn the light ON or OFF and also
control the brightness settings of the light. The
following instructions apply to ceiling fans that
feature a DOWN light ( button) only or ceiling
