Minolta MN4K100Z User manual

MN4K100Z User Manual

1
About this Manual
Congratulations on purchasing the Minolta MN4K100Z Camcorder!
The contents of this manual are subject to change without notice. Note that the
differ
somewhat from the screens and configuration of the actual camcorder.
Copyright
This manual contains proprietary information protected by copyright. All rights
are reserved. No part of this manual may be reproduced by any mechanical,
electronic or other means, in any form, without prior written permission of Elite
Brands Inc. © 2022.
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1)
This device may not cause harmful interference and
(2)
This device must accept any interference received, including interference
that may cause undesired operation.
RF Exposure Warning
This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. This equipment must be installed and operated in
accordance with provided instructions and must not be co-located or operating in
conjunction with any other antenna or transmitter. End-users and installers must
be provided with antenna installation instructions and transmitter operating

2
conditions for satisfying RF exposure compliance.
FCC: SAR standard Value: 1.6 W/Kg, Maximal Measure: 0.4 W/kg
CE Mark Warning
This is a Class B product, in a domestic environment, this product may cause
radio interference, in which case the user may be required to take adequate
measures.
Safety and Handling Precautions
Camcorder Information
Do not disassemble or attempt to service the camcorder yourself.
Do not expose the camcorder to moisture, or extreme temperatures.
Allow the camcorder to warm up when moving from cold to warm temperatures.
Do not touch and put pressure on the camcorder lens.
Do not expose the lens to direct sunlight for extended periods.
Do not use abrasive chemicals, cleaning solvents or strong detergents to
clean the product. Wipe the product with a slightly damp soft cloth.
Do not use the flash or LED Light near a person's eyes to prevent possible
eye injury.
To prevent you from falling over or resulting in traffic accident, please do not
use the camcorder while you are walking, driving or riding a vehicle.
Please handle the camcorder strap with care, and never place the strap
around the neck of an infant or child. Wrapping the strap around a neck may
cause suffocation.
Do not subject the LCD screen to impact.
To prevent the risk of fire or electric shock, do not expose this appliance to rain
or moisture.
Battery Information
Turn off the camcorder before installing or removing the battery.
Use only the provided batteries or type of battery and charger that came with
your camcorder. Using other types of battery or charger may damage the
device and invalidate the warranty.
Inserting the battery upside down can cause damage to the product and possibly
cause an explosion.
When the camcorder is used for an extended period of time, it is normal for
the camcorder body to feel warm.
Download all pictures and remove the battery from the camcorder if you are
going to store the camcorder for a long period of time.
The type of battery and the battery power level may cause the lens to be stuck
up. Ensure you use the correct battery type and use a fully charged battery.
Risk of explosion if battery is replaced by an incorrect type. Dispose of used
batteries according to the instructions.
Please keep the batteries out of the reach of children to prevent from swallowing

3
batteries, which might cause poisoning.
Once the battery's color changes or its shape is twisted, please stop using it.
USB adapter Information
Do not expose the adapter to high temperatures or moisture places. Otherwise, it
may cause fire or electric shock.
Do not attempt to repair, disassemble, change or transform the adapter.
Avoid sudden changes in temperature, which may cause condensation on the
Do not touch the plug with wet hands. Otherwise, it may cause electric shock.
Do not use the travel voltage converter or AC/DC power inverter. Otherwise, it
may cause damage, overheating, malfunction or fire to the camcorder.

4

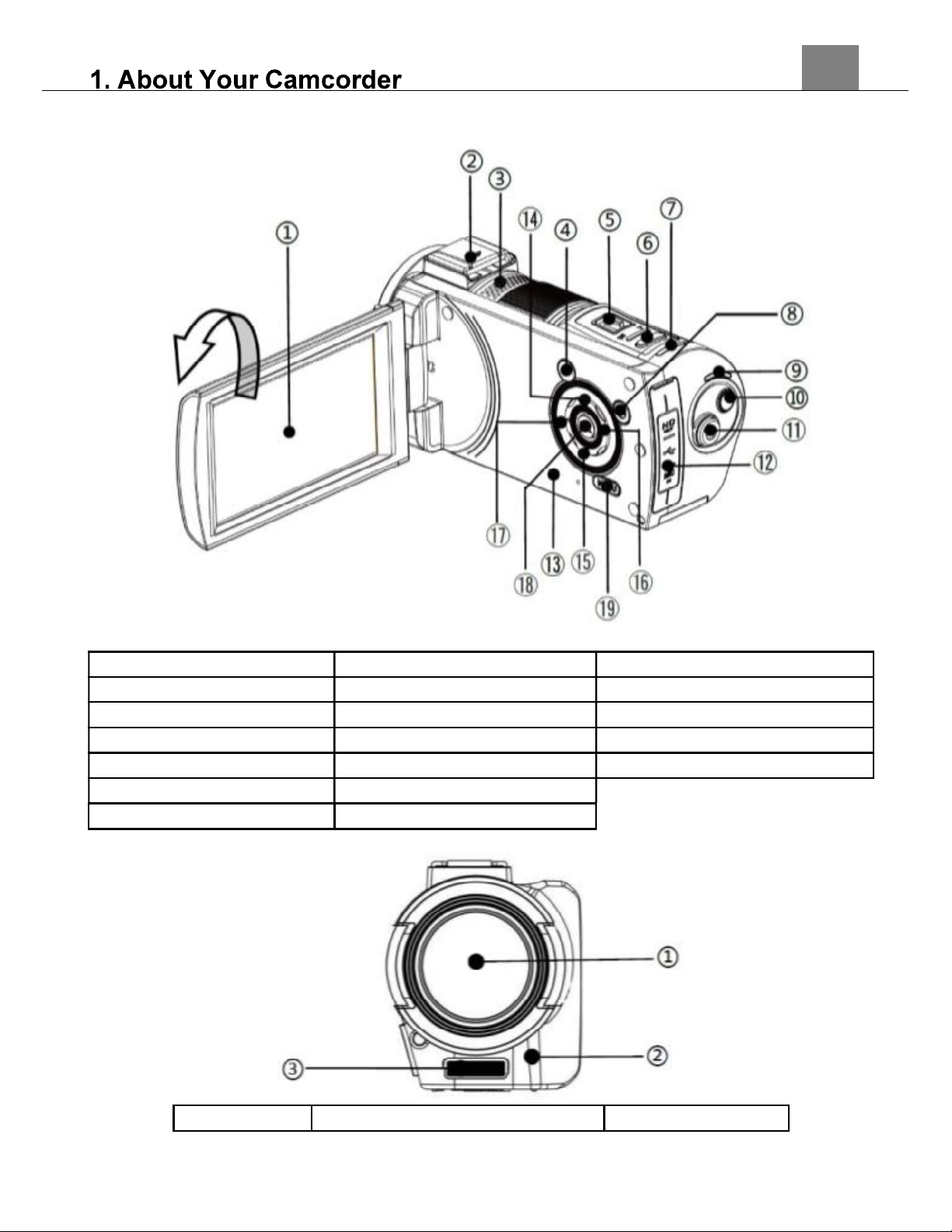

1.1
Camcorder Interface
1. Touch LCD Screen 8. Power Button 15. Down/Delete Button
2. Hot Shoe Mount
9.
LED Mode Indicator
16.
Right/Exposure Button
3. Speaker 10. Mode Button 17. Left/Exposure Button
4. Display Button 11. Record Button 18. OK Button
5.
Zoom
12.
Port Door
19.
Menu
6. Shutter 13. Microphone
7. LED Indicator 14. Up/LED Light Button
1. Lens 2. Remote Control Sensor 3. LED Light

5

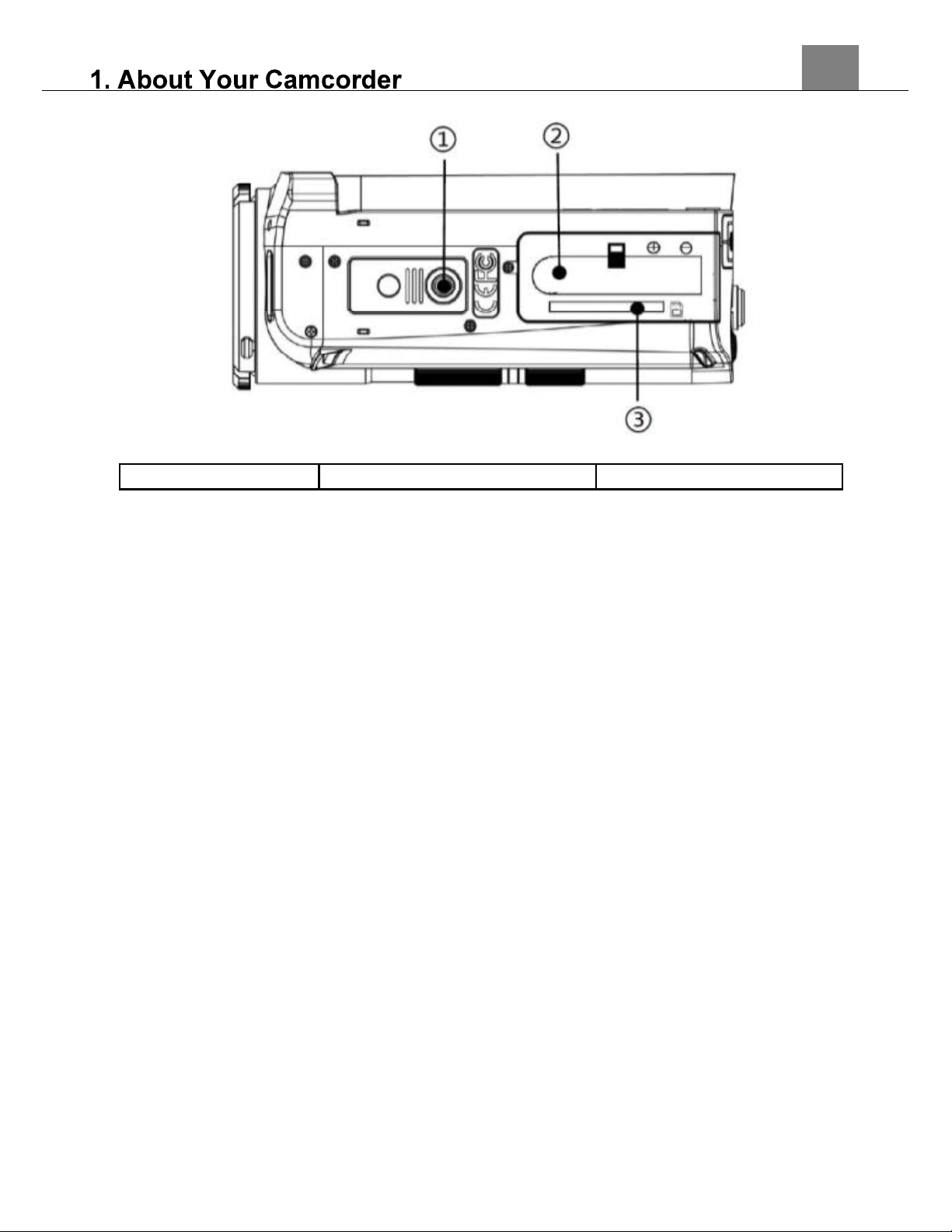

1. Tripod Mount 2. Battery Compartment 3. Memory Card Slot

6
1.2
Button Function Description
Function Description
Power Press and hold for 2 seconds to power on, tap
once to power off.
Mode Tap to cycle between Video, Photo, Setup and
WiFi modes.
Menu Tap to access and exit all menus and
submenus.
Zoom
In Video and Photo: Press right to zoom-in.
Press left to zoom-out.
In Menu: Press to go to the previous or next
setting option.
In Video Playback: Press to go to the previous
or next video. While playing a video, press to
increase and decrease the volume.
In Photo Playback: Press to go to the previous
or next photo. While viewing a photo, slide to the
right to zoom in on the photo, slide to the left to
zoom out.
In Photo: Press softly to focus the image. Press
hard to capture a photo.
In Video: Tap to pause a recording, tap again to
resume recording.
In Playback: While playing a recorded video,
tap to pause and tap again to resume.
OK button in menus. Tap to confirm a setting.
Record In Video: Tap to start/stop recording video.
In Playback:
Tap to stop a playing video.
Display
In Photo and Video: Tap to turn off the icons on
the screen, tap again to turn the display off, tap
a third time to turn on the display with the icons.
Up | LED Light
Button
In Video and Photo: Press to turn on the LED
Light.
In Video Playback: Press to increase the
volume.
In
Menu
:
Press to select the desired submenu.

7
Down | Delete
In Video, Photo and Playback: Press to delete
the last image or video.
In
Menus
:
Press to select the desired submenu.
Right | Exposure
In Photo and Video: Press to increase the
exposure.
In Video Playback: Press to go to the next
video.
In Photo Playback: While viewing a zoomed in
photo, press to move the image on the screen to
the right.
In Menu:
Press to go to the next setting option.
Left | Exposure
In Photo and Video: Press to decrease the
exposure.
In Video Playback: Press to go to the previous
video.
In Photo Playback: While viewing a zoomed in
photo, press to move the image on the screen to
the left.
In Menu: Press to go to the previous setting
option.
LED Light
Tripod Mount Mount port for attaching to a tripod nut.
Battery/Memory
Card Door
Door to cover storage slot for inserting the
battery and a memory card.
Speaker Built-in speaker output for playback of video files
when audio recording is enabled.
Lens Front capture device for all video and photo.

8
2.
First Use
2.1

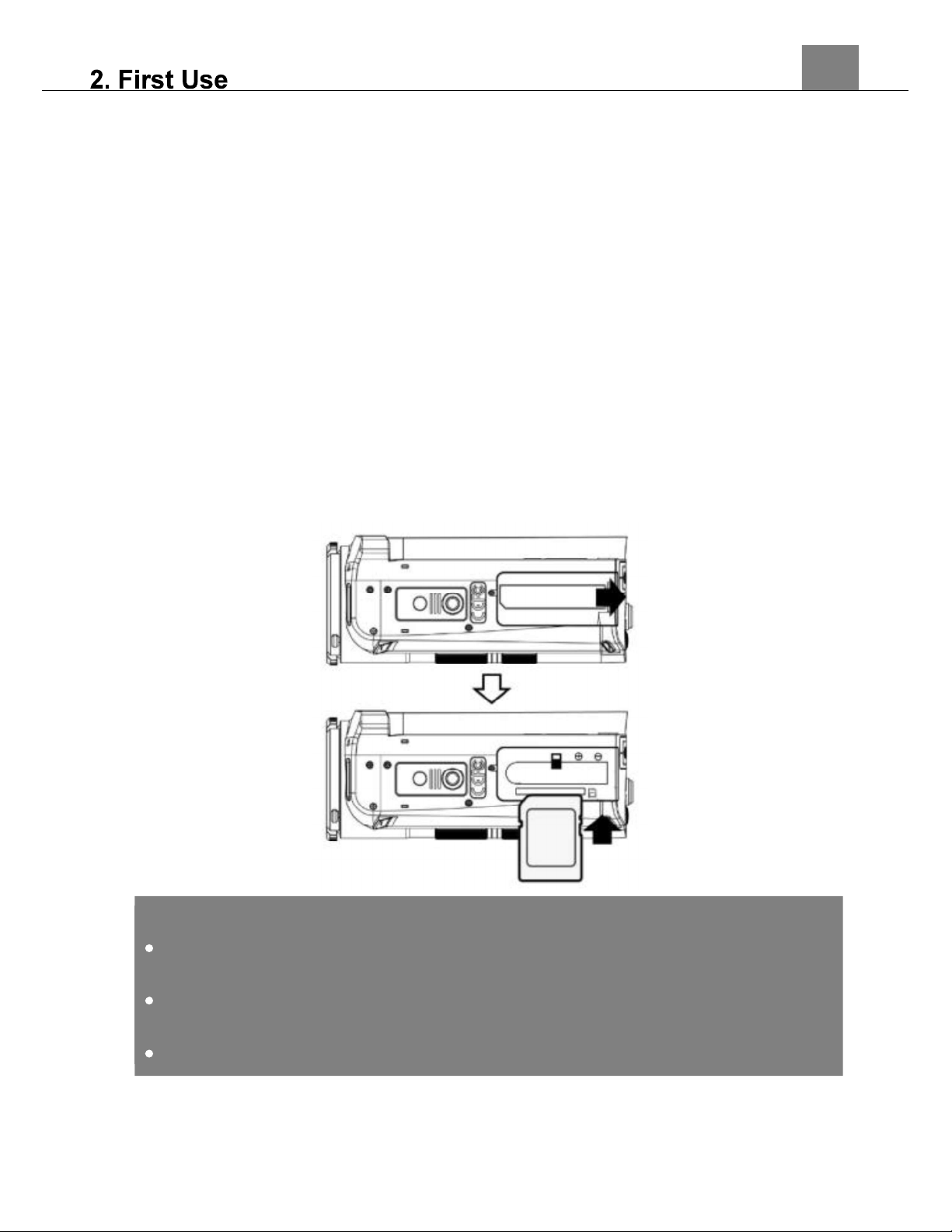

Inserting the Memory Card
Insert the included SD memory card to record and store your videos and
photos. When the battery is low, media stored on the memory card will not
be erased. Please insert the SD memory card by following the steps below:
1.
Open the battery door to access the memory card slot. To open the battery
door, slide the battery door towards the rear of the camcorder, the door will
then flip open.
2.
Insert the memory card. Ensure that the metal contacts are inserted first.
Push the memory card down until you hear an audible click.
The memory card can only be inserted in one way. Do not force the
card in if it will not go in smoothly.
3.
Close the battery door by laying it flat against the bottom of the camcorder
and sliding it towards the front of the camcorder.
4.
To remove the memory card, simply push in and the card will eject out.
2.2
Installing the Battery
Insert the lithium-ion battery into the battery compartment with the metal
contacts facing the inside of the camcorder. The battery can only inserted
NOTE:
Please format the memory card before using the camcorder
(Caution, this will erase all data on the card).
Do not remove or insert the memory card when recording. It may
damage the card or cause data loss.
Memory card rating must be Class 10 or above.

9
one way. Push the battery in until it locks into place. Open the battery door
by sliding the battery door towards the rear of the camcorder, the door will
then flip open.
1.
Insert the battery. Ensure that the metal contacts are inserted first. Push the
down until you hear an audible click.
2.
Close the battery door by laying it flat against the bottom of the camcorder
and sliding it towards the front of the camcorder.
3.
To remove the battery, slide the battery lock away from the battery and
the battery will eject.
2.3
Charging the Battery
Connect your camcorder to the included AC adaptor with the USB cable
provided for charging. Open the rubber jack door on the rear of the
camcorder to access the charging port. Insert the small end of the USB plug
into the camcorder s port, and the larger end into the included AC adaptor.
The LED indicator light will light up red while charging and will light up green
when charging is complete.
2.4
Powering the Camcorder On/Off
Press and hold the POWER button for 2 seconds to power the camcorder on.
To power the camcorder off, press the POWER button. The camcorder will
automatically power on and off when the screen is opened or closed. If the

10
screen and it will automatically shut down within a few seconds to prevent
memory corruption or loss.
2.5
Switching Modes
Press the MODE button to view the different mode options. Press the
ZOOM, RIGHT or LEFT buttons cycle between Video, Photo, Setup and
WiFi Modes and press the PHOTO or OK button to enter that mode. The
corresponding mode will be displayed in the top left corner of the screen.
2.6
Connecting to a Computer
Your camcorder can connect to a computer to transfer photo and video files
for viewing and editing, or use the camcorder as a web cam. To connect the
camcorder to your computer, open the rubber jack door on the rear of the
camcorder to access the USB port. Insert the small end of the USB plug into
the to the USB port on your computer.
Once connected show MSDC
. Use the ZOOM button to select your desired mode and
press the PHOTO button to enter into that mode.
2.7
Connecting to a TV
The camcorder can also be connected to a TV. When connected, the
camcorder screen will turn off and the camcorder will function normally. Use
the TV as the camcorder monitor. To connect the camcorder to your TV,
open the rubber jack door on the rear of the camcorder to access the HDMI
port. Insert the small end of the HDMI
larger end into the HDMI port on your TV. Then turn on the camcorder and it
will be ready for use.

11
2.8

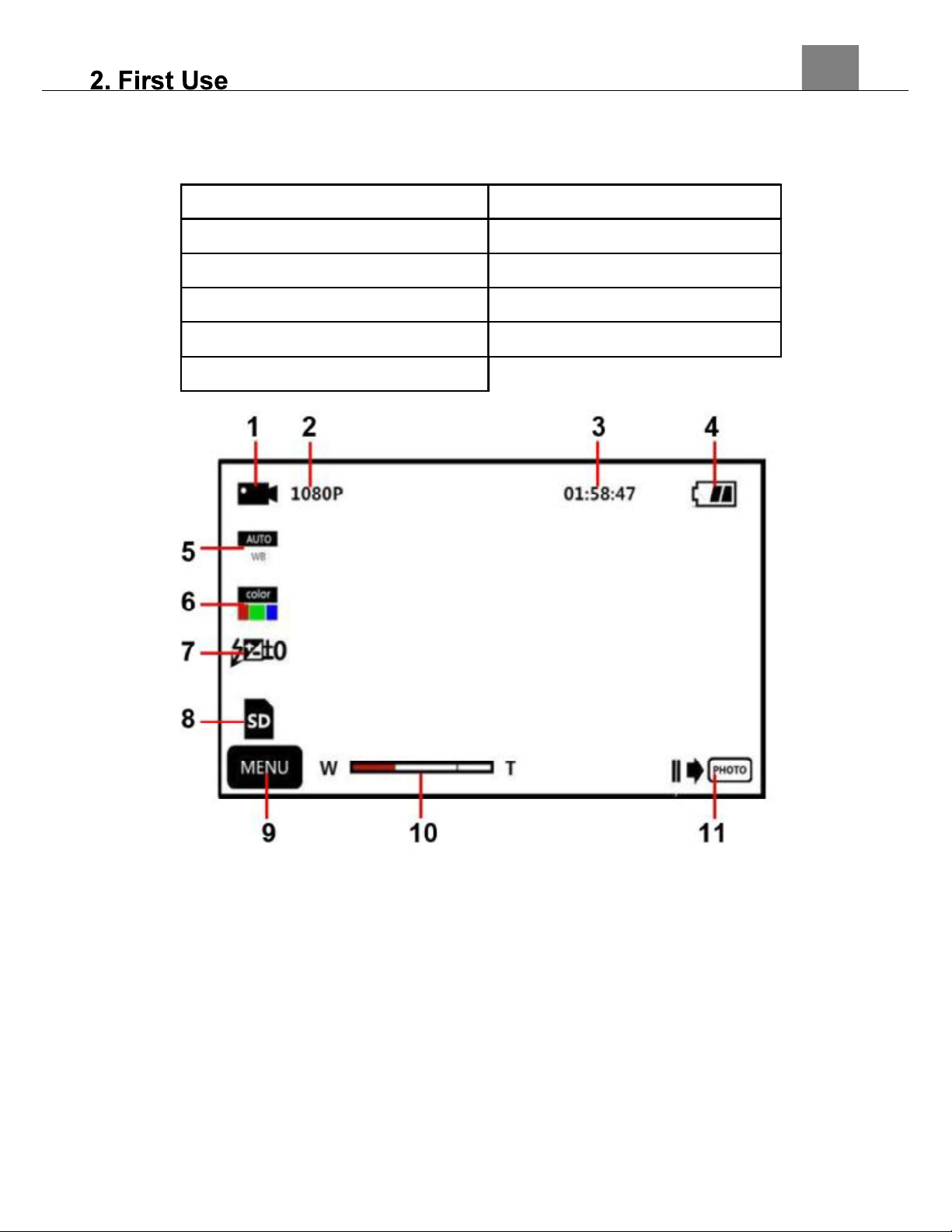

Video Mode
Press the MODE button to switch to Video Mode. The meaning of each icon
within Video Mode is explained in the table below:
1. Video Mode 7. Exposure
2. Video Size (Resolution) 8. Memory Card Inserted
3. Recording Time Remaining 9. Menu
4. Battery Level 10. Zoom Level
5. White Balance 11. Pause Recording
6. Color Effect

12
2.9
Photo Mode
Press the MODE button to switch to Photo Mode. The meaning of each icon
within Photo Mode is explained in the table below:
1. Photo Mode 6. Color Effect
2. Photo Size (Resolution) 7. Exposure
3. Number of Photos Remaining 8. Memory Card Inserted
4. Battery Level 9. Menu
5. White Balance 10. Zoom Level

13
2.10
Using the Zoom Function
This camcorder has an optical zoom function. To operate the zoom function,
slide the ZOOM button to the right to zoom in closer to the subject, and to
the left to zoom away from the subject.
2.11
Using the LED Lights
This camcorder has built-in LED Lights - giving you the ability to capture
photos and videos in a dark environment.
In Photo or Video mode, short-press the UP button once to enable the LED
light. When the LED light is enabled, the LED light indicator on the top of the
screen will be displayed.
To disable the light, short-press the UP button again. You will notice that the
LED light indicator on the screen is no longer showing.
2.12
Attaching External Accessories
This camcorder supports lens filters & attachments, external microphones
and assistive lighting utilizing power from the hot-shoe mount. When
attaching an external microphone, be sure to mount it to the hot-shoe mount
and also insert the 3.5mm plug into the MIC port.
The camcorder lens has a 37mm diameter threading for compatible filters
and attachments.

14
Video
Pause
Delete
Volume Up
Right
Fast Forward
Volume Down
Zoom In
Zoom Out
LED Light
Mode
Left
Play/Stop
Rewind
2.13

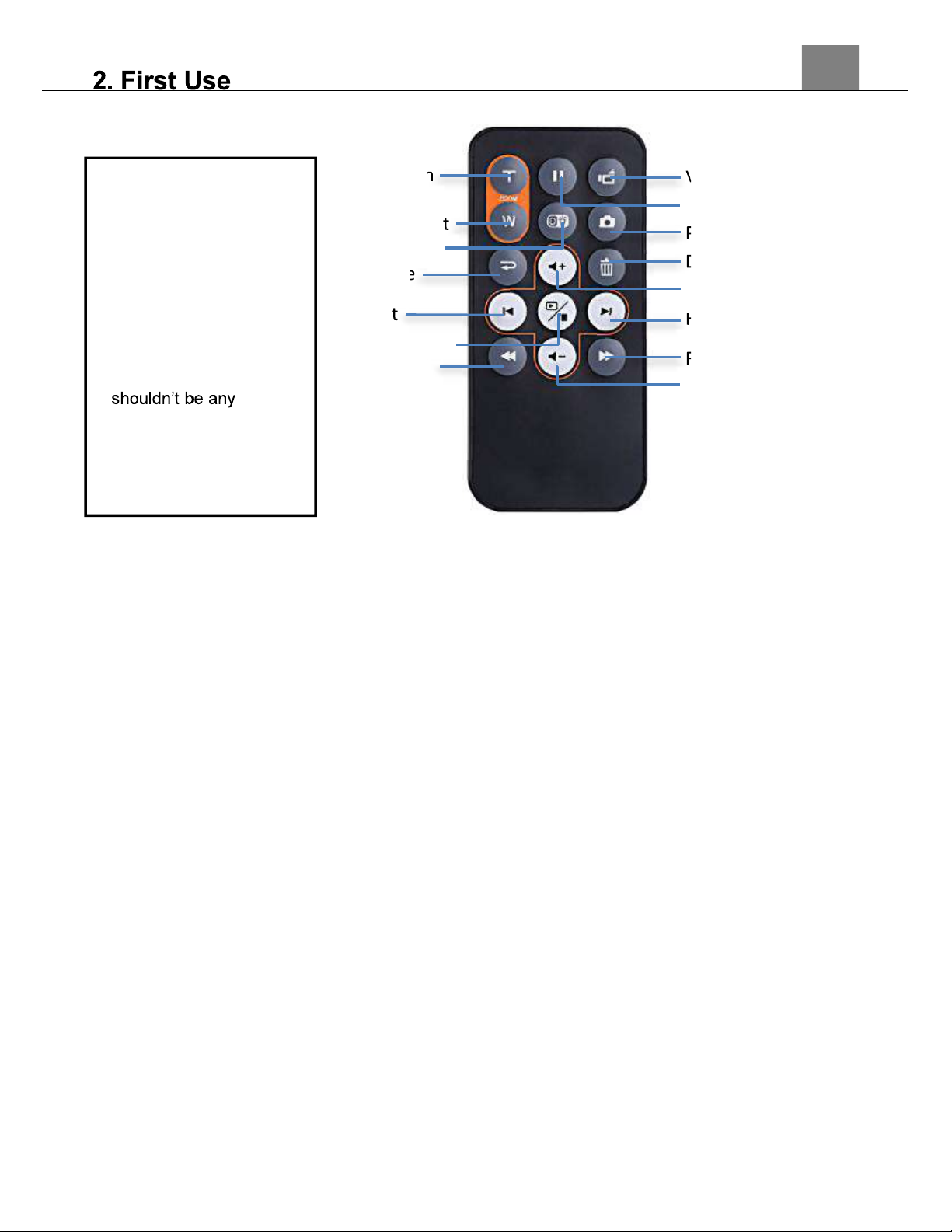

Remote Control
Note: Before using
the remote, remove
the battery tab on the
back.
When using the
remote, it should be
pointed towards the
remote control receiver
on the front the
camcorder. There
objects in between the
remote and camcorder
as they can block the
signal from the remote.

15
3.
Using the Camcorder
3.1 Video Recording
Power the camcorder on and it will be ready to record clips right away. You
may press the MODE button to switch to another mode. A camcorder icon
will appear in the top left corner of the screen when you are in Video mode.
1. Line up your shot by looking at the LCD screen to see what is in view.
2. Hold the camcorder steady and press the RECORD button to begin recording.
3. When recording begins, a rolling timer will display in red in the top right corner
of the screen. This indicates the recorded video time elapsed.
4. Press the PHOTO button to pause and resume recording. Press the RECORD
button to stop recording.
5. The recorded video files will automatically save onto the inserted memory card.
3.1.1 Settings Movie Size (Resolution)
Your camcorder has a number of preset resolutions.
1.
In Video Mode press the MENU button.
2.
Use the ZOOM, LEFT or RIGHT buttons to select Setup and press the
PHOTO or OK buttons to enter the menu.
3.
Select using the ZOOM, UP or DOWN buttons and press
the PHOTO or OK buttons to enter the submenu.
4.
Press the ZOOM, LEFT or RIGHT buttons to navigate the menu and press
the PHOTO or OK buttons to confirm your selected setting (2.7K, 1080P,
720P, 480P). A higher resolution and faster frames per second rate will
produce a higher quality and larger video file.
5.
Press the MENU button to exit the submenu.
3.1.2 Settings White Balance
White Balance changes the color of light in your pictures, making it seem
warmer or cooler depending on how the light you're shooting in affects the
frame.
1. In Video Mode press the MENU button.
2. Use the ZOOM, LEFT or RIGHT buttons to select Setup and press the
PHOTO or OK buttons to enter the menu.
3. Select using the ZOOM, UP or DOWN buttons and press
the PHOTO or OK buttons to enter the submenu.
4. Press the ZOOM, LEFT or RIGHT buttons to navigate the menu, and
press the PHOTO or OK buttons to confirm your selected setting (Auto,
Daylight, Cloudy, Fluorescent, Tungsten).
5. Press the MENU button to exit the submenu.

16
3.1.3 Settings Color Effect
This function sets the color filter effect of a video.
1.
In Video Mode press the MENU button.
2.
Use the ZOOM, LEFT or RIGHT buttons to select Setup and press the
PHOTO or OK buttons to enter the menu.
3.
Select Color using the ZOOM, UP or DOWN buttons and press
the PHOTO or OK buttons to enter the Color submenu.
4.
Press the ZOOM, LEFT or RIGHT buttons to navigate the menu, and
press the PHOTO or OK buttons to confirm your selected filter (Standard,
Sepia, Monochrome, Vivid).
5.
Press the MENU button to exit the submenu.
3.1.4 Settings Exposure
This function adjusts the frame brightness in your video.
1.
In Video Mode press the MENU button.
2.
Use the ZOOM, LEFT or RIGHT buttons to select Setup and press the
PHOTO or OK buttons to enter the menu.
3.
Select using the ZOOM, UP or DOWN buttons and press
the PHOTO or OK buttons to enter the submenu.
4.
Press the ZOOM, LEFT or RIGHT buttons to navigate the menu, and
press the PHOTO or OK buttons to confirm your selected exposure mode
(-3, -2, -1, 0, +1, +2, +3).
5.
Press the MENU button to exit the submenu.
3.1.5 Settings Date Stamp
This setting allows you to imprint a date & time onto your recorded video files.
Once a video file is recorded with the imprint, the imprint cannot be removed.
1.
In Video Mode press the MENU button.
2.
Use the ZOOM, LEFT or RIGHT buttons to select Setup and press the
PHOTO or OK buttons to enter the menu.
3.
Select Date Stamp using the ZOOM, UP or DOWN buttons and press
the PHOTO or OK buttons to enter the Date Stamp submenu.
4.
Press the ZOOM, LEFT or RIGHT buttons to navigate the menu, and
press PHOTO or OK buttons to confirm your selected exposure mode
(Off, On).
5.
Press the MENU button to exit the submenu.
3.1.6 Settings Metering
Metering mode refers to the way in which a camcorder determines the
appropriate exposure (quantity of light reaching the camcorder lens). Spot
metering will only base the exposure setting on a very small area of the

17
scene. Center metering will use the light from the center of the LCD and the
Multi setting measures the light at several points on the screen.
1.
In Video Mode press the MENU button.
2.
Use the ZOOM, LEFT or RIGHT buttons to select Setup and press the
PHOTO or OK buttons to enter the menu.
3.
Select Metering using the ZOOM, UP or DOWN buttons and press
the PHOTO or OK buttons to enter the Metering submenu.
4.
Press the ZOOM, LEFT or RIGHT buttons to navigate the menu, and
press the PHOTO or OK buttons to confirm your selected exposure mode
(Multi, Center, Spot).
5.
Press the MENU button to exit the submenu.
3.1.7 Time-Lapse
This feature allows you to capture long sequences of events in a much shorter
time period.
1.
In Video Mode press the MENU button.
2.
Use the ZOOM, LEFT or RIGHT buttons to select Time-Lapse and press
the PHOTO or OK buttons to enter the menu.
3.
Select Time Lapse using the ZOOM, UP or DOWN buttons and press
the PHOTO or OK buttons to enter the Time-Lapse submenu.
4.
Press the ZOOM, LEFT or RIGHT buttons to navigate the menu, and
press the PHOTO or OK buttons to confirm your selected exposure mode
(Off, 1 Second, 3 Seconds, 5 Seconds).
5.
Press the MENU button to exit the submenu.
NOTE: By selecting 5 Seconds the camcorder will capture a photo every 5
seconds and create a time-lapse video. To disable Time-Lapse recording,
in this submenu.
icon in the bottom left corner of the touch screen to
change chosen settings.

18
3.2 Photo Shooting
Power the camcorder on and press the MODE button or press the icon in the
top left corner of the touch screen to switch to Photo mode.
1.
Line up your shot by looking at the LCD screen to see what is in the shot.
2.
Hold the camcorder steady, soft press the PHOTO button to focus on the scene
and hard press the PHOTO button to capture a photo.
3.
The number of photos that can be captured at a particular resolution
will be displayed in the top right corner of the screen.
4.
The number of remaining photos is determined by the selected photo
resolution. The higher the photo resolution, the lower the number of photos
you are able to be save to the memory card. Before capturing any photos,
you can select a preferred photo resolution.
3.2.1
Settings Photo Size (Resolution)
Your camcorder has a number of preset resolutions.
1.
In Photo Mode press the MENU button.
2.
Use the ZOOM, LEFT or RIGHT buttons to select Setup and press the
PHOTO or OK buttons to enter the menu.
3.
Select Photo using the ZOOM, UP or DOWN buttons and press
the PHOTO or OK buttons to enter the Photo submenu.
4.
Press the ZOOM, LEFT or RIGHT buttons to navigate the menu and press
the PHOTO or OK buttons to confirm your selected setting (28MP
6160x4624, 24MP 5600x4200, 20MP 5200x3900, 16MP 4608x3456,
12MP 4000x3000, 10MP 3648x2736, 7MP HD 3648x2052, 5MP
2592x1944, 3MP 2048x1536, 2MP HD 1920x1080, VGA 640x480). A
higher resolution will produce a higher quality and larger image file.
5.
Press the MENU button to exit the submenu.
3.2.2
Settings White Balance
White Balance changes the color of light in your pictures, making it seem
warmer or cooler depending on how the light you're shooting in affects the
frame.
1. In Photo Mode press the MENU button.
2. Use the ZOOM, LEFT or RIGHT buttons to select Setup and press the
PHOTO or OK buttons to enter the menu.
3. Select using the ZOOM, UP or DOWN buttons and press
the PHOTO or OK buttons to enter the submenu.
4. Press the ZOOM, LEFT or RIGHT buttons to navigate the menu, and
press the PHOTO or OK buttons to confirm your selected setting (Auto,
Daylight, Cloudy, Fluorescent, Tungsten).
5. Press the MENU button to exit the submenu.

19
3.2.3
Settings Color Effect
This function sets the color filter effect of a video.
1.
In Photo Mode press the MENU button.
2.
Use the ZOOM, LEFT or RIGHT buttons to select Setup and press the
PHOTO or OK buttons to enter the menu.
3.
Select Color using the ZOOM, UP or DOWN buttons and press
the PHOTO or OK buttons to enter the Color submenu.
4.
Press the ZOOM, LEFT or RIGHT buttons to navigate the menu, and
press the PHOTO or OK buttons to confirm your selected filter (Standard,
Sepia, Monochrome, Vivid).
5.
Press the MENU button to exit the submenu.
3.2.4
Settings Exposure
This function adjusts the frame brightness in your video.
1.
In Photo Mode press the MENU button.
2.
Use the ZOOM, LEFT or RIGHT buttons to select Setup and press the
PHOTO or OK buttons to enter the menu.
3.
Select using the ZOOM, UP or DOWN buttons and press
the PHOTO or OK buttons to enter the submenu.
4.
Press the ZOOM, LEFT or RIGHT buttons to navigate the menu, and
press the PHOTO or OK buttons to confirm your selected exposure mode
(-3, -2, -1, 0, +1, +2, +3).
5.
Press the MENU button to exit the submenu.
3.2.5
Settings Metering
Metering mode refers to the way in which a camcorder determines the
appropriate exposure (quantity of light reaching the camcorder lens). Spot
metering will only base the exposure setting on a very small area of the
scene. Center metering will use the light from the center of the LCD and the
Multi setting measures the light at several points on the screen.
1.
In Photo Mode press the MENU button.
2.
Use the ZOOM, LEFT or RIGHT buttons to select Setup and press the
PHOTO or OK buttons to enter the menu.
3.
Select Metering using the ZOOM, UP or DOWN buttons and press
the PHOTO or OK buttons to enter the Metering submenu.
4.
Press the ZOOM, LEFT or RIGHT buttons to navigate the menu, and
press the PHOTO or OK buttons to confirm your selected exposure mode
(Multi, Center, Spot).
5.
Press the MENU button to exit the submenu.
