Mintforbers Bar 9 User manual

COB LED Bar Light
User Manual
Bar 9
Please keep this manual for further use

Bar 9 COB LED Wash Light
- - 1 - -
Product Introduction
Thank you using our LED series products. This fixture is the latest new LED product. It has
aluminum die-cast housing with nice design, international advanced electronic control technology
and excellent industrial design. Product effect more rich, colorful, and color is gorgeous because
of installed high output light source.
LED can realize 0-255 brightness adjustment separately by controlled built-in microprocessor
which used the high precision of constant current control mode. User can invoke the built-in
program, scenario editors and master-slave control mode setting by menu. Also can setting
rainbow, flash frequency and electric dimmer effect.
This product has a fast response, seismic, high impact resistance, good heat dissipation, high
protection grade, long using life, no radiation, high efficiency and energy saving, how energy
consumption, really the green products. Fully accepted international standard DMX512 signal.
This product can be widely used for the large fixed stage, lighting background dyeing, large-scale
theatrical performances, stadium lighting, temporary stage, urban lighting system, TV, conference
center, professional theatre, park, dance hall, bars, small artistic performances and public lighting
environment.
Packing Include
Please check if the following parts are included:
1 x LED light
1 x Power cable
1 x User manual
Caution
Before delivery, this device has passed strict inspection with good quality and perfect packing,
please follow the user manual for correct installation and operation, damage caused by the
disregard of this user manual are not subject to warranty. The dealer will not accept liability for any
resulting defects or problems. and we won't inform in case of further technical changes .
CAUTION!
Keep this device away from rain and moisture!
Unplug mains lead before opening the housing!
Warning!
Damages caused by the disregard of this user manual are not subject to warranty.
The dealer will not accept liability for any resulting defects or problems.

Bar 9 COB LED Wash Light
- - 2 - -
1.Safety Instructions
Please open and check whether break or not for transport once receipt this fixture, if yes, not use it
and contact dealer or manufacture as soon as possible.
The Max Ambient temperature for the light is 40°C. Do not use the light when the ambient
temperature is over 40 ℃
The fixture is applicable for many occasions, it should keep clean, and avoid long use in
overheating or dusty environment. prevent the fixture from the chemical liquid .
User must be careful of fire, heat, electric and fall-off that make heavy or fatal injury. Please read
this user manual carefully before power on and installation, following safety and operation
instruction in it. If still have any questions, please contact dealer or manufacture.
User must follow this user manual, do not open fixture by yourself, in case of any problems, please
contact technician for repair.
Fix the installation to avoid shack.
Don't power on or start the fixture before installation, please stop after working more than 8 hours
to extend the lifespan of the light
The minimum distance between light and the illuminated surface must be 0.5 meter.
Never look directly into the light source to avoid hurt to eyes (especially epileptics)!
When dustproof glass at light output breaks, cracks or other visible damage, user should replace
with new glass to continue to use.
2. Installation
When install this equipment please make sure there's no flammable surfaces (decorated things,
etc) and minimum distance of 0.5M from the equipment to the flammable.
The installation has to be built and constructed in a proper way that the rigging can hold 10 times
of the light weight .
3. Specifications:
• 18.89-inch (48 cm) indoor Linear Bar with 9 x 8W Ultra bright HEX LEDs
• Variable RGBW color mixing offers a seemingly unlimited color palette - Great for Stage or Wall
Washing!
• 3 DMX Channel Modes: 9,14 or 36 channels
• 5 operational modes: Auto (Program Run), Sound Active, RGB Dimmer, Static Color and DMX-512
Mode
• Pixel control
• Beam Angle: 25 degrees
• Flicker Free
• 4-Button DMX LED Display
• 14 built-in Color Macros
• LED pulse & strobe effect
• Electronic Dimming: 0-100%
• Includes mounting brackets to mount on a wall or set on the ground
• Long Life LEDs (Rated at approximately 50,000 hrs.)
• Power Draw: 100W
• Linkable: DMX via 3-pin XLR cable; Power via powerCon daisy-chain power link (Up to 10 Ultra Bar
9 fixtures)
• Multi-voltage operation: AC 100V-240V 50/60Hz
• Dimensions (LxWxH): 18.89” x 2.55” x 3.2”/ 480 x 65 x 82mm
•Weight:6lbs./2.6kg.

Bar 9 COB LED Wash Light
- - 3 - -
4. LED display instruction
5. LED display instruction chart
MENU UP/DOWN Default data Function
1A001001-512 A001 Address setting
29CH/14CH/36CH 9CH 9CH 9CH
14CH
14CH
14CH Mode 1
36CH 36CH 36CH Mode 2
3CC00
CC01~CC99
CC00
Color change and speed
4 Ed00 Ed00~Ed99 ED00 Color fade and speed
5 Er00 Er00~Er99 Er50 Color changing and running effect
Po00 Po50 Color fading and running effect
╘
r01 ╘r01~╘r14 Built-in 14 kinds running program
╘
u00 ╘u00~╘u99 Speed of
╘
r01~
╘
r14
BE00 BE00~BE99 BE50 Sound control mode and speed
R000 0-255 000 Red bright from weak to strong
4G0000-255 000 Green bright from weak to strong
5B0000-255 000 Blue bright from weak to strong
6W0000-255 000 White bright from weak to strong
7ID00
ID
01---14 ，（
For Happy Valley
effect, can achieve more than one
lamp flow）
8OPRT
0°C-120°C
LED temperature display（when it
arrives at 50°,it will open to
adjust temperature
E
A B C D
A
．
Function button
（
MENU
）
B．UP button（UP）
C．DOWN button（DOWN）
D. Enter button（ENTER）
E．LED display

Bar 9 COB LED Wash Light
- - 4 - -
6. DMX512 chart
9CH Mode 1
））））））
Dimming 1
0----255
Linear dimming from dim to bright
Strobe 2
0 The whole bright
1----255 Strobe
Built-in
program 3
0----25 No function
26---35 No function
36---45 Colorful hopping
46---55 Colorful gradent, pulse change
56---65
Select color: (controlled by 1 channel)
66--75 Jump: (controlled by 1 channel)
76---85 Gradient: (controlled by 1 channel)
86---95 Running effect: (by 1 - 6 channel control)
116--125 Running effect: (by 1 - 6 channel control)
.............
.....................................................
236-245
Running effect: (by 1 - 6 channel control)15
246--255
Sound control: (by 1 - 6 channel control)
Speed 4
6----255
Running effect: (by 1 - 6 channel control)1
Features 5 0-----255 Program speed adjustment
Red 6 0----255 Red dimming
Green 7 0----255 Green dimming
Blue 8 0----255 Blue dimming
White 9 0----255 White dimming
14CH Mode 2
））））））
Dimming 1 0----255 Linear dimming from dim to bright
Strobe 2
0 The whole bright
1----255 Strobe
Built-in
program 3
0----25 No function
26---35 No function
36---45
Colorful hopping
46---55
Colorful gradent, pulse change
56---65 Select color: (controlled by 1 channel)
66--75 Jump: (controlled by 1 channel)
76---85 Gradient: (controlled by 1 channel)
86---95
Running effect: (by 1 - 6 channel control)1
116--125
Running effect: (by 1 - 6 channel control)2
.............
.....................................................
236-245 Running effect: (by 1 - 6 channel control)15
246--255 Sound control: (by 1 - 6 channel control)
Speed 4 6----255 Running effect: (by 1 - 6 channel control)1
Features 5 0-----255 Program speed adjustment
CH6 0----255 R, G ,B . W dimming 1

Bar 9 COB LED Wash Light
- - 5 - -
CH7
0----255
R, G ,B . W dimming 2
CH 8
0----255
R, G ,B . W dimming 3
CH9
0----255
R, G ,B . W dimming 4
................. ........... ........................................
CH14 0---255 R, G ,B . W dimming 18
36CH Mode 3
Red 1 0----255 Red dimming １
Green2
0----255
Green dimming
１
Blue 3
0----255
Blue dimming
１
White
４
0----255
White dimming
１
Red
５
0----255
Red dimming
２
Green６0----255 Green dimming ２
Blue ７0----255 Blue dimming ２
White ８0----255 White dimming
．．．．．
．．．．．．．
．．．． ．．．．．．．．．．．．．．．．．．．
White 36 0----255 White dimming 36

Bar 9 COB LED Wash Light
- - 6 - -

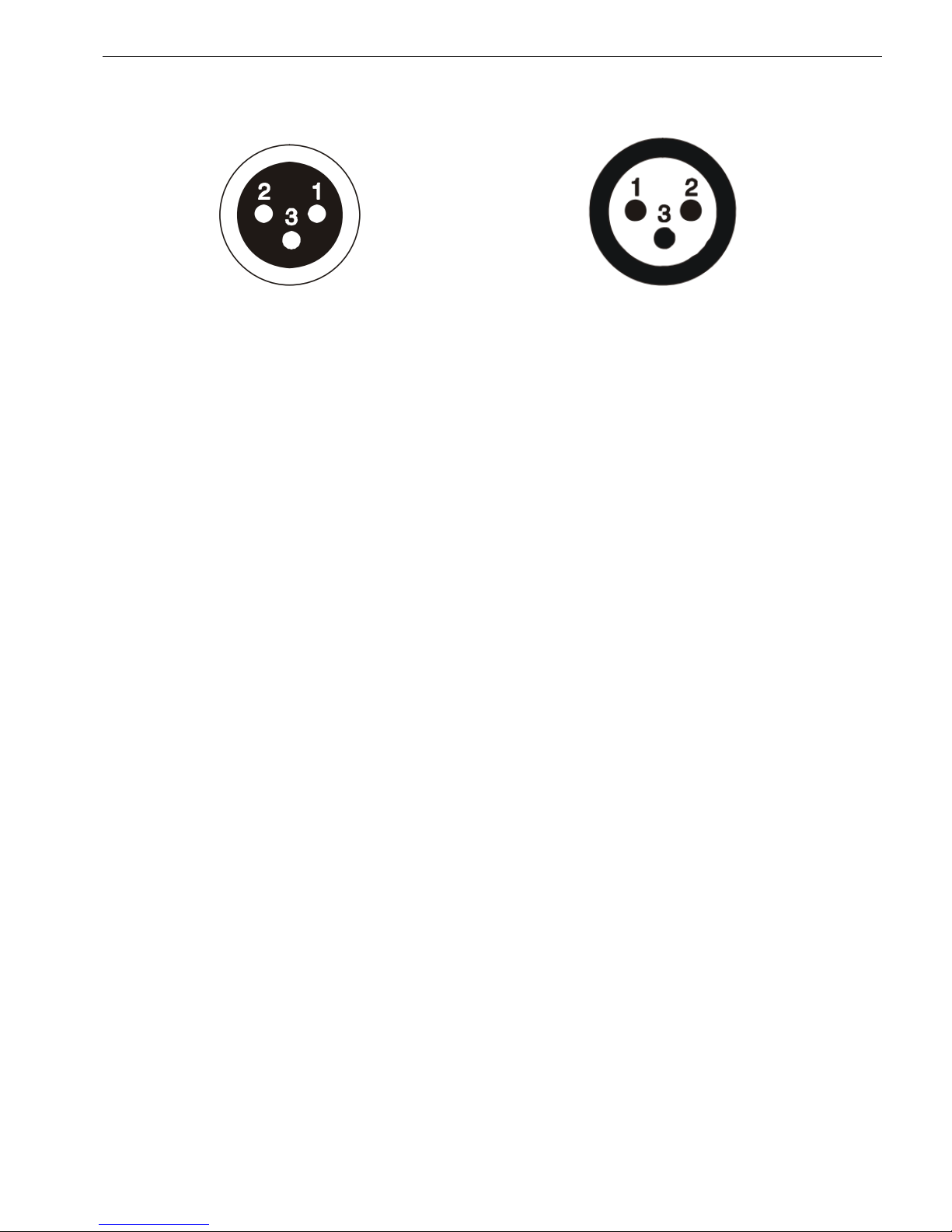

7. DMX-512 controller connection
3pins XLR signal output connector 3pins XLR signal input connector
(female) (male)
1: earth 2 : signal - 3 : signal +
8. DMX address setting
Set an address for each light, and accept the DMX signal from DMX controller, as per the
demand, user can set the same address for all lights, or different address for different light.
If set several light with the same DMX starting address, all lights will accept the same DMX
signal from DMX controller and work synchronously.
If set different address for each light, the light will accept signal from the DMX controller as per
the DMX starting address, if use this way, user must set the DMX starting address for the light
according to channel quantity of each light.
This light has 3 DMX modes: 9/14/36 channels, when use 9-channel mode, the 1st light has
starting address 1, the 2nd light has starting address 10 (1*9+1), the 3rd light has starting address 19
(2*2+1),...; when use 14 channel mode, the 1st light has starting address 1, the 2nd light has starting
address 15(2*14+1), the 3rd light has starting address 43 (3*14+1)…..and so on

Bar 9 COB LED Wash Light
- - 7 - -

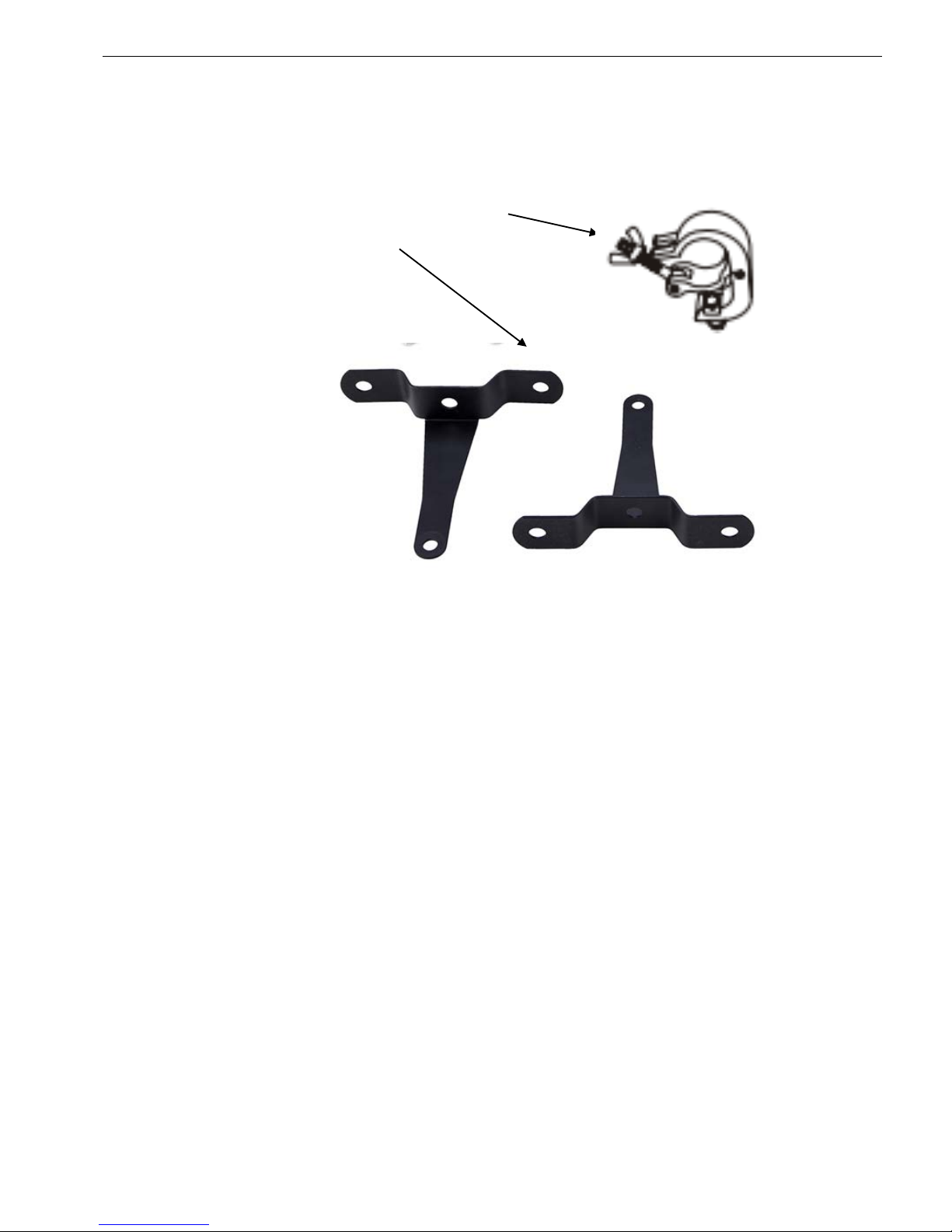

9. Rigging and installation
1. Hook clamp
2. Handle
1
2
1. The light can work properly when the ambient temperature is -25~40 ℃,
the ambient temperature is over 40 ℃orunder -25 ℃.
2. The installation has to be built and constructed in a proper way that the rigging can hold 10 times
of the light weight .
3. Don't stand under the light when installing, disassembling, repairing or maintaining the light.
4. Please use safety chain to ensure good installation.
5. Fix the M8 screw of the hook clamp in ￠12.5mm hole of the light handle.

Bar 9 COB LED Wash Light
- - 8 - -
10.Cleaning and maintenance
Maintenance should be performed every 15-day period, by using a sponge which is dipped
with alcohol, rather than wet cloth or other chemical liquid, to clean the mirror.
Always disconnect from the mains when the device is not in use or before cleaning it.
11.Attention
Do not look into light source directly when turn on the light, and make sure power off before do any installation or
maintenance.
Warranty Card
We provide 1 year warranty under the condition that user has operated the light normally and
lifetime service. We won't provide warranty if the damage is caused by artificial or force majeure
event. Cost of fittings should be charged by user if product need maintenance after 1
year .Please cut this warranty card and shipped it along with the product to our factory when
applying for warranty.
Product
：
Purchasing date：
Code of invoice
：
Warranty date: From To
User’s name
：
Add
：
Company
：
Tel
：
Make sure power off before cleaning and maintenance!
Caution
Warning!
Never look directly into the light source to avoid hurt to eyes(especially meant for
epileptics)!
Warning!
Any power connection can be done only by technician !
