USER’S MANUAL
MITSUBISHI HEAVY INDUSTRIES
Air to Water Heat Pump
Hydrolution (HM)
HSB60/HSB100/HSB140/HMK60/HMK100
FDCW60VNX/FDCW71VNX/FDCW100VNX/FDCW140VNX
PT300/PT500/RC-HY20/RC-HY40
PSA012B821BF
English：Original instruction
This heat pump complies with EMC Directive 2014/30/EU,
LV Directive 2014/35/EU.
CE marking is applicable to the area of 50 Hz power supply.
HK 200S


Safety precautions
General 6
Installation data 6
Serial number 6
RC-HY20/40-An excellent choice 7
Quick guide 8
The control module-the heart of the house 9
Control module’s function 9
Contact with RC-HY20/40 9
Maintenance of RC-HY20/40 13
RC-HY20/40-at your service 14
Set the indoor climate 14
Set the hot water capacity 22
Get information 25
Adjust the heat pump 27
Disturbances in comfort 37
Manage alarm 37
Troubleshooting 37
Additional heating only 38
Maintenance 39
HSB60/100/140 39
HMK60/100 39
PT300/500 40
FDCW60/71/100/140 42
Technical data 43
Checklist 44
Glossary 45
Table of Contents


Safety precautions
SAFETY PRECAUTIONS
J Please read these “SAFETY PRECAUTIONS”
before starting to use this product and use
the product appropriately according to the
instructions.
JThe precautions provided here are
classified into “ DANGER” and “
CAUTION”. The “ DANGER” sections
describe potentially hazardous situations
that may lead to serious outcomes such as
death and sericus injuries if the product is
mishandled. Note, however, that depending
on the situation, the items listed in the “
CAUTION” sections do also have the
potential of causing serious outcomes.
Both warnings and cautions provide you
important information related to safety ;
please make sure to observe them.
JThe symbols used throughout the main
text of this manual have the following
meaning.
marks mean danger, alarm, and
caution. The specified prohibited
item is described in the triangle.
The left mark means “Shock hazard
alarm”.
marks mean prohibited items.
The specified prohibited item is
described in the circle or in the
vicinage.
marks mean compulsory action
or instruction. The specified
prohibited item is described in the
circle. The left mark means “Earth is
needed”.
NOTE
This indicates danger to machine or
person.
Caution
This indicates important information
about what you should observe when
maintaining your installation.
TIP
This indicates tips on how to facilitate
using the product.
JAfter you have read the manual, always
store it where other users can refer to at
any time. If a new owner takes over the
system, make sure to pass this manual.
This heat pump complies with EMC
Directive 2014/30/EC.
This appliance is designed for use in a
home environment and can be used by
children aged from 8 years and above and
persons with reduced physical, sensory or
mental capabilities or lack of experience
and knowledge if they have been given
supervision or instruction concerning use of
the appliance in a safe way and understand
the hazards involved. Children should
not play with the appliance. Cleaning and
user maintenance should not be made by
children without supervision.
This in accordance to applicable parts of
the low voltage directive 2014/35/EC, LVD.
HMK series, HSB series and its relevant
outdoor unit and tanks are also intended
for use by experts or trained users in
shops, hotels, light industry, on farms and
in similar environments.
CE marking is applicable to the area of 50
Hz power supply.
Make sure to have the installation
done by your dealer or a specialist.
If you install by yourself and the unit is not
properly installed, water leakage, electric
shock, fire and injuries caused by the drop
of the unit may occur.
The preventive measures that the
density of leaked refrigerant does not
exceed the limit is necessary in case of
installing the unit in a small room.
The leakage of refrigerant may cause oxygen
deficiency accident. Consult your dealer for
the measures.
RC-HY20/40 must be installed via an isolator
switch with a minimum breaking gap of 3
mm.
If the supply cable is damaged, only MHI, its
service representative or similar authorised
person may replace it to prevent any danger
and damage.
DANGER
INSTALLATION PRECAUTIONS


Safety precautions
Make sure to perform grounding
work.
Do not connect grounding wire to any
gas pipe, water pipe, conductor rods or
telephones. Incomplete grounding may
cause electric shock through leakage of
electricity.
Make sure to mount a leakage
breaker.
Otherwise electric shock may occur. Please
consult your dealer or a specialist for the
mounting.
Do not mount where flammable gas
leakage can happen.
If leaked gas stagnates in the unit, the gas
may cause fire.
Make sure to layout the drain pipe so
that the water is completely drained.
Otherwise, water may leak and wet
household goods.
OPERATION PRECAUTIONS
DANGER
Do not expose yourself directly to
radiator or any other heating device
for a long time.
It may cause low temperture burn injury.
Do not set water temperature too
high when under-floor heating
application is used.
It may cause low temperature burn injury.
Do not expose yourself directly to
cooled air flow for a long time or
cool too much.
It may be cause of deconditioning or
health disorder.
Do not insert fingers or sticks into
the air inlet or outlet grilles.
It may cause injuries because of the fan
rotating at high speed.
If the unit has been submerged under
water due to a natural disaster such as
flood or typhoon, consult your dealer
before using it again.
If you use it as it stands, it may lead to
failure, electric shock or fire.
CAUTION
If any abnormal symptom (scorched
flavor etc.) is found, cut off the power and
stop the operation.
Then consult your dealer.
If you use it as it stands, it may lead to
failure, electric shock or fire.
One of the causes of poor cooling
or poor heating may be refrigerant
leakage. Please consult your dealer.
If the repair requires additional refrigerant,
determine the service with the service staff.
The refrigerant of air conditioner is not
toxic. Normally the refrigerant does not
leak. But if it leaks and contacts fire such
as fan heater, space heater or cooking
heater, it may produce toxic chemicals.
Do not insert fingers or sticks even if
air blower does not operate.
It may suddenly operate and cause injuries.
CAUTION
Do not use for particular purpose such
as the storage of food, animals and
plants, precision apparatus and arts etc.
Storage goods may degrade.
Do not operate the button with wet
hand.
It may cause electric shock.
When a burning appliance is used
together with the unit, ventilate frequently.
If ventilation is not sufficient, it may cause
oxygen deficiency accident.
Do not place a burning appliance where
the airflow from the unit is directly
blown in case fan coil is used.
It may cause the imperfect combustion of
the equipment.
Make sure that the unit installation
foundation is not damaged due to long-
term use.
If it is left to stand, the unit may fall down
causing injury.
Do not lean on the unit.
It may overturn or fall if it is placed on
unstable surface and if may cause injury.


Safety precautions
Do not wash the unit with water, nor
place a vase with water on the unit.
It may cause a electric shock or ignite.
Do not install the unit where the airflow is
directly blown towards animals and plants.
They may suffer from adverse effect.
Before cleaning, make sure to stop
operation and cut off the power.
The fan inside rotates at high speeds.
Make sure to use an appropriate fuse.
Using steel wire or copper wire may
lead to failure or fire.
Do not store a flammable spray etc. near
the unit, nor blow directly to the unit.
It may lead to fire.
Before maintenance, make sure to
stop operation and cut off the power.
The fan inside rotates at high speeds.
When the unit isn’t used for a whole,
cut off the power.
The accumulation of dirt may lead to heat
generation or fire. But, before resuming
the operation, turn on the unit for six hours
beforehand to ensure safe operation.
Do not place any other electric appliances
or household goods below or around the
air conditioner.
Lekage from the unit may lead to failure or
contamination.
Do not touch the aluminum fin.
Otherwise it may lead to injuries.
Do not clean the inside of the indoor unit
by yourself. Make sure to consult your
dealer or user inquiry counter specified by
our company.
If you select incorrect detergent or
improper method, resin parts may be
damaged and lead to water leakage. If
the detergent is dropped on the electric
component or motor, it may lead to failure,
smoking or ignition.
Do not place objects on the outdoor unit,
nor mount on it.
It may lead to injuries resulting from falling.
During the operation or maintenance,
do not use an unstable footrest.
It may lead to injuries resulting from falling.
During thunderstorm, stop the
operation and turn off the switch.
A lightning strike may lead to failure.
After several seasons of operating,
inspections and maintenances are
required except routine care and cleaning.
Accumulated dirt or dust inside the indoor
unit may cause odor, water leakage
through the clogging of water discharging
pipe for dehumidification. Specialized
information and skills are required for
inspections and maintenances. Therefore
contact your dealer.
Do not place any object around the
outdoor unit, nor allow fallen leaves to
pile up.
Fallen leaves may induce insects and
worms in them, and they may lead to
failure, ignition or smoking by touching
electric components.
Do not use with inlet/outlet grilles or
other panel removed.
Otherwise, it may lead to injuries.
Do not operate or stop the unit by
using the power supply switch.
It may lead to fire or water leakage.
If auto restart is set effectively, the fan
may rotate suddenly causing injuries.
Do not strain the remote control cord.
A part of core wire may be cut off
causing electric leakage.
Do not use water heater etc. near the
indoor unit or remote control.
If a Vapor-generating appliance is used
near them, it may lead to water drop
causing electric leakage or short circuit.
Do not use the unit where powder or
fiber is floating.
Fine powder or fiber passing through the
air filter may stagnate inside the unit and
lead to electric leak or short circuit.


Safety precautions
Do not place objects under the unit
which must avoid being exposed to
water.
Over 80 percent humidity or the clogging of
drain pipe may damage them through dew
dropping.
PRECAUTIONS FOR RELOCATION OR REPAIRING
CAUTION
Never perform any modification.
Contact your dealer for repairing.
Improper repairing may lead to water
leakage, electric shock or fire. Normally
the refrigerant does not leak. But if it leaks
and contacts fire such as fan heater, space
heater or cooking heater, it may produce
toxic chemicals. When repairing refrigerant
leakage, determine the service with the
service staff so that the repair has been
finished without fault.
If it is required to relocate and reinstall the
unit, consult your dealer or a specialist.
Improper installation of air conditioning unit
may cause water leakage, electric shock
and/or fire.
Before repairing or checking the
indoor unit, be sure to turn off “Indoor
unit power supply breaker”.
It can result in electric shock or injury due
to rotation of indoor unit fan if you perform
check or repair with the “Indoor unit power
supply breaker” turned on.
Place the panels removed for
repairing or checking on the stable
spot.
Otherwise, dropping or falling may lead to
injury.
This manual is only for outdoor units
connected to HSB series and HMK
series.
When you connect other indoor units to
outdoor units, please refer to other manual.


General
General
+\GUROXWLRQLVDV\VWHPIRUKHDWLQJFRROLQJDQGSURGXFLQJKRWZDWHUIRUVPDOOKRXVHV7KHV\VWHPFRQVLVWVRIDQRXWGRRUXQLWZKLFK
XWLOLVHVWKHHQHUJ\LQWKHRXWGRRUDLUDQGVHQGVLWWRWKHLQGRRUXQLWZKLFKWDNHVFDUHRIWKHUHJXODWLRQDQGKHDWGLVWULEXWLRQLQWKHKRXVH
,QRUGHUWRJHWWKHEHVWEHQH¿WIURPWKHV\VWHP+\GUROXWLRQ\RXVKRXOGUHDGWKURXJKWKH8VHUV0DQXDO
+\GUROXWLRQLVDTXDOLW\V\VWHPR൵HULQJDORQJVHUYLFHOLIHDQGUHOLDEOHRSHUDWLRQ
NOTE
This Product contains uorinated greenhouse gases.
Do not vent R410A into the atmosphere: R410A is a uorinated greenhouse gas with a Global Warming Potential (GWP) = 2088.
Refer to a label on outdoor unit for the weight of uorinated greenhouse gas and CO2 equivalent.
Installation data
Completed by the installation engineer when the installation is installed
,QVWDOODWLRQGDWDDQGLQVWDOODWLRQFKHFNOLVWRQSDJHPXVWEH¿OOHGLQE\WKHLQVWDOOHULQRUGHUIRUWKHZDUUDQW\WRDSSO\
Installation data
Controller RC-HY20/40
6HULDOQXPEHU
,QVWDOODWLRQGDWH
,QVWDOOHU
,QGRRUXQLW
2XWGRRUXQLW
$FFHVVDU\
7\SHRIGRFNLQJ
1R 1DPH Default
settings
Set
 KHDWLQJFXUYHR൵VHWFXUYHVORSH 
Serial number
Serial number must always be given
,WLVKHUHE\FHUWLILHGWKDWWKHLQVWDOODWLRQKDVEHHQFDUULHGRXWDFFRUGLQJWRLQVWUXFWLRQVLQWKH,QVWDOOHU0DQXDOIURP0+,DQG
DSSOLFDEOHUHJXODWLRQV
'DWH  6LJQHG  



General
7KHVHULDOQXPEHUFDQEHIRXQGRQWKHWRSRIWKHFRYHUIRUWKH
FRQWUROPRGXOHDQGLQWKHLQIRPHQXPHQX
6HULDOQXPEHU
CAUTION
Always give the product's serial number when reporting a
fault.
RC-HY20/40 – An excellent choice
5&+<LVDQHOHFWULFFRQWUROPRGXOHZKLFKKDVEHHQ
LQWURGXFHGWRVXSSO\\RXUKRPHZLWKLQH[SHQVLYHDQG
HQYLURQPHQWDOO\IULHQGO\KHDWLQJ+HDWSURGXFWLRQLVUHOLDEOH
DQGHFRQRPLFDOZLWKD0+,DLUZDWHUKHDWSXPSDQGLQGRRU
XQLWV
$QDGGLWLRQDOKHDWHUIRUH[DPSOHHOHFWULFRLOJDVERLOHUFDQ
HQJDJHDXWRPDWLFDOO\LIVRPHWKLQJXQH[SHFWHGVKRXOGRFFXURU
DVUHVHUYHRSHUDWLRQ
Excellent properties for RC-HY20/40:
ŶEasy to read display
7KHFRQWUROPRGXOHKDVDQHDV\WRUHDGFRORXUGLVSOD\ZLWK
HDV\WRXQGHUVWDQGPHQXVWKDWIDFLOLWDWHVHWWLQJDFRPIRUWDEOH
LQGRRUFOLPDWH
ŶChecks all of your installation
5&+<LVLQVWDOOHGWRJHWKHUZLWKRQHRUPRUHFRPSDWLEOH
0+,DLUZDWHUKHDWSXPSV7KHFRQWUROPRGXOHLVFRQQHFWHGWR
WKHKHDWSXPSVZKLFKPHDQVWKDWDOOLPSRUWDQWVHWWLQJVFDQEH
PDGHLQ5&+<5&+<FDQFRQWUROWKHZKROH
KHDWLQJLQVWDOODWLRQDQGVXSSRUWPDQ\DFFHVVRU\IXQFWLRQV


Quick guide
Quick guide
Navigation
2NEXWWRQFRQILUPVHOHFW
%DFNEXWWRQEDFNXQGRH[LW
&RQWURONQREPRYHLQFUHDVHUHGXFH
$GHWDLOHGH[SODQDWLRQRIWKHEXWWRQIXQFWLRQVFDQEHIRXQGRQ
SDJH
+RZWRVFUROOWKURXJKPHQXVDQGPDNHGLIIHUHQWVHWWLQJVLV
GHVFULEHGRQSDJH
Set the indoor climate
;
,1'225&/,0$7 (
+27 :$7( 5
0< , 167$/ /$7 , 2 1
,1)2
 
&
&
&
&
7(03(5$785(+($7,1*
"
7KHPRGHIRUVHWWLQJWKHLQGRRUWHPSHUDWXUHLVDFFHVVHGE\
SUHVVLQJWKH2.EXWWRQWZLFHZKHQLQWKHVWDUWPRGHLQWKH
PDLQPHQX5HDGPRUHDERXWWKHVHWWLQJVRQSDJH
Increase hot water volume
;
;
,1'225&/,0$7 (
+27 :$7( 5
0< ,1 67$/ /$7 , 2 1
,1)2
7(0325$5</8;
RQHWLPHLQFUHDVH
KUV
KUV
KUV "
7RWHPSRUDULO\LQFUHDVHWKHDPRXQWRIKRWZDWHULIDKRWZDWHU
KHDWHULVLQVWDOOHGWR\RXU5&+<¿UVWWXUQWKHFRQWURO
NQREWRPDUNPHQXZDWHUGURSOHWDQGWKHQSUHVVWKH2.
EXWWRQWZLFH5HDGPRUHDERXWWKHVHWWLQJVRQSDJH
In event of disturbances in comfort
,IDGLVWXUEDQFHLQFRPIRUWRIDQ\W\SHRFFXUVWKHUHDUHVRPH
PHDVXUHVWKDWFDQEHWDNHQEHIRUH\RXQHHGWRFRQWDFW\RXU
LQVWDOOHU6HHSDJHIRULQVWUXFWLRQV


The control module – the heart of the house
The control module – the heart of
the house
Control module's function
5&+<LVDVLPSOHHOHFWULFDOFRQWUROPRGXOHZKLFK
WRJHWKHUZLWK0+,DLUZDWHUKHDWSXPSDFFXPXODWRUZDWHU
KHDWHUDQGDGGLWLRQDOKHDWHUHJHOHFWULFRLOJDVERLOHUFUHDWHV
DFRPSOHWHLQVWDOODWLRQ$PRQJRWKHUWKLQJVLWFRQWUROVWKHKHDW
SXPSFLUFXODWLRQSXPSVUHYHUVLQJYDOYHVDQGDGGLWLRQDOKHDW
WRVXSSO\\RXUKRPHZLWKLQH[SHQVLYHDQGHQYLURQPHQWDOO\
IULHQGO\KHDWLQJLQWKHPRVWH൶FLHQWZD\
Contact with RC-HY20/40

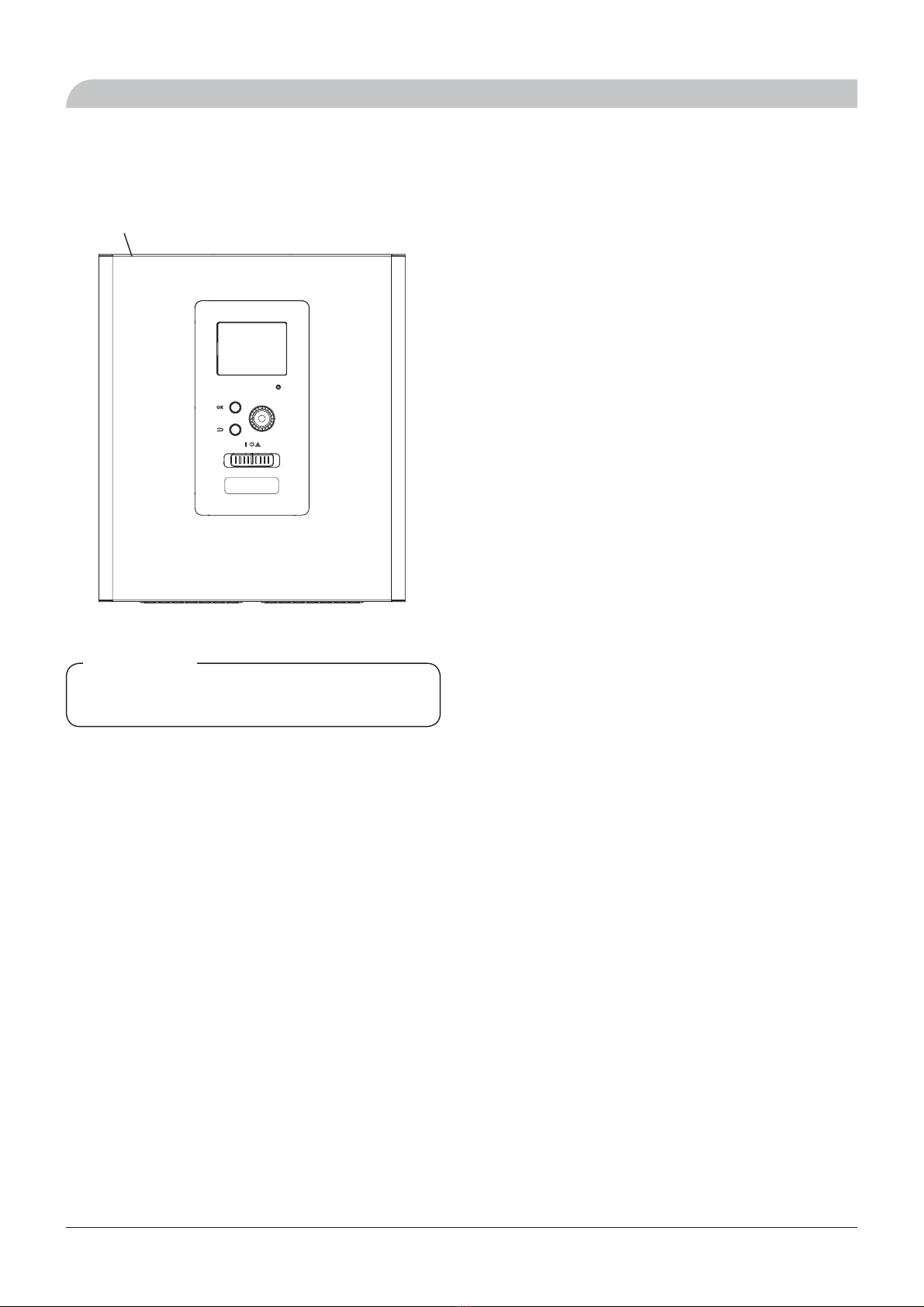

Display unit
A
B
C
D
E
F
'LVSOD\
6WDWXV ODPS
2. EXWWRQ
%DFN EXWWRQ
&RQWURO NQRE
6ZLWFK
G86% SRUW
7KHUHLVDGLVSOD\XQLWRQWKHIURQWRIWKHFRQWUROPRGXOH
ZKLFKLVXVHGWRFRPPXQLFDWHZLWK5&+<+HUH\RX
ŶVZLWFKRQVZLWFKRIIRUVHWWKHLQVWDOODWLRQWRHPHUJHQF\
PRGH
ŶVHWWKHLQGRRUFOLPDWHDQGKRWZDWHUDVZHOODVDGMXVWWKH
LQVWDOODWLRQWR\RXUQHHGV
ŶUHFHLYHLQIRUPDWLRQDERXWVHWWLQJVVWDWXVDQGHYHQWV
ŶVHHGL൵HUHQWW\SHVRIDODUPVDQGUHFHLYHLQVWUXFWLRQVDERXW
KRZWKH\DUHWREHUHFWL¿HG
A Display
,QVWUXFWLRQVVHWWLQJVDQGRSHUDWLRQDOLQIRUPDWLRQDUHVKRZQRQ
WKHGLVSOD\7KHHDV\WRUHDGGLVSOD\DQGPHQXV\VWHPPDNHLW
HDV\WRQDYLJDWHEHWZHHQYDULRXVPHQXVDQGRSWLRQVVHW
FRPIRUWDQGJHWWKHQHFHVVDU\LQIRUPDWLRQ
B Status lamp
7KHVWDWXVODPSLQGLFDWHVWKHVWDWXVRIWKHFRQWUROPRGXOH,W
ŶOLJKWVJUHHQGXULQJQRUPDORSHUDWLRQ
ŶOLJKWV\HOORZLQHPHUJHQF\PRGH
ŶOLJKWVUHGLQWKHHYHQWRIDQDODUP
C OK button
7KH2.EXWWRQLVXVHGWR
ŶFRQILUPVHOHFWLRQVRIVXEPHQXVRSWLRQVVHWYDOXHVSDJHLQ
WKHVWDUWJXLGH
D Back button
7KHEDFNEXWWRQLVXVHGWR
ŶJREDFNWRWKHSUHYLRXVPHQX
ŶFKDQJHDVHWWLQJWKDWKDVQRWEHHQFRQ¿UPHG
E Control knob
7KHFRQWURONQREFDQEHWXUQHGWRWKHULJKWRUOHIW<RXFDQ
ŶVFUROOLQPHQXVDQGEHWZHHQRSWLRQV
ŶLQFUHDVHDQGGHFUHDVHYDOXHV
ŶFKDQJHSDJHVLQPXOWLSOHSDJHLQVWUXFWLRQV
IRUH[DPSOHKHOSWH[WDQGVHUYLFHLQIR
F Switch (SF1)
7KHVZLWFKVKRZVWKUHHSRVLWLRQV
Ŷ2Q 
Ŷ6WDQGE\ 
Ŷ(PHUJHQF\PRGH 
(PHUJHQF\PRGHPXVWRQO\EHXVHGLQWKHHYHQWRIDIDXOWRQ
WKHFRQWUROPRGXOH,QWKLVPRGHWKHFRPSUHVVRULQWKHKHDW
SXPSLVWXUQHGR൵DQGWKHLPPHUVLRQKHDWHULVDFWLYDWH7KH
FRQWUROPRGXOHGLVSOD\LVQRWLOOXPLQDWHGDQGWKHVWDWXVODPS
OLJKWV\HOORZ
G USB port
7KH86%SRUWLVKLGGHQEHKLQGWKHSODVWLFEDGJHRIWKHSURGXFW
QDPH
7KH86%SRUWLVXVHGWRXSGDWHWKHVRIWZDUH


The control module – the heart of the house

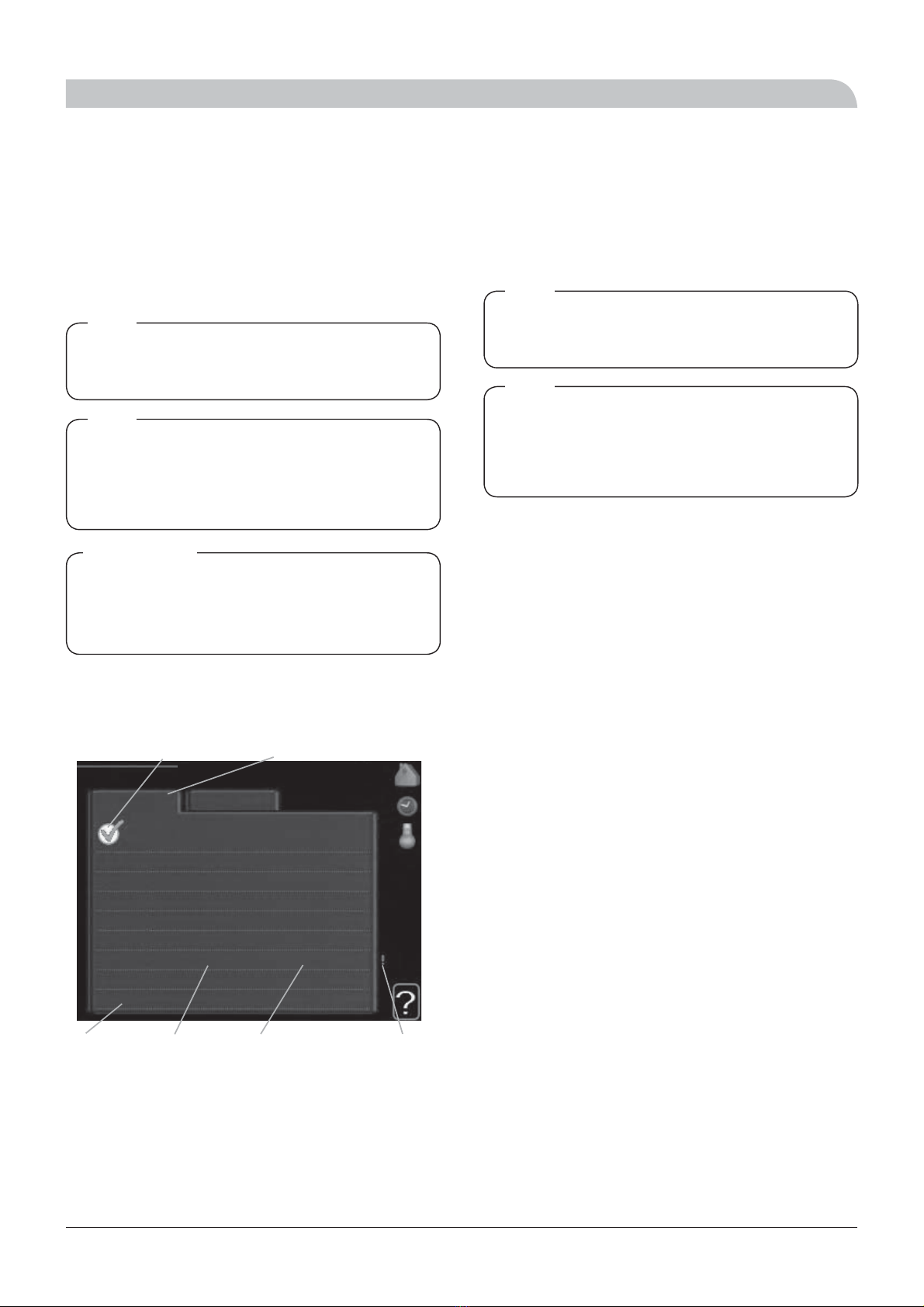

Menu system
7KHPHQXV\VWHP¶VIRXUPDLQPHQXVDUHVKRZQLQWKHGLVSOD\
DVZHOODVFHUWDLQEDVLFLQIRUPDWLRQ

,1'225&/,0$7 (
+27 :$7(5
0< ,167$ //$7 , 2 1
,1)2
R
R
R
,QGRRU WHPSHUDWXUH  LI URRP VHQVRUV DUH LQVWDOOHG
+RW ZDWHU WHPS
,QIRUPDWLRQ DERXW
RSHUDWLRQ
2XWGRRU
WHPSHUDWXUH
7HPSRUDU\ OX[ LI
DFWLYDWHG
(VWLPDWHG DPRXQW RI
KRWZDWHU
Menu 1 - INDOOR CLIMATE
6HWWLQJDQGVFKHGXOLQJWKHLQGRRUFOLPDWH6HHSDJH
Menu 2 - HOT WATER
6HWWLQJDQGVFKHGXOLQJKRWZDWHUSURGXFWLRQ6HHSDJH
7KLVPHQXRQO\DSSHDUVLIDZDWHUKHDWHULVLQVWDOOHGLQWKH
V\VWHP
Menu 3 - INFO
'LVSOD\RIWHPSHUDWXUHDQGRWKHURSHUDWLQJLQIRUPDWLRQDQG
DFFHVVWRWKHDODUPORJ6HHSDJH
Menu 4 - MY INSTALATION
6HWWLQJWLPHGDWHODQJXDJHGLVSOD\RSHUDWLQJPRGHHWF6HH
LQIRUPDWLRQLQWKHKHOSPHQXRUXVHUPDQXDO

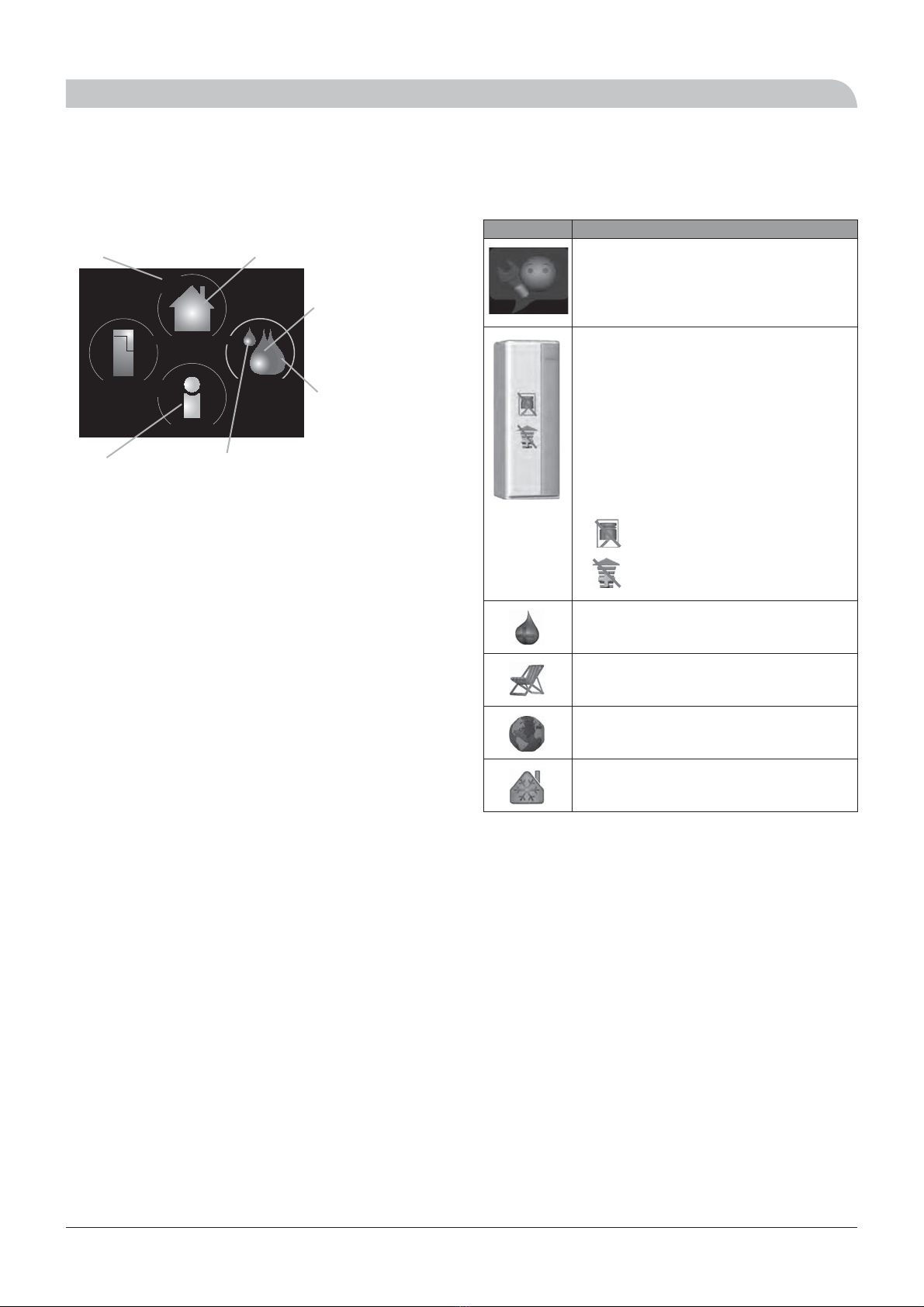

Symbols in the display
7KHIROORZLQJV\PEROVFDQDSSHDULQWKHGLVSOD\GXULQJ
RSHUDWLRQ
Symbol Description
7KLVV\PERODSSHDUVZKHQWKHUHLV
LQIRUPDWLRQWREHQRWLFHGLQPHQX
7KHVHWZRV\PEROVLQGLFDWHZKHWKHUWKH
FRPSUHVVRULQWKHRXWGRRUXQLWRUDGGLWLRQDO
KHDWLQWKHLQVWDOODWLRQLVEORFNHGYLD
FRQWUROOHU
7KHVHIXQFWLRQVZLOOEHEORFNHGIRUH[DPSOH
ZKHQHLWKHURIWKHRSHUDWLRQPRGHLVEORFNHG
LQPHQXZKHQEORFNLQJRIHLWKHUIXQFWLRQ
LVVFKHGXOHGLQPHQXRUZKHQDQDODUP
IRUEORFNLQJWKHRSHUDWLRQRFFXUV
%ORFNLQJWKHFRPSUHVVRU
%ORFNLQJDGGLWLRQDOKHDW
7KLVV\PERODSSHDUVLISHULRGLFLQFUHDVHRU
OX[PRGHIRUWKHKRWZDWHULVDFWLYDWHG
7KLVV\PEROLQGLFDWHVLIKROLGD\VHWWLQJLV
DFWLYHLQPHQX
7KLVV\PEROLQGLFDWHVLIWKHFRQWUROOHUKDV
FRQWDFWZLWKP\8SZD\
7KLVV\PEROLQGLFDWHVLIFRROLQJLVDFWLYH


The control module – the heart of the house
,1'225&/,0$7(
WHPSHUDWXUH
VFKHGXOLQJ
DGYDQFHG
2 
,1'225&/,0$7 (
+27 :$7(5
0< ,167$ //$7 , 2 1
,1)2
0DUNHG PDLQPHQX
0HQX QXPEHU ± PDUNHG VXE PHQX 1DPH DQG PHQX QXPEHU ± PDLQ PHQX
6\PERO ±
PDLQ PHQX
6WDWXV LQIRUPDWLRQ ± VXE
PHQXV
1DPH ± VXE PHQXV6\PEROV ± VXE PHQXV

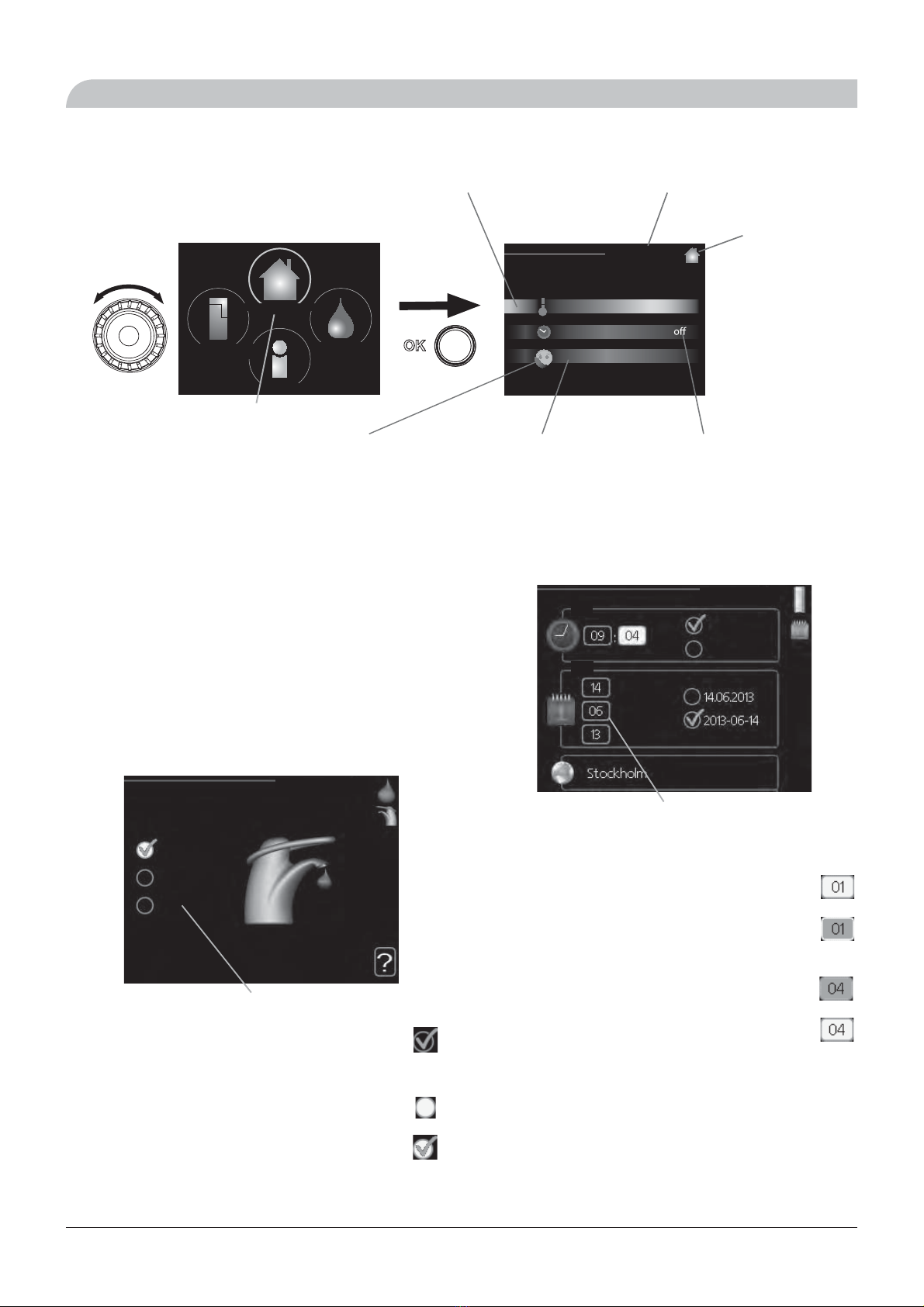

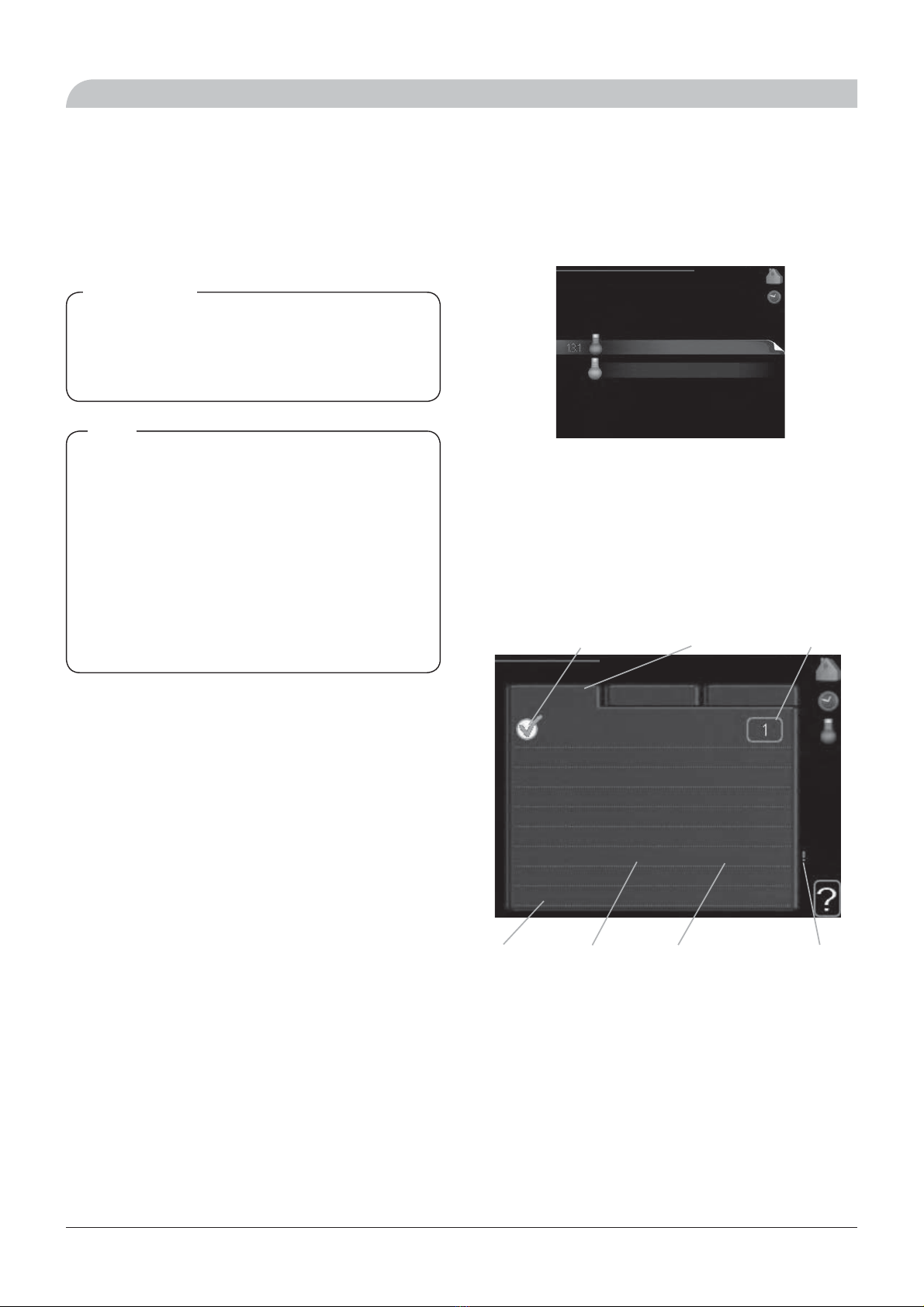

Operation
7RPRYHWKHFXUVRUWXUQWKHFRQWURONQREWRWKHOHIWRUWKH
ULJKW7KHPDUNHGSRVLWLRQLVEULJKWHUDQGRUKDVDOLJKWIUDPH
Selecting menu
7RDGYDQFHLQWKHPHQXV\VWHPVHOHFWDPDLQPHQXE\PDUNLQJ
LWDQGWKHQSUHVVLQJWKH2.EXWWRQ$QHZZLQGRZRSHQVZLWK
VXEPHQXV
6HOHFWRQHRIWKHVXEPHQXVE\PDUNLQJLWDQGWKHQSUHVVLQJ
WKH2.EXWWRQ
Selecting options
HFRQRP\
FRPIRUW PRGH 
QRUPDO
OX[XU\
$OWHUQDWLYH
,QDQRSWLRQVPHQXWKHFXUUHQWVHOHFWHGRSWLRQLV
LQGLFDWHGE\DJUHHQWLFN
7RVHOHFWDQRWKHURSWLRQ
 0DUNWKHDSSOLFDEOHRSWLRQ2QHRIWKHRSWLRQVLVSUH
VHOHFWHGZKLWH
 3UHVVWKH2.EXWWRQWRFRQILUPWKHVHOHFWHGRSWLRQ
7KHVHOHFWHGRSWLRQKDVDJUHHQWLFN
Setting a value
WLPH  GDWH 
WLPH
GD\
\HDU
PRQWK
 K
 K
GDWH
9DOXHV WR EH FKDQJHG
7RVHWDYDOXH
 0DUNWKHYDOXH\RXZDQWWRVHWXVLQJWKHFRQWURO
NQRE
 3UHVVWKH2.EXWWRQ7KHEDFNJURXQGRIWKHYDOXH
EHFRPHVJUHHQZKLFKPHDQVWKDW\RXKDYHDFFHVVHG
WKHVHWWLQJPRGH
 7XUQWKHFRQWURONQREWRWKHULJKWWRLQFUHDVHWKH
YDOXHDQGWRWKHOHIWWRUHGXFHWKHYDOXH


3UHVVWKH2.EXWWRQWRFRQ¿UPWKHYDOXH\RXKDYH
VHW7RFKDQJHDQGUHWXUQWRWKHRULJLQDOYDOXHSUHVV
WKH%DFNEXWWRQ


The control module – the heart of the house
Help menu
,QPDQ\PHQXVWKHUHLVDV\PEROWKDWLQGLFDWHVWKDWH[WUD
KHOSLVDYDLODEOH
7RDFFHVVWKHKHOSWH[W
 8VHWKHFRQWURONQREWRVHOHFWWKHKHOSV\PERO


3UHVVWKH2.EXWWRQ
7KHKHOSWH[WRIWHQFRQVLVWVRIVHYHUDOZLQGRZVWKDW\RXFDQ
VFUROOEHWZHHQXVLQJWKHFRQWURONQRE

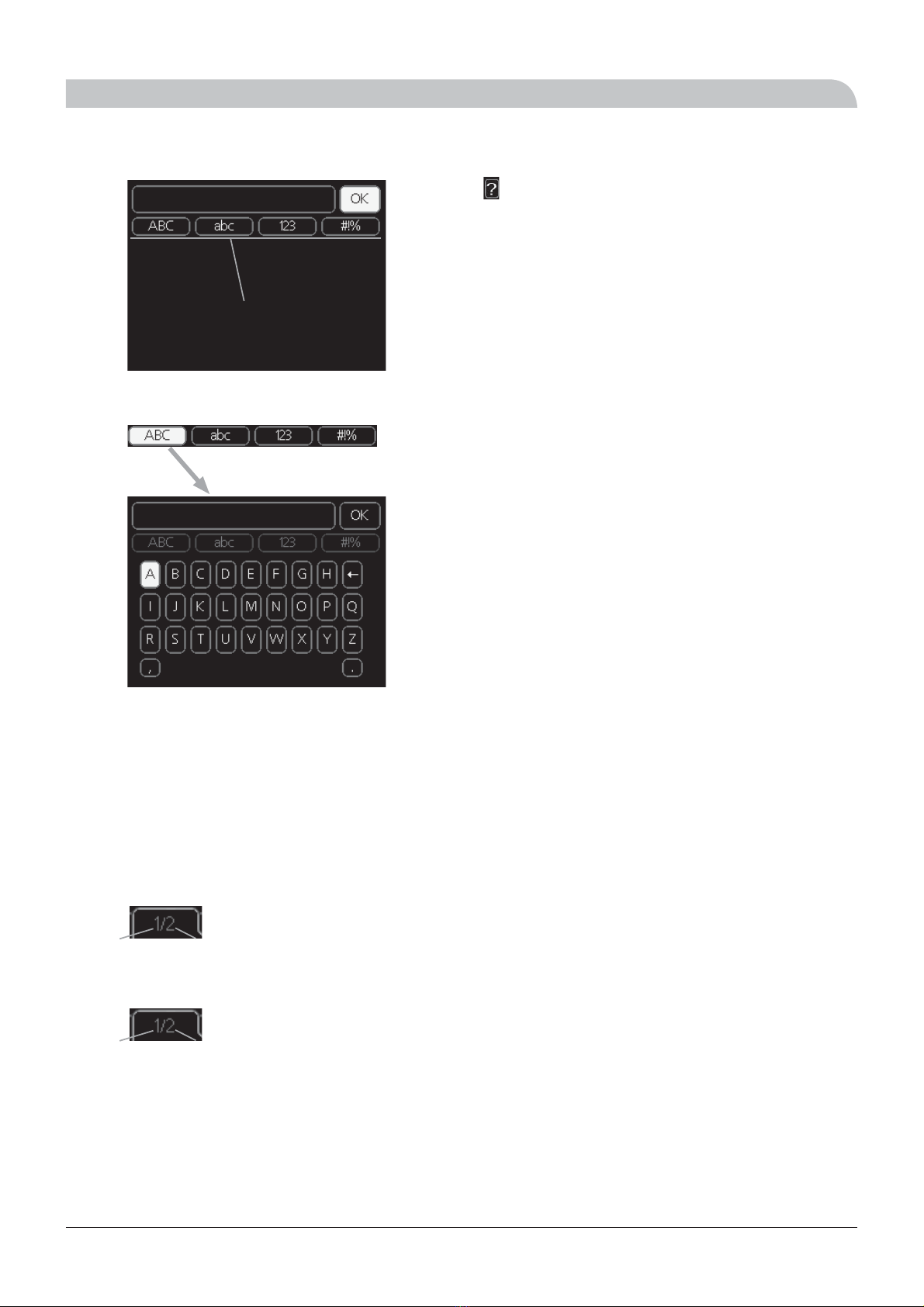

Use the virtual keyboard
Different keyboards
,QVRPHPHQXVZKHUHWH[WPD\UHTXLUHHQWHULQJDYLUWXDO
NH\ERDUGLVDYDLODEOH
'HSHQGLQJRQWKHPHQX\RXFDQJDLQDFFHVVWRGLIIHUHQW
FKDUDFWHUVHWVZKLFK\RXFDQVHOHFWXVLQJWKHFRQWURONQRE7R
FKDQJHFKDUDFWHUWDEOHSUHVVWKH%DFNEXWWRQ,IDPHQXRQO\
KDVRQHFKDUDFWHUVHWWKHNH\ERDUGLVGLVSOD\HGGLUHFWO\
:KHQ\RXKDYH¿QLVKHGZULWLQJPDUN2.DQGSUHVVWKH2.
EXWWRQ
Scroll through the windows
$PHQXFDQFRQVLVWRIVHYHUDOZLQGRZV7XUQWKHFRQWURONQRE
WRVFUROOEHWZHHQWKHZLQGRZV
Current menu
window
Number of windows
in the menu
Scroll through the windows in the start guide
Current menu
window
Number of windows
in the menu


7XUQWKHFRQWURONQREXQWLORQHRIWKHDUURZVLQWKHWRSOHIW
FRUQHUDWWKHSDJHQXPEHUKDVEHHQPDUNHG
 3UHVVWKH2.EXWWRQWRVNLSEHWZHHQWKHVWHSVLQWKHVWDUW
JXLGH


The control module – the heart of the house
Equipment Normal Output
(W)
Approx.
annual
con-
sump-
tion
(kWh)
Opera-
tion
Standby
79
2SHUDWLRQKGD\6WDQGE\KGD\   
'LJLWDOER[
2SHUDWLRQKGD\6WDQGE\KGD\   
'9'2SHUDWLRQKZHHN   
79JDPHVFRQVROH2SHUDWLRQKZHHN   
5DGLRVWHUHR2SHUDWLRQKGD\   
&RPSXWHULQFOVFUHHQ
2SHUDWLRQKGD\VWDQGE\KGD\   
%XOE2SHUDWLRQKGD\   
6SRWOLJKW+DORJHQ2SHUDWLRQKGD\   
&RROLQJ2SHUDWLRQKGD\   
)UHH]HU2SHUDWLRQKGD\   
6WRYHKRE2SHUDWLRQPLQGD\   
6WRYHRYHQ2SHUDWLRQKZHHN   
'LVKZDVKHUFROGZDWHUFRQQHFWLRQ
2SHUDWLRQWLPHGD\   
:DVKLQJPDFKLQH
2SHUDWLRQWLPHVGD\   
7XPEOHGULHU2SHUDWLRQWLPHVGD\   
9DFXXPFOHDQHU2SHUDWLRQKZHHN   
(QJLQHEORFNKHDWHU
2SHUDWLRQKGD\PRQWKVD\HDU   
3DVVHQJHUFRPSDUWPHQWKHDWHU
2SHUDWLRQKGD\PRQWKVD\HDU   
7KHVHYDOXHVDUHDSSUR[LPDWHH[DPSOHYDOXHV
([DPSOH$IDPLO\ZLWKFKLOGUHQOLYHLQDKRXVHZLWKÀDW
VFUHHQ79GLJLWDOER['9'SOD\HU79JDPHVFRQVROH
FRPSXWHUVVWHUHRVEXOEVLQWKH:&EXOEVLQWKH
EDWKURRPEXOEVLQWKHNLWFKHQEXOEVRXWVLGHDZDVKLQJ
PDFKLQHWXPEOHGULHUIULGJHIUHH]HURYHQYDFXXPFOHDQHU
HQJLQHEORFNKHDWHU N:KGRPHVWLFHOHFWULFLW\\HDU
Energy meter
&KHFNWKHDFFRPPRGDWLRQVHQHUJ\PHWHUUHJXODUO\SUHIHUDEO\
RQFHDPRQWK7KLVZLOOLQGLFDWHDQ\FKDQJHVLQSRZHU
FRQVXPSWLRQ

Maintenance of RC-HY20/40
Regular checks
<RXUKHDWSXPSUHTXLUHVPLQLPDOPDLQWHQDQFHDIWHU
FRPPLVVLRQLQJ2QWKHRWKHUKDQGLWLVUHFRPPHQGHGWKDW\RX
FKHFN\RXULQVWDOODWLRQUHJXODUO\)RUPRUHLQIRUPDWLRQ
UHJDUGLQJWKHPDLQWHQDQFHRIKHDWSXPSVDQGRUDFFXPXODWRU
WDQNVZDWHUKHDWHUVUHIHUWRWKHUHOHYDQWPDQXDO
,IVRPHWKLQJXQXVXDORFFXUVPHVVDJHVDERXWWKHPDOIXQFWLRQ
DSSHDULQWKHGLVSOD\LQWKHIRUPRIGL൵HUHQWDODUPWH[WV6HH
DODUPPDQDJHPHQWRQSDJH
Saving tips
<RXUKHDWSXPSLQVWDOODWLRQSURGXFHVKHDWDQGKRWZDWHU7KLV
RFFXUVYLDWKHFRQWUROVHWWLQJV\RXPDGH
)DFWRUVWKDWDIIHFWWKHHQHUJ\FRQVXPSWLRQDUHIRUH[DPSOH
LQGRRUWHPSHUDWXUHKRWZDWHUFRQVXPSWLRQWKHLQVXODWLRQOHYHO
RIWKHKRXVHDQGZKHWKHUWKHKRXVHKDVPDQ\ODUJHZLQGRZ
VXUIDFHV7KHSRVLWLRQRIWKHKRXVHHJZLQGH[SRVXUHLVDOVR
DQD൵HFWLQJIDFWRU
,I\RXDFWLYDWH+RWZDWHU(FRQRP\OHVVHQHUJ\LVXVHG
Power consumption
,I\RXLQFUHDVHRQHGHJUHHRIWKHGHVLUHGLQGRRUWHPSHUDWXUH
LQFUHDVHVSRZHUFRQVXPSWLRQE\DSSUR[
Domestic electricity
,QWKHSDVWLWKDVEHHQFDOFXODWHGWKDWDQDYHUDJH6ZHGLVK
KRXVHKROGKDVDQDSSUR[LPDWHDQQXDOFRQVXPSWLRQRI
N:KGRPHVWLFHOHFWULFLW\\HDU,QWRGD\VVRFLHW\LWLVXVXDOO\
EHWZHHQN:K\HDU


RC-HY20/40 – at your service
RC-HY20/40 – at your service
Set the indoor climate
Overview
Sub-menus
temperature
INDOOR CLIMATE 1
advanced
scheduling off
)RUWKHPHQX,1'225&/,0$7(WKHUHDUHVHYHUDOVXE
PHQXV6WDWXVLQIRUPDWLRQIRUWKHUHOHYDQWPHQXFDQEHIRXQG
RQWKHGLVSOD\WRWKHULJKWRIWKHPHQXV
temperature6HWWLQJWKHWHPSHUDWXUHIRUWKHFOLPDWH
V\VWHP7KHVWDWXVLQIRUPDWLRQVKRZVWKHVHWYDOXHVIRUWKH
FOLPDWHV\VWHP
scheduling6FKHGXOLQJKHDWLQJDQGFRROLQJ6WDWXV
LQIRUPDWLRQVHWLVGLVSOD\HGLI\RXVHWDVFKHGXOHEXWLWLVQRW
DFWLYHQRZKROLGD\VHWWLQJLVGLVSOD\HGLIWKHYDFDWLRQ
VFKHGXOHLVDFWLYHDWWKHVDPHWLPHDVWKHVFKHGXOHWKH
YDFDWLRQIXQFWLRQLVSULRULWLVHGDFWLYHGLVSOD\VLIDQ\SDUWRI
WKHVFKHGXOHLVDFWLYHRWKHUZLVHLWGLVSOD\VR൵
advanced6HWWLQJRIKHDWFXUYHDGMXVWLQJZLWKH[WHUQDO
FRQWDFWPLQLPXPYDOXHIRUVXSSO\WHPSHUDWXUHURRPVHQVRU
DQGFRROLQJIXQFWLRQ
Menu 1.1 - temperature
,IWKHKRXVHKDVVHYHUDOFOLPDWHV\VWHPVWKLVLVLQGLFDWHGRQ
WKHGLVSOD\E\DWKHUPRPHWHUIRUHDFKV\VWHP
&KRRVHKHDWLQJRUFRROLQJDQGWKHQVHWWKHGHVLUHGWHPSHUDWXUH
LQWKHQH[WPHQXWHPSHUDWXUHKHDWLQJFRROLQJLQPHQX
Set the temperature (with room sensors installed and
activated):
temperature heating 1.1.1
temperature cooling 1.1.2
heating
6HWWLQJUDQJH±&
'HIDXOWYDOXH
cooling (accessory is required)
6HWWLQJUDQJH±&
'HIDXOWYDOXH
7KHYDOXHLQWKHGLVSOD\DSSHDUVDVDWHPSHUDWXUHLQ&LIWKH
FOLPDWHV\VWHPLVFRQWUROOHGE\DURRPVHQVRU
CAUTION
A slow heat-releasing heating system, such as f or example,
underfloor heating,may not be suitablefor control usingthe
heat pump's room sensor.
7RFKDQJHWKHURRPWHPSHUDWXUHXVHWKHFRQWURONQREWRVHW
WKHGHVLUHGWHPSHUDWXUHLQWKHGLVSOD\&RQ¿UPWKHQHZVHWWLQJ
E\SUHVVLQJWKH2.EXWWRQ7KHQHZWHPSHUDWXUHLVVKRZQRQ
WKHULJKWKDQGVLGHRIWKHV\PEROLQWKHGLVSOD\
Setting the temperature (without room sensors
activated):
6HWWLQJUDQJHWR
'HIDXOWYDOXH
7KHGLVSOD\VKRZVWKHVHWYDOXHVIRUKHDWLQJFXUYHR൵VHW7R
LQFUHDVHRUUHGXFHWKHLQGRRUWHPSHUDWXUHLQFUHDVHRUUHGXFH
WKHYDOXHRQWKHGLVSOD\
8VHWKHFRQWURONQREWRVHWDQHZYDOXH&RQILUPWKHQHZ
VHWWLQJE\SUHVVLQJWKH2.EXWWRQ


RC-HY20/40 – at your service
Menu 1.3 - temperature scheduling
,QWKHPHQXVFKHGXOLQJLQGRRUFOLPDWHKHDWLQJFRROLQJLV
VFKHGXOHGIRUHDFKZHHNGD\
<RXFDQDOVRVFKHGXOHDORQJHUSHULRGGXULQJDVHOHFWHGSHULRG
YDFDWLRQLQPHQX
scheduling 1.3
cooling off
heating off
Menu 1.3.1 - heating
,QFUHDVHVRUGHFUHDVHVLQWKHDFFRPPRGDWLRQWHPSHUDWXUHFDQ
EHVFKHGXOHGKHUHIRUXSWRWKUHHWLPHSHULRGVSHUGD\2QH
VWHSLVXVXDOO\HQRXJKWRFKDQJHWKHURRPWHPSHUDWXUHE\RQH
GHJUHHEXWLQVRPHFDVHVVHYHUDOVWHSVPD\EHUHTXLUHGIRUWKH
DFFRPPRGDWLRQWHPSHUDWXUH
,IDURRPVHQVRULVLQVWDOOHGDQGDFWLYDWHGWKHGHVLUHGURRP
WHPSHUDWXUH&LVVHWGXULQJWKHWLPHSHULRGV
SCHEDULING HEATING 1.3.1
activated
schedule 2
system
schedule 3schedule 1
all
mon
tues
wed
thur
fri
sat
sun
21:30 - 06:00 20.5°
7LPH SHULRG $GMXVWLQJ'D\
$FWLYDWHG 6FKHGXOH 6\VWHP
&RQIOLFW
Schedule: 7KHVFKHGXOHWREHFKDQJHGLVVHOHFWHGKHUH
Activated: 6FKHGXOLQJIRUWKHVHOHFWHGSHULRGLVDFWLYDWHG
KHUH6HWWLPHVDUHQRWD൵HFWHGDWGHDFWLYDWLRQ
System (RC-HY40 only): :KLFKFOLPDWHV\VWHPWKH
VFKHGXOHLVIRULVVHOHFWHGKHUH7KLVDOWHUQDWLYHLVRQO\
GLVSOD\HGLIPRUHWKDQRQHFOLPDWHV\VWHPLVSUHVHQW
Day: 6HOHFWZKLFKGD\RUGD\VRIWKHZHHNWKHVFKHGXOHLVWR
DSSO\WRKHUH7RUHPRYHWKHVFKHGXOLQJIRUDSDUWLFXODUGD\
WKHWLPHIRUWKDWGD\PXVWEHUHVHWE\VHWWLQJWKHVWDUWWLPHWR
WKHVDPHDVWKHVWRSWLPH,IWKHOLQHDOOLVXVHGDOOGD\VLQ
WKHSHULRGDUHVHWIRUWKHVHWLPHV
7KHQXPEHURIVWHSVWKHYDOXHKDVWREHFKDQJHGWRDFKLHYHD
GHJUHHFKDQJHRIWKHLQGRRUWHPSHUDWXUHGHSHQGVRQWKH
KHDWLQJLQVWDOODWLRQ2QHVWHSLVXVXDOO\HQRXJKEXWLQVRPH
FDVHVVHYHUDOVWHSVPD\EHUHTXLUHG
7KHQHZYDOXHLVVKRZQRQWKHULJKWKDQGVLGHRIWKHV\PERO
LQWKHGLVSOD\
CAUTION
An increase in the room temperature can be slowed by the
thermostatsfor the radiators or under floor heating.
Therefore, open the thermostats fully, except in those rooms
where a cooler temperature is required, e.g.bedrooms.
TIP
Wait 24 hours before making a new setting, so that the
roomtemperature has time to stabilise.
If it is cold outside temperature and the room temperature is
too low, increase the curve slope in menu1.9.1.1by one
increment.
If it is cold outside temperature and the room temperature is
too high,reduce the curve slope in menu1.9.1.1by one
increment.
If it is warm outside temperature and the roomtemperature
is too low, increase the value inmenu1.1.1by one increment.
If it is warm outside temperature and the roomtemperature
is too high,reduce the value in menu1.1.1by one increment.


RC-HY20/40 – at your service
Time period: 7KHVWDUWDQGVWRSWLPHIRUWKHVHOHFWHGGD\IRU
VFKHGXOLQJDUHVHOHFWHGKHUH
Adjusting: +RZPXFKWKHKHDWLQJFXUYHLVWREHRIIVHWLQ
UHODWLRQWRPHQXGXULQJVFKHGXOLQJLVVHWKHUH,IWKHURRPV
VHQVRULVLQVWDOOHGDQGDFWLYDWHGWKHGHVLUHGURRPWHPSHUDWXUH
LVVHWLQ&
Conflict: ,IWZRVHWWLQJVFRQIOLFWZLWKHDFKRWKHUDUHG
H[FODPDWLRQPDUNLVGLVSOD\HG
TIP
If you wishtoset similar scheduling for every day of the
week start by f illing in “all” and then changing the desired
days.
TIP
Set the stoptime earlier thanthe start time so that the
period extends beyond midnight. Scheduling then stops at
the set stop time the day after.
Scheduling always starts onthe date that the start time is
set for.
CAUTION
Changes of temperature in accommodation take time. For
example, short time periods in combination with underf loor
heating will not give a noticeable dif f erence in room
temperature.
Menu 1.3.2 - cooling
+HUH\RXFDQVFKHGXOHZKHQFRROLQJLVSHUPLWWHGLQWKH
DFFRPPRGDWLRQIRUXSWRWZRGL൵HUHQWWLPHSHULRGVSHUGD\
SCHEDULING COOLING 1.3.2
activated
schedule 2schedule 1
all
mon
tues
wed
thur
fri
sat
sun
21:30 - 06:00 on
Activated Schedule
Time period AdjustingDay Conflict
Schedule: 7KHVFKHGXOHWREHFKDQJHGLVVHOHFWHGKHUH
Activated: 6FKHGXOLQJIRUWKHVHOHFWHGSHULRGLVDFWLYDWHG
KHUH6HWWLPHVDUHQRWD൵HFWHGDWGHDFWLYDWLRQ
Day: 6HOHFWZKLFKGD\RUGD\VRIWKHZHHNWKHVFKHGXOHLVWR
DSSO\WRKHUH7RUHPRYHWKHVFKHGXOLQJIRUDSDUWLFXODUGD\
WKHWLPHIRUWKDWGD\PXVWEHUHVHWE\VHWWLQJWKHVWDUWWLPHWR
WKHVDPHDVWKHVWRSWLPH,IWKHOLQHDOOLVXVHGDOOGD\VLQ
WKHSHULRGDUHVHWIRUWKHVHWLPHV
Time period: 7KHVWDUWDQGVWRSWLPHIRUWKHVHOHFWHGGD\IRU
VFKHGXOLQJDUHVHOHFWHGKHUH
Adjusting: +HUH\RXVHWZKHQDFWLYHFRROLQJZLOOQRWEH
SHUPLWWHG
Conflict:,IWZRVHWWLQJVFRQIOLFWZLWKHDFKRWKHUDUHG
H[FODPDWLRQPDUNLVGLVSOD\HG
TIP
If you wishtoset similar scheduling for every day of the
week start by f illing in “all” and then changing the desired
days.
TIP
Set the stoptime earlier thanthe start time so that the
period extends beyond midnight. Scheduling then stops at
the set stop time the day after.
Scheduling always starts onthe date that the start time is
set for.


RC-HY20/40 – at your service
7KHSUHVFULEHGKHDWLQJFXUYHIRU\RXUKRXVHFDQEHYLHZHGLQ
WKHPHQXKHDWLQJFXUYH7KHWDVNRIWKHKHDWLQJFXUYHLVWR
JLYHDQHYHQLQGRRUWHPSHUDWXUHUHJDUGOHVVRIWKHRXWGRRU
WHPSHUDWXUHDQGWKHUHE\HQHUJ\H൶FLHQWRSHUDWLRQ)URPWKLV
KHDWLQJFXUYHWKHFRQWUROPRGXOHGHWHUPLQHVWKHWHPSHUDWXUH
RIWKHZDWHUWRWKHKHDWLQJV\VWHPVXSSO\WHPSHUDWXUHDQG
WKHUHIRUHWKHLQGRRUWHPSHUDWXUH6HOHFWWKHKHDWLQJFXUYHDQG
UHDGRIIKRZWKHVXSSO\WHPSHUDWXUHFKDQJHVDWGLIIHUHQW
RXWGRRUWHPSHUDWXUHVKHUH,IWKHUHLVFRROLQJIXQFWLRQWKH
VDPHVHWWLQJVFDQEHPDGHIRUWKHFRROLQJFXUYH
Curve coefficient
7KHKHDWLQJFRROLQJFXUYHVKRZVWKHUHODWLRQEHWZHHQWKH
WDUJHWVXSSO\WHPSHUDWXUHDQGWKHFRUUHVSRQGLQJRXWGRRU
WHPSHUDWXUH$VWHHSFXUYHLQGLFDWHVWKDWVXSSO\WHPSHUDWXUH
EHFRPHVKLJKHUDWORZRXWGRRUDLUWHPSHUDWXUHLQKHDWLQJDQG
LWEHFRPHVORZHUDWKLJKRXWGRRUDLUWHPSHUDWXUHLQFRROLQJ





&
 &

  
%UDQWDUHNXU YOXWQL QJ
6XSSO\ WHPSHUDWXUH
2XWGRRUWHPSHUDWXUH
6WHHSHU FXUYH VORSH
7KHRSWLPXPVORSHGHSHQGVRQWKHFOLPDWHFRQGLWLRQVLQ\RXU
ORFDWLRQWKHW\SHRIKHDWLQJGHYLFHUDGLDWRUVRUXQGHUIORRU
KHDWLQJDQGKRZZHOOLQVXODWHGWKHKRXVHLV
7KHFXUYHLVVHWZKHQWKHKHDWLQJLQVWDOODWLRQLVLQVWDOOHGEXW
PD\QHHGDGMXVWLQJODWHU1RUPDOO\WKHFXUYHZLOOQRWQHHG
IXUWKHUDGMXVWPHQW
CAUTION
In the event of making fine ad justments of the indoor
temperature, the curve must be offset up or down instead,
this is done inmenu1.1"temperature".
Curve offset
7KHWDUJHWWHPSHUDWXUHFDQEHR൵VHWLQSDUDOOHORYHUWKHHQWLUH
RXWGRRUWHPSHUDWXUHUDQJHE\WKLVIXQFWLRQ7KLVLVRIIVHWE\
&E\DGMXVWLQJVWHSV
7KHWDUJHWWHPSHUDWXUHFDQEHSDUDOOHORIIVHWLQWKHHQWLUH
RXWGRRUWHPSHUDWXUHUDQJHZLWKWKLVIXQFWLRQ,WLVRIIVHWE\
&E\DGMXVWLQJVWHSV





&
 &
87(7(03(5$78
5


  
)|UVNMX WHQ YlU PHNXUYD
6XSSO\ WHPSHUDWXUH
2XWGRRU WHPSHUDWXUH
2IIVHW KHDWLQJ FXUYH
Menu 1.9 - advanced
advanced 1.9
curve
external adjustment
min. flow line temp.
room sensor settings
cooling settings
own curve
0HQXDGYDQFHGKDVRUDQJHWH[WDQGLVLQWHQGHGIRUWKH
DGYDQFHGXVHU7KLVPHQXKDVVHYHUDOVXEPHQXV
curve6HWWLQJWKHFXUYHVORSHIRUKHDWLQJDQGFRROLQJ
external adjustment6HWWLQJWKHKHDWFXUYHRIIVHWZKHQ
WKHH[WHUQDOFRQWDFWLVFRQQHFWHG
min. flow line temp.6HWWLQJPLQLPXPSHUPLWWHGÀRZOLQH
WHPSHUDWXUH
room sensor settings6HWWLQJVUHJDUGLQJWKHURRPVHQVRU
cooling settings6HWWLQJVIRUFRROLQJ
own curve6HWWLQJRZQFXUYHIRUKHDWLQJDQGFRROLQJ
point offset6HWWLQJWKHRIIVHWRIWKHKHDWLQJFXUYHRU
FRROLQJFXUYHDWDVSHFL¿FRXWGRRUWHPSHUDWXUH

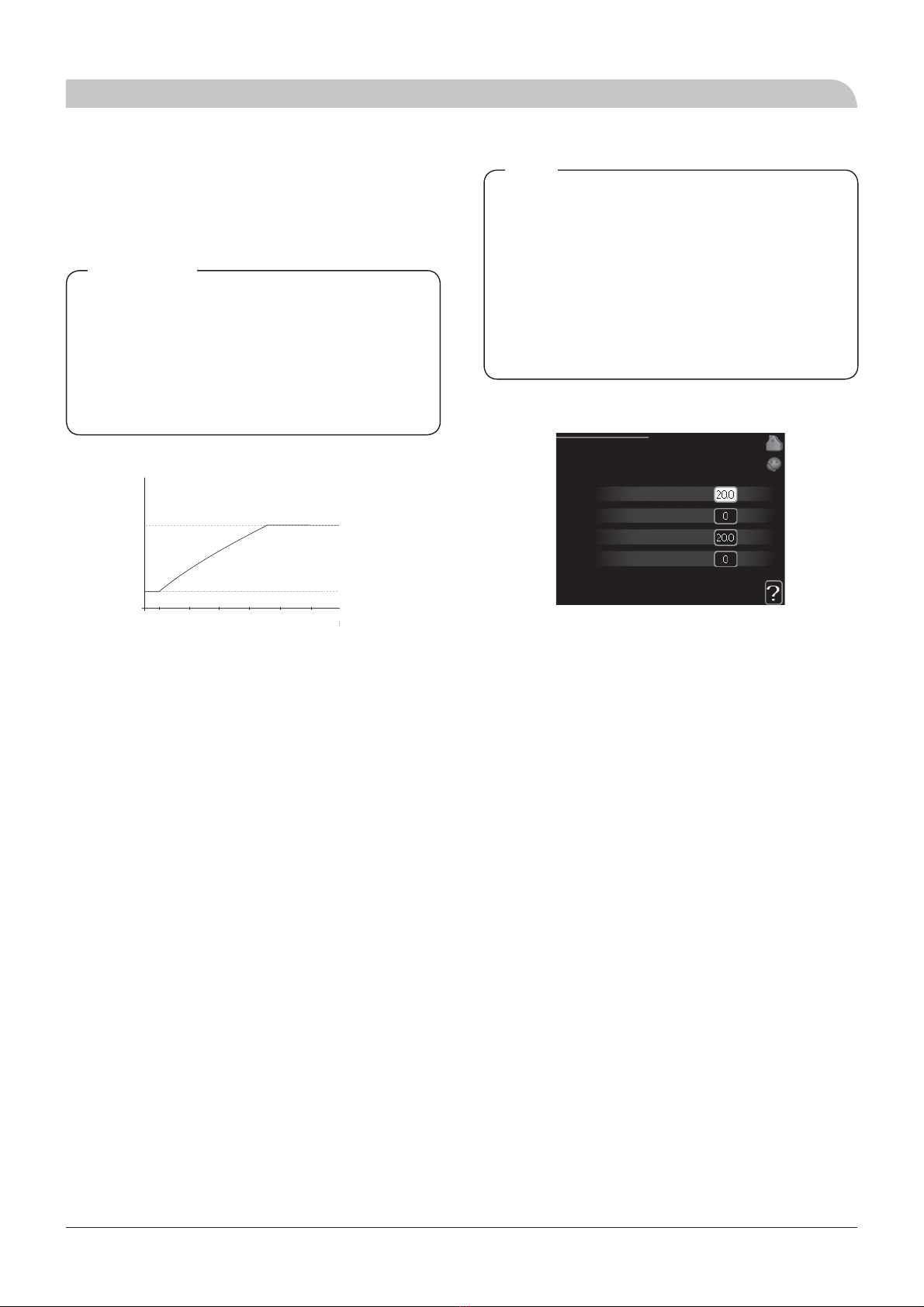

Menu 1.9.1 - Heating/cooling curve setting
heating curve1.9.1.1
system
outdoor temp. °C
flow temperature °C
cooling curve1.9.1.2
system
outdoor temp. °C
flow temperature °C
heating curve
6HWWLQJUDQJH±
'HIDXOWYDOXH
cooling curve (accessory required)
6HWWLQJUDQJH±
'HIDXOWYDOXH


RC-HY20/40 – at your service
Flow line temperature – maximum and minimum
values
7KLVIXQFWLRQLVXVHGLQRUGHUWROLPLWPD[PLQVXSSO\
WHPSHUDWXUH7KHKHDWLQJFRROLQJFXUYHEHFRPHVÀDWEH\RQG
PD[PLQWDUJHWWHPSHUDWXUH
CAUTION
Underfloor heating systems are normally "max flow line
temperature" set between 35 and 45°C. Take care not to
cause low temperature burns in case it is set higher than
35°C.
Must be restricted with underf loor cooling min. f low line
temp. to prevent condensation.
Check the max temperature for your floor with your
installer/floor supplier.





&
 &
87(7(03(5$78
5


  
0D[LPLYlUGH
0LQLPLYlUGH
6XSSO\ WHPSHUDWXUH
2XWGRRU WHPSHUDWXUH
0D[LPXP YDOXH
0LQLPXP YDOXH
7KH¿JXUHDWWKHHQGRIWKHFXUYHLQGLFDWHVWKHFXUYHQXPEHU
7KH¿JXUHEHVLGHWKHWKHUPRPHWHULFRQJLYHVWKHFXUYHR൵VHW
8VHWKHFRQWURONQREWRVHWDQHZYDOXH
&RQ¿UPWKHQHZVHWWLQJE\SUHVVLQJWKH2.EXWWRQ
&XUYHLVDQRZQFXUYHFUHDWHGLQPHQX
To select another curve (slope):
 3UHVV2.EXWWRQWRDFFHVVWKHVHWWLQJPRGH
 6HOHFWDQHZFXUYH7KHFXUYHVDUHQXPEHUHGIURP
WRDQGWKHELJJHUQXPEHUFXUYHKDVVWHHSHUVORSH
 &XUYHPHDQVWKDWRZQFXUYHPHQXLV
XVHG
 3UHVV2.EXWWRQWRH[LWWKHVHWWLQJ
To read off a curve:
 7XUQWKHFRQWURONQREVRWKDWWKHULQJRQWKHVKDIW
ZLWKWKHRXWGRRUWHPSHUDWXUHLVPDUNHG
3UHVV2.EXWWRQ


)ROORZWKHJUH\OLQHXSWRWKHFXUYHDQGRXWWRWKH
OHIWWRUHDGR൵WKHYDOXHIRUWKHVXSSO\WHPSHUDWXUH
DWWKHVHOHFWHGRXWGRRUWHPSHUDWXUH
 <RXFDQQRZVHOHFWWRWDNHUHDGRXWVIRUGLIIHUHQW
RXWGRRUWHPSHUDWXUHVE\WXUQLQJWKHFRQWURONQREWR
WKHULJKWRUOHIWDQGUHDGR൵WKHFRUUHVSRQGLQJÀRZ
WHPSHUDWXUH
3UHVV2.RU%DFNEXWWRQWRH[LWUHDGR൵PRGH
TIP
Wait 24 hours before making a new setting, so that the
roomtemperature has time to stabilise.
If it is cold outdoors and the room temperature is too low,
increase the curve slope by one increment.
If it is cold outdoors and the room temperature is too high,
lower the curve slope by one increment.
If it is warm outdoors and the room temperature is too low,
increase the curve offset by one increment.
If it is warm outdoors and the room temperature is too high,
lower the curve offset by one increment.
Menu 1.9.2 - external adjustment
external adjustment 1.9.2
climate system 1
climate system 2
climate system 3
climate system 4
°C
°C
,IWKHUHLVRQHFOLPDWHV\VWHPGLVSOD\VKRZVFOLPDWHV\VWHPRQO\
climate system
6HWWLQJUDQJHWRRUGHVLUHGURRPWHPSHUDWXUHLIWKH
URRPVHQVRULVLQVWDOOHG
'HIDXOWYDOXH
&RQQHFWLQJDQH[WHUQDOFRQWDFWIRUH[DPSOHDURRPWKHUPRVWDW
RUDWLPHUDOORZV\RXWRWHPSRUDULO\RUSHULRGLFDOO\LQFUHDVHRU
GHFUHDVHWKHURRPWHPSHUDWXUHZKLOHKHDWLQJ:KHQWKHFRQWDFW
LVRQWKHKHDWLQJFXUYHRIIVHWLVFKDQJHGE\WKHQXPEHURI
VWHSVVHOHFWHGLQWKHPHQX,IDURRPVHQVRULVLQVWDOOHGDQG
DFWLYDWHGWKHGHVLUHGURRPWHPSHUDWXUH&LVVHW
,IWKHUHLVPRUHWKDQRQHFOLPDWHV\VWHPWKHVHWWLQJFDQEH
PDGHVHSDUDWHO\IRUHDFKV\VWHP
