Foreword
E09200101932
Thank you for selecting a SHOGUN as your new vehicle.
This owner’s manual will add to your understanding and full
enjoyment of the many fine features of this vehicle.
It contains information prepared to acquaint you with the
proper way to operate and maintain your vehicle for the utmost
in driving pleasure.
MITSUBISHI MOTORS Europe B.V. reserves the right to
make changes in design and specifications and/or to make
additions to or improvements in this product without obligation
to install them on products previously manufactured.
It is an absolute requirement for the driver to strictly observe
all laws and regulations concerning vehicles.
This owner’s manual has been written in compliance with
such laws and regulations, but some of the contents may
become contradictory with later amendment of the laws and
regulations.
Please leave this owner’s manual in this vehicle at time of
resale. The next owner will appreciate having access to the
information contained in this owner’s manual.
Repairs to your vehicle:
Vehicles in the warranty period:
All warranty repairs must be carried out by a MITSUBISHI
MOTORS Authorized Service Point.
Vehicles outside the warranty period:
Where the vehicle is repaired is at the discretion of the owner.
Throughout this owner’s manual the words WARNING and
CAUTION appear.
These serve as reminders to be especially careful. Failure to follow
instructions could result in personal injury or damage to your vehicle.
indicates a strong possibility of severe personal injury or
death if instructions are not followed.
means hazards or unsafe practices that could cause minor
personal injury or damage to your vehicle.
You will see another important symbol:
NOTE: gives helpful information.
*: indicates optional equipment.
It may differ according to the sales classification; refer to
the sales catalogue.
Abbreviations used in this owner’s manual:
LHD: Left-Hand Drive
RHD:Right-Hand Drive
M/T: Manual Transmission
A/T: Automatic Transmission
Information for station service
E09300100486
OBKX08E1
BL071501 8
WARNING
CAUTION
Fuel tank capacity 3-door models 69 litres
5-door models 88 litres
Petrol-powered vehicles
Unleaded petrol octane number (EN228)
95 RON or higher
Fuel Diesel-powered vehicles
Fuel requirements Vehicles to comply with the Euro 4 regulation
Cetane number (EN590)
51 or higher
Vehicles to comply with the Euro 3 regulation
Cetane number
45 or higher
Refer to the “Fuel selection” for details.
Engine oil Refer to the “Maintenance” section of this owner’s manual for the SAE viscosity.
Tyre inflation pressure Refer to the “Maintenance” section for the tyre inflation pressure.
© 2007 Mitsubishi Motors Corporation
Mitsubishi Motors Europe B.V.
eng_CV_SHOGUN_Pajero08.qxd 26-12-2007 15:55 Page 2

Table of contents
1
2
3
4
5
6
7
8
9
Overview
General information
Locking and unlocking
Seat and seat belts
Instruments and controls
Starting and driving
For pleasant driving
For emergencies
Vehicle care
Maintenance
Specifications
BK-BK2008E1ENUK.en-ukTOC.fm Page 1 Wednesday, January 9, 2008 4:20 PM

Overview
Instruments and Controls (Driver’s area)
E00100102052
Electric remote-controlled
outside rear-view mirror
switch p. 4-11
Front fog lamp switch*
p. 3-66
Rear fog lamp switch
p. 3-67
Combination headlamps
and dipper switch p. 3-58
Turn-signal lever p. 3-65
Headlamp washer switch*
p. 3-76
Supplemental restraint system-airbag
(for driver’s seat) p. 2-58
Horn switch p. 3-78
Instruments p. 3-2
Windscreen wiper and washer
switch p. 3-68
Rear window wiper and
washer switch p. 3-75
Daytime dipper button
(meter illumination control)
p. 3-9
Cruise control switch*
p. 4-70
Fuse box lid p. 8-29
Bonnet release lever
p. 8-3
Ignition switch p. 4-14
Fuel tank filler door release
lever p. 3
LHD
Hazard warning flasher switch
p. 3-66
Active stability control
switch p. 4-63
Steering wheel height adjustment p. 4-8
Audio switch* p. 5-70
Sonar cancel switch*
p. 4-78
Headlamp levelling switch*
p. 3-62
BK-BK2008E1ENUK.en-uk-Section2.fm Page 1 Wednesday, January 9, 2008 4:26 PM

Overview
Electric remote-controlled
outside rear-view mirror
switch p. 4-11
Combination headlamps and
dipper switch p. 3-58
Turn-signal lever p. 3-65
Headlamp washer switch*
p. 3-76
Supplemental restraint system-airbag
(for driver’s seat) p. 2-58
Horn switch p. 3-78
Instruments p. 3-2
Windscreen wiper and washer
switch p. 3-68
Rear window wiper and
washer switch p. 3-75
Daytime dipper button
(meter illumination control)
p. 3-9
Cruise control switch* p. 4-70
Fuse box lid p. 8-29
Bonnet release lever
p. 8-3
Ignition switch p. 4-14
Fuel tank filler door release lever
p. 3
Headlamp levelling switch* p. 3-62
Front fog lamp switch*
p. 3-66
Rear fog lamp switch p. 3-67
RHD
Steering wheel height adjustment p. 4-8
Hazard warning flasher
switch p. 3-66
Active stability control
switch p. 4-63
Audio switch* p. 5-70
Sonar cancel switch*
p. 4-78
BK-BK2008E1ENUK.en-uk-Section2.fm Page 2 Wednesday, January 9, 2008 4:26 PM

Overview

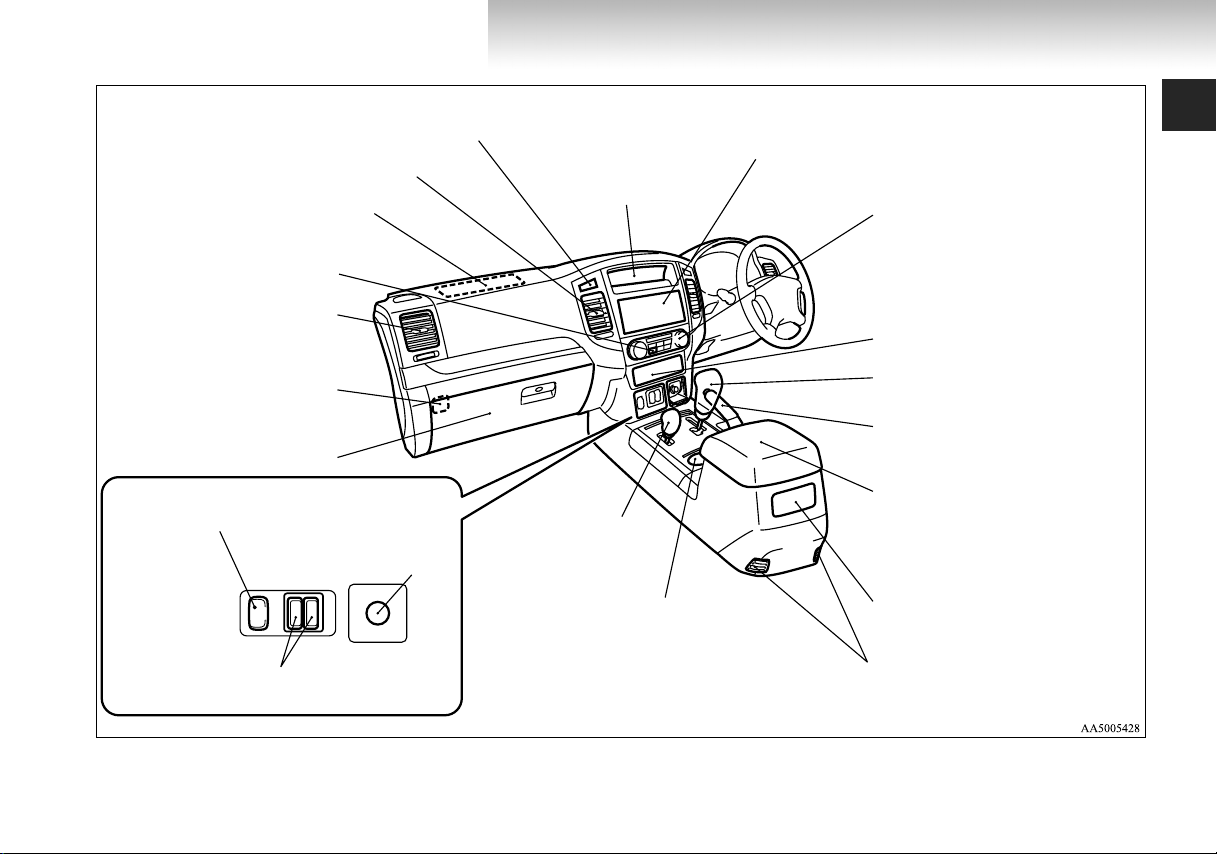

Instruments and Controls (Instrument panel)
E00100102788
Supplemental restraint system-airbag
(for front passenger’s seat) p. 2-58
Side ventilators p. 5-2
Rear window demister switch
p. 3-77
Armrest (for front seats) p. 2-10
Centre console box p. 5-94
Accessory socket p. 5-83
Front automatic air conditioning
p. 5-4 Centre information
display p. 3-17
Cigarette lighter*
p. 5-82
Accessory socket*
p. 5-83
Transfer shift lever
p. 4-34
Rear heater*/Rear air conditioning*
p. 5-15 Cup holder (for front seats)
p. 5-99
Floor ventilators* p. 5-2
Audio* p. 5-20, 5-43
Mitsubishi Multi Communication System*
Refer to the separate “Mitsubishi Multi Communication System owner’s manual”
Gearshift lever p. 4-23
Selector lever p. 4-25
Rear differential lock
switch* p. 4-42
Centre ventilators p. 5-2
Parking brake lever p. 4-6
Heated seat switch* p. 2-12
LHD
Centre accessory box* p. 5-96
Front passenger’s airbag OFF indication lamp p. 2-63
Front passenger’s airbag
ON-OFF switch p. 2-63
Glove box p. 5-93
BK-BK2008E1ENUK.en-uk-Section2.fm Page 3 Wednesday, January 9, 2008 4:26 PM

Overview
RHD
Rear window demister switch
p. 3-77
Front automatic air conditioning
p. 5-4
Audio* p. 5-20, 5-43
Mitsubishi Multi Communication System*
Refer to the separate “Mitsubishi Multi
Communication System owner’s manual”
Centre accessory box* p. 5-96
Armrest (for front seats) p.2-10
Centre console box p. 5-94
Accessory socket p. 5-83
Rear heater*/Rear air
conditioning* p. 5-15
Gearshift lever p. 4-23
Selector lever p. 4-25
Parking brake lever p. 4-6
Transfer shift lever
p. 4-34
Cup holder (for front seats)
p.5-99
Floor ventilators* p. 5-2
Heated seat switch* p. 2-12
Cigarette lighter*
p. 5-82
Accessory socket*
p. 5-83
Rear differential lock
switch* p. 4-42
Glove box p. 5-93
Supplemental restraint system - airbag
(for front passenger’s seat) p. 2-58
Side ventilators p. 5-2
Centre ventilators p. 5-2
Front passenger’s airbag OFF indication lamp p. 2-63
Front passenger’s airbag
ON-OFF switch p. 2-63
Centre information
display p. 3-17
BK-BK2008E1ENUK.en-uk-Section2.fm Page 4 Wednesday, January 9, 2008 4:26 PM

Overview

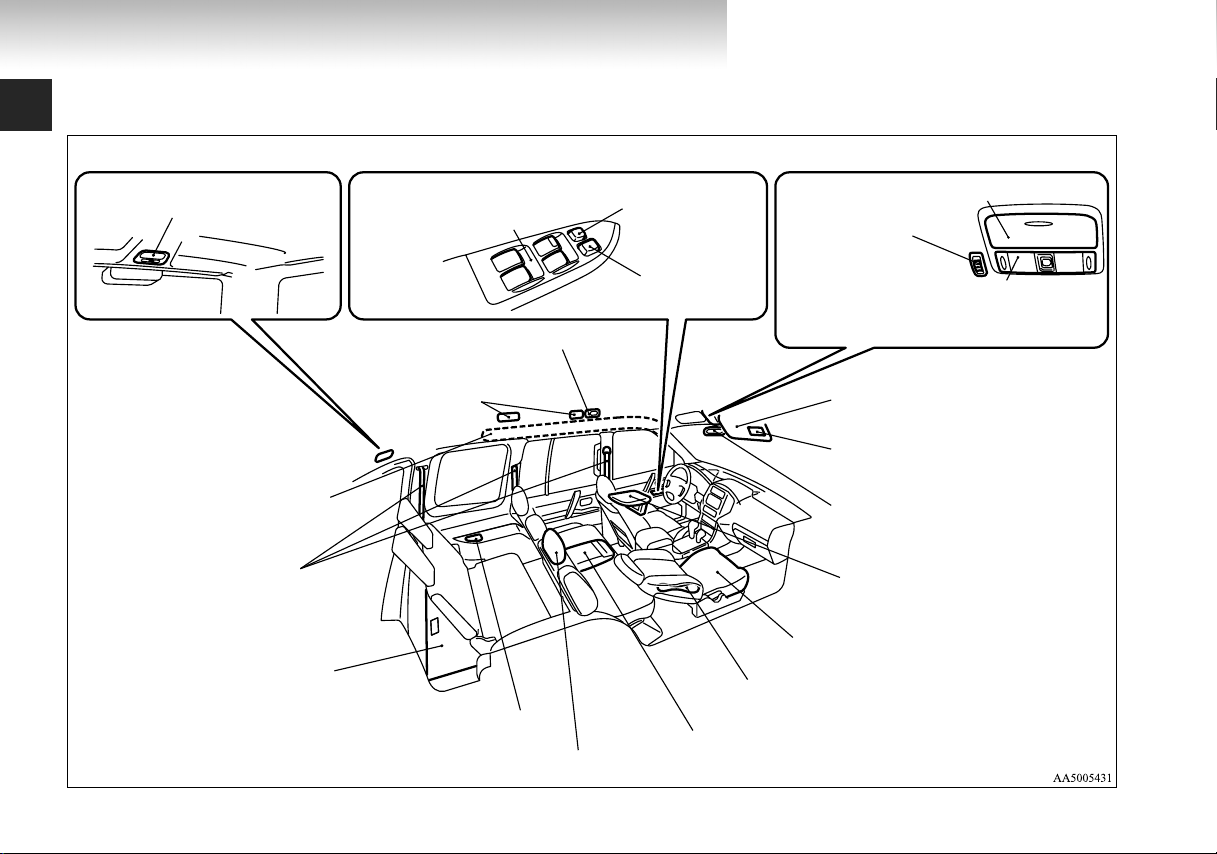

Interior
E00100202415
Sunroof switch*
p. 1-21
Rear personal lamps p. 5-87, 8-38, 8-51
Electric window control
p. 1-16
Electric win-
dow lock switch
p. 1-18
Room & map lamp p. 5-87, 8-38, 8-50
Interior lamp switch p. 5-85
Seat belts p. 2-38
Adjustable seat belt anchor
(for front seats) p. 2-41
Cup holder (for third seat)*
p. 5-101
Luggage floor box p. 5-97
Vanity mirror p. 5-78
Sun visors p. 5-77
Inside rear-view mirror p. 4-9
Armrest (for rear/second seat) p. 2-14
Cup holder (for rear/second seat) p. 5-99
Seat p. 2-2
Supplemental restraint system - side airbag
(for front seats)* p. 2-58
Luggage compartment lamp
p. 5-88, 8-38, 8-52
Roof ventilators
(5-door models)* p. 5-2
Head restraints p. 2-16
LHD
Central door
lock switch
p. 1-9
Supplemental restraint system
- curtain airbag* p. 2-58
Sunglasses holder* p. 5-98
Video entertainment system*
Refer to the separate “Video
entertainment system owner’s
manual”
BK-BK2008E1ENUK.en-uk-Section2.fm Page 5 Wednesday, January 9, 2008 4:26 PM

Overview
RHD
Electric window control
p. 1-16
Electric window
lock switch
p. 1-18
Luggage compartment lamp
p. 5-88, 8-38, 8-52
Central door lock
switch p. 1-9
Sunroof switch*
p.1-21
Room & map lamp p. 5-87, 8-38, 8-50
Interior lamp switch p. 5-85
Sunglasses holder* p. 5-98
Rear personal lamps p. 5-87, 8-38, 8-51
Seat belts p. 2-38
Adjustable seat belt anchor
(for front seats) p. 2-41
Roof ventilators
(5-door models)*
p. 5-2
Supplemental restraint system -
curtain airbag* p. 2-58
Sun visors p. 5-77
Vanity mirror p. 5-78
Inside rear-view mirror p. 4-9
Seat p. 2-2
Supplemental restraint system
- side airbag (for front seats)* p. 2-58 Cup holder (for third seat)*
p. 5-101 Luggage floor box p. 5-97
Armrest (for rear/second seat) p. 2-14
Cup holder (for rear/second seat) p. 5-99 Head restraints p. 2-16
Video entertainment system*
Refer to the separate “Video
entertainment system owner’s
manual”
BK-BK2008E1ENUK.en-uk-Section2.fm Page 6 Wednesday, January 9, 2008 4:26 PM

Overview

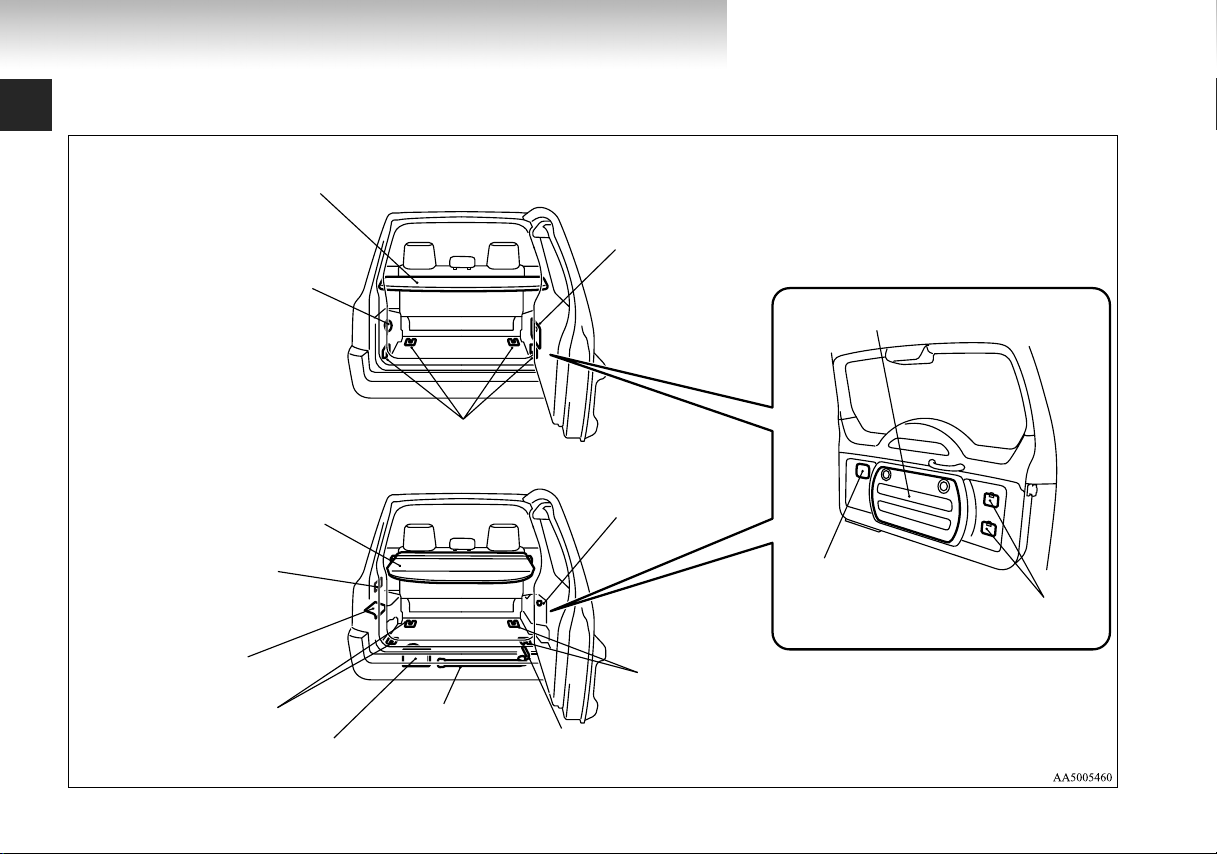

Luggage area
E00100400963
3-door models
5-door models
Accessory socket p. 5-83
Luggage hooks p. 5-105
Jack p. 6-11
Jack handle p. 6-11
Tools p. 6-11
Side box* p. 5-97
Jack p. 6-11
Jack handle p. 6-11
Tools p. 6-11
Luggage hooks p. 5-105
Rear window washer
fluid container p. 8-12
Rear shelf* p. 5-101
Luggage hooks p. 5-105
Cargo area cover* p. 5-103
Accessory socket
p. 5-83
Securing bolts of spare
wheel garnish p. 6-18
Video jack*
Refer to the separate
“Video entertainment
system owner’s manual”
Securing bands of warning triangle
p. 5-107
BK-BK2008E1ENUK.en-uk-Section2.fm Page 7 Wednesday, January 9, 2008 4:26 PM

Overview

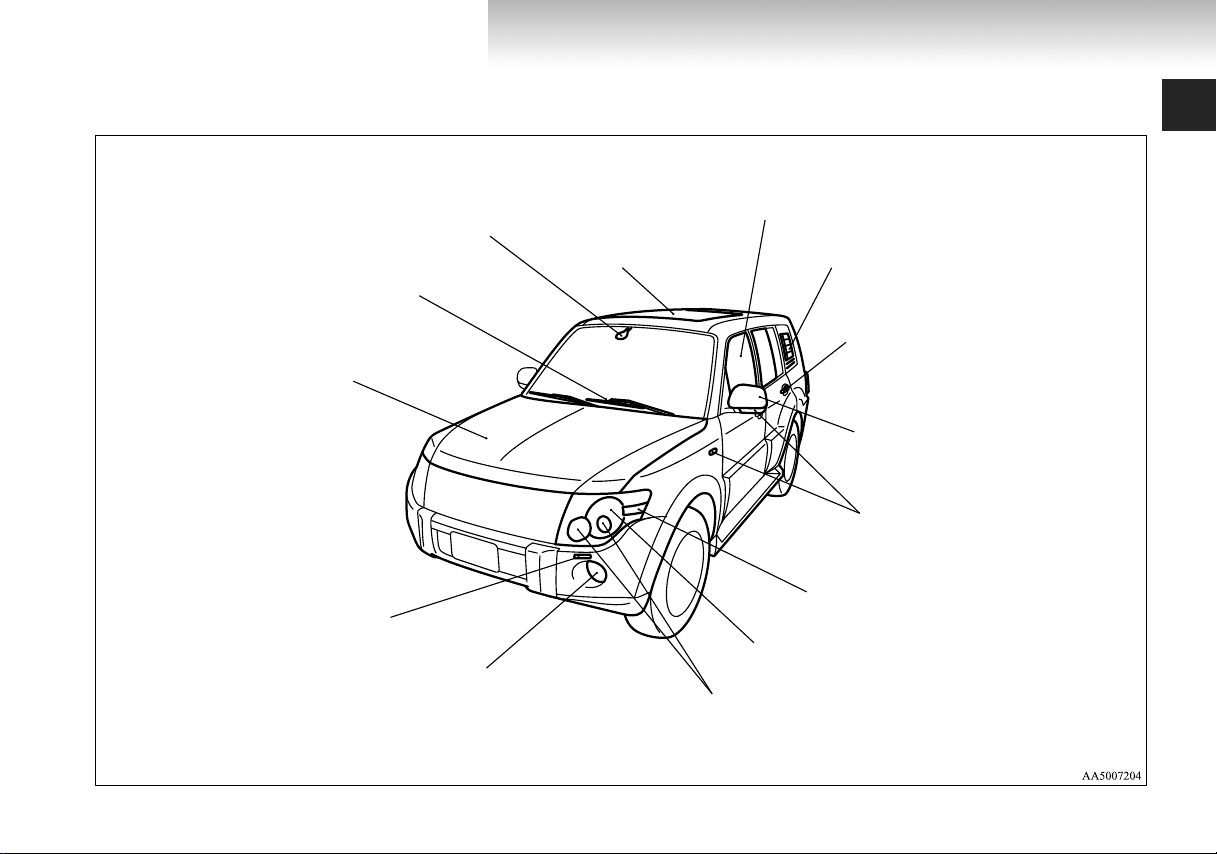

Outside (Front)
E00100502434
Front fog lamps*
p. 3-66, 8-36, 8-42
Engine compartment p. 9-16
Bonnet p. 8-3
Windscreen wiper and washer p. 3-68
Headlamps p. 3-58, 8-36, 8-38
Electric window control
p. 1-16
Outside rear-view mirrors p. 4-11
Approach lamps* p. 1-12
Sunroof* p. 1-21
Front turn-signal lamps
p. 3-65, 8-36, 8-41
Side turn-signal lamps* p. 3-65
Position lamps p. 3-58, 8-36, 8-41
Locking and unlocking p. 1-7
Keyless entry system* p. 1-5
Rear side/quarter window p. 1-20
Antenna p. 5-77
Headlamp washer*
p. 3-76
Rain sensor* p. 3-71
BK-BK2008E1ENUK.en-uk-Section2.fm Page 8 Wednesday, January 9, 2008 4:26 PM

Overview

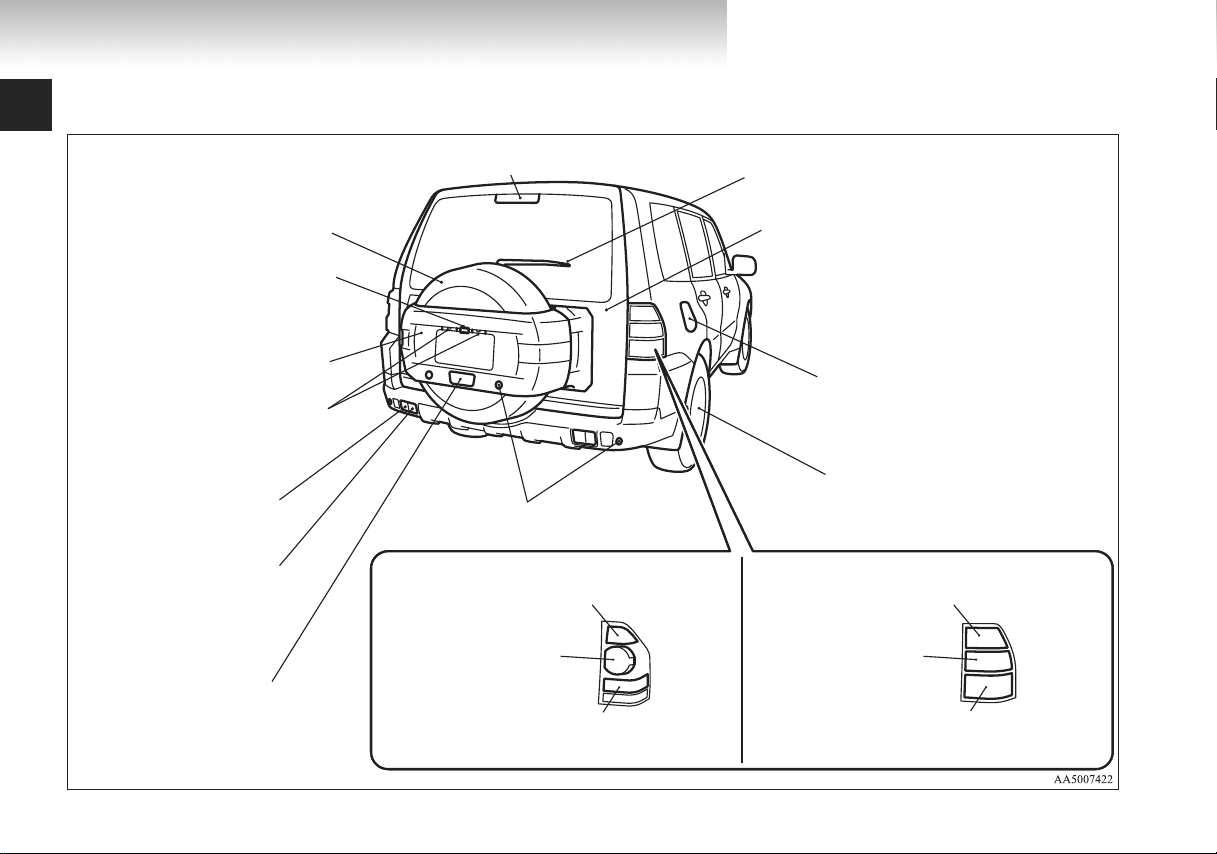

Outside (Rear)
E00100502564
Rear turn-signal lamps*
p. 3-65, 8-36, 8-44
Fuel tank filler p. 3
Reversing lamps
p. 8-36, 8-44
Licence plate lamps
p. 3-58, 8-36, 8-49
Spare wheel p. 6-17 Backdoor p. 1-13
High-mounted stop lamp p. 8-36, 8-48 Rear window wiper and washer p. 3-75
Tyre inflation pressure p. 8-19
Changing tyres p. 6-16
Tyre rotation p. 8-21
Tyre chains p. 8-23
Rear fog lamp
p. 3-67, 8-36, 8-47
Stop and tail lamps*
p. 3-58, 8-36, 8-44
Stop lamps*
p. 8-36, 8-44
Spare wheel garnish p. 6-18
Tail lamps*
p. 3-58, 8-36, 8-44
3-door models 5-door models
Rear turn-signal lamps* p. 3-65, 8-36, 8-44 Rear turn-signal lamps* p. 3-65, 8-36, 8-44
Stop and tail lamps* p. 3-58, 8-36, 8-44
Stop lamps* p. 8-36, 8-44
Reversing lamps
p. 8-36, 8-44
Rear-view camera* p. 4-84
Corner and back sensor* p. 4-78
BK-BK2008E1ENUK.en-uk-Section2.fm Page 9 Wednesday, January 9, 2008 4:26 PM

General information
Fuel selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Filling the fuel tank . . . . . . . . . . . . . . . . . . . . . . . . . 3
Installation of accessories . . . . . . . . . . . . . . . . . . . . 6
Modification/alterations to the electrical or
fuel systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Genuine parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Used engine oils safety instructions and
disposal information . . . . . . . . . . . . . . . . . . . . . . . 8
BK-BK2008E1ENUK.en-uk-Section3.fm Page 1 Wednesday, January 9, 2008 4:21 PM

2
General information
Fuel selection
E00200101362
N
OTE
●Petrol-powered vehicles have the knock control system so
that you can use unleaded petrol 91 RON as an emergent
measure in case unleaded petrol 95 RON or higher is not
available on journey, etc. In such a case, you don’t need to
adjust the engine specially.
In case of using unleaded petrol 91 RON, the engine per-
formance level is reduced.
●In petrol-powered vehicles, repeatedly driving short dis-
tance at low speeds can cause deposits to form in the fuel
system and engine, resulting in poor starting and poor
acceleration.
If these problems occur, you are advised to add a deter-
gent additive to the gasoline when you refuel the vehicle.
The additive will remove the deposits, thereby returning
the engine to a normal condition. Be sure to use a genuine
MITSUBISHI FUEL SYSTEM CLEANER. Using an
unsuitable additive could make the engine malfunction.
For details, please contact your MITSUBISHI MOTORS
Authorized Service Point.
●Poor quality petrol can cause problems such as hard start-
ing, stalling, engine noise and hesitation. If your experi-
ence these problems, try another brand and/or grade of
petrol.
If the check engine warning lamp flashes, have the system
checked as soon as possible at a MITSUBISHI MOTORS
Authorized Service Point.
Recommended
fuel
Petrol-powered vehicles
Unleaded petrol octane number (EN228)
95 RON or higher
Diesel-powered vehicles
Vehicles to comply with the Euro 4 regulation
Cetane number (EN590)
51 or higher
Vehicles to comply with the Euro 3 regulation
Cetane number
45 or higher
CAUTION
!
●For petrol-powered vehicles, the use of leaded fuel
can result in serious damage to the engine and cata-
lytic converter.
●Diesel-powered vehicles to comply with the Euro 4
regulation are designed to use only diesel fuel that
meets the EN 590 standard.
Use of any other type of diesel fuel can adversely
affect the engine.
BK-BK2008E1ENUK.en-uk-Section3.fm Page 2 Wednesday, January 9, 2008 4:21 PM

General information
3
●In diesel-powered vehicles, poor-quality diesel fuel can
cause deposits form in the injector, resulting in black
smoke and rough idling.
If these problems occur, you are advised to add a cleaning
additive to the diesel fuel when you refuel the vehicle.
The additive will break up and remove the deposits,
thereby returning the engine to a normal condition.
Be sure to use a genuine MITSUBISHI DIESEL FUEL
SYSTEM CLEANER. Using an unsuitable additive could
make the engine malfunction. For details, please contact
your MITSUBISHI MOTORS Authorized Service Point.
Filling the fuel tank
E00200201578
Fuel tank capacity
3-door models: 69 litres
5-door models: 88 litres
WARNING
!
●When handling fuel, comply with the safety regula-
tions displayed by garages and filling stations.
●Before removing the fuel cap, be sure to get rid of
your body’s static electricity by touching a metal
part of the car or fuel pump. Any static electricity on
your body could create a spark that ignites fuel
vapor.
●Perform the whole refuelling process (opening the
fuel tank filler door, removing the fuel cap, etc.) by
yourself. Do not let any other person come near the
fuel tank filler. If you allowed a person to help you
and that person was carrying static electricity, fuel
vapor could be ignited.
●Do not move away from the fuel tank filler until
refueling is finished. If you moved away and did
something else (for example, cleaning your wind-
screen) partway through the refueling process, you
could pick up a fresh charge of static electricity.
●If the tank cap must be replaced, use only a MIT-
SUBISHI MOTORS original part.
BK-BK2008E1ENUK.en-uk-Section3.fm Page 3 Wednesday, January 9, 2008 4:21 PM

4
General information
Refueling
1. Before filling with fuel, stop the engine.
2. The fuel tank filler is located on the rear right side of your
vehicle.
Open the fuel tank filler door with the release lever
located below the instrument panel.
LHD
RHD
BK-BK2008E1ENUK.en-uk-Section3.fm Page 4 Wednesday, January 9, 2008 4:21 PM

General information
5
3. Open the fuel tank filler tube by slowly turning the cap
anticlockwise.
4. Insert the gun in the tank port as far as it goes.
5. When the gun stops automatically, do not fill with fuel
any more.
6. To close, turn the fuel tank filler tube cap slowly clock-
wise until you hear clicking sounds, then gently push the
fuel tank filler door closed.
A- Remove
B- Close
CAUTION
!
●Since the fuel system may be under pressure,
remove the fuel tank filler tube cap slowly. This
relieves any pressure or vacuum that might have
built up in the fuel tank. If you hear a hissing sound,
wait until it stops before removing the cap. Other-
wise, fuel may spray out, injuring you or others.
CAUTION
!
●Do not tilt the gun.
BK-BK2008E1ENUK.en-uk-Section3.fm Page 5 Wednesday, January 9, 2008 4:21 PM

6
General information
Installation of accessories
E00200300774
We recommend you to consult your MITSUBISHI MOTORS
Authorized Service Point.
●The installation of accessories, optional parts, should only
be carried out within the limits prescribed by law in your
country, and in accordance with the guidelines fitting
instructions and warnings contained within the documents
accompanying the parts or accessories.
●Improper installation of electrical components may cause
an electrical fire if incorrectly fitted. Please refer to Modi-
fication/alteration to the electrical or fuel systems section
within this owner’s manual.
●Using a cellular phone or radio set inside the vehicle with-
out an external antenna may cause electrical system inter-
ference, which could lead to unsafe vehicle operation.
●Tyres and wheels which do not meet specifications must
not be used.
Refer to the “Specifications” section for information
regarding wheel and tyre sizes.
●When fitting accessories, ensure that maximum gross
vehicle weight and maximum axle weight are not
exceeded.
Important points!
Due to large number of accessory and replacement parts of dif-
ferent manufactures available in the market, it is not possible,
not only for MITSUBISHI MOTORS, but also for a MIT-
SUBISHI MOTORS Authorized Service Point, to check
whether the attachment or installation of such parts affects the
overall safety of your MITSUBISHI-vehicle.
Even when such parts are officially authorized, for example by
a “general operators permit” (an appraisal for the part) or
through the execution of the part in an officially approved man-
ner of construction, or when a single operation permit follow-
ing the attachment or installation of such parts, it cannot be
deduced from that alone, that the driving safety of your vehicle
has not been affected.
Consider also that there basically exists no liability on the part
of the appraiser or the official. Only in the case of parts (MIT-
SUBISHI MOTORS original replacement or exchange parts as
well as MITSUBISHI MOTORS genuine accessories) that are
recommended and released by a MITSUBISHI MOTORS
Authorized Service Point and that are attached or installed by a
MITSUBISHI MOTORS Authorized Service Point can you
assume, that optimal safety has been provided. The same also
pertains to modifications of MITSUBISHI vehicle with respect
to the production specifications. For your own safety, in such
cases, you should only undertake modifications according to
the recommendations of a MITSUBISHI MOTORS Author-
ized Service Point.
BK-BK2008E1ENUK.en-uk-Section3.fm Page 6 Wednesday, January 9, 2008 4:21 PM

General information
7
Modification/alterations to the electrical or
fuel systems
E00200400254
MITSUBISHI MOTORS has always manufactured safe, high
quality vehicles. In order to maintain this safety and quality, it
is important that any accessory that is to be fitted, or any modi-
fications carried out which involve the electrical or fuel sys-
tems, should be carried out in accordance with MITSUBISHI
MOTORS guidelines.
Genuine parts
E00200500330
MITSUBISHI MOTORS has gone to great lengths to bring you
a superbly crafted automobile offering the highest quality and
dependability.
Use MITSUBISHI MOTORS genuine parts, designed and
manufactured to maintain your MITSUBISHI MOTORS auto-
mobile at top performance. MITSUBISHI MOTORS genuine
parts are identified by this mark and are available at all MIT-
SUBISHI MOTORS Authorized Service Points.
CAUTION
!
●If the wiring interferes with any part of the vehicle
bodywork or improper installation methods are
used, i.e. protective fuses not installed, etc.), elec-
tronic devices may be adversely affected, possibly
resulting in an electrical fire or other failures that
may cause an accident.
BK-BK2008E1ENUK.en-uk-Section3.fm Page 7 Wednesday, January 9, 2008 4:21 PM

8
General information
Used engine oils safety instructions and dis-
posal information
E00200600025
Protect the environment
It is illegal to pollute drains, water courses and soil. Use
authorized waste collection facilities, including civic amenity
sites and garages providing facilities for disposal of used oil
and used oil filters. If in doubt, contact your local authority for
advice on disposal.
WARNING
!
●Prolonged and repeated contact may cause serious
skin disorders, including dermatitis and cancer.
●Avoid contact with the skin as far as possible and
wash thoroughly after any contact.
●Keep used engine oils out of reach of children.
BK-BK2008E1ENUK.en-uk-Section3.fm Page 8 Wednesday, January 9, 2008 4:21 PM
