Foreword
E09200106777
Thank you for selecting a SHOGUN as your new vehicle.
This owner’s manual will add to your understanding and full enjoyment of
the many fine features of this vehicle.
It contains information prepared to acquaint you with the proper way to oper-
ate and maintain your vehicle for the utmost in driving pleasure.
MITSUBISHI MOTORS Europe B.V. reserves the right to make changes in
design and specifications and/or to make additions to or improvements in
this product without obligation to install them on products previously manu-
factured.
It is an absolute requirement for the driver to strictly observe all laws and
regulations concerning vehicles.
This owner’s manual has been written in compliance with such laws and reg-
ulations, but some of the contents may become contradictory with later
amendment of the laws and regulations.
Please leave this owner’s manual in this vehicle at time of resale. The next
owner will appreciate having access to the information contained in this
owner’s manual.
Repairs to your vehicle:
Vehicles in the warranty period:
All warranty repairs must be carried out by a MITSUBISHI MOTORS Au-
thorized Service Point.
Vehicles outside the warranty period:
Where the vehicle is repaired is at the discretion of the owner.
Throughout this owner’s manual the words WARNING and CAUTION
appear.
These serve as reminders to be especially careful. Failure to follow instruc-
tions could result in personal injury or damage to your vehicle.
WARNING
indicates a strong possibility of severe personal injury or death if in-
structions are not followed.
CAUTION
means hazards or unsafe practices that could cause minor personal in-
jury or damage to your vehicle.
You will see another important symbol:
NOTE: gives helpful information.
*: indicates optional equipment.
It may differ according to the sales classification; refer
to the sales catalogue.
Abbreviations used in this owner’s manual:
LHD: Left-Hand Drive
RHD: Right-Hand Drive
M/T: Manual transmission
A/T: Automatic Transmission
The symbol used on the vehicles:
: See owner’s manual
Information for station service
E09300104338
Fuel
Capacity 3-door models 69 litres
5-door models 88 litres
Fuel requirements
Petrol-powered vehicles
Unleaded petrol octane number (EN228)
90 RON or higher
If the “PREMIUM FUEL ONLY” label is attached to the fuel tank filler door,
fill it up with premium fuel.
Diesel-powered vehicles
Cetane number (EN590)
51 or higher
Refer to “General information” section for the fuel selection.
Engine oil Refer to the “Maintenance”section for the selection of engine oil.
Tyre inflation pressure Refer to the “Maintenance” section for the tyre inflation pressure.
© 2016 Mitsubishi Motors Corporation 17
OVWX17E1
BLO-16-000629

Table of contents
Overview 1
General information 2
Locking and unlocking 3
Seat and seat belts 4
Instruments and controls 5
Starting and driving 6
For pleasant driving 7
For emergencies 8
Vehicle care 9
Maintenance 10
Specifications 11
Alphabetical index 12
Declaration of Conformity 13
OVWX17E1

Instruments and Controls (Driver’s area)
E00100108432
LHD
1. Supplemental restraint system - airbag (for driver’s seat) p. 4-36
Horn switch p. 5-50
2. Instruments p. 5-02
3. Hazard warning flasher switch p. 5-42
4. Windscreen wiper and washer switch p. 5-44
Rear window wiper and washer switch p. 5-48
5. Cruise control switch* p. 6-44
6. Ignition switch p. 6-10
7. Active Stability Control switch p. 6-40
8. Fuel tank filler door release lever p. 2-03
9. Steering control switch (for Bluetooth® 2.0 interface)* p. 7-51
10. Steering wheel height adjustment p. 6-06
11. Bonnet release lever p. 10-03
12. Fuse block lid p. 10-18
13. Sonar cancel switch* p. 6-52
14. Headlamp levelling switch* p. 5-40
Automatic high-beam switch* p. 5-36
15. Electric remote-controlled outside rear-view mirror switch
p. 6-08
16. Front fog lamp switch* p. 5-43
Rear fog lamp switch p. 5-43
17. Audio switch* p. 7-24
18. Combination headlamps and dipper switch p. 5-34
Turn-signal lever p. 5-42
Headlamp washer switch* p. 5-48
19. Daytime dipper button (meter illumination control) p. 5-07
Instruments and Controls (Driver’s area)
1-02 OVWX17E1 Overview
1

RHD
1. Daytime dipper button (meter illumination control) p. 5-07
2. Instruments p. 5-02
3. Supplemental restraint system - airbag (for driver’s seat) p. 4-36
Horn switch p. 5-50
4. Windscreen wiper and washer switch p. 5-44
Rear window wiper and washer switch p. 5-48
5. Cruise control switch* p. 6-44
6. Ignition switch p. 6-10
7. Front fog lamp switch* p. 5-43
Rear fog lamp switch p. 5-43
8. Electric remote-controlled outside rear-view mirror switch
p. 6-08
9. Fuse block lid p. 10-18
10. Bonnet release lever p. 10-03
11. Steering wheel height adjustment p. 6-06
12. Steering control switch (for Bluetooth® 2.0 interface)* p. 7-51
13. Fuel tank filler door release lever p. 2-03
14. Headlamp levelling switch* p. 5-40
Automatic high-beam switch* p. 5-36
15. Sonar cancel switch* p. 6-52
16. Active stability control switch p. 6-40
17. Audio switch* p. 7-24
18. Combination headlamps and dipper switch p. 5-34
Turn-signal lever p. 5-42
Headlamp washer switch* p. 5-48
19. Hazard warning flasher switch p. 5-42
Instruments and Controls (Driver’s area)
1-03
OVWX17E1 Overview
1

Instruments and Controls (Instrument panel)
E00100108982
LHD
1. Audio* p. 7-12
DISPLAY AUDIO*/Smartphone Link Display Audio*/
MITSUBISHI Multi-Communication System (MMCS)*
[Refer to the separate owner’s manual]
2. Centre information display p. 5-12
3. Front passenger’s airbag OFF indication lamp p. 4-40
4. Centre ventilators p. 7-02
5. Supplemental restraint system - airbag (for front passenger’s seat)
p. 4-36
6. Side ventilators p. 7-02
7. Auxiliary Video connector (RCA)* p. 7-39
USB port* p. 7-71
HDMI port* p. 7-74
8. Front passenger’s airbag ON-OFF switch p. 4-39
9. Glove box p. 7-82
10. Rear differential lock switch* p. 6-26
11. Cigarette lighter* p. 7-76
Accessory socket* p. 7-77
12. Heated seat switch* p. 4-09
13. Transfer shift lever p. 6-21
14. Cup holder (for front seats) p. 7-85
15. Floor ventilators* p. 7-02
16. Rear air conditioning* p. 7-09
17. Armrest (for front seats) p. 4-08
Centre console box p. 7-83
Accessory socket p. 7-77
18. Parking brake lever p. 6-04
19. Selector lever p. 6-15
20. Centre accessory box* p. 7-83
21. Rear window demister switch p. 5-50
22. Front automatic air conditioning p. 7-03
Instruments and Controls (Instrument panel)
1-04 OVWX17E1 Overview
1

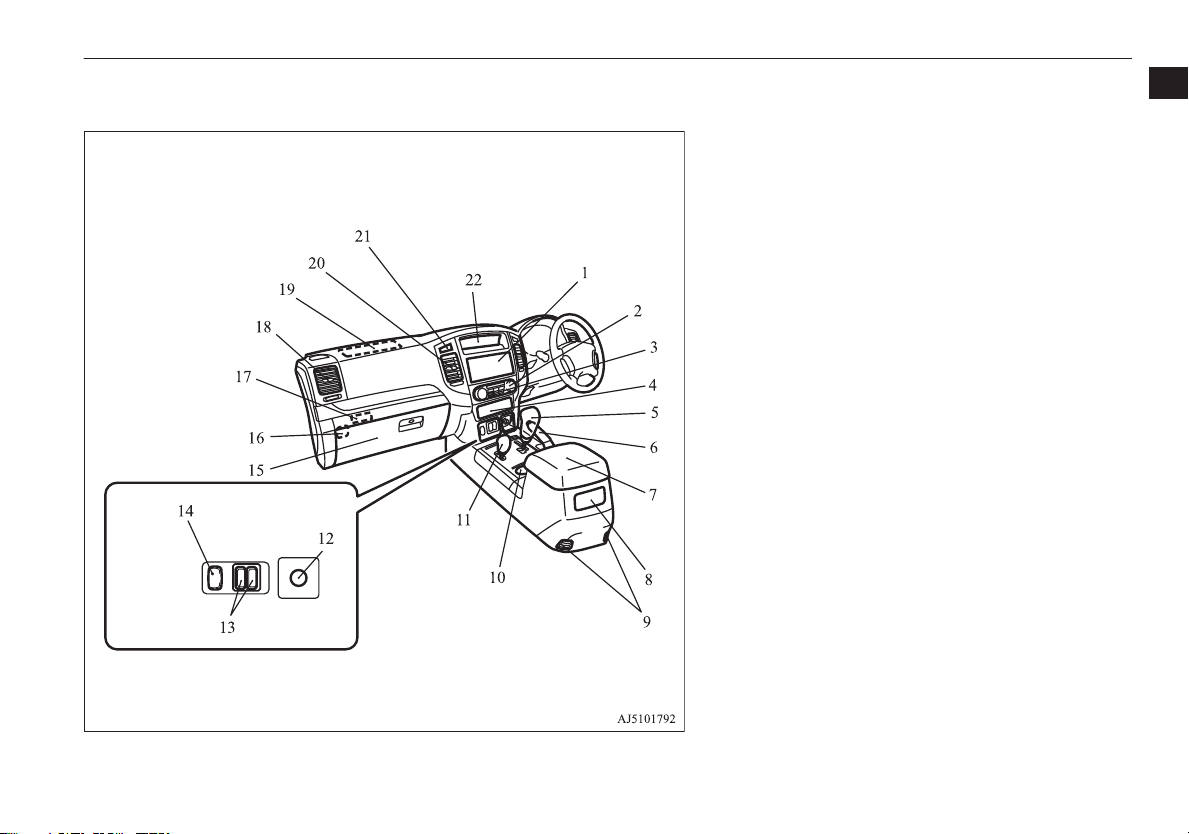

RHD
1. Audio* p. 7-12
DISPLAY AUDIO*/Smartphone Link Display Audio*/
MITSUBISHI Multi-Communication System (MMCS)*
[Refer to the separate owner’s manual]
2. Front automatic air conditioning p. 7-03
3. Rear window demister switch p. 5-50
4. Centre accessory box* p. 7-83
5. Selector lever p. 6-15
6. Parking brake lever p. 6-04
7. Armrest (for front seats) p. 4-08
Centre console box p. 7-83
Accessory socket p. 7-77
8. Rear air conditioning* p. 7-09
9. Floor ventilators* p. 7-02
10. Cup holder (for front seats) p. 7-85
11. Transfer shift lever p. 6-21
12. Cigarette lighter* p. 7-76
Accessory socket* p. 7-77
13. Heated seat switch* p. 4-09
14. Rear differential lock switch* p. 6-26
15. Glove box p. 7-82
16. Front passenger’s airbag ON-OFF switch p. 4-39
17. Auxiliary Video connector (RCA)* p. 7-39
USB port* p. 7-71
HDMI port* p. 7-74
18. Side ventilators p. 7-02
19. Supplemental restraint system - airbag (for front passenger’s seat)
p. 4-36
20. Centre ventilators p. 7-02
21. Front passenger’s airbag OFF indication lamp p. 4-40
22. Centre information display p. 5-12
Instruments and Controls (Instrument panel)
1-05
OVWX17E1 Overview
1

Interior
E00100206325
LHD
Type 1 Type 2
1. Electric window control p. 3-16
2. Electric window lock switch p. 3-17
3. Central door lock switch p. 3-07
4. Sunroof switch* p. 3-19
5. Sunglasses holder* p. 7-84
6. Sunroof switch* p. 3-19
7. Ceiling lamp p. 7-78
8. Room & map lamp p. 7-79, 10-25, 10-30
Interior lamp switch p. 7-78
9. Microphone (for Hands-free & voice recognition)* p. 7-51
10. Sun visors p. 7-74
11. Vanity mirror p. 7-74
12. Inside rear-view mirror p. 6-07
13. Video Entertainment System*
Refer to the separate “Video Entertainment System owner’s man-
ual”
14. Seat p. 4-02
15. Supplemental restraint system - side airbag (for front seats)*
p. 4-36
16. Armrest (for rear/second seat) p. 4-10
Cup holder (for rear/second seat) p. 7-85
17. Head restraints p. 4-12
18. Cup holder (for third seat)* p. 7-86
19. Luggage floor box p. 7-84
20. Seat belts p. 4-21
Adjustable seat belt anchor (front seats) p. 4-23
21. Luggage compartment lamp p. 7-80, 10-25, 10-31
22. Supplemental restraint system - curtain airbag* p. 4-36
23. Roof ventilators (5-door models)* p. 7-02
24. Rear personal lamps p. 7-79, 10-25, 10-30
Interior
1-06 OVWX17E1 Overview
1

RHD
Type 1 Type 2
1. Sunroof switch* p. 3-19
2. Sunglasses holder* p. 7-84
3. Room & map lamp p. 7-79, 10-25, 10-30
Interior lamp switch p. 7-78
4. Sunroof switch* p. 3-19
5. Microphone (for Hands-free & voice recognition)* p. 7-51
6. Ceiling lamp p. 7-78
7. Electric window lock switch p. 3-17
8. Central door lock switch p. 3-07
9. Electric window control p. 3-16
10. Rear personal lamps p. 7-79, 10-25, 10-30
11. Roof ventilators (5-door models)* p. 7-02
12. Supplemental restraint system - curtain airbag* p. 4-36
13. Luggage compartment lamp p. 7-80, 10-25, 10-31
14. Seat belts p. 4-21
Adjustable seat belt anchor (front seats) p. 4-23
15. Luggage floor box p. 7-84
16. Cup holder (for third seat)* p. 7-86
17. Head restraints p. 4-12
18. Armrest (for rear/second seat) p. 4-10
Cup holder (for rear/second seat) p. 7-85
19. Supplemental restraint system - side airbag (for front seats)*
p. 4-36
20. Seat p. 4-02
21. Video Entertainment System*
Refer to the separate “Video Entertainment System owner’s man-
ual”
22. Inside rear-view mirror p. 6-07
23. Vanity mirror p. 7-74
24. Sun visors p. 7-74
Interior
1-07
OVWX17E1 Overview
1

Luggage area
E00100401351
3-door models
1
2
3
4
5
6
7
8
9
10
12
11
13
14
15
5-door models
1. Accessory socket p. 7-77
2. Rear shelf* p. 7-86
3. Jack p. 8-07
Jack handle p. 8-07
Tool p. 8-07
4. Luggage hooks p. 7-88
5. Securing bands of warning triangle p. 7-88
6. Securing bolts of spare wheel garnish p. 8-10
7. Rear window washer fluid container p. 10-08
8. Accessory socket p. 7-77
9. Luggage hooks p. 7-88
10. Tool p. 8-07
11. Jack handle p. 8-07
12. Jack p. 8-07
13. Luggage hooks p. 7-88
14. Side box* p. 7-84
15. Cargo area cover* p. 7-86
Luggage area
1-08 OVWX17E1 Overview
1

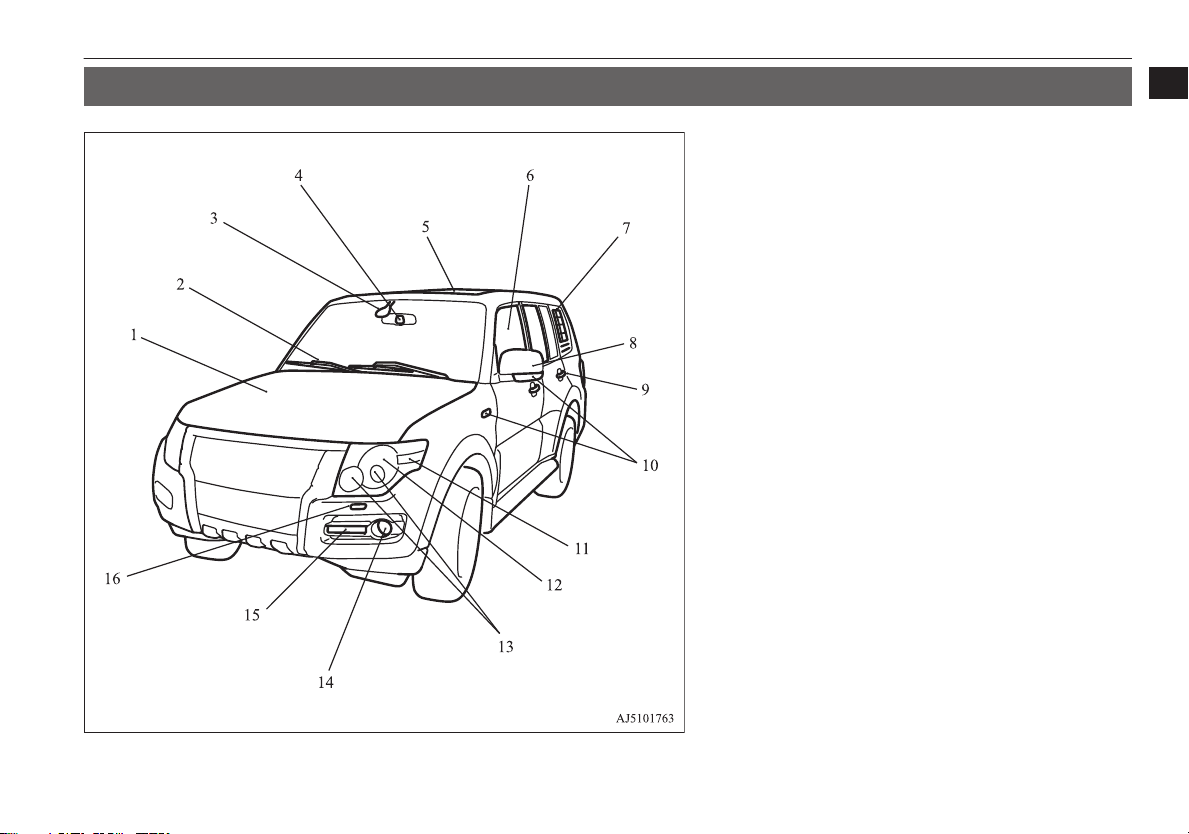

Outside (Front)
E00100507686
1. Engine compartment p. 11-14
Bonnet p. 10-03
2. Windscreen wiper and washer p. 5-44
3. Rain sensor* p. 5-45
4. Camera (for Automatic high-beam system)* p. 5-36
5. Sunroof* p. 3-19
6. Electric window control p. 3-16
7. Rear side/quarter window p. 3-18
Antenna p. 7-50
8. Outside rear-view mirrors p. 6-08
Approach lamps* p. 3-08
9. Locking and unlocking p. 3-06
Keyless entry system* p. 3-04
10. Side turn-signal lamps* p. 5-42, 10-23
11. Front turn-signal lamps p. 5-42, 10-23, 10-26
12. Position lamps* p. 5-34, 10-23, 10-26
13. Headlamps p. 5-34, 10-23, 10-25
14. Front fog lamps* p. 5-43, 10-23, 10-27
15. Position and Daytime running lamps* p. 5-34, 5-35, 10-23
16. Headlamp washer* p. 5-48
Outside (Front)
1-09
OVWX17E1 Overview
1

Outside (Rear)
E00100507224
3-door models 5-door models
1. Rear fog lamp p. 5-43, 10-23, 10-29
2. Rear turn-signal lamps* p. 5-42, 10-23, 10-28
3. Tail lamps* p. 5-34, 10-23, 10-28
4. Licence plate lamps p. 5-34, 10-23, 10-29
5. Spare wheel garnish p. 8-10
6. Rear-view camera* p. 6-56
7. Spare wheel p. 8-10
8. High-mounted stop lamp p. 10-23, 10-29
9. Rear window wiper and washer p. 5-48
10. Antenna* p. 7-50
11. Backdoor p. 3-09
12. Fuel tank filler p. 2-03
13. Tyre inflation pressure p. 10-11
Tyre pressure monitoring system* p. 6-48
Changing tyres p. 8-09
Tyre rotation p. 10-13
Tyre chains p. 10-14
14. Corner and back sensor* p. 6-53
15. Rear turn-signal lamps* p. 5-42, 10-23, 10-28
16. Stop and tail lamps p. 5-34, 10-23, 10-28
Stop lamps* p. 10-23, 10-28
17. Reversing lamps p. 10-23, 10-28
18. Rear turn-signal lamps* p. 5-42, 10-23, 10-28
19. Reversing lamps p. 10-23, 10-28
20. Stop and tail lamps p. 5-34, 10-23, 10-28
Stop lamps* p. 10-23, 10-28
Outside (Rear)
1-10 OVWX17E1 Overview
1

Fuel selection...................................................................................... 2-02
Filling the fuel tank.............................................................................2-03
Installation of accessories................................................................... 2-04
Modification/alterations to the electrical or fuel systems................... 2-05
Genuine parts...................................................................................... 2-05
Used engine oils safety instructions and disposal information...........2-06
Disposal information for used batteries.............................................. 2-06
General information
OVWX17E1
2

Fuel selection
E00200104901
Recom-
mended
fuel
Petrol-powered vehicles
Unleaded petrol octane
number (EN228)
90 RON or higher
If the “PREMIUM FUEL
ONLY” label is attached to
the fuel tank filler door, fill
it up with premium fuel.
Diesel-powered vehicles
Cetane number (EN590)
51 or higher
CAUTION
lFor petrol-powered vehicles, the use of lea-
ded fuel can result in serious damage to the
engine and catalytic converter. Do not use
leaded fuel.
lDiesel-powered vehicles are designed to use
only diesel fuel that meets the EN 590 stand-
ard.
Use of any other type of diesel fuel would
adversely affect the engine’s performance
and durability.
CAUTION
lFor diesel-powered vehicles, if proper “win-
ter” fuel is not used in winter, the diesel pre-
heat indication lamp may blink and the en-
gine speed may not rise above the idling
speed because of fuel freezing. In this case,
keep the engine idling for about ten minutes,
then turn off the ignition switch and immedi-
ately turn it on again to confirm that the die-
sel preheat indication lamp is off. (Refer to
“Diesel preheat indication lamp” on page
5-09.)
NOTE
lIt is advisable to sufficiently warm up the
engine after starting it when the outside tem-
perature is below zero °C.
lDue to the separation of paraffin, the fluidity
of the fuel decreases considerably as the
temperature falls.
Because of this fact there are two kinds of
fuel: “summer” and “winter”.
This must be considered in winter use.
Select either of the two kinds of fuel in ac-
cordance with ambient temperature.
Above -5 °C: “Summer” diesel
Below -5 °C: “Winter” diesel
When travelling abroad, find out in advance
about the fuels served in local service sta-
tions.
NOTE
lIn petrol-powered vehicles, repeatedly driv-
ing short distances at low speeds can cause
deposits to form in the fuel system and en-
gine, resulting in poor starting and poor ac-
celeration.
If these problems occur, you are advised to
add a detergent additive to the gasoline
when you refuel the vehicle. The additive
will remove the deposits, thereby returning
the engine to a normal condition. Be sure to
use a MITSUBISHI MOTORS GENUINE
FUEL SYSTEM CLEANER. Using an un-
suitable additive could make the engine mal-
function. For details, please contact your
MITSUBISHI MOTORS Authorized Serv-
ice Point.
lPoor quality petrol can cause problems such
as difficult starting, stalling, engine noise
and hesitation. If you experience these prob-
lems, try another brand and/or grade of pet-
rol.
If the check engine warning lamp flashes,
have the system checked as soon as possible
at a MITSUBISHI MOTORS Authorized
Service Point.
Fuel selection
2-02 OVWX17E1 General information
2

NOTE
lIn diesel-powered vehicles, poor-quality die-
sel fuel can cause deposits form in the injec-
tor, resulting in black smoke and rough
idling.
If these problems occur, you are advised to
add a cleaning additive to the diesel fuel
when you refuel the vehicle.
The additive will break up and remove the
deposits, thereby returning the engine to a
normal condition.
Be sure to use a MITSUBISHI MOTORS
GENUINE DIESEL FUEL SYSTEM
CLEANER. Using an unsuitable additive
could make the engine malfunction. For de-
tails, please contact your MITSUBISHI
MOTORS Authorized Service Point.
E10 type petrol
E00203200019
The petrol engines are compatible with E10
type petrol (containing 10 % ethanol) con-
forming to European standards EN 228.
CAUTION
lDo not use more than 10 % concentration of
ethanol (grain alcohol) by volume.
Use of more than 10 % concentration may
lead to damage to your vehicle fuel system,
engine, engine sensors and exhaust system.
Filling the fuel tank
E00200204087
WARNING
lWhen handling fuel, comply with the safe-
ty regulations displayed by garages and
filling stations.
lBefore removing the fuel tank filler tube
cap, be sure to get rid of your body’s stat-
ic electricity by touching a metal part of
the car or fuel pump. Any static electricity
on your body could create a spark that ig-
nites fuel vapour.
lPerform the whole refueling process
(opening the fuel tank filler door, remov-
ing the fuel tank filler tube cap, etc.) by
yourself. Do not let any other person come
near the fuel tank filler. If you allowed a
person to help you and that person was
carrying static electricity, fuel vapour
could be ignited.
lDo not move away from the fuel tank fill-
er door until refueling is finished. If you
moved away and did something else (for
example, cleaning your windscreen) part-
way through the refueling process, you
could pick up a fresh charge of static elec-
tricity.
lIf the fuel tank filler tube cap must be re-
placed, use only a MITSUBISHI
MOTORS genuine part.
Fuel tank capacity
3-door models: 69 litres
5-door models: 88 litres
Refueling
1. Before filling with fuel, stop the engine.
2. The fuel tank filler is located on the rear
right side of your vehicle.
Open the fuel tank filler door with the
release lever located below the instru-
ment panel.

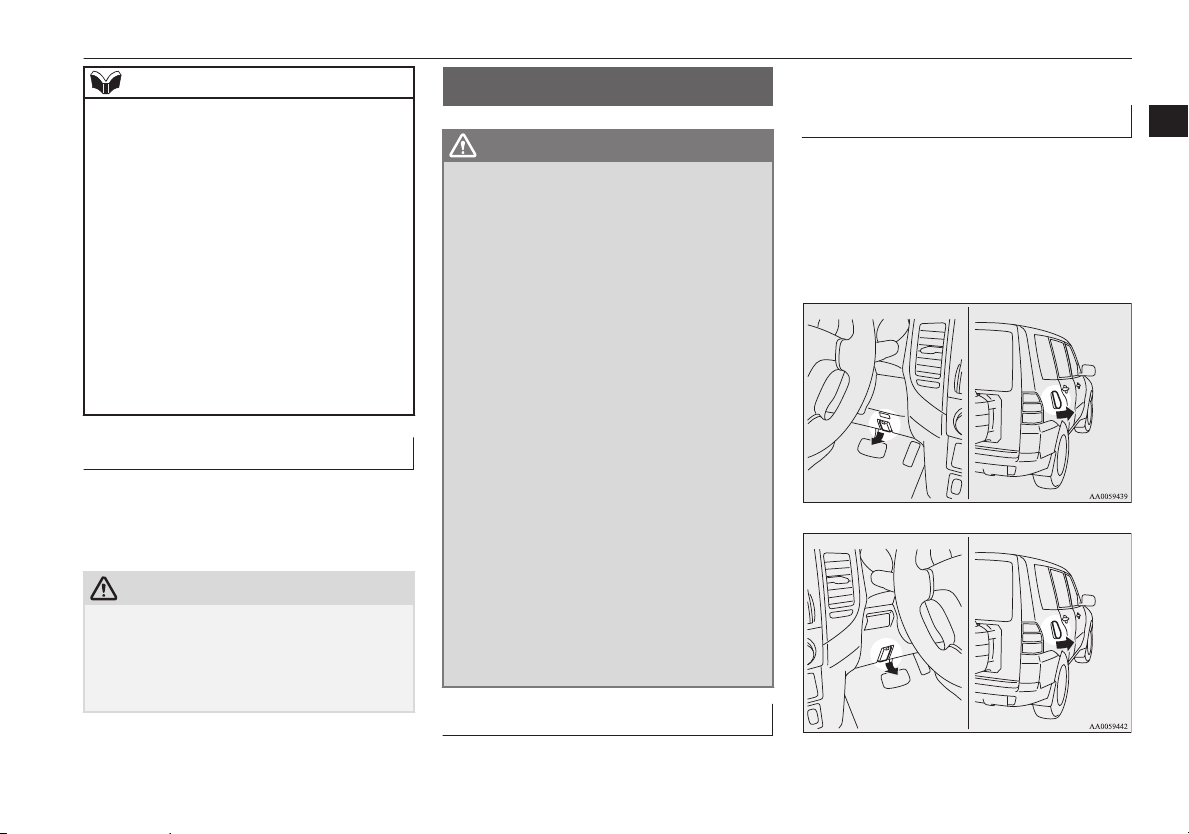

LHD
RHD
Filling the fuel tank
2-03
OVWX17E1 General information
2

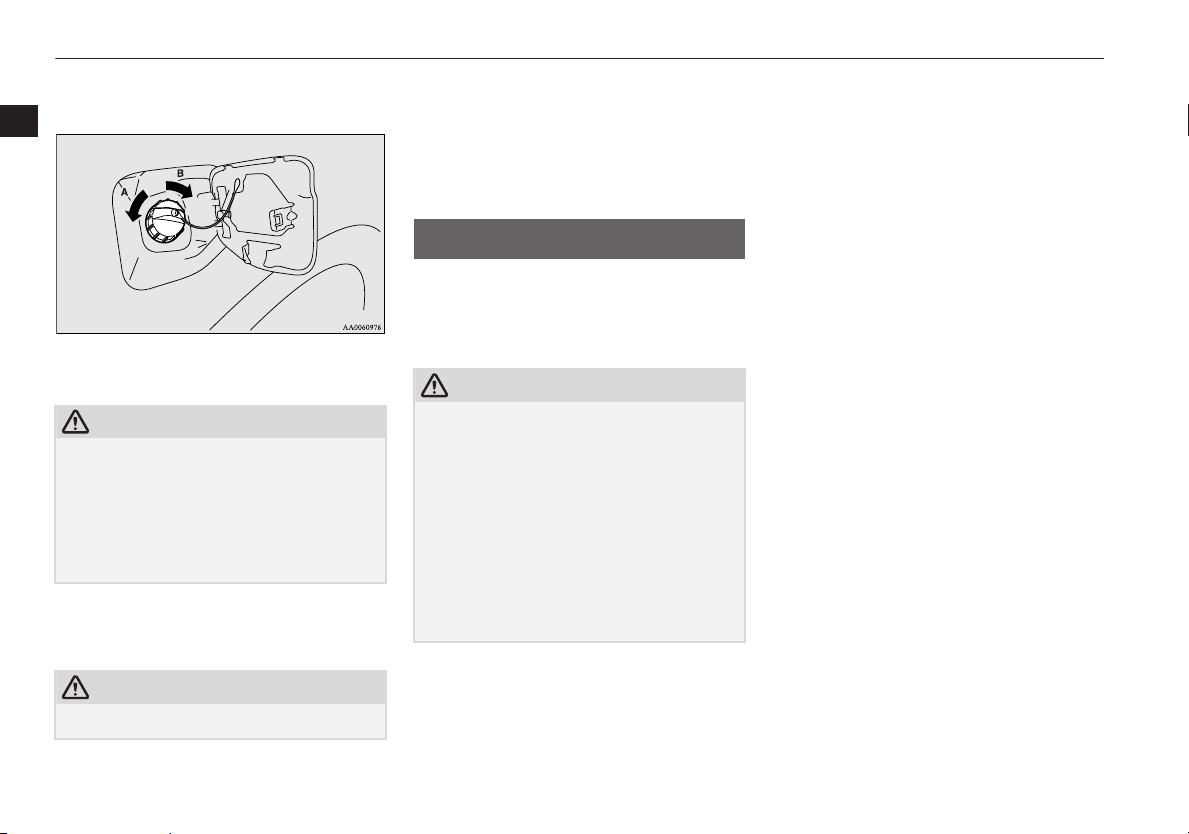

3. Open the fuel tank filler tube by slowly
turning the cap anticlockwise.
A- Remove
B- Close
CAUTION
lSince the fuel system may be under pressure,
remove the fuel tank filler tube cap slowly.
This relieves any pressure or vacuum that
might have built up in the fuel tank. If you
hear a hissing sound, wait until it stops be-
fore removing the cap. Otherwise, fuel may
spray out, injuring you or others.
4. Insert the gun in the tank port as far as it
goes.
CAUTION
lDo not tilt the gun.
5. When the gun stops automatically, do
not fill with fuel any more.
6. To close, turn the fuel tank filler tube
cap slowly clockwise until you hear
clicking sounds, then gently push the
fuel tank filler door closed.
Installation of accessories
E00200302345
We recommend you to consult your
MITSUBISHI MOTORS Authorized Service
Point.
CAUTION
lYour vehicle is equipped with a diagnosis
connector for checking and servicing the
electronic control system.
Do not connect a device other than a diagno-
sis tool for inspections and service to this
connector. Otherwise, the battery could be
discharged, the electronic devices of the ve-
hicle could malfunction, or other unexpected
problems could result.
In addition, malfunctions caused by connect-
ing a device other than a diagnosis tool may
not be covered under warranty.
lThe installation of accessories, optional
parts, should only be carried out within
the limits prescribed by law in your
country, and in accordance with the
guidelines fitting instructions and warn-
ings contained within the documents ac-
companying the parts or accessories.
lImproper installation of electrical com-
ponents may cause an electrical fire if
incorrectly fitted. Please refer to the
Modification/alteration to the electrical
or fuel systems section within this own-
er’s manual.
lWhen installing the radio, for the re-
quired information (frequency, transmis-
sion output, installing procedure), con-
sult a MITSUBISHI MOTORS Author-
ized Service Point.
If the frequency, transmission output and
installing condition are not appropriate,
it can adversely affect the electronic de-
vices and could lead to unsafe vehicle
operation.
lUsing a cellular phone or radio set inside
the vehicle without an external antenna
may cause electrical system interference,
which could lead to unsafe vehicle oper-
ation.
lTyres and wheels which do not meet
specifications must not be used.
Refer to the “Specifications” section for
information regarding wheel and tyre
sizes.
Installation of accessories
2-04 OVWX17E1 General information
2

lWhen fitting accessories, ensure that
maximum gross vehicle weight and
maximum axle weight are not exceeded.
Important points!
Due to large number of accessory and re-
placement parts of different manufactures
available in the market, it is not possible, not
only for MITSUBISHI MOTORS, but also
for a MITSUBISHI MOTORS Authorized
Service Point, to check whether the attach-
ment or installation of such parts affects the
overall safety of your MITSUBISHI-vehicle.
Even when such parts are officially author-
ized, for example by a “general operators
permit” (an appraisal for the part) or through
the execution of the part in an officially ap-
proved manner of construction, or when a
single operation permit following the attach-
ment or installation of such parts, it cannot be
deduced from that alone, that the driving
safety of your vehicles has not been affected.
Consider also that there basically exists no li-
ability on the part of the appraiser or the offi-
cial. Only in the case of parts (MITSUBISHI
MOTORS original replacement or exchange
parts as well as MITSUBISHI MOTORS
genuine accessories) that are recommended
and released by a MITSUBISHI MOTORS
Authorized Service Point and that are attach-
ed or installed by a MITSUBISHI MOTORS
Authorized Service Point can you assume,
that optimal safety has been provided. The
same also pertains to modifications of
MITSUBISHI vehicles with respect to the
production specifications. For your own safe-
ty, in such cases, you should only undertake
modifications according to the recommenda-
tions of a MITSUBISHI MOTORS Author-
ized Service Point.
Modification/alterations to
the electrical or fuel systems
E00200400254
MITSUBISHI MOTORS has always manu-
factured safe, high quality vehicles. In order
to maintain this safety and quality, it is im-
portant that any accessory that is to be fitted,
or any modifications carried out which in-
volve the electrical or fuel systems, should be
carried out in accordance with MITSUBISHI
MOTORS guidelines.
CAUTION
lIf the wiring interferes with any part of the
vehicle bodywork or improper installation
methods are used, i.e. protective fuses not
installed, etc.), electronic devices may be ad-
versely affected, possibly resulting in an
electrical fire or other failures that may
cause an accident.
Genuine parts
E00200500617
MITSUBISHI MOTORS has gone to great
lengths to bring you a superbly crafted auto-
mobile offering the highest quality and de-
pendability.
Use MITSUBISHI MOTORS genuine parts,
designed and manufactured to maintain your
MITSUBISHI MOTORS automobile at top
performance. MITSUBISHI MOTORS genu-
ine parts are identified by this mark and are
available at all MITSUBISHI MOTORS Au-
thorized Service Points.
Modification/alterations to the electrical or fuel systems
2-05
OVWX17E1 General information
2

Used engine oils safety
instructions and disposal
information
E00200600025
WARNING
lProlonged and repeated contact may
cause serious skin disorders, including
dermatitis and cancer.
lAvoid contact with the skin as far as pos-
sible and wash thoroughly after any con-
tact.
lKeep used engine oils out of reach of chil-
dren.
Protect the environment
It is illegal to pollute drains, water courses
and soil. Use authorized waste collection fa-
cilities, including civic amenity sites and ga-
rages providing facilities for disposal of used
oil and used oil filters. If in doubt, contact
your local authority for advice on disposal.
Disposal information for
used batteries
E00201300016
Your vehicle contains batter-
ies and/or accumulators.
Do not mix with general
household waste.
For proper treatment, recov-
ery and recycling of used bat-
teries, please take them to ap-
plicable collection points, in
accordance with your nation-
al legislation and the Direc-
tives 2006/66/EC.
By disposing of these batter-
ies correctly, you will help to
save valuable resources and
prevent any potential nega-
tive effects on human health
and the environment which
could otherwise arise from
inappropriate waste handling.
Used engine oils safety instructions and disposal information
2-06 OVWX17E1 General information
2

Keys.................................................................................................... 3-02
Electronic immobilizer (Anti-theft starting system)........................... 3-03
Keyless entry system*.........................................................................3-04
Doors...................................................................................................3-06
Central door locks............................................................................... 3-07
“Child-protection” rear doors (5-door models)...................................3-08
Approach lamps*................................................................................ 3-08
Backdoor............................................................................................. 3-09
Security alarm system*....................................................................... 3-11
Electric window control......................................................................3-16
Rear side/quarter window................................................................... 3-18
Sunroof*..............................................................................................3-19
Locking and unlocking
OVWX17E1
3

Keys
E00300103631
The key fits all locks.
Type 1
Type 2
WARNING
lWhen taking a key on flights, do not press
any switches on the key while on the
plane. If a switch is pressed on the plane,
the key emits electromagnetic waves,
which could adversely affect the plane’s
flight operation.
When carrying a key in a bag, be careful
that no switches on the key can be easily
pressed by mistake.
NOTE
lThe key number is stamped on the tag as in-
dicated in the illustration.
Make a record of the key number and store
the key and key number tag in separate pla-
ces, so that you can order a key in the event
the original keys are lost.
lThe key is a precision electronic device with
a built-in signal transmitter. Please observe
the following in order to prevent damage.
•Do not leave where it may be exposed to
heat caused by direct sunlight, such as on
top of the dashboard.
•Do not take the remote control transmitter
apart.
•Do not excessively bend the key or sub-
ject it to strong impacts.
•Keep the remote control transmitter dry.
•Keep away from magnetic objects such as
key rings.
•Keep away from devices that produce
magnetism, such as audio systems, com-
puters and televisions.
NOTE
•Do not clean with ultrasonic cleaners.
•Do not leave the key where it may be ex-
posed to high temperature or high humidi-
ty.
lThe engine is designed so that it will not
start if the ID code registered in the immo-
bilizer computer and the key’s ID code do
not match. Refer to the section entitled
“Electronic immobilizer” section for details
and key usage.
To use and carry the key (Type
2)
When using the key, press the button (A) on
the body.
When carrying the key, fold the key while
pressing the button.
Keys
3-02 OVWX17E1 Locking and unlocking
3
